Audio-Technica ATW-1426 Digital Wireless Microphone Receiver+(2) Boundary Mics

Description:

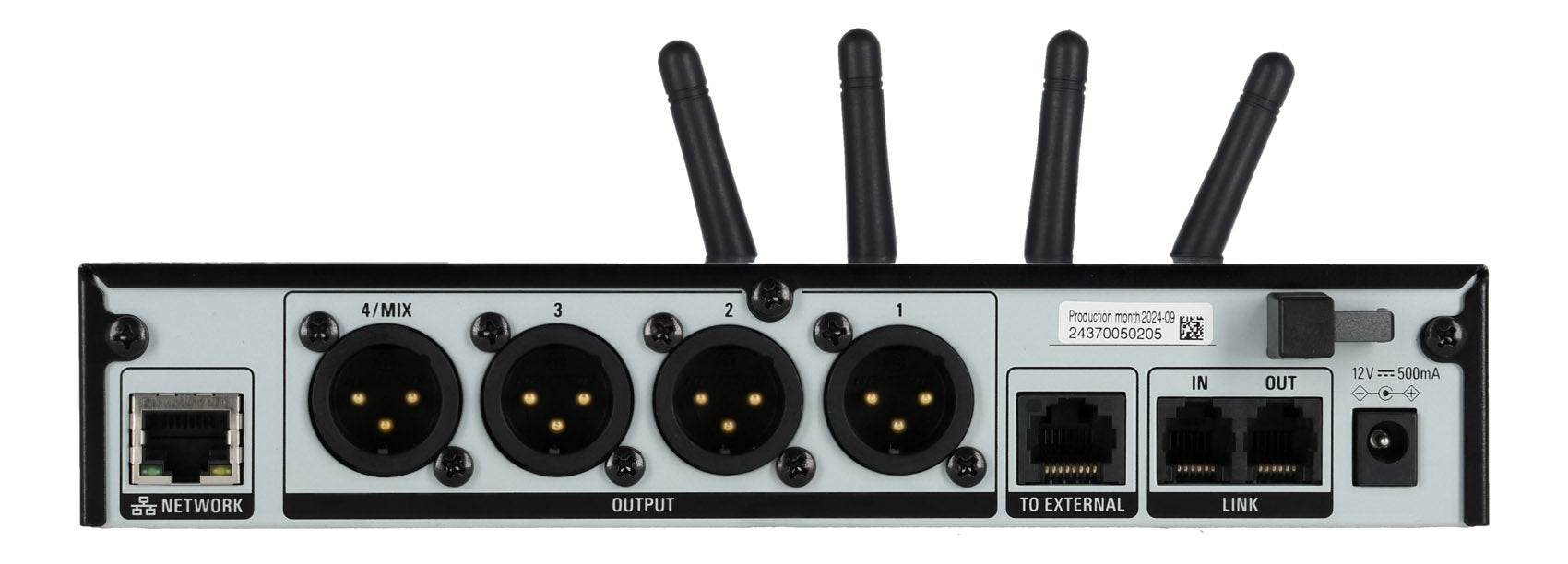

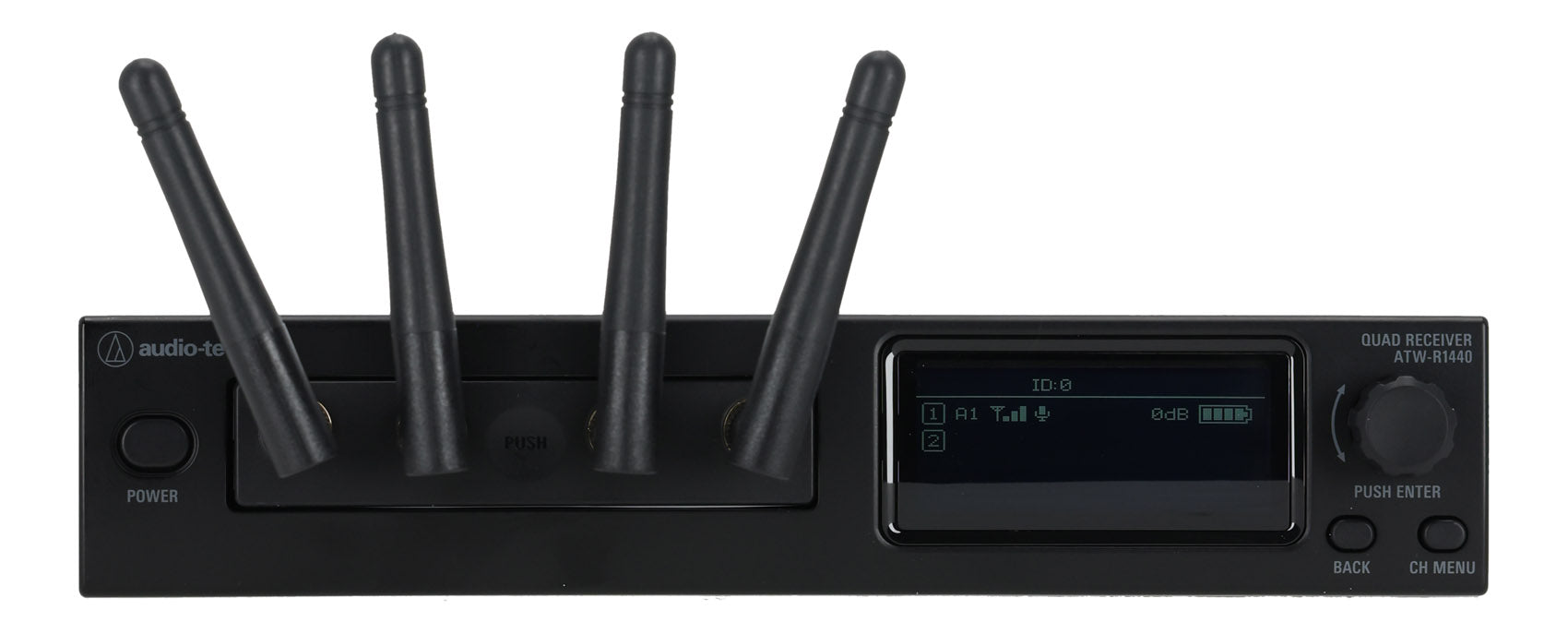

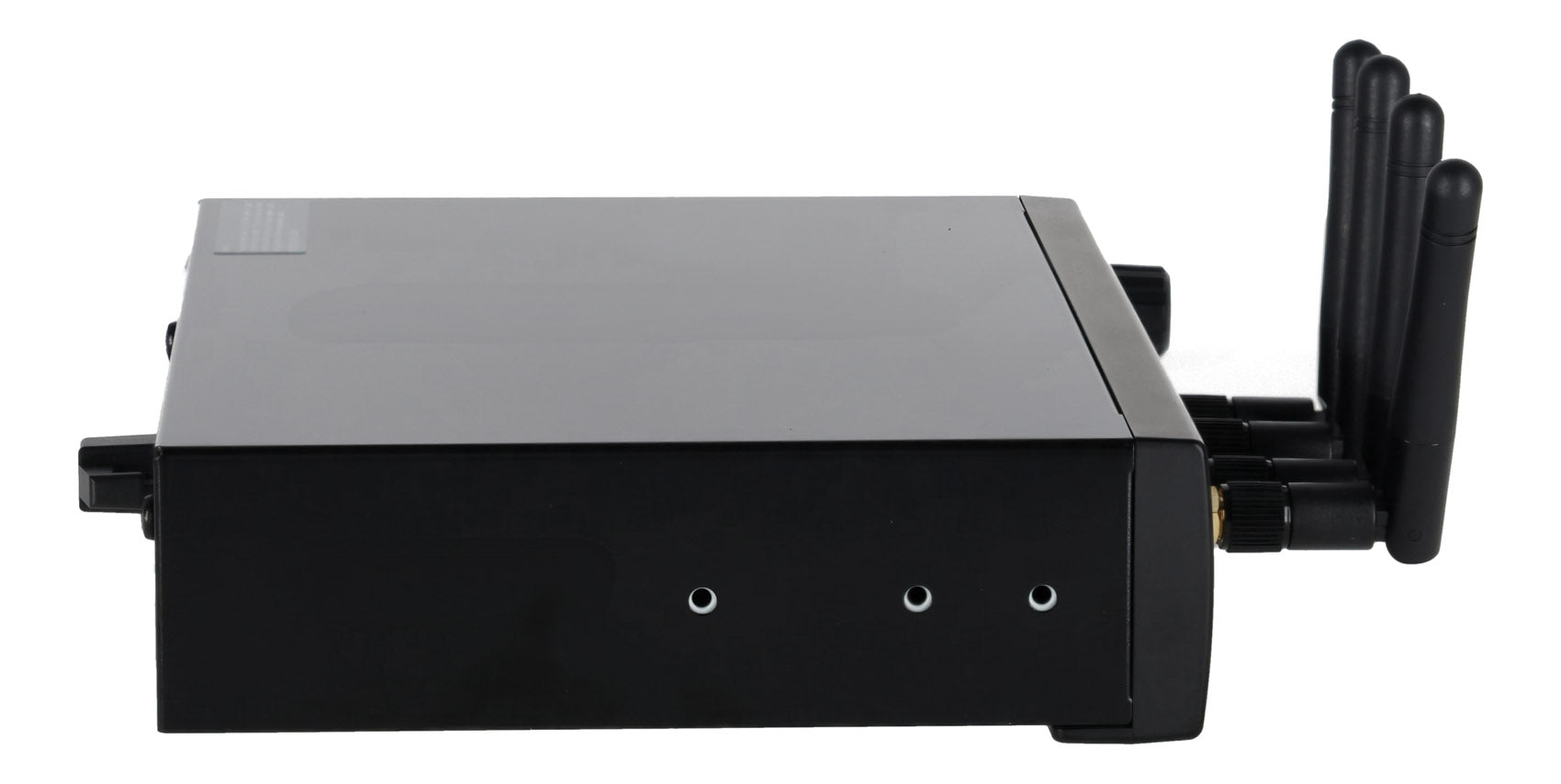

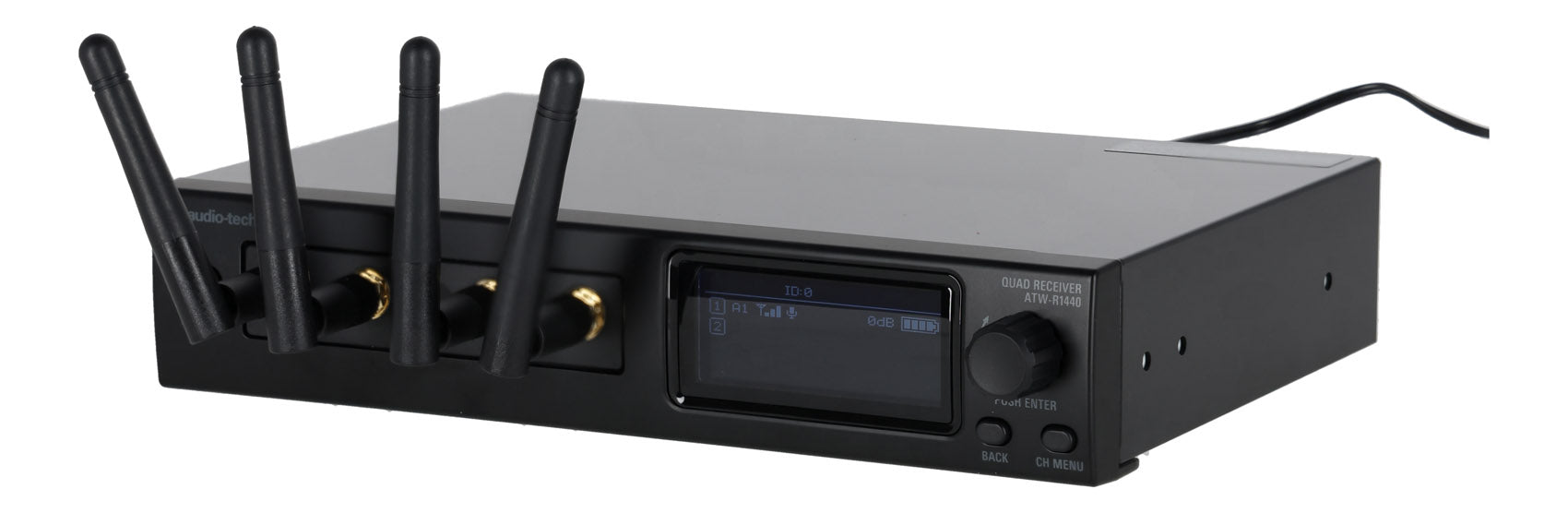

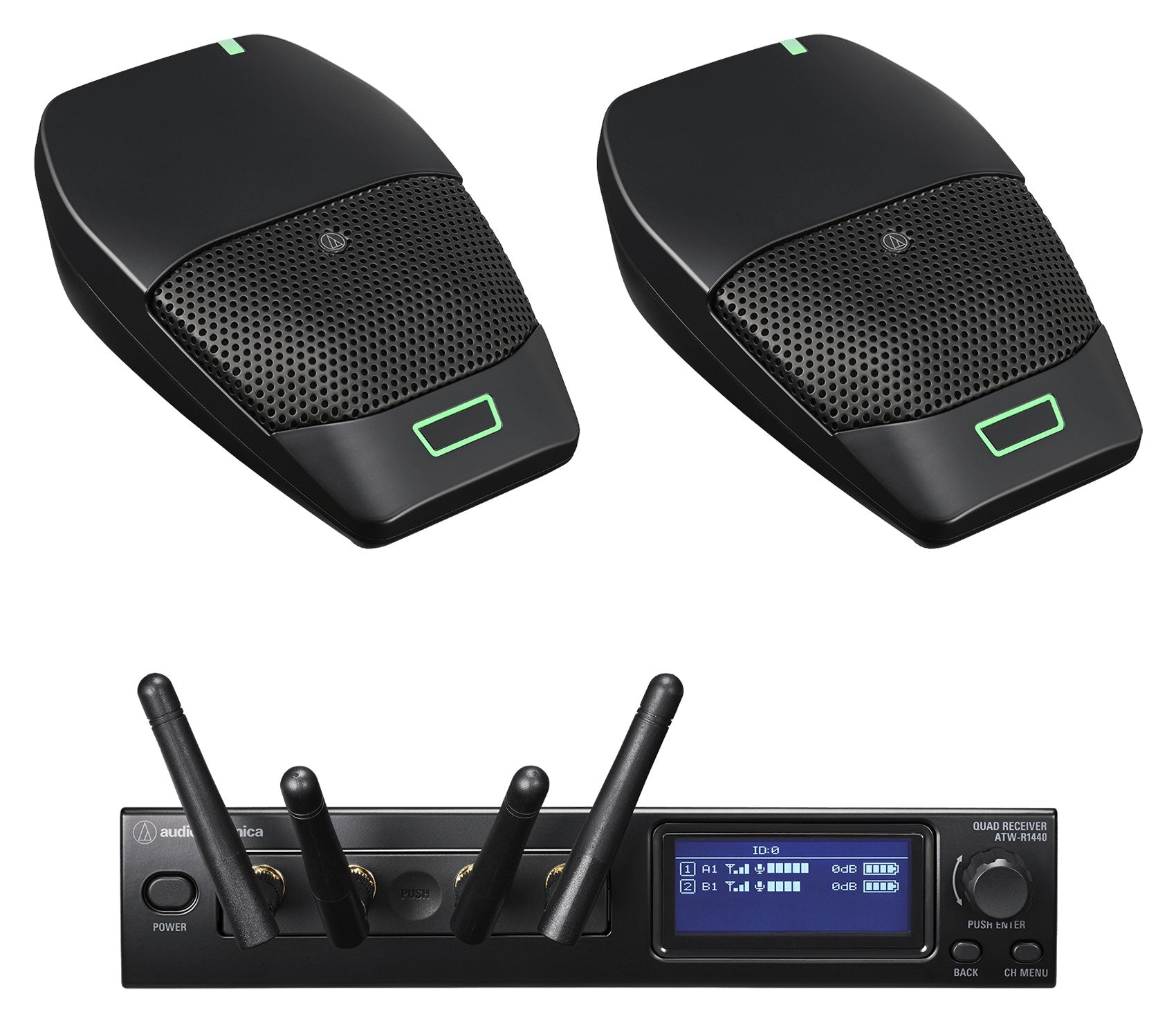

System 20 Digital Wireless System includes one ATW-R1440 4-channel receiver and two ATW-T1406 boundary microphone transmitters.

Features:

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
• User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
• Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
• Up to five chassis can be linked and used simultaneously
• Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
• Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
• Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
• Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
• Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
• AES128 encryption for security
• Compatible with Syslog protocol
• Ability to configure, monitor, and save device settings as projects in Wireless Manager
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
• Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
• Supports mixed output for situations with limited input channels

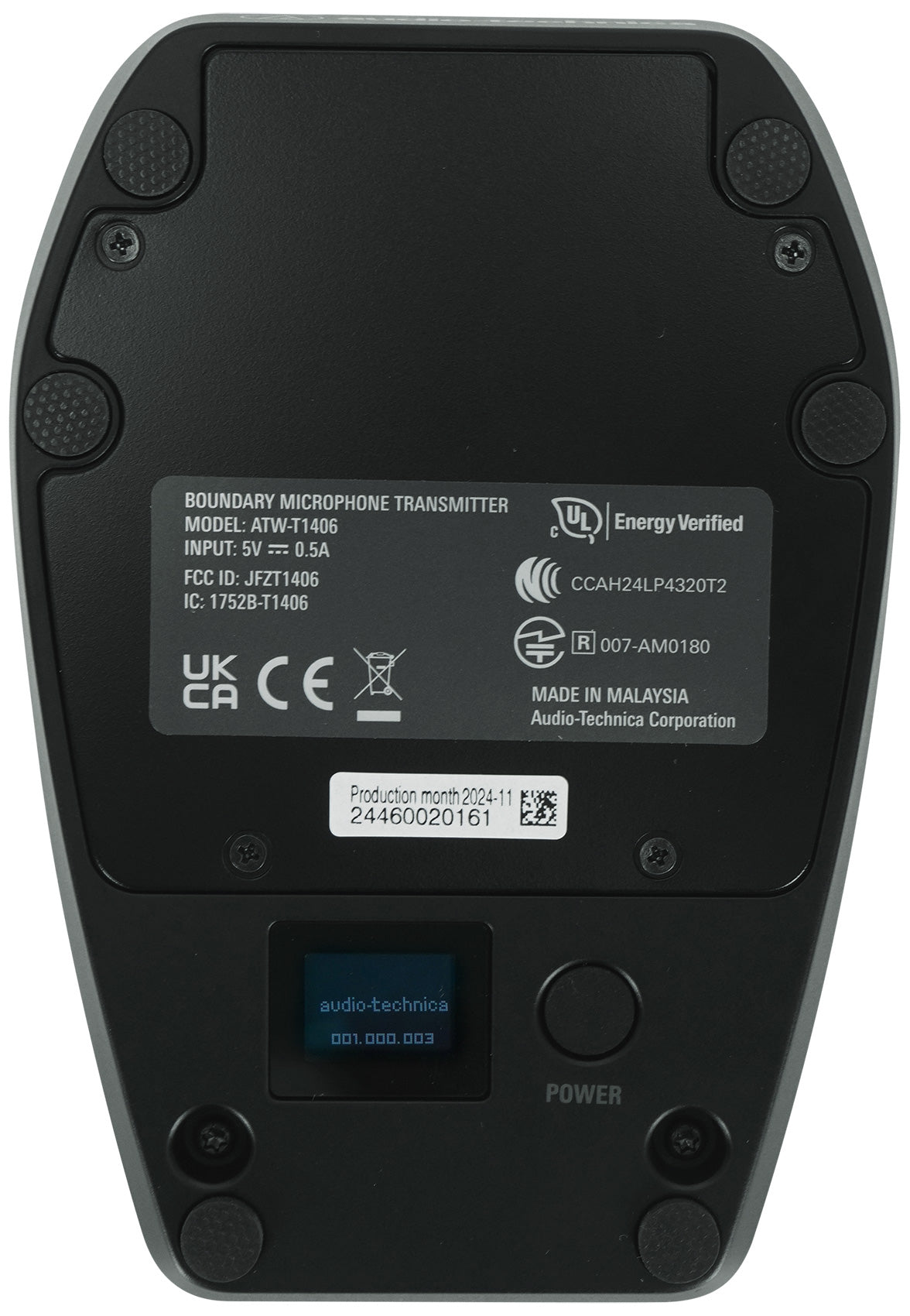

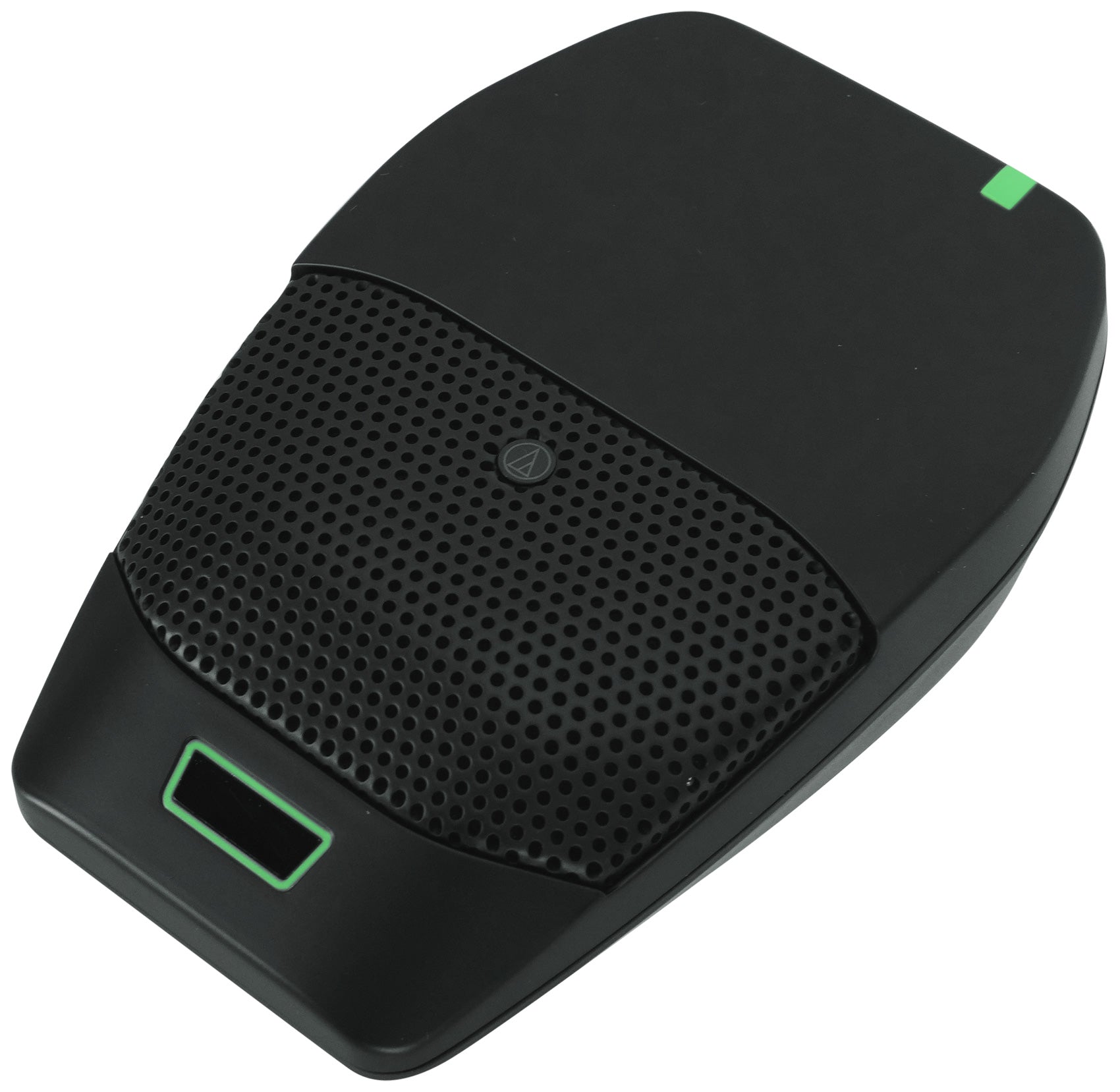

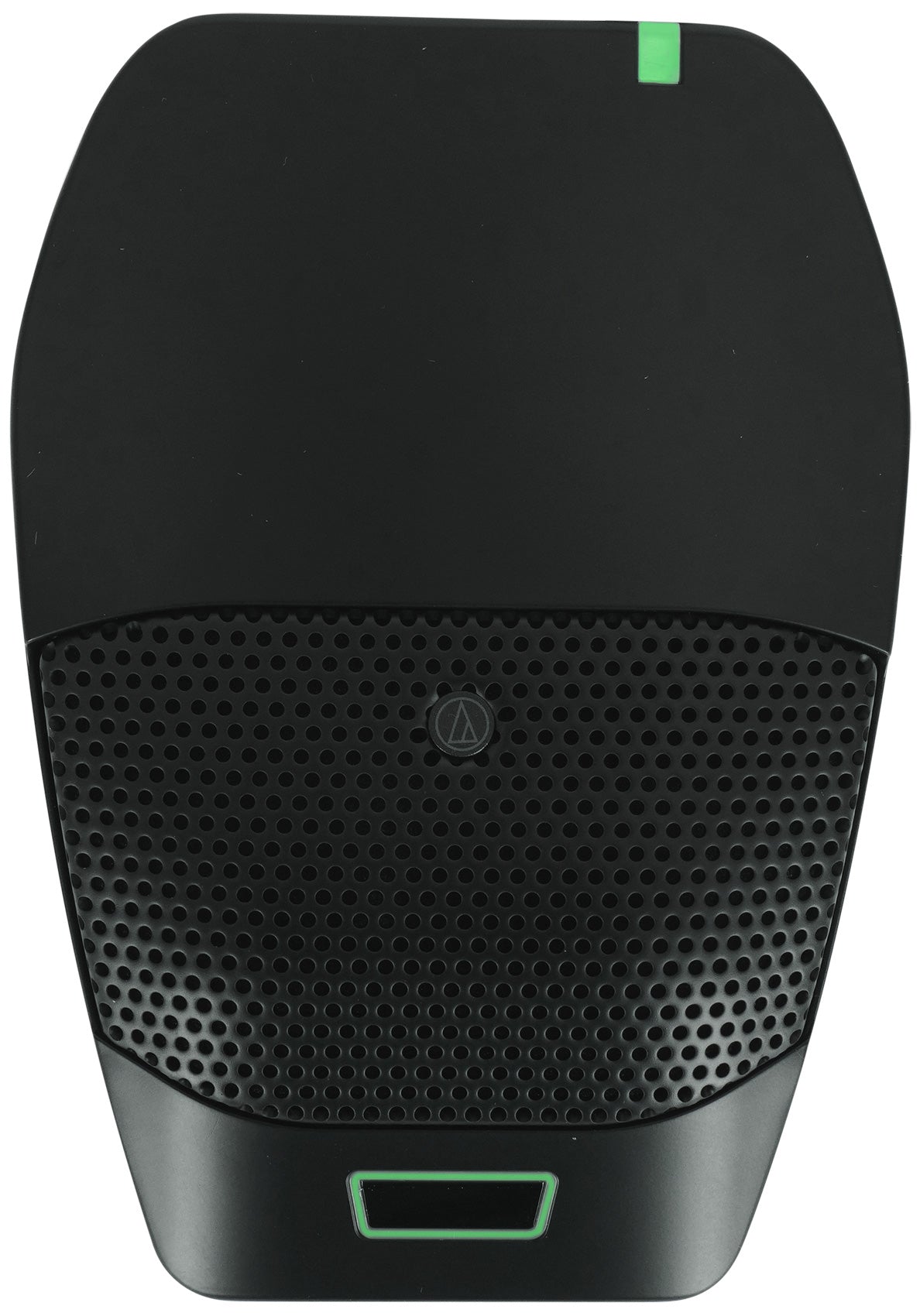

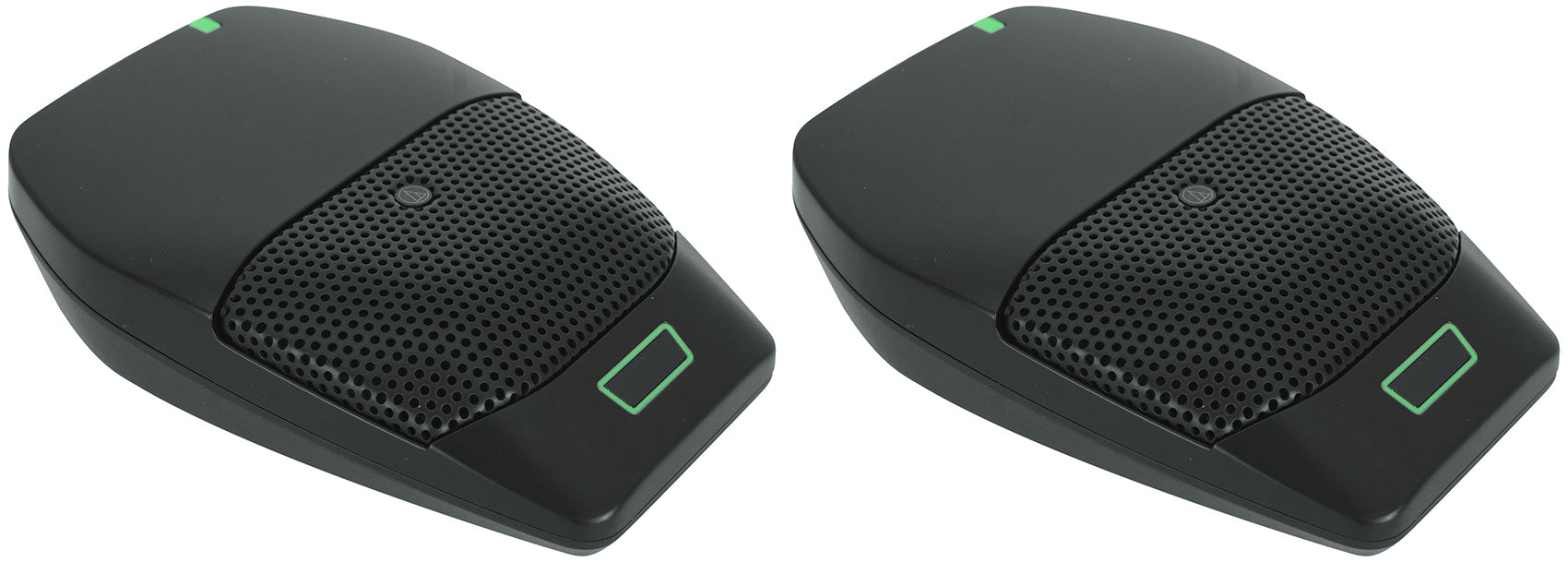

ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER:

• Modulation Mode: GFSK
• RF Output Power: 10mW EIRP
• RF Sensitivity: -90 dBm, typical
• Antenna: True diversity
• Maximum Input Sound Pressure Level: 139 dB SPL
• Microphone Type: Condenser
• Microphone Polar Pattern: Cardioid
• Built-in Battery: 3.7V lithium-ion battery (5.5Wh, 1460mAh)
• Battery Life: Approx. 12 hours
• Charging Time: Approx. 3 hours and 10 minutes
• USB Charging Port: USB Type-C (USB 2.0)
• Operating Temperature Range: 5ºC to +40ºC  (41°F to 104°F)
• Dimensions: 90.5 mm (3.6") × 129.4 mm (5.1") × 31.9 mm (1.3") (W × D × H)
• Weight (with battery): 510 g (18 oz), including battery

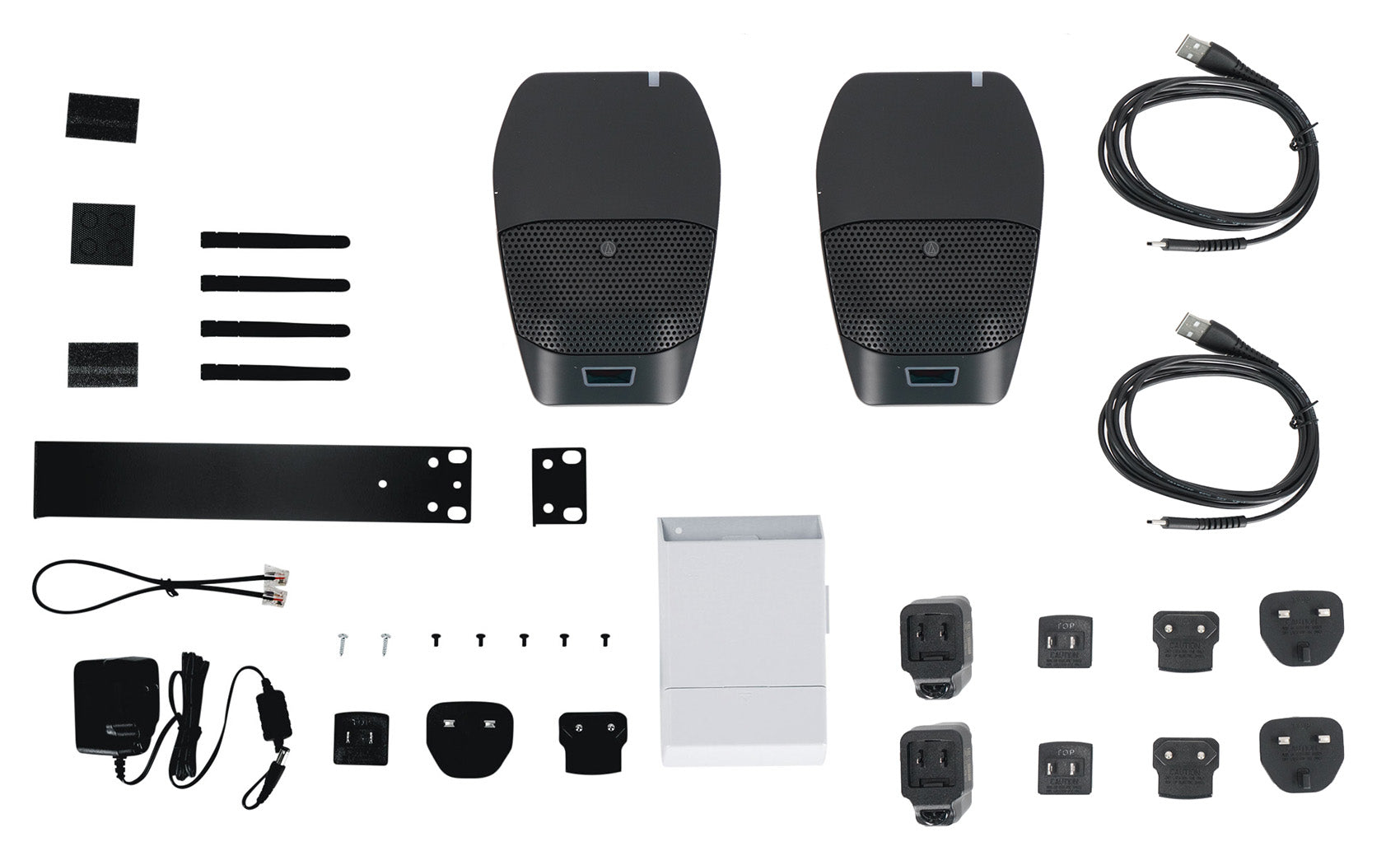

• Included Accessories: USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9'])
