Audio-Technica ATW-2129CS Wireless System - Receiver, Transmitter & Lavalier Mic

Description:

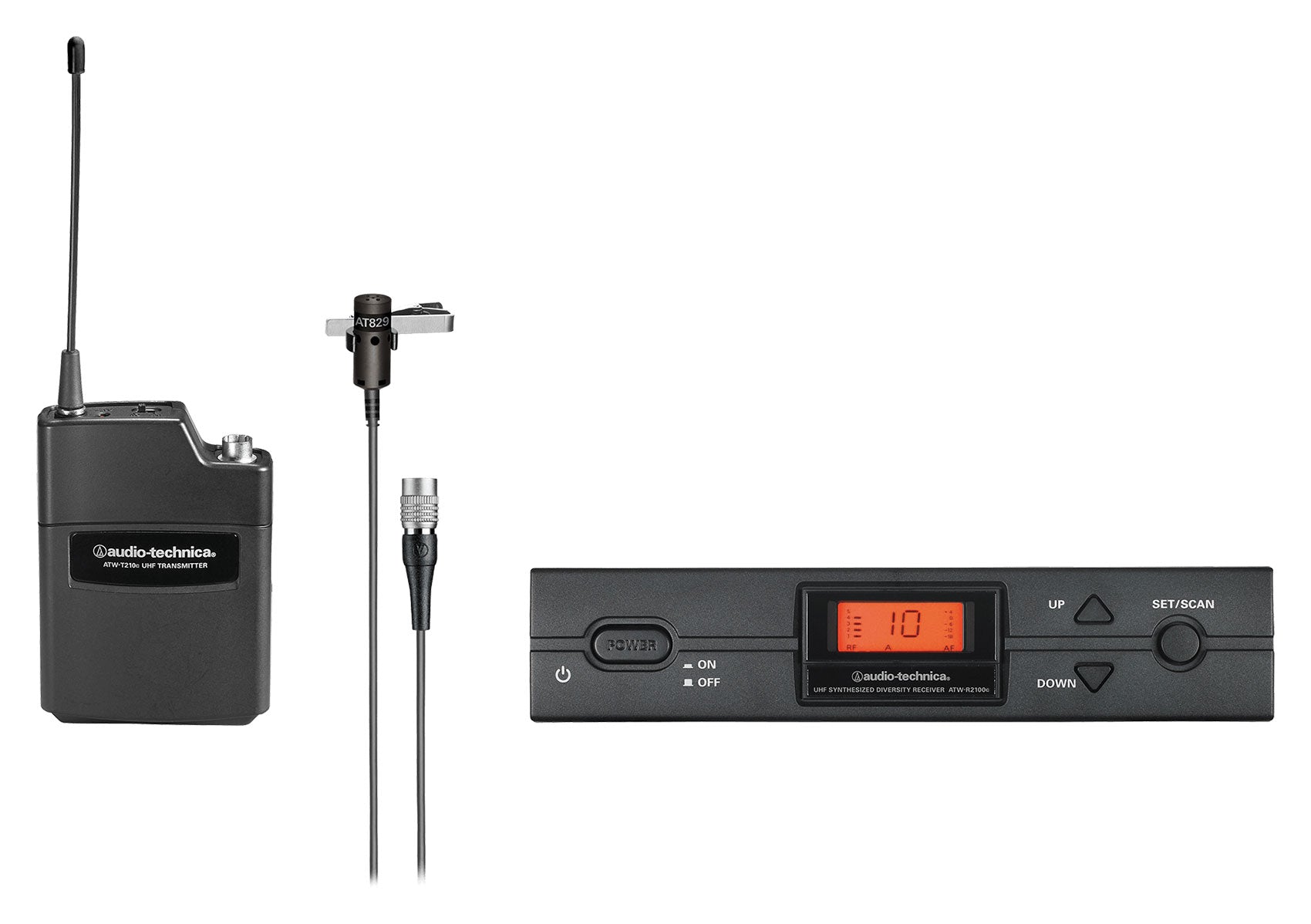

ATW-R2100c receiver and ATW-T210c body-pack transmitter with AT829cW lavalier microphone.

Specifications:

Operating Frequencies:

• UHF Band D: 656.125 to 678.500 MHz DISCONTINUED IN NORTH AMERICA
• Band I : 487.125 to 506.500 MHz
• Band S : 508.125 - 526.825 MHz
• Modulation Mode: FM
• Maximum Deviation: ±40 kHz
• Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
• Operating Range: 100 m (300'), typical
• Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)
• Operating Temperature Range:
• 5º C to 45º C
• 41º F to 113º F
• Number Of Channels: 10 total

Handheld Transmitter:

• RF Power Output: High: 30 mW; Low: 10 mW (switchable), at 50 ohms
• Spurious Emissions: Following federal and national regulations
• Microphone Element: Dynamic cardioid
• Battery Type:
• Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
• Recharging power for NiMH batteries (with ATW-CHG2)
• U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
• Other world areas: 3.2 V DC, 320 mA x2

Battery Life:

• High: 7 hours (alkaline)
• Low: 9 hours (alkaline)
• Dimensions: 232.0 mm (9.13") long, 48.0 mm (1.89") diameter
• Net Weight: 252 g (8.9 oz), without batteries
• Accessories Included: AT8456a Quiet-Flex™ stand clamp

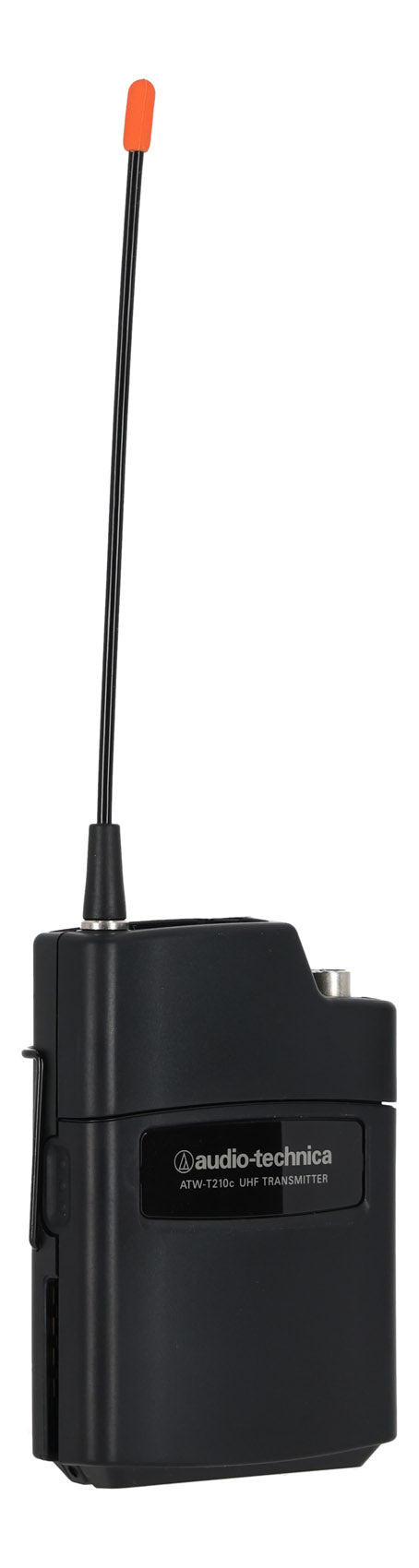

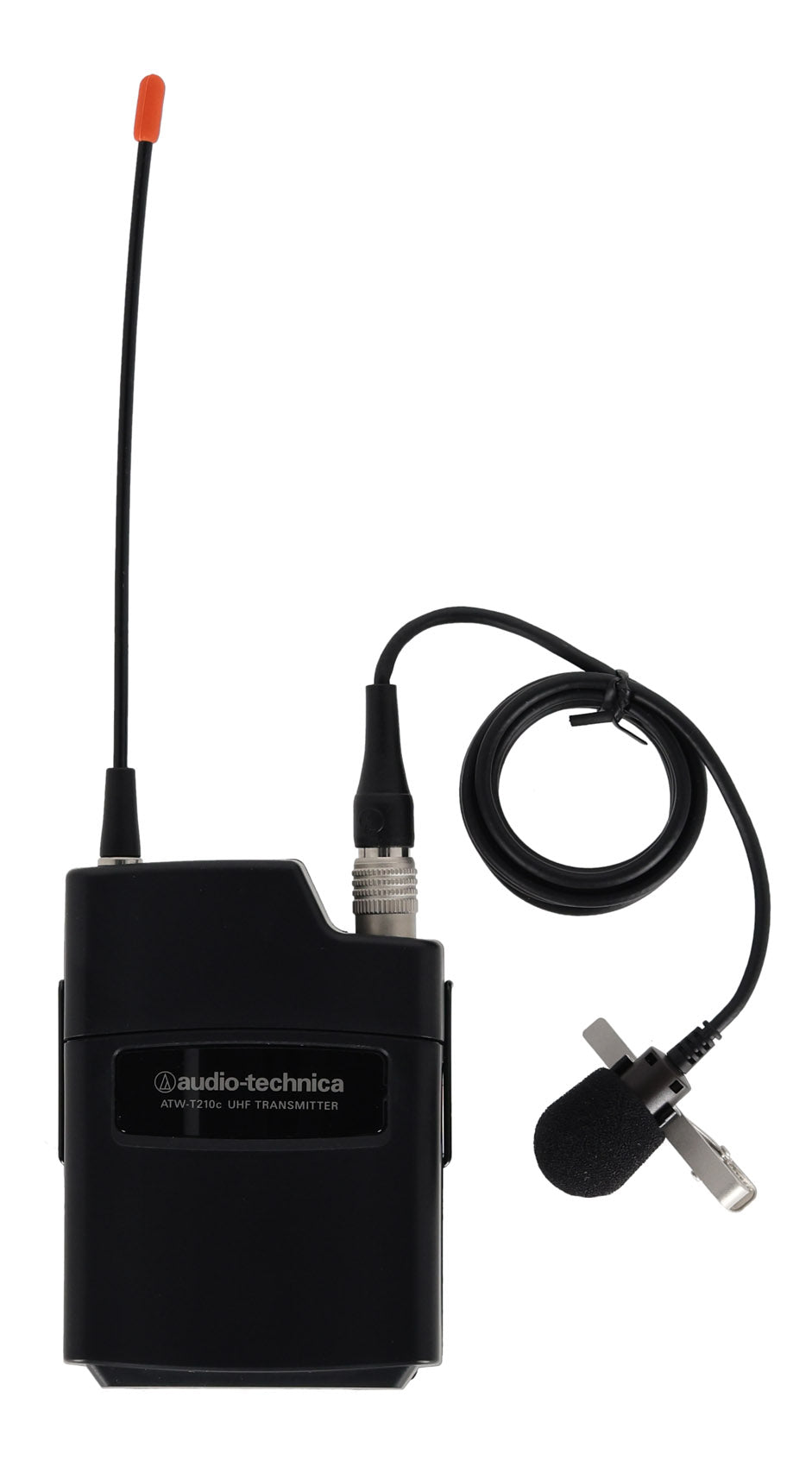

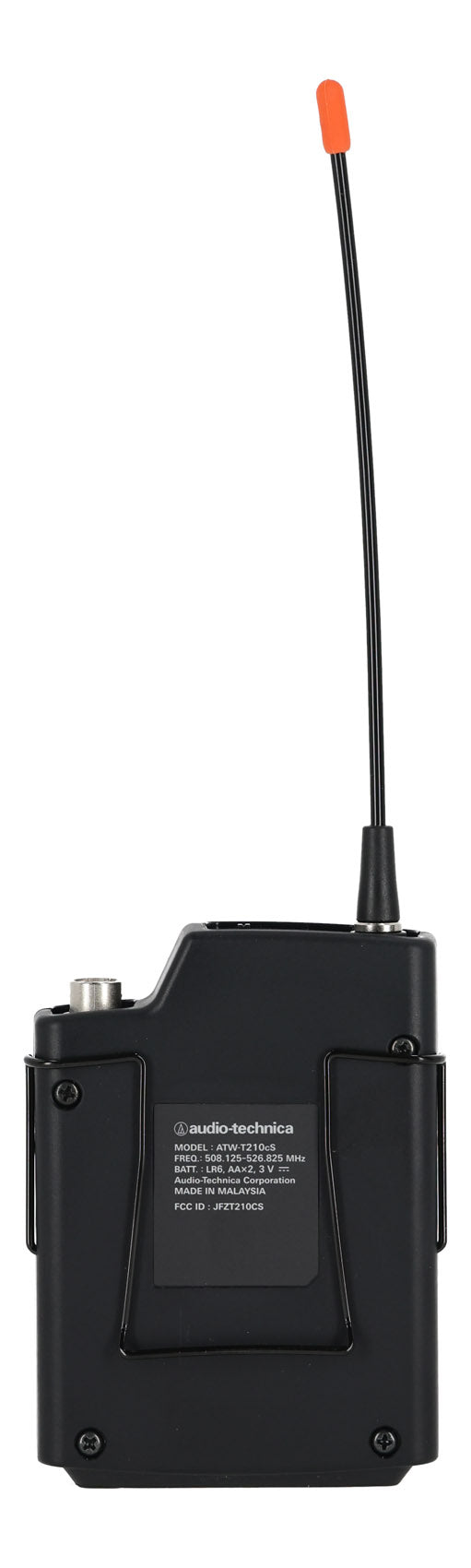

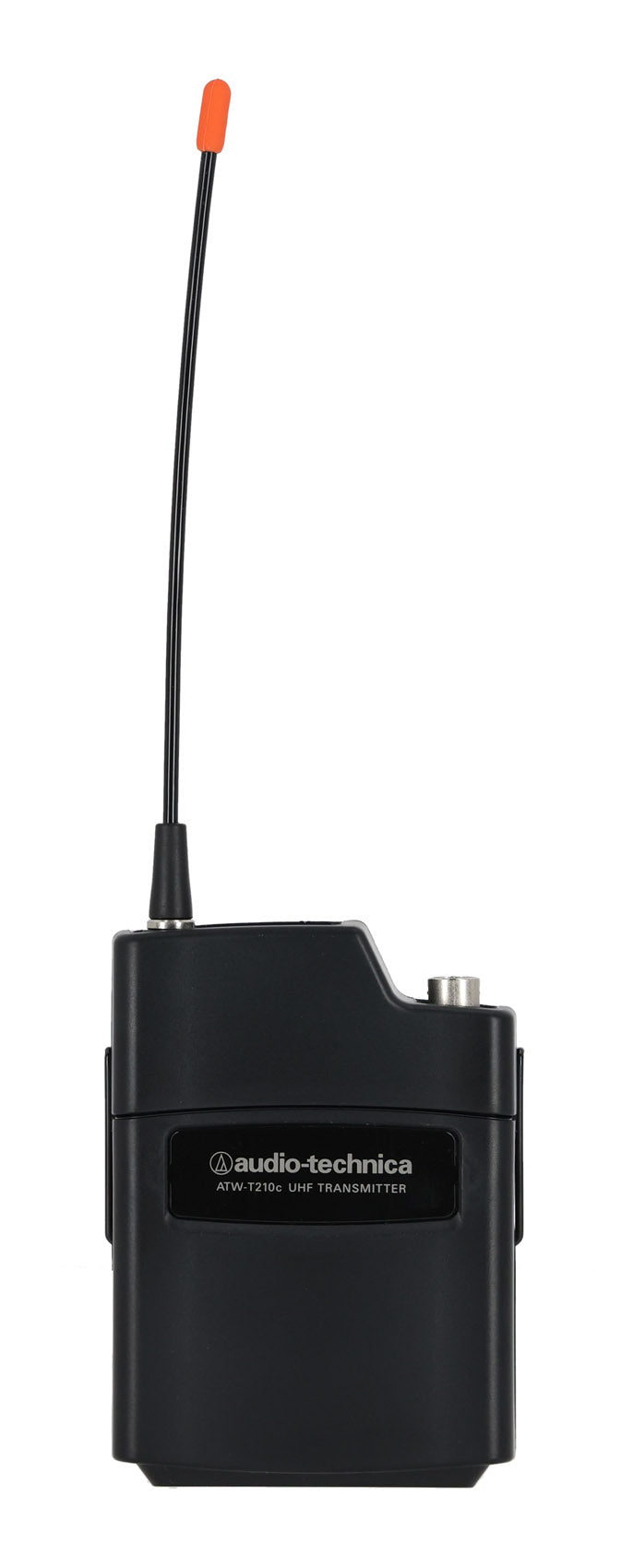

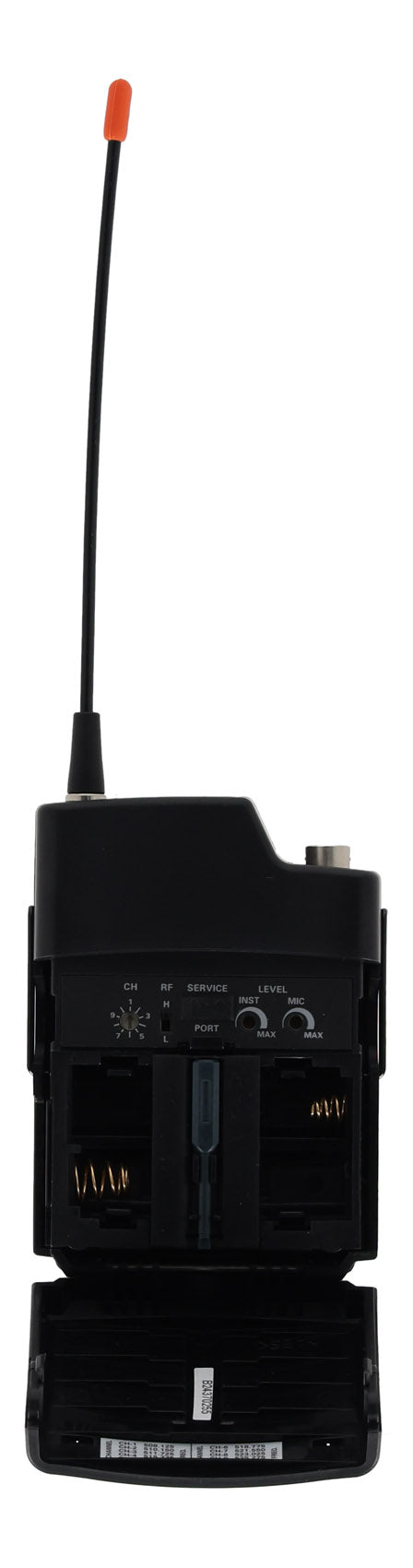

Body Pack:

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
• Battery Life:
• High: 7 hours (alkaline)
• Low: 9 hours (alkaline)

Battery Type:

• Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
• Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2
• Dimensions:
• 66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H

Input Connections:

• Four-pin Locking Connector
• Pin 1: GND
• Pin 2: INST INPUT
• Pin 3: MIC INPUT
• Pin 4: DC BIAS +9V
• Net Weight: 81 g (2.9 oz), without batteries
• Spurious Emissions: Following federal and national regulations

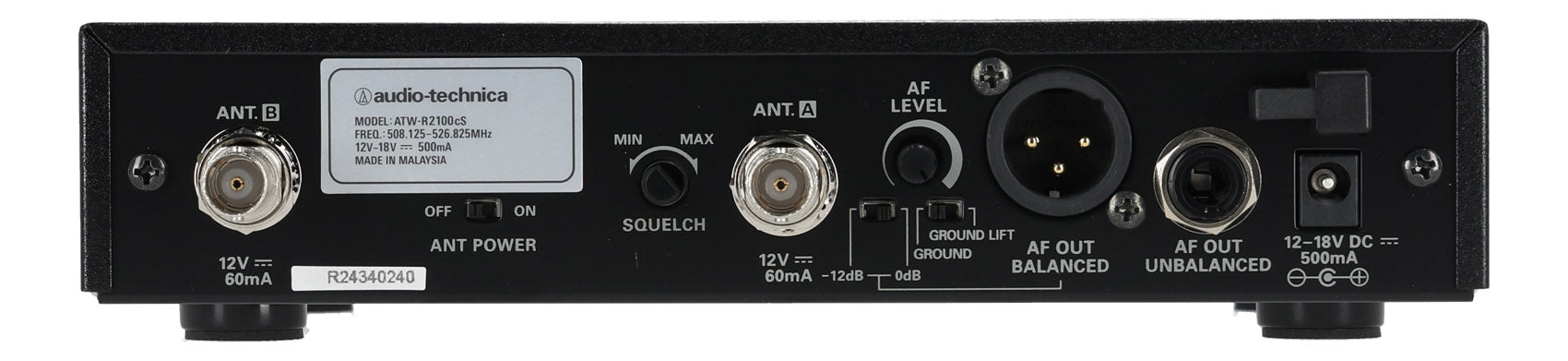

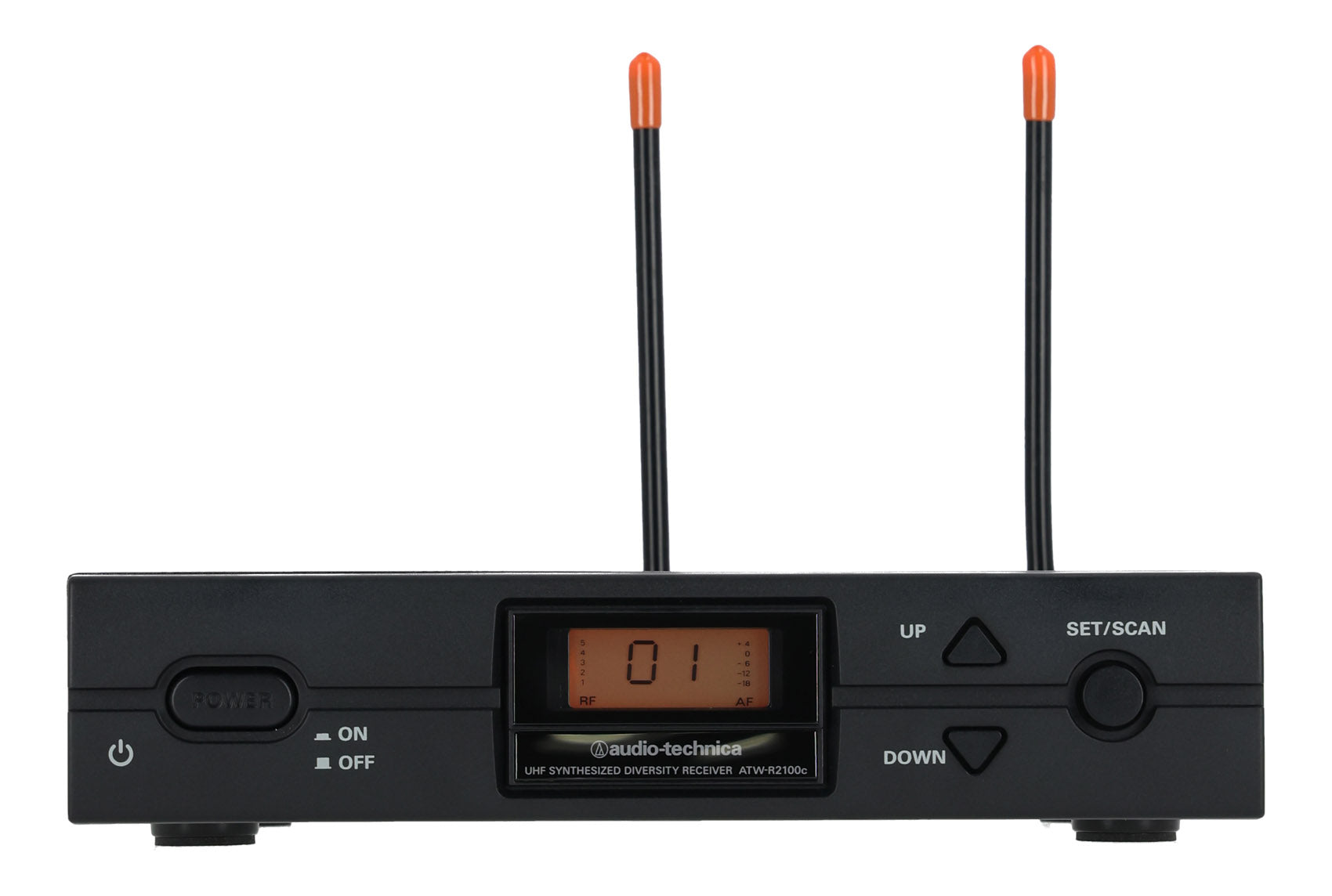

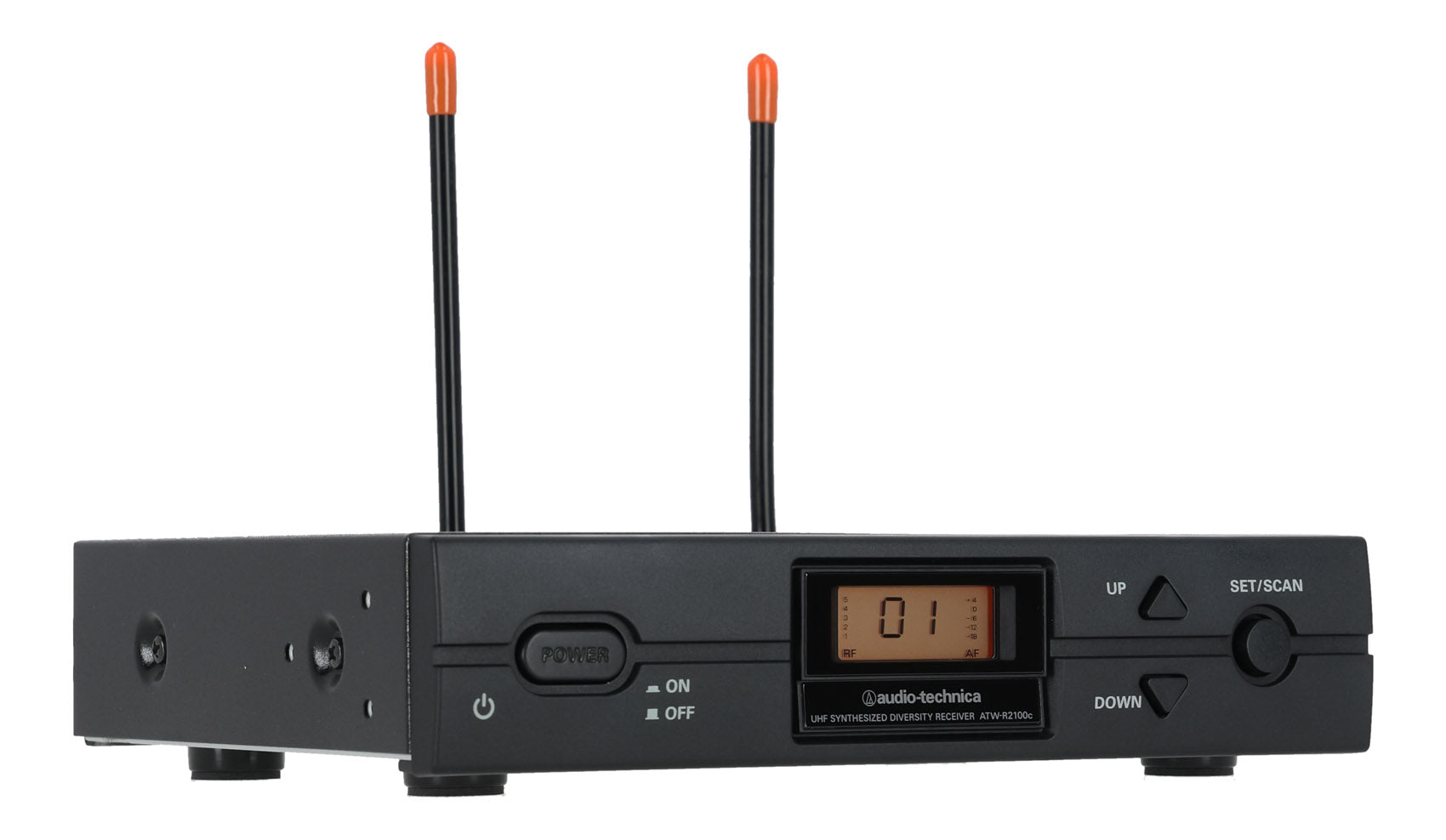

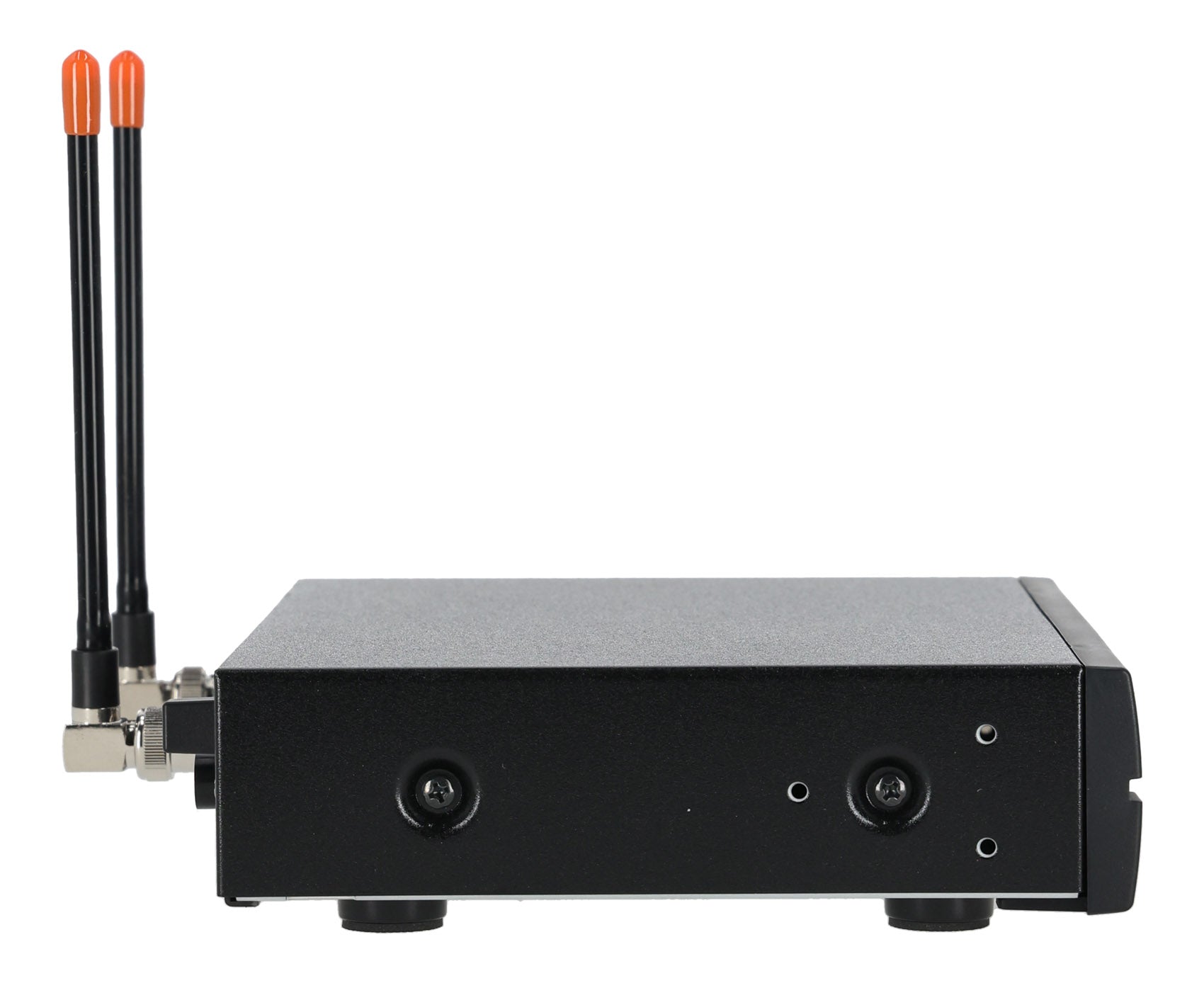

Receiver:

• Receiving System: True diversity
• Image Rejection: 60 dB nominal, 55 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Maximum Output Level: XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
• Antenna Input: BNC-type, 50 ohms, Bias voltage 12V DC, 60 mA, each
• Power Requirements: 12-18V DC, 500 mA
• Dimensions: 210.0 mm (8.27") W x162.2 mm (6.39") D x44.0 mm (1.73") H,br>Not including BNC connectors or feet.
• Weight: 1.0 kg (35.3 oz), without accessories

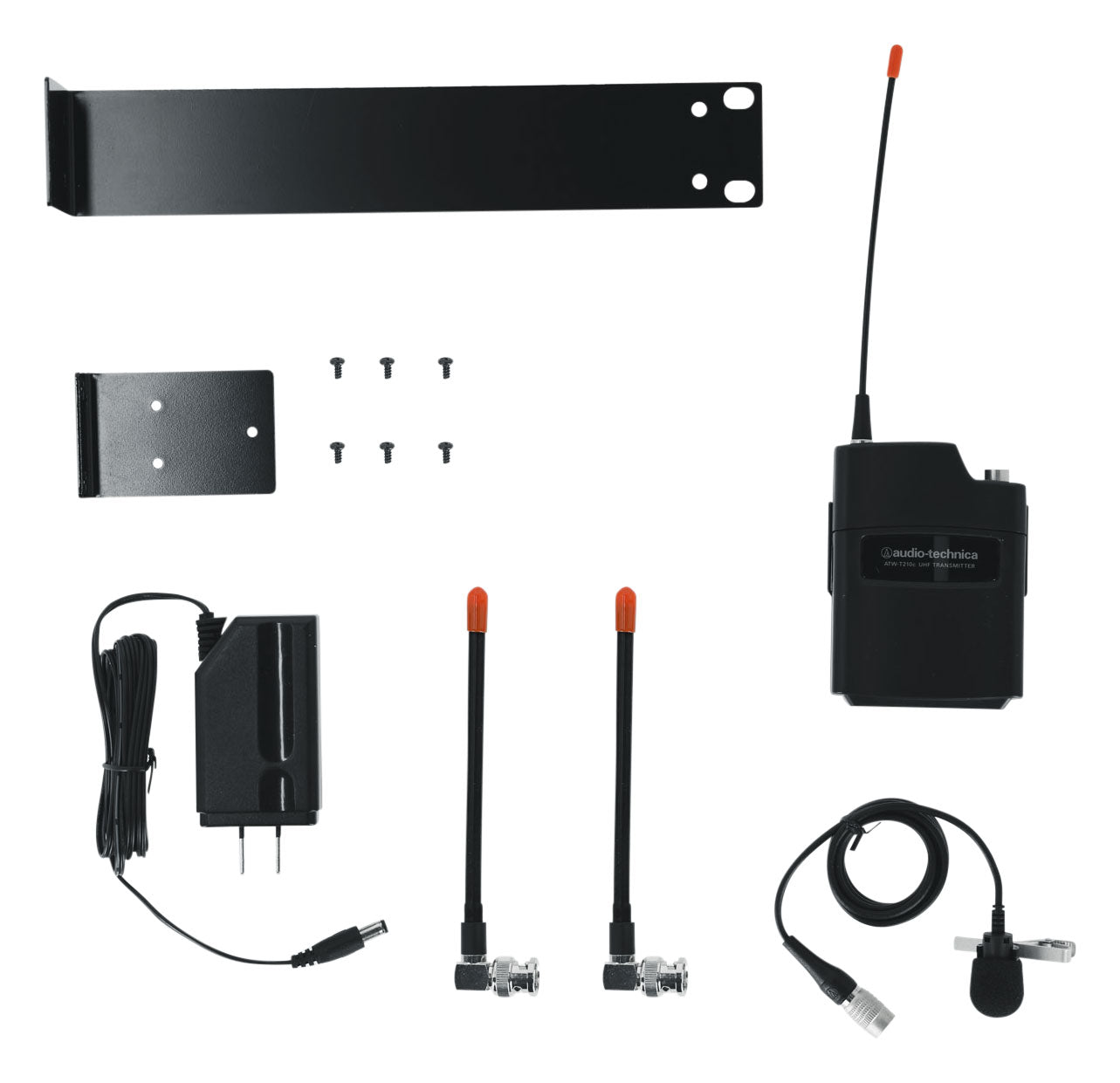

• Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters
• Audio Output Attenuator (ATTN): Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
