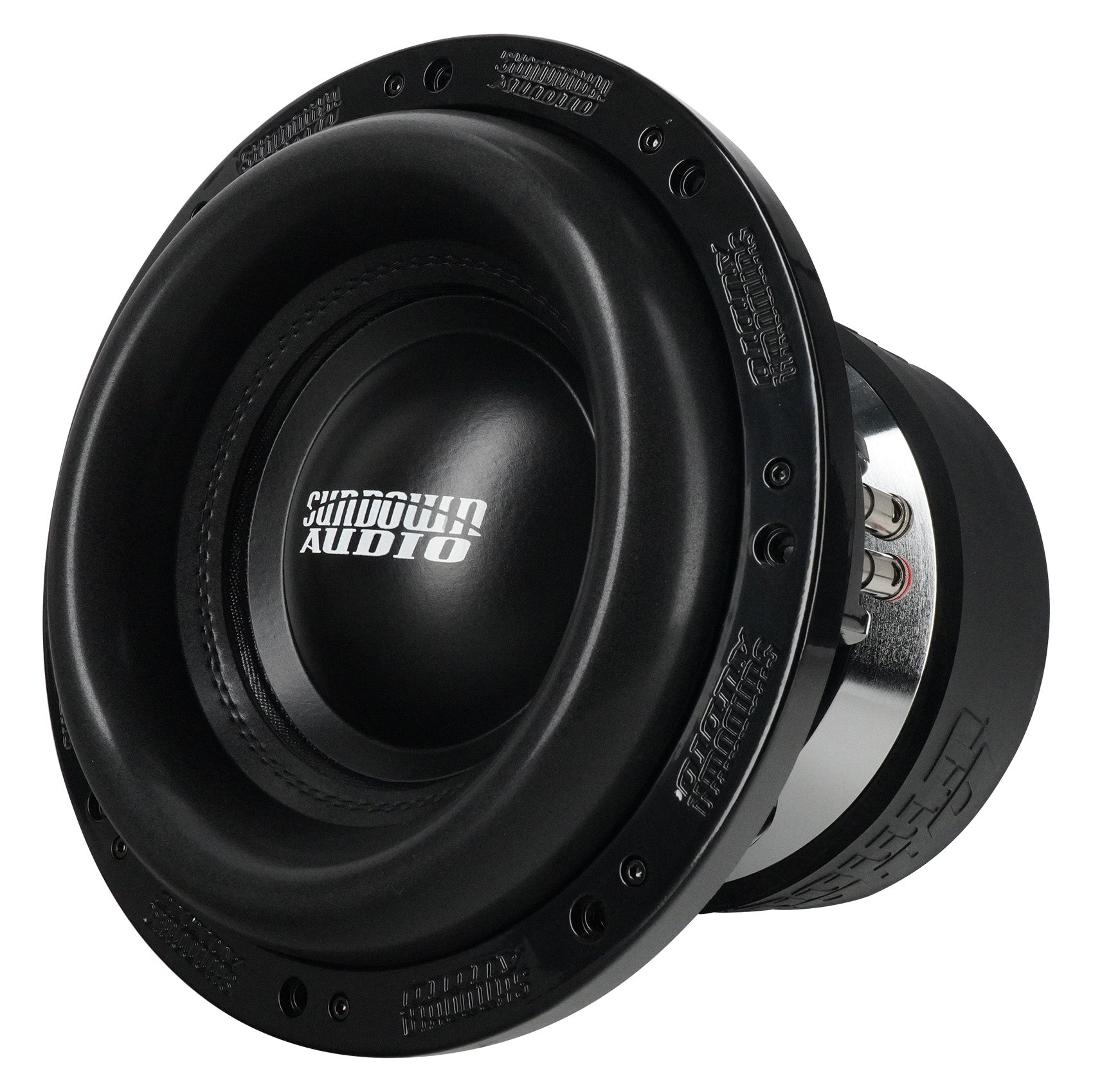

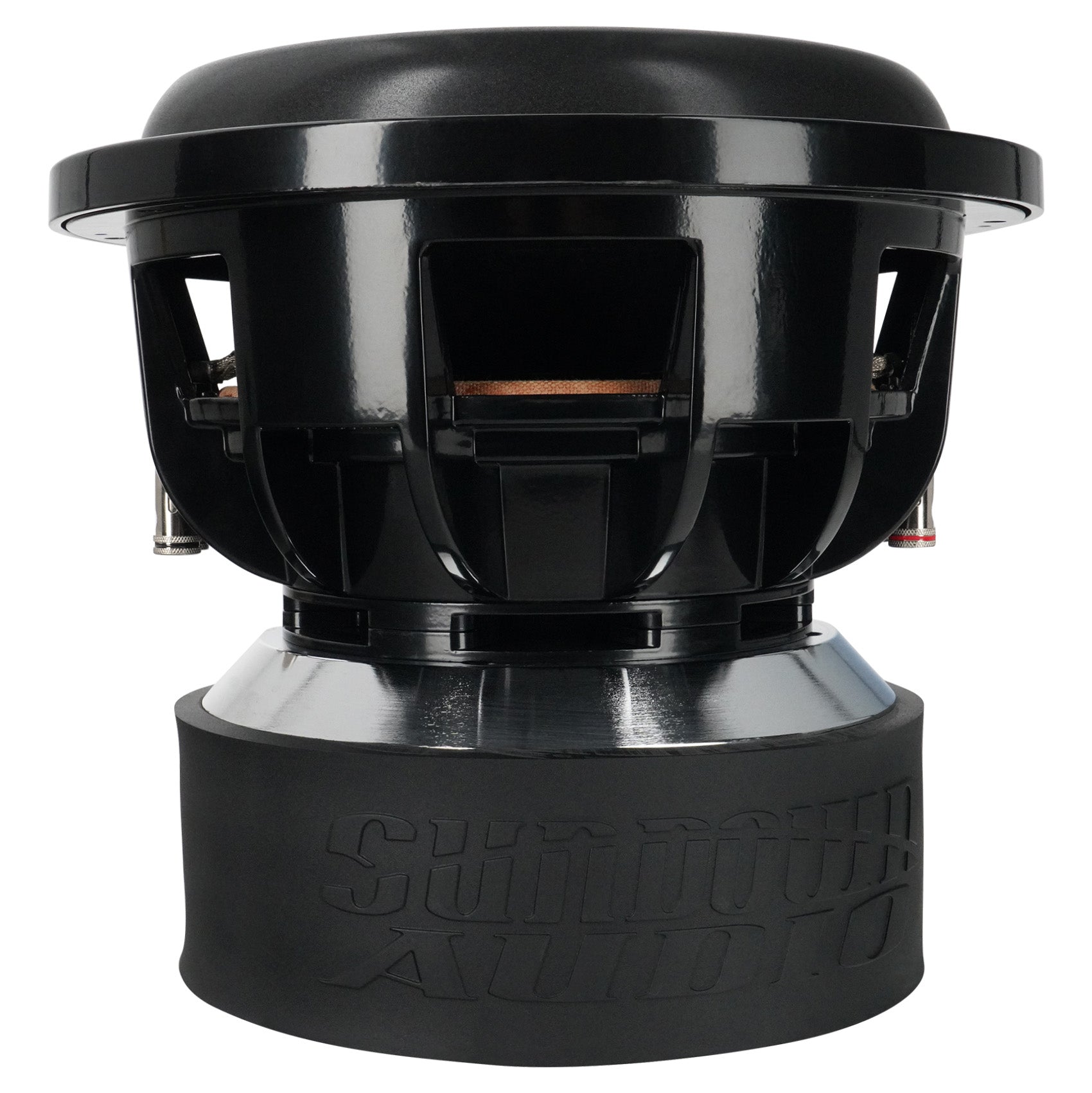

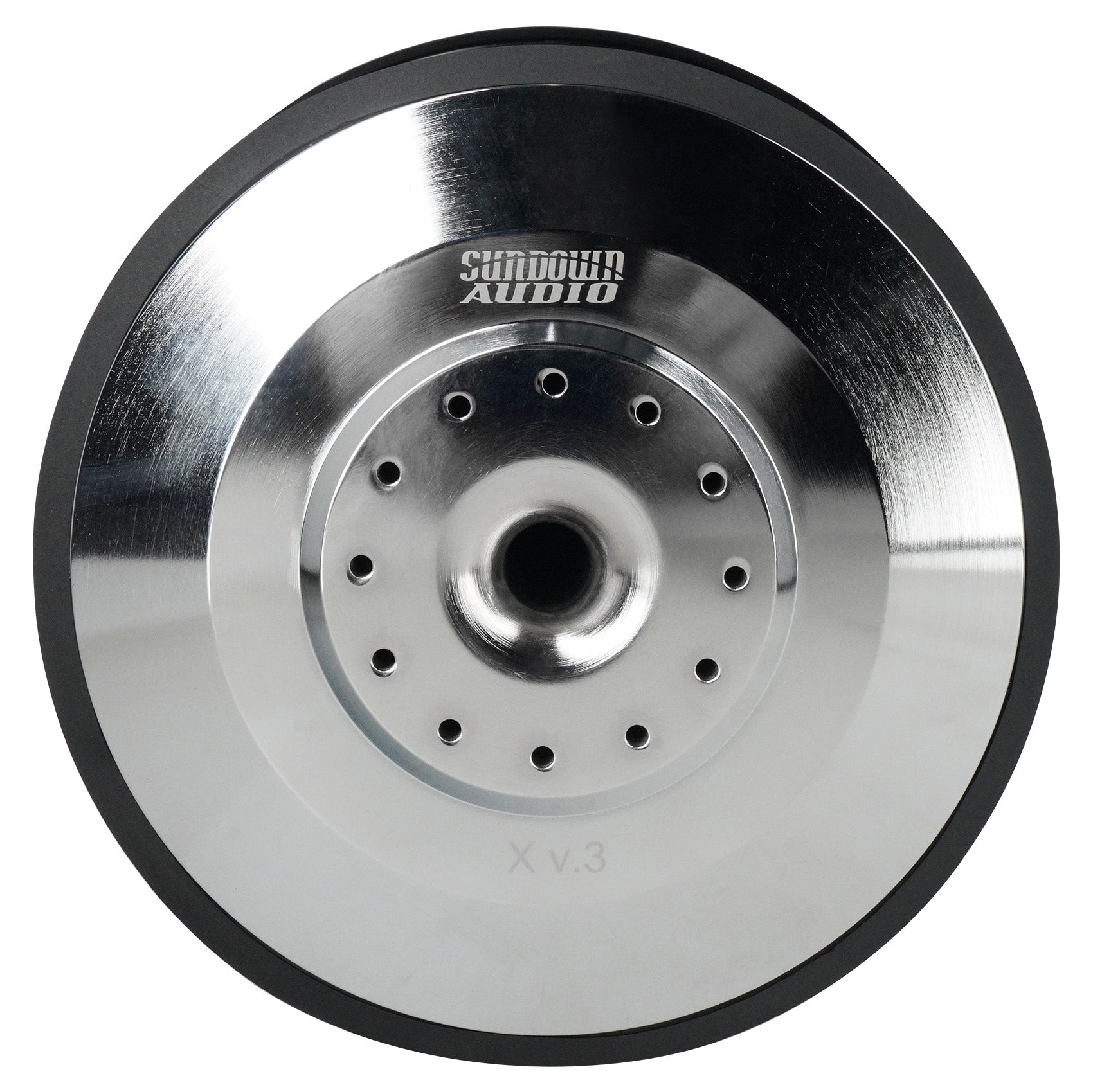

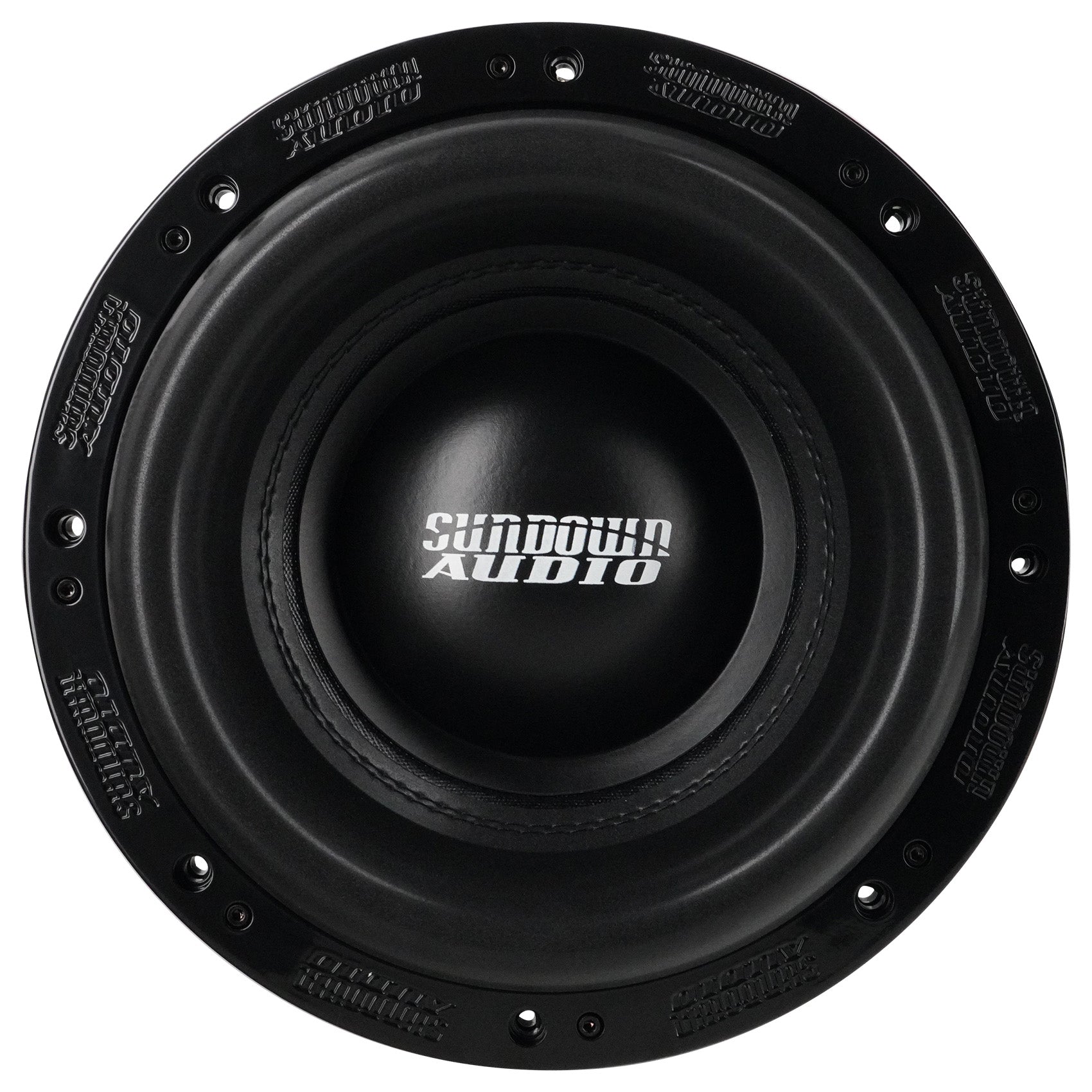

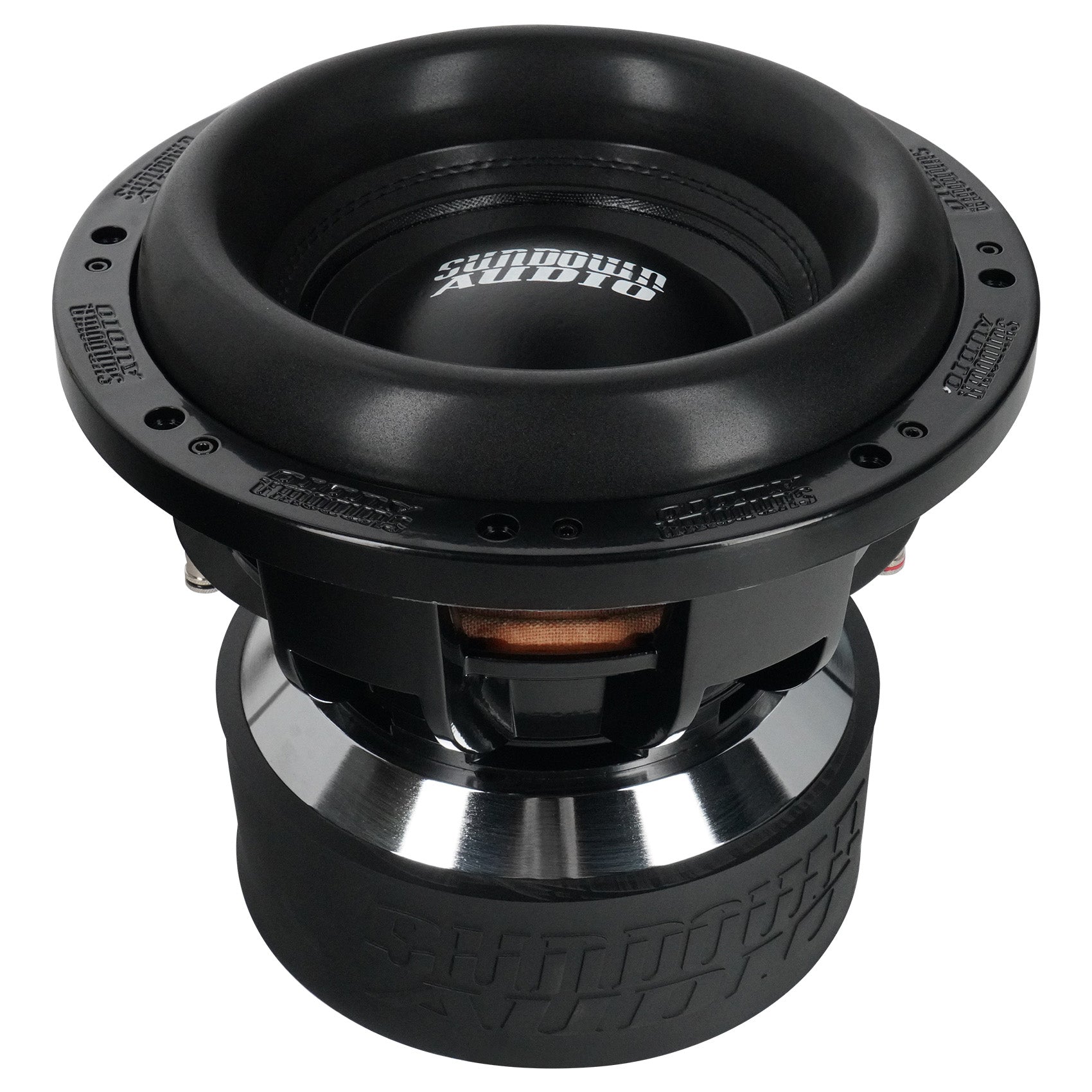

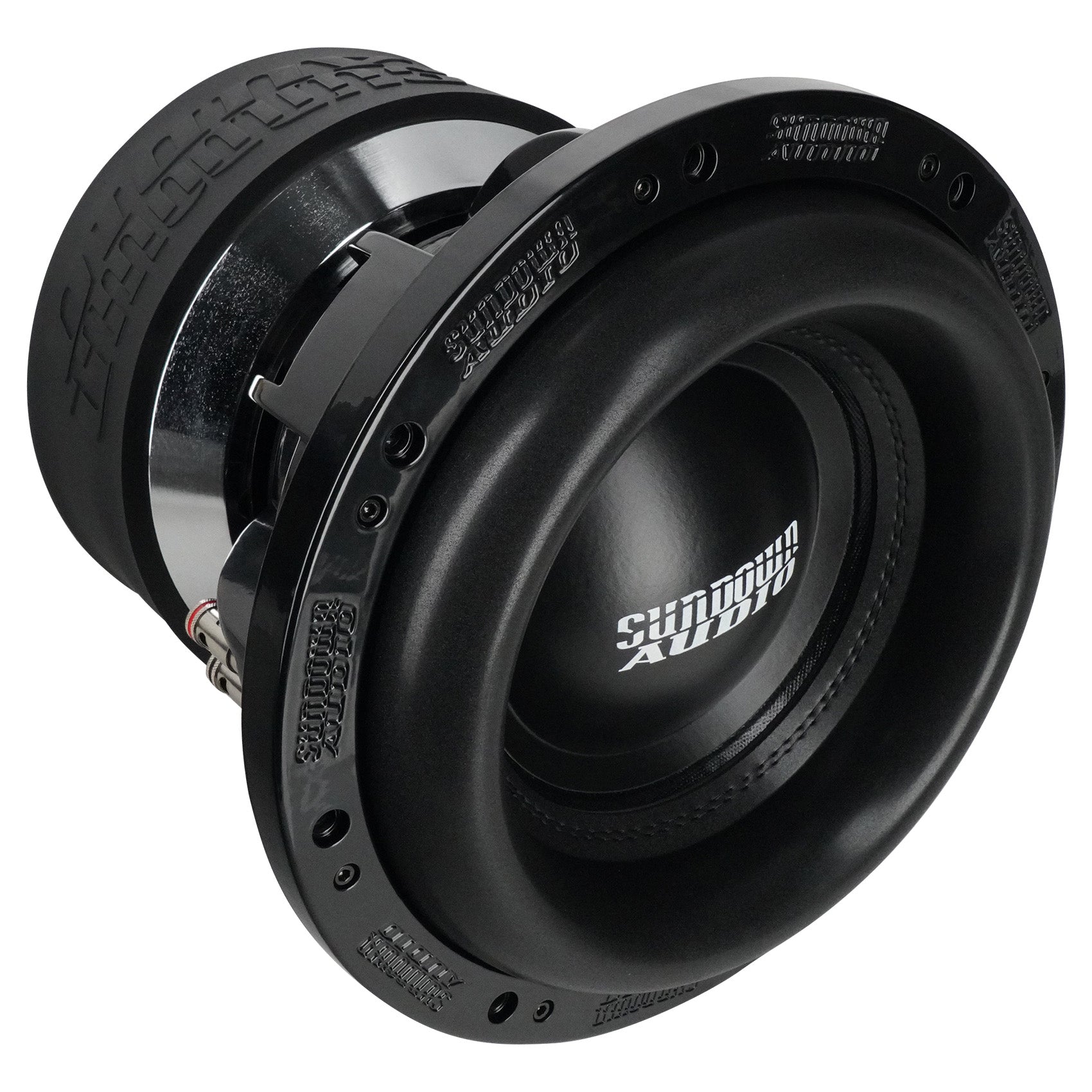

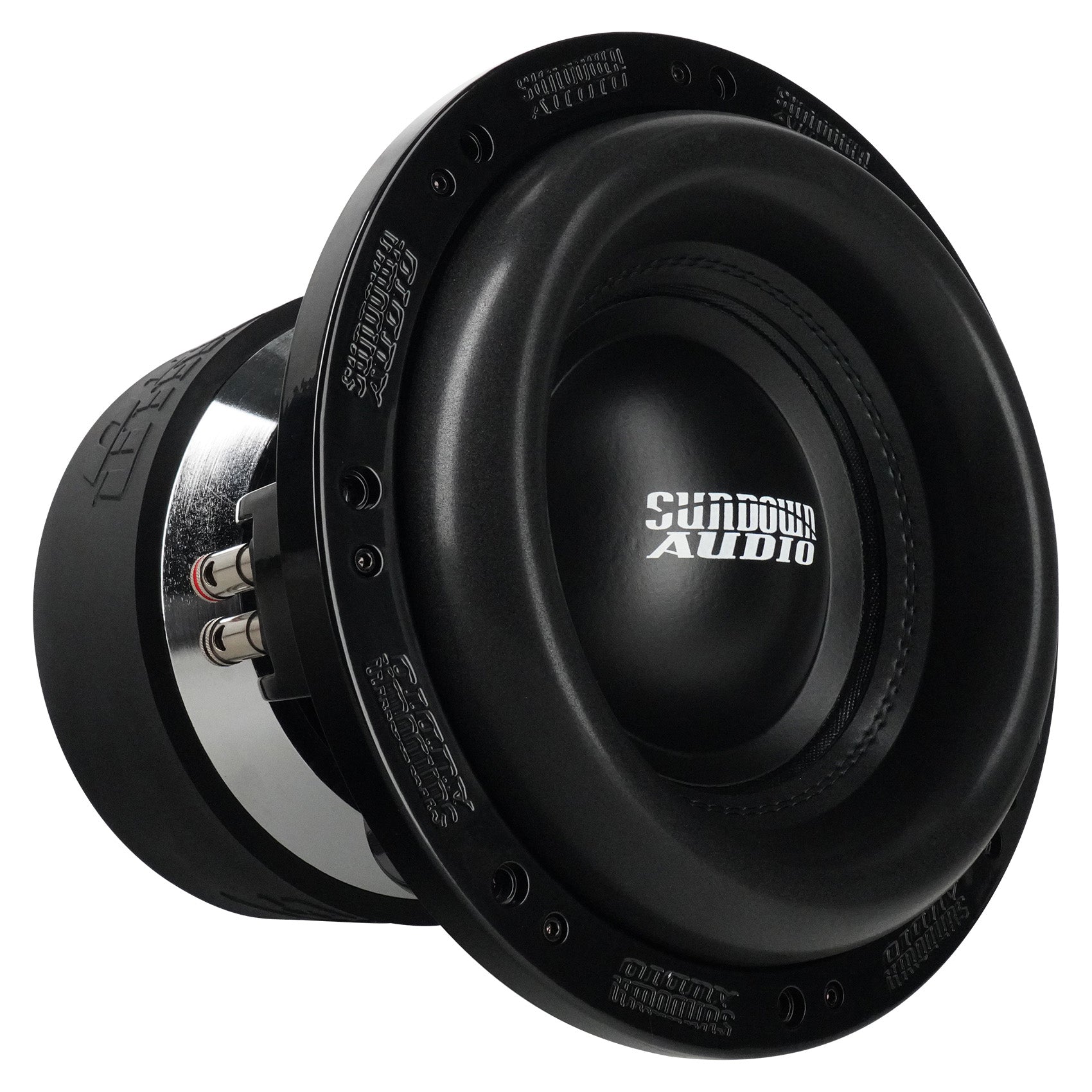

Sundown Audio X-10 V.3 D1 10" 2500w RMS Car Subwoofer DVC 1-Ohm Sub SW-XV310D1

Description:

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Features:

• 2500 Watts RMS / 5000 Watts Peak
• Dual 1 ohm
• Made for extremely deep bass
• Triple-stacked magnet
• 3” voice coil
• Hyper-extended pole
• Built to order

Specifications:

• RE (Ohms): 1.4
• FS (Hz): 39.104
• VAS (L): 8.24
• Qes: 0.58
• Qms: 5.07
• Qts: 0.52
• Le (mH): 2.68
• BL (NA): 22.19
• Mms (Grams): 341.7
• Cms (uM/N): 43.29
• Sens (dB @ 1w/1m): 81.76
• Xmax: 30mm

Subwoofer Measurements:

• Displacement (Inches): 0.22cu.ft.
• Depth (Inches): 8.88"
• Cutout (Inches): 10.01"
• Motor Diameter (Inches): 9.37

Ported Enclosure Specs:

• Ported Enclosure Size: 1.5 cu ft
• Recommended Port Area: 24 sq in
• Recommended Port Tuning: 32hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: Not Recommended

4th Order Enclosure Specs:

• 4th Order Sealed Side: .75cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 45sq in
• 4th Order Port Length: 8"
