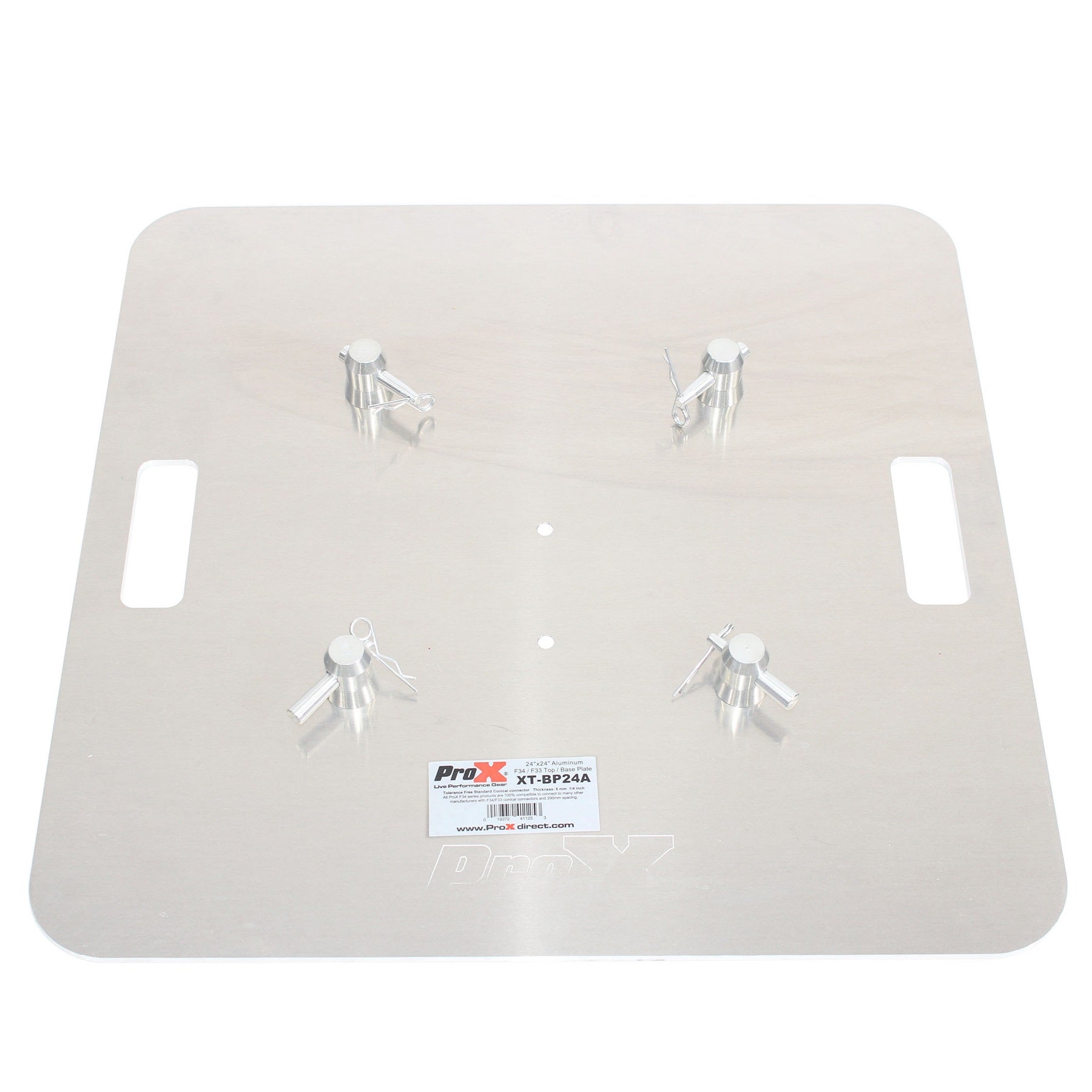

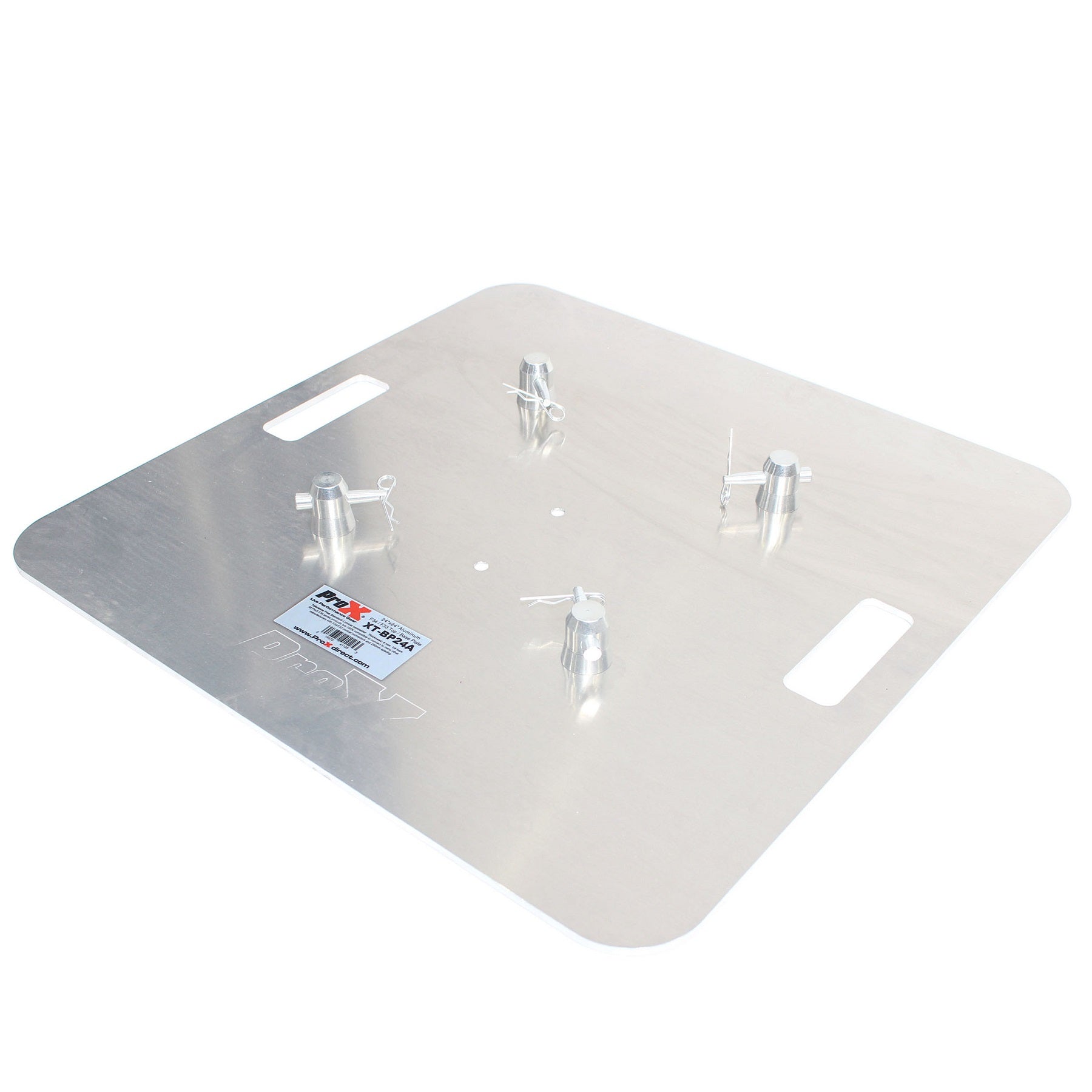

ProX Truss XT-BP24A 2' x 2' Aluminum Base Plate 6mm fits F34 Trussing

Description:

The ProX XT-BP24A 24" x 24" Aluminum Base Plate is made with 8mm AWT6 6082 Aluminum Plate for lighter weight and weighs 14lbs each.  For standard-sized F34 square frame and F32 triangle truss. Protect your base plates with fabric carrying bags available separately.

Features:

• Manufactured in our Own Factory!

• Material: 8mm EN-AWT6 6082 Aluminum

• Lighter Weight

• Fits most manufacturers with F34 Conical Couplers


Specification:

• Dimensions: 24.00"L x 24.00"W x 0.50"H

• Weight: 14.00 lbs

• Shipping Dimensions: 25.00"L x 25.00"D x 3.00"H

• Shipping Weight: 17.00 lbs

• To Fit: Fits Most Manufacturers F34 Trussing W/Conical Connectors


XT-SQ SERIES DIMENSIONS:

• Height: 11.42in / 290mm

• Width: 11.42in / 290mm

• Weight: 21lb per 3.28 ft / 9,5kg per meter

• Main Tube: 2in / 50mm

• Wall Thickness:  .08in / 2mm

• Braces: .75in / 20mm
