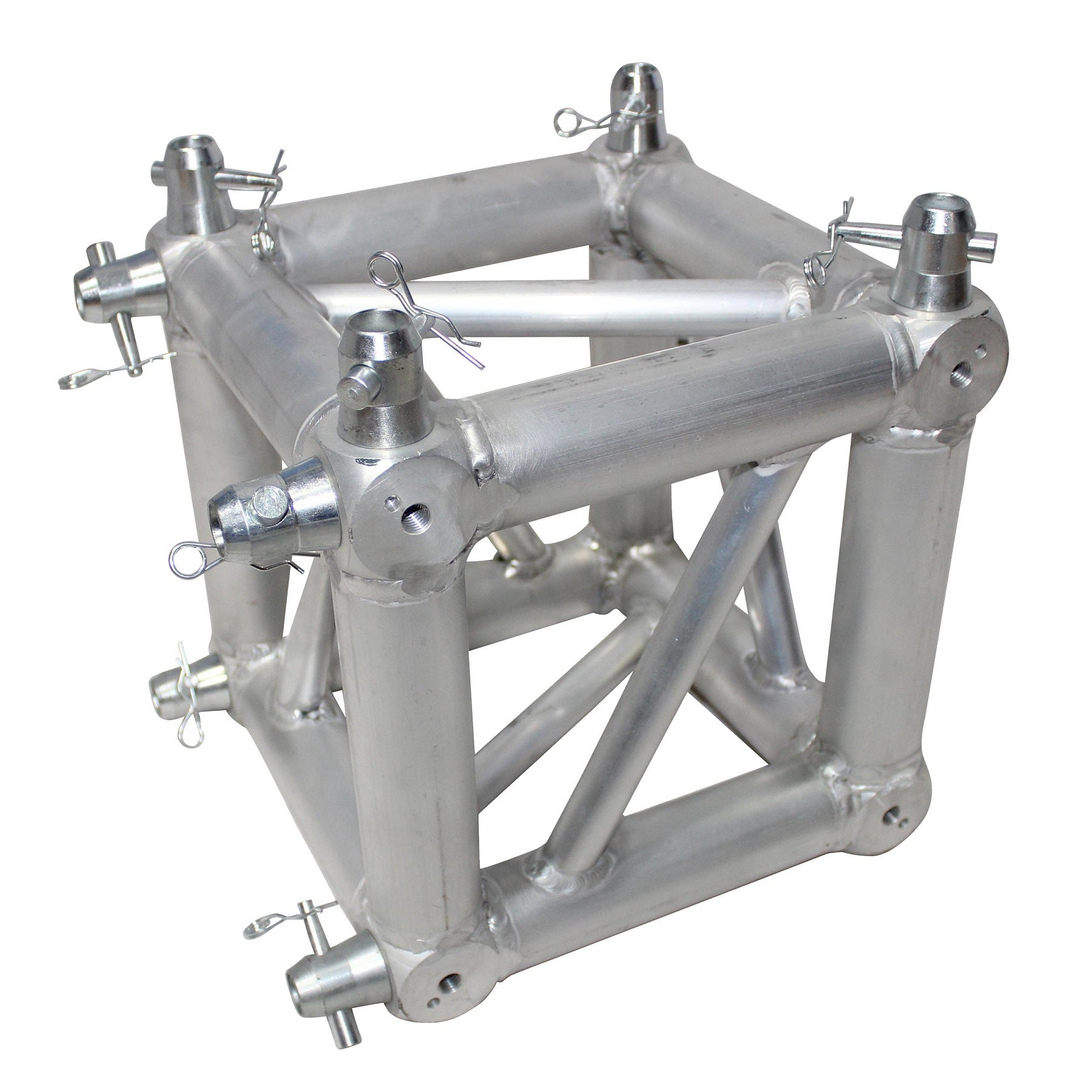

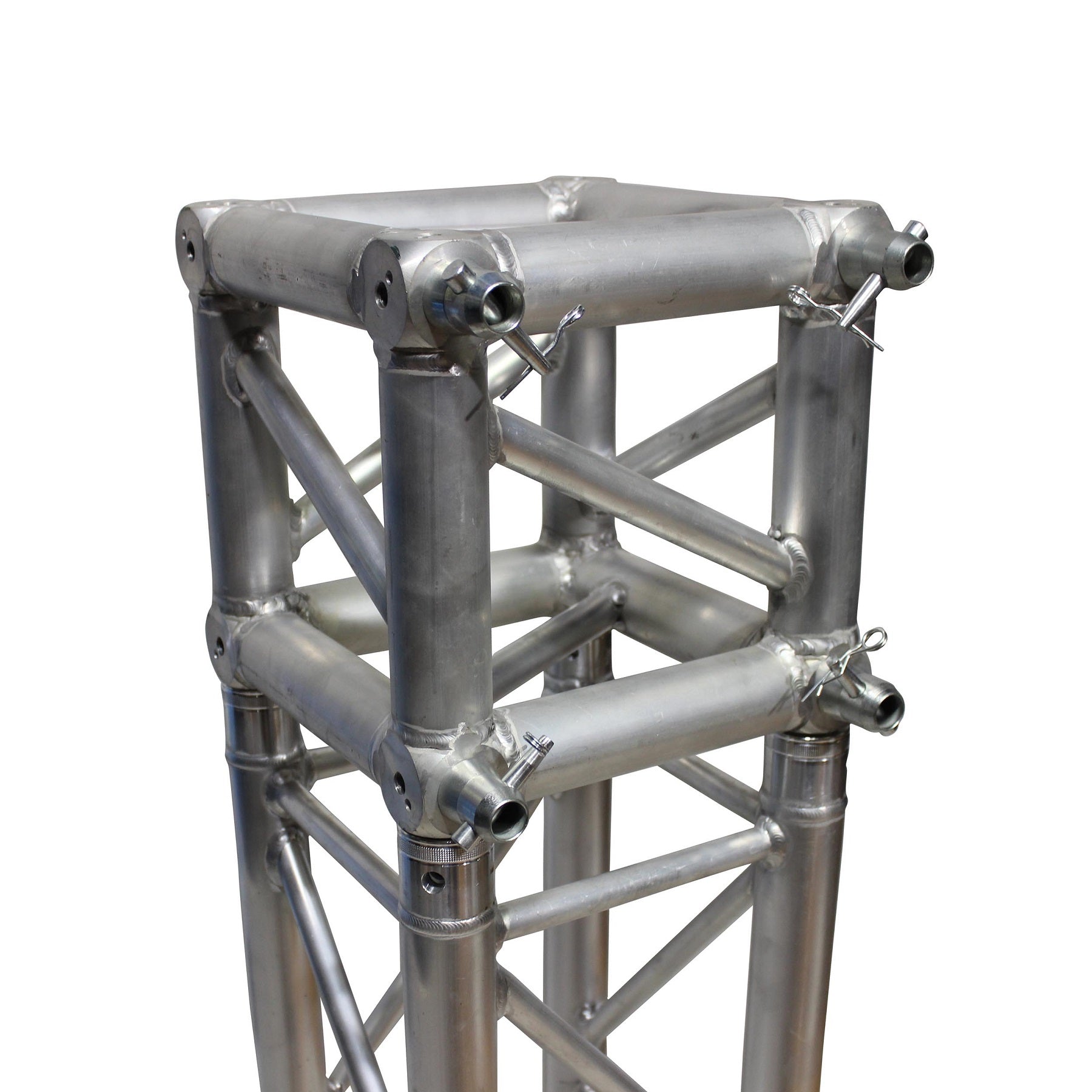

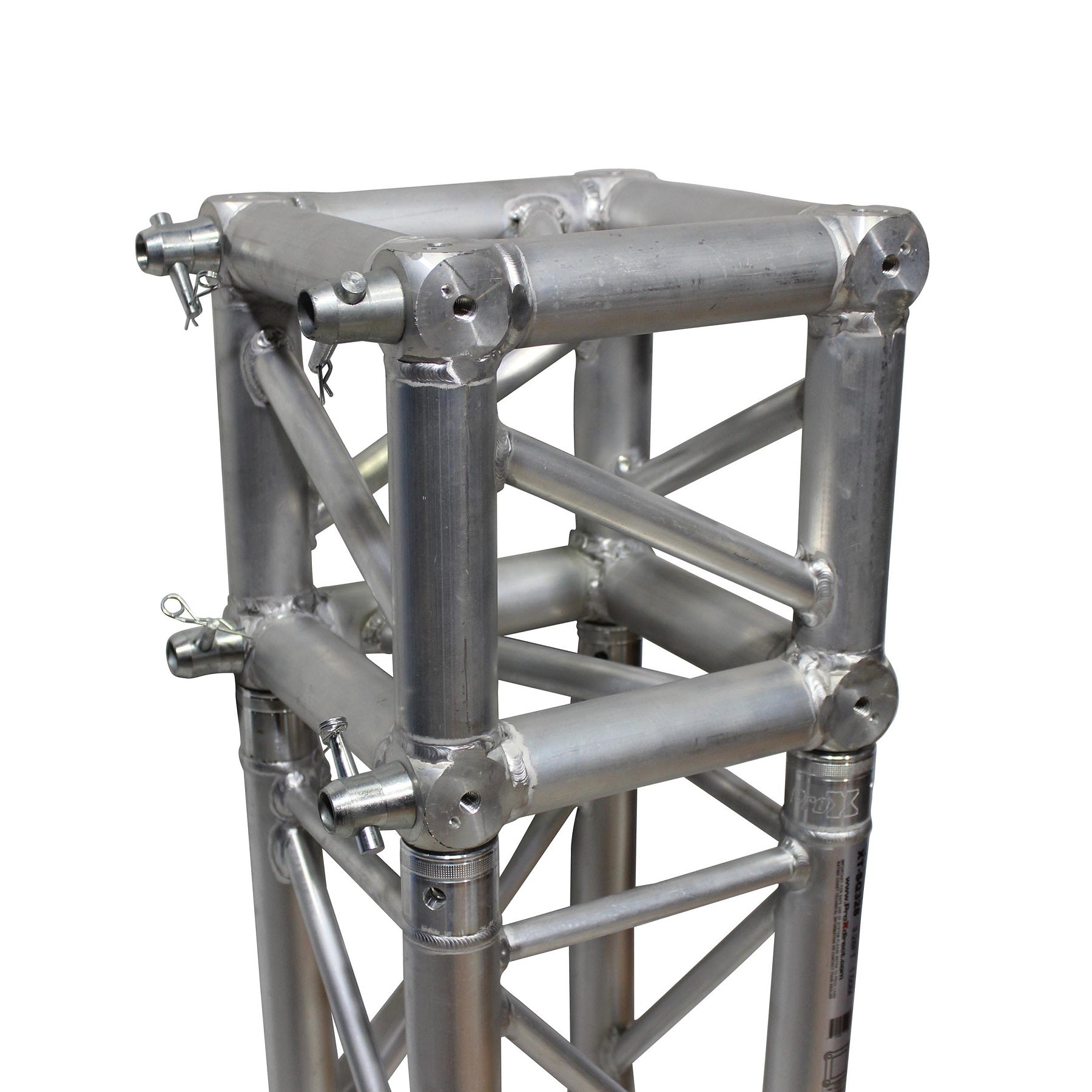

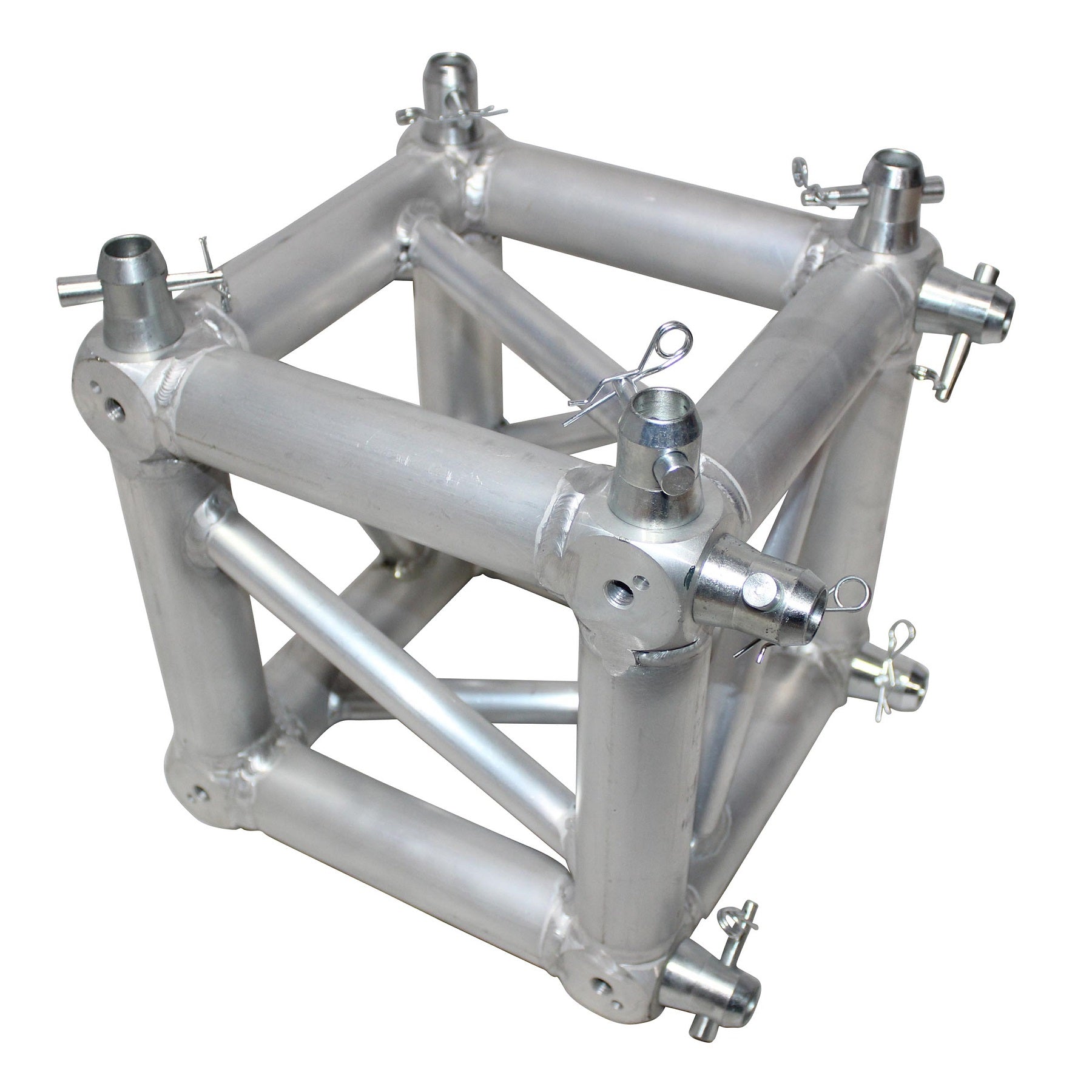

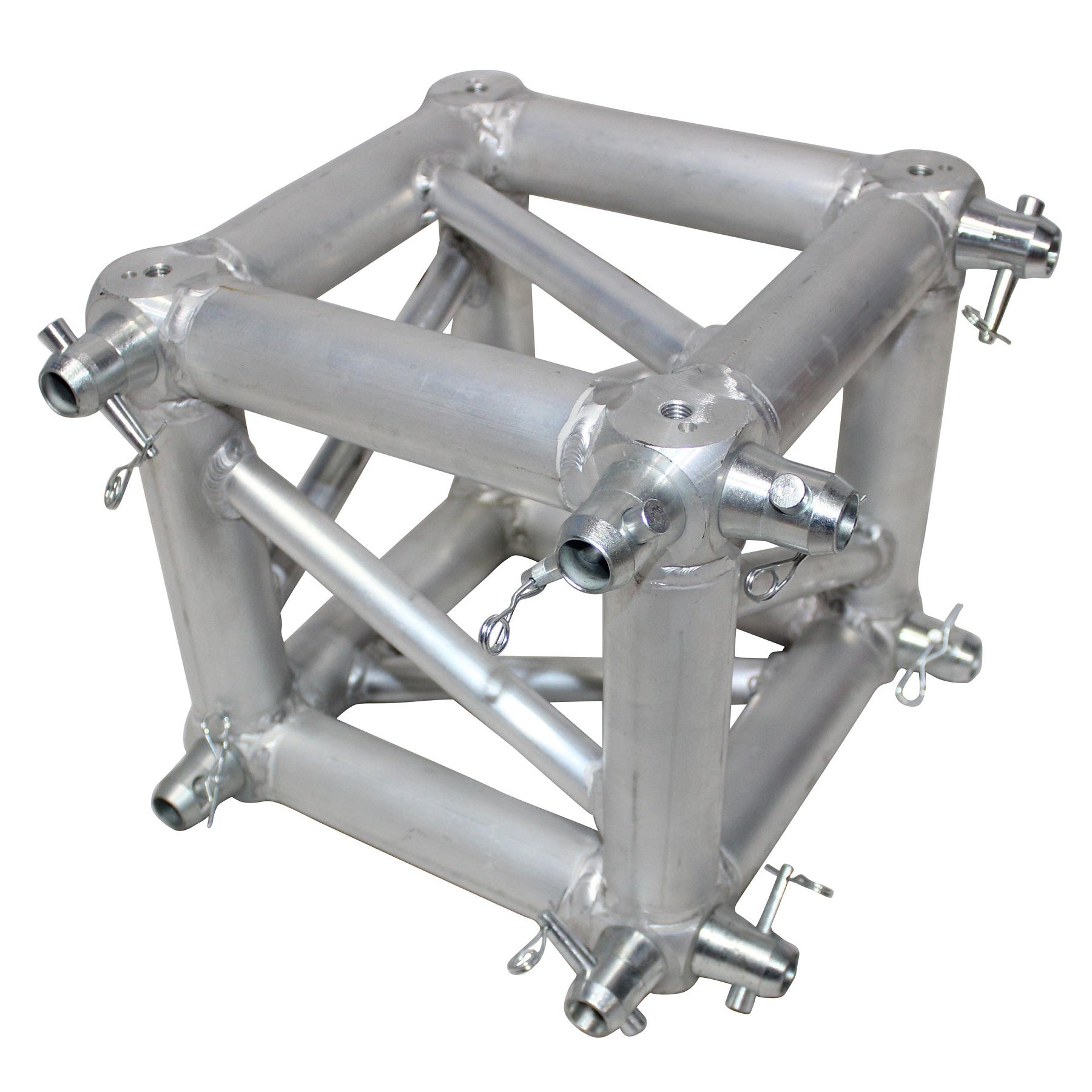

ProX XT-JB6W-2W 6 Way Square Truss Junction Block Includes 2Way 8 Half Couplers
Product Description
Description:
The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 2mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance.

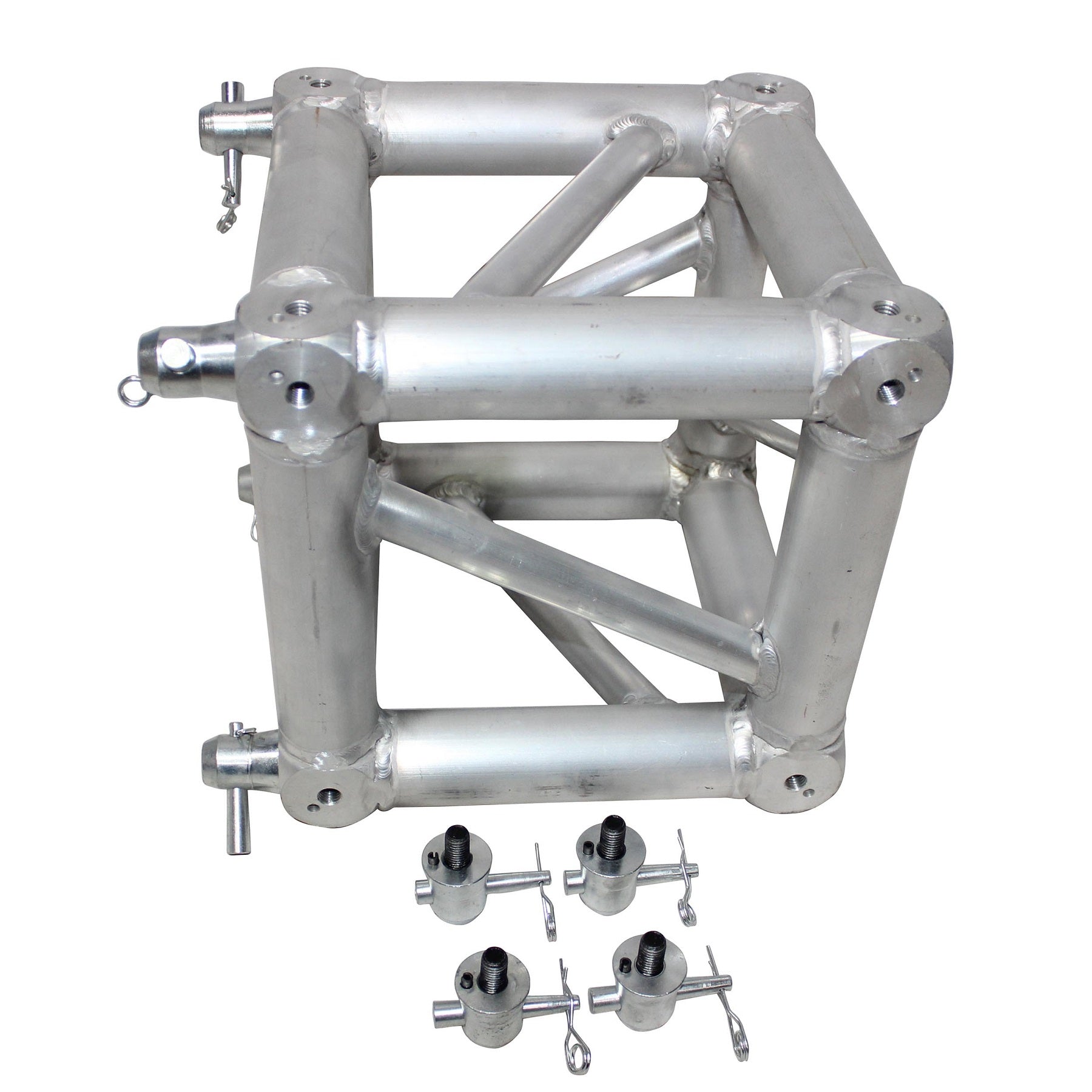

8 Half Conical couplers included, additional conical couplers can be added for more utility.
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.
Features:
- Manufactured in our Own Factory!
- Material: EN-AWT6 6082 Aluminum
- TUV Certified Aluminium Welding
Specifications:
- To Fit: Standard F34 Square Truss Configurations.
- Dimensions: 11.45"L x 11.45"W x 11.45"H
- Weight: 17.00 lbs
- Shipping Dimensions: 12.50"L x 12.50"D x 12.00"H
- Shipping Weight: 17.50 lbs
- UPC: 741459147365
