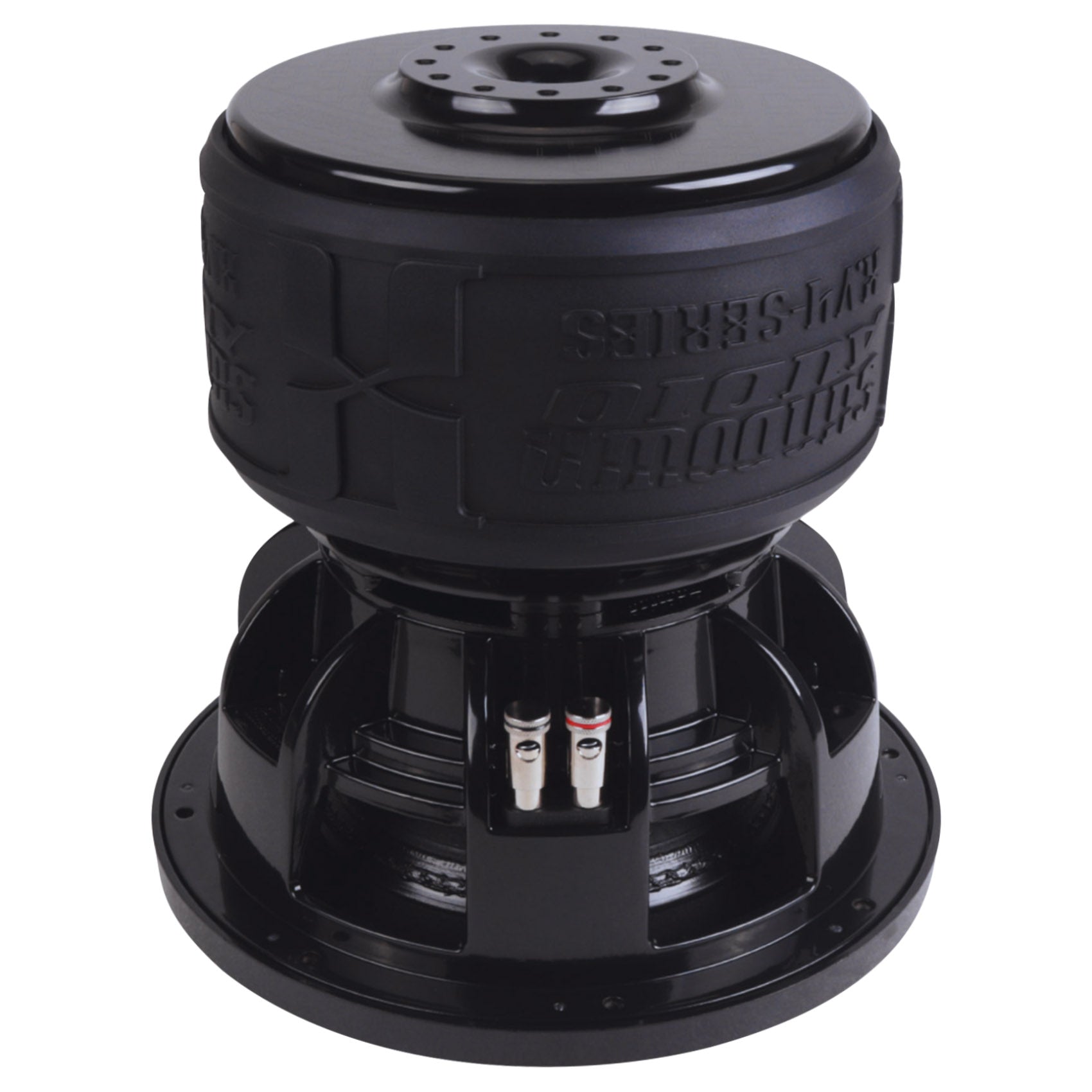

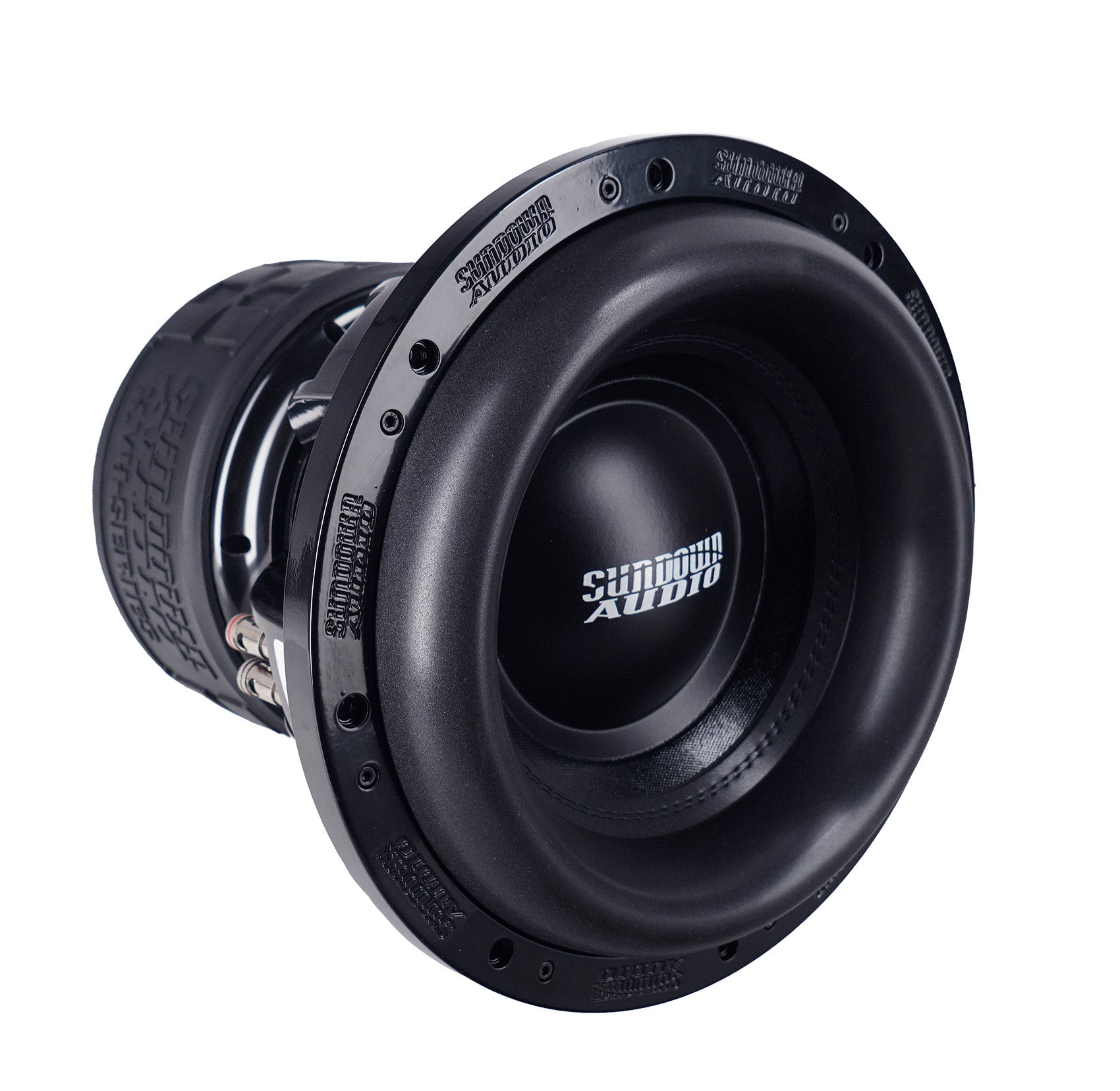

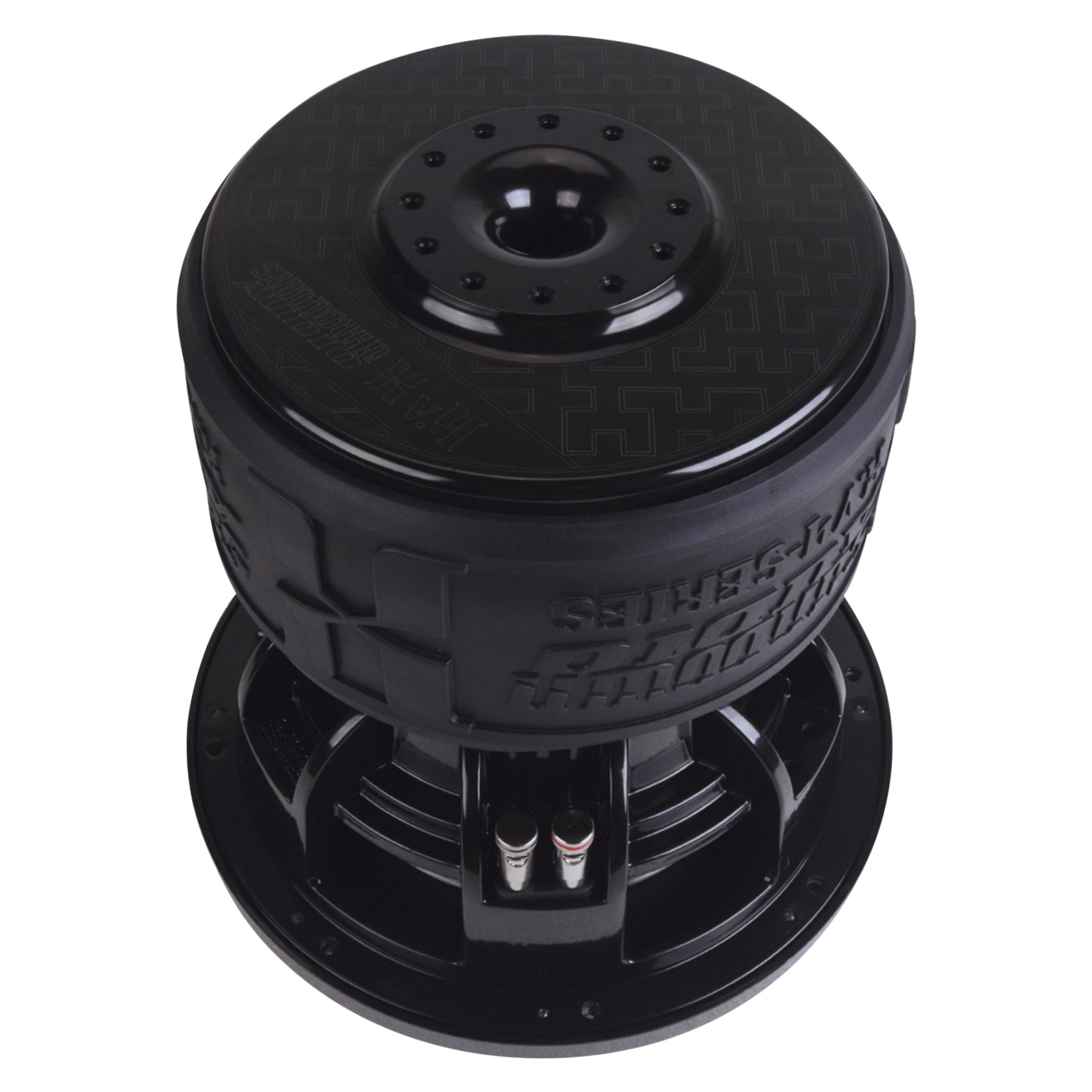

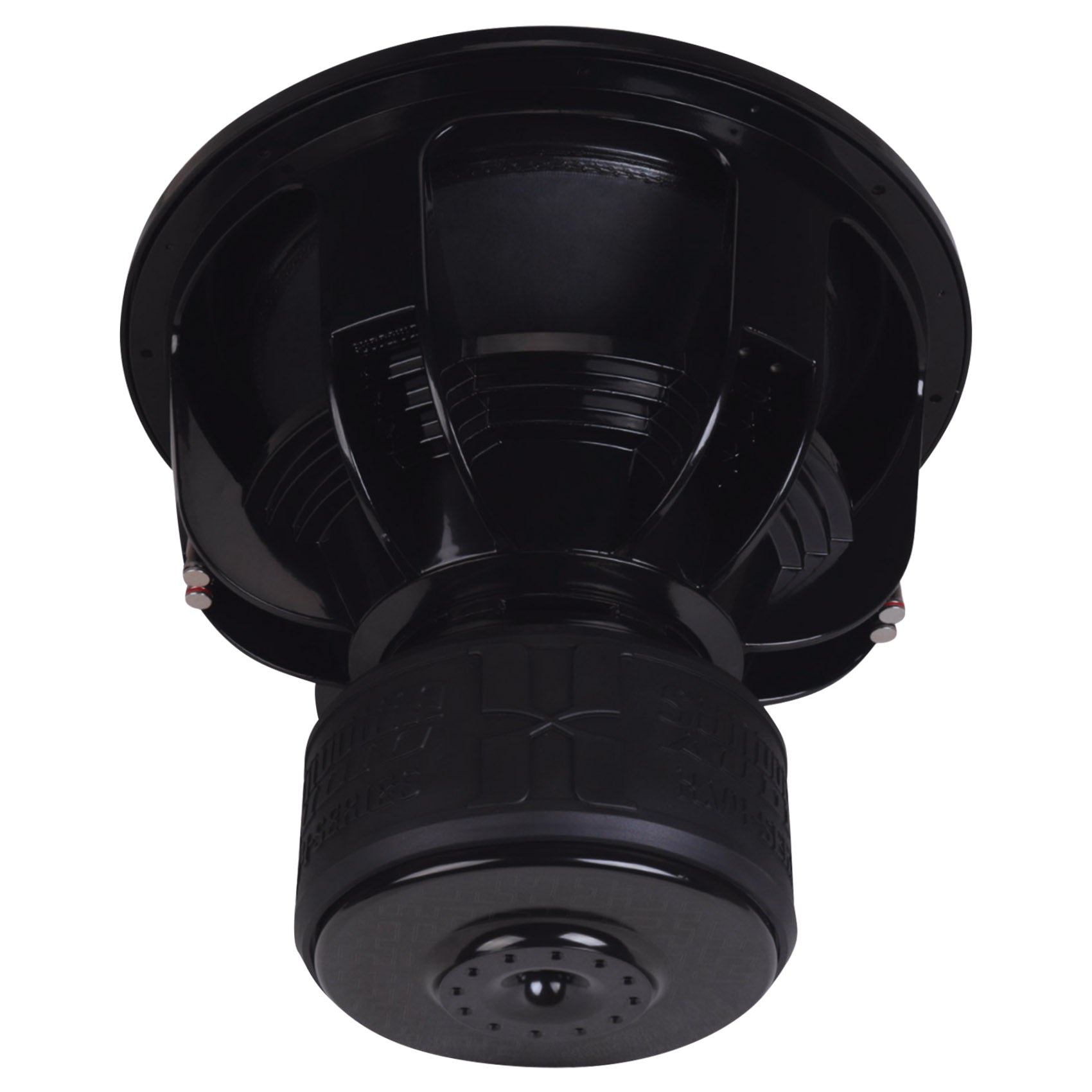

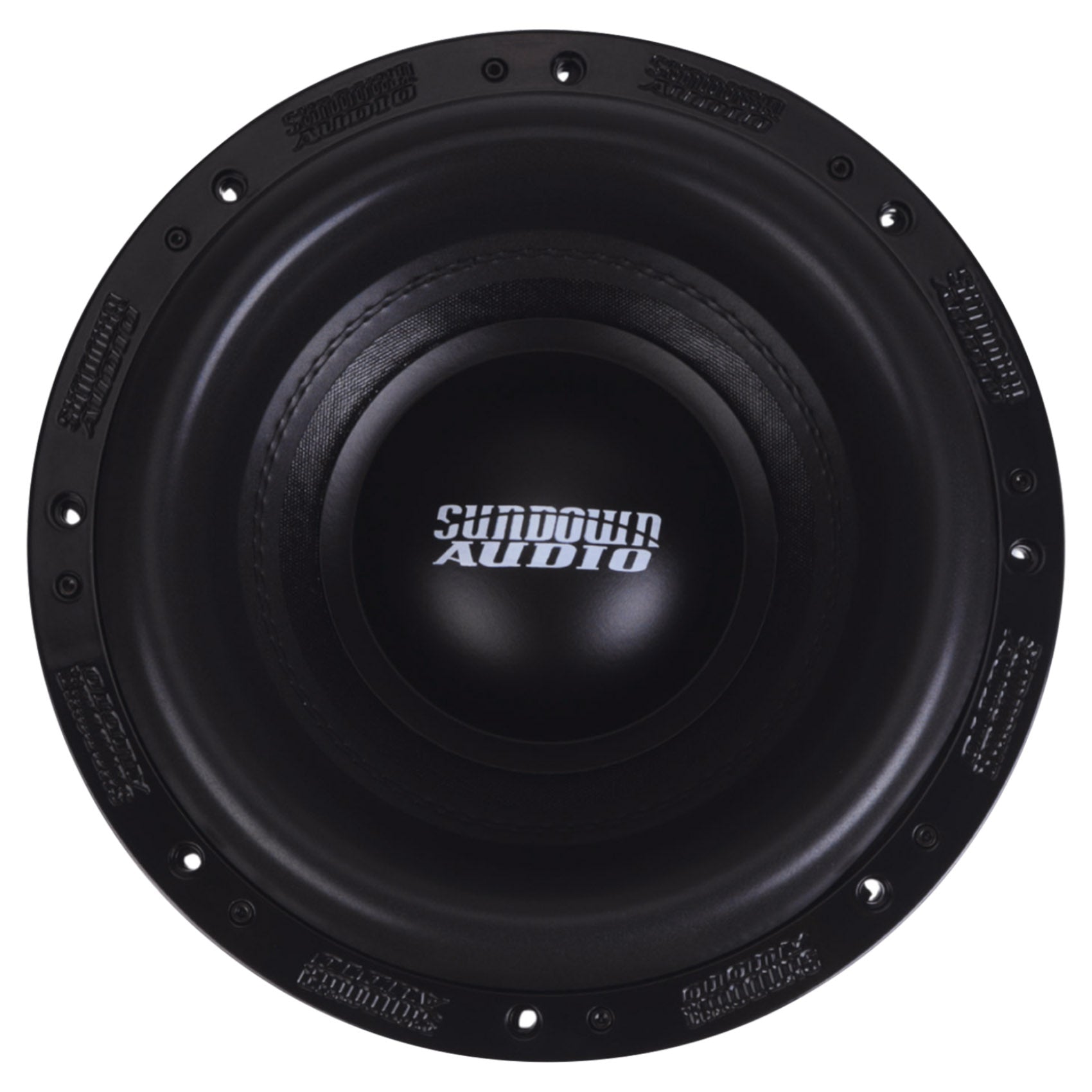

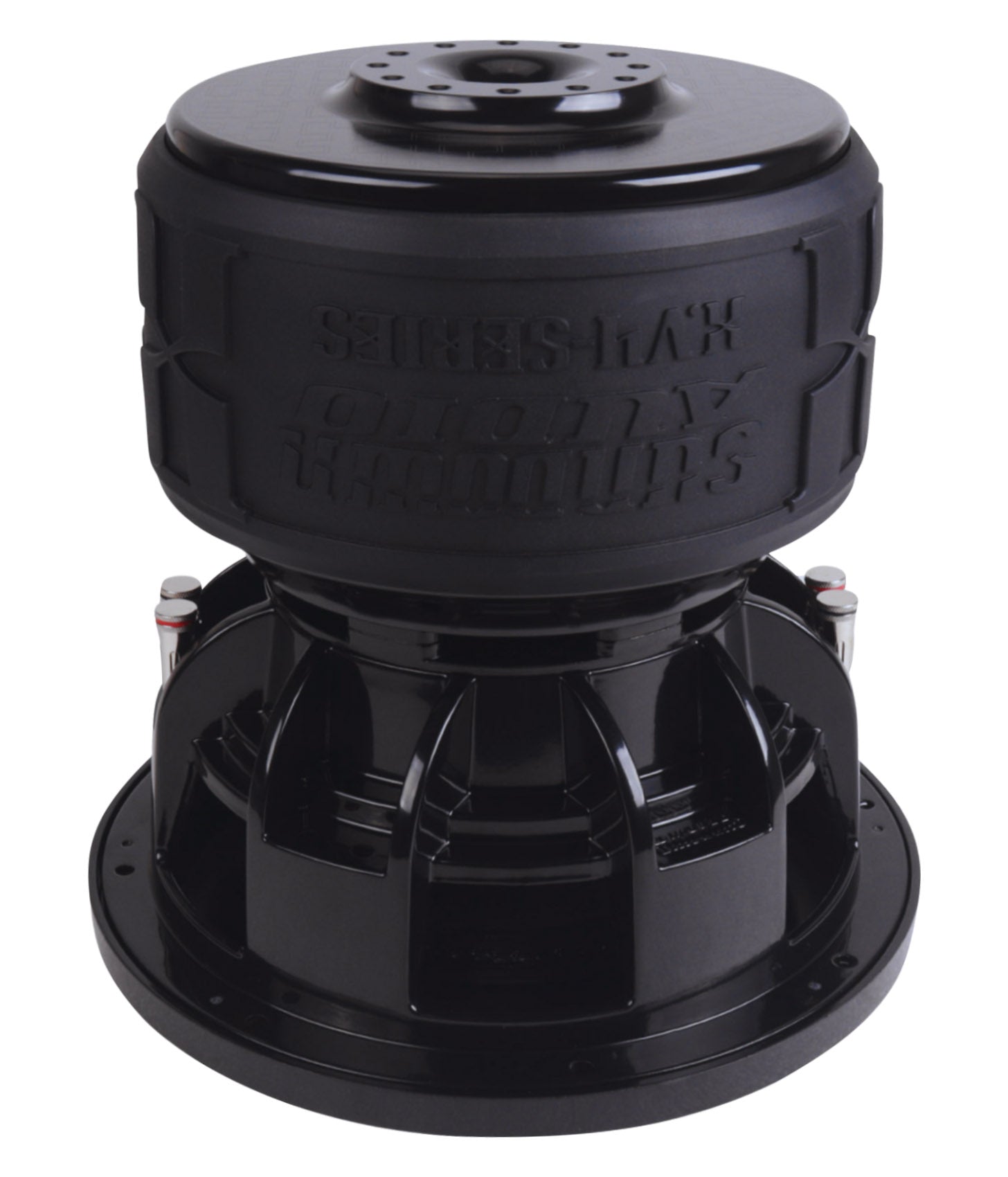

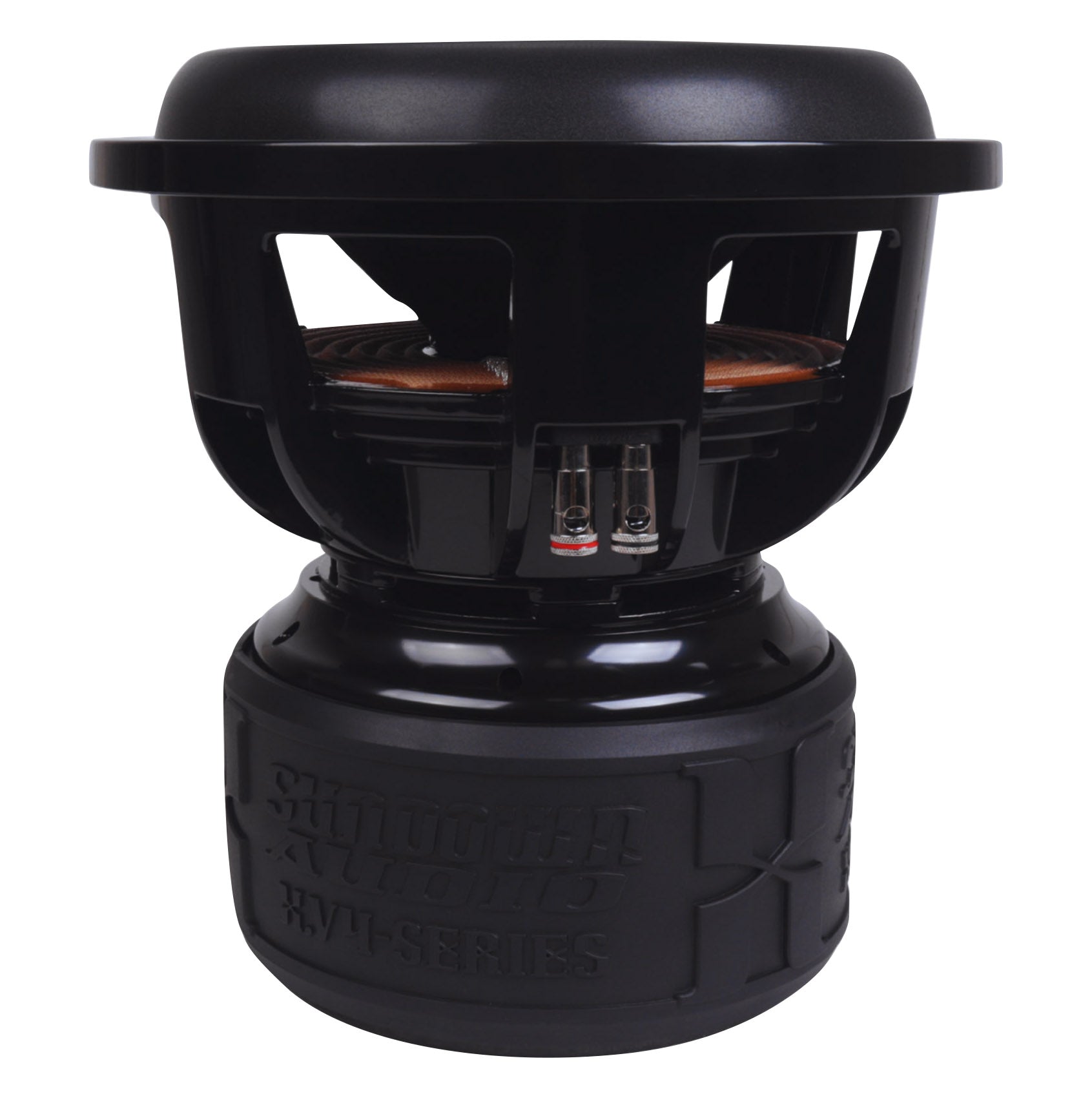

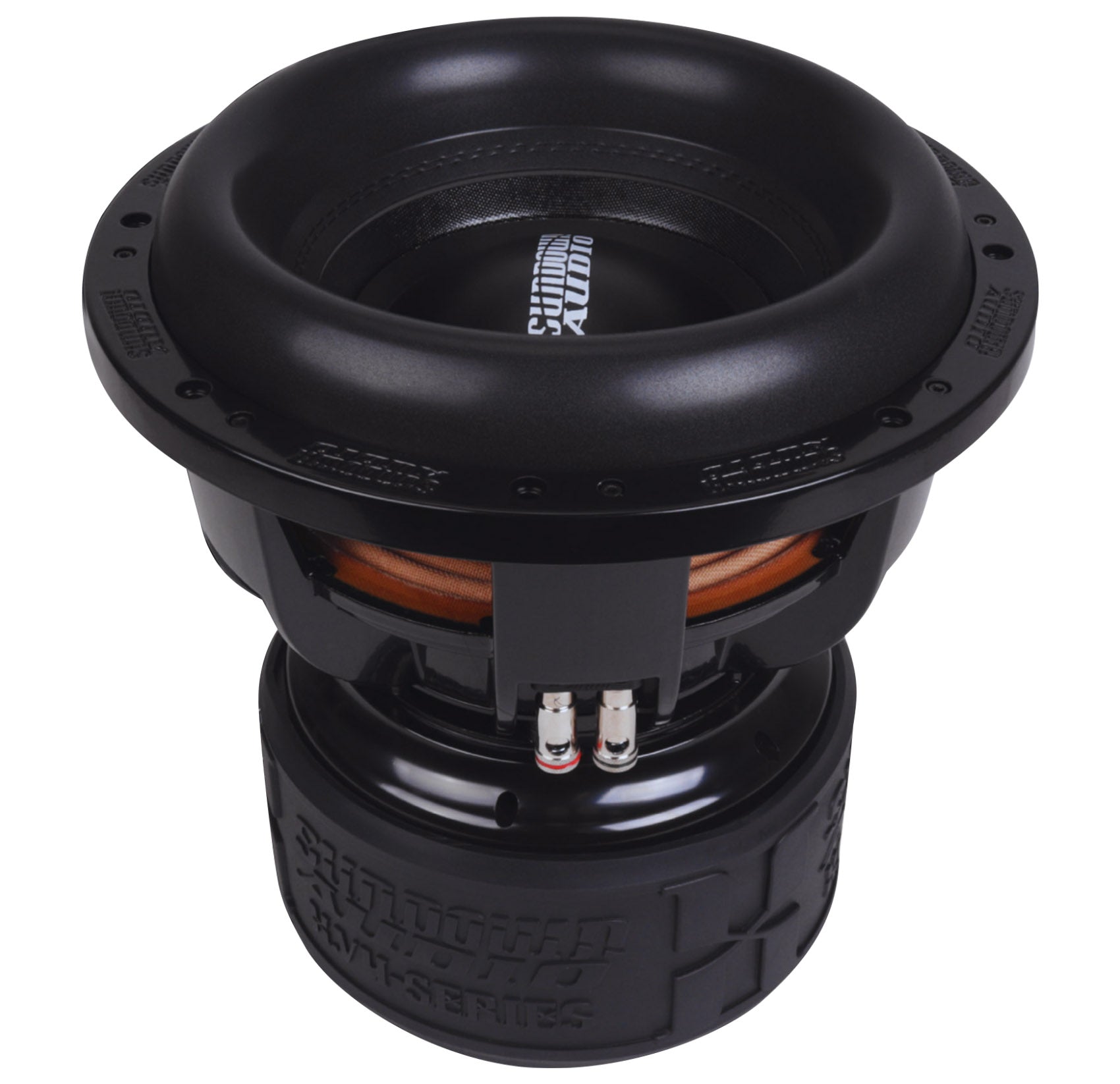

Sundown Audio XV412D1 12" 3000 Watt RMS Car Audio Subwoofer DVC 1-Ohm Car Sub

Description:

The Sundown Audio Xv4 12" Subwoofer is built for those who demand real power and precision in their sound system. Designed with premium Xv4 coils, this subwoofer delivers a massive 3000W RMS and 6000W peak power while maintaining outstanding clarity and control.

With a durable, heavy-duty motor and optimized cooling system, the Xv4 ensures consistent performance even during extended play. Whether you’re upgrading your car audio or building a competition-level system, this subwoofer delivers thunderous low frequencies that stay tight and accurate.

The precision-engineered cone and suspension system provide minimal distortion and maximum output. Pair it with a well-tuned ported enclosure for deep, room-shaking bass that brings your music to life.

Built to handle extreme sound pressure, the Xv4 series continues Sundown Audio’s legacy of reliability, innovation, and unmatched performance.

Features:

• 12-inch subwoofer with Xv4 voice coils
• RMS Power: 3000W, Peak Power: 6000W
• Dual 1Ω
• High-efficiency motor structure with strong BL factor
• Optimized for ported enclosures (2.5 cu. ft @ 32Hz)
• Xmax: 30mm for deep excursion and accurate bass
• Reinforced cone for durability under extreme pressure
• Designed for audiophiles and SPL enthusiasts

Specifications:

• RE (Ohms): 2.05
• FS (Hz): 39.39
• VAS (L): 14.13
• Qes: 0.58
• Qms: 4.95
• Qts: 0.5
• Le (mH): 1.33
• BL (NA): 24.4
• Mms (Grams): 343.14
• Cms (uM/N): 47.56
• Sens (dB @ 1w/1m): 83.47
• Xmax: 30mm

Subwoofer Measurements:

• Displacement (Inches): 0.23cu.ft.
• Depth (Inches): 11.75"
• Cutout (Inches): 11.09"
• Motor Diameter (Inches): 9.25"

Ported Enclosure Specs:

• Ported Enclosure Size: 2.5 cu ft
• Recommended Port Area: 40 sq in
• Recommended Port Tuning: 32 hz

4th Order Enclosure Specs:

• 4th Order Sealed Side: 1.0cu ft
• 4th Order Ported Side: 3.0cu ft
• 4th Order Port Area: 60sq in
• 4th Order Port Length: 60sq in
