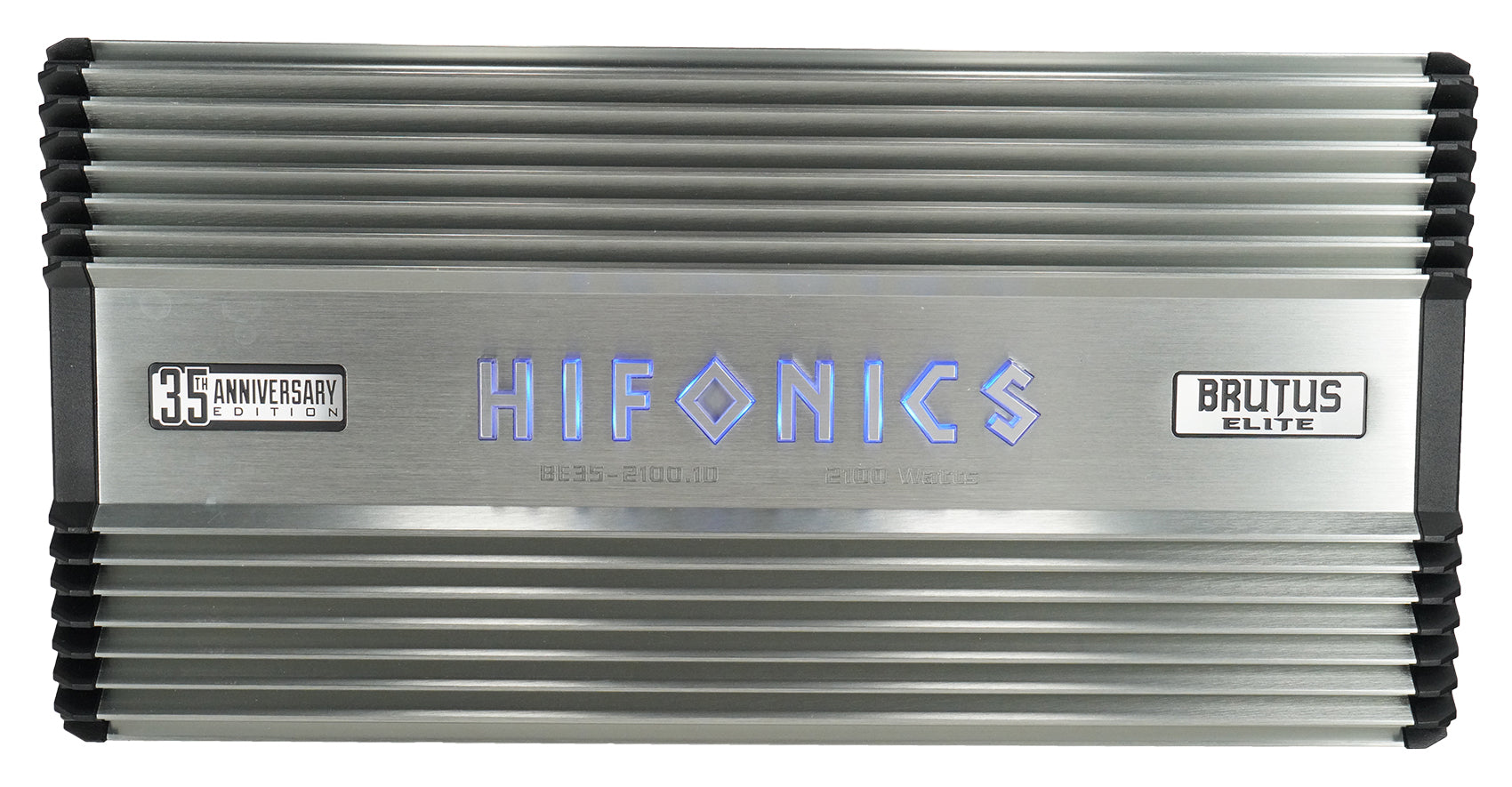

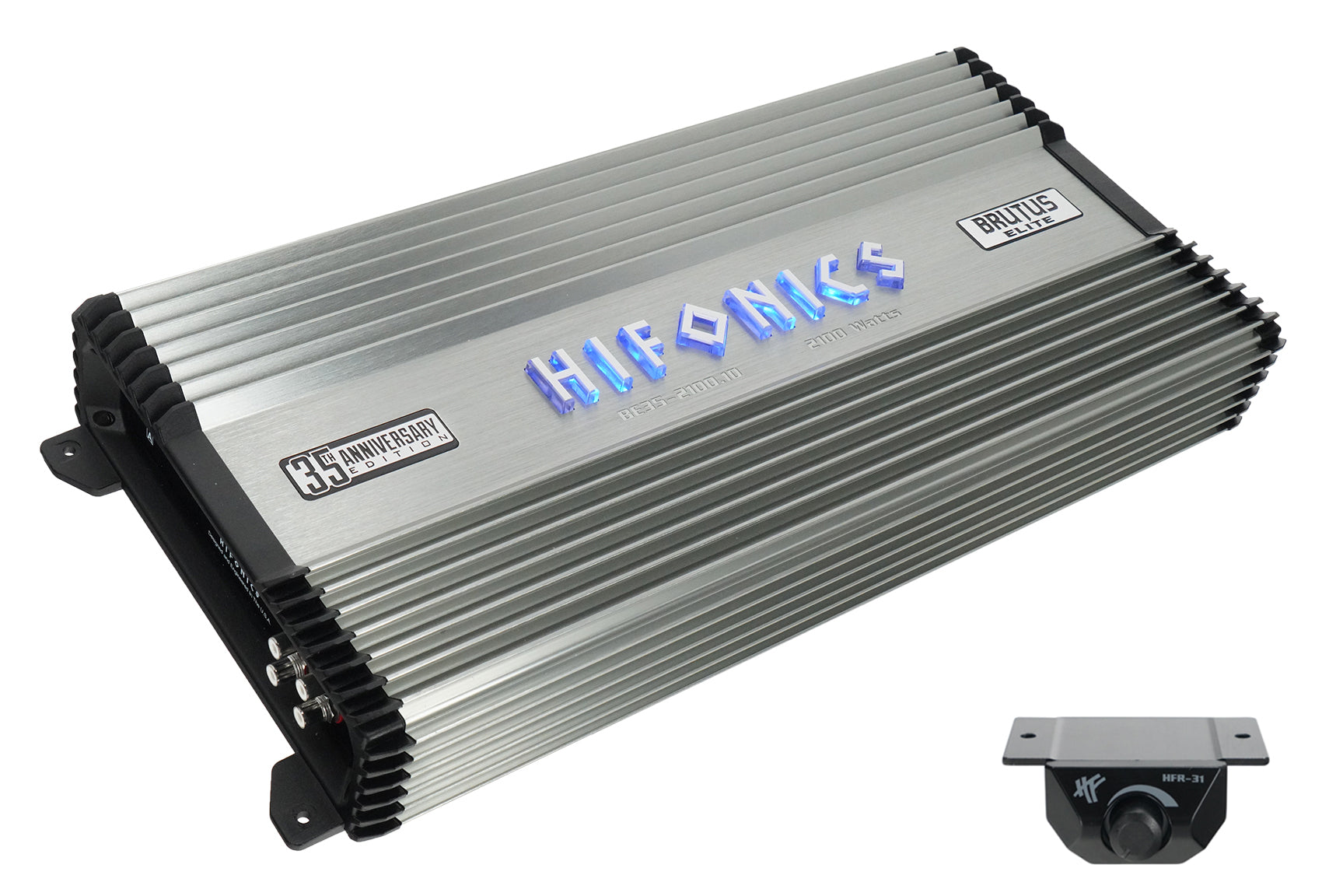

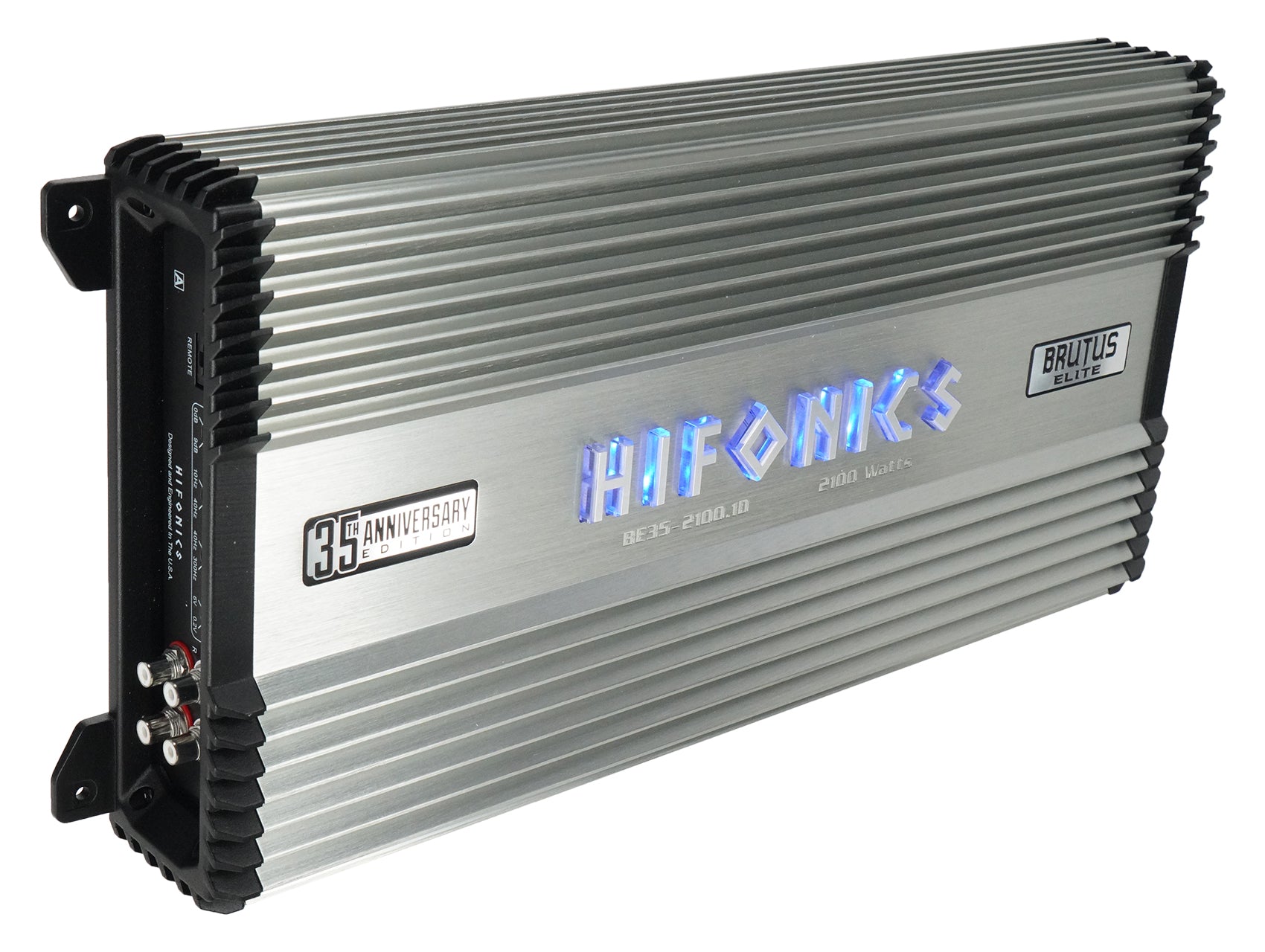

Hifonics BE35-2100.1D 2100 Watt Mono Amplifier Super D Class 1-Ohm Car Audio Amp
Shipping calculated at checkout.
Condition: Used
Product Description
What's in the Box?
- Amplifier
- Bass Remote
- Owner's Manual
Description:
Hifonics 35th Anniversary 2100 watt Super D-Class™ Brutus Elite mono subwoofer amplifier with electronic crossovers, bass equalization and bass remote included.
Hifonics offers Super A/B Class™ full range and Super D-Class™ mono subwoofer amplifiers to continue the 35th Anniversary celebration of Hifonics. The Brutus ELITE or “BE35” offers several 2 and 4 channel full range with several mono amps along with a killer 5 channel that utilizes both Super A/B Class™ and Super D-Class™ in the same amplifier – the best part is the 5th channel is 1 ohm stable, which is unheard of in five channel high performance amplifiers. The big bruiser in the line is the Brutus BE35 4000.1D delivering 4000 watts at 1ohm.
Features:
- Hifonics Elite products are not available for Internet sales
- Accu-Cross crossovers allow complete control of the signal direction to all speakers
- Ultra-Fi™ MOSFETs product high power with high efficiency for coolig and minimal distortion
- Tiffany style RCA connectors for audiophile signal quality with minimum distortion
- Illuminated molded ad angled output connectors
- Super D-Class mono blocks include bass remote
-
Low Noise Preamplifier Circuitry
- Low voltage signal from the source unit comes into the amplifier Preamplifier circuit with minimal distortion
- Low voltage signal from the source unit comes into the amplifier Preamplifier circuit with minimal distortion
-

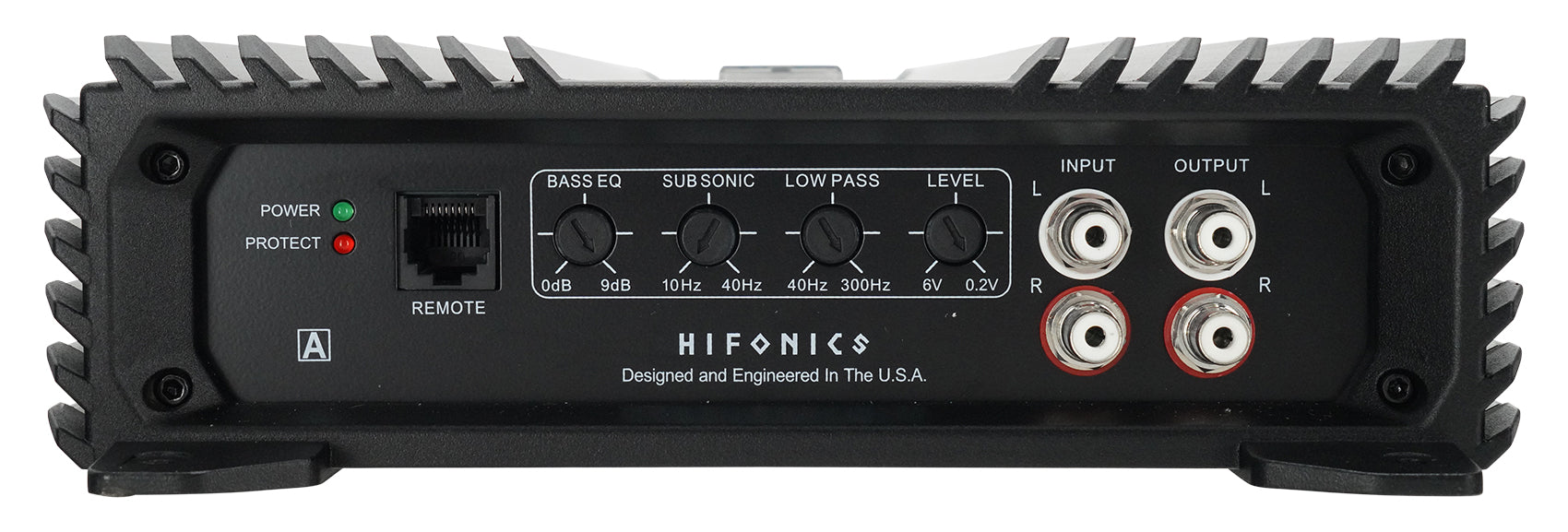

RCA Inputs
- Tiffany style RCA connectors for audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection
- Tiffany style RCA connectors for audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection
-
Operation Mode
- Mono mode is intended for subwoofers only
- Mono mode is intended for subwoofers only
-
Crossover Type
- Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies
- Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies
-
Electronic Equalizer
- Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
- Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
-
Class / Topology
- Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs
- Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs
-
Output Device Technology
- The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
- The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
-
Heat Sink
- Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled
- Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled
-
Power Supply
- The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
- The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
-

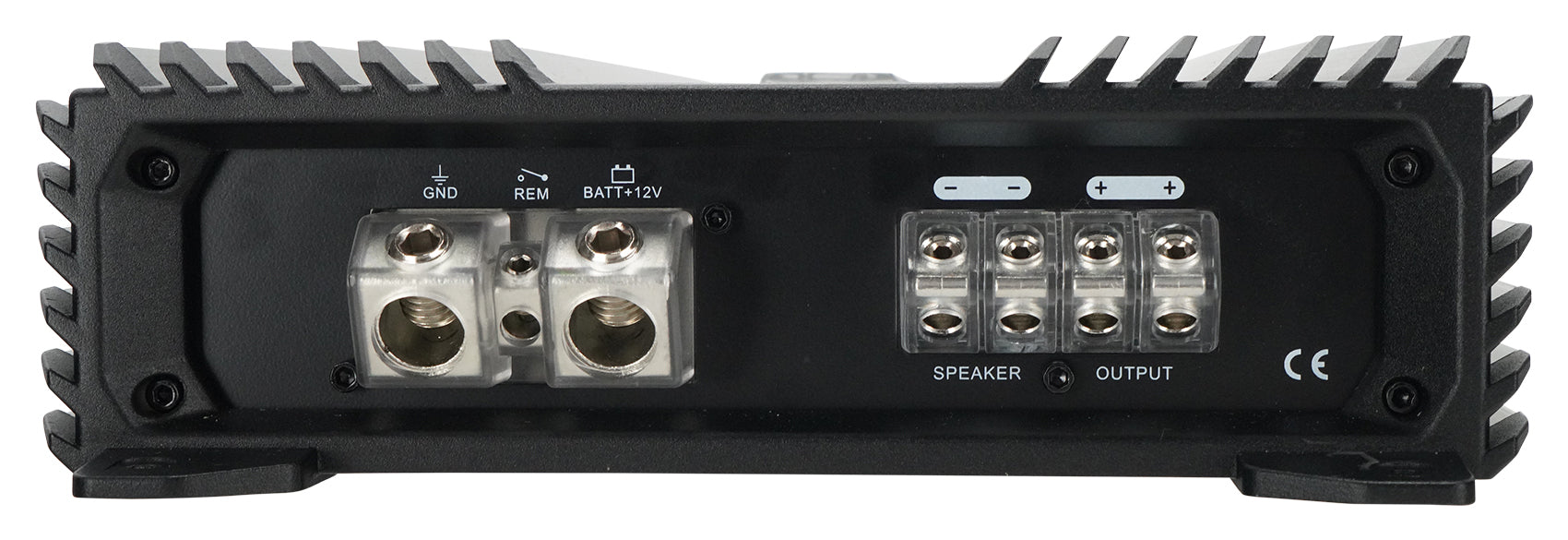

Output Connections
- Nickel-plated, high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
- Nickel-plated, high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
-
Connection Type
- Secure connection for all power, ground and speaker connections. Angled for ease of access during installation.
- Secure connection for all power, ground and speaker connections. Angled for ease of access during installation.
-
Full-Range RCA Outputs for Signal Pass Through
- One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables
- One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables
-
LED System Protection Circuitry Diagnostics
- Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
- Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
-

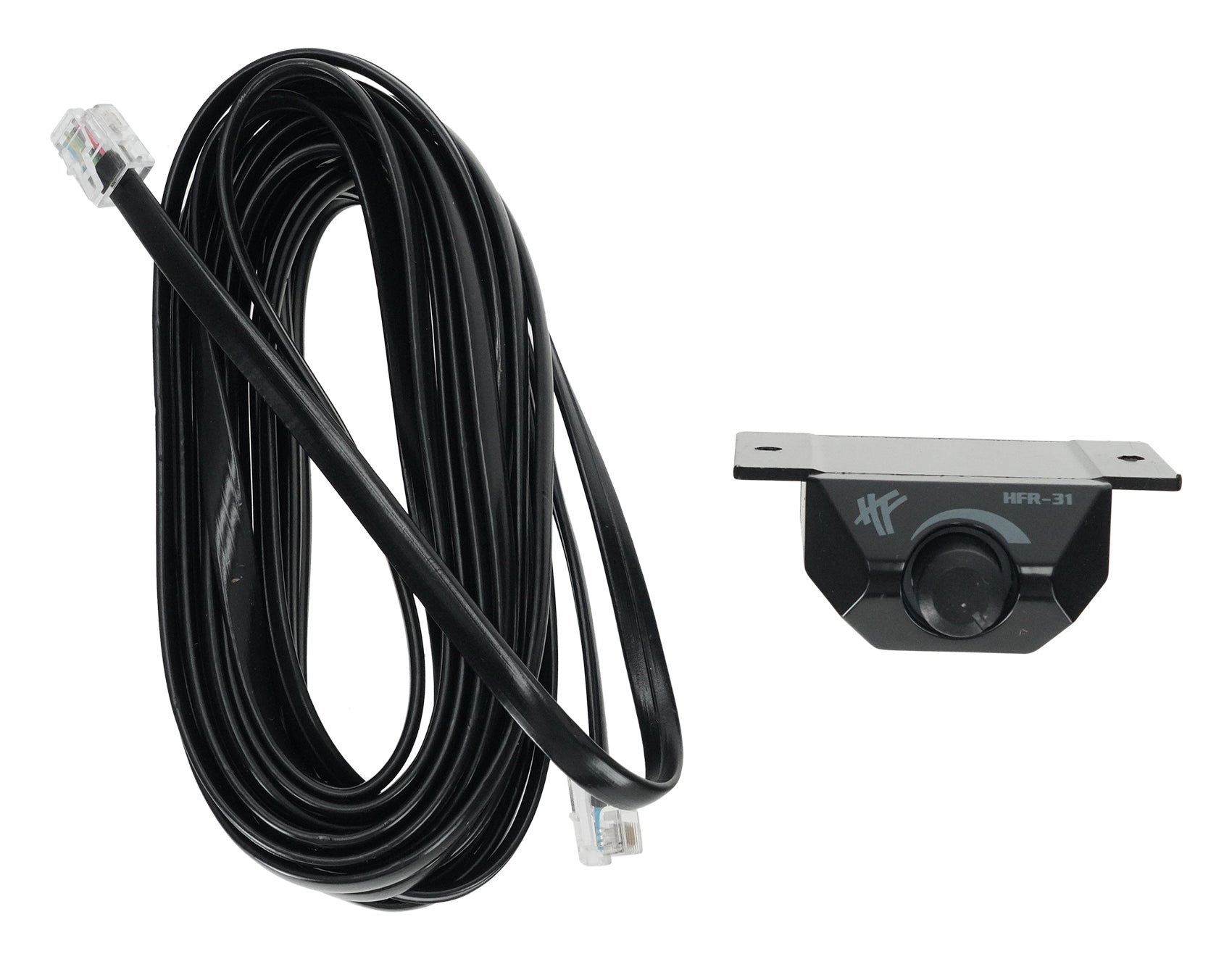

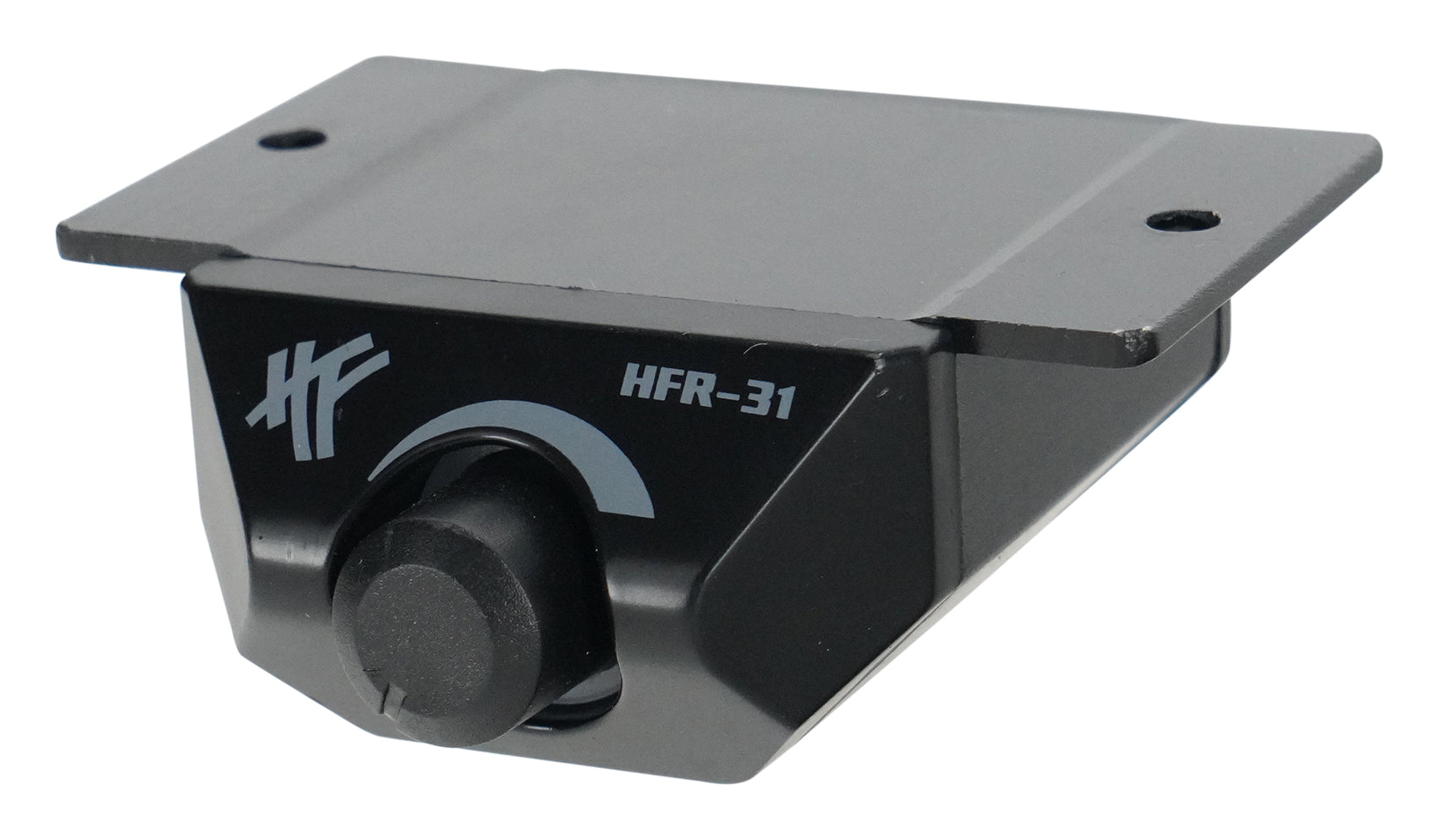

Bass Remote Included
- Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look
- Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look
Specifications:
- Class: Super D Class™
- Variable Voltage: 0.2V - 6V
- Signal to Noise: >80dB
- Frequency Response: 100Hz - 300Hz
- Crossover: Electronic
- Variable Low Pass Crossover 12dB per Octave: 40Hz - 300Hz
- Tone Control/Parametric EQ: Bass EQ
- Bass Boost: 0~9dB@45Hz
- Subsonic Filter: 10Hz - 40Hz
- Power @ 1 Ohm: 1 x 2100 Watts
- Power @ 2 Ohms: 1 x 1400 Watts
- Power @ 4 Ohms: 1 x 700 Watts
- Total Channels: Mono
- Audio Inputs: Yes
- Power Terminal 12v/GND: 0 AWG
- Speaker Terminal Wire Gauge: 12 AWG
- Total Harmonic Distortion (THD): <0.10%
- Warranty: 1 Year
Product Dimensions:
- Product ONLY Weight (pounds): 12.35
- Product ONLY Weight (kilograms): 5.6
- Product Packaging Weight (pounds): 14.35
- Product Packaging Weight (kilograms): 8
- Product Packaging Dimensions (LxWxH) - Inches: 22.88 x 10.19 x 3.63
- Product Packaging Dimensions (LxWxH) - CM: 58.12 x 25.88 x 9.22
