Presonus STUDIO 1824C 18x18 USB-C Audio Recording Interface+ATH-M50X Headphones

Package Includes:

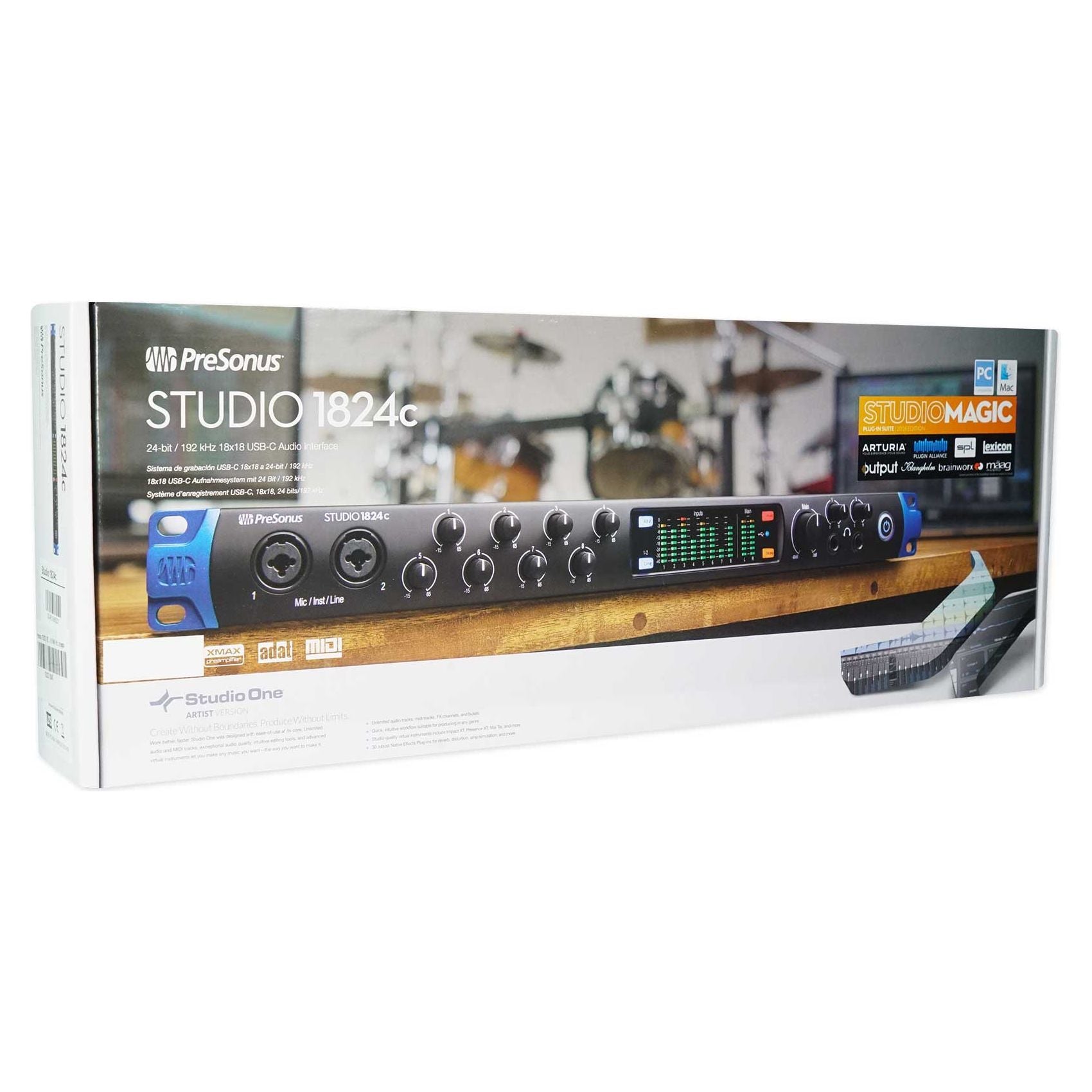

• (1) Presonus STUDIO 1824C 18x18 USB-C Audio Recording Interface w/8 XMAX Mic preamps
• (1) Audio Technica ATH-M50X Over Ear Professional Studio Headphones W/ Case

---

Description of STUDIO 1824C:

Created for demanding producers.
The Studio 1824c 192 kHz USB-C™ compatible audio interface is ideal for producers interested in recording full bands, including multi-channel drums. It records up to 18 simultaneous inputs and features 8 XMAX Class A mic preamps, as well as MIDI I/O. Its 20 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with included Studio One® Artist music production software and UC Surface control software.

World-class recording software included.
Seamlessly integrated with the included PreSonus UC Surface control software for macOS®, Windows®, iPad®, and Android™ tablet and Studio One Artist music production software, the Studio 1824c audio interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment—including powerful extensions for Studio One like the CTC-1 Console Shaper and Presence XT Editor.

Take the tour.

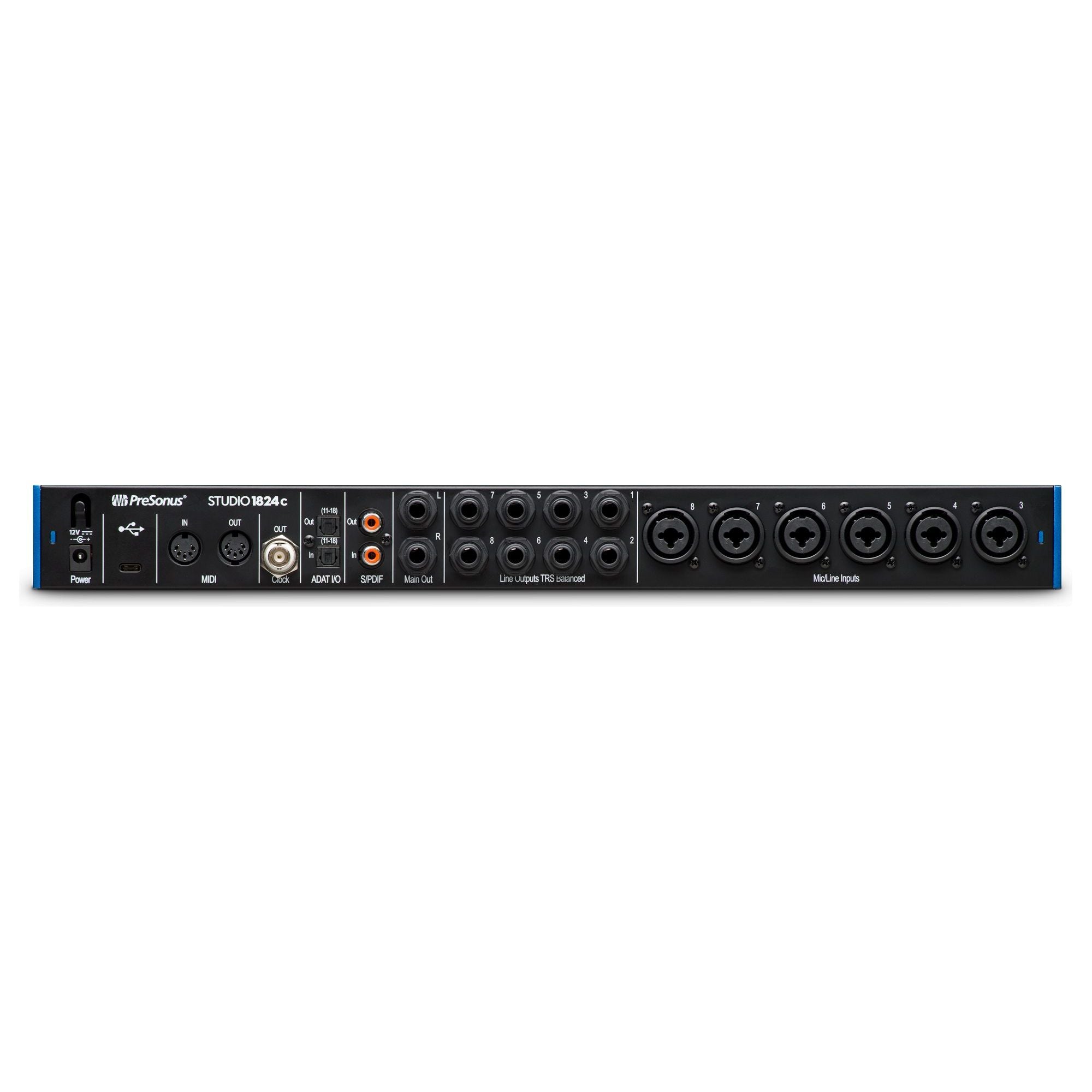

The Studio 1824c audio interface features USB-C™ compatible computer connectivity and records up to 18 simultaneous inputs, including two combo mic and switchable line/instrument inputs and six mic/line inputs, all with XMAX mic preamps and +48V phantom power. Digital inputs include eight channels of ADAT Optical I/O (four channels at 96 kHz) and stereo S/PDIF I/O. In addition to the main L/R outputs, you get eight DC-coupled line-level outputs that can send control voltages. You also get two headphone outputs. A built-in MIDI interface enables connection to a keyboard, sound module, or control surface.

Superior sound.
The Studio 1824c audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output and PreSonus’ professional-grade XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.

Designed for producers who need more.
With ample connectivity, onboard monitor mixing, pristine mic preamps, and up to a 192 kHz sample rate, the Studio 1824c audio interface will give you the ultra-high-definition sound and versatile connectivity you need to make state-of-the-art recordings. The perfect companion for any recording software, the Studio 1824c’s integration with Studio One and remote control with UC Surface provide a complete and thoroughly professional recording studio.

Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.

Features:

Input/Output

• Up to 18 inputs/20 outputs simultaneously (8x8 at 192 kHz)
• 2 mic/instrument/line inputs with XMAX Class A mic preamps
• 6 mic/line inputs with XMAX Class A mic preamps
• 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
• 2 balanced ¼” TRS main outputs
• DC coupled for sending control voltages
• 8 balanced ¼” TRS line outputs for monitor mixing
• DC coupled for sending control voltages
• 2 stereo headphone outputs with individual level controls
• MIDI In/Out
• Stereo S/PDIF digital I/O
• 1 USB-C™ compatible 2.0 port
• USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
• BNC word clock output

Integrated Software

• Studio One® Artist for Mac® and Windows®
• UC Surface control software for Mac, Windows, iPad®, and Android™
• Studio Magic Plug-in Suite

Meters, Controls, and Features

• 18x8 onboard DSP monitor mixer
• Front-panel level controls for main outputs
• Mono and Mute buttons for the main outputs
• True +48V phantom power for condenser microphones (global)
• 10 ladder-style 8-LED level meters (8 input, 2 main output)

Digital

• USB-C™ compatible port (USB 2.0)
• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates

Physical

• 1U rack-mountable
• Road-rugged construction with all-metal chassis and metal knobs

Computer system requirements:



Below are the minimum computer-system requirements.

Mac

• macOS® 10.11 or higher (64-bit only)
• Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
• 4 GB RAM (8 GB or more recommended)

Windows

• Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
• Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
• 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

• USB-C™ or USB-A 2.0 port compatiblity
• 32 GB hard disk space
• PreSonus Universal Control 2.0 or higher
• Monitor with 1366x768 resolution (high-dpi monitor recommended)
• Multitouch-enabled monitor required for touch operation

iOS

• iOS 10 or later
• iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

Android

• Android™ 5.0 (Lollipop) or later
• Android tablet (8-inch) with 1024x768 resolution (UC Surface)

Technical Specifications:



General

• Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Converter Resolution: 24-bit
• Converter Dynamic Range: 114 dB
• Converter Dynamic Range: 114 dB

Microphone Inputs

• Maximum Level: +16 dBu, min gain
• Gain Range: 80 dB
• Frequency Response: 20 Hz - 20 kHz (unity gain)
• Dynamic Range: 110 dB (A-wtd, min gain)
• THD + N: 0.005% (1 kHz, 0dBu, unity gain)
• EIN: -128 dBu (A-wtd, 20 kHz BW, Rs=150O, max gain)
• Input Impedance: 1400O
• Phantom Power: 48V (>10 mA per channel)

Line Inputs

• Maximum Level: +21 dBu (balanced, min gain)
• Gain Range: 40 dB
• Frequency Response: 20 Hz-20 kHz (unity gain)
• Dynamic Range: 112 dB (A-wtd, min gain)
• THD + N: 0.005% (1 kHz, +18 dBu, min gain)
• Input Impedance: 10 kO

Instrument Inputs

• Maximum Level: +15 dBu (unbalanced, min gain)
• Gain Range: 80 dB
• Frequency Response: 20 Hz - 20 kHz (min gain)
• Dynamic Range: 112 dB (A-wtd, min gain)
• THD + N: 0.020% (1 kHz, +10 dBu, min gain)
• Input Impedance: 1M O

Main Outputs

• Type: ¼" TRS female, DC Coupled
• Maximum Level: +18 dBu, balanced
• Frequency Response: 20Hz - 20kHz (unity gain)
• Dynamic Range: 108 dB (A-wtd, unity gain)
• THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)

Line Outputs

• Type: ¼" TRS female, DC coupled
• Maximum Level: +18 dBu, balanced
• Frequency Response: 20 Hz - 20 kHz
• Dynamic Range: 108 dB (A-wtd, -60 dBFS)
• THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)

Headphone Outputs

• Maximum Power: 150 mW/channel (60O load)
• Frequency Response: 20 Hz - 20 kHz (unity gain)
• Dynamic Range: 103 dB (A-weighted, 1 kHz, unity gain)
• THD + N: 0.250% (1 kHz, 150 mW, unity gain)
• Impedance Working Range: 32O to 600O

Physical

• Height: 1.75" (44 mm)
• Width: 19" (483 mm)
• Depth: 5.5" (140 mm)
• Weight: 4.8 lbs (2.2 kg)

?Included Studio Magic Plug-ins

• Ableton Live Lite
• Arturia Analog Lab Lite

• Brainworx bx-opto Compressor

• Brainworx bx_rockrack

• Cherry Audio Voltage Nucleus

• iZotope Neutron Elements

• Klanghelm SDRR2tube compressor

• KV331 Audio Synthmaster Player

• Lexicon MPX-i Reverb

• Maag Audio EQ2

• Melodics rehearsal tool

• Native Instruments REPLIKA

• Output Movement

• SPL Attacker Plus

• Studio Linked Trophies

• UJAM Virtual Drummer 2 PHAT

• UVI Model D Piano

---

Authorized Audio-Technica Dealer!

Description of ATH-M50X:

As the most critically acclaimed model in the M-Series line, the ATH-M50 is praised by top audio engineers and pro audio reviewers year after year. Now, the ATH-M50x professional monitor headphones feature the same coveted sonic signature, with the added feature of detachable cables. From the large aperture drivers, sound isolating earcups and robust construction, the M50x provides an unmatched experience for the most critical audio professionals.

More About the M-Series Headphones
Critically acclaimed M-Series professional monitor headphones deliver accurate audio and outstanding comfort, perfect for long sessions in the studio and on the go. Contoured earcups seal tight for excellent sound isolation, with minimal bleed. And the pro-grade materials are durable, yet comfortable. Find out why online reviewers, top audio engineers, and cult followers agree, M-Series is an unmatched combination of audio and build-quality that gets the job done. Hour after hour, year after year.

Features:

• Audio Technica ATH-M50X Over Ear Professional Studio Monitor Collapsible Headphones
• Advanced build quality and engineering
• Critically acclaimed sonic performance praised by top audio engineers and pro audio reviewers

• Proprietary 45 mm large-aperture drivers with rare earth magnets and copper-clad aluminum wire voice coils

• Exceptional clarity throughout an extended frequency range, with deep, accurate bass response

• Circumaural design contours around the ears for excellent sound isolation in loud environments

• 90° swiveling earcups for easy, one-ear monitoring

• Professional-grade earpad and headband material delivers more durability and comfort

• Collapsible for space-saving portability

• Detachable cables (includes 1.2 m - 3.0 m coiled cable, 3.0 m straight cable and 1.2 m straight cable)

• Top choice for studio tracking and mixing, as well as DJ monitoring and personal listening

• Type: Closed-back dynamic

• Driver Diameter: 45 mm

• Magnet: Neodymium

• Voice Coil: Copper-clad aluminum wire

• Frequency Response: 15 - 28,000 Hz

• Maximum Input Power: 1,600 mW at 1 kHz

• Sensitivity: 99 dB

• Impedance: 38 ohms

• Weight: 285 g (7.8 oz), without cable and connector

• Cable: Interchangeable cables: detachable 1.2 m - 3.0 m (3.9' - 9.8') coiled cable, detachable 3.0 m (9.8') straight cable and detachable 1.2 m (3.9') straight cable

• Accessories Included: Protective carrying pouch, 6.3 mm (1/4“) screw-on adapter


---

Advantages of buying from an authorized seller:

• Best prices - We sell all Audio-Technica Products at great prices
• Full Factory Warranty
• Lifetime Customer Service by Audio-Technica product experts
• Guaranteed legitimate and authentic merchandise

Please note: If you purchase Audio-Technica from an unauthorized seller then you are taking a big risk. You will not have any manufacturers warranty, and there is no guarantee that the item is authentic, brand new, or even working.
