PRESONUS Studiolive 32R Digital Rack Mixer+Mic+Headphones+Mic+(24) XLR Cables
Product Description
Package Includes:
- (1) PRESONUS Studiolive 32R 32-Channel Digital Rack Mount Mixer w/32 XMAX Preamps
- (1) Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
- (1) Rockville RCM03 Pro Studio Recording Condenser Microphone Mic+Metal Shock Mount
- (24) Rockville RCXFM20E-B 20 Foot Female to Male XLR Mic Cables Black 100% Copper
How to Setup a Rockville Condenser Microphone with Your Computer:
Video of RCM03:
Unboxing Video of RCM03:
Multi-Purpose
Designed for crystal clear capturing of vocals, acoustic and amplified instruments, as well as room reverb. The frequency pick up pattern makes the RCM03 amazing in studio applications.
The aluminum construction makes the RCM03 tough enough for Live sound applications as well!
Multiple connection options!
This microphone can be used in multiple ways. You can connect this to the phantom power of your mixer or you can connect it directly to your computer sound card. We include both cables! We include a cable to connect it to your mixer as well as a cable to connect the mic to your computer!
Quality built inside and out!
The microphone is made of aluminum. It is very rugged and tough like you would expect from any Rockville product. This microphone has a large diaphragm which is what enables our mic to deliver a wider range of high and low frequencies than our competitors. Our frequency range is tested at 30HZ – 20KHZ! The mic sounds crystal clear sound with no distortion!
The PCB (circuit board) uses surface mounted components which is the same method the expensive brands use. We use only top components that under-go extreme testing by our own audio engineers.
The last thing that I need to mention and call out is that our product is very sturdy. Let me explain. When you are recording, you do not want even the slightest noises coming from your mic. The microphone consists of a casing and there is a cartridge inside the case. You do not want that cartridge moving around. We made sure to adjust our mechanism and ensure the cartridge is firmly in place and not creating any unwanted noises.
Best Value
After testing our Rockville condenser mics against mics that cost 300% more money, we found ours to be as good or better than the ones we tested against.
What's Included:
- RCM03
Condenser Microphone (made of aluminum!)
- 100% Copper 10 foot 3.5mm jack to XLR cable to connect mic to your computer or other device we need to update on ebay amazon, website, etc
- 100%
Copper 10 foot XLR to XLR cable to connect to any mixer with phantom
power
- Metal
shock mount
- Metal
Anti-wind foam cap
- Owners
Manual
- Warranty
card
Features:
- Rockville RCM03 Pro Studio
Recording Condenser Microphone Mic+Metal Shock Mount
- Aluminum high quality construction
- Polar Pattern: Internally Polarized
Condenser Cardioid Design
- Large diaphragm for smooth, natural
sound and low noise
- Power Requirements: 48V DC Phantom Power
- Uni-directional
- Sensitivity: -27dB±2dB(0dB=1V/Pa
at1kHZ)
- Output impedance: 200O±30%(at 1kHz)
- Standard operating voltage: 3V
- Operating voltage range: 1.5V-10V
- Current consumption: less than
500uA
- Voltage deduction characteristic:
within 3dB at 2V
- S/N ratio: More than 24dB
- Frequency Response: 30Hz - 20 KHz
- Fixed Crossover Filter cutoff
frequency: 40Hz---16 KHz
- Load impedance: Greater or = to
1000 Ohms
- Equivalent Noise level: Less than
18dB A (IEC581-5)
- Max. Input SPL: 126dB(THD=1.0% at
1kHZ)
- Electrical current: Greater than
4.8Ma
- Microphone body net weight:320
Grams (0.7 Pounds)
- Microphone Max.diameter 44mm (1.73”
inches)
- Microphone Length 217mm (8.54”
inches)
- Microphone material: steel grille +
Alluminum (handheld part)
- PCB Layout: Surface mount
Video of RCXFM20E-B:
Description:
All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.
The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.
Features:
- Rockville RCXFM20E-B Black 20 Foot Nickel Plated Female to Male XLR Microphone Cable
- XLR Connectors with Internal Strain Relief for Rugged Reliability
- 100% Copper Conductors for Enhanced Signal Clarity
- 90% OFC Spiral Shield for Effective EMI and RFI Rejection and Flexibility
- Length: 20 Ft
- Color: Black
Includes:
- PRO-M50 headphones
- Detachable cable
- Soft suede and leather ear cushions (interchangeable)
- Leather hard travel protective case
- Gold plated ¼" adapter

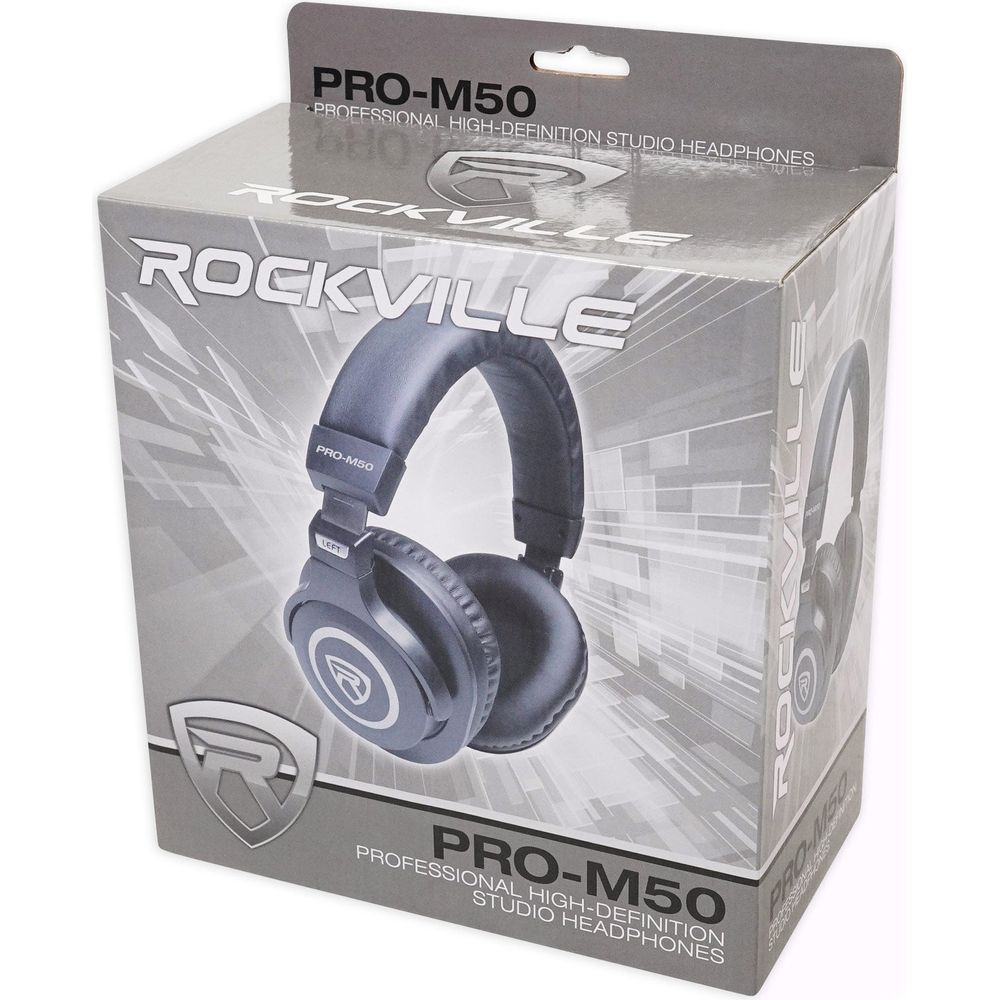

All About Your PRO-M50:
Description:
Rockville brings you studio quality headphones and at an incredible price with its new PRO-M50 headphones. These are professional grade headphones that are guaranteed to ourperform headphones that cost triple the price! These feature ergonomically designed swiveling cups with interchangeable soft suede or leather finish cushions (included). The ear cups seal tight for excellent sound isolation and minimal bleed. Inside these cups you'll find 40mm Neodymium drivers delivering accurate audio with an extended frequency range for clear and rich bass, and a full frequency range of mids and highs. These are closed back style headphones specifically designed for studio monitoring. These play back the sound with a flat frequency curve so you can hear your music exactly how it was recorded. With the PRO-M50 you can expect to hear every detail of every song with extreme accuracy. These headphones cover full frequency ranges; even extending a bit past the frequencies that the human ear can hear.
The headband is made of soft leather, offering ultimate comfort even after extended wear. The beautifully designed stainless steel headband frame and arms are strong and durable. A detachable 51" coiled 100% Oxygen Free Copper cable with a gold plated 3.5mm plug is included along with a gold plated ¼" adapter to ensure the best possible signal. A hard leather case is included to store and protect your new investment when you are on the go.
Amazing sound quality will make these your go-to headphones whether in the studio or out and about!
Features:
- Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
- Professional High-Definition Studio Headphones
- 40mm Neodymium drivers
- Ergonomically designed swivel ear cups
- Supreme sound isolation
- Accurate sound reproduction
- Minimal bleed
- Sturdy and durable steel headband and arms
- Soft leather headband cover
- Interchangeable leather and soft suede ear cups covers included
- Detachable 51" coil cable made of 100% Oxygen Free Copper (158" fully extended)
- Gold plated 3.5mm connector
- Gold plated ¼" adapter
- Hard leather carrying case
- Stainless steel headband frame and moving arms are durable and long-lasting
Specifications:
- Style: Closed-Back
- Design: Circumaural
- Transducer Type: Dynamic
- Driver: 40MM
- Sensitivity: 97±3dB
- Impedance: 32ohm
- Frequency Response:10Hz - 25KHz
- Max. Power: 600MW
- Rating Power: 260MW
- Net Weight: 290g (with cable)

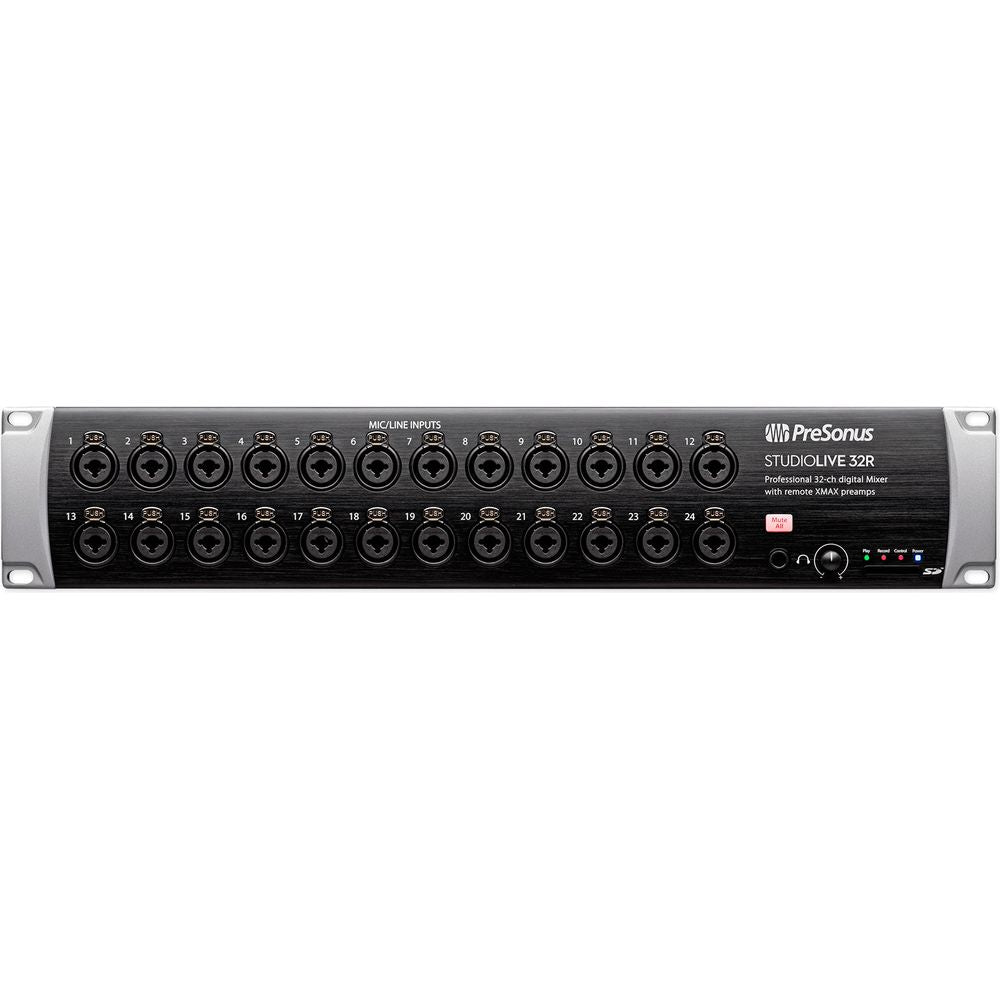

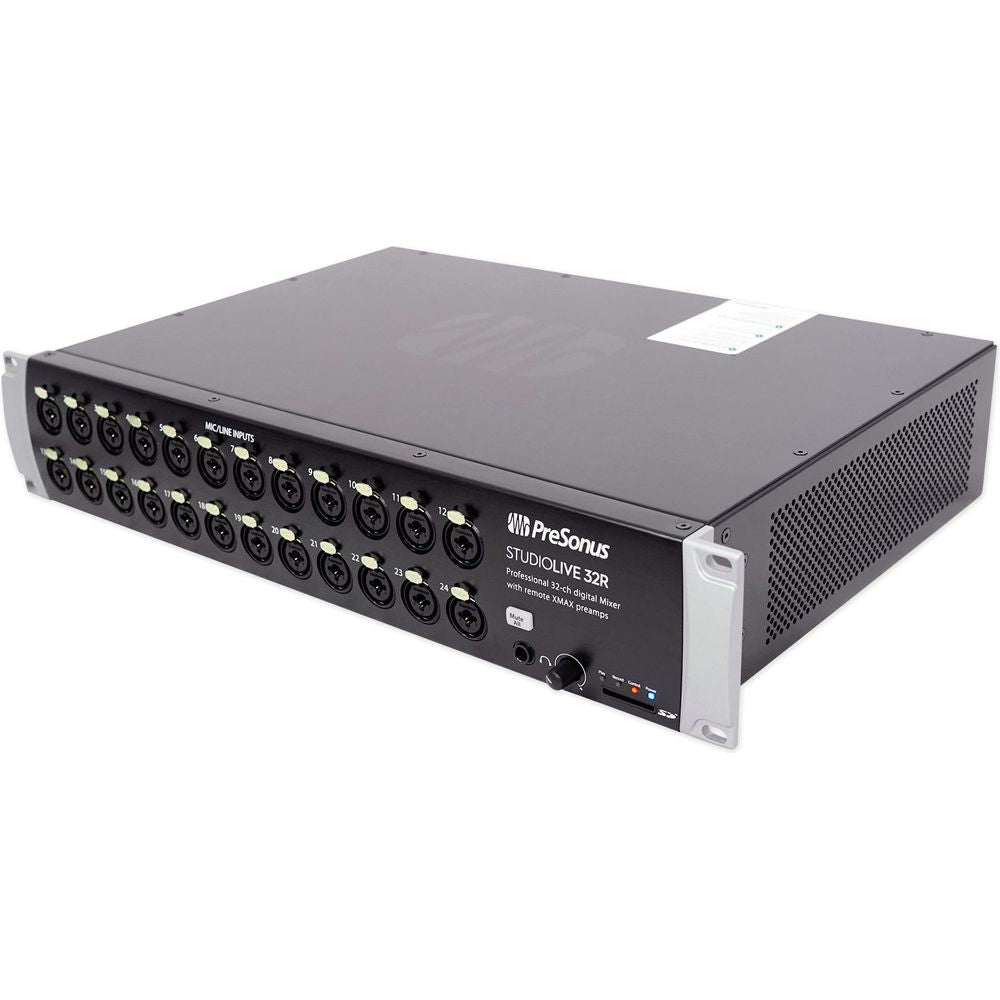

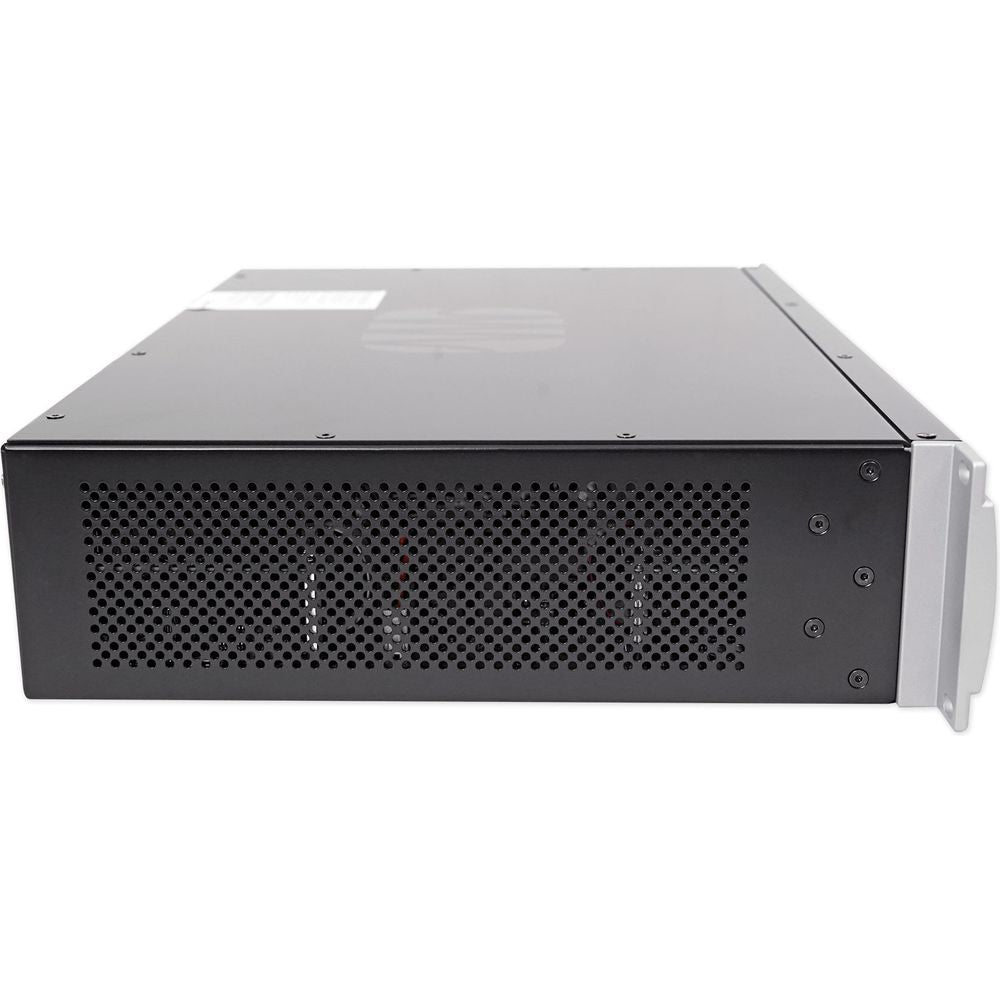

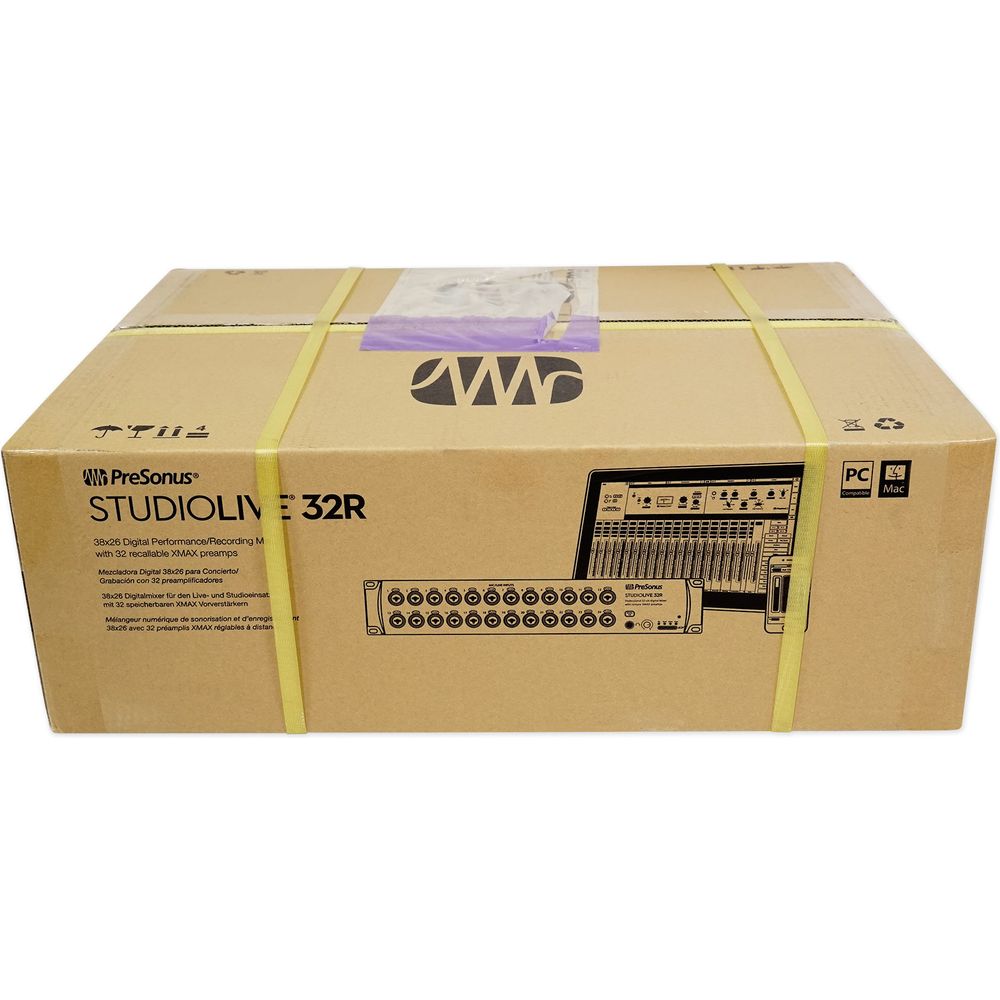

Description of STUDIOLIVE 32R:
StudioLive® 32R: 34-input, 32-channel Series III stage box and rack mixer.
The digital mixer that defines versatility.
The StudioLive® 32R digital mixer is four audio tools in two compact rack spaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. And of course, like other StudioLive Series III digital mixers, the StudioLive 32R has a continuously bidirectional 128-channel (64x64) USB audio interface onboard. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
The best digital mixer for your rack.
Inside the StudioLive 32R, you'll find the dual-core PreSonus® FLEX DSP Engine powering 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
An integrated monitor mixer.
Professional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the StudioLive 32R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to 16 monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
The perfect personal monitoring system.
Modern musicians sometimes want more than just remote control: They want total control. When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 32R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 32R makes it easy to bus down larger channel counts, providing simplified 16-channel mixes for your musicians to manage. Four dedicated effects buses let you add reverb and delay and let the musicians control the blend from stage. No other personal monitoring system offers so much powerful processing with flexible, easy-to-use routing features.
The digital stage box.
As a digital stage box for StudioLive Series III console mixers, the StudioLive 32R provides 32 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 32R automatically mirror the mixes available on your console mixer, making routing fast and easy. Best of all, when you need a rackmount mixer for a small mobile gig, simply disable Stage Box mode, and you have a full-featured 32-channel digital mixer that fits into two rackspaces.
The 64-channel audio interface.
Recording engineers searching for a high-channel count audio interface with near-zero latency monitor mixing, integrated plug-in models, and recallable mic preamps need look no further than the StudioLive 32R. An integrated 128-channel (64x64) audio interface lets you record all your inputs and buses over USB.
The StudioLive 32R is also a complete rack of vintage EQ and dynamics processors. Every channel and bus can be processed with Fat Channel plug-in models pre- or post-recording. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 32R and inside Studio One®, providing the ultimate mixing and recording flexibility. You get 6 models preinstalled, plus an additional 15 plug-ins from the Fat Channel Collection Vol. 1—a $149 (USD) value if purchased separately. Like every PreSonus interface, the StudioLive 24R is ready to record right out of the box with Studio One Artist or Capture®—both of which are included along with Ableton® Live Lite.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The StudioLive 32R combines the powerful processing for which StudioLive Series III mixers are known with flexible modes to pair perfectly with console mixers and EarMix 16M personal monitoring mixers. Whether used standalone as a digital mixer and audio interface, or utilized with other StudioLive Series III ecosystem products, the StudioLive 32R combines flexibility with DSP power to become the ultimate compact audio solution.
Apple Silicon, iOS, and iPadOS compatibility—standard.
The PreSonus StudioLive 32R is natively compatible with Apple Silicon-based Mac computers*, as well as iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it's USB class-compliant, there are no special drivers or applications to download and install. You'll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Three year warranty—for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it.
Make your own magic.
At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.
The 2021 Studio Magic includes tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One Artist or your DAW of choice with a retail value of over $1000 (US).
Features:
Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
36 input-channel digital rack mixer
- 32 local digitally controlled XMAX mic/line inputs
- 4 FLEX FX returns
26 mix buses
- 16 FlexMixes (Aux, Subgroup, Matrix)
- 4 dedicated FLEX FX buses
- Stereo Main bus
286 simultaneous processors
- HPF
- Gate/Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard stereo SD recorder with true Virtual Soundcheck mode
AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- Monitor Mix and Stage Box mode for use with StudioLive® Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
Remote control every mix function from your computer, iPad®, or Android™ tablet with UC Surface (included)
Put your musicians' monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
Capture® 3.0 multitrack software included
- Automated Virtual Soundcheck
- Store StudioLive mix scenes with your audio
Advanced Studio One® integration (Studio One Artist Included)
- XMAX mic preamp control from Studio One
- Control Fat Channel parameters from Studio One mixing console
Ableton® Live Lite included
Specifications:
macOS®
- macOS version 10.13 or later
- 200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates)
- Available USB port
Windows®
- Windows 10 or later (64-Bit Only)
- 200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
- Available USB port
