On-Stage DB100 Consumer 2 Pro DI Box Converts Audio 2 Balanced Mic-level XLR out

Description:

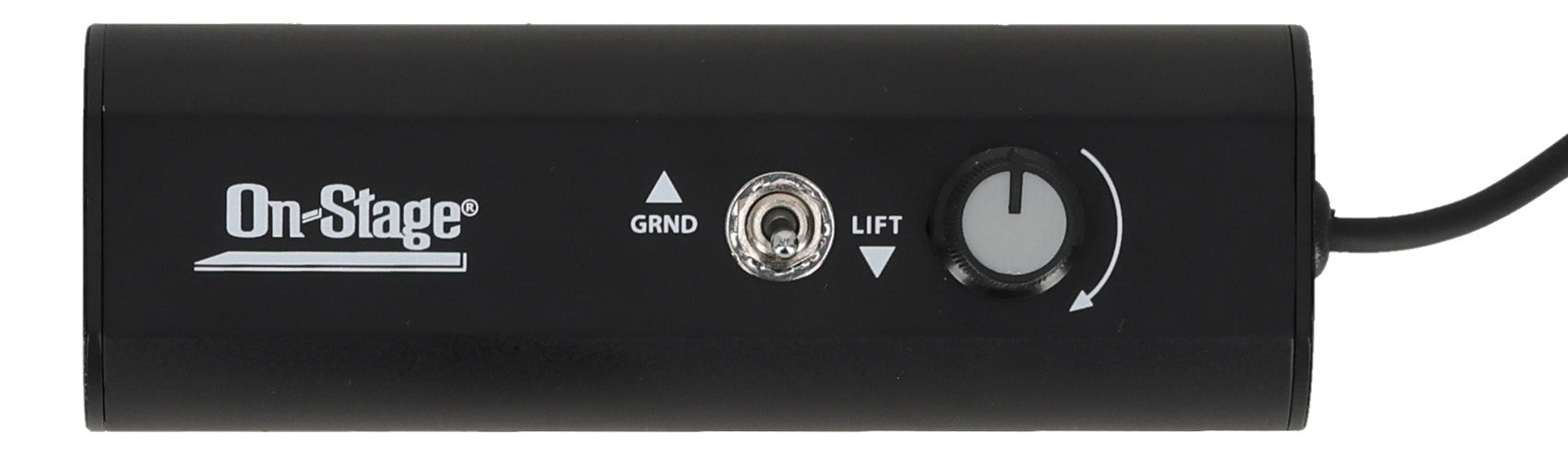

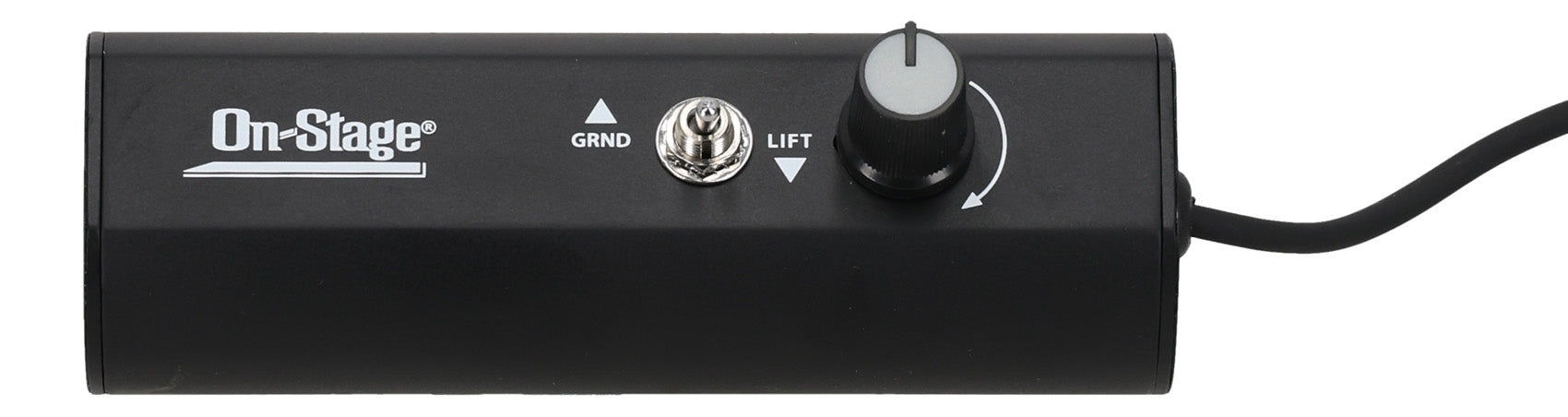

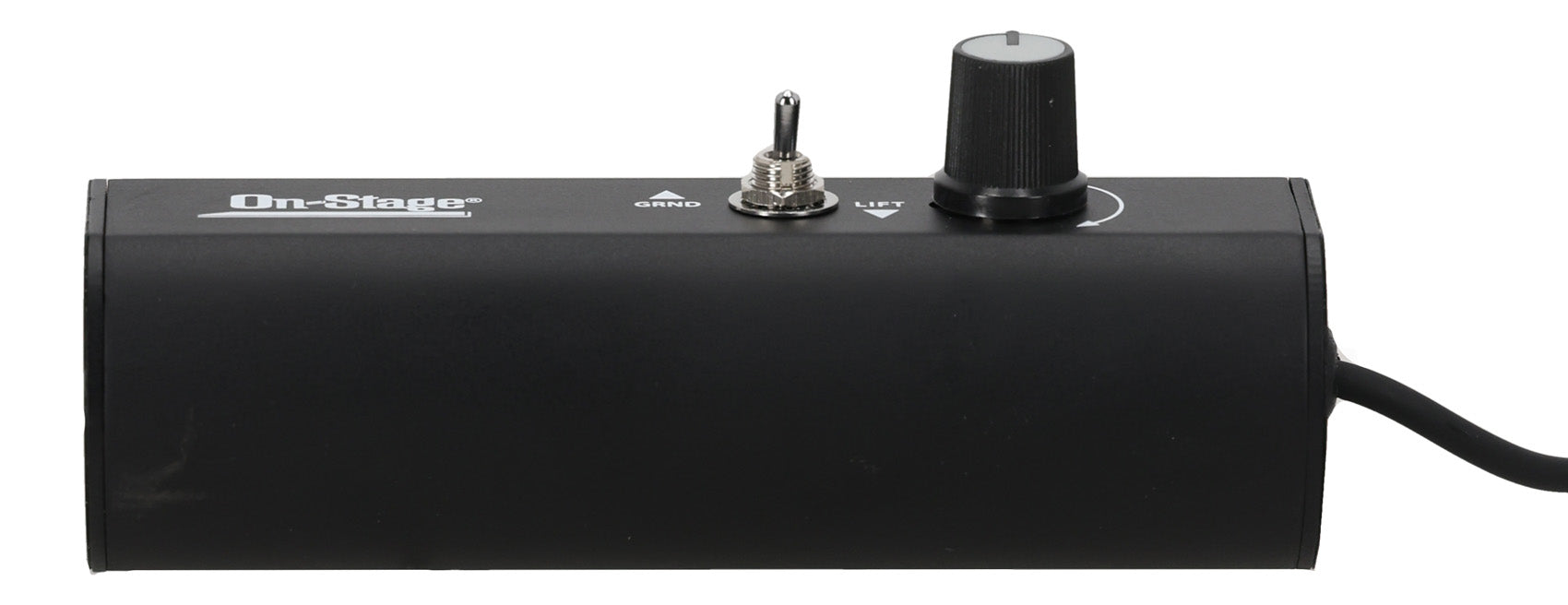

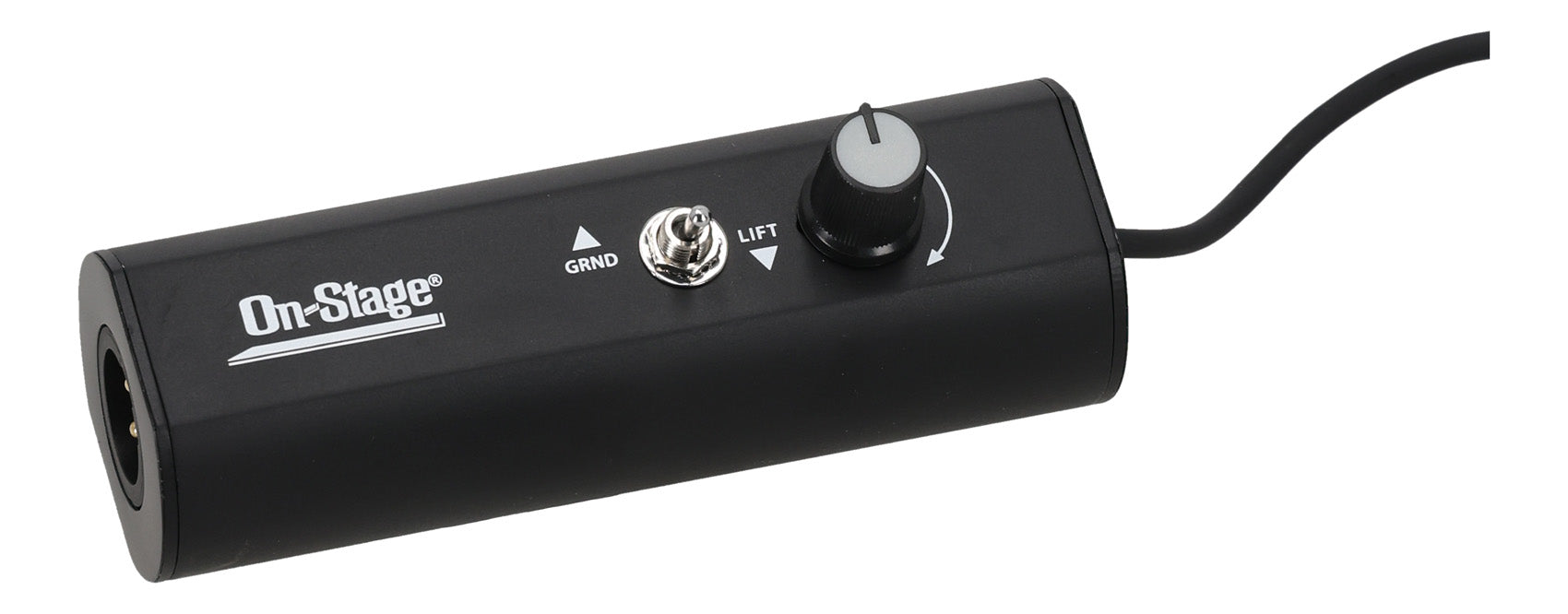

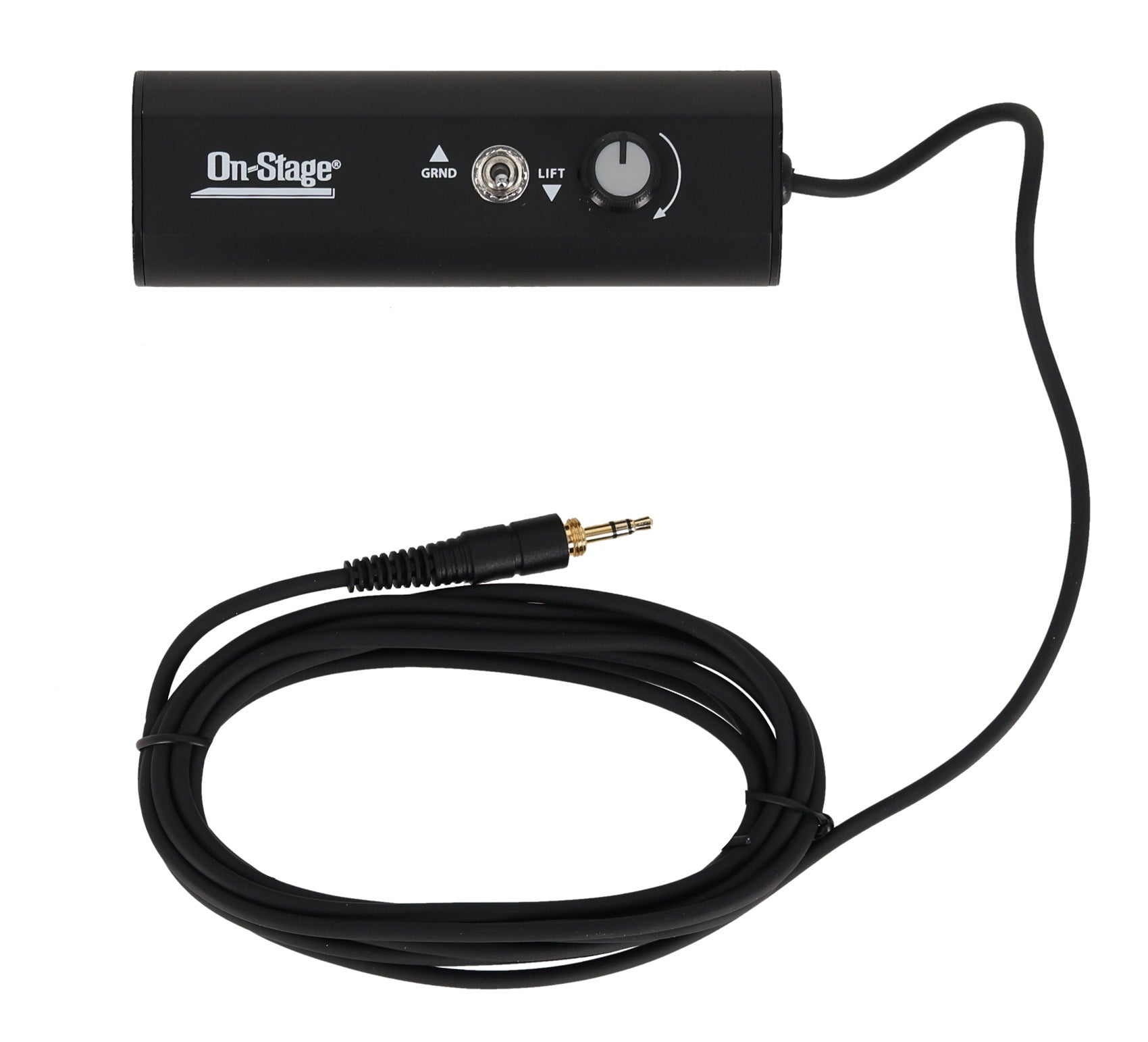

The DB100 Laptop DI Box eliminates noise and ground loops that often occur when using consumer audio devices with a PA system. Simply connect its 3.5 mm plug to the headphone jack of a laptop or digital music player, and this compact DI automatically converts the audio signal to a balanced, mic-level XLR output suitable for use with high-powered amplifiers. The volume knob enables additional adjustment of the output level while the ground-lift switch provides control over hum caused by ground loops. Passive and transformer based, this DI does not use a power supply and delivers electrical isolation for convenient, reliable sound preservation.

Features:

• Converts an unbalanced audio input to a balanced, mic-level output signal

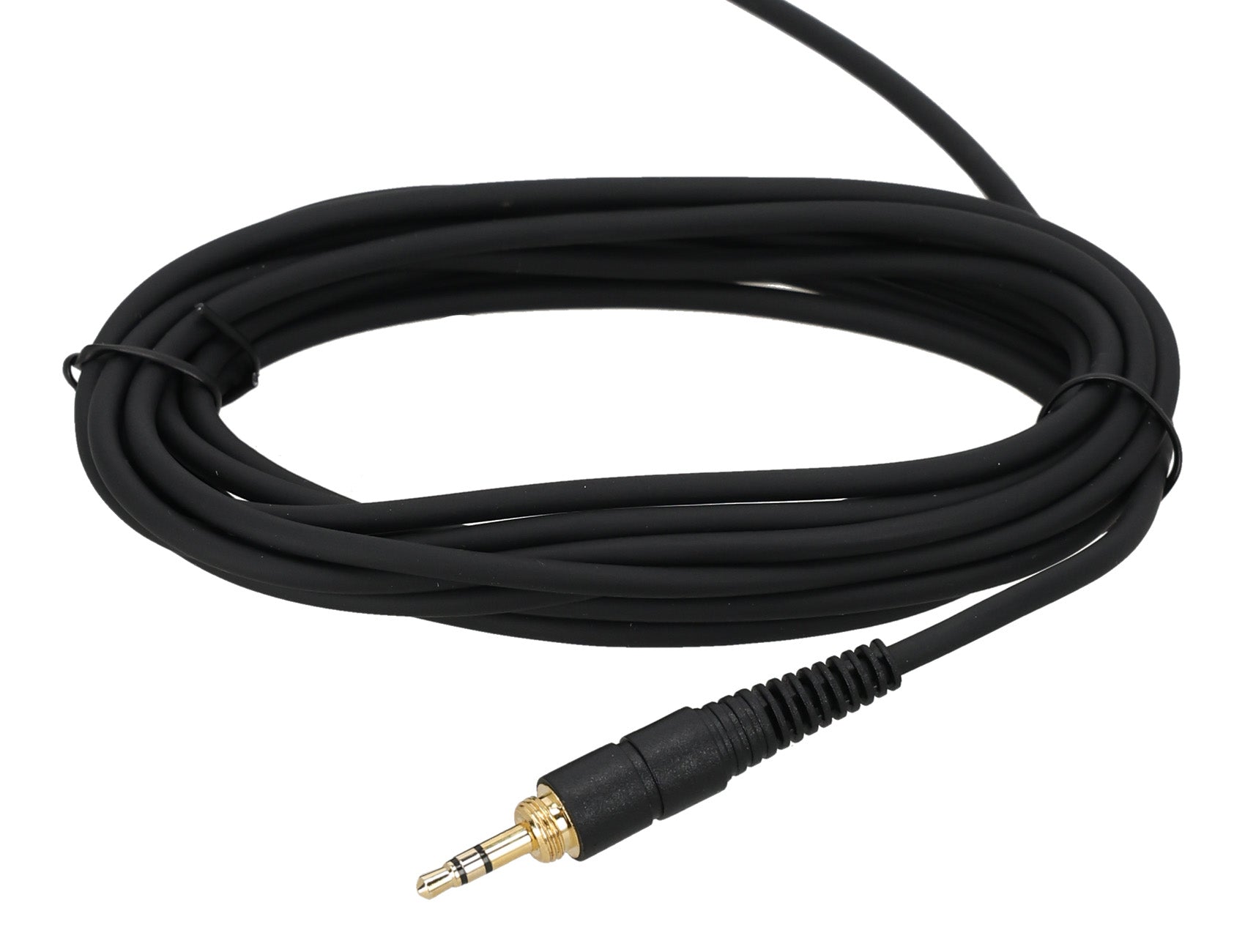

• Integrated 10' cable for ease of reaching audio sources

• 3.5 mm plug connects to common audio sources such as laptops, tablets, and MP3 players

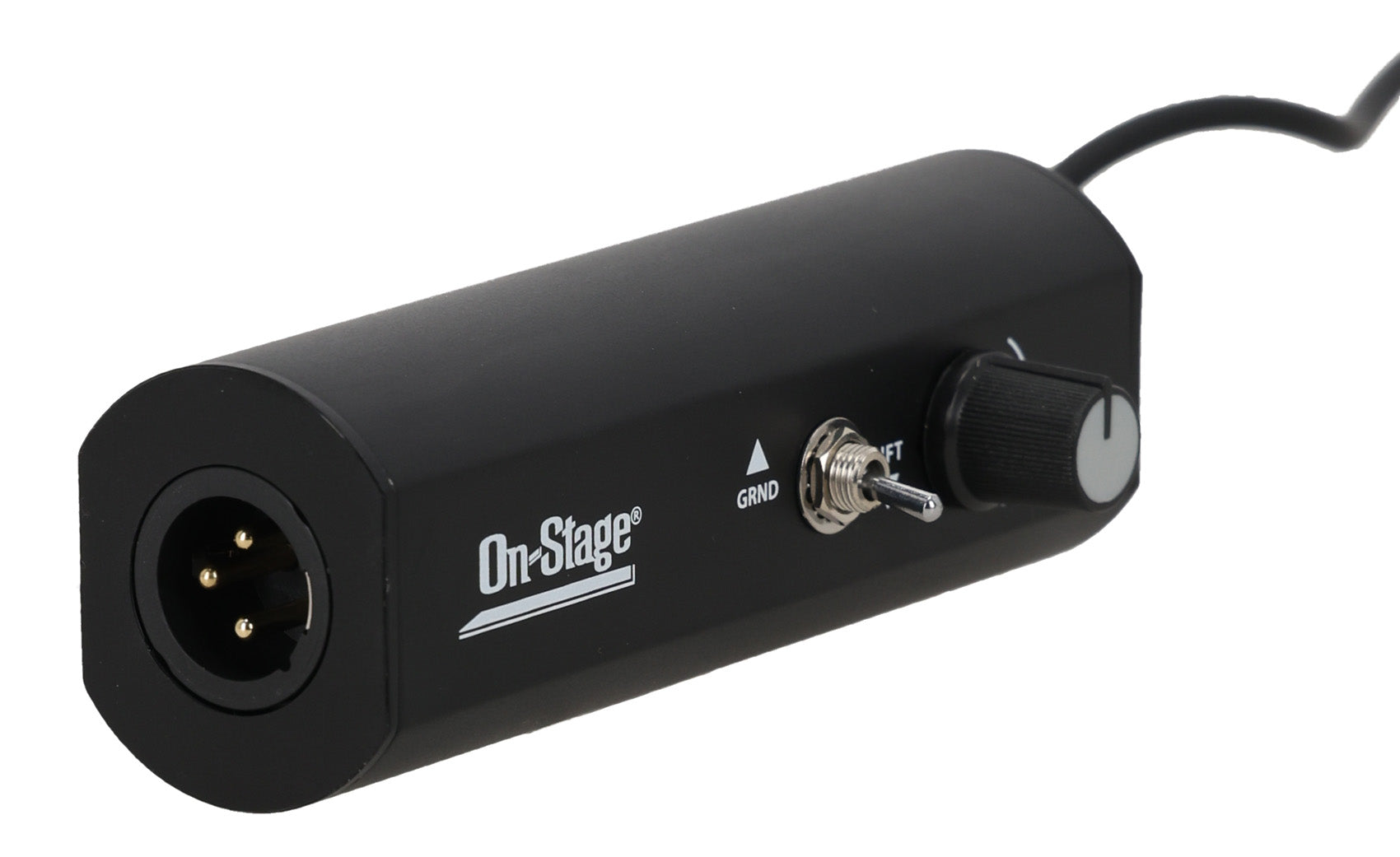

• XLR output jack for compatibility with stage snakes and PA-system inputs

• Volume knob enables adjustment of the output level between the source and amp

• Transformer and ground-lift switch eliminate electrical and ground-loop noise

• Passive operation does not require a power supply

• Rugged metal enclosure ensures reliable performance


Specifications:

• Application: Convert consumer products to balanced output

• Cable Length: 10'

• Color: Black

• Distortion: 0.008%

• Frequency: 20 Hz-20 kHz

• Input Attenuation: 20 dB

• Input Impedance: 100K ohms/1KHZ

• Input to Output: Stereo to mono

• Output Impedance: 2.5K-7.5K ohms/1KHZ

• Product Type: DI Box

• Signal-to-Noise Ratio: 87 dB

• Dimensions: 4.7" (L) x 1.6" (W) x 1.3" (H)
