3510-04 Pair + dB12 Amp + RWK41 4-Gauge Wiring Kit
MTX
3510-04 Pair + dB12 Amp + RWK41 4-Gauge Wiring Kit
3510-04 Pair + dB12 Amp + RWK41 4-Gauge Wiring Kit
Car Audio Subwoofer Bundle, Two 10-Inch 4-Ohm Subs, 500W RMS 2-Ohm Mono Amp, 4-Gauge Install Kit
Free Shipping
Features
- Two 10-inch single-voice-coil subwoofers rated at 250W RMS each
- 500W RMS mono amplifier output at 2 ohms
- Adjustable 12dB/octave crossover, subsonic filter, and bass equalizer
- 4-gauge kit includes copper RCA cables, power leads, and remote wire
- Sealed or vented enclosure recommendations for each subwoofer
Couldn't load pickup availability

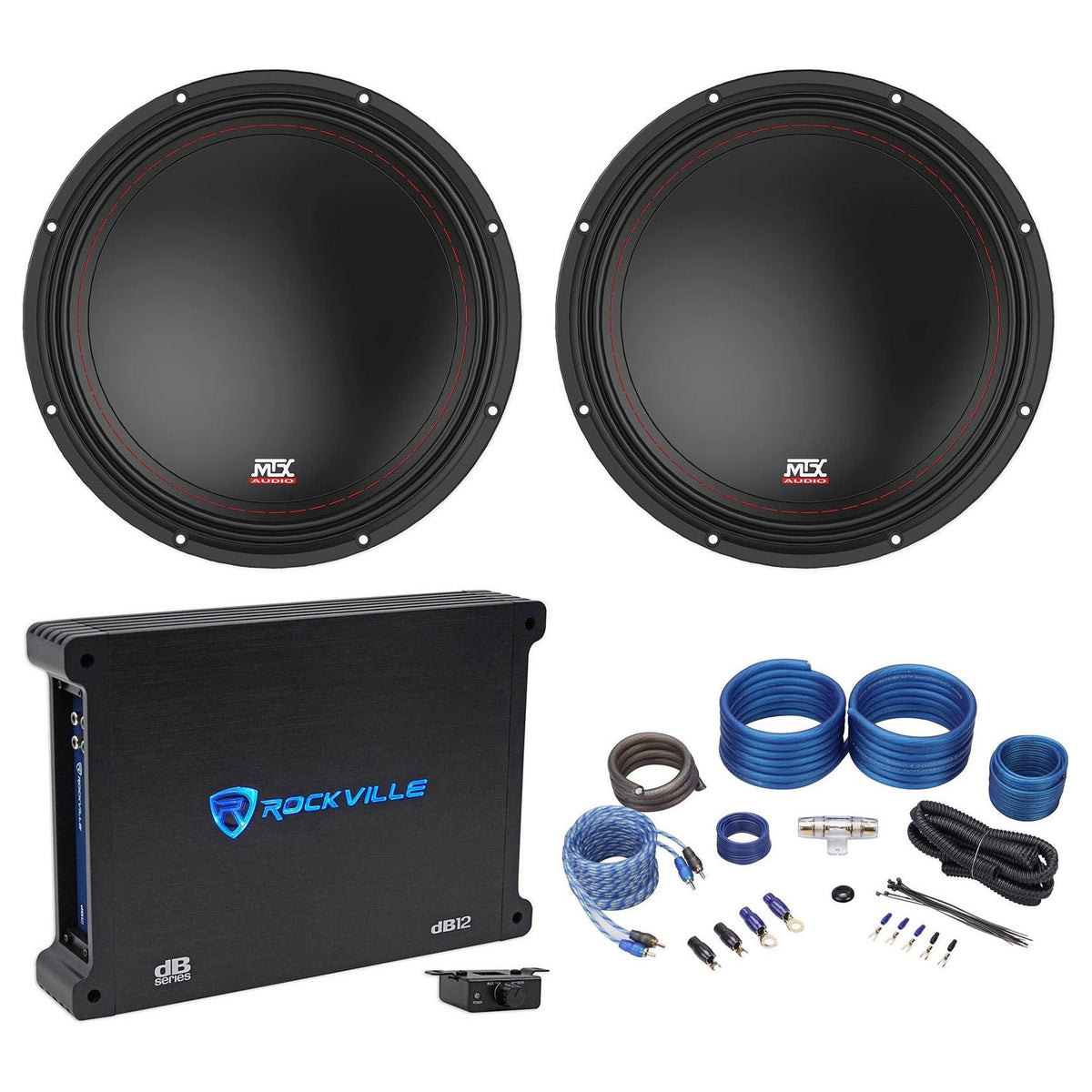

What's Included in the box

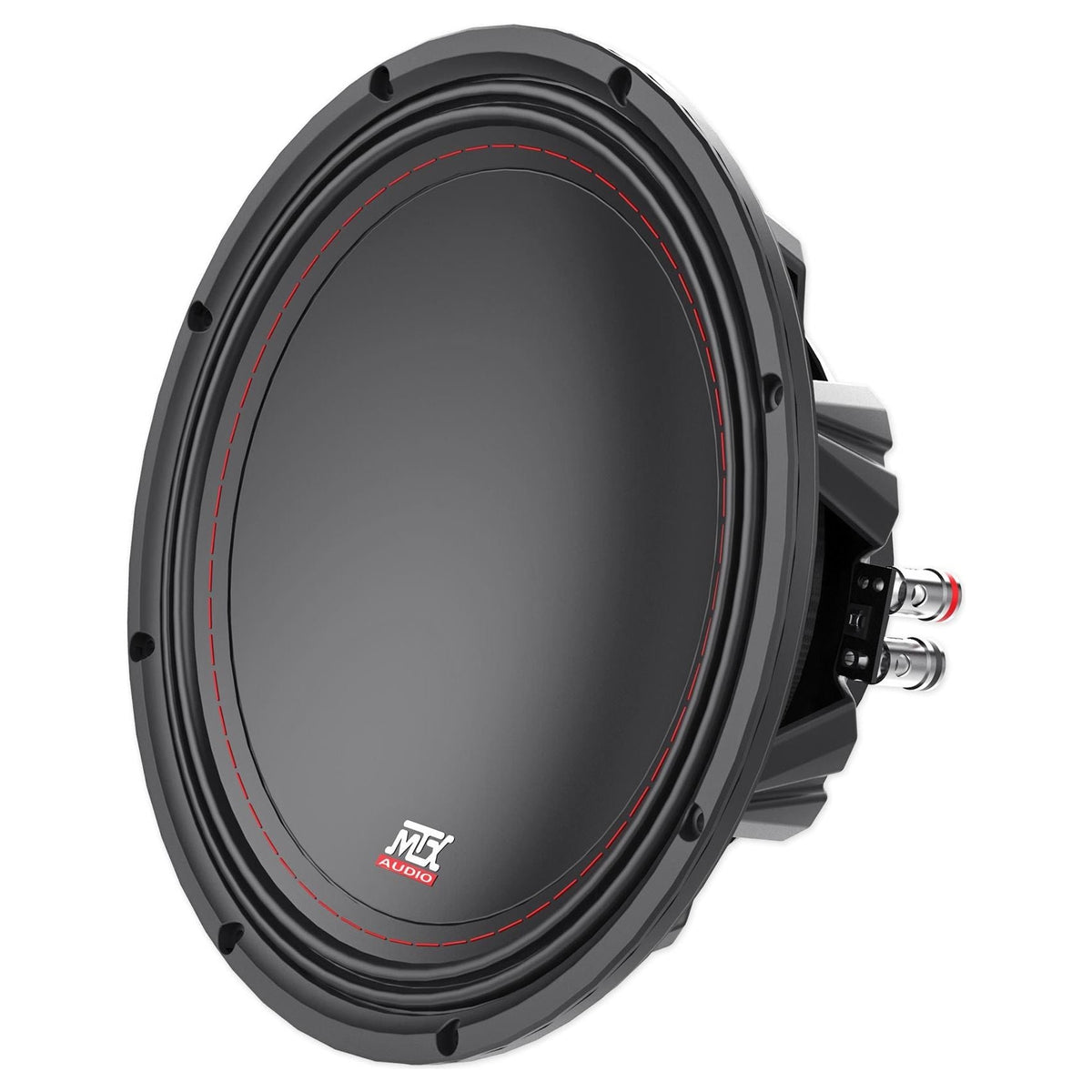

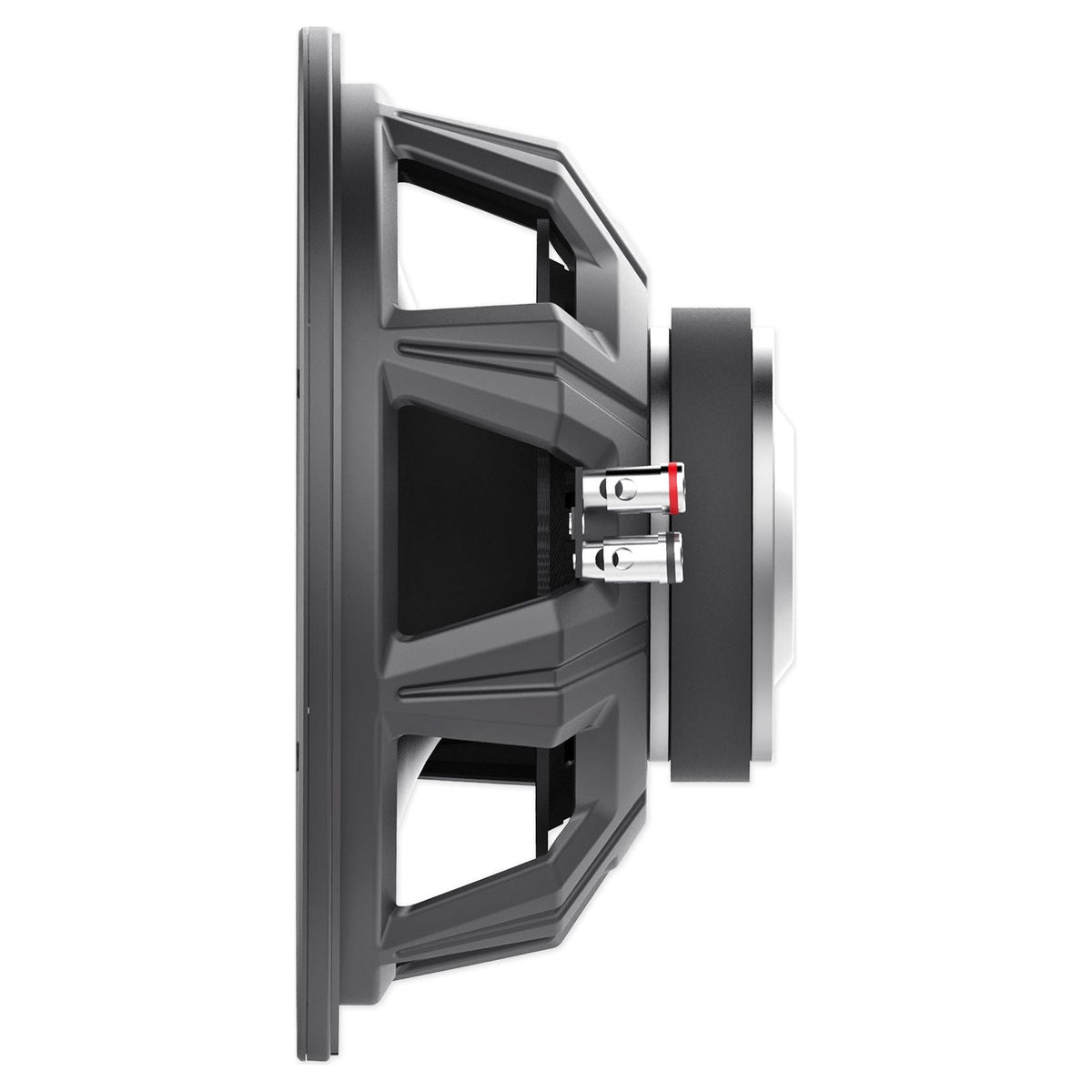

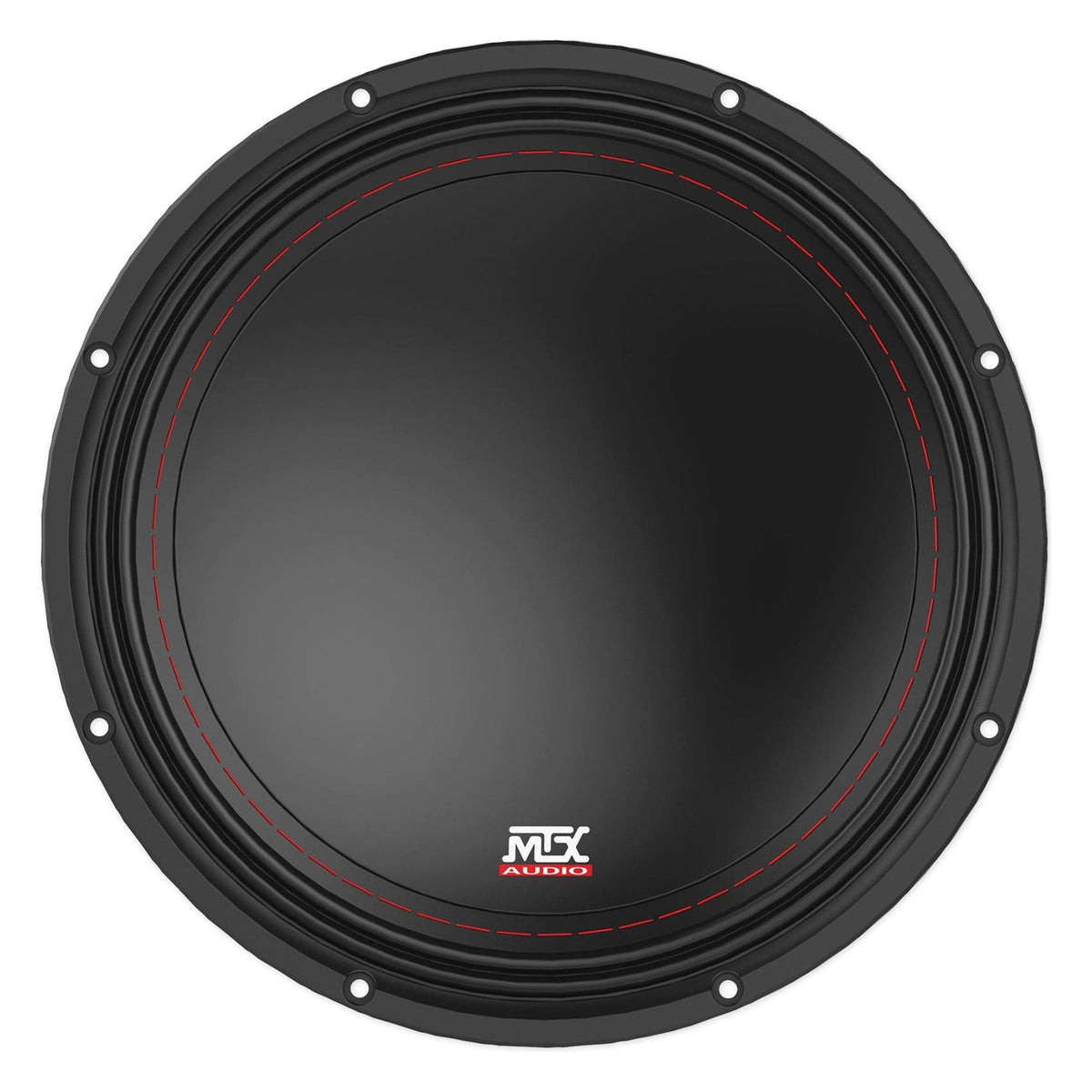

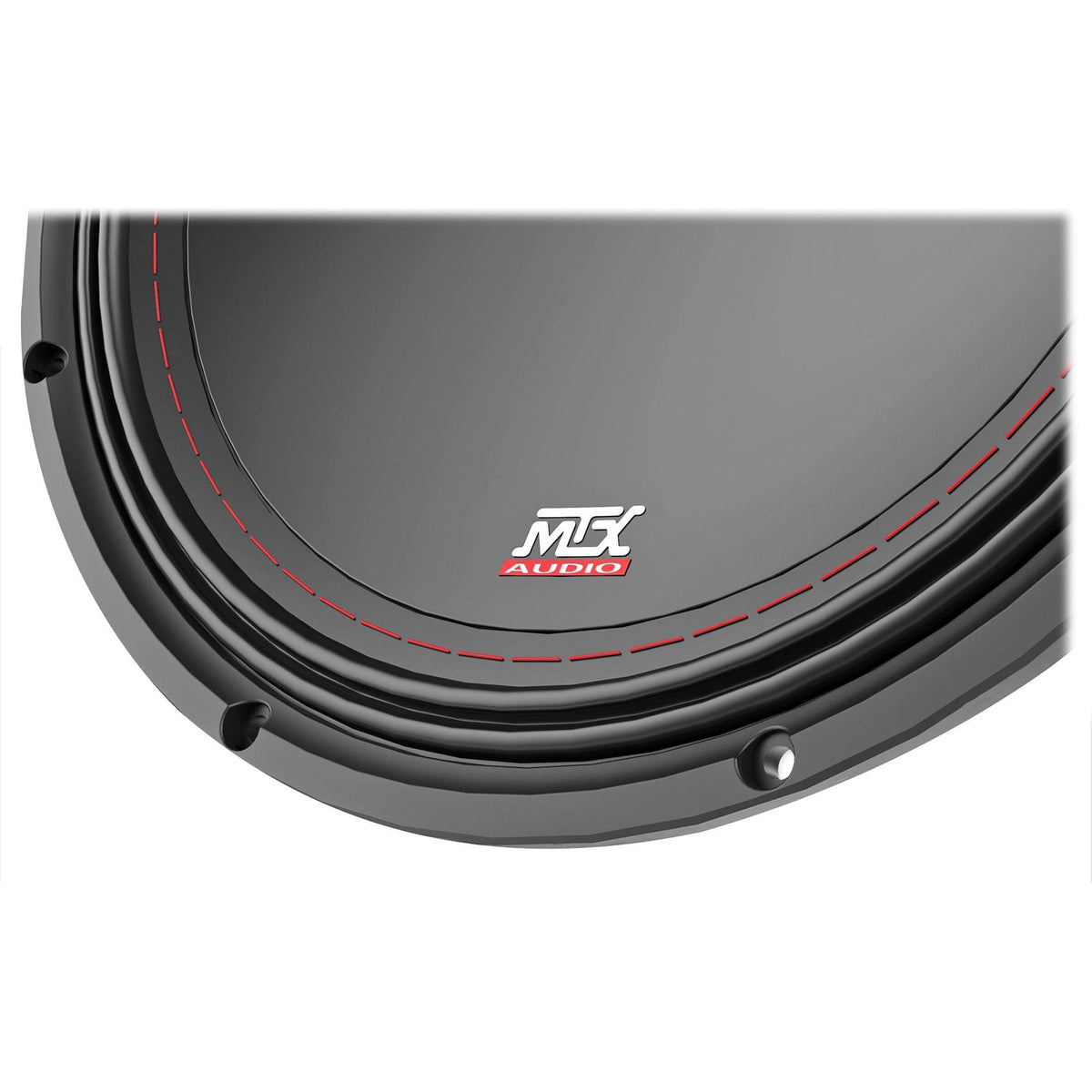

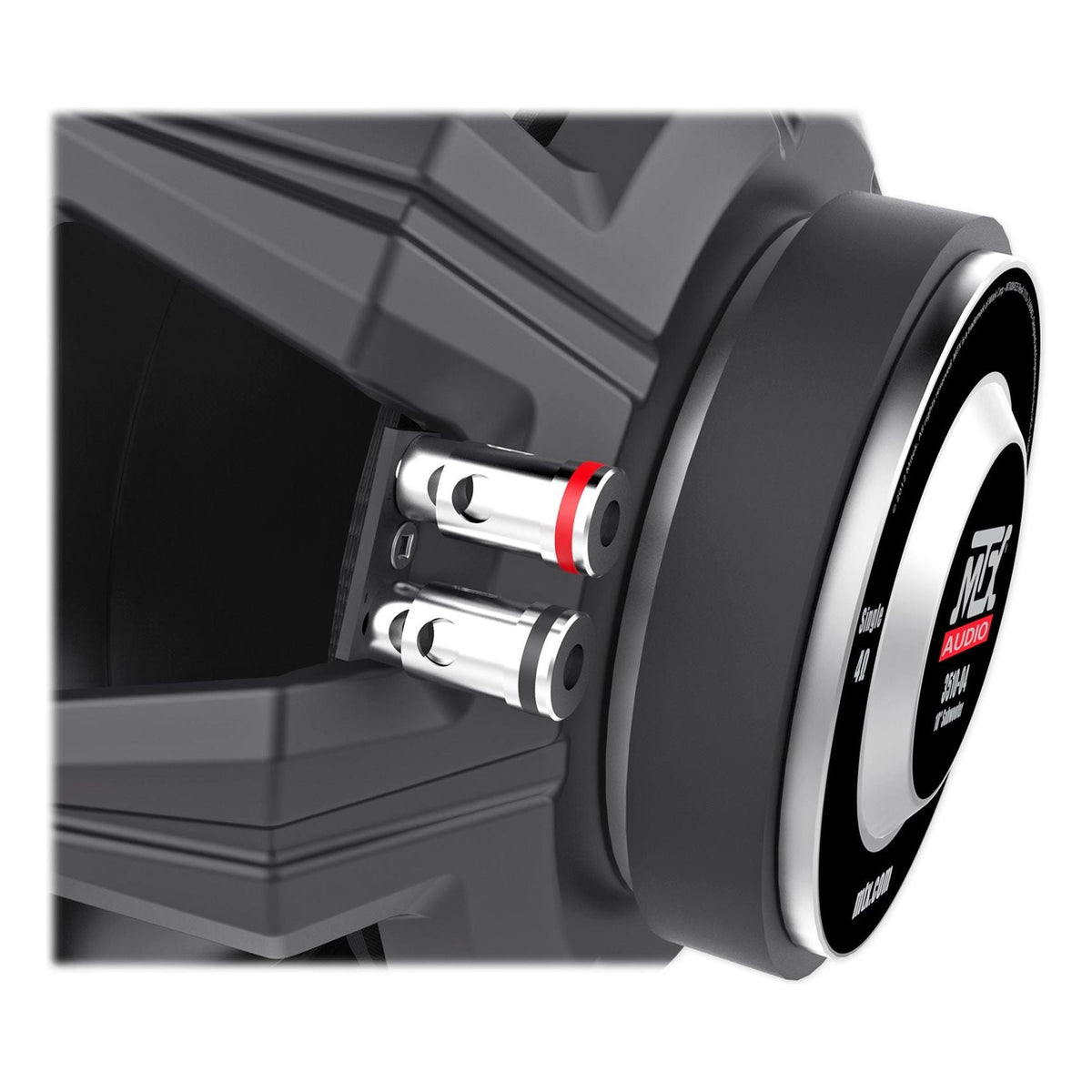

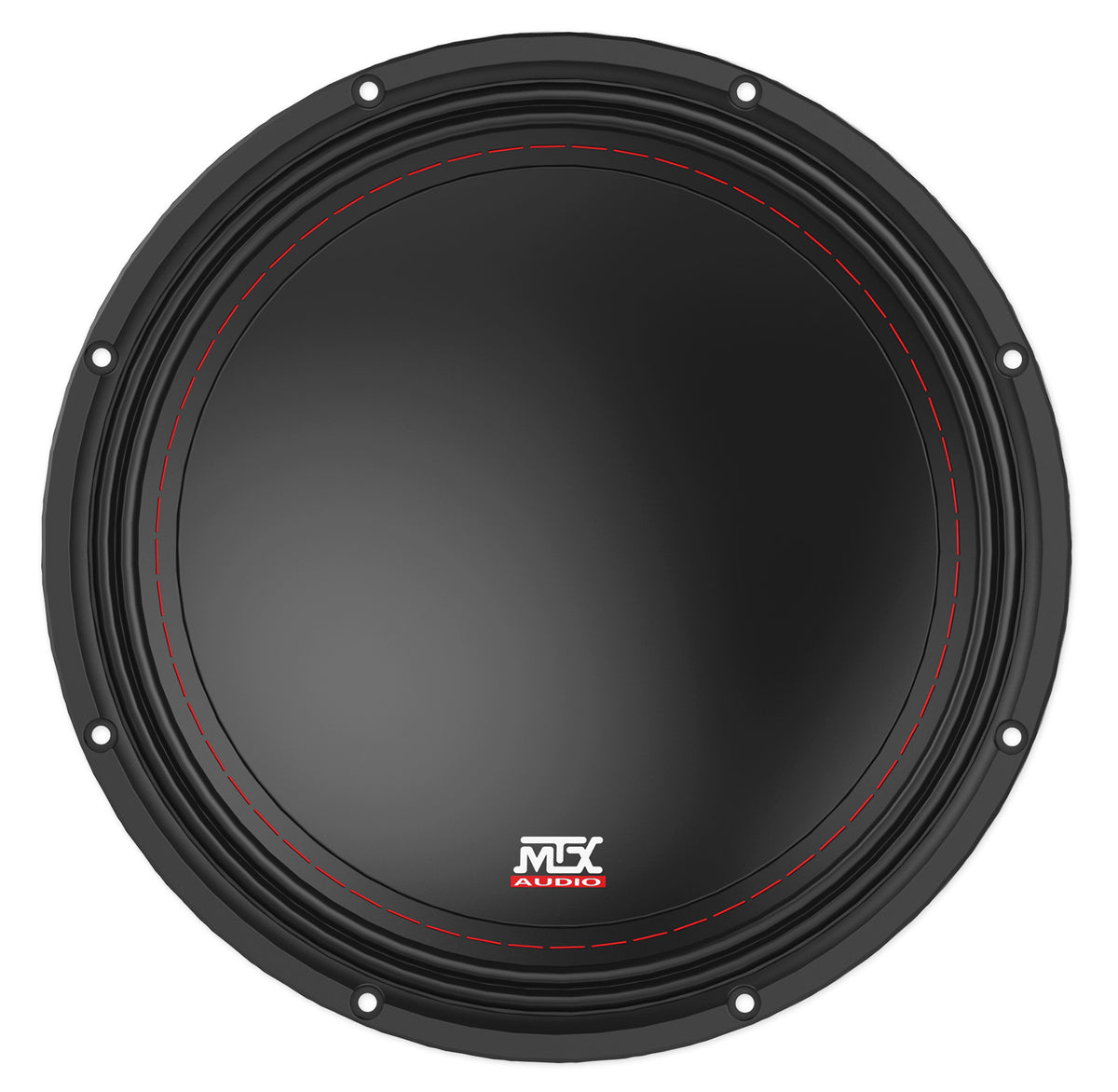

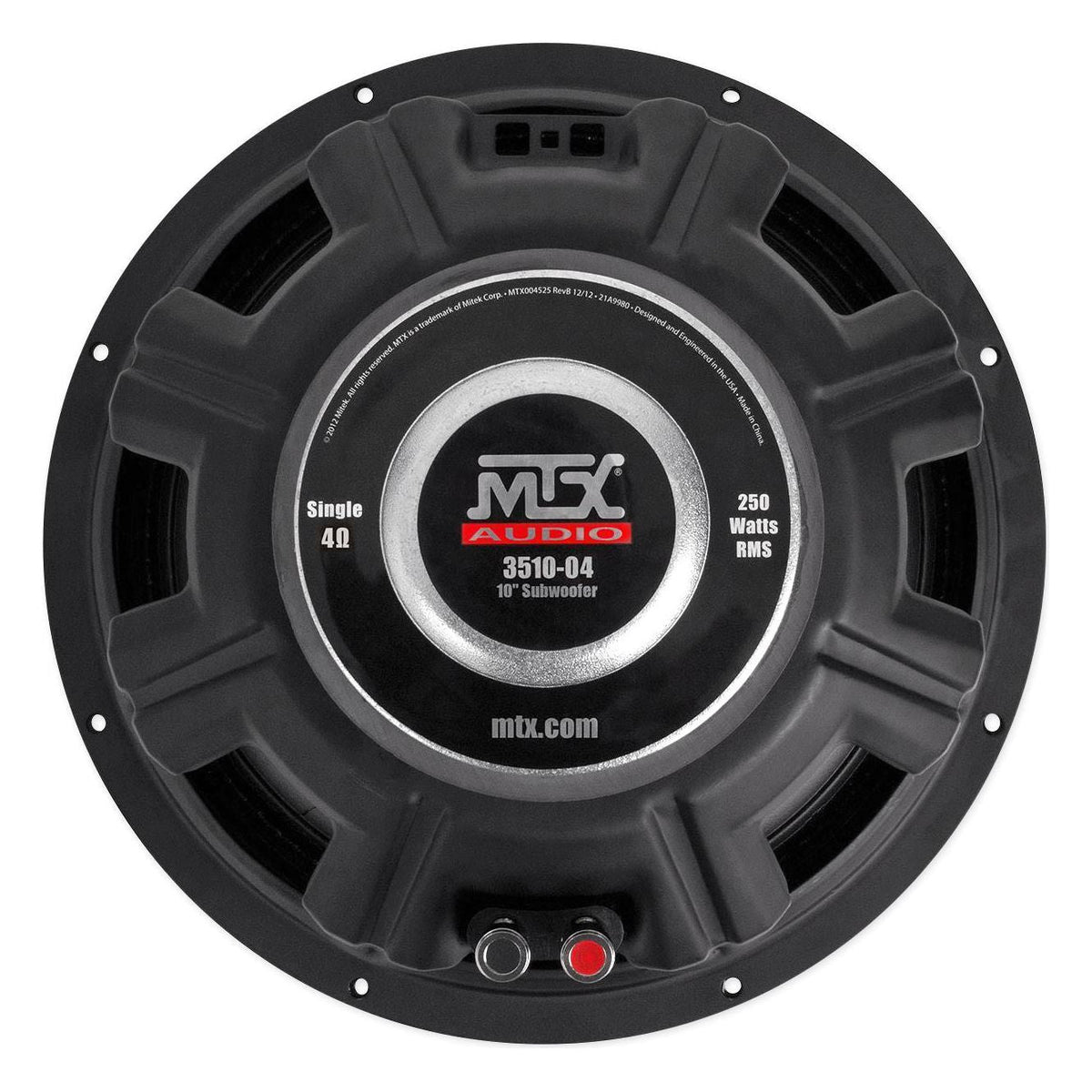

- (2) 3510-04 10-inch, 4-ohm subwoofers

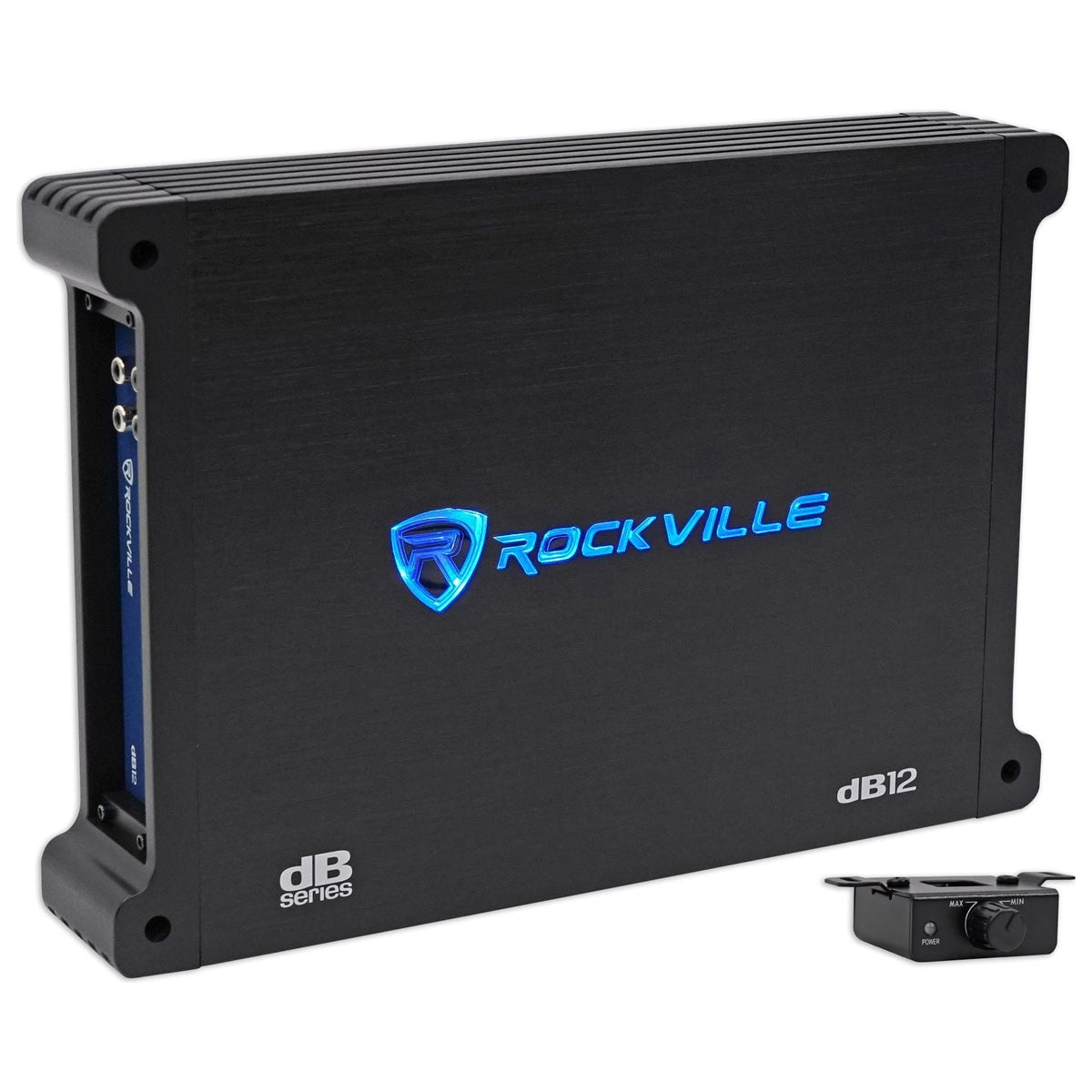

- (1) dB12 mono amplifier

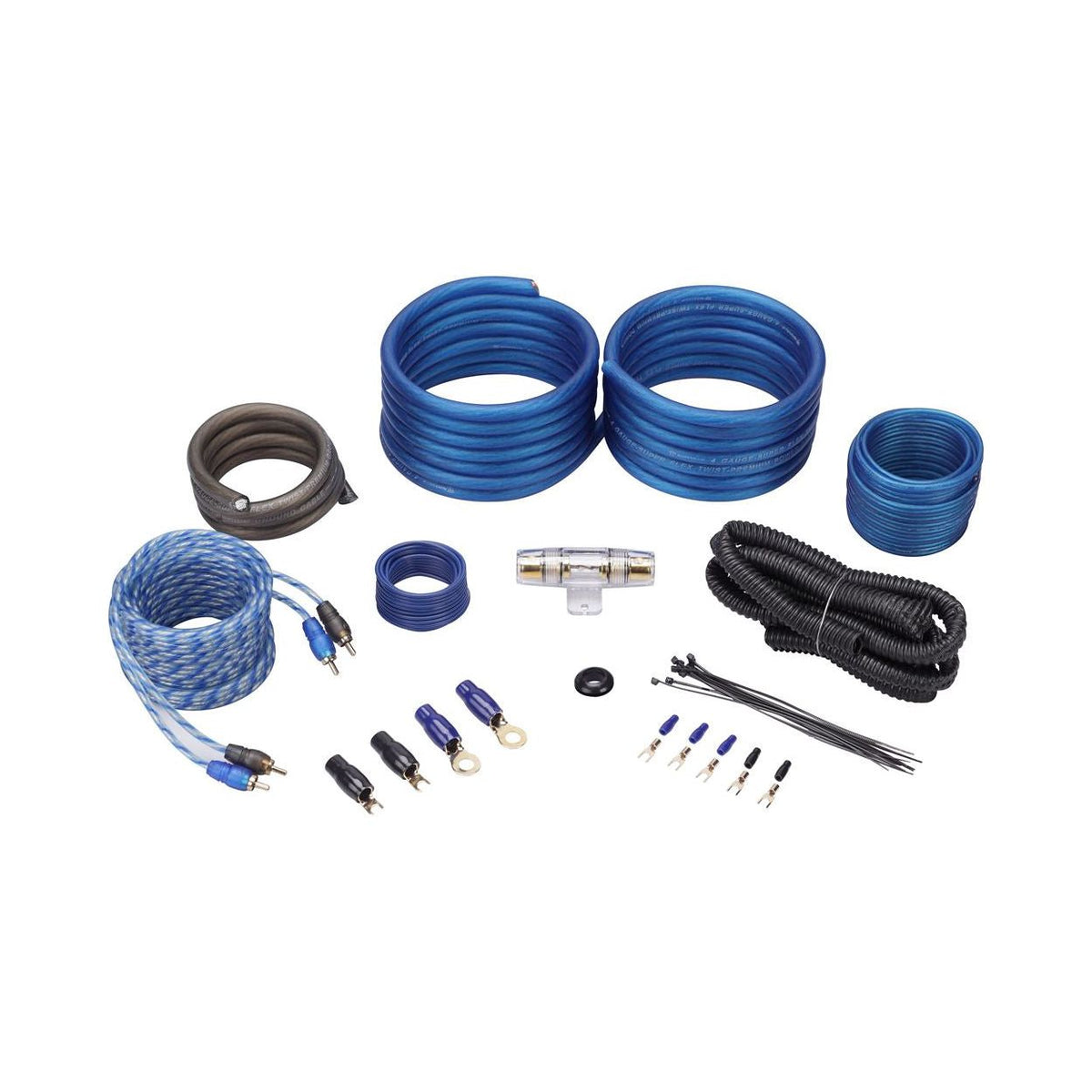

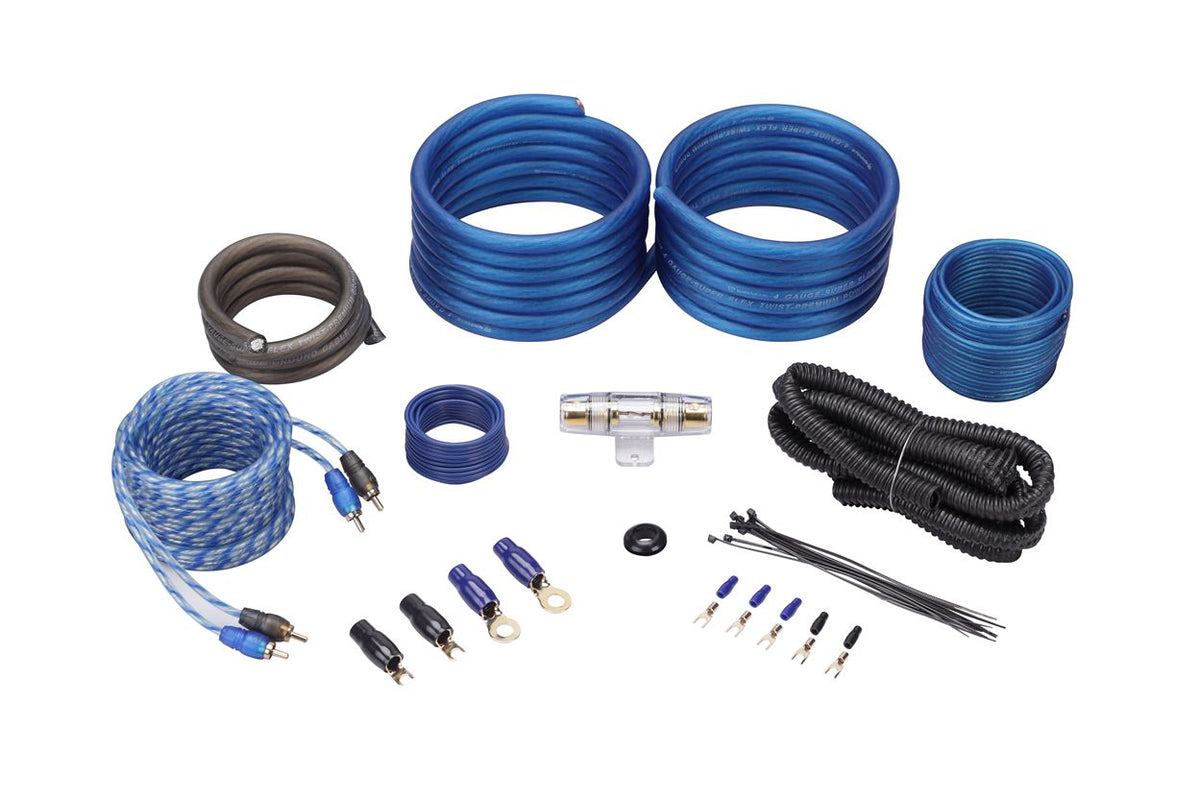

- (1) RWK41 4-gauge amplifier wiring kit
- Bass remote
- Power test birth sheet
- Mounting screws
- 17-foot twisted-pair, 100% copper RCA cable
- 17-foot 4-gauge translucent blue power cables
- 17-foot 18-gauge blue remote cable
- 17-foot 16-gauge translucent blue cable
- 3-foot 4-gauge translucent black ground wire
- Gold-plated AGU heat-resistant fuse holder and AGU fuse
- 7-foot split loom tube
- Wire ties, ring terminals, butt connectors, spades, and grommets
SKU: SKU: (2) 3510-04+dB12+RWK41
View full details












Product Description
Features
Balanced Pair Of Subwoofers
Two 10-inch, 4-ohm single-voice-coil subs handle 250W RMS each, letting the pair match the amplifier’s 500W RMS output at 2 ohms when wired accordingly.
Adjustable Tone Controls
The 12dB-per-octave crossover, subsonic filter, bass equalizer, and phase switch give installers control over low-frequency response for the chosen enclosure and vehicle.
Choose An Enclosure
Per-subwoofer recommendations call for 0.75 cu ft net in a sealed enclosure or 2.0 cu ft net in a vented design, guiding enclosure selection.
Prepared For Installation
The 4-gauge kit supplies power and ground cables, remote wire, copper RCA leads, fuse hardware, split loom, and common connection pieces in one package.
Simple System Control
A dashboard subwoofer remote, adjustable phase control, mute and delay soft-start, and mono amplifier layout put key adjustments within reach during setup.
Technical Specifications
- Product Type Car Audio Subwoofer Bundle
- Subwoofer Quantity 2
- Subwoofer Size 10 in
- Voice Coil Single, 1.75 in
- Subwoofer Impedance 4 ohms each
- Subwoofer RMS Power Handling 250 W each
- Subwoofer Peak Power Handling 500 W each
- Recommended Amplifier Power 125 to 250 W RMS each
- Frequency Response 28 Hz to 130 Hz
- Sensitivity 83.2 dB
- Magnet Weight 56 oz per subwoofer
- Volume Displacement 19.40 cu in per subwoofer
- Sealed Enclosure Net Volume 0.75 cu ft per subwoofer
- Vented Enclosure Net Volume 2.0 cu ft per subwoofer
- Amplifier Type Mono, 2-ohm stable
- Amplifier RMS Output 500 W x 1 at 2 ohms; 300 W x 1 at 4 ohms, THD+N less than 1%
- Amplifier Peak Output 2000 W x 1 at 2 ohms; 1200 W x 1 at 4 ohms
- Crossover Adjustable, 12 dB/octave
- Wiring Kit Gauge 4 AWG
- Mounting Depth 4.625 in per subwoofer
- Cutout Diameter 9.188 in per subwoofer
