3512-04 Pair with dB12 Amp, RD12 Enclosure and RWK41 Wiring Kit
MTX
3512-04 Pair with dB12 Amp, RD12 Enclosure and RWK41 Wiring Kit
3512-04 Pair with dB12 Amp, RD12 Enclosure and RWK41 Wiring Kit
Dual 12-Inch Subwoofer System, 500W RMS Mono Amp, Sealed Enclosure, 4-Gauge Wiring Kit
Free Shipping
Features
- (2) 12-inch 4-ohm SVC subwoofers handle 500W RMS combined
- 500W RMS mono amplifier is rated for a 2-ohm load
- Dual sealed enclosure provides 1.25 cu ft net volume per sub
- 4-gauge amplifier wiring kit includes RCA cables
- Includes 20 ft of 14 AWG speaker wire, 20 screws, and 4 spade terminals
Couldn't load pickup availability

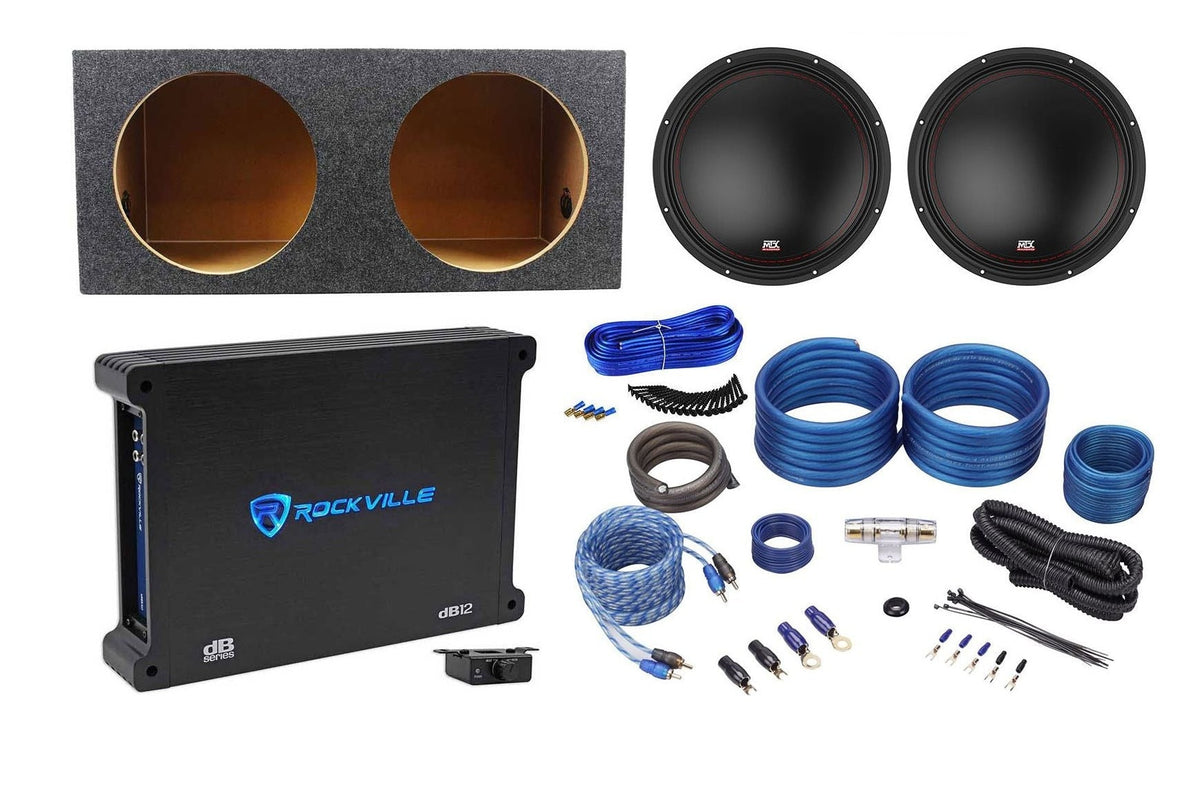

What's Included in the box

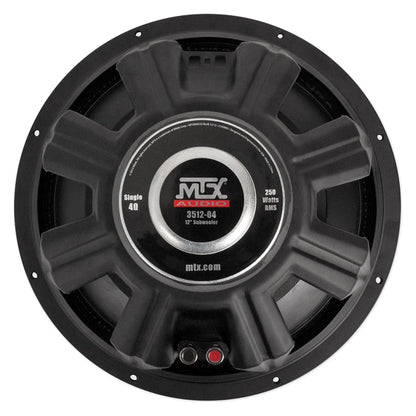

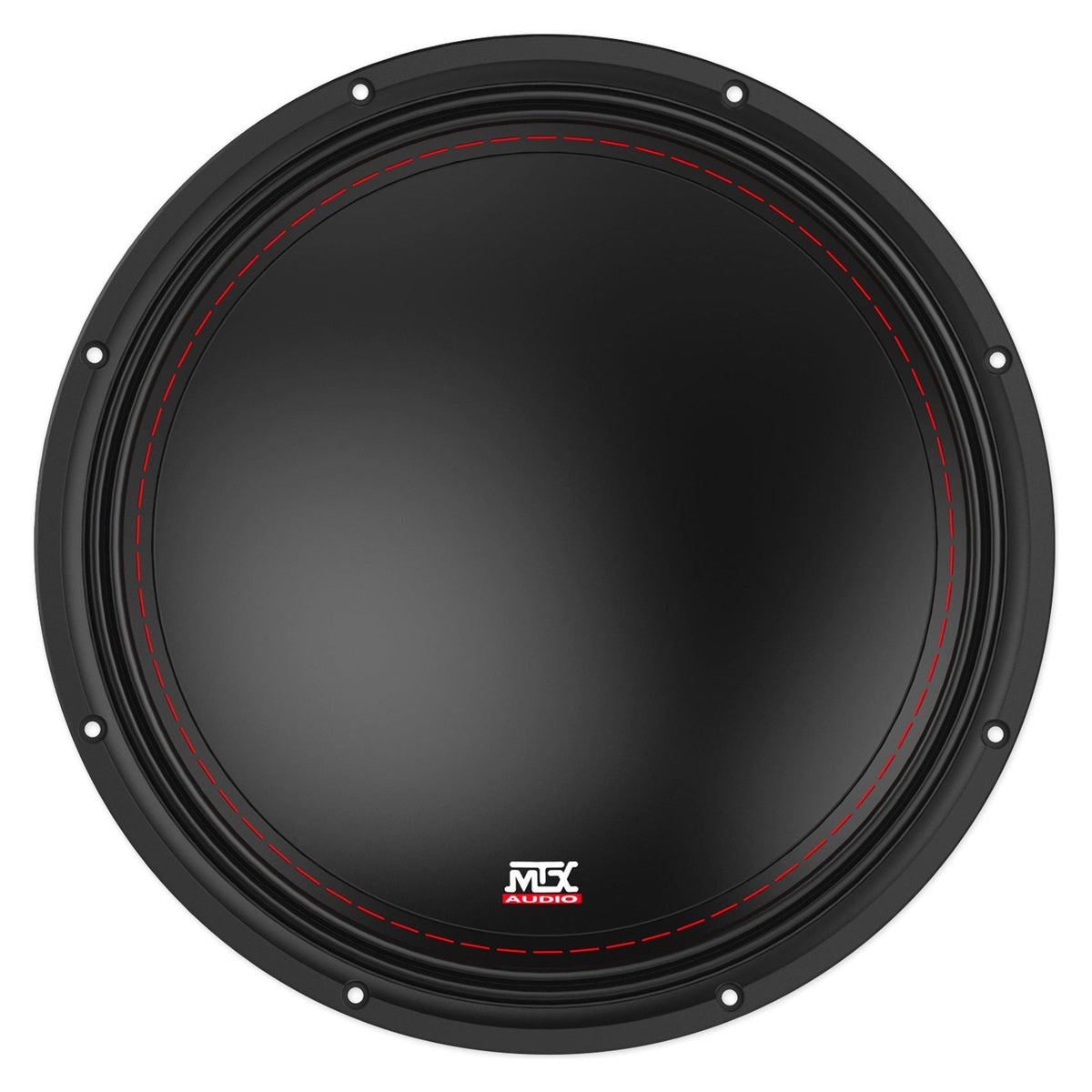

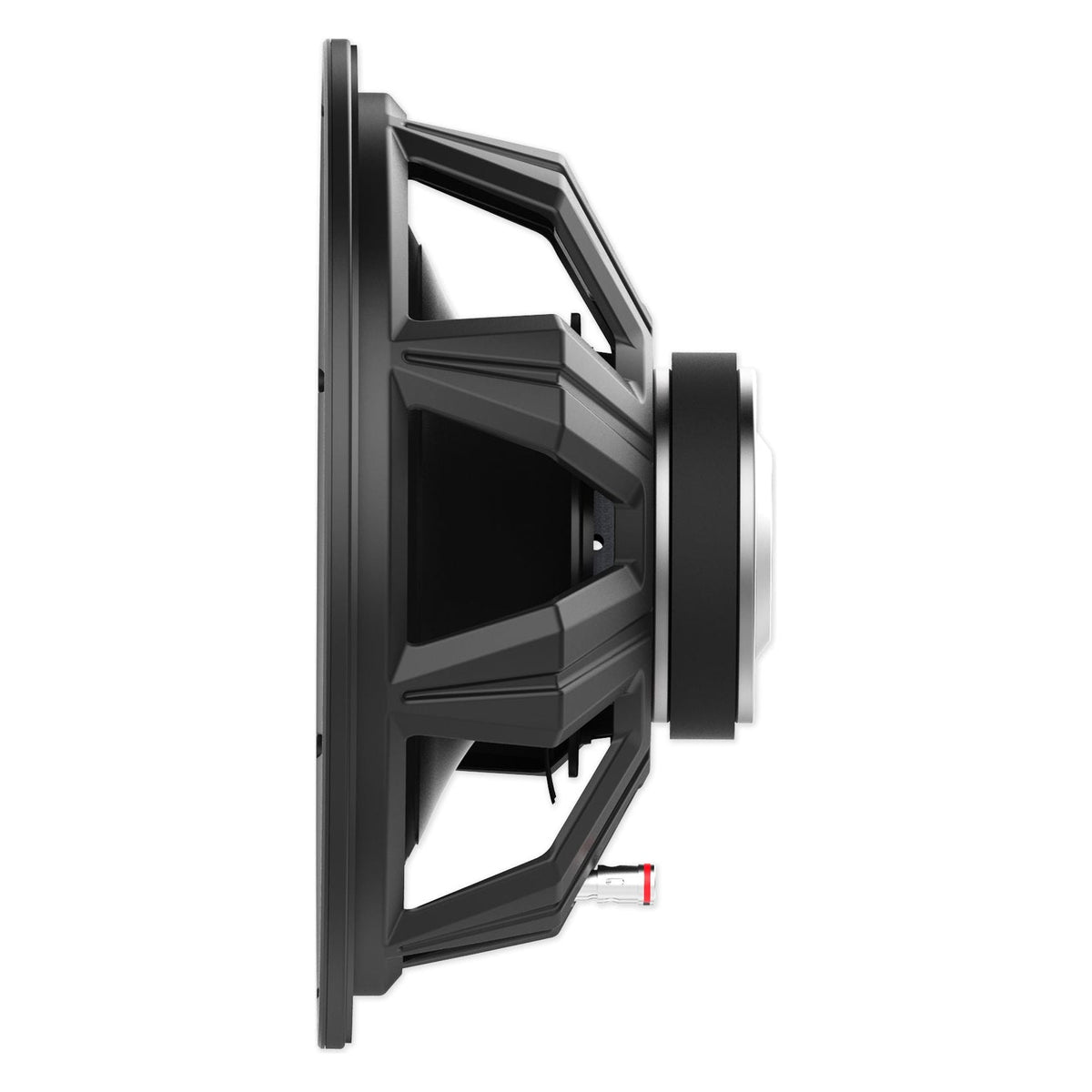

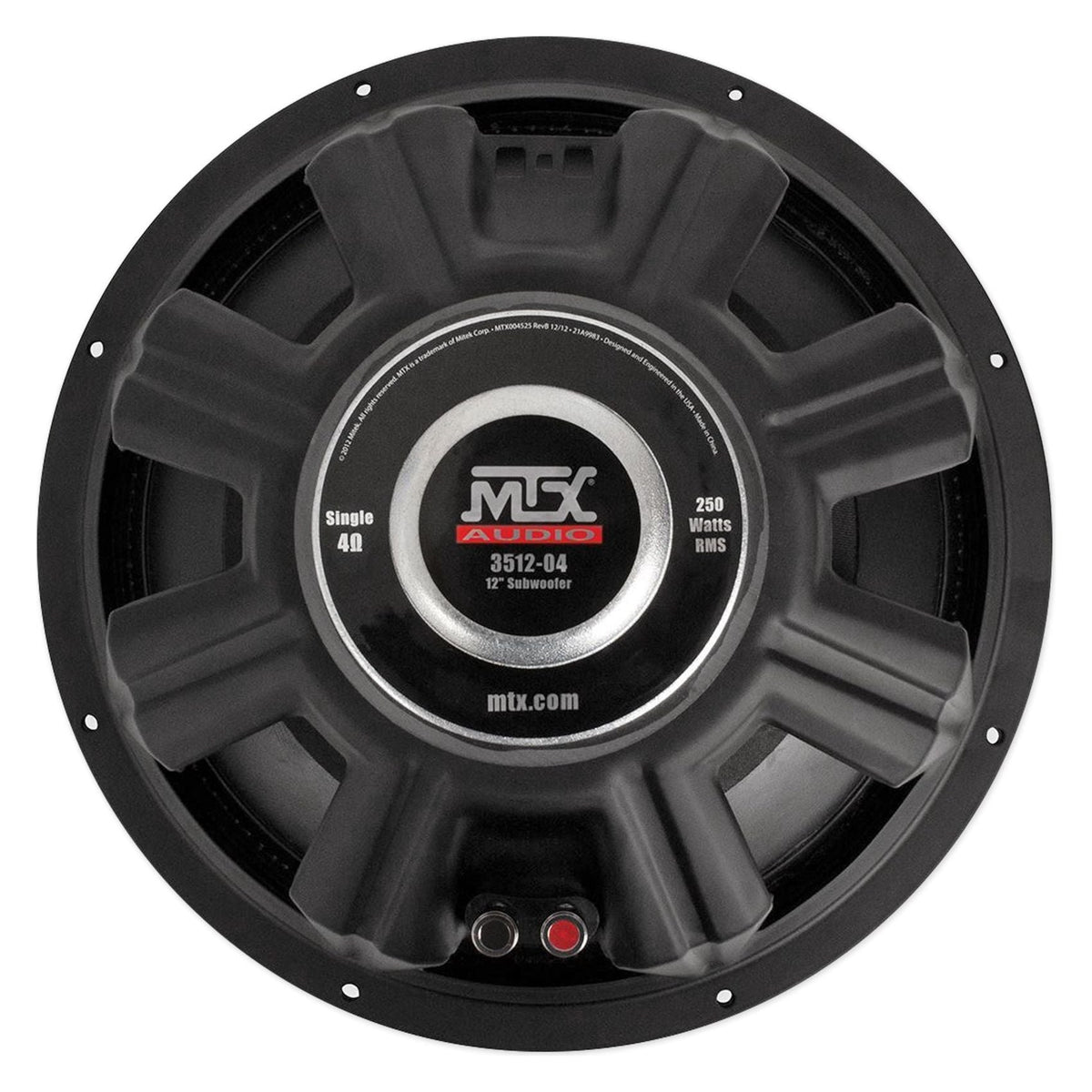

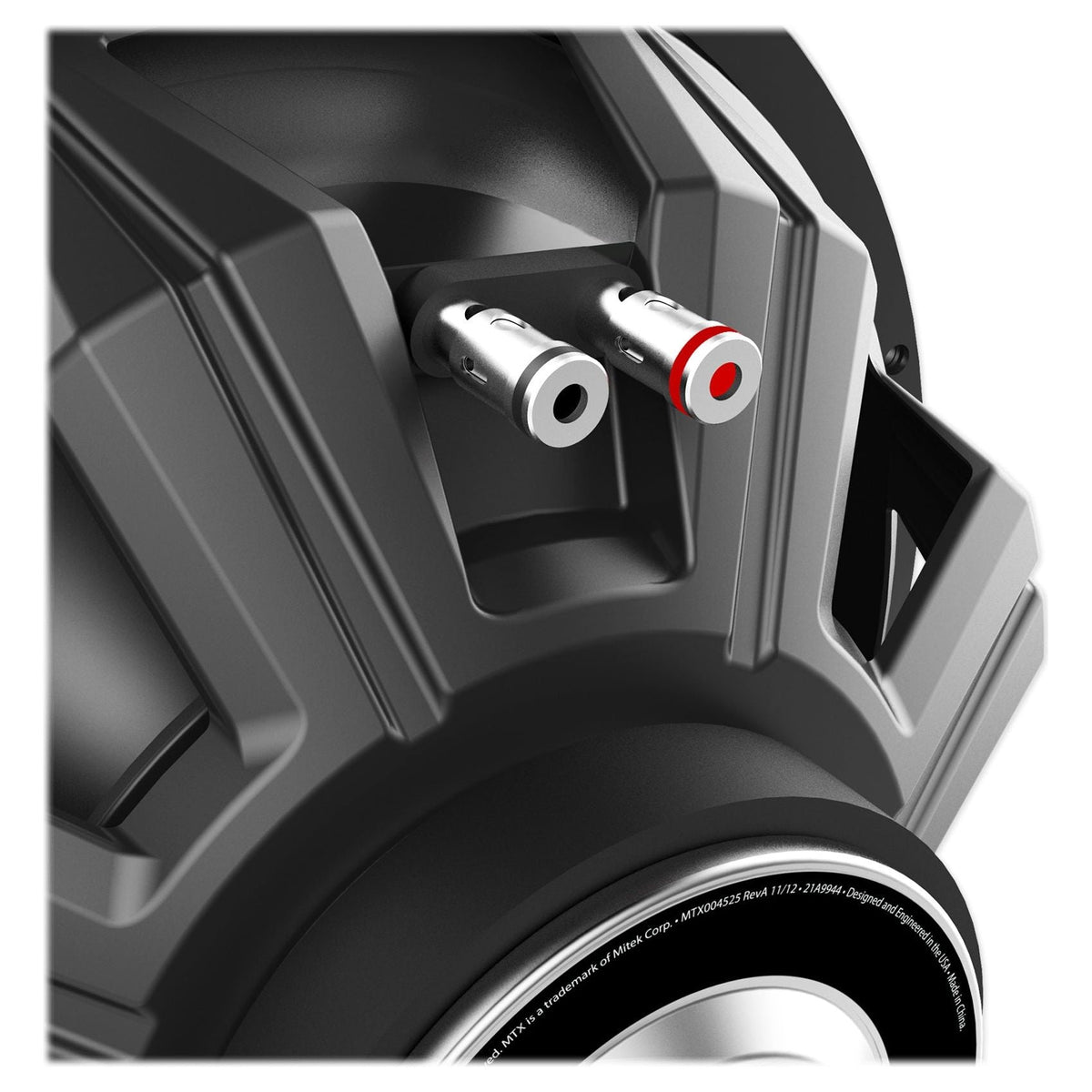

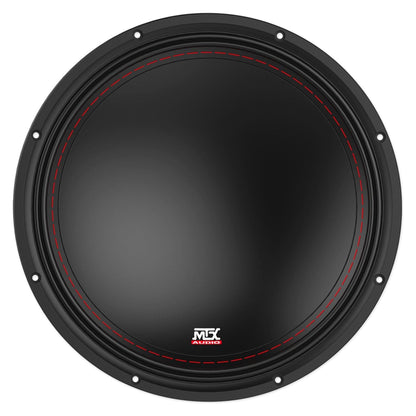

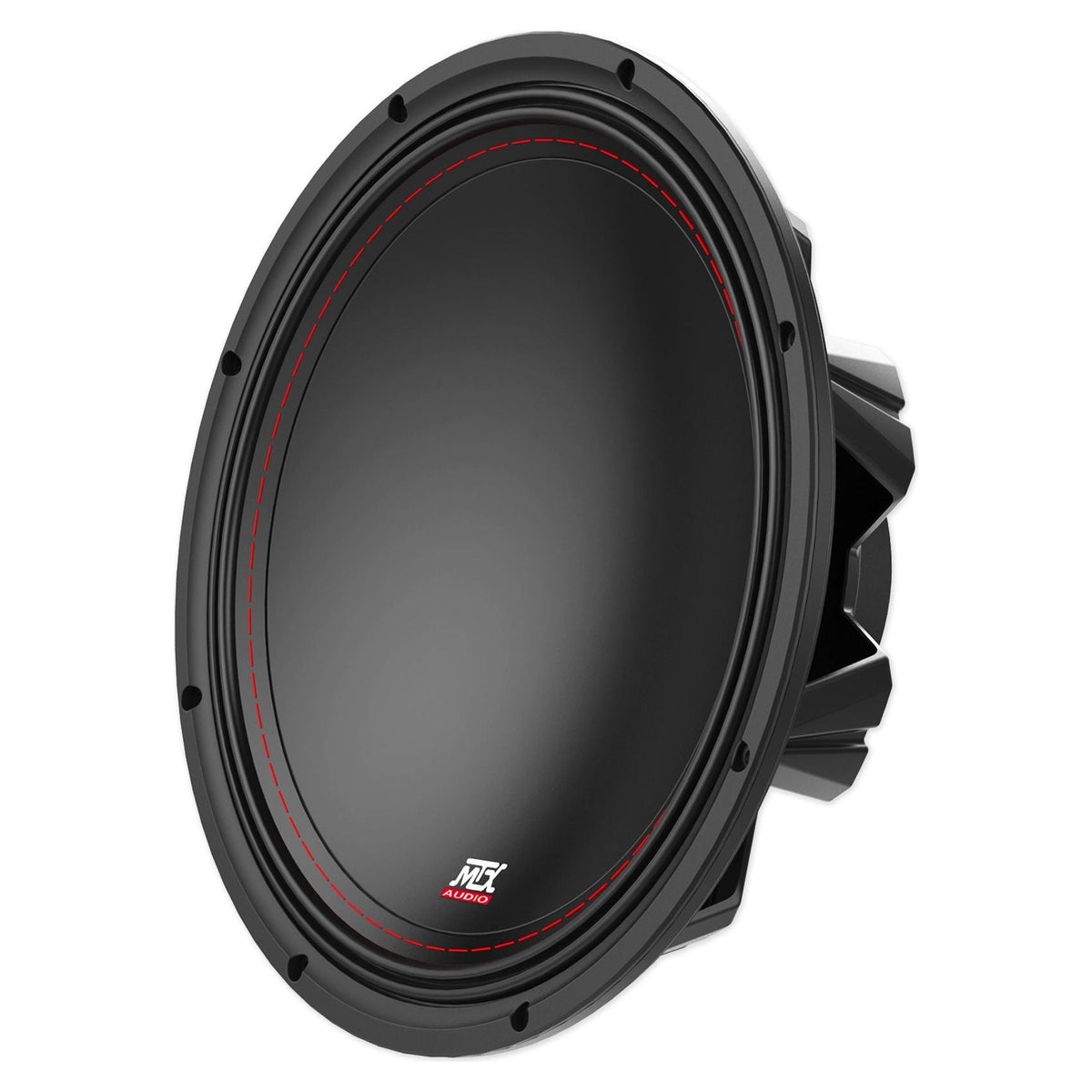

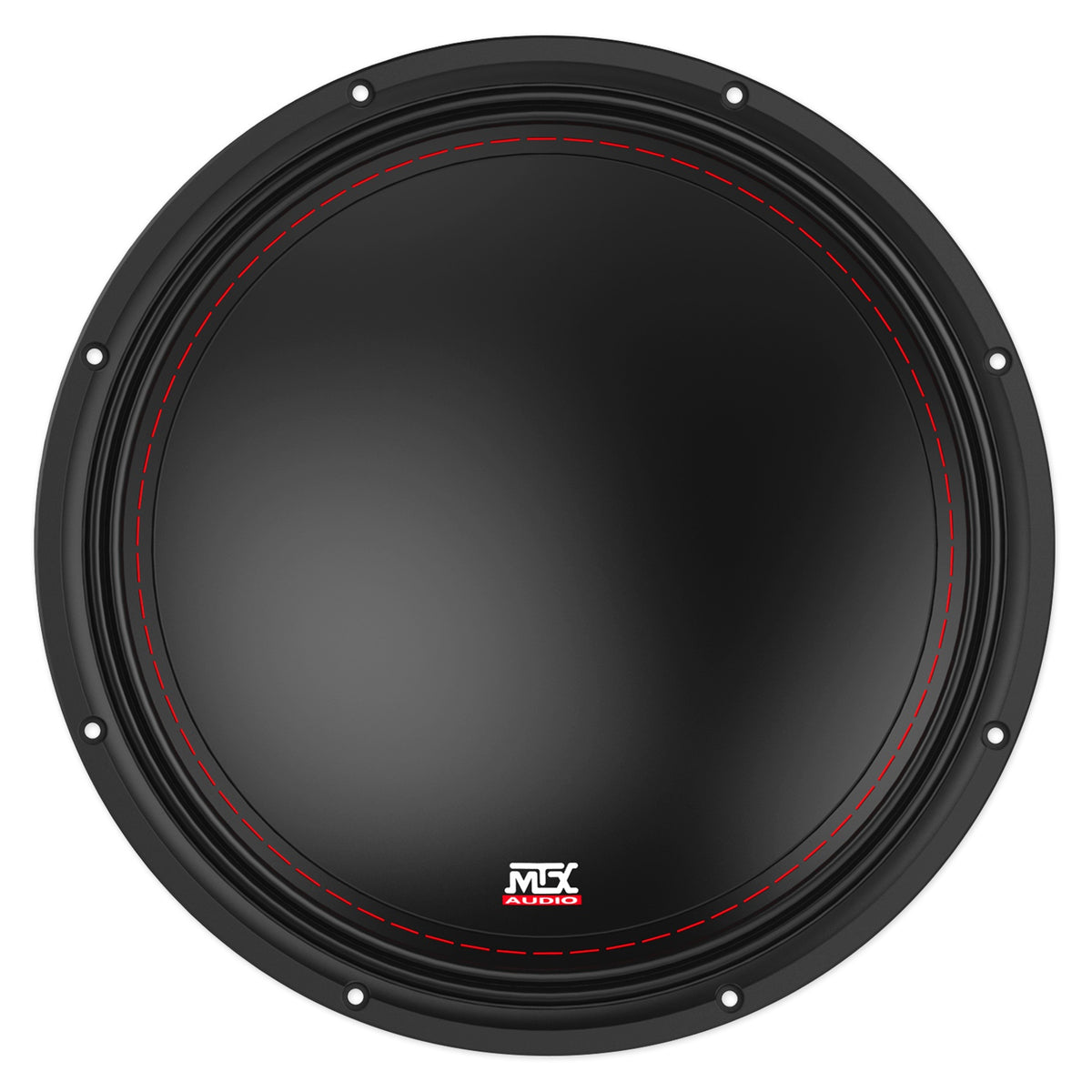

- (2) 3512-04 12-inch 4-ohm SVC car subwoofers
- (1) dB12 500W RMS mono amplifier, 2-ohm
- (1) RD12 dual 12-inch sealed enclosure

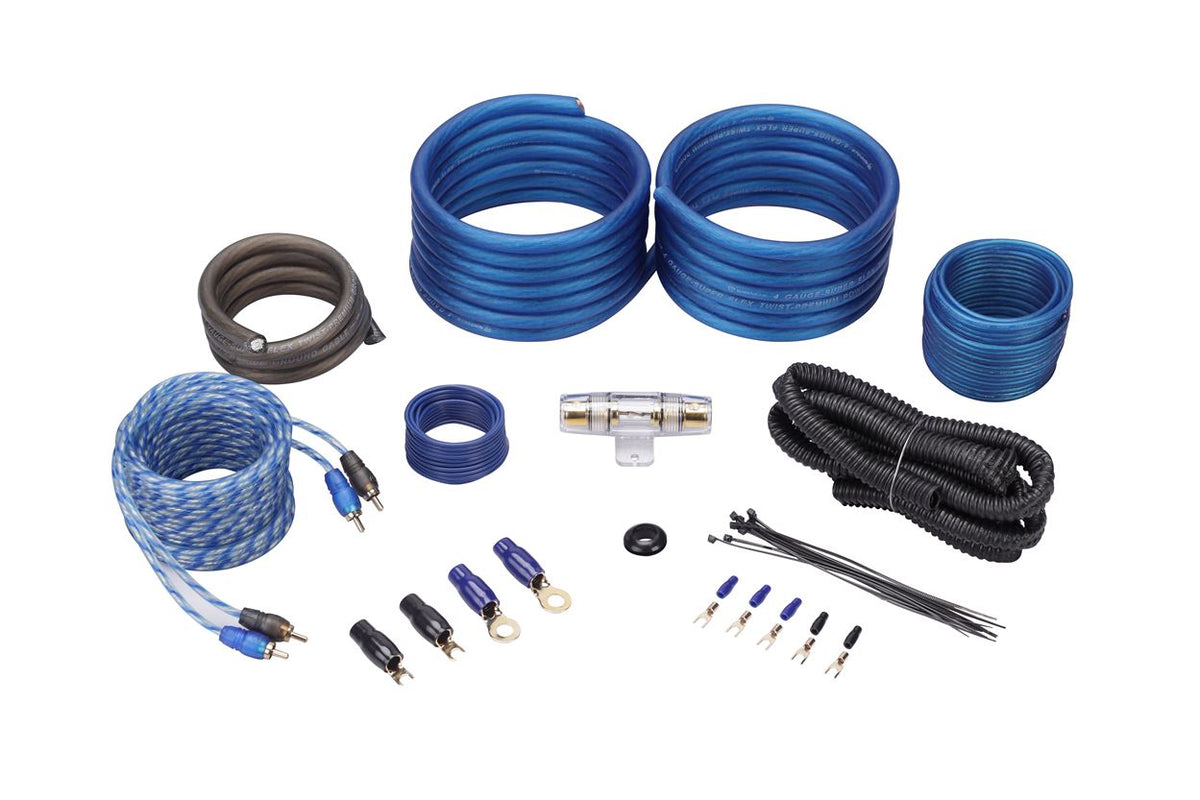

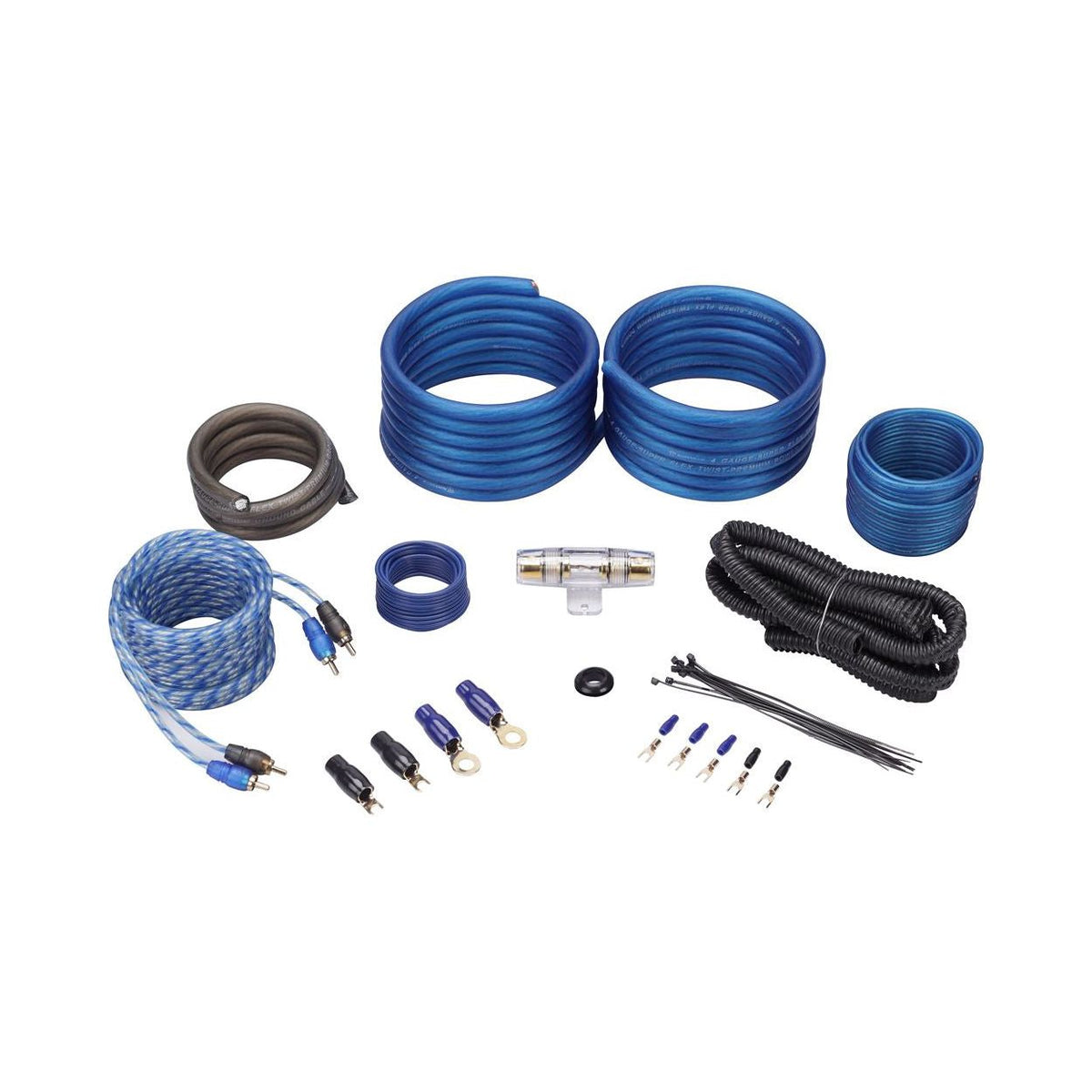

- (1) RWK41 4-gauge amplifier wiring kit with RCA cables
- (1) 60A gold-plated AGU fuse
- Split-loom tubing
- (20) Metal drywall wood screws

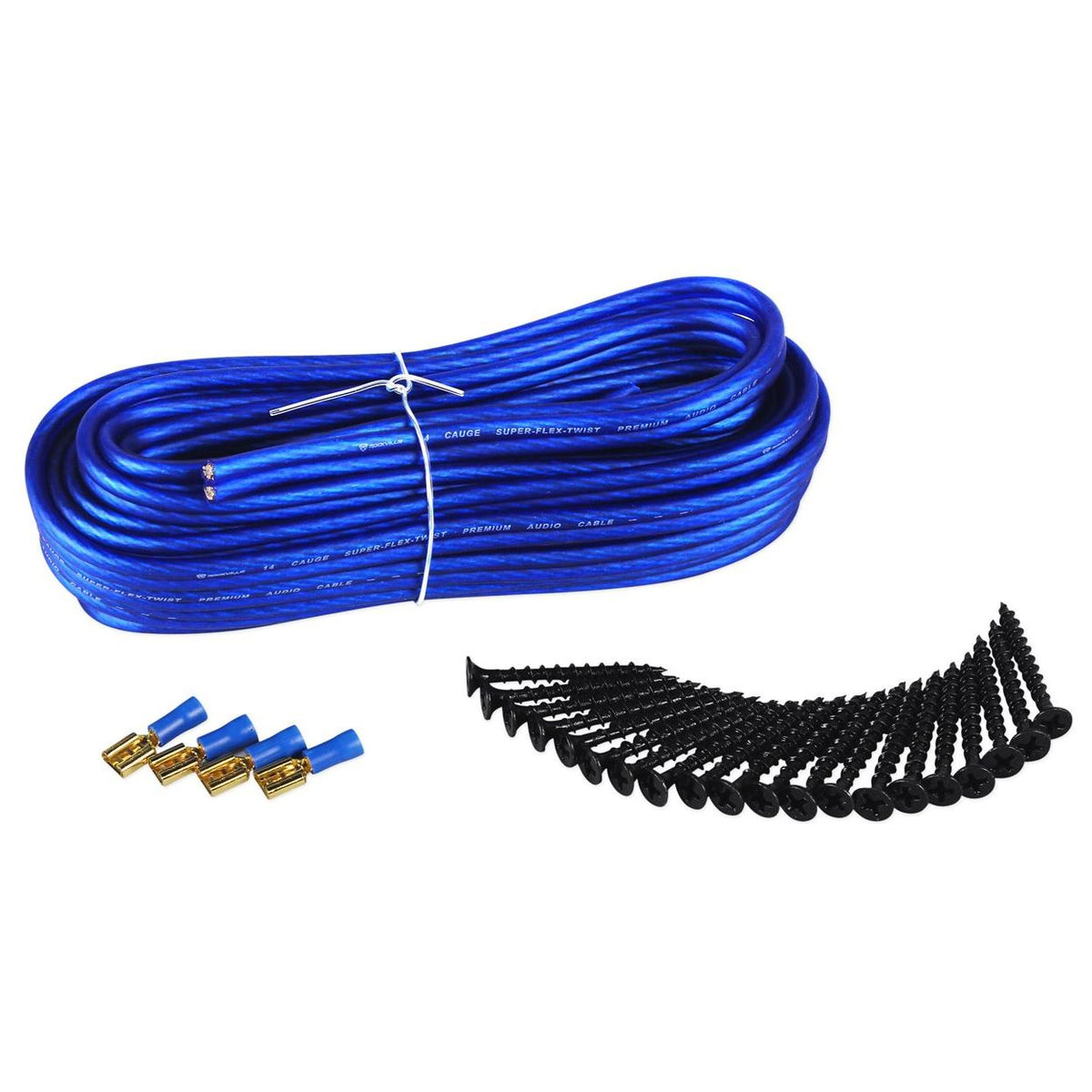

- (20 ft) 14 AWG blue speaker wire
- (4) Spade terminals
SKU: SKU: (2) 3512-04+dB12+RWK41+RD12+K2
View full details













Product Description
Features
Pair-Matched Bass Output
Each 12-inch 4-ohm subwoofer handles 250W RMS, giving the pair 500W RMS combined for a system built around the included 500W RMS mono amplifier.
Ventilated Voice-Coil Cooling
Spider Plateau Venting directs cool air toward the voice coil to manage temperature during extended playback, while helping the subwoofers maintain reliable performance.
Controlled Cone Movement
Progressive suspension controls excursion at higher power levels, reducing distortion so low-frequency bass remains more composed when tracks demand a strong response.

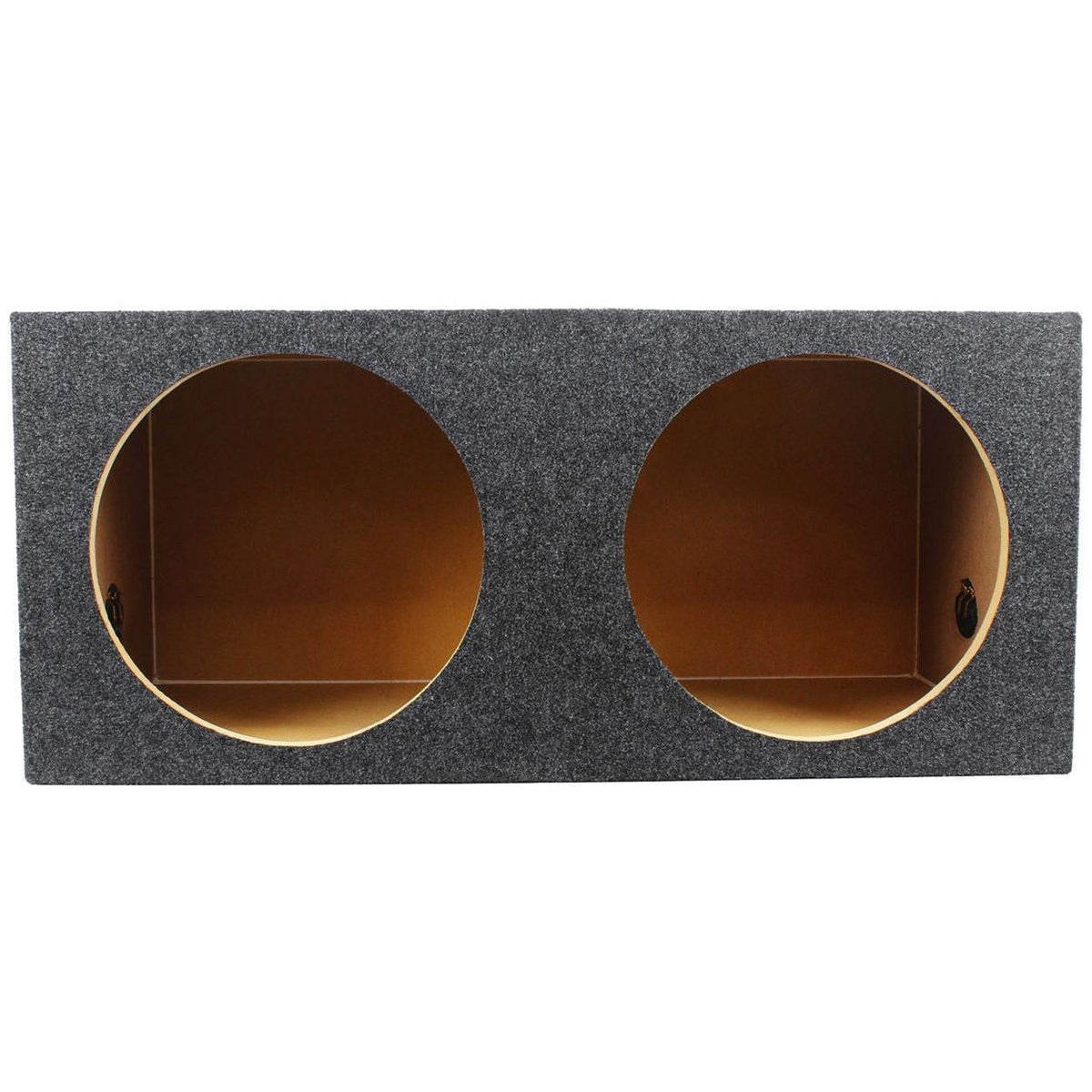

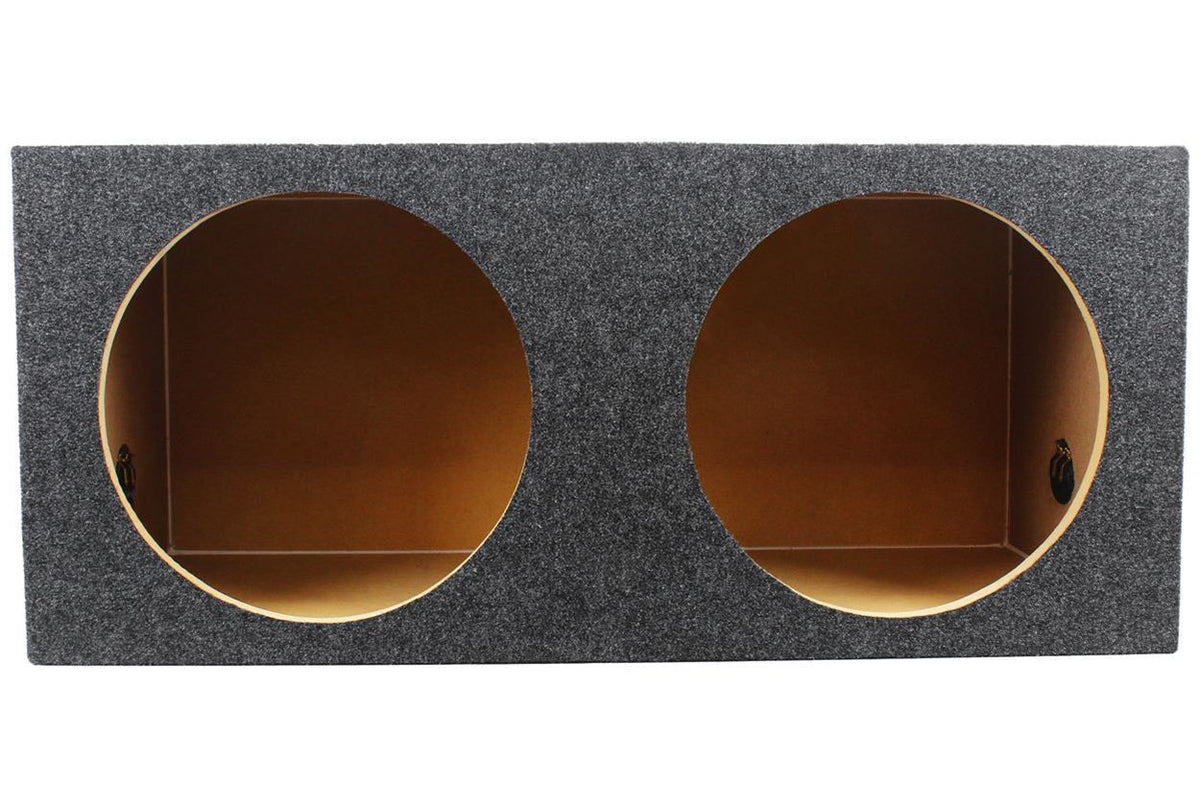

Sealed Dual-Subwoofer Enclosure
The RD12 sealed box uses 3/4-inch MDF and provides 1.25 cu ft net volume per subwoofer, supporting the specified dual 12-inch installation.
Installation Parts Included

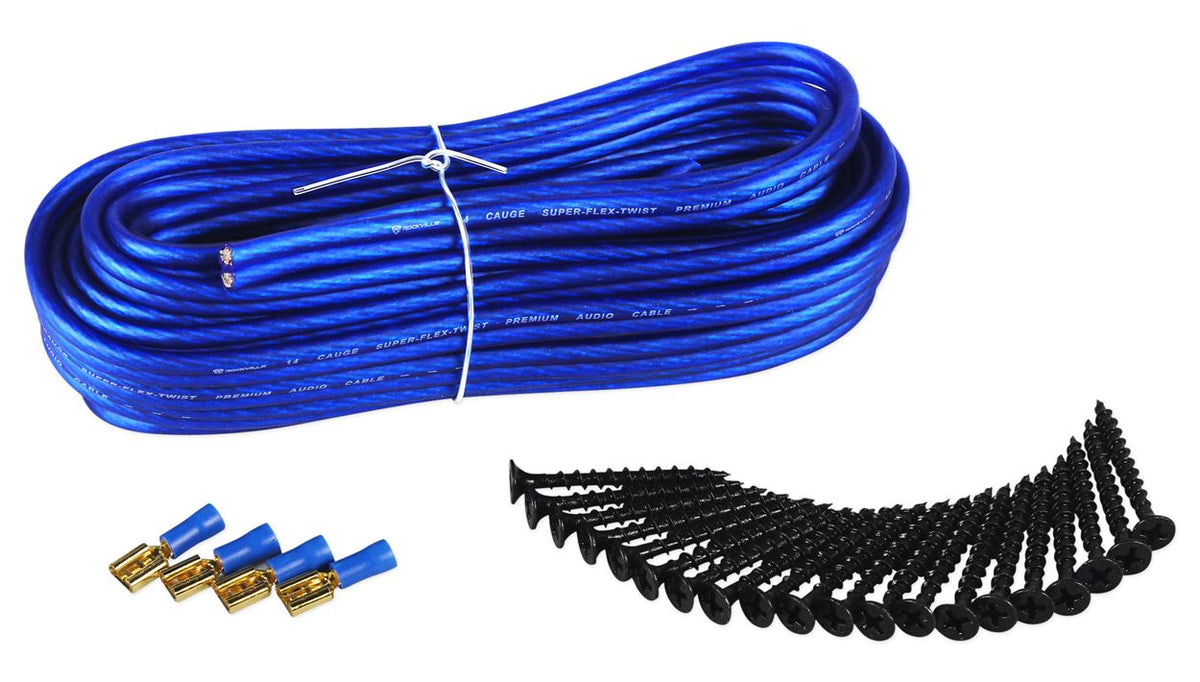

The 4-gauge amp kit includes RCA cables, with 20 ft of 14 AWG speaker wire, 20 metal screws, and four spade terminals listed for setup.
Technical Specifications
- Product Type Dual 12-Inch Car Audio Subwoofer System
- Quantity Two 12-inch subwoofers
- Subwoofer RMS Power Handling 250W each, 500W pair
- Subwoofer Peak Power Handling 500W each, 1,000W pair
- Subwoofer Impedance 4 ohms each
- Voice Coil 1.75-inch single voice coil
- Frequency Response 28Hz to 130Hz
- Sensitivity 86dB
- Recommended Amplifier Power 125W to 250W RMS per subwoofer
- Enclosure Type Sealed, dual 12-inch
- Enclosure Net Volume 1.25 cu ft per subwoofer
- Enclosure Construction 3/4-inch MDF
- Amplifier Power 500W RMS at 2 ohms / 2,000W peak
- Amplifier Wiring Kit 4 AWG with RCA cables
- Speaker Wire 14 AWG blue, 20 ft
- Mounting Depth 5.313 inches
- Cutout Diameter 11.125 inches
- Enclosure Dimensions 13.25 x 13.25 x 32 inches
