3512-04S Pair with RDSM12 Dual 12-Inch Sealed Enclosure and Installation Kit
MTX
3512-04S Pair with RDSM12 Dual 12-Inch Sealed Enclosure and Installation Kit
3512-04S Pair with RDSM12 Dual 12-Inch Sealed Enclosure and Installation Kit
12-Inch 300 W RMS Shallow-Mount Subwoofers, Pair, Dual Sealed Enclosure, 14 AWG Wiring Kit
Free Shipping
Features

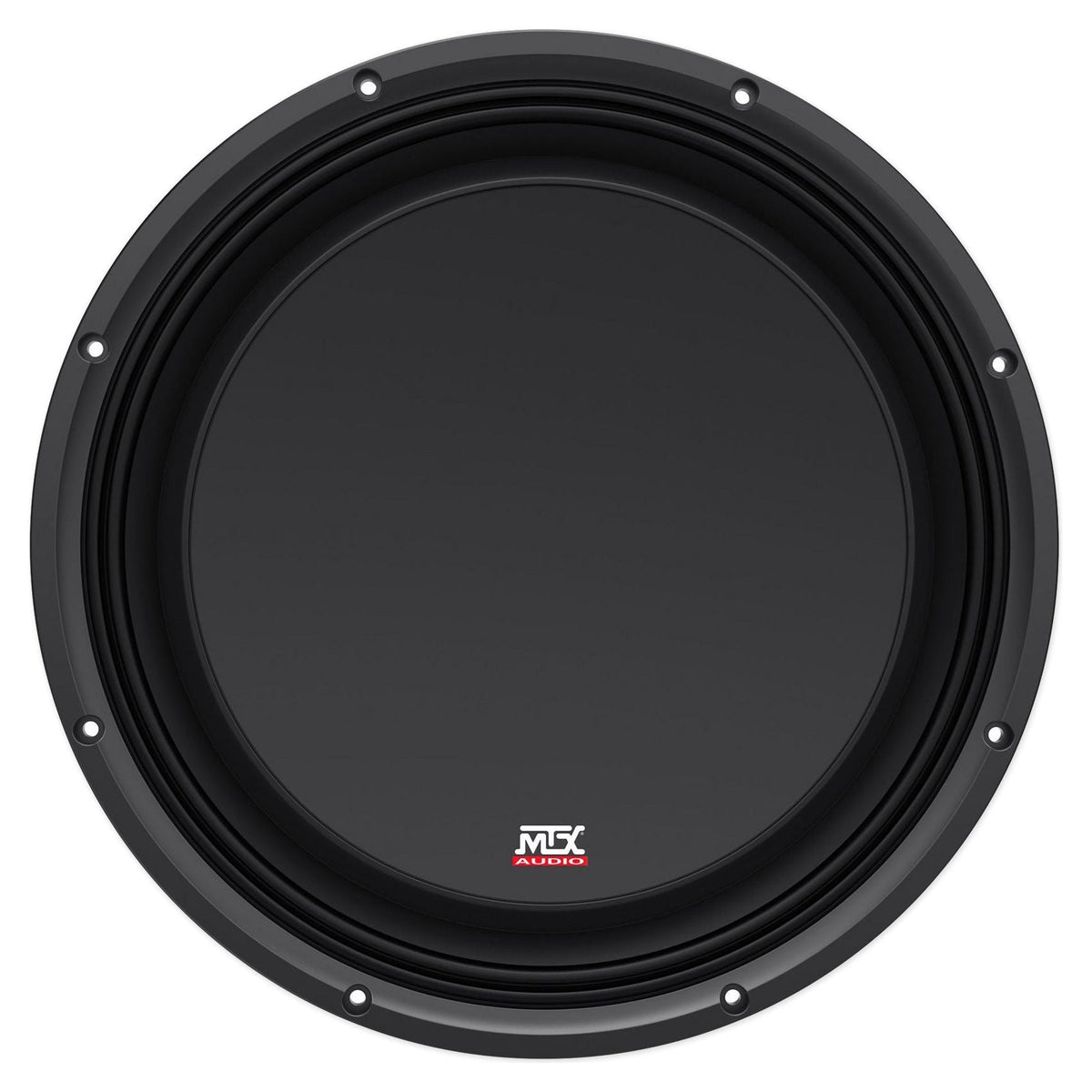

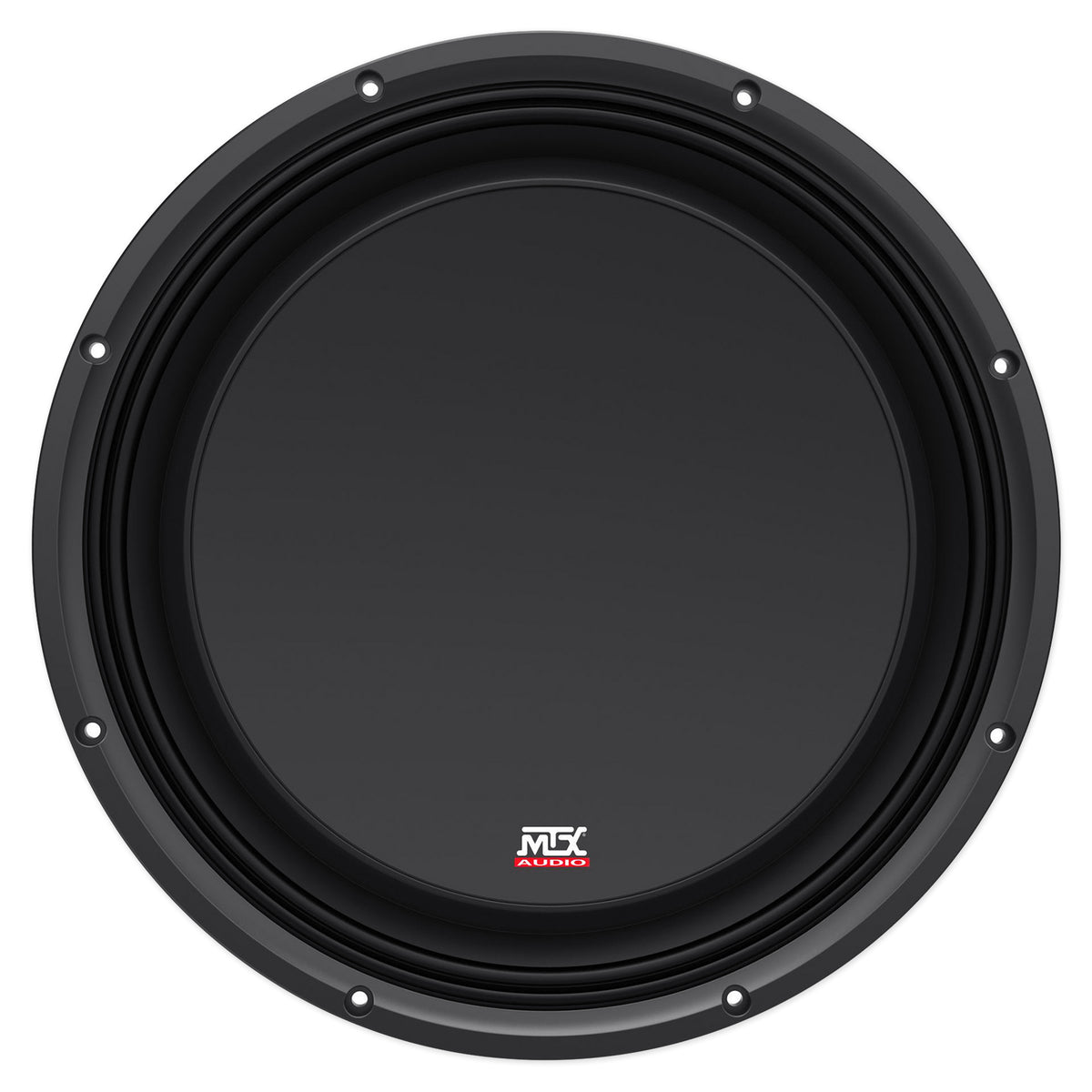

- (2) 12-inch 3512-04S shallow-mount subwoofers
- 300 W RMS and 600 W peak power handling per subwoofer
- 4-ohm single voice coil, 23 Hz to 130 Hz response
- Dual sealed 12-inch enclosure made from 5/8-inch MDF

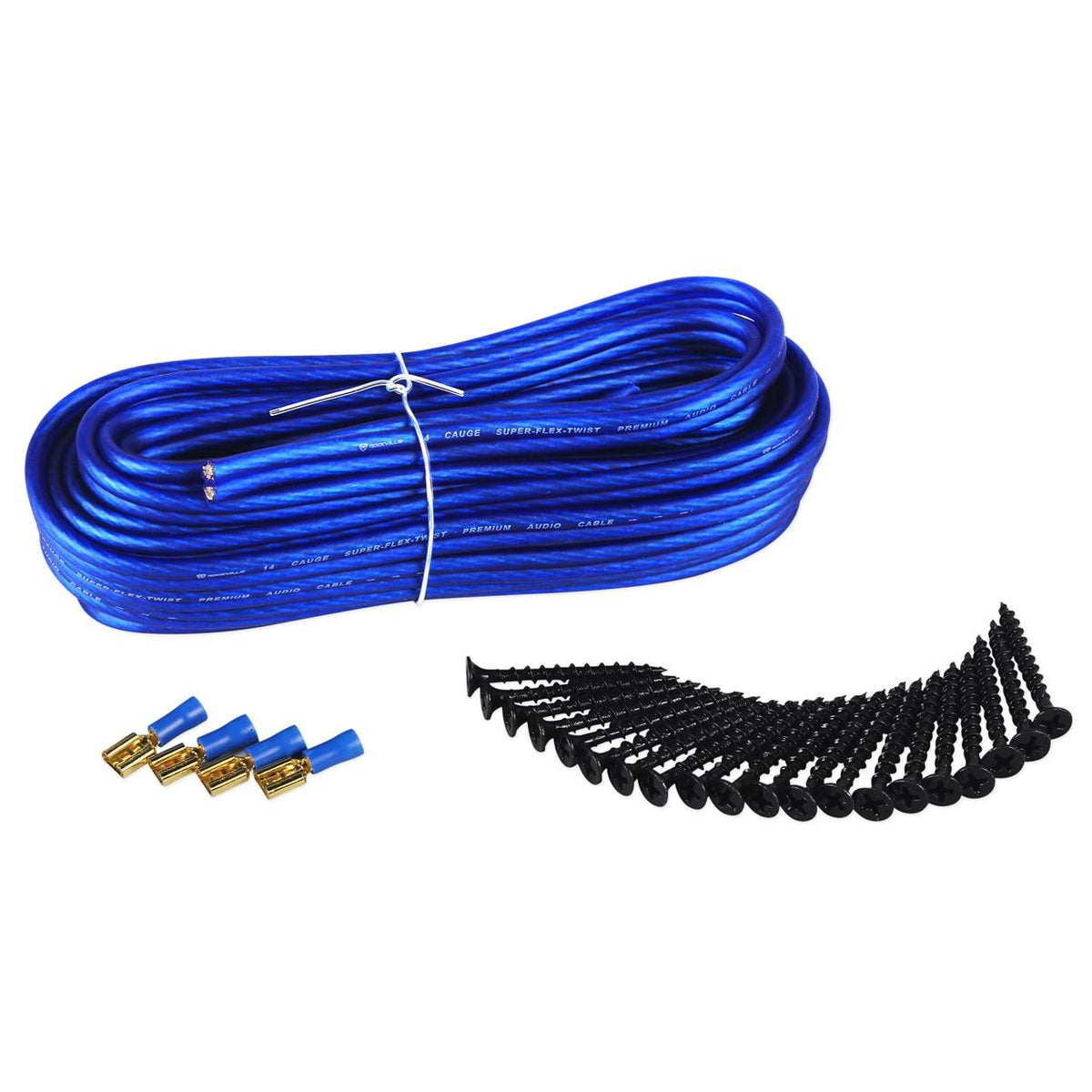

- 20 ft of 14 AWG speaker wire, 4 spade terminals, 20 metal screws
Couldn't load pickup availability

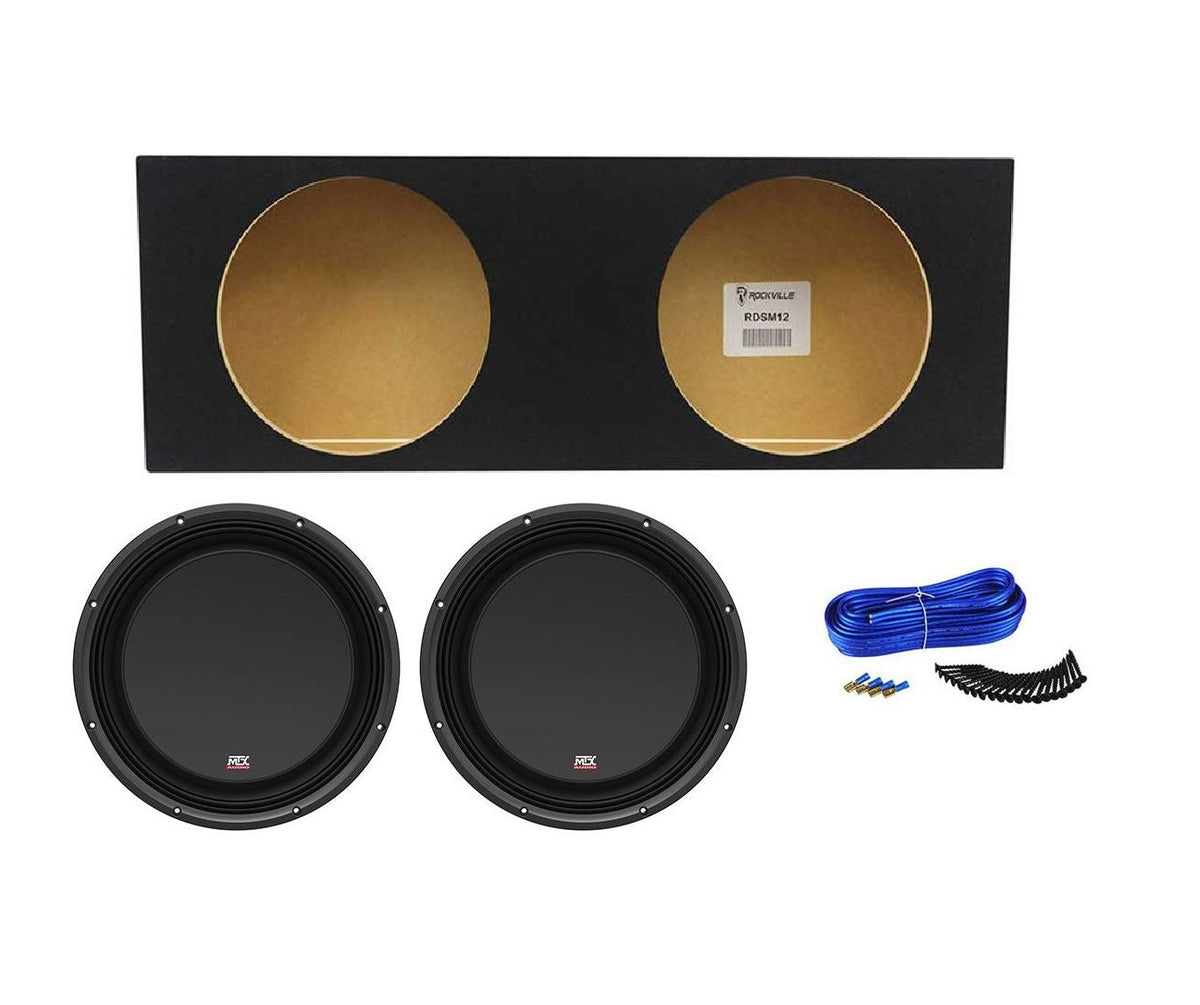

What's Included in the box
- (2) 3512-04S 12-inch shallow-mount subwoofers
- (1) RDSM12 dual 12-inch sealed enclosure
- 20 drywall wood screws (metal)
- 20 ft of 14 AWG blue speaker wire
- 4 spade terminals
SKU: SKU: (2) 3512-04S+RDSM10+K2
View full details








Product Description
Features
Compact Mounting

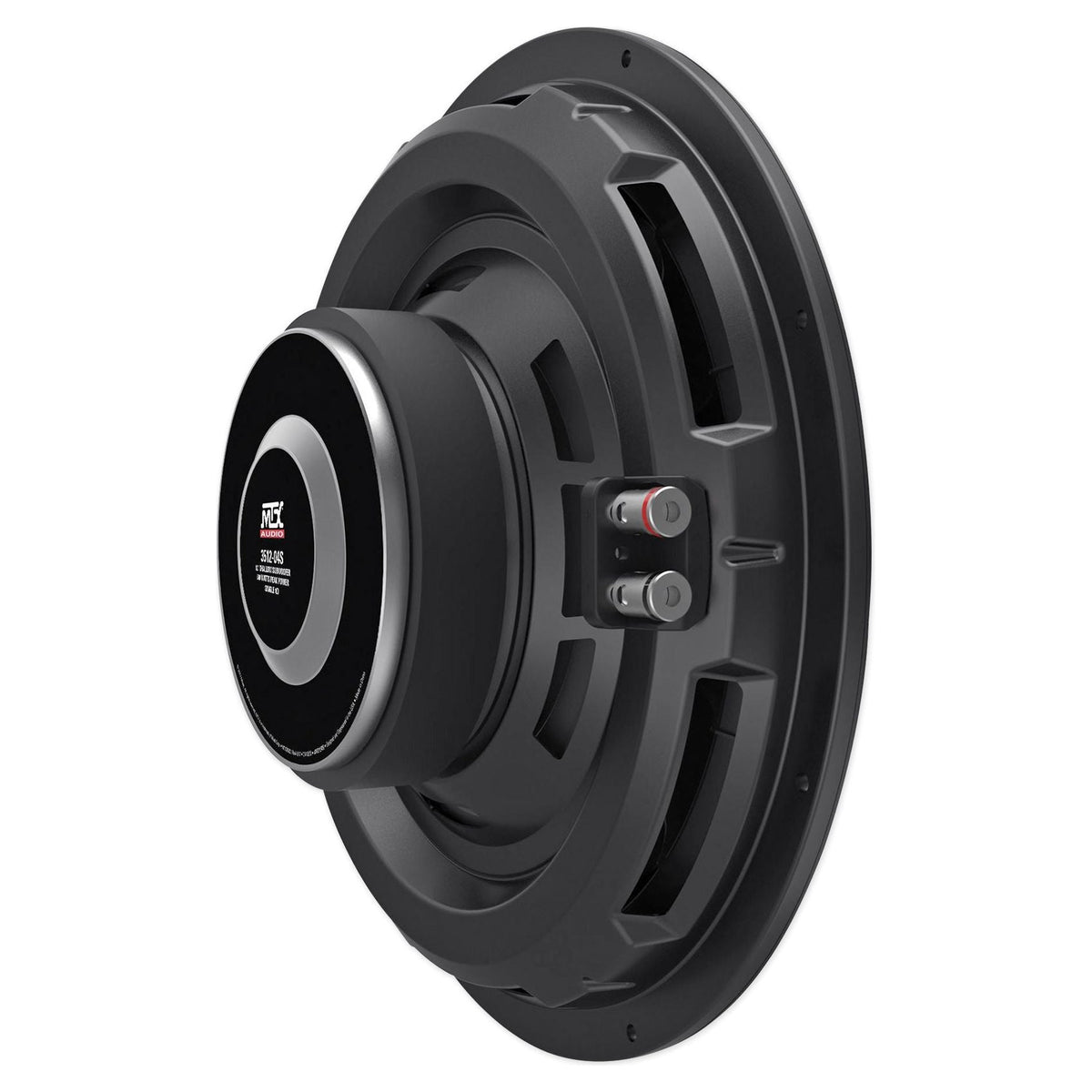

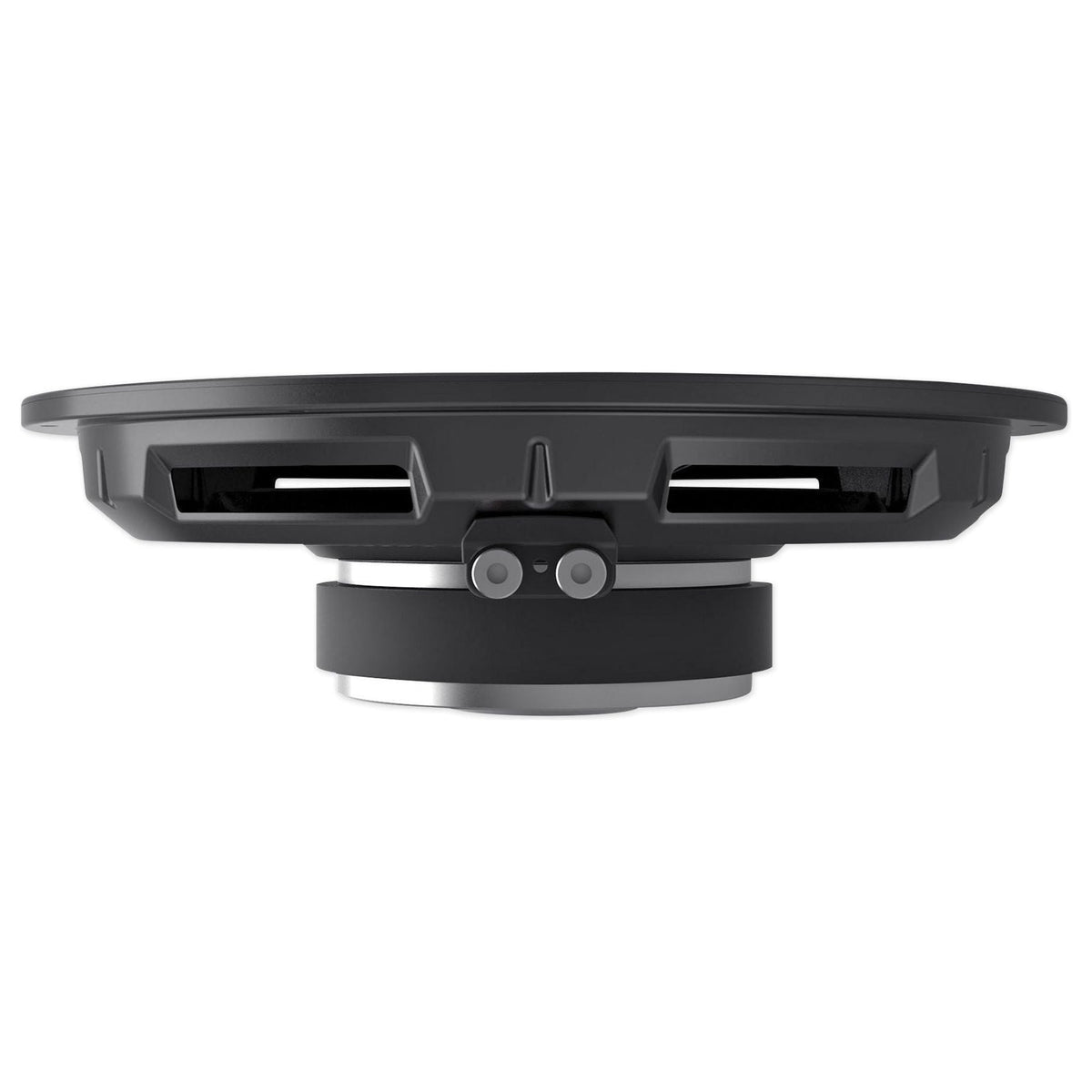

Each 3512-04S subwoofer has a 3.375-inch mounting depth, helping add low-frequency output in vehicles with limited room behind the installation panel.
System Matching
A 4-ohm single voice coil and 23 Hz to 130 Hz frequency response give installers key match points when choosing an amplifier and tuning the system.
Thermal Management
Spider Plateau Venting targets cool air at the voice coil, while progressive suspension controls excursion at high power to reduce distortion.
More Air Movement
The Inverted Apex surround increases surface area for greater air movement and higher SPL, supporting strong bass from a shallow-mount subwoofer.
Sealed MDF Enclosure

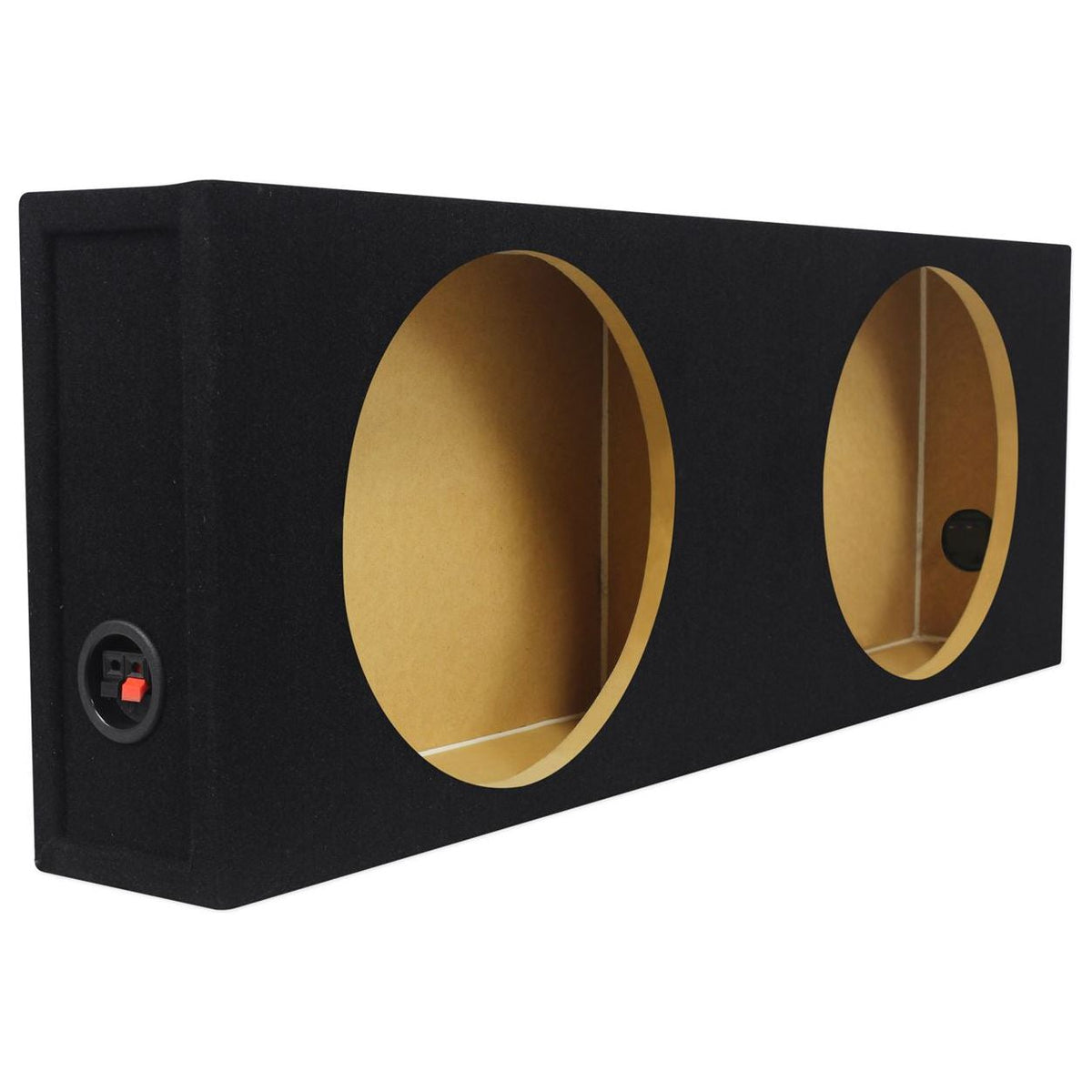

A dual 12-inch sealed enclosure made from 5/8-inch MDF includes precision-cut mounting holes and measures 36 inches wide, 13 inches high, and 5.25 inches deep.
Technical Specifications
- Product Type Car Audio Subwoofer Bundle
- Quantity 2 subwoofers, 1 enclosure

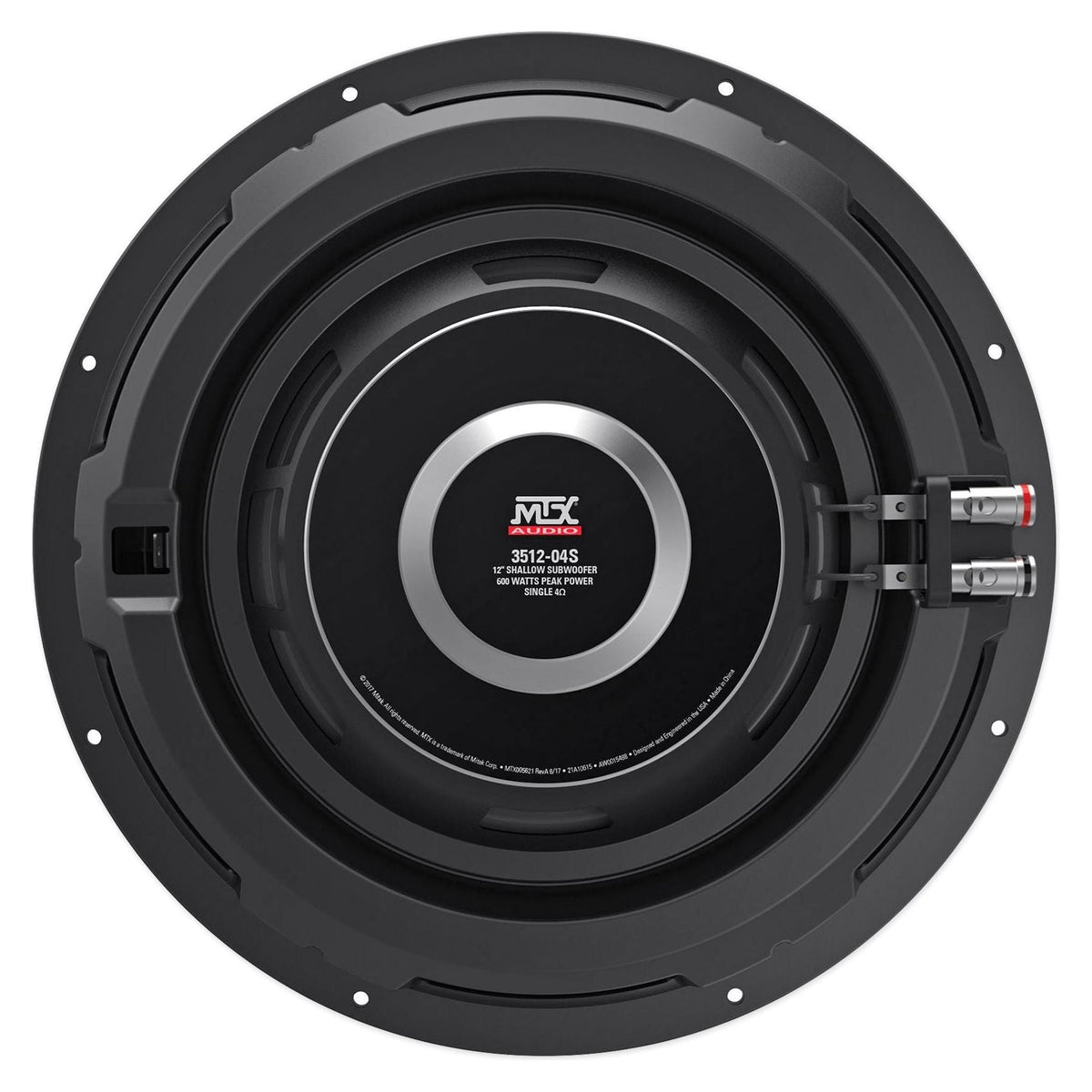

- Subwoofer Model 3512-04S
- Subwoofer Size 12 in
- Power Handling 300 W RMS per subwoofer
- Peak Power Handling 600 W per subwoofer
- Recommended Amplifier Power 150 to 300 W RMS per subwoofer
- Impedance 4 ohm per subwoofer
- Voice Coil Single, 2 in
- Frequency Response 23 Hz to 130 Hz
- Sensitivity 84.4 dB
- Magnet Weight 44 oz per subwoofer
- Subwoofer Mounting Depth 3.375 in
- Cutout Diameter 11.125 in
- Volume Displacement 35.74 cu in per subwoofer
- Subwoofer Sealed Enclosure Net Volume 0.8 cu ft
- Enclosure Model RDSM12
- Enclosure Type Dual 12 in sealed shallow mount
- Enclosure Material 5/8 in MDF
- Enclosure Gross Volume Per Sub 0.77 cu ft
- Enclosure Net Volume Per Sub 0.56 cu ft
- Enclosure Mounting Depth Up to 4.625 in
- Dimensions 5.25 L x 36 W x 13 H in
