5510-22 Pair Subwoofer System with dB13 Amp, Sealed Enclosure and Wiring Kit
MTX
5510-22 Pair Subwoofer System with dB13 Amp, Sealed Enclosure and Wiring Kit
5510-22 Pair Subwoofer System with dB13 Amp, Sealed Enclosure and Wiring Kit
Dual 10-Inch Subwoofer Bundle, 750W RMS Mono Amp, Sealed Enclosure, 4-Gauge Wiring Kit
Free Shipping
Features

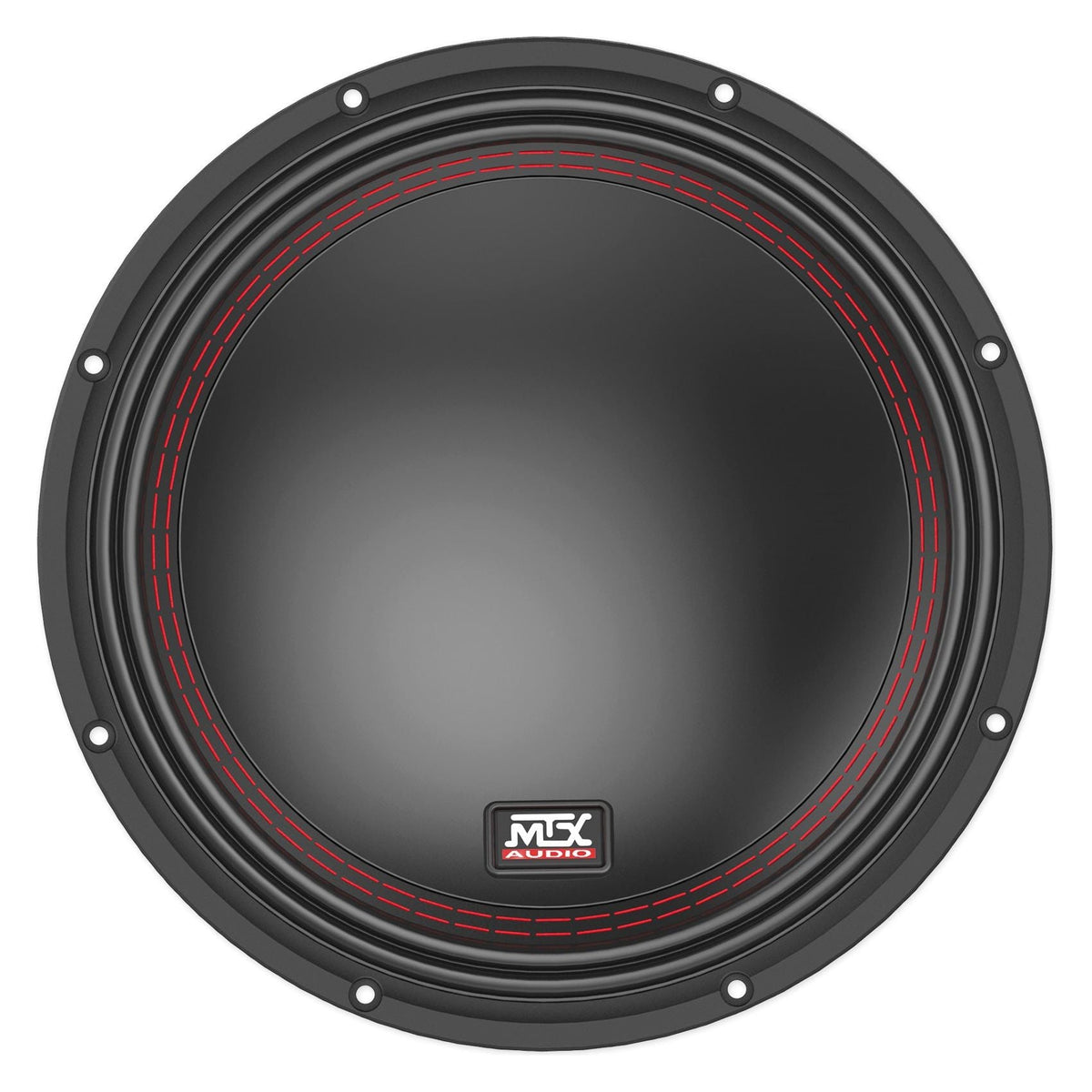

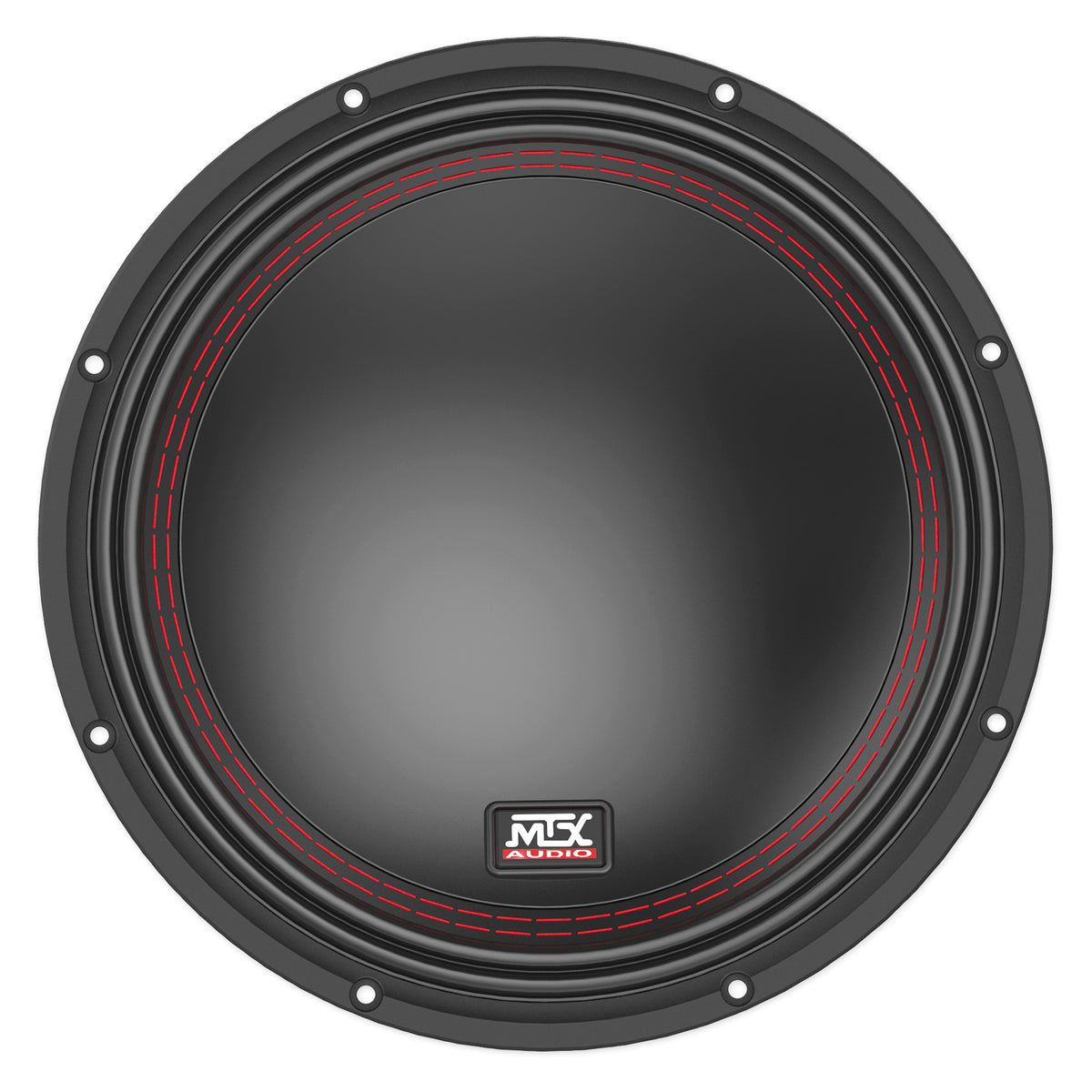

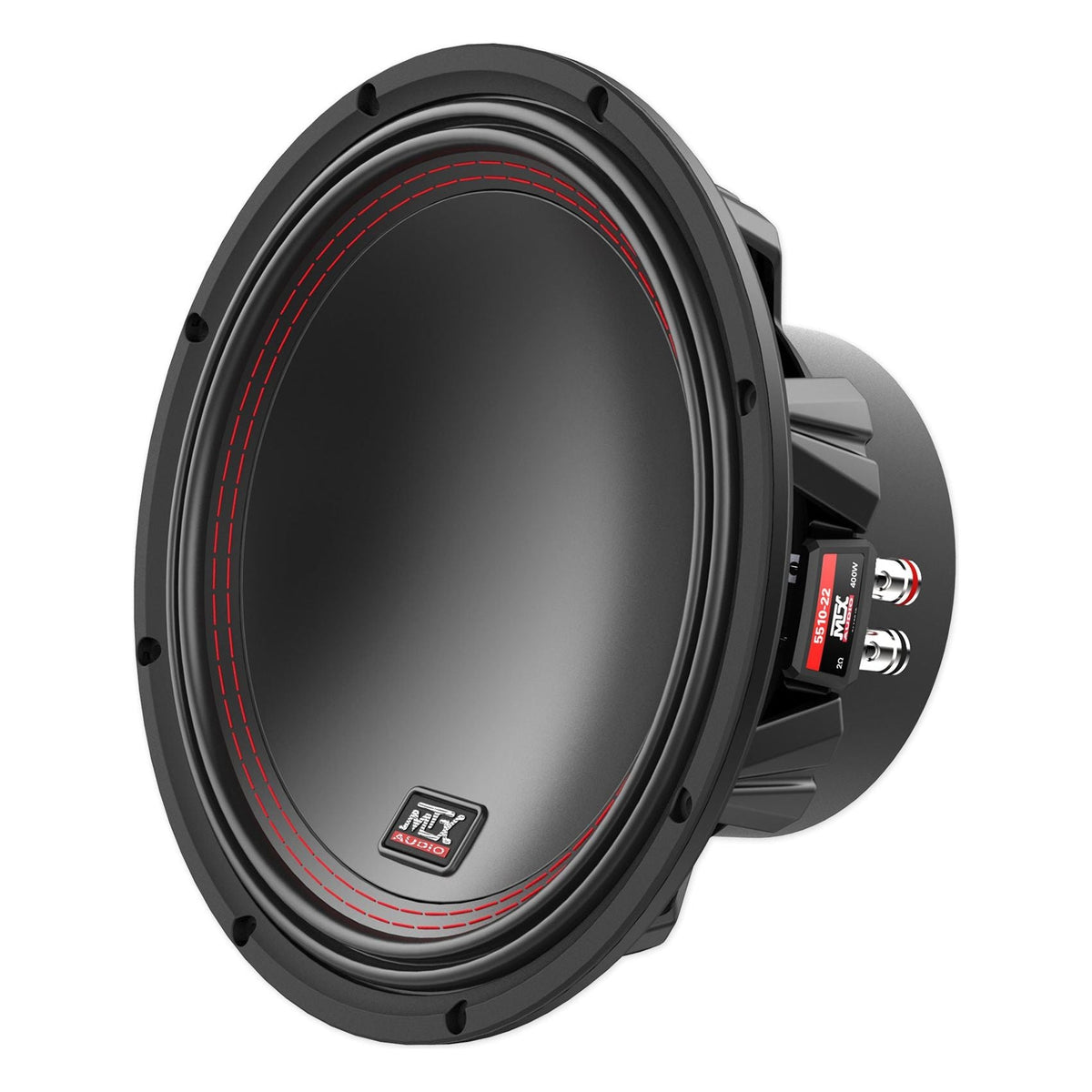

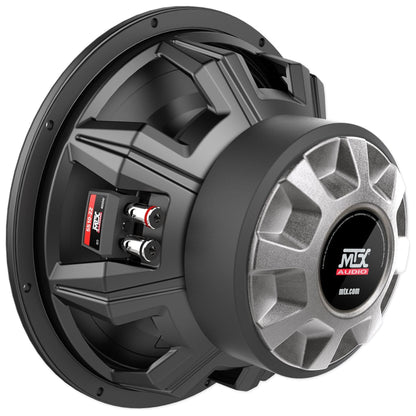

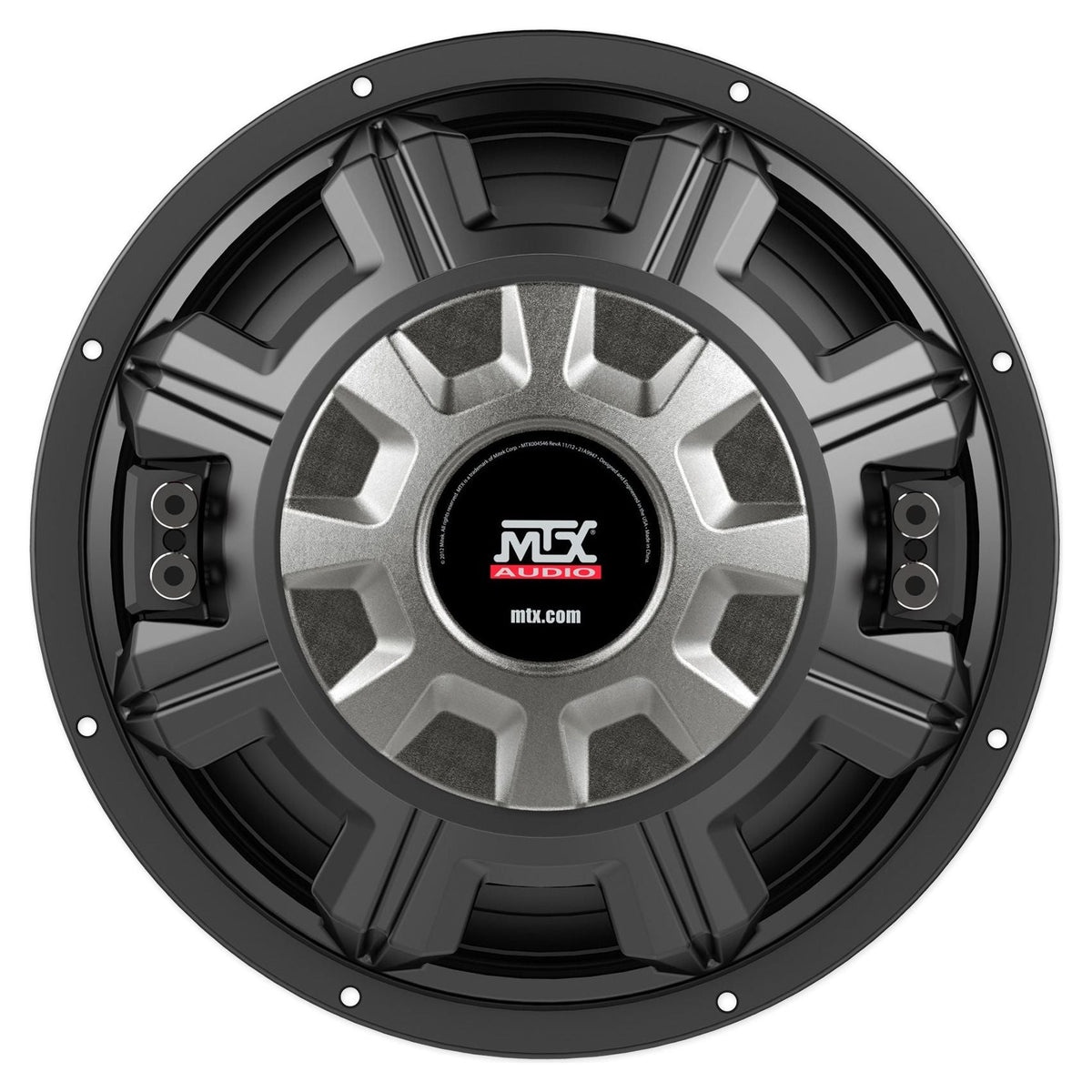

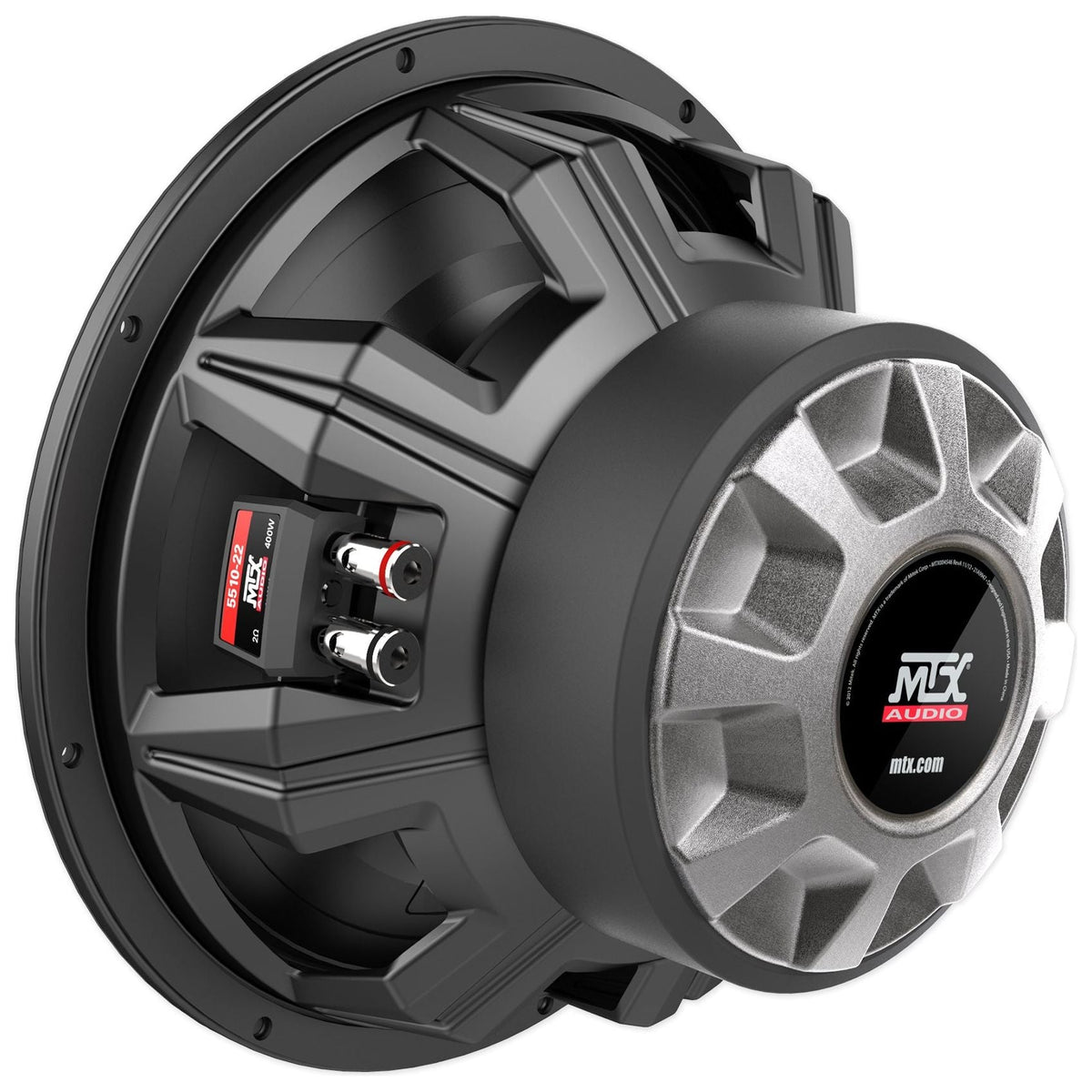

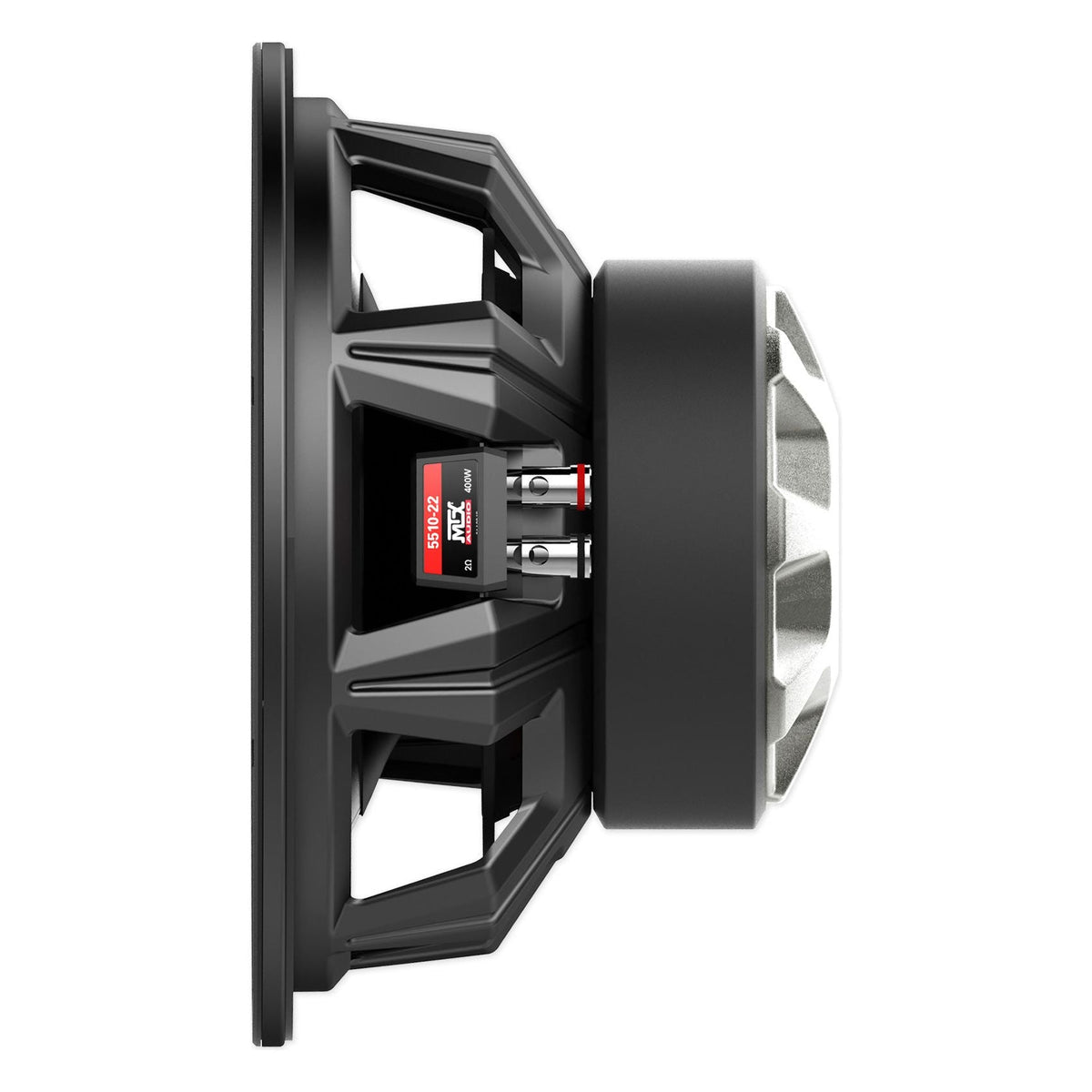

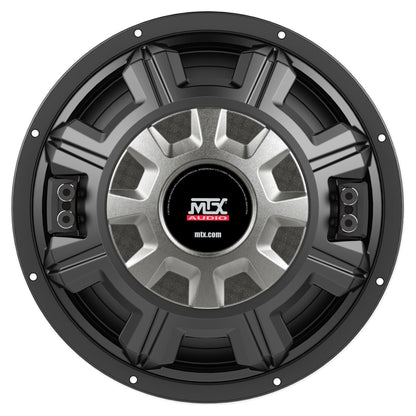

- Pair of 10-inch dual 2-ohm voice-coil subwoofers, each rated 400W RMS

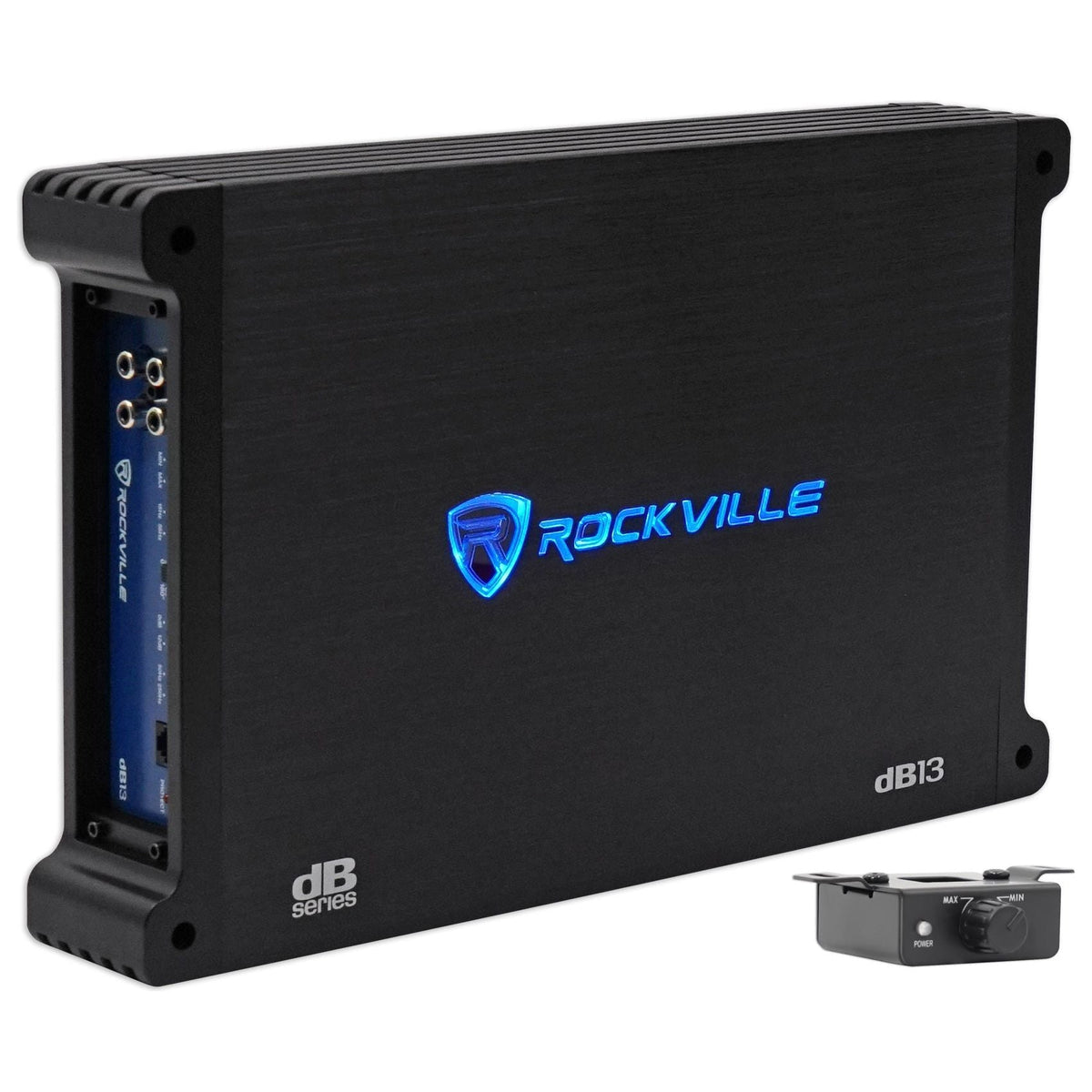

- Mono amplifier delivers 750W RMS at 2 ohms

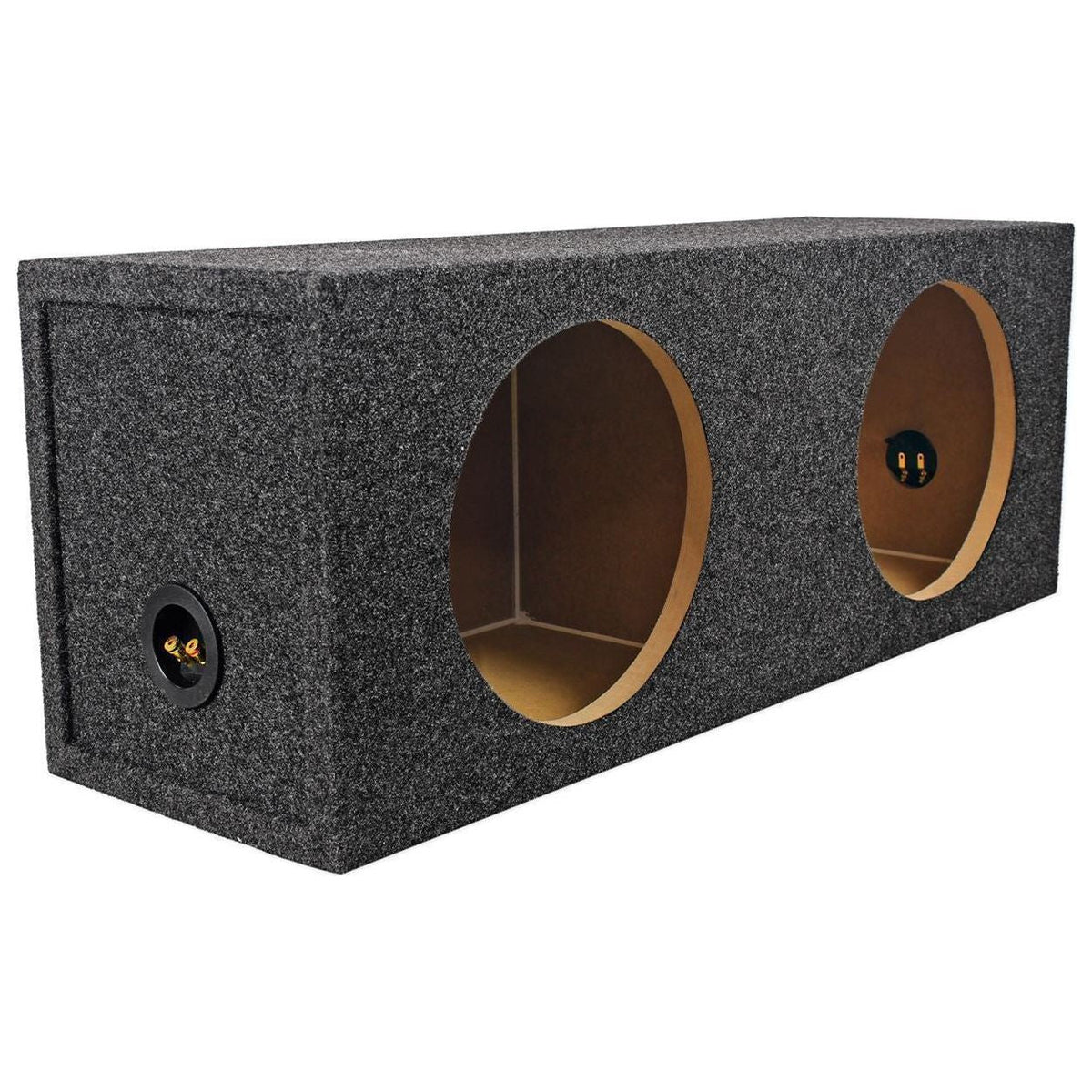

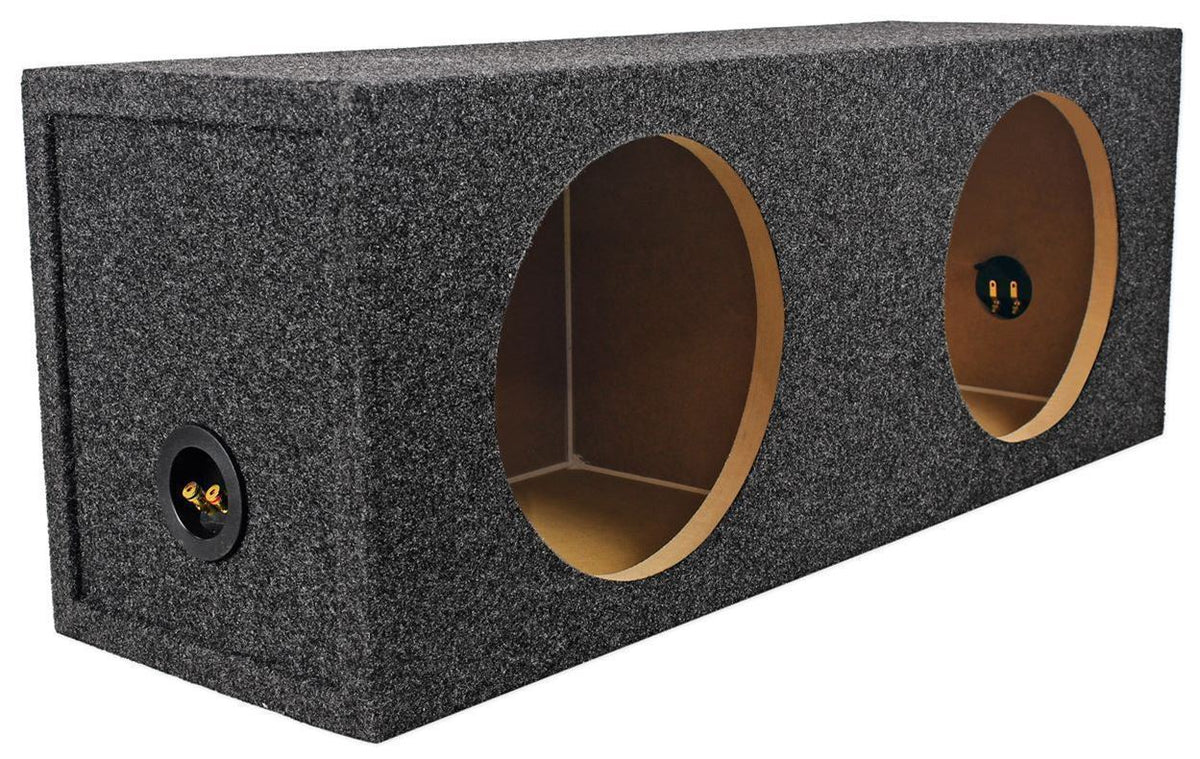

- Sealed dual 10-inch enclosure: 1.0 cu ft, 3/4-inch MDF
- 4-gauge amplifier wiring kit includes RCA cables

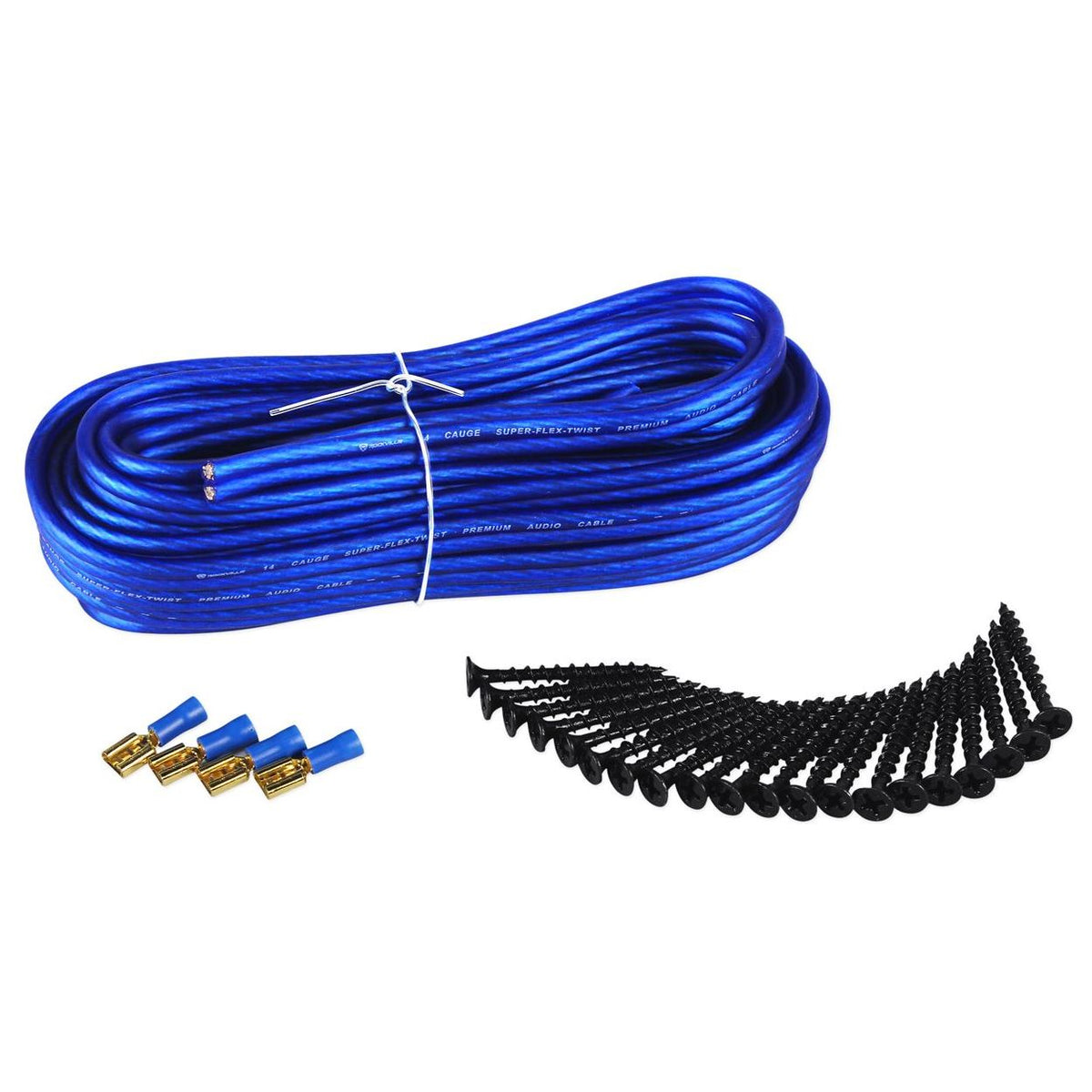

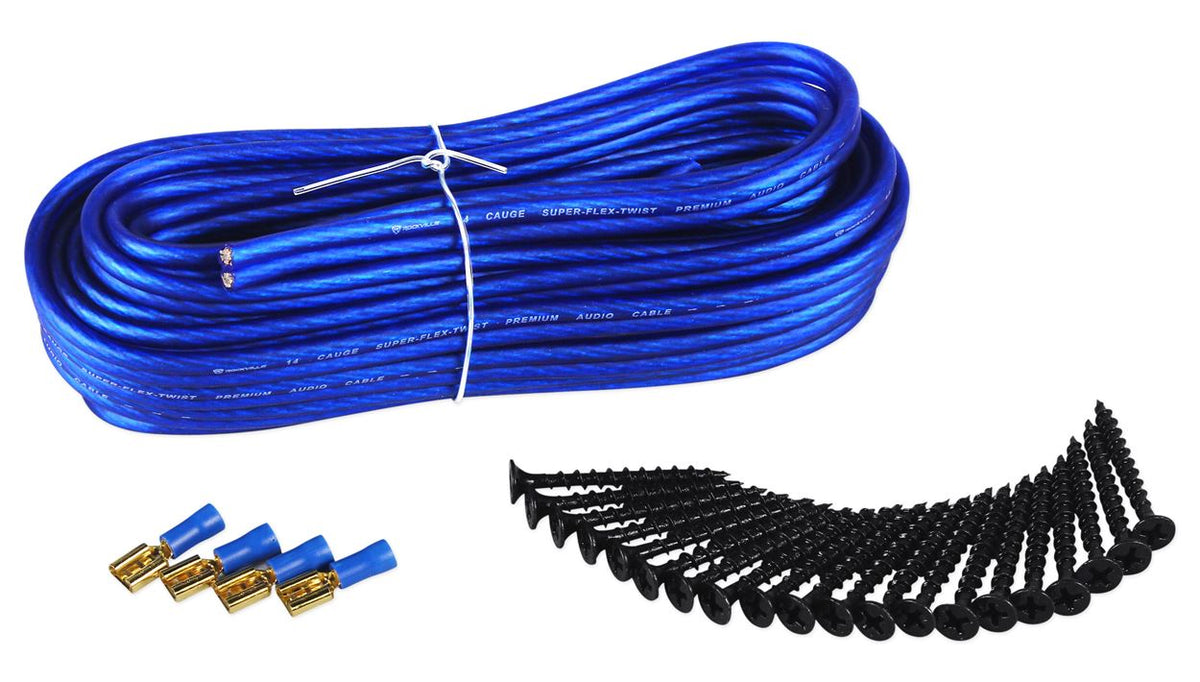

- 20 ft of blue 14 AWG speaker wire plus four spade terminals
Couldn't load pickup availability

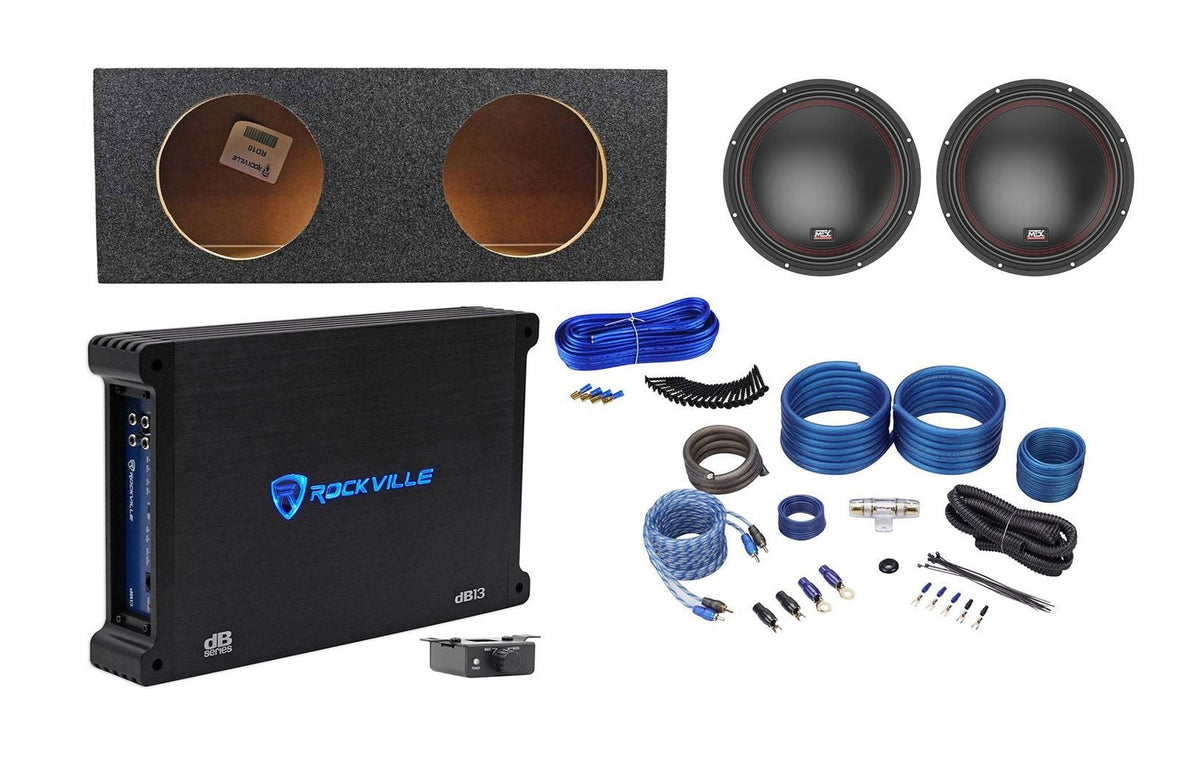

What's Included in the box
- (2) 5510-22 10-inch subwoofers
- (1) dual 10-inch sealed enclosure, 1.0 cu ft, 3/4-inch MDF
- (1) dB13 mono amplifier
- (1) RWK41 4-gauge amplifier wiring kit with RCA cables
- 20 metal screws, described as drywall wood screws
- 20 ft of blue 14 AWG speaker wire
- 4 spade terminals
- Amplifier bass remote and tested-power birth sheet
- Amplifier mounting screws
SKU: SKU: (2) 5510-22+dB13+RWK41+RD10+K2
View full details












Product Description
Features
Paired Low-Frequency Output
Two 10-inch dual 2-ohm voice-coil subwoofers handle 400W RMS each, giving the pair 800W RMS capacity and 1,600W peak handling.
Matched Amplifier Power
At a 2-ohm load, the mono amplifier delivers 750W RMS, within the pair's combined 400-800W RMS recommended range when wired for that load.
Sealed Cabinet Construction
The 1.0 cu ft enclosure pairs a sealed layout with 3/4-inch MDF, providing a compact dual-driver cabinet matched to the two included 10-inch subs.
Flexible Amp Tuning
Adjustable crossover, low-pass and subsonic filters, bass EQ, phase control, and a dashboard remote give installers several ways to set bass response.
Included Installation Parts
The package combines a 4-gauge wiring kit with RCA cables, 20 ft of 14 AWG speaker wire, four spade terminals, and 20 metal screws.
Technical Specifications
- Product Type Dual 10-inch subwoofer and mono amplifier bundle
- Subwoofers 2 x 10-inch, dual 2-ohm voice coil
- Subwoofer Power Handling (each) 400 W RMS / 800 W peak
- Subwoofer Recommended Amp Power (each) 200-400 W RMS
- Subwoofer Frequency Response 29-130 Hz
- Sensitivity 83.1 dB
- Voice Coil Size 2 in, dual
- Magnet Weight 56 oz per subwoofer
- Mounting Depth 5.625 in
- Cutout Diameter 9.188 in
- Subwoofer Volume Displacement 35 cu in
- Sealed Enclosure Net Volume (subwoofer spec) 0.75 cu ft
- Vented Enclosure Net Volume (subwoofer spec) 2.0 cu ft
- Enclosure Dual 10-inch sealed, 1.0 cu ft, 3/4-inch MDF
- Amplifier RMS Output 750 W x 1 channel at 2 ohm; 450 W x 1 channel at 4 ohm
- Amplifier Peak Output 3000 W x 1 channel at 2 ohm; 1800 W x 1 channel at 4 ohm
- Amplifier Frequency Response 15-250 Hz
- Low-Pass Filter 50-250 Hz
- Subsonic Filter 15-55 Hz
- Crossover Adjustable, 12 dB per octave
- Bass Equalizer Adjustable, 12 dB
- Signal-to-Noise Ratio over 90 dB
- Damping Factor over 150 at 100 Hz
- Under-Voltage Protection 10 V
- Over-Voltage Protection 16 V
- Amplifier Fuse 80 A Maxi
- Wiring Kit 4 AWG with RCA cables
- Speaker Wire 20 ft, 14 AWG, blue
- Spade Terminals 4
- Screws 20 metal screws
- Dimensions Amplifier: 9 x 2.4 x 14.7 in (W x H x L)
