5515-22 Pair with dB13 3000W Mono Amplifier and RWK41 4 AWG Wiring Kit

Name: 5515-22 Pair with dB13 3000W Mono Amplifier and RWK41 4 AWG Wiring Kit
Brand: MTX
SKU: (2) 5515-22+dB13+RWK41
Price: 539.85 USD
Availability: InStock

Car Audio Subwoofer Bundle, Pair of 15-Inch Dual 2-Ohm Subs, 750W RMS at 2 Ohms, 4 AWG Wiring Kit

Free Shipping

$539.85

$539.85 ~~$769.89~~

Save 29%

Shipping calculated at checkout.

Features

(2) 15-inch dual 2-ohm voice-coil subwoofers
Each sub handles 400 W RMS and 800 W peak
Class D mono amplifier rated 750 W RMS at 2 ohms
4 AWG installation kit includes RCA signal cables
Adjustable low-pass, subsonic, phase and bass controls

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

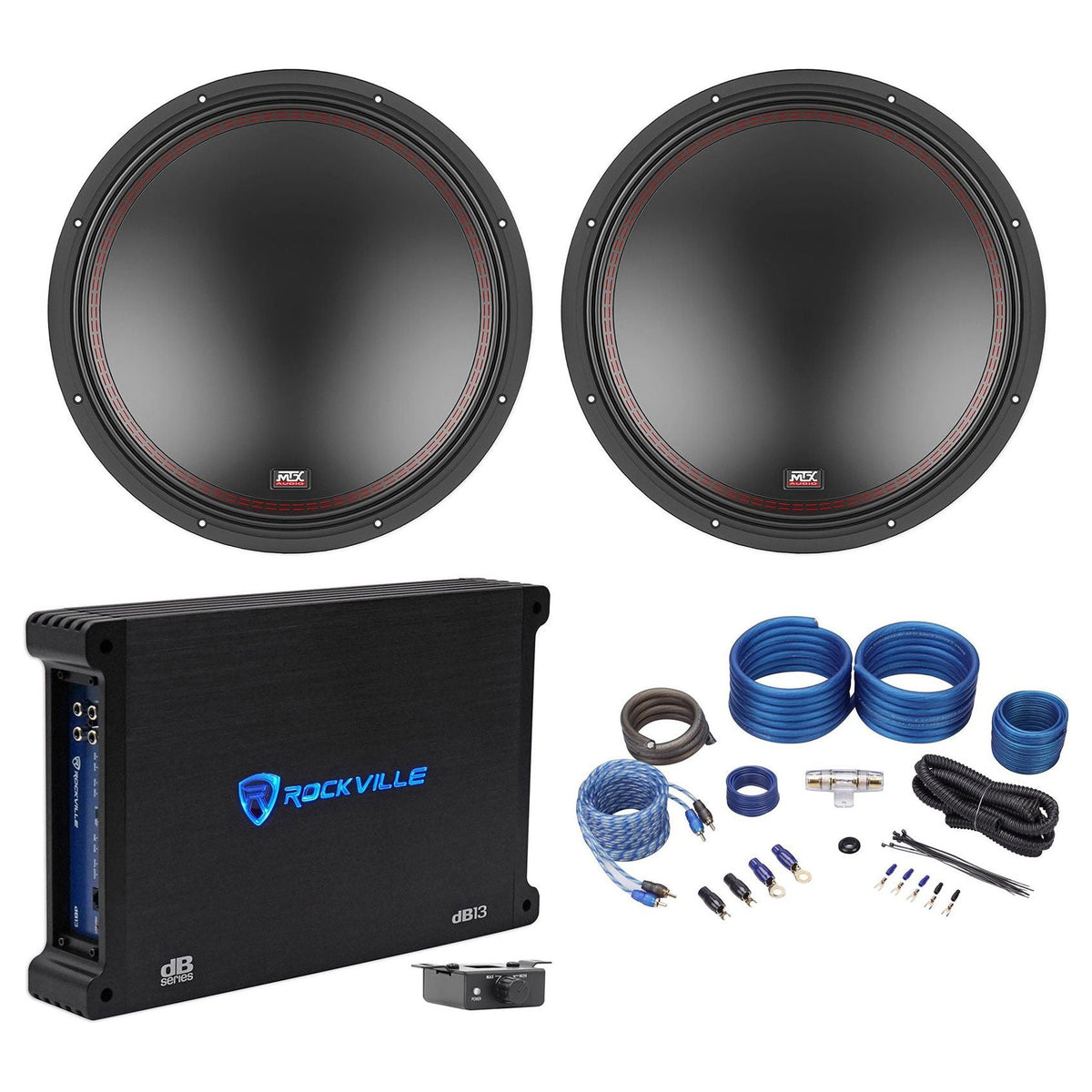

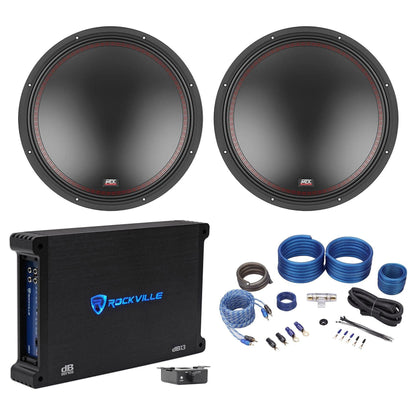

What's Included in the box

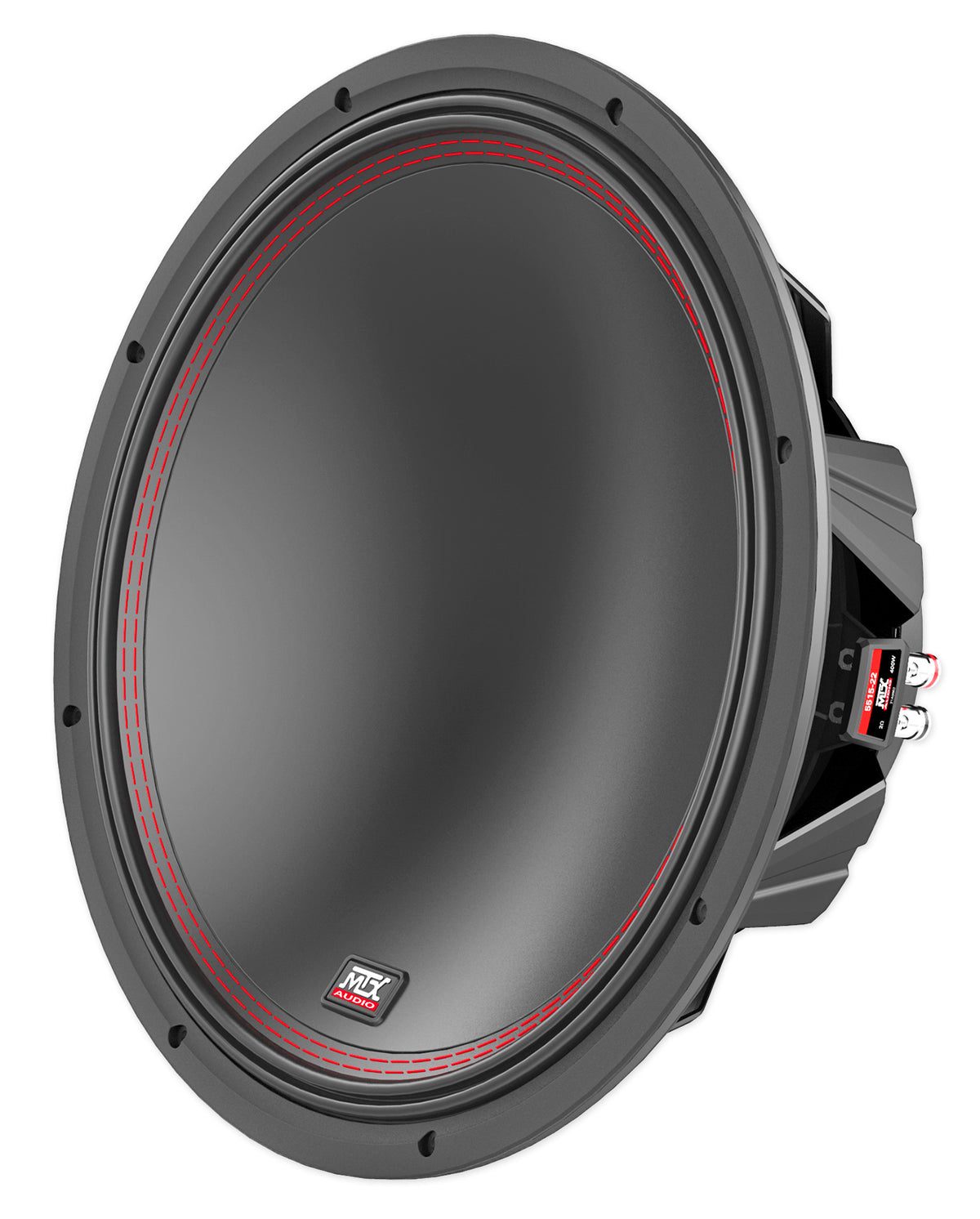

(2) 5515-22 15-inch dual 2-ohm subwoofers

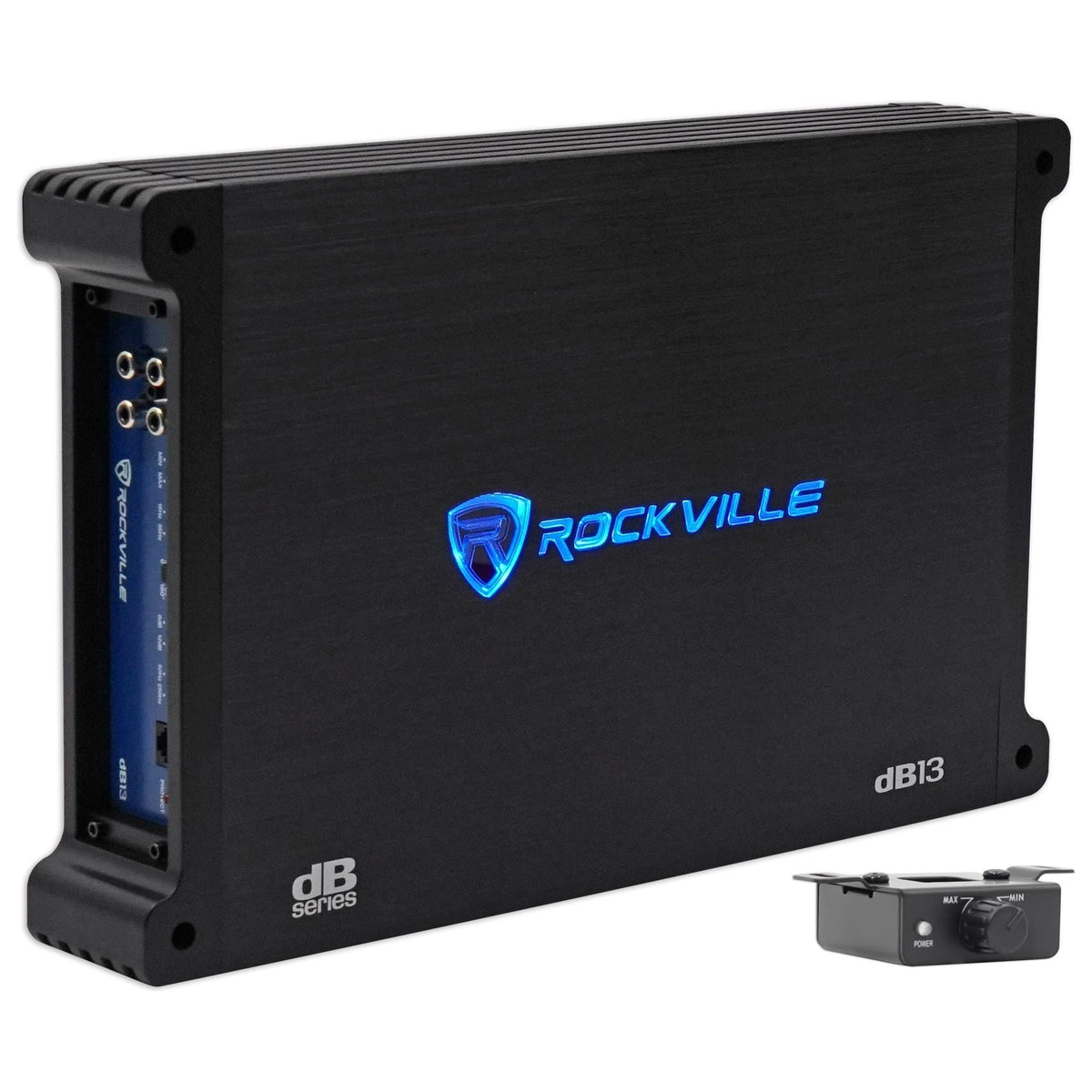

(1) dB13 mono amplifier
Bass remote
Tested-power birth sheet
Mounting screws

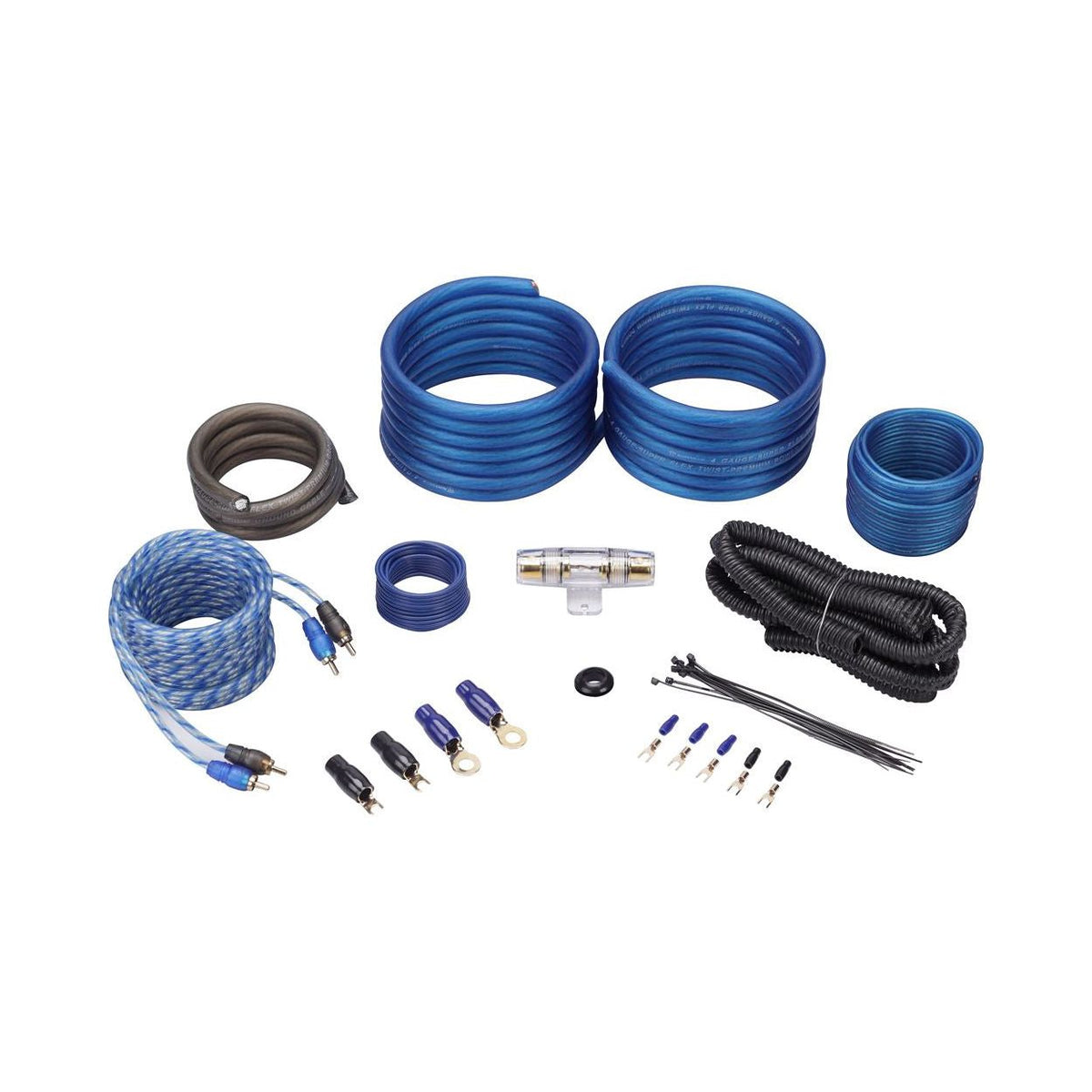

(1) RWK41 4 AWG amplifier wiring kit with RCA cables

SKU: SKU: (2) 5515-22+dB13+RWK41

View full details

Product Description

Set up a car audio bass system with two 15-inch 5515-22 subwoofers, a mono dB13 amplifier and a 4 AWG RWK41 installation kit. Each subwoofer handles 400 W RMS and 800 W peak, with dual 2-ohm voice coils, 85.4 dB sensitivity and a 19 Hz to 130 Hz frequency response. Sealed and vented enclosure recommendations give builders two box options, while the 8-inch mounting depth and 13.875-inch cutout diameter help with enclosure planning.

At a 2-ohm final load, the amplifier is rated for 750 W RMS, within the pair's combined recommended range of 400 to 800 W RMS. It also supplies 450 W RMS at 4 ohms and 3,000 W peak at 2 ohms. The included 4 AWG kit has RCA signal cables and a flexible PVC jacket rated from -40°F to 220°F. Adjustable low-pass and subsonic filters, phase control and bass equalization let installers tune response for the vehicle and enclosure.

Features

Strong Low-Frequency Output
Each 15-inch subwoofer pairs 85.4 dB sensitivity with 400 W RMS handling, giving a high-output bass foundation for car audio.
Thermal Management
Spider Plateau Venting directs cool air toward the voice coil, while a radial ribbed T-yoke helps dissipate heat during extended high-volume playback.
Controlled Cone Movement

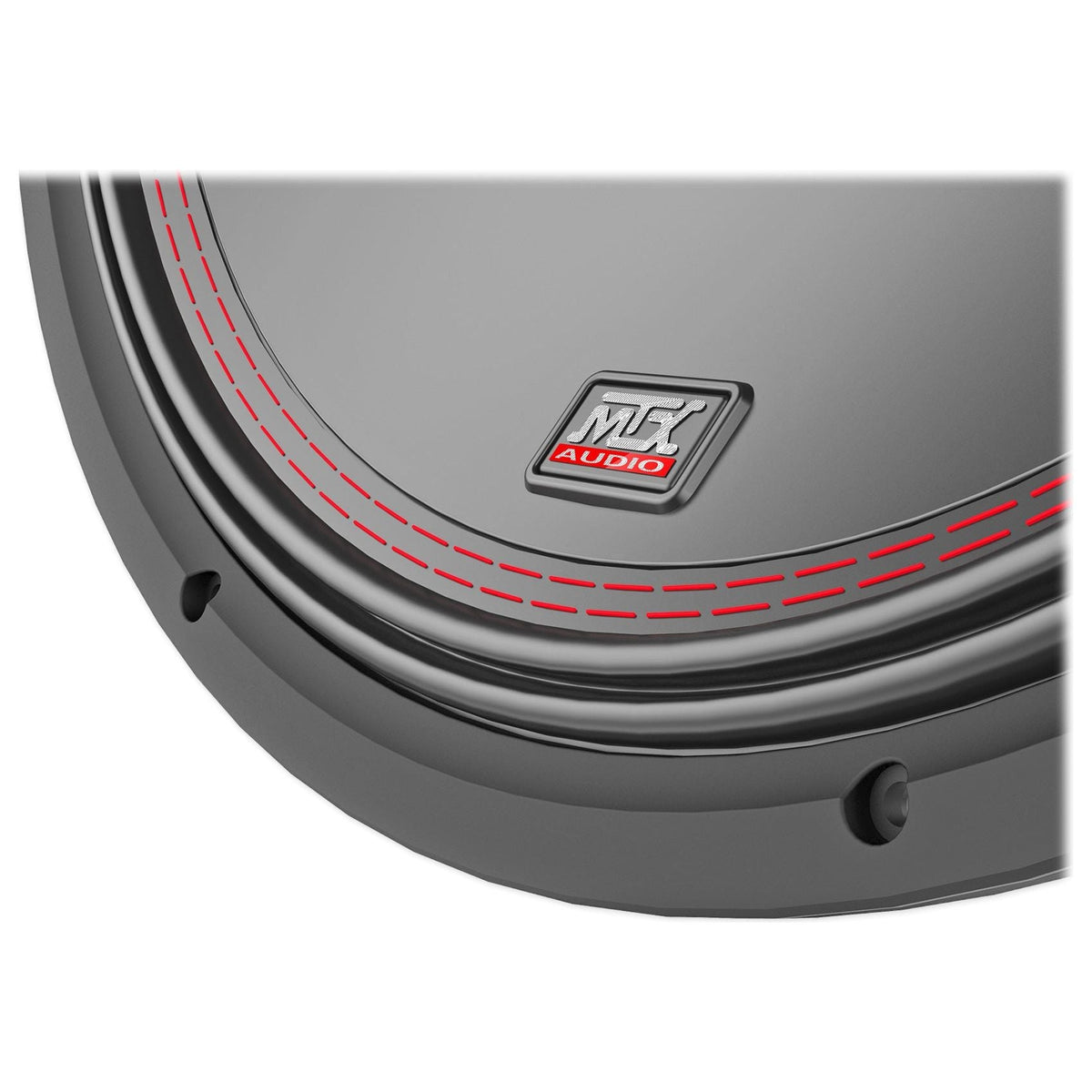

The Inverted Apex Surround increases cone surface area, while progressive suspension controls excursion at high power to reduce distortion and maintain sound clarity.
Tunable Bass Response
An adjustable 50 to 250 Hz low-pass filter, 15 to 55 Hz subsonic filter and phase switch help tune output to the enclosure and vehicle.
Simpler Cable Routing
The kit includes 4 AWG wiring and RCA signal cables, plus a flexible PVC jacket rated from -40°F to 220°F for easier routing.

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Model 5515-22
Subwoofer Quantity 2
Subwoofer Size 15 in
Subwoofer RMS Power Handling 400 W each; 800 W combined
Subwoofer Peak Power Handling 800 W each
Recommended Amplifier Power 200 to 400 W RMS per subwoofer
Voice Coil Diameter 2 in, dual
Subwoofer Impedance Dual 2 ohms
Subwoofer Frequency Response 19 Hz to 130 Hz
Subwoofer Sensitivity 85.4 dB
Mounting Depth 8 in
Cutout Diameter 13.875 in
Sealed Enclosure Net Volume 1.5 cu ft
Vented Enclosure Net Volume 2.48 cu ft
Amplifier Type Mono, Class D
Amplifier RMS Output 750 W x 1 at 2 ohms; 450 W x 1 at 4 ohms
Amplifier Peak Output 3000 W x 1 at 2 ohms; 1800 W x 1 at 4 ohms
Crossover Adjustable 12 dB per octave
Low-Pass Filter 50 to 250 Hz
Subsonic Filter 15 to 55 Hz
Bass Equalizer Adjustable 12 dB
Phase Control Switch
Frequency Response, Amplifier 15 Hz to 250 Hz
Damping Factor Greater than 150 at 100 Hz
Signal-to-Noise Ratio Greater than 90 dB
Total Harmonic Distortion Less than 0.1% at rated power
Fuse 80 A Maxi
Amplifier Dimensions 9 x 2.4 x 14.7 in
