5515-22 Pair, dB13 Amp, RWK41 Wiring Kit and RDV15 Enclosure
5515-22 Pair, dB13 Amp, RWK41 Wiring Kit and RDV15 Enclosure
Dual 15-Inch Subwoofer System, 750W RMS Amp, Vented Box, 4-Gauge Wiring Kit
Free Shipping
Features
- Two 15-inch subs deliver 400W RMS handling apiece
- 750W RMS mono amplifier rated for a 2-ohm load
- Vented enclosure tuned to 41Hz, with 2.41 cu ft net per sub
- 4-gauge wiring kit includes RCA cables
- Includes 20 ft speaker wire, four spade terminals and 20 metal wood screws
Couldn't load pickup availability

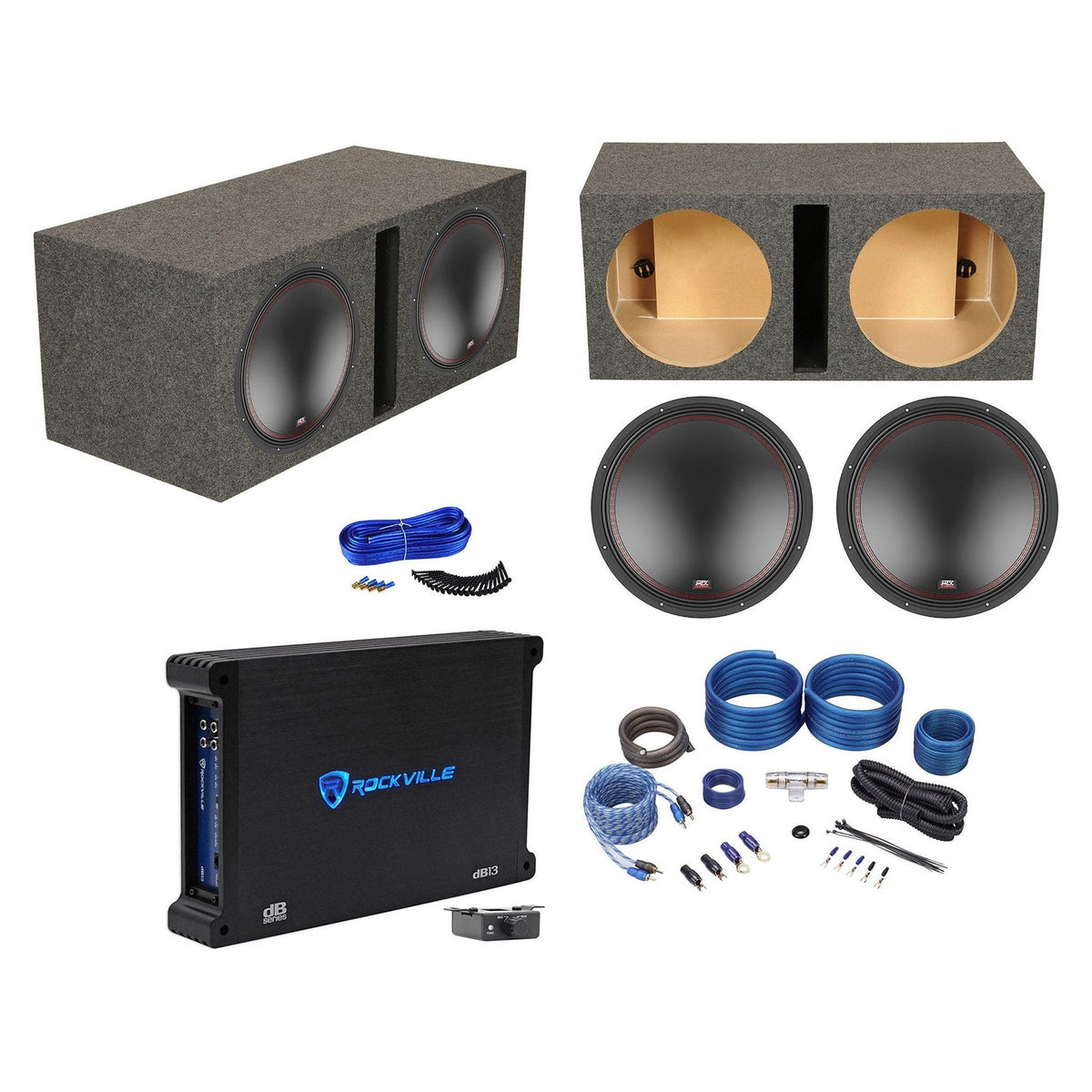

What's Included in the box
- (2) 5515-22 15-Inch Subwoofers
- (1) dB13 Mono Amplifier
- Bass Remote
- Tested-Power Birth Sheet
- Amplifier Mounting Screws
- (1) RWK41 4-Gauge Wiring Kit With RCA Cables
- (1) RDV15 Dual 15-Inch Vented Subwoofer Enclosure
- (20) Metal Wood Screws
- (20 ft) 14 AWG Blue Speaker Wire
- (4) Spade Terminals
SKU: SKU: (2) 5515-22+dB13+RWK41+RDVB15+K2
View full details















Product Description
Features
Low-Frequency Output

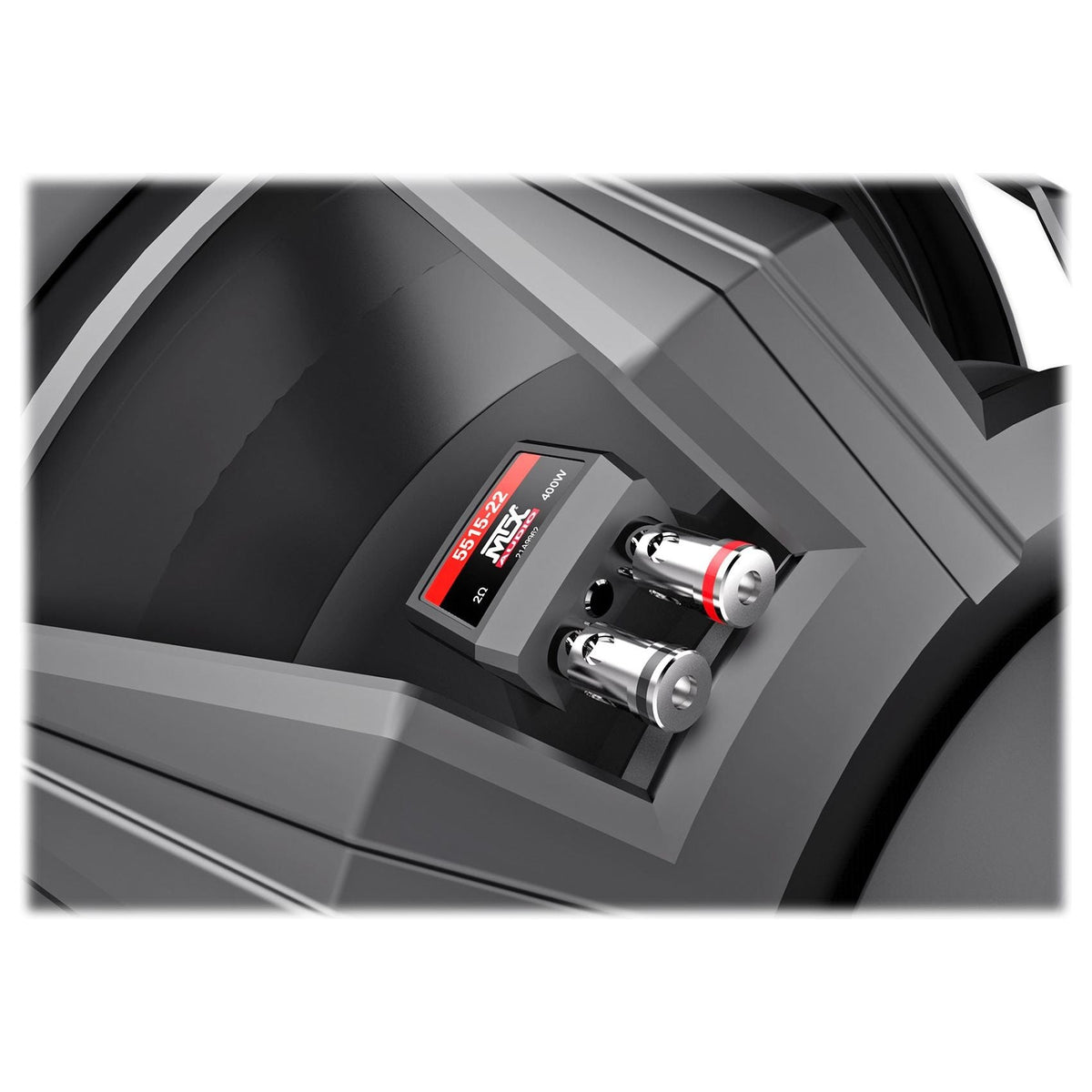

Two 15-inch dual 2-ohm voice-coil subs each handle 400W RMS and reproduce 19Hz to 130Hz, suited to vehicle systems built around strong bass.
Matched Amplifier Power
The mono amp supplies 750W RMS at 2 ohms, below the pair's 800W RMS combined handling when wired to a compatible 2-ohm final load.
Space For Two Large Subs

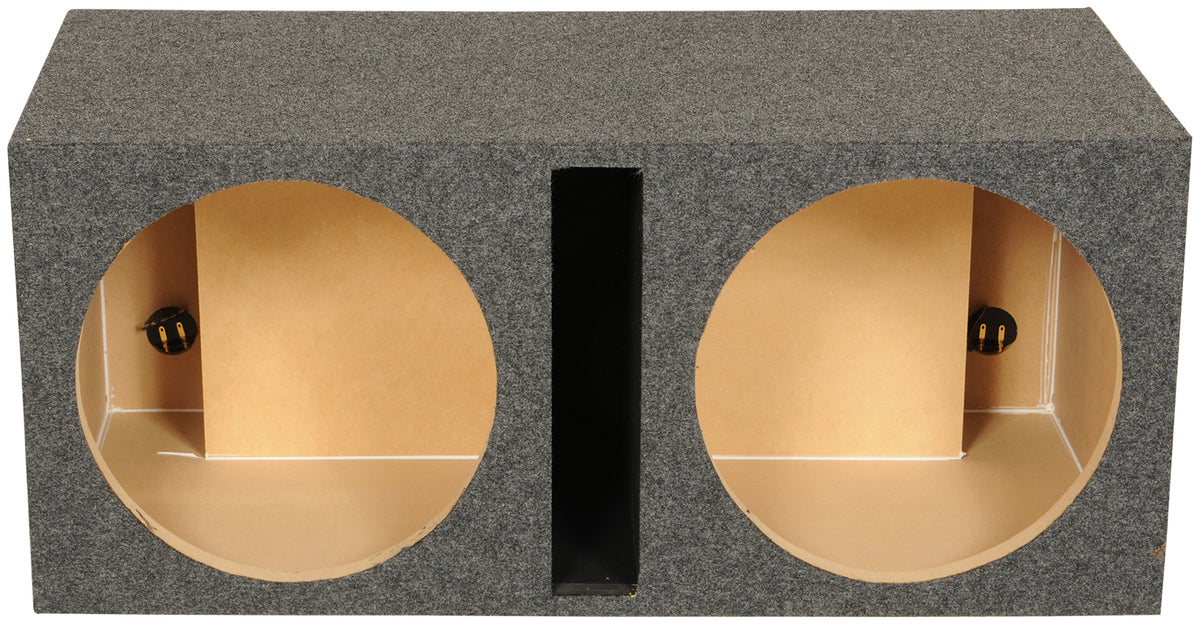

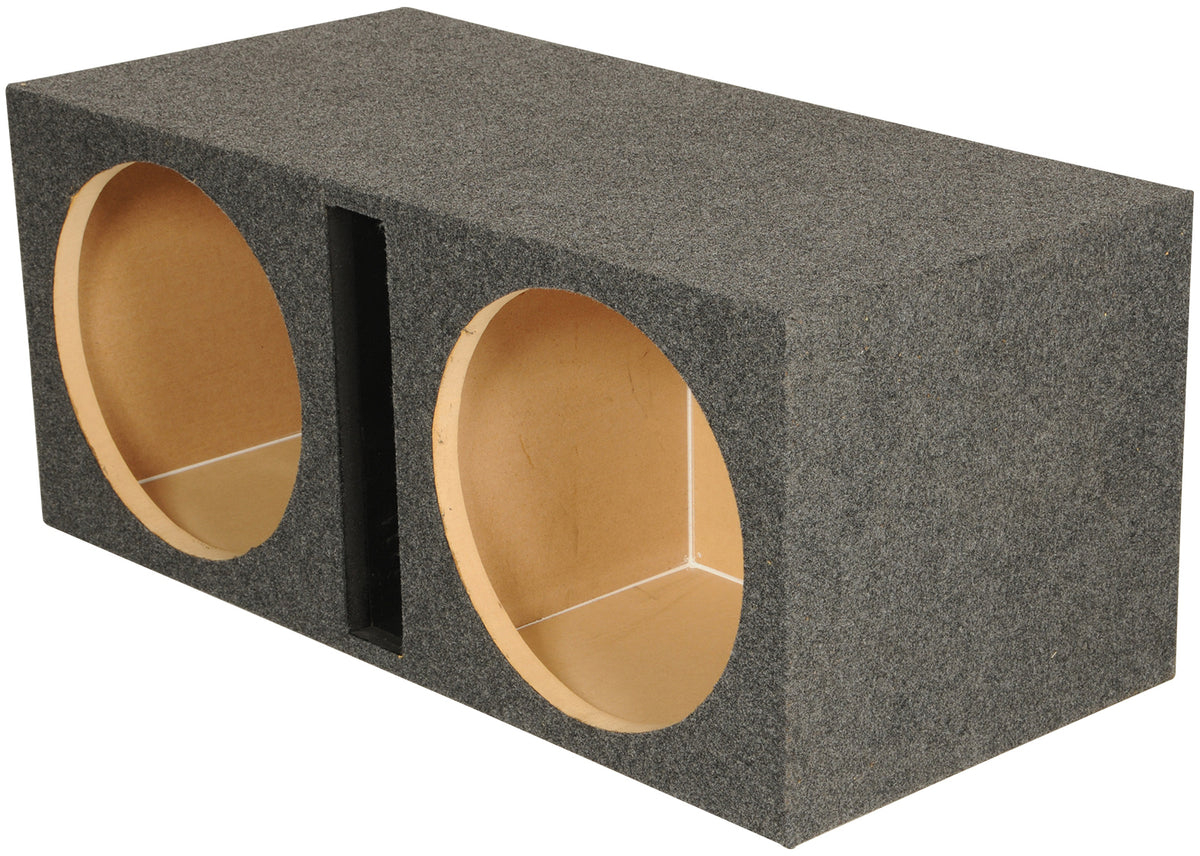

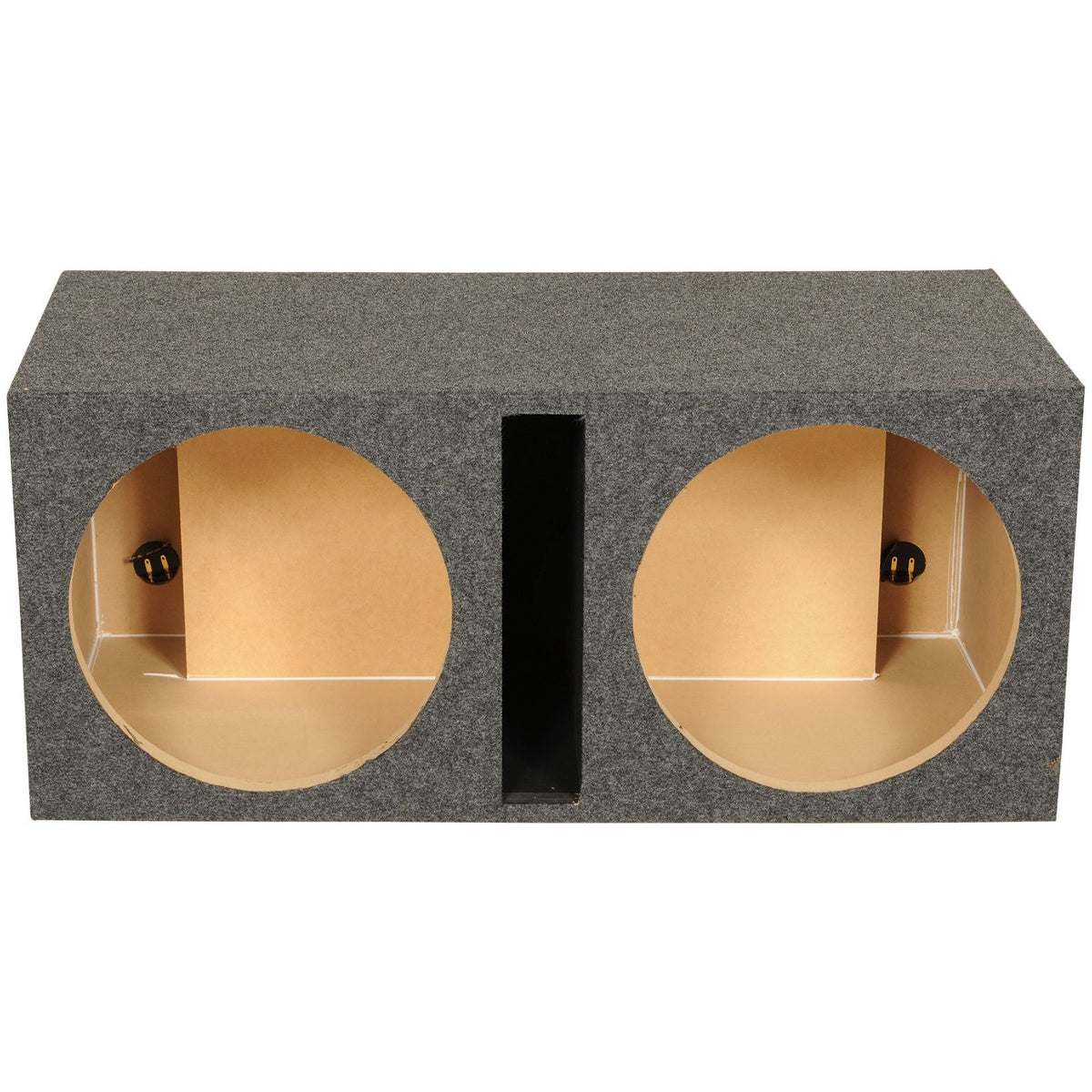

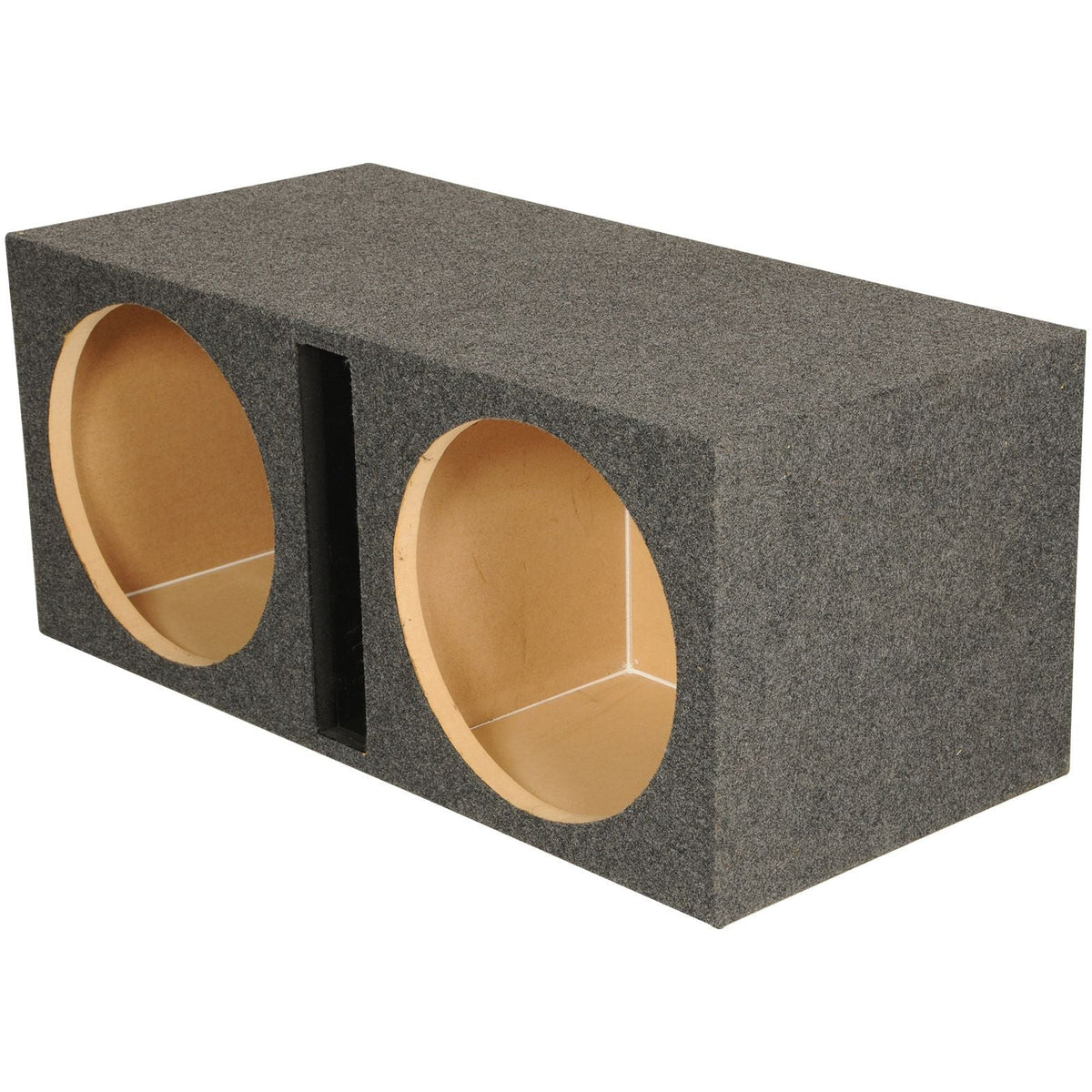

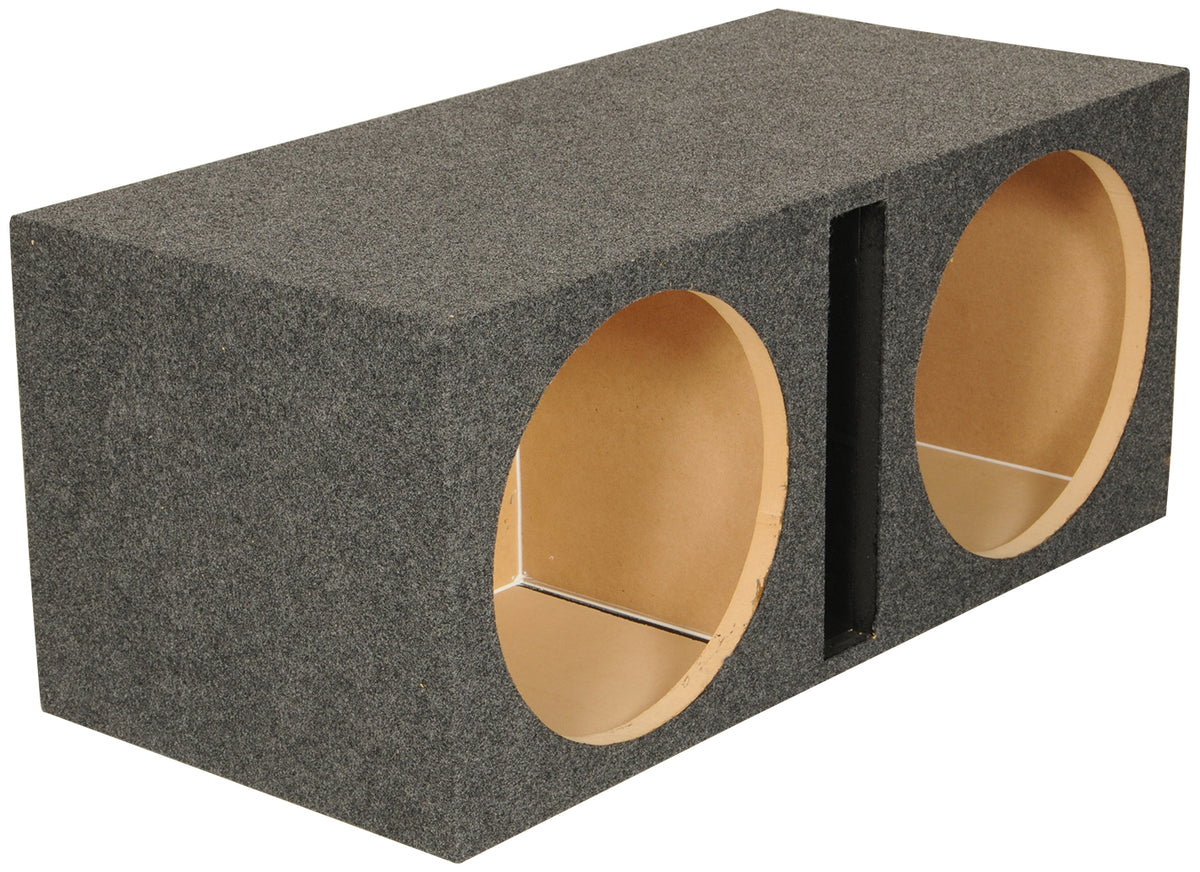

The dual-15-inch vented enclosure tunes to 41Hz and provides 2.41 cubic feet net volume per sub, giving both subs space in the listed configuration.
Thermal Control At The Voice Coil

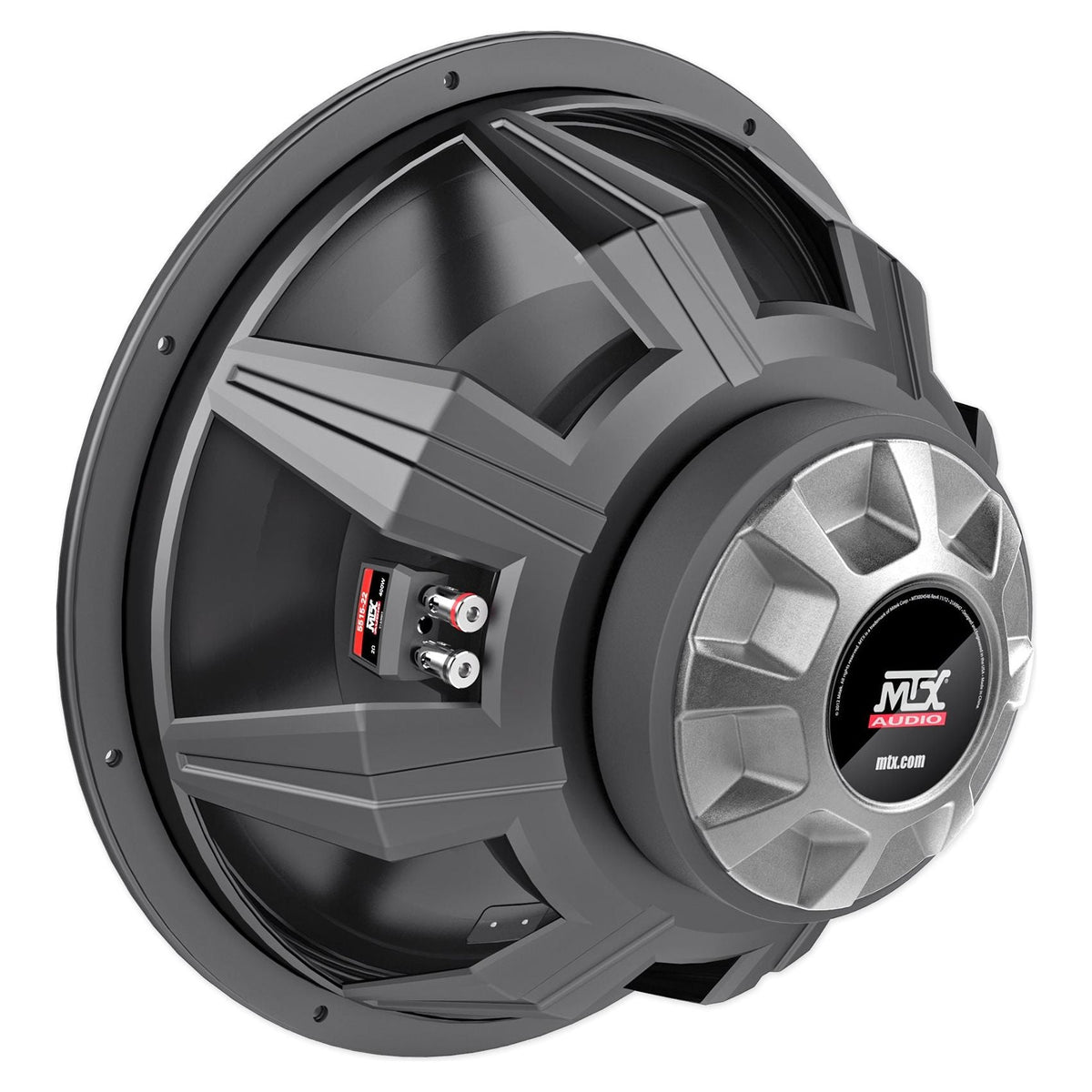

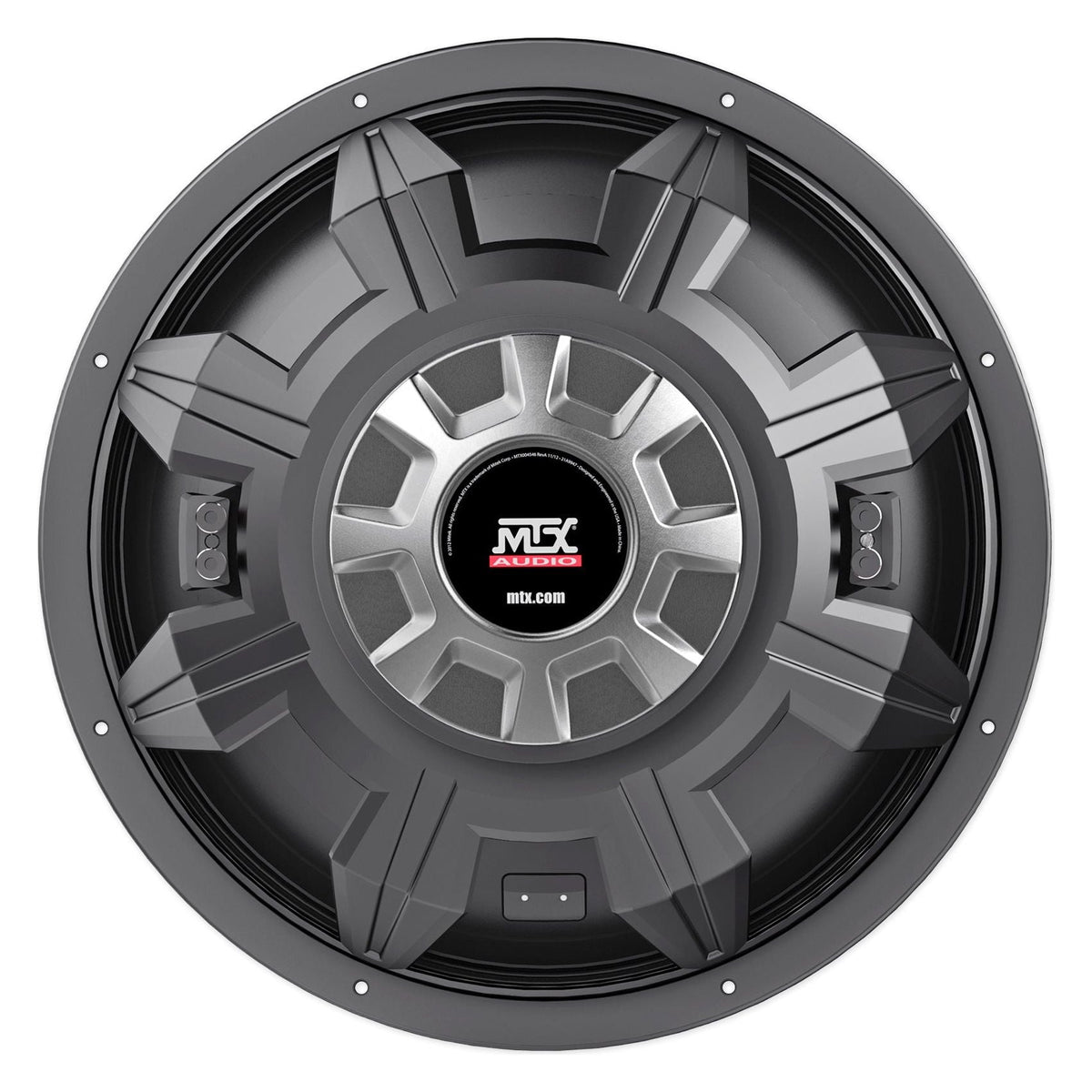

Spider Plateau Venting directs airflow toward the voice coil, and the radial-ribbed T-yoke helps shed heat during extended, high-output listening.
Installation Parts In The Box

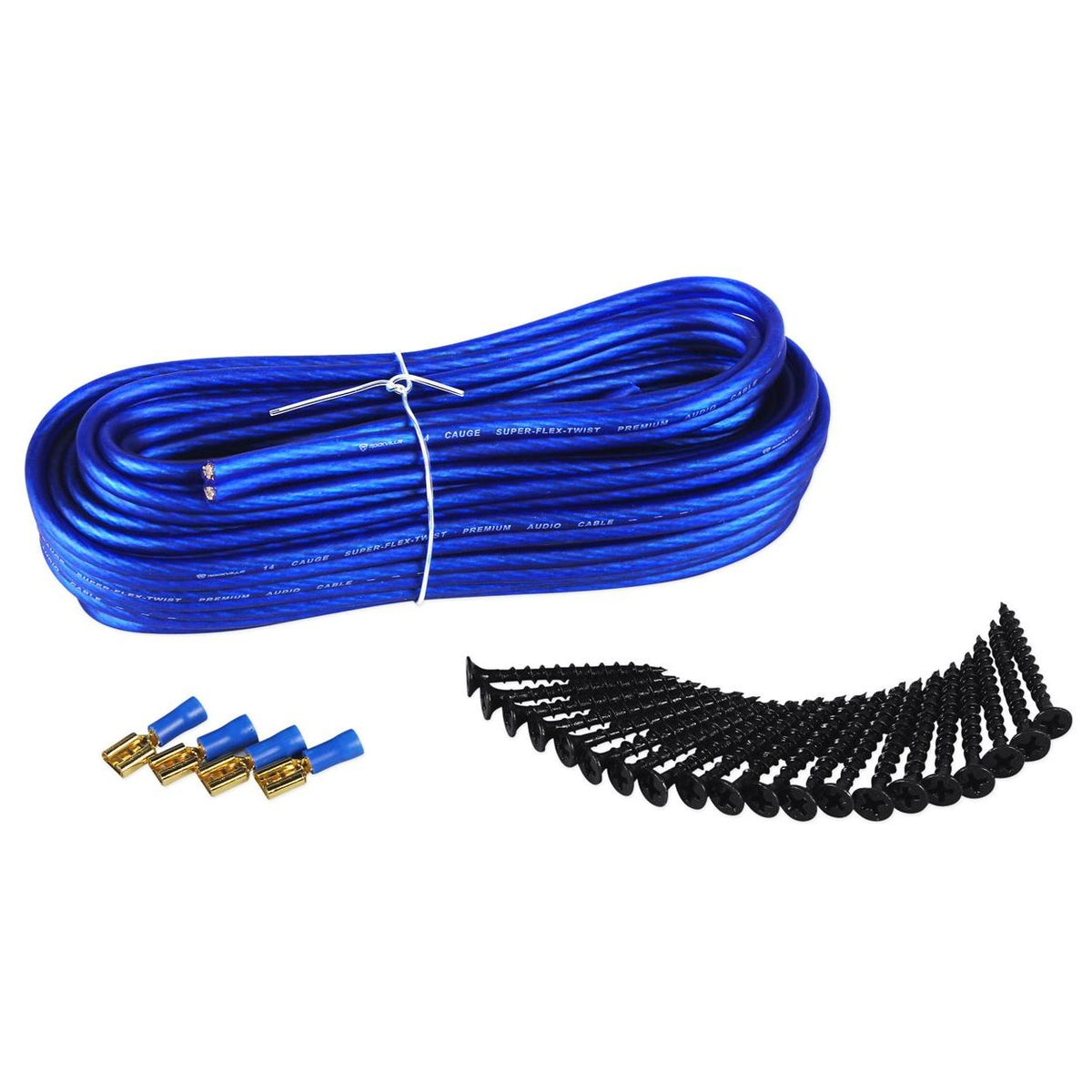

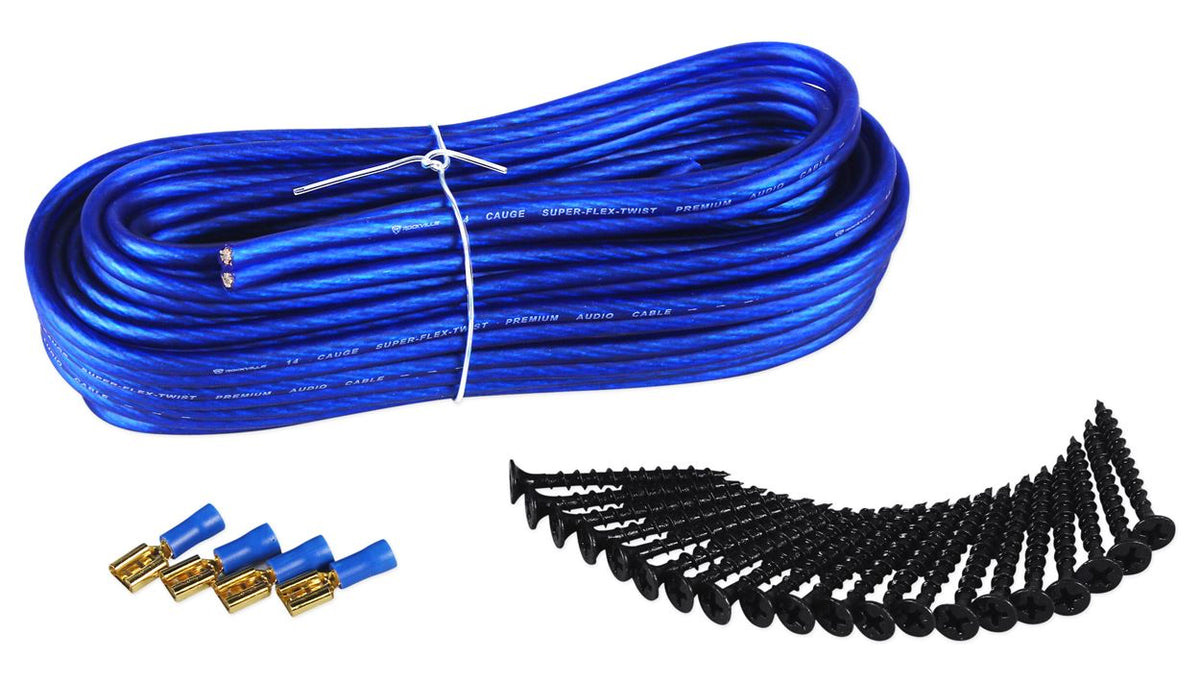

The 4-gauge kit includes RCA cables, while 20 feet of 14 AWG speaker wire, four spade terminals, and 20 metal screws cover core connection and mounting needs.
Technical Specifications
- Product Type Dual 15-Inch Car Subwoofer System

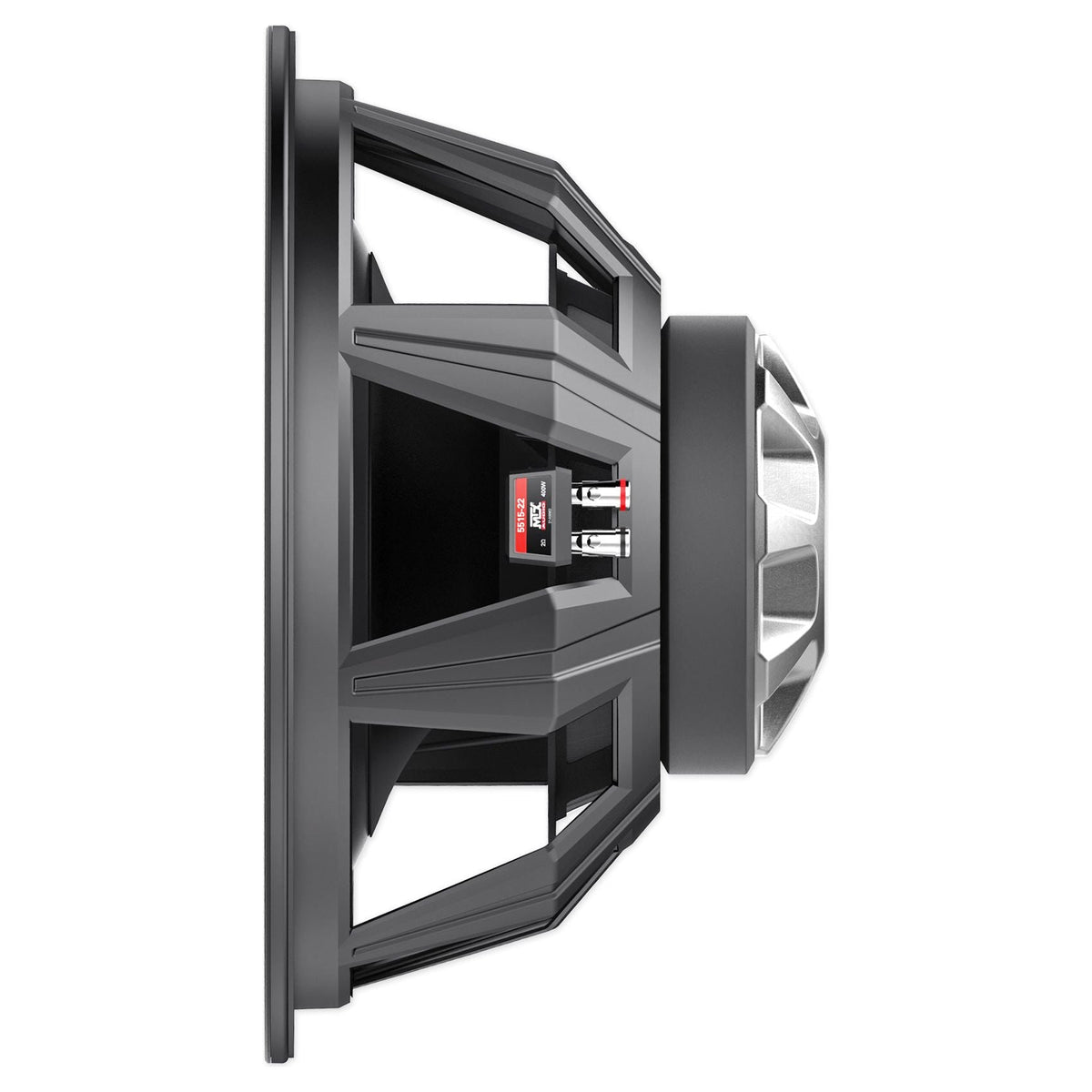

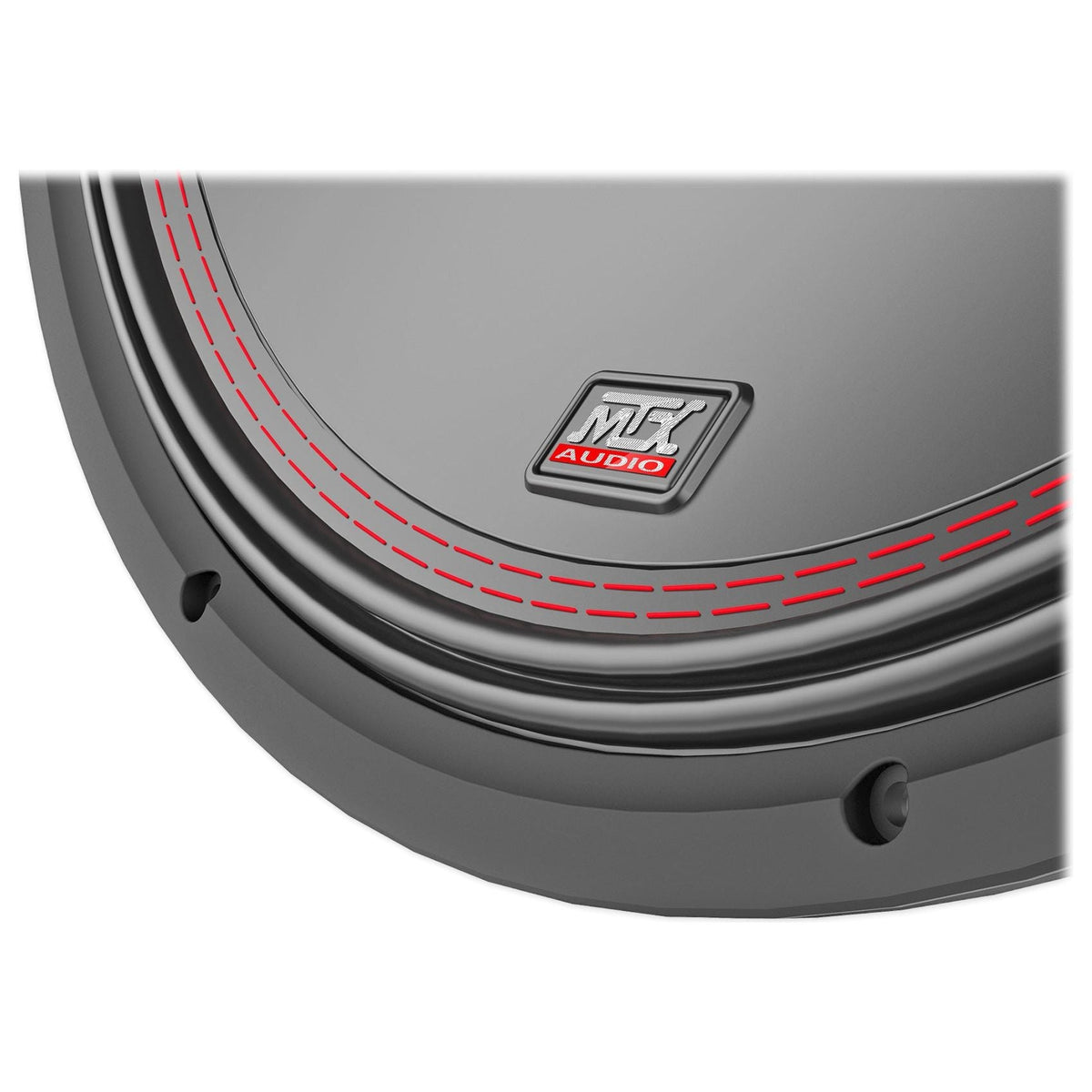

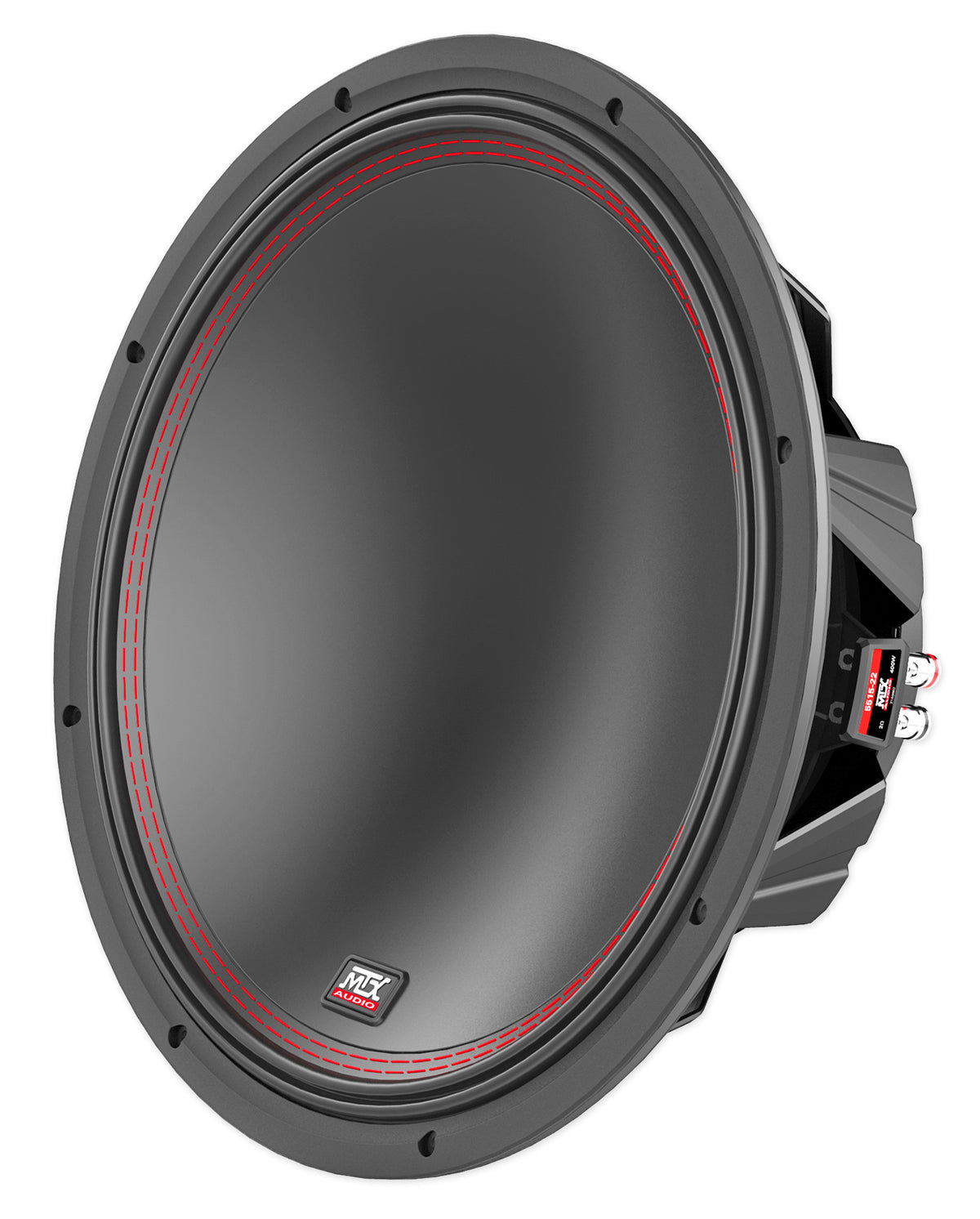

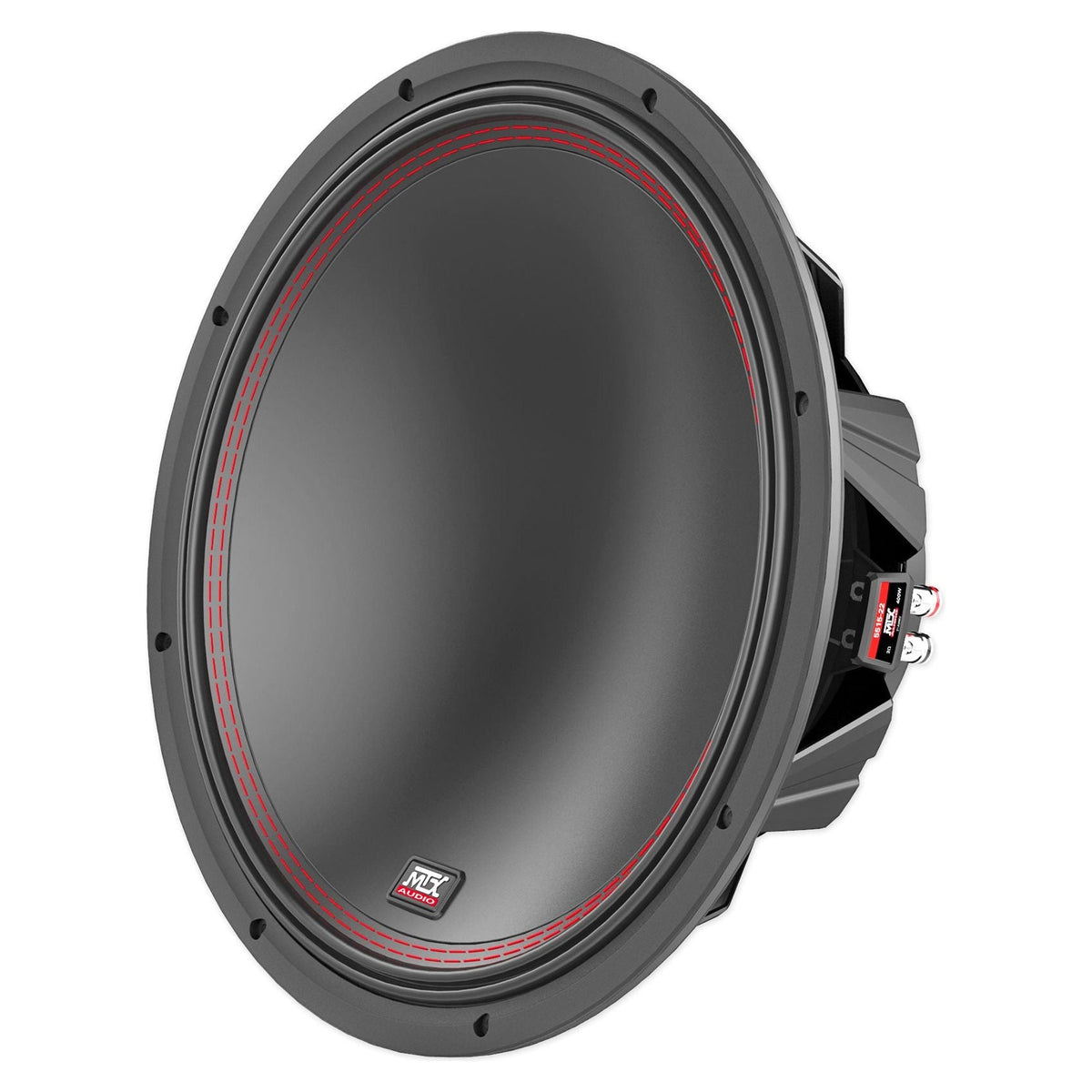

- Subwoofers 2 x 5515-22, 15 in
- Subwoofer Power Handling 400W RMS each; 800W peak each
- Recommended Amplifier Power 200W to 400W RMS per subwoofer
- Subwoofer Impedance Dual 2-ohm voice coils each
- Frequency Response 19Hz to 130Hz
- Sensitivity 85.4 dB
- Voice Coil Size 2 in, dual
- Magnet Weight 49 oz
- Mounting Depth 8 in
- Cutout Diameter 13.875 in
- Enclosure Type Vented
- Enclosure Sub Size Dual 15 in
- Enclosure Tuning Frequency 41Hz
- Enclosure Net Volume 2.41 cu ft per sub
- Enclosure Gross Volume 3.2 cu ft per sub
- Amplifier Type Mono, Class D
- Amplifier RMS Power 750W x 1 channel at 2 ohms; 450W x 1 channel at 4 ohms
- Amplifier Peak Power 3,000W x 1 channel at 2 ohms; 1,800W x 1 channel at 4 ohms
- Amplifier Low-Pass Filter 50Hz to 250Hz
- Amplifier Subsonic Filter 15Hz to 55Hz
- Amplifier Crossover 12dB/octave, adjustable
- Amplifier Fuse 80A Maxi fuse
- Dimensions Enclosure: 38 L x 18 W x 16.25 H in; amplifier: 9 W x 2.4 H x 14.7 L in
