(2) Pair Control 412C/T + RCS180-6
JBL
(2) Pair Control 412C/T + RCS180-6
(2) Pair Control 412C/T + RCS180-6

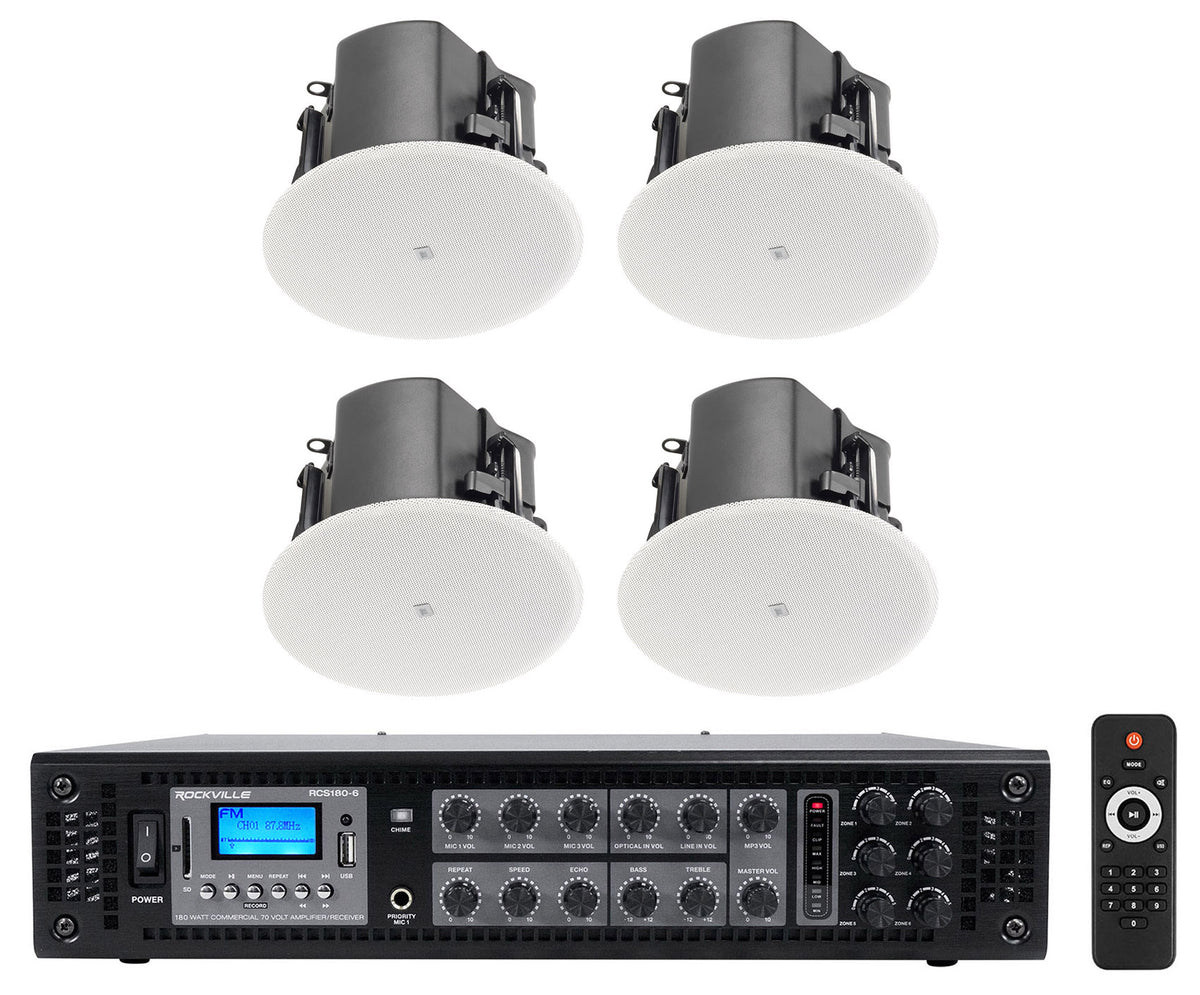

70V/100V Ceiling Speaker System, 2 Pairs, 6-Zone 180W Amplifier
Free Shipping
Features
- Four 3 in ceiling speakers with 160° conical coverage
- 70V taps from 1.9W to 15W, plus 8-ohm input
- 180W amplifier distributes audio across six zones
- Bluetooth, USB, SD, FM, optical, line, and mic inputs
- Paintable magnetic grilles and top or side cable entry
Couldn't load pickup availability

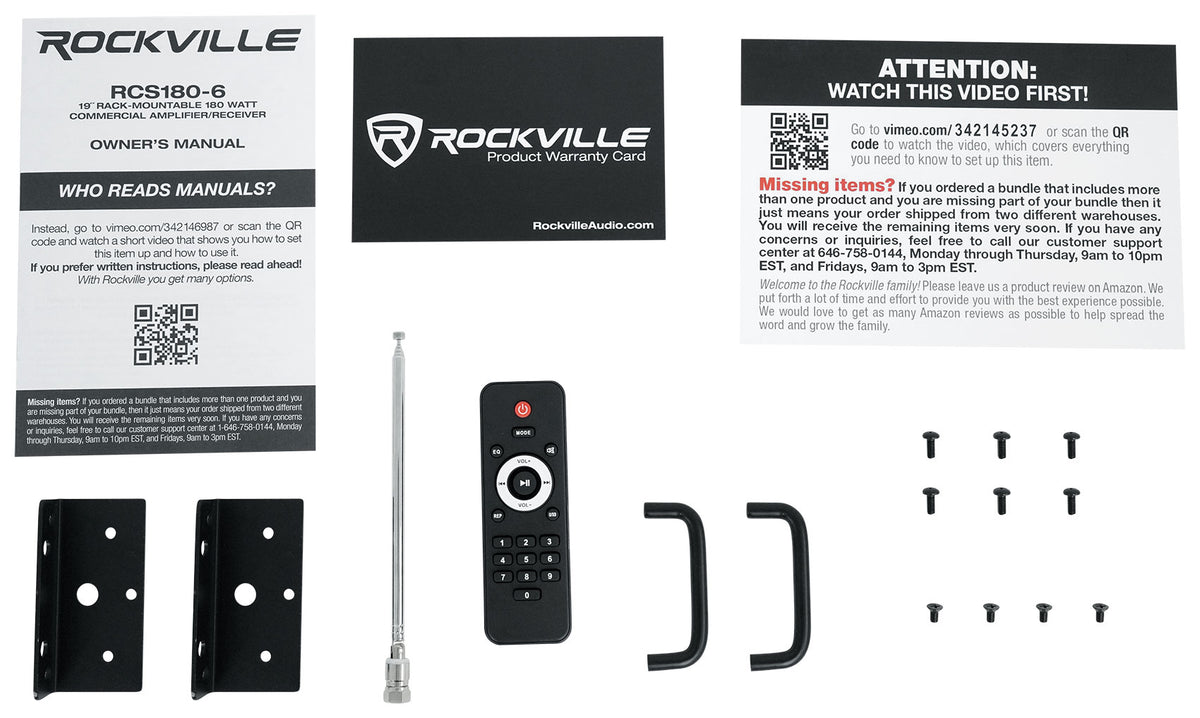

What's Included in the box

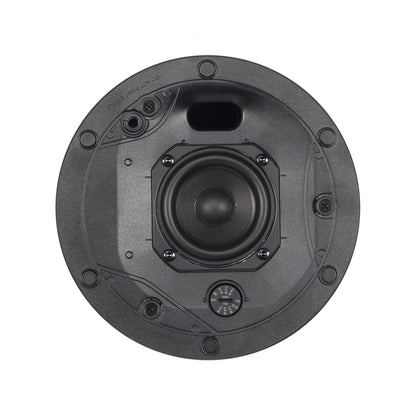

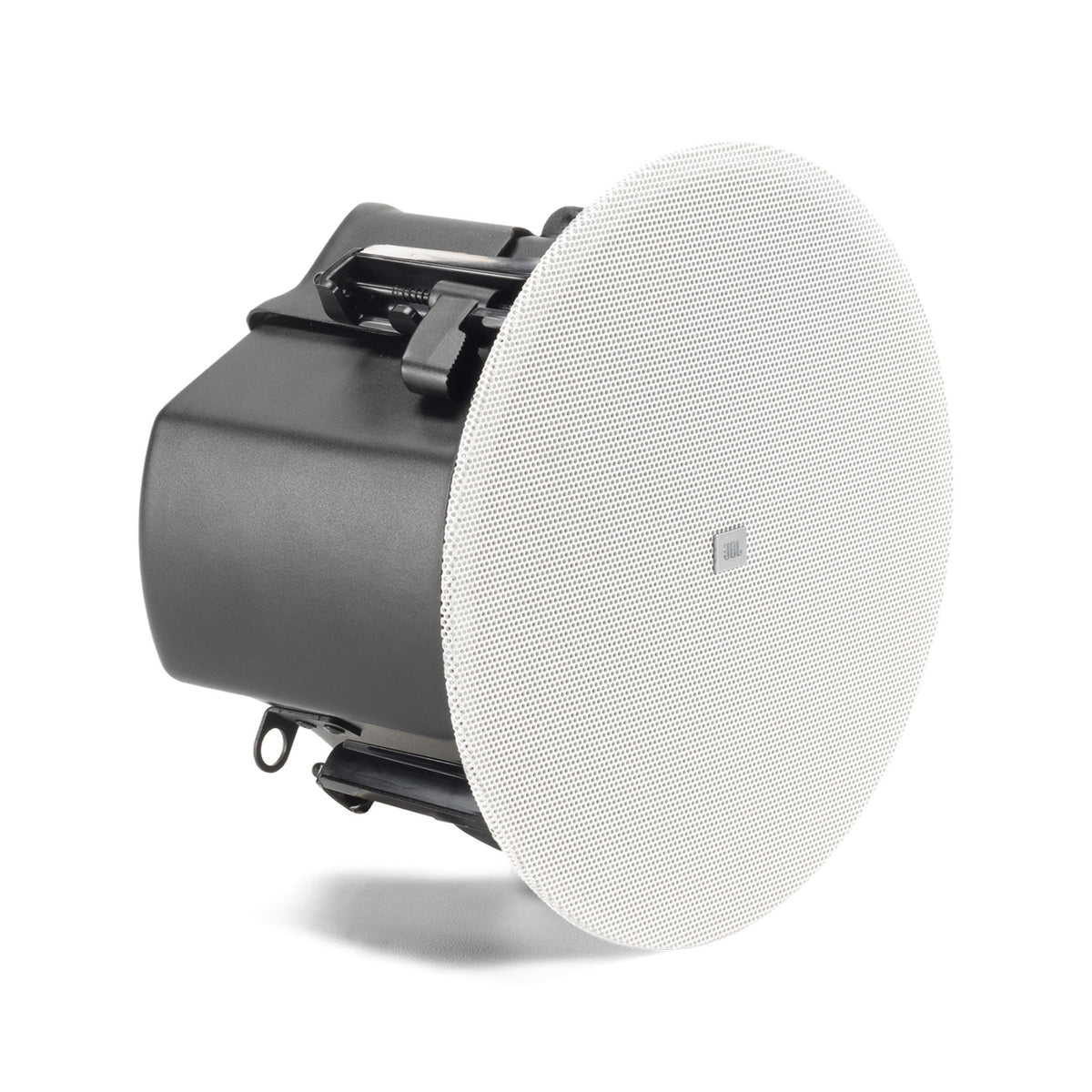

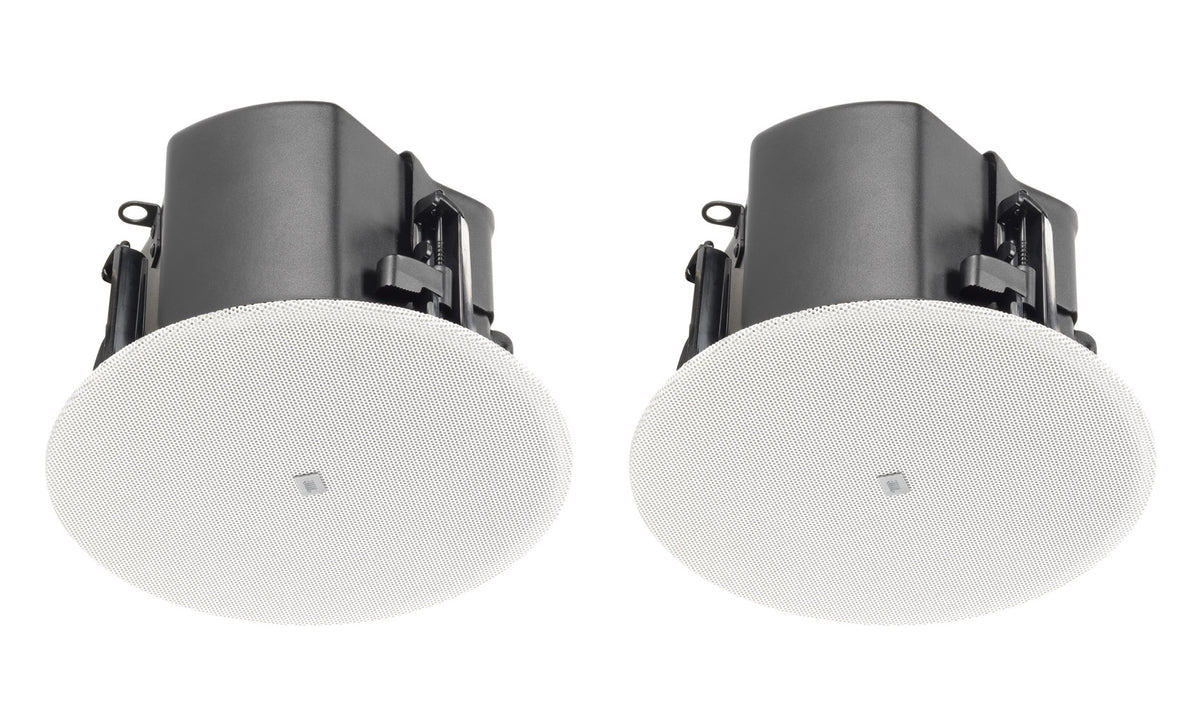

- (2) pairs of Control 412C/T 3 in ceiling speakers

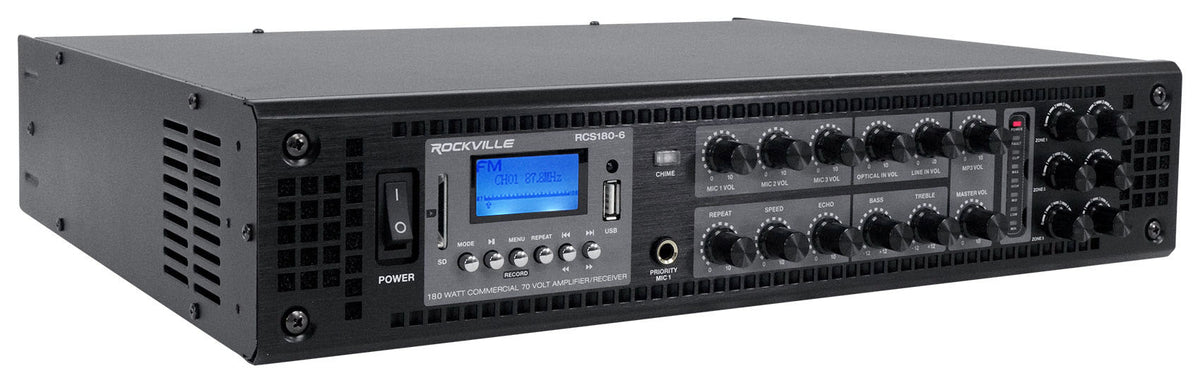

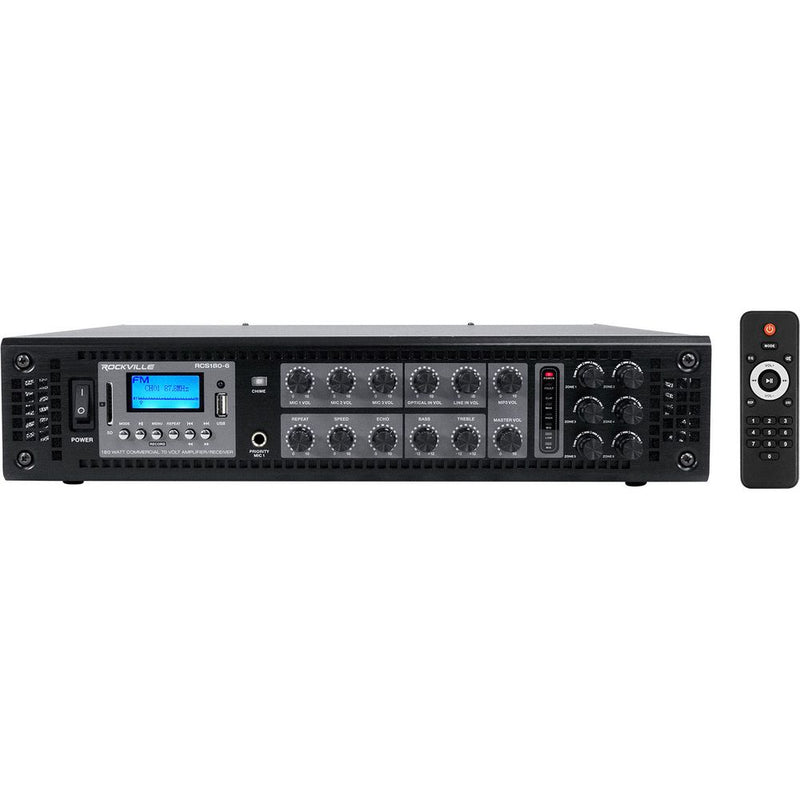

- (1) RCS180-6 180W six-zone amplifier

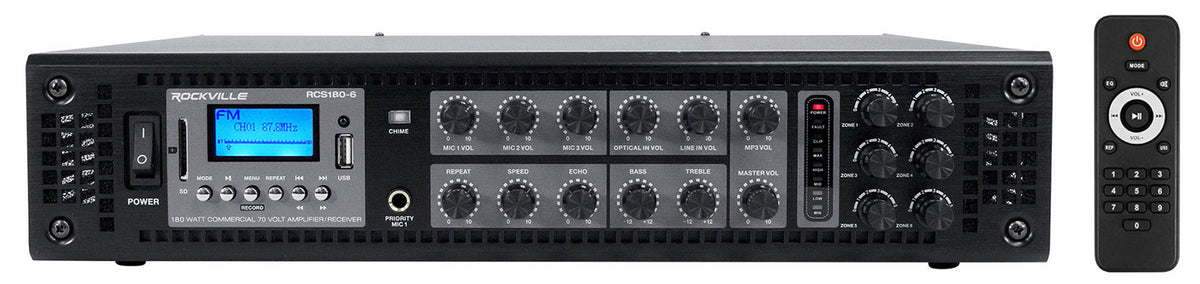

- Remote control
- Rack mount ears
- Power cable
- FM radio antenna
SKU: SKU: (2) Control 412C/T+RCS180-6
View full details












Product Description
Features
Distributed Room Coverage
Four full-range ceiling speakers spread sound across restaurants, bars, schools, offices, lounges, warehouses, or multi-room homes with 160° conical coverage.
Flexible Speaker Wiring
Built-in transformer taps support 70V and 100V systems, while 8-ohm direct input supports low-impedance connections for different commercial installations and room layouts.
Six-Zone Volume Control
Separate volume knobs for each zone let operators set music or announcements independently, while the 180W output handles distributed 70V playback.
Multiple Audio Sources
Bluetooth, USB, SD, FM, optical, RCA, line, and microphone inputs support playlists, stored audio, television sound, announcements, and karaoke in one system.
Installation-Focused Design
Paintable magnetic grilles, top or side cable entry, detachable euro-block terminals, a limiter, and cooling support clean installation and stable operation.
Technical Specifications
- Product Type Commercial 70V/100V Ceiling Speaker And Six-Zone Amplifier Bundle
- Speaker Quantity 4 ceiling speakers (2 pairs)

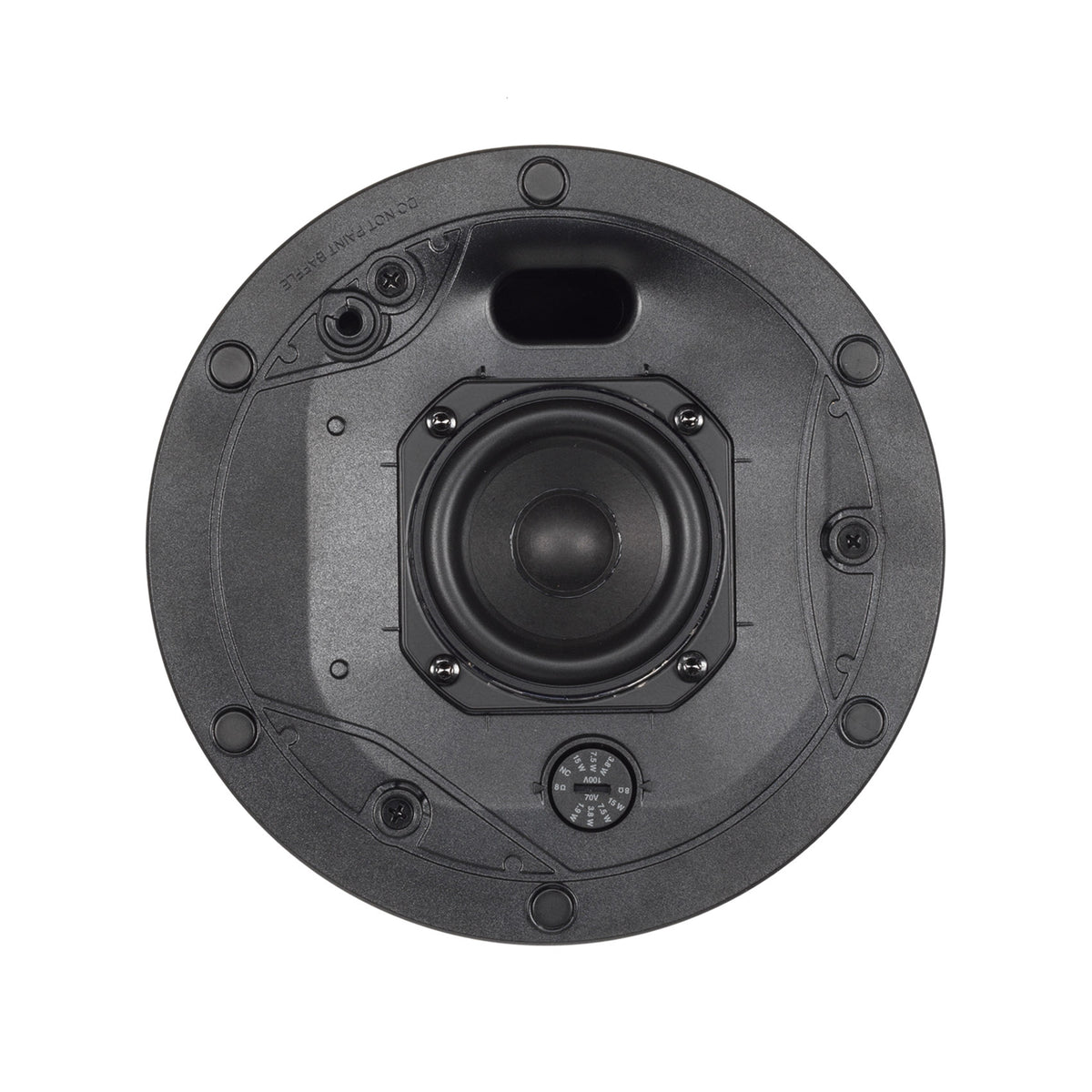

- Speaker Driver 76 mm (3 in) full-range driver
- Speaker Frequency Range 68Hz to 17kHz (-10 dB)
- Speaker Power Capacity 30W (120W peak) continuous pink noise for 2 hours; 20W (80W peak) continuous pink noise for 100 hours
- Speaker Sensitivity 84dB (1m/1W)
- Speaker Coverage 160° conical
- Speaker Maximum SPL 99dB continuous pink noise; 105dB peak (1m)
- Speaker Nominal Impedance 8 ohm

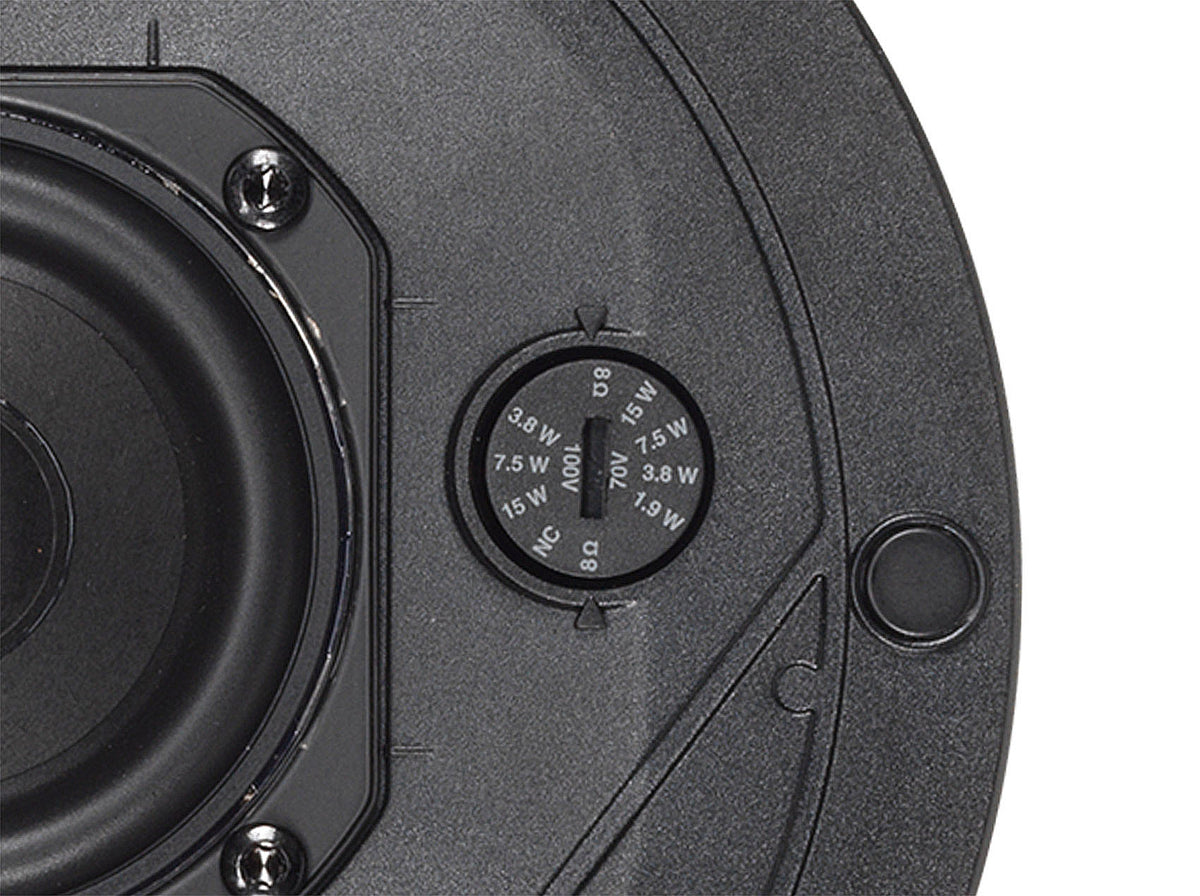

- Speaker Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W; 100V: 15W, 7.5W, 3.8W
- Speaker Ceiling Cutout 168 mm (6.6 in)
- Speaker Environmental Rating IP33; 0°C to 45°C operating temperature
- Safety Agency Rating UL 2043, NFPA 90A, NFPA 70, CSA C22.2 no. 205, and UL 1480A listed; UL registered transformer
- Amplifier Output 180W at 70V
- 70/100V RMS Power 184W
- Amplifier Zones 6
- Amplifier Load Options 70V, 100V, 8 ohm, and 4 ohm
- Amplifier Zone Limit 100W maximum per zone
- Recommended Speaker Tap Total 150W maximum

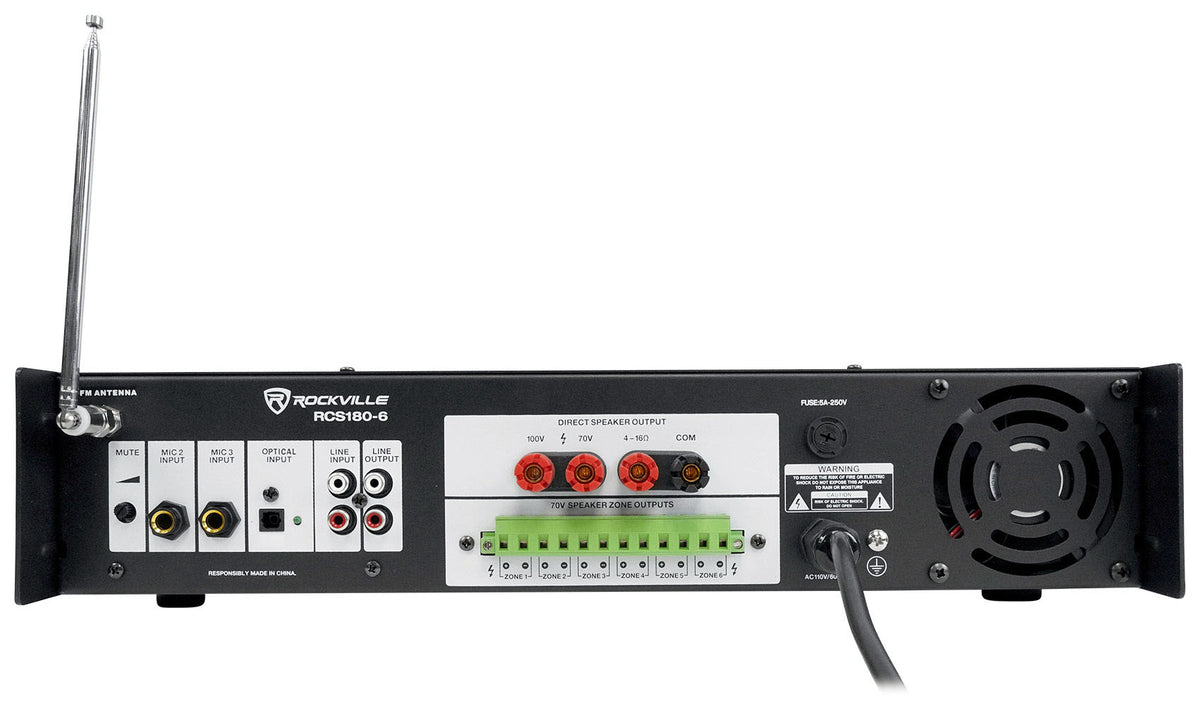

- Amplifier Speaker Outputs 4 to 16 ohm binding posts; 70V and 100V binding posts
- Amplifier Inputs Bluetooth, FM radio, USB, SD card, optical, RCA, two line inputs, and three microphone inputs
- USB and SD Capacity 32GB maximum each
- Rack Mounting 19 in rack-mountable; removable rack brackets
- Weight 3.86 lb net per speaker; 17.46 lb shipping weight per pair

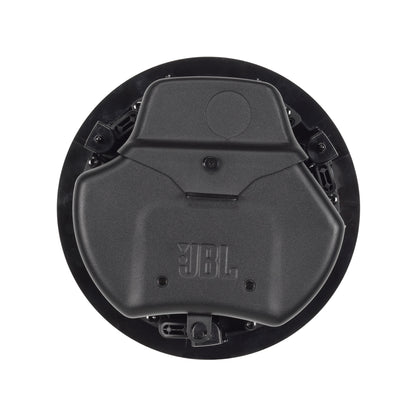

- Dimensions 143 mm (5.7 in) H x 203 mm (8.1 in) dia.; 134 mm (5.4 in) from bottom of ceiling tile to top of backcan
