TN10-04 Pair

TN10-04 Pair

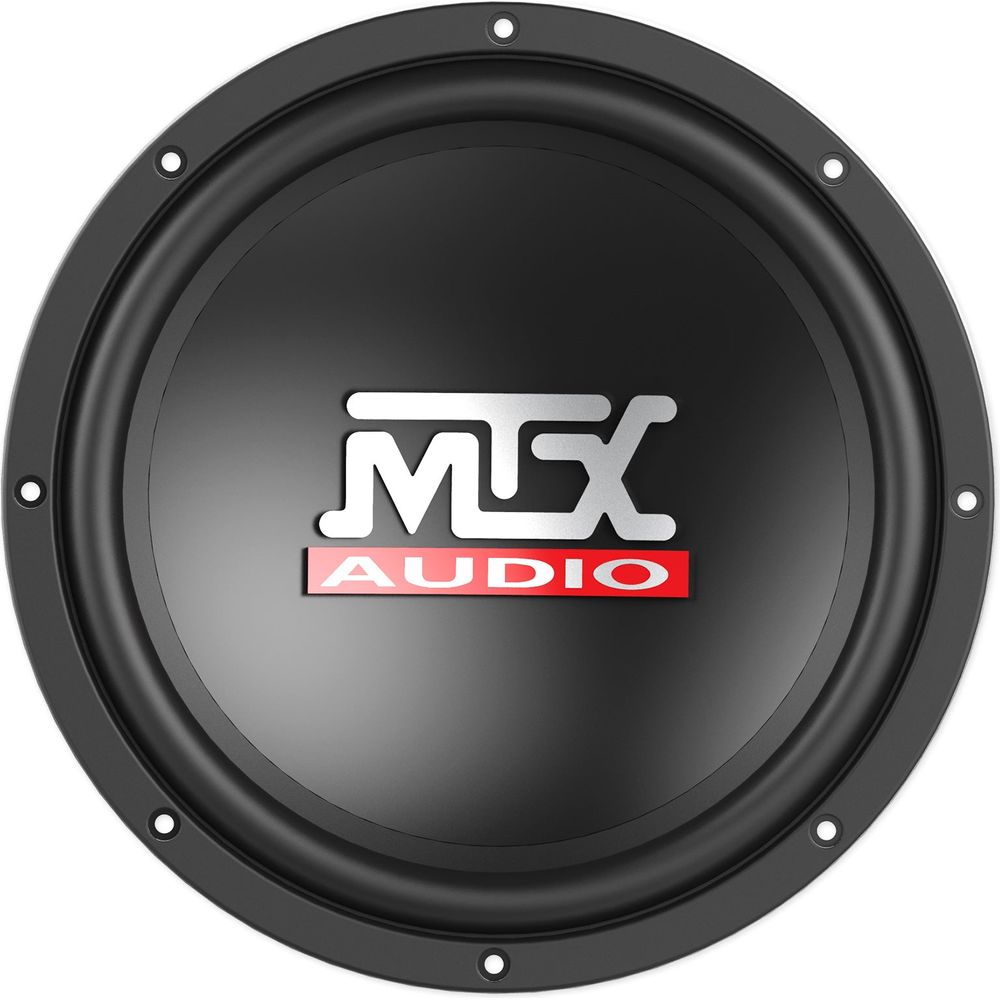

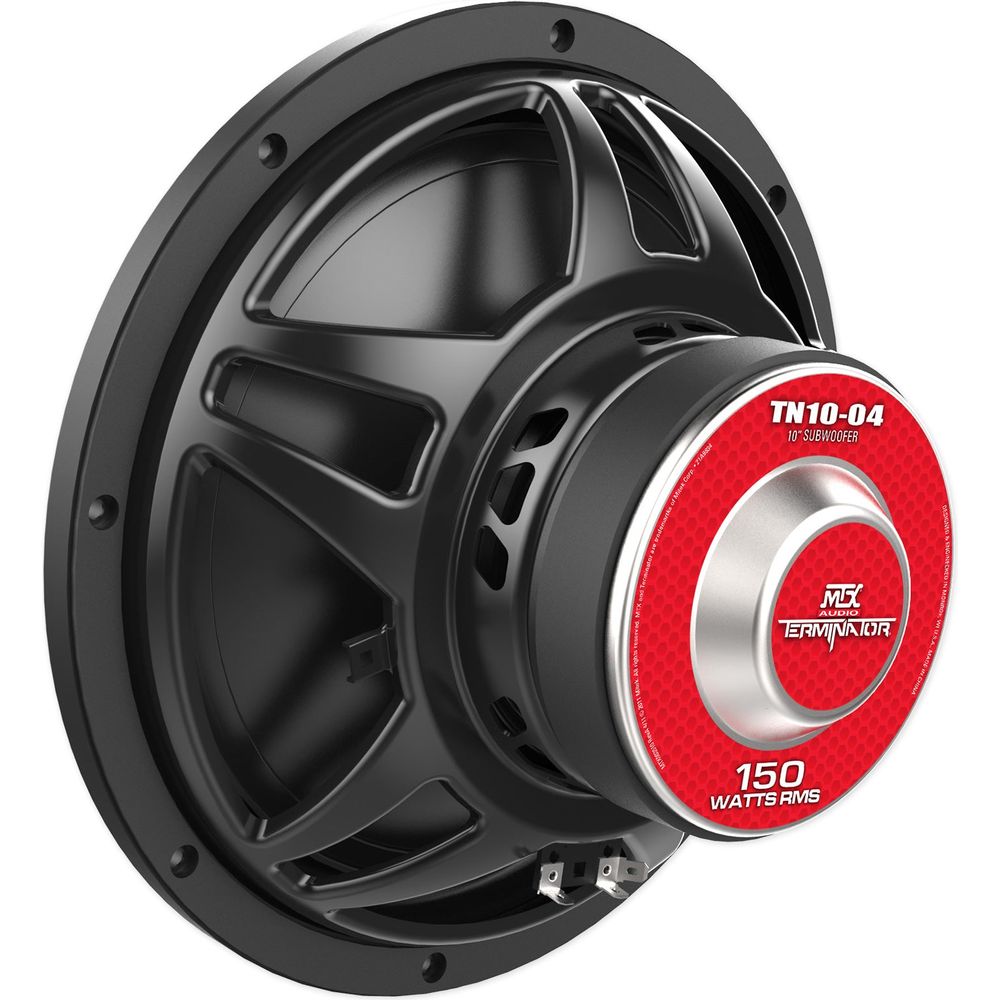

Car Audio Subwoofer Pair, 10-Inch, 150W RMS Each, 4-Ohm

Free Shipping

$114.90
$114.90 $179.90
Save 36%
Shipping calculated at checkout.
Features
    • 150W RMS power handling for added low-frequency output
    • 4-ohm impedance and 75W to 150W RMS recommended amp range
    • Spider Plateau Venting cools near the voice coil
    • Rubber surround supports durability during regular use
    • Works in 0.75 cu ft sealed or 1.45 cu ft vented enclosures
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

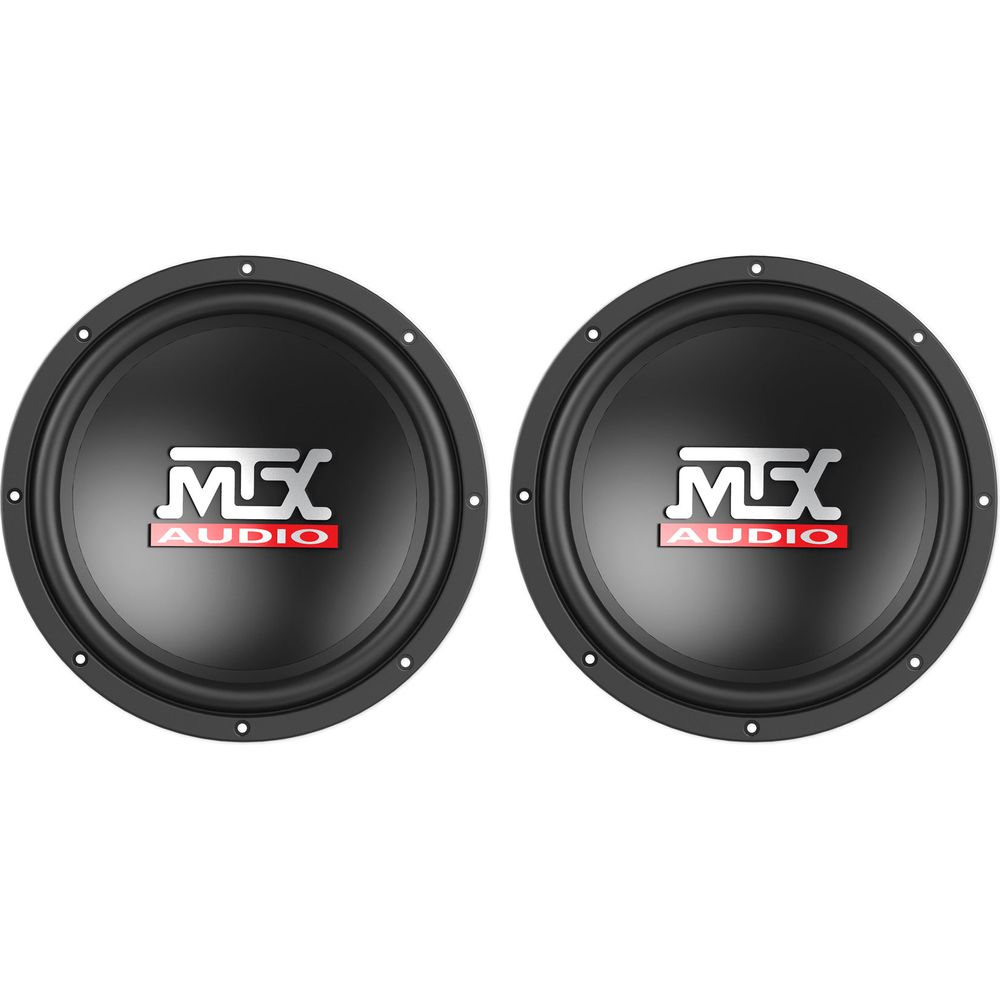

    • (2) TN10-04 10-Inch Car Audio Subwoofers

SKU: (2) TN10-04

View full details

Product Description

The TN10-04 is a 10-inch car audio subwoofer rated for 150W RMS, adding low-frequency output to a custom vehicle sound system. Its 4-ohm impedance and recommended amplifier range of 75W to 150W RMS give installers clear targets for amp matching. A flat progressive spider and extended pole piece support controlled cone motion, while Spider Plateau Venting directs cooling toward the voice coil during extended playback. The rubber surround is designed for repeated use. With a 29Hz to 160Hz frequency response and 84.9 dB sensitivity, the TN10-04 suits sealed enclosures with 0.75 cu ft net volume or vented enclosures with 1.45 cu ft net volume. Check the 4.86-inch mounting depth and 9.19-inch cutout diameter against available vehicle space before installation.

Features

    • Match Amplifier Output

      The 150W RMS rating and recommended 75W to 150W RMS amplifier range give installers a clear target for integrating the 4-ohm subwoofer.

    • Keep Cone Motion Controlled

      A flat progressive spider and extended pole piece support linear cone movement, helping the subwoofer reproduce low frequencies during music playback.

    • Manage Voice-Coil Heat

      Spider Plateau Venting cools near the voice coil, helping manage heat as the subwoofer plays at higher output during longer listening sessions.

    • Choose a Suitable Enclosure

      The listed net volumes are 0.75 cu ft sealed or 1.45 cu ft vented, so installers can plan the enclosure around the vehicle and desired alignment.

    • Check Fit Before Installation

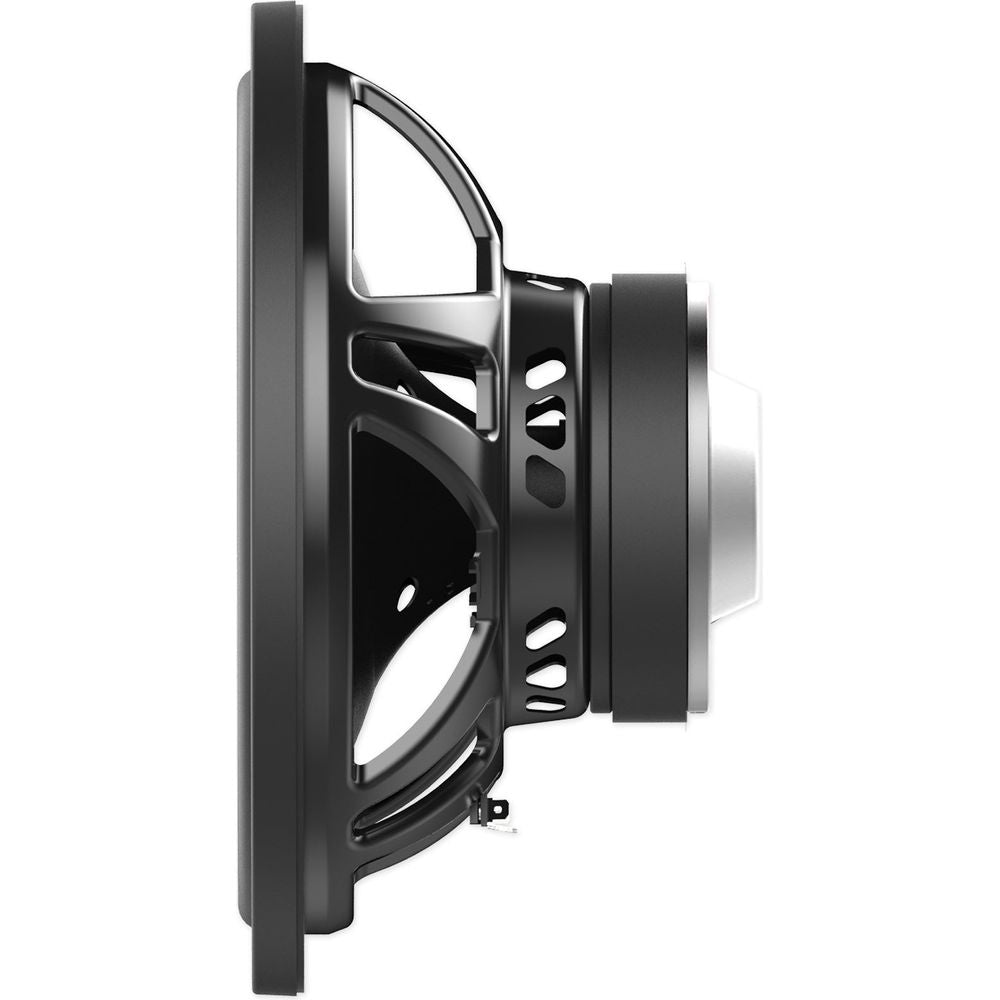

      A 4.86-inch mounting depth and 9.19-inch cutout diameter provide key measurements for checking available space in a vehicle enclosure before installation.

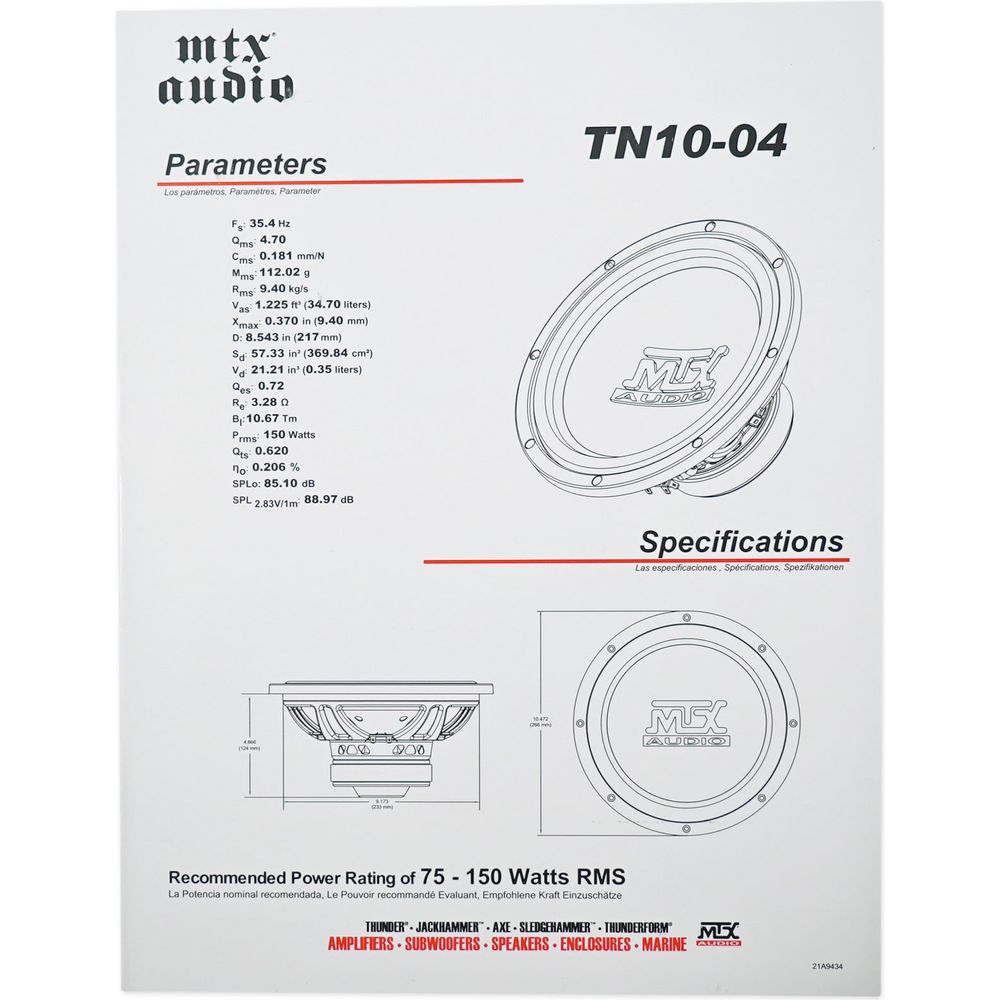

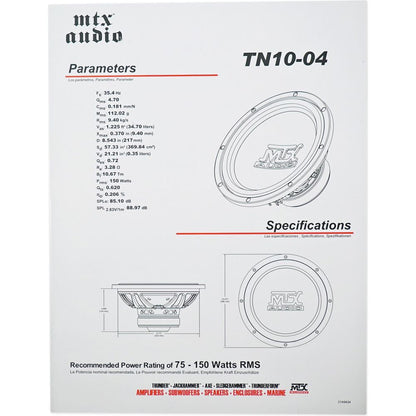

Technical Specifications

  • Product Type 10-inch Car Audio Subwoofer Pair
  • Model TN10-04 (2 subwoofers)
  • Power Handling (Per Subwoofer) 150W RMS / 300W peak
  • Power Handling (Pair Total) 300W RMS / 600W peak
  • Recommended Amp Power (RMS, Per Subwoofer) 75W to 150W
  • Impedance (Per Subwoofer) 4 Ohms
  • Frequency Response 29Hz to 160Hz
