TN10-04 Pair + dB12 Amplifier + RWK41 Wiring Kit

Name: TN10-04 Pair + dB12 Amplifier + RWK41 Wiring Kit
Brand: MTX
SKU: (2) TN10-04+dB12+RWK41
Price: 274.85 USD
Availability: InStock

Two 10-Inch 4-Ohm Subwoofers, Mono Amp Rated 500W RMS At 2 Ohms, 4-Gauge Wiring Kit

Free Shipping

$274.85

$274.85 ~~$469.89~~

Save 41%

Shipping calculated at checkout.

Features

(2) 10-inch, 4-ohm subwoofers, 150W RMS per unit
Mono amplifier rated 500W RMS at 2 ohms, 300W at 4 ohms
Adjustable 12dB/octave crossover with low-pass and subsonic filters
4-gauge kit includes copper RCA cable, power leads, ground wire, and remote lead
Bass remote, fuse holder, 7-foot split loom, and installation terminals included

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

What's Included in the box

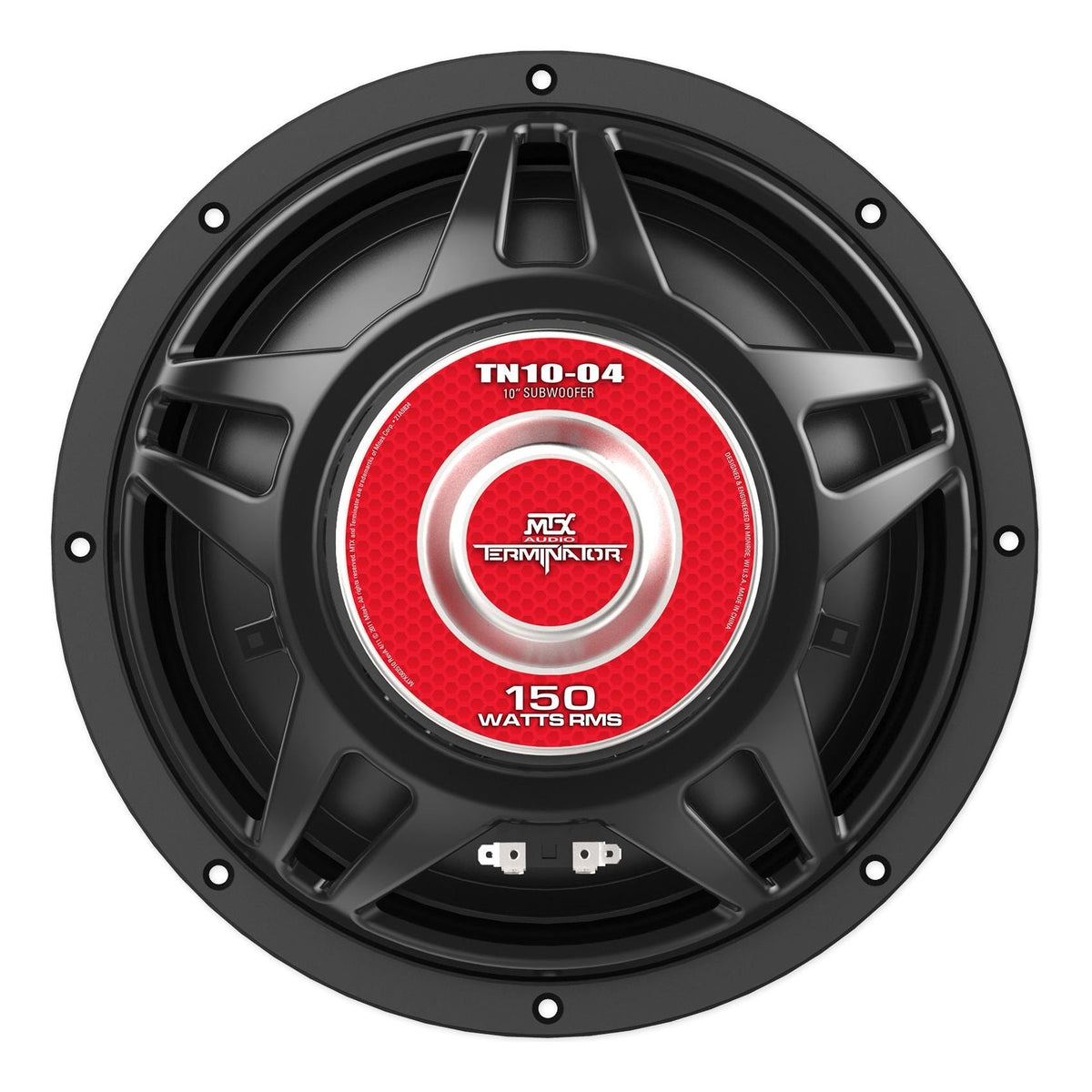

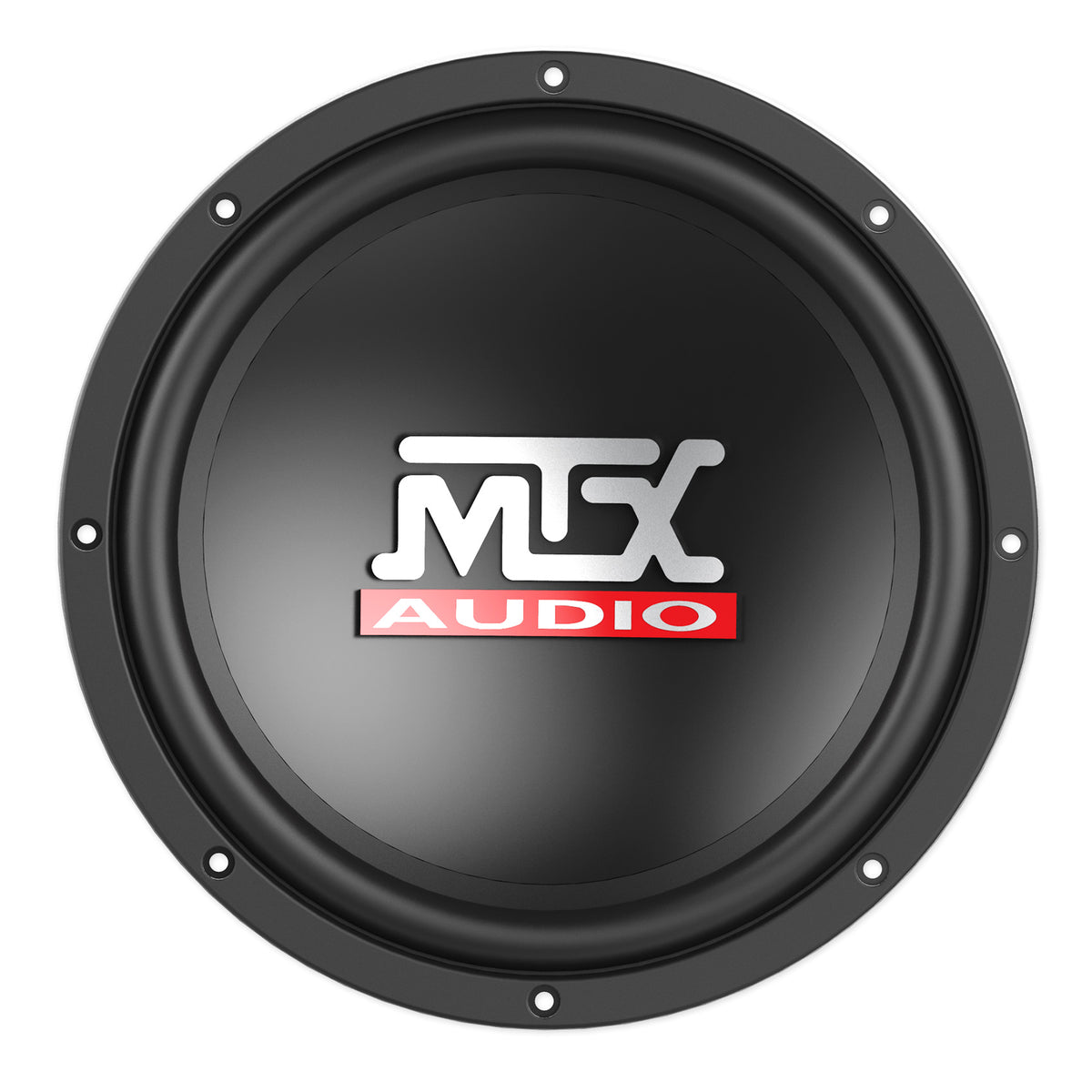

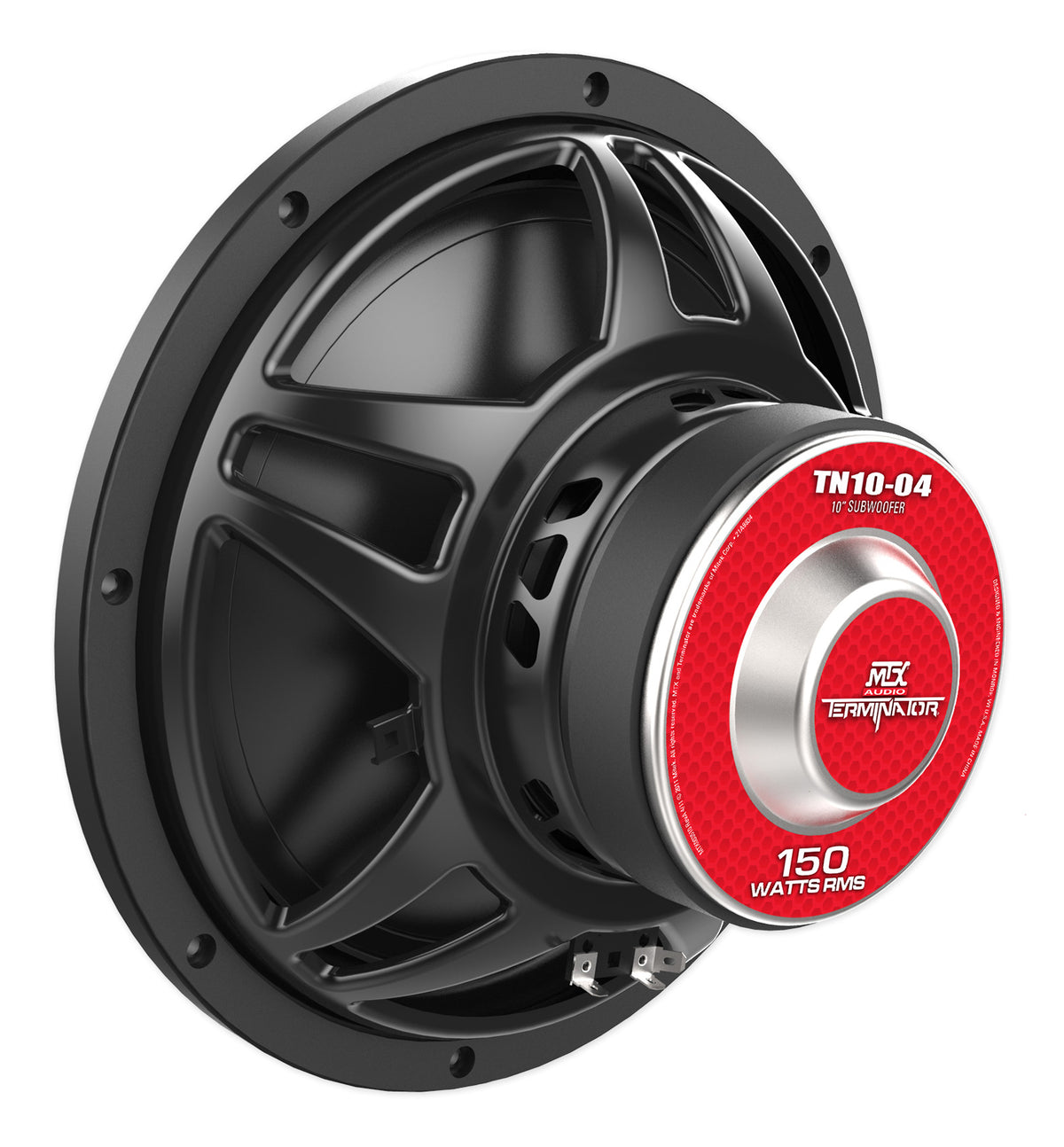

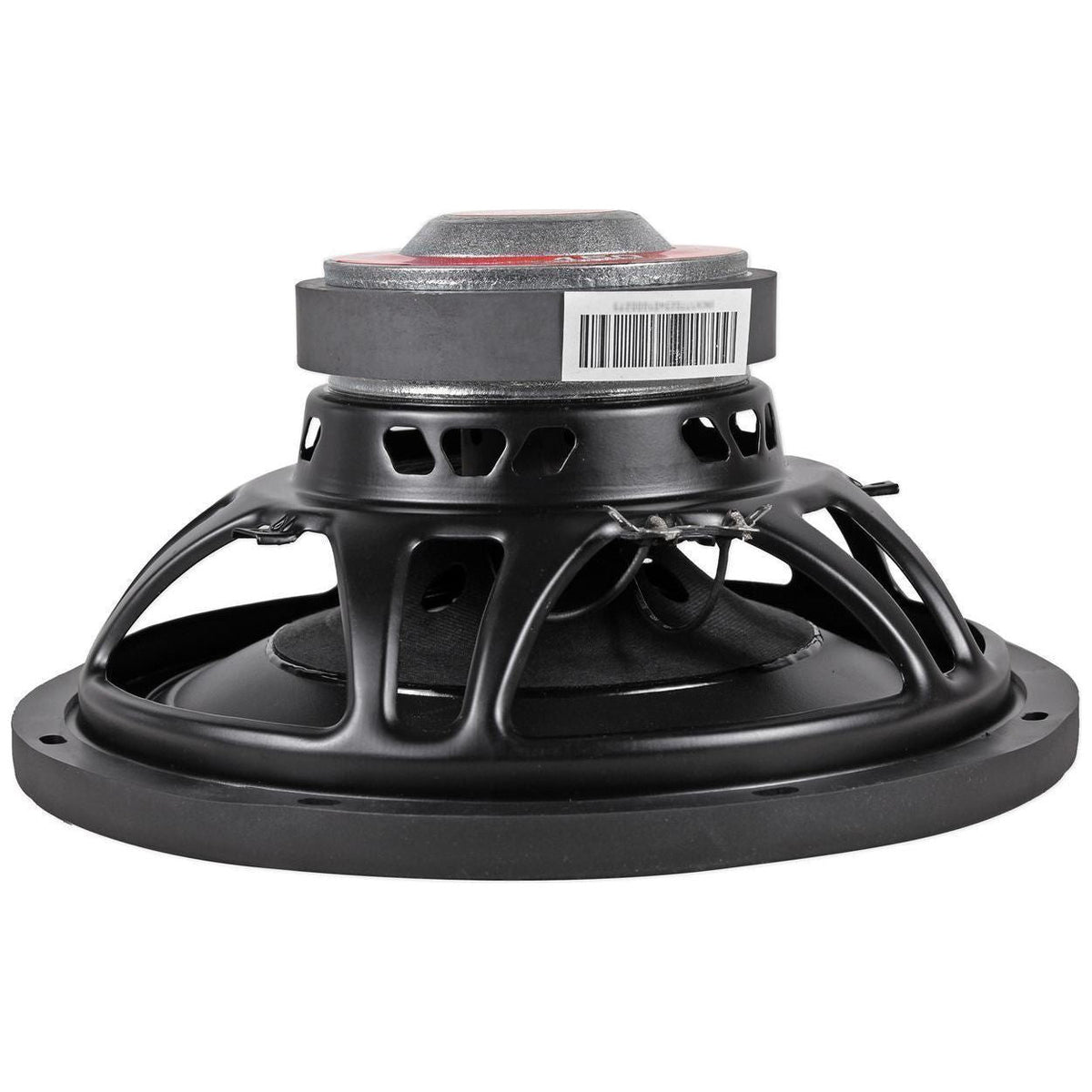

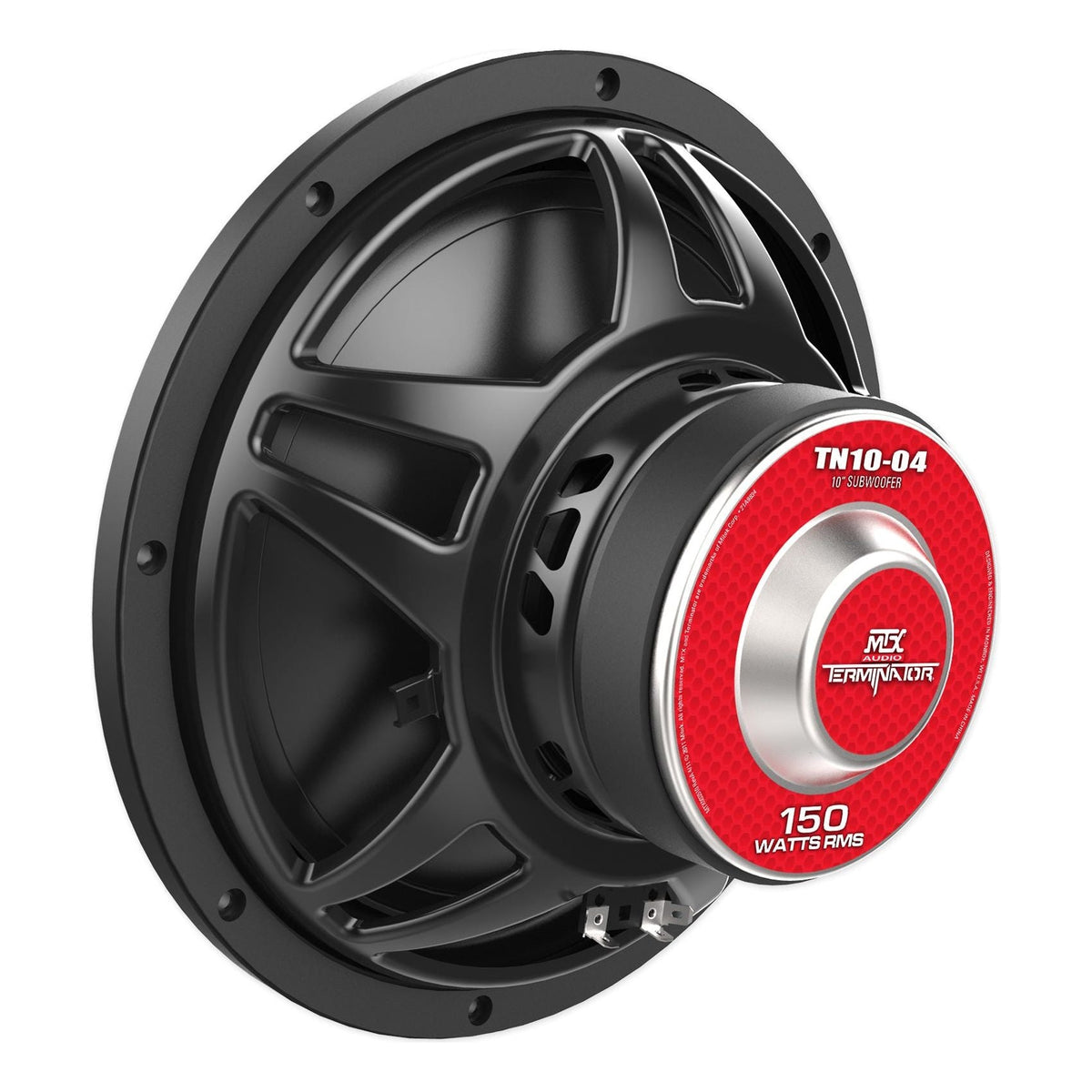

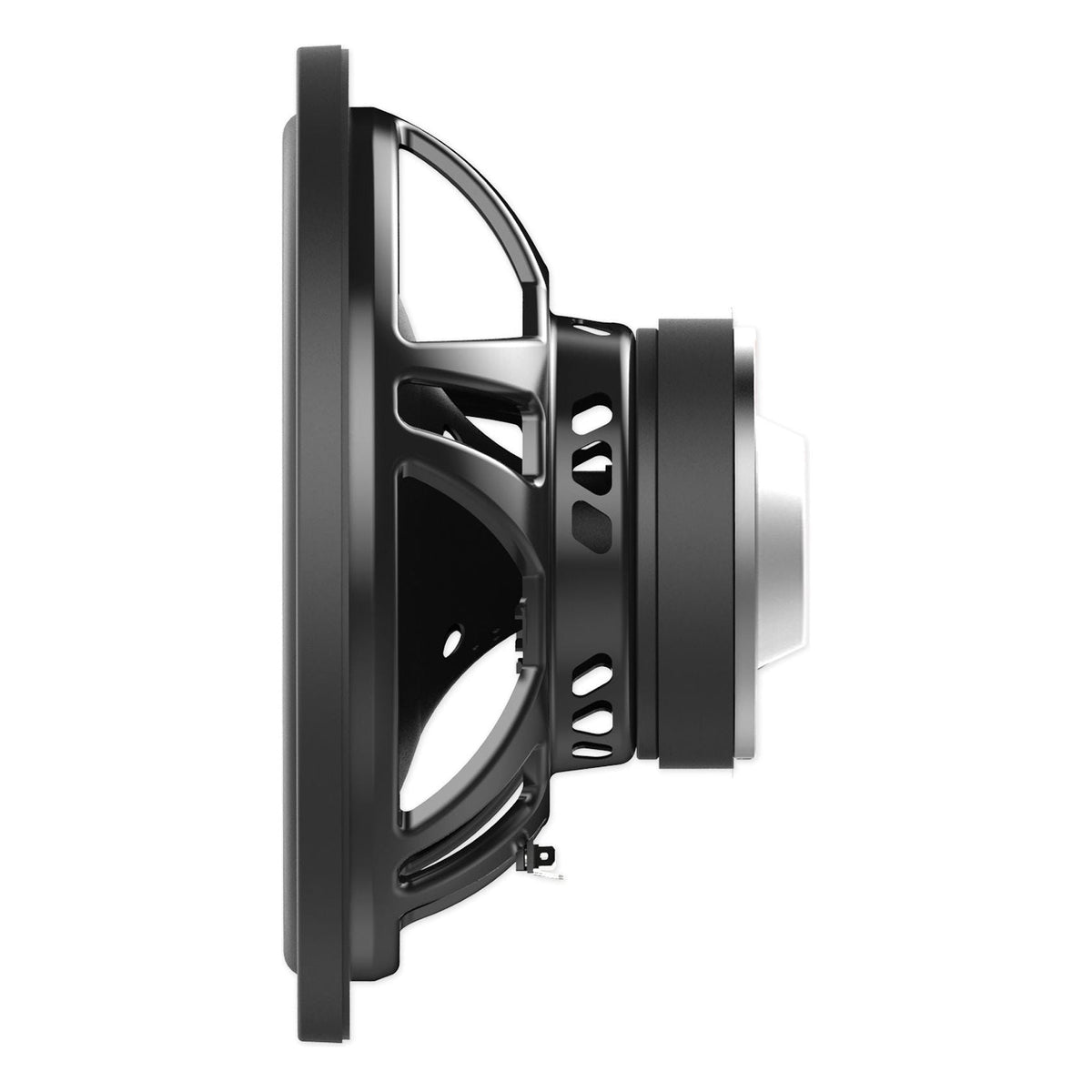

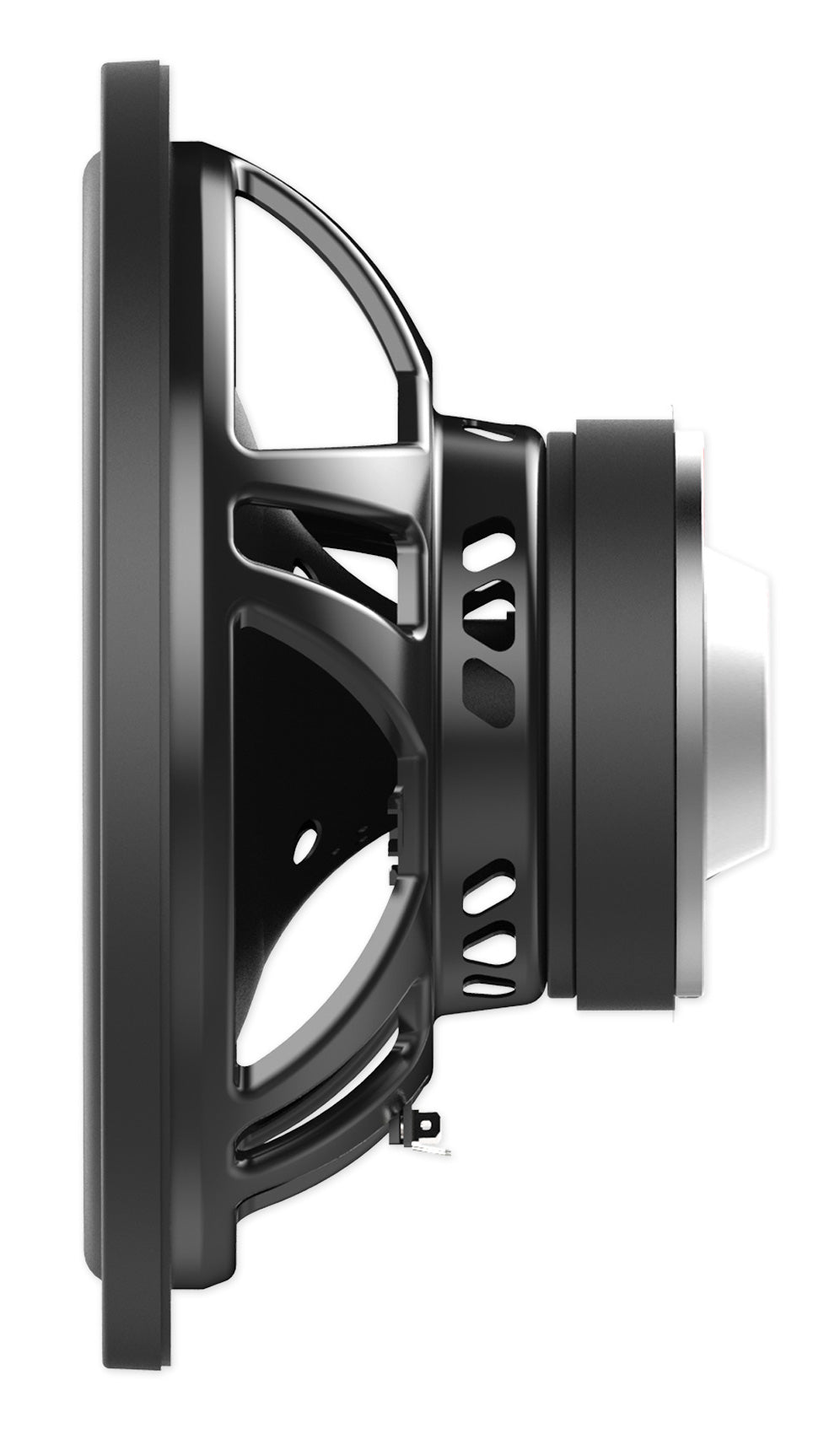

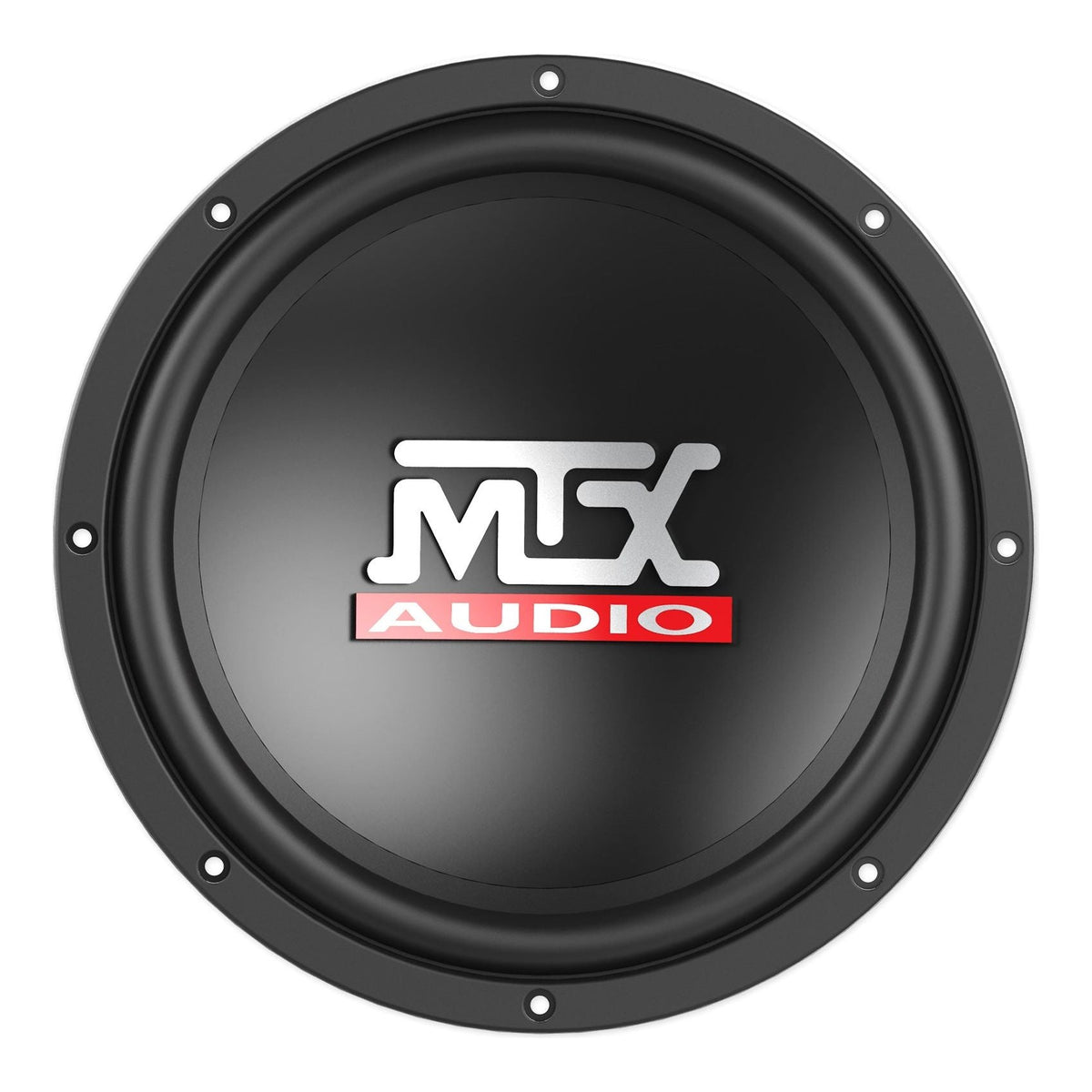

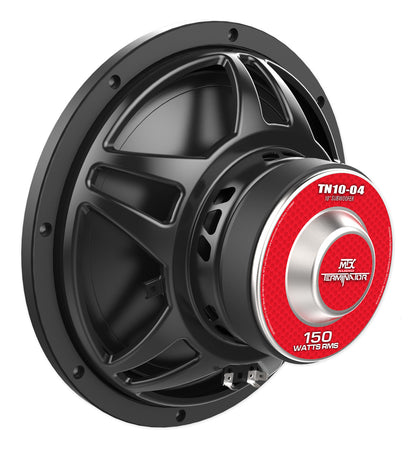

(2) TN10-04 10-inch 4-ohm subwoofers
(1) dB12 mono amplifier

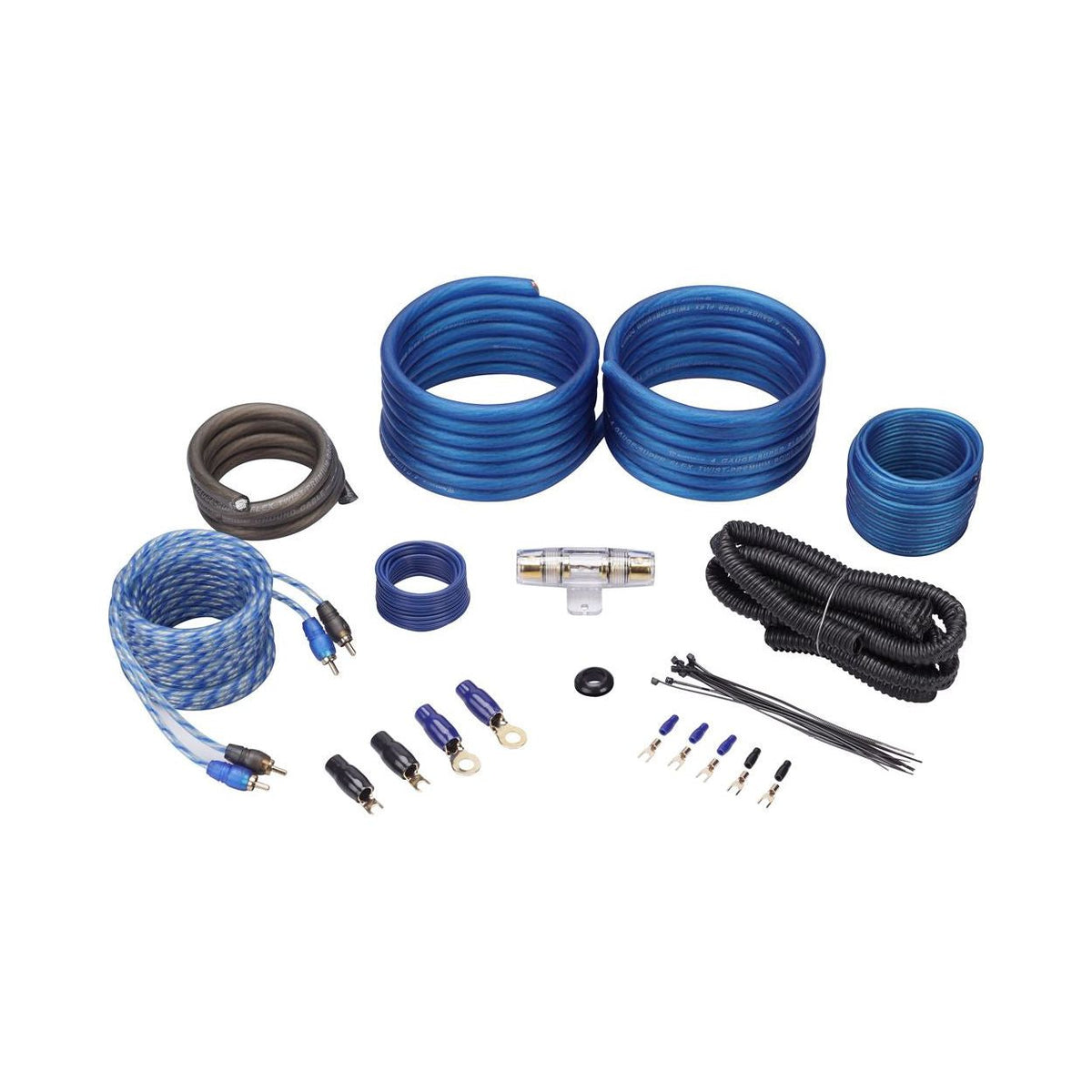

(1) RWK41 4-gauge amplifier wiring kit
Bass remote

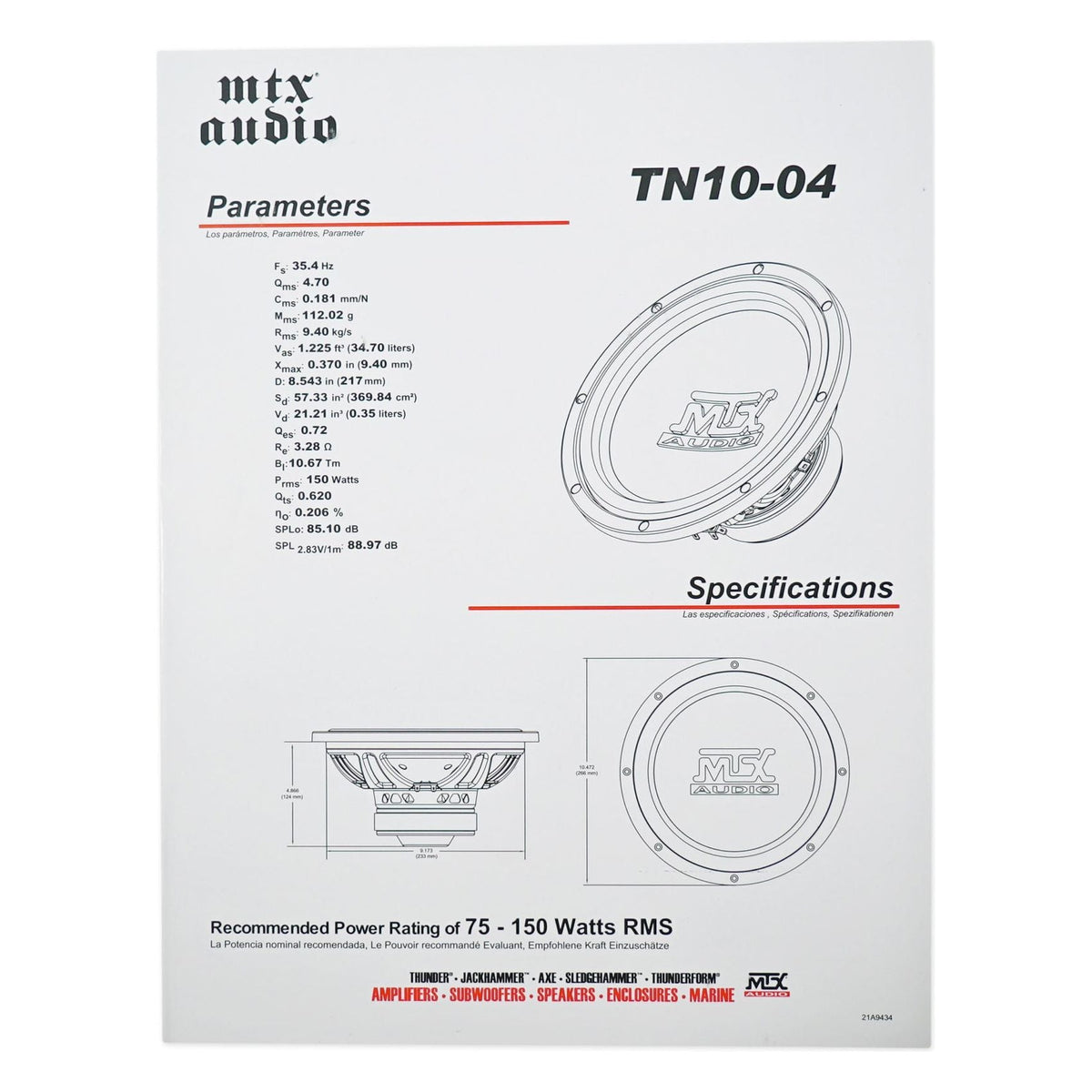

Birth sheet with tested power
Amplifier mounting screws
17 ft twisted-pair 100% copper RCA cable
17 ft 4-gauge translucent blue SuperFlex power cable
17 ft 18-gauge blue remote cable
17 ft 16-gauge translucent blue SuperFlex cable
3 ft 4-gauge translucent black SuperFlex ground wire
Gold-plated heat-resistant AGU fuse holder
Gold-plated AGU fuse
7 ft split tube loom
Wire ties
Ring terminals
Butt connectors
Spade connectors
Grommets

SKU: SKU: (2) TN10-04+dB12+RWK41

View full details

Product Description

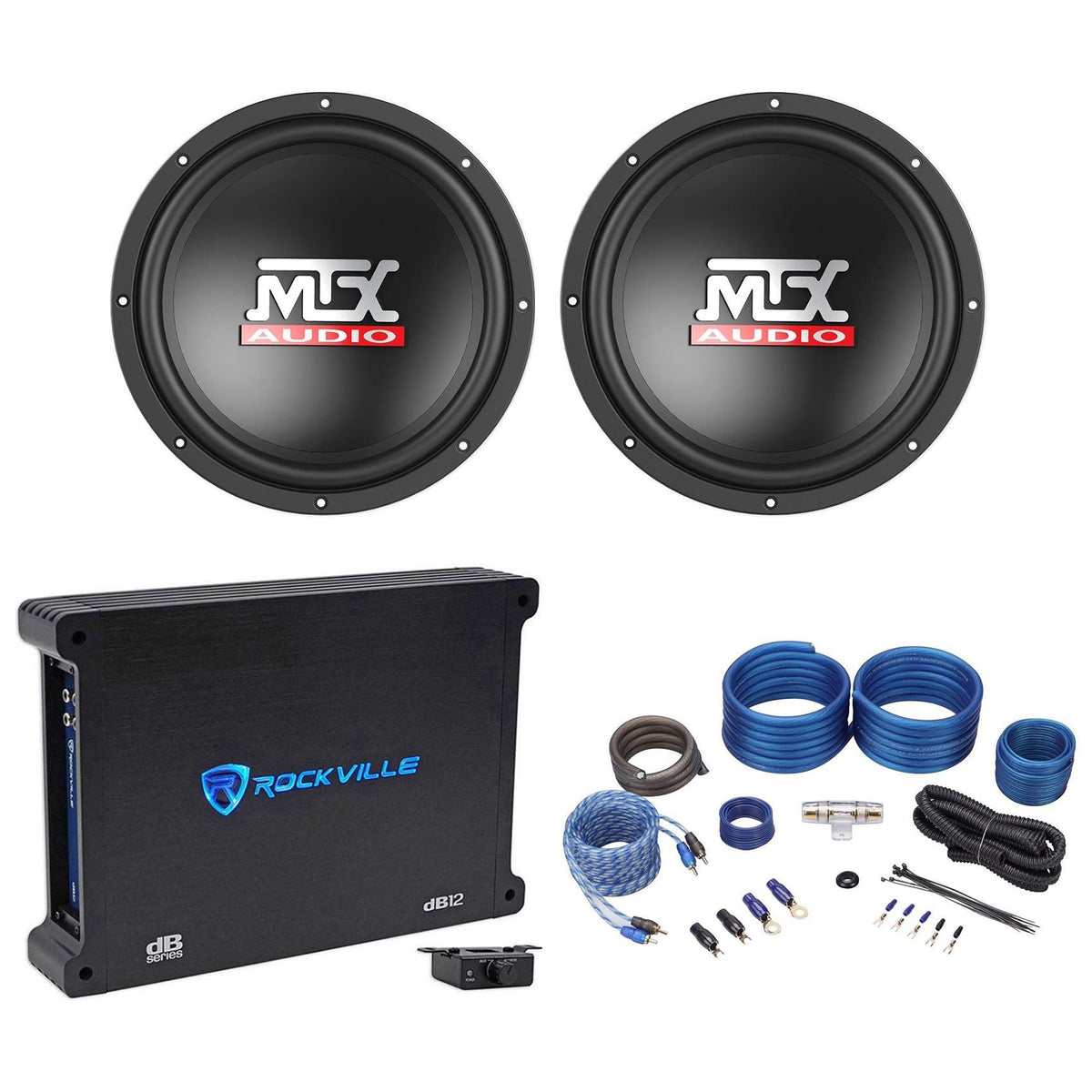

This car-audio package combines two 10-inch subwoofers, a mono amplifier, and a 4-gauge wiring kit for an in-vehicle bass installation. Each 4-ohm subwoofer is rated at 150W RMS and 300W peak, with a 29Hz to 160Hz response, rubber surround, and cooling at the voice coil. The amplifier has Dyno-Certified RMS ratings of 500W at 2 ohms and 300W at 4 ohms, plus an adjustable 12dB/octave crossover, low-pass and subsonic filters, phase control, bass equalizer, and a dashboard subwoofer remote. The wiring kit includes 100% copper twisted-pair RCA cable, power and ground leads, remote wire, fuse holder, split loom, and installation terminals. It does not confirm a load and power arrangement that keeps both subwoofers within their combined 300W RMS rating, so confirm the intended wiring and amplifier match before installation.

Features

Low-Frequency Response
Each 4-ohm driver is rated at 150W RMS and 300W peak, with a rubber surround and voice-coil cooling for use within its stated limits.
Output for System Planning
The mono amplifier delivers Dyno-Certified RMS ratings of 500W at 2 ohms and 300W at 4 ohms, with peak ratings of 2,000W and 1,200W respectively.
Filter and Phase Tuning
An adjustable 12dB/octave crossover, 50Hz to 250Hz low-pass filter, and 15Hz to 55Hz subsonic filter give installers three defined controls for tuning bass response.
Cabin-Side Bass Control
The dashboard subwoofer remote, 0-to-180-degree phase control, and adjustable bass equalizer let listeners tune bass levels and timing from the front seat.
Installation Components
The 4-gauge installation kit combines copper twisted-pair RCA cable, power and ground leads, a remote wire, fuse holder, split loom, and terminal accessories.

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Quantity (2)
Subwoofer Size 10 in
Subwoofer Impedance 4 ohms each
Subwoofer RMS Power 150W each
Subwoofer Peak Power 300W each
Recommended Amplifier Power (RMS) 75W to 150W per subwoofer
Subwoofer Frequency Response 29Hz to 160Hz
Sensitivity 84.9dB (1W/1M)
Voice Coil 1.50 in (3.81 cm)
Magnet Weight 27 oz each
Mounting Depth 4.86 in (12.35 cm)
Cutout Diameter 9.19 in (23.33 cm)
Sealed Enclosure Net Volume 0.75 cu ft per subwoofer
Vented Enclosure Net Volume 1.45 cu ft per subwoofer
Volume Displacement 21.21 cu in
Amplifier Type Mono
Amplifier RMS Output 500W x 1 at 2 ohms; 300W x 1 at 4 ohms
Amplifier Peak Output 2,000W x 1 at 2 ohms; 1,200W x 1 at 4 ohms
Crossover Adjustable 12dB/octave
Low-Pass Filter 50Hz to 250Hz
Subsonic Filter 15Hz to 55Hz
Phase Control 0 to 180 degrees
Bass Equalizer Adjustable, 12dB
Amplifier Frequency Response 15Hz to 250Hz
THD at Rated Power Less than 0.1%
Signal-to-Noise Ratio More than 90dB
Damping Factor More than 150 at 100Hz
Under-Voltage Protection 10V
Over-Voltage Protection 16V
Preamp Circuitry 8V
Amplifier Fuse 60A Maxi
Wiring Kit Gauge 4 AWG
RCA Cable 17 ft, 100% copper twisted pair
Power Cable 17 ft, 4-gauge translucent blue SuperFlex
Remote Cable 17 ft, 18-gauge blue
Additional Cable 17 ft, 16-gauge translucent blue SuperFlex
Ground Wire 3 ft, 4-gauge translucent black SuperFlex
AGU Fuse Holder Gold-plated, heat-resistant
Split Loom 7 ft
Amplifier Dimensions (W x H x L) 9 in x 2.4 in x 13.1 in
