TN10-04 Pair Car Subwoofer System with dB12, RD10 and RWK41

Name: TN10-04 Pair Car Subwoofer System with dB12, RD10 and RWK41
Brand: MTX
SKU: (2) TN10-04+dB12+RWK81+RD10+K2
Price: 354.80 USD
Availability: InStock

Car Subwoofer System, Dual 10-Inch Subs, 150W RMS Each, 500W RMS Mono Amp, Sealed Enclosure, 4-Gauge Wiring Kit

Free Shipping

Retail ~~Retail price $704.83~~ Save 49.66%

$354.80

Shipping calculated at checkout.

Features

Two 10-inch subwoofers rated at 150W RMS each
Sealed dual-10 enclosure made with 3/4-inch MDF
Mono amp rated at 500W RMS at 2 ohms
4-gauge wiring kit with copper RCA cables
Includes 20 feet of speaker wire, 20 screws and four spade terminals

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

Member-Exclusive Prices

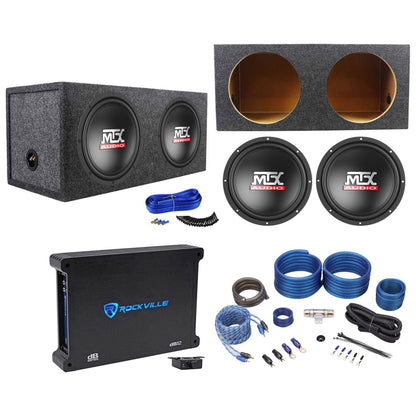

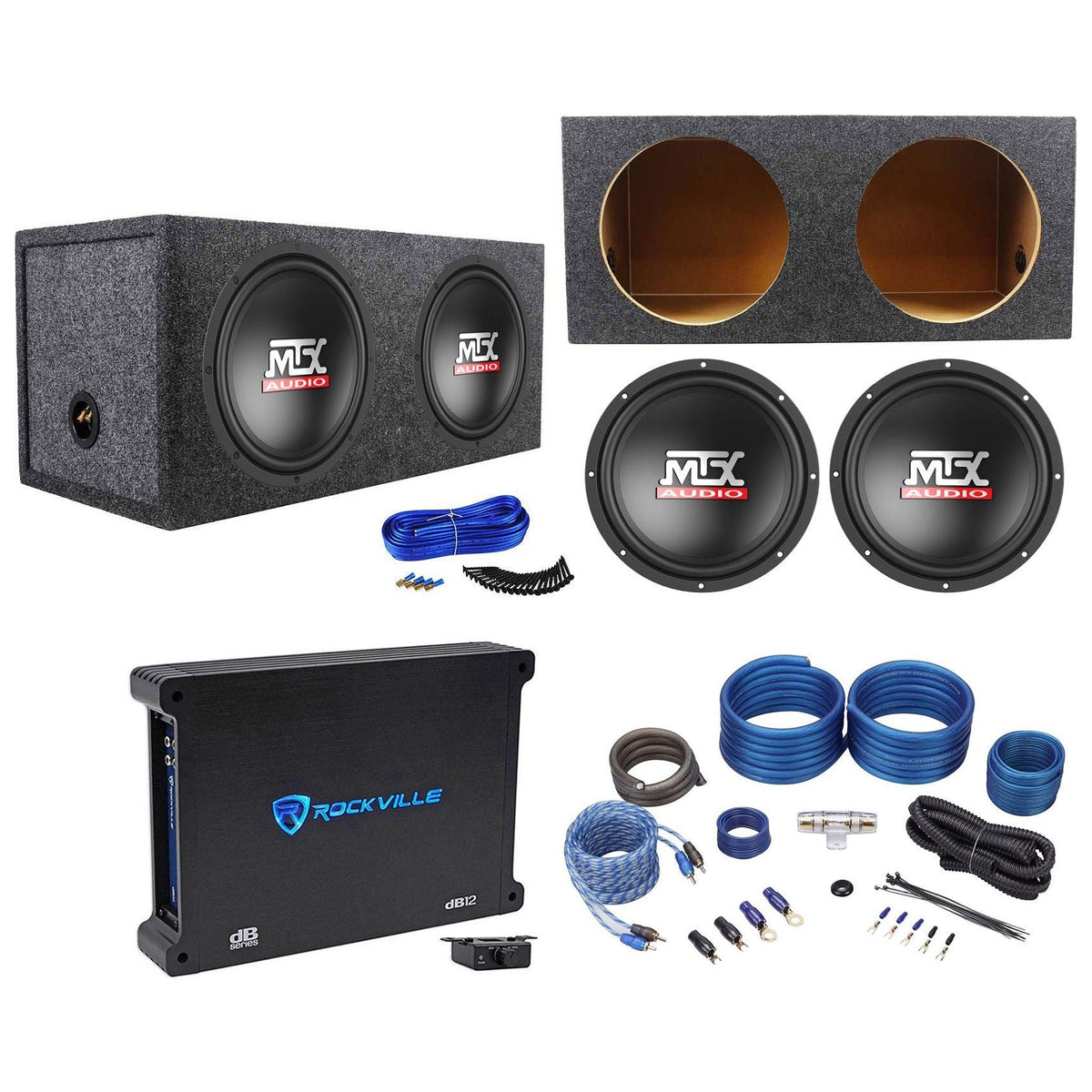

What's Included in the box

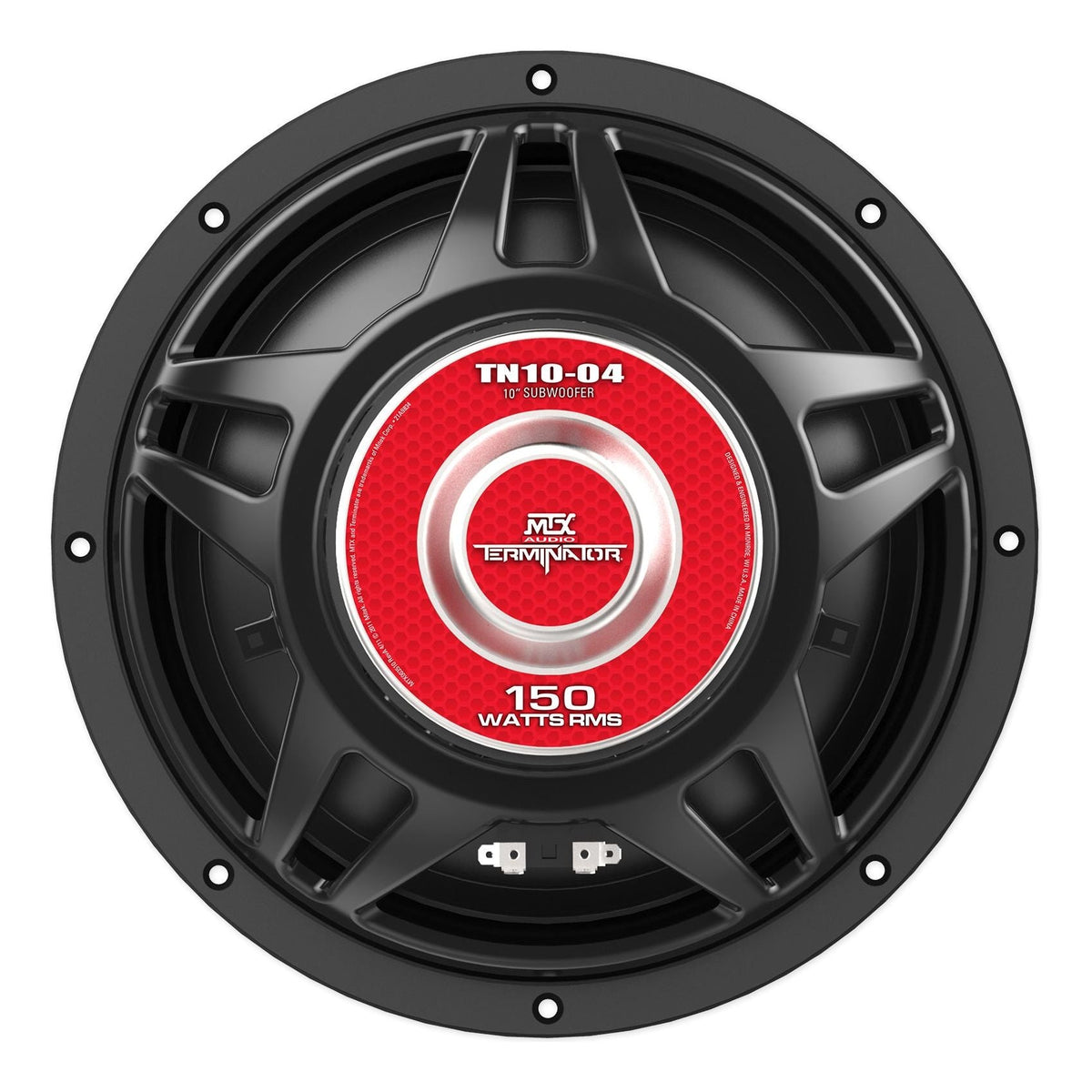

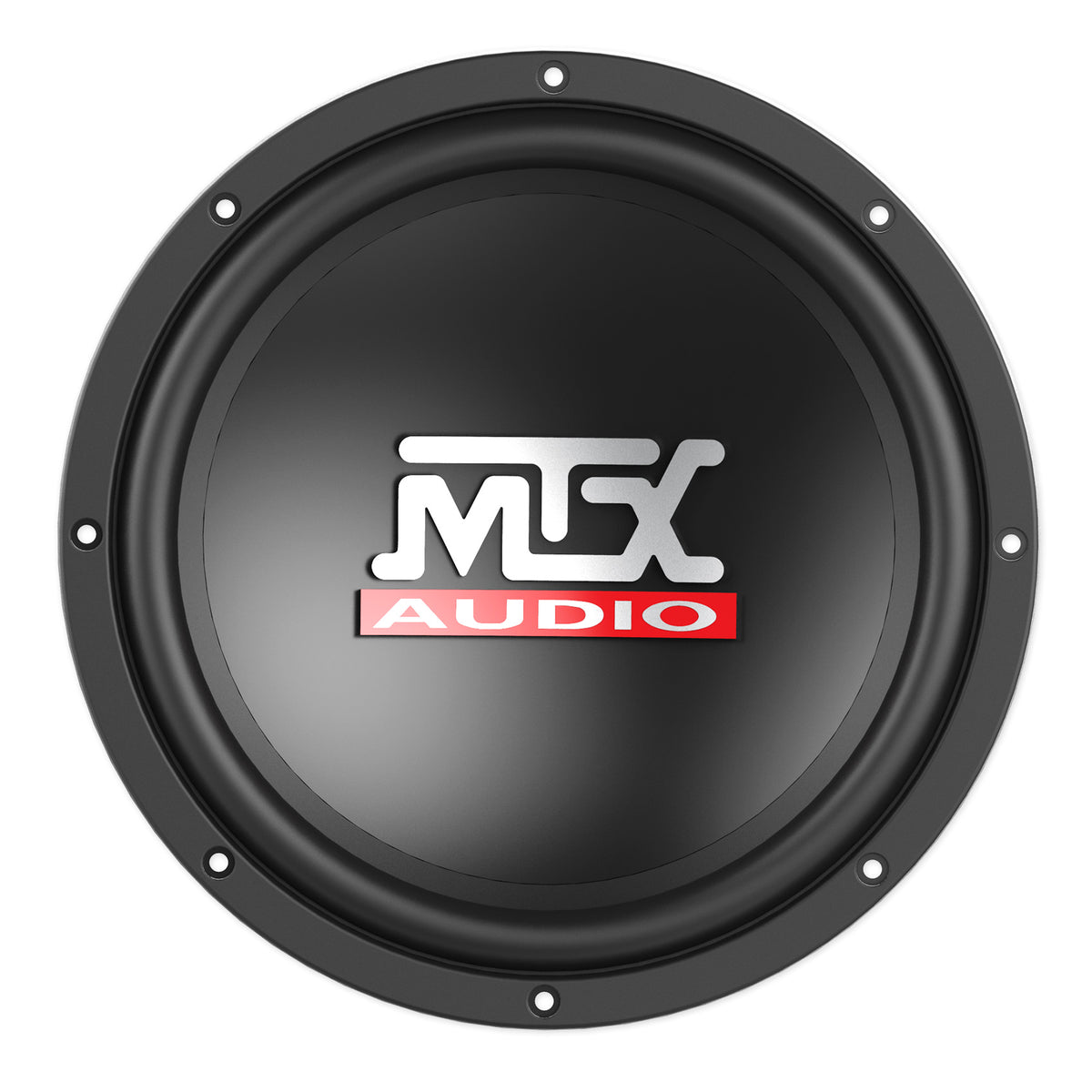

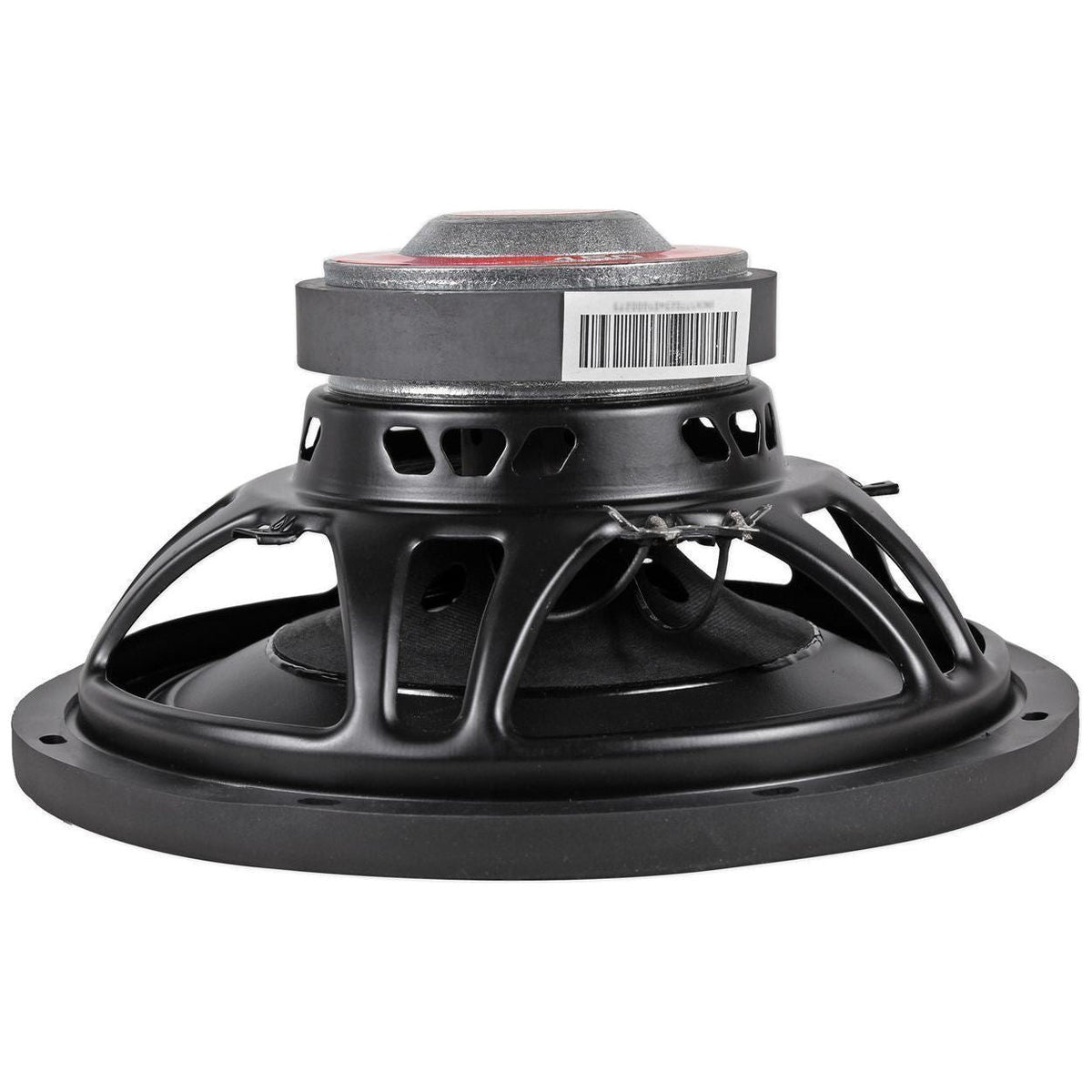

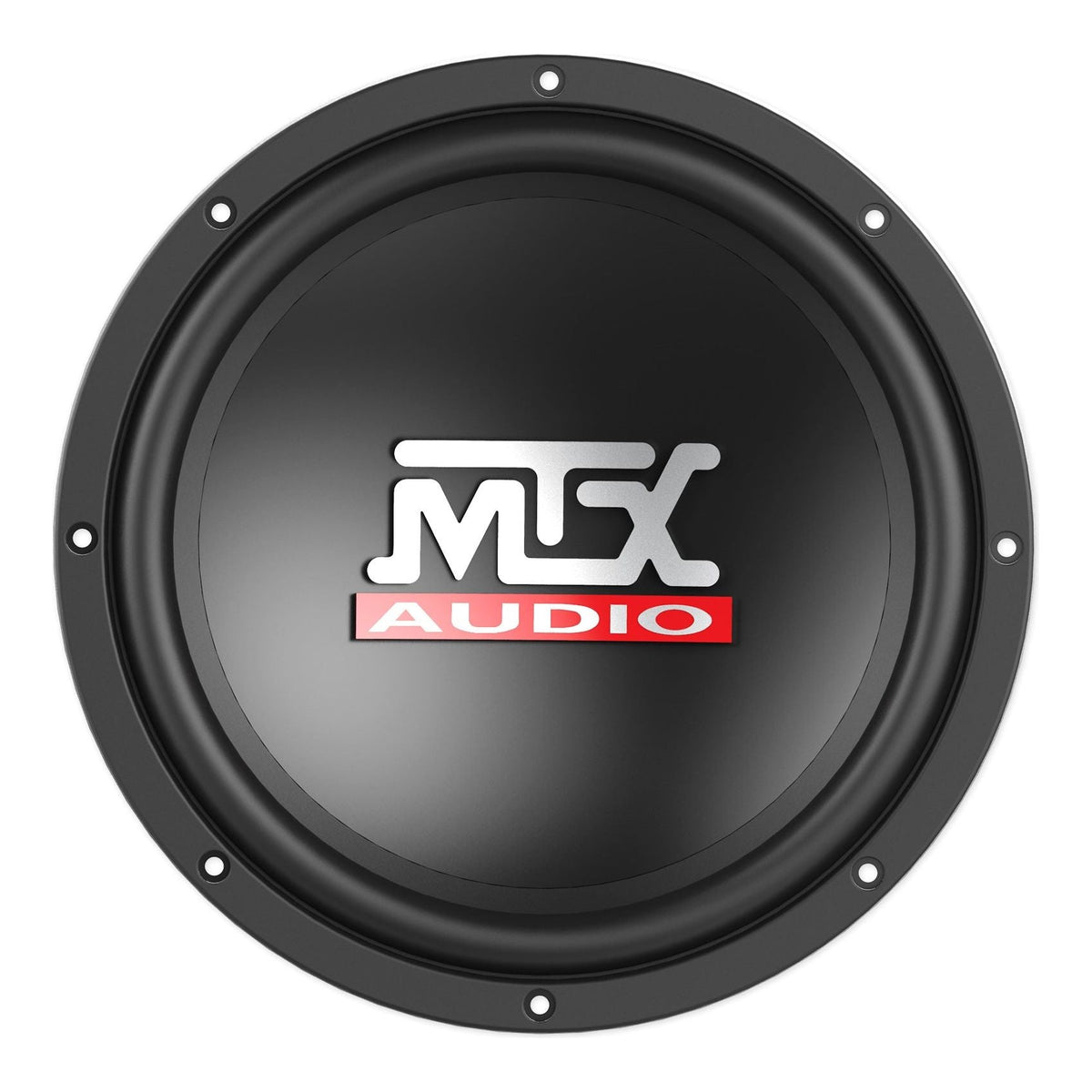

(2) TN10-04 10-inch subwoofers

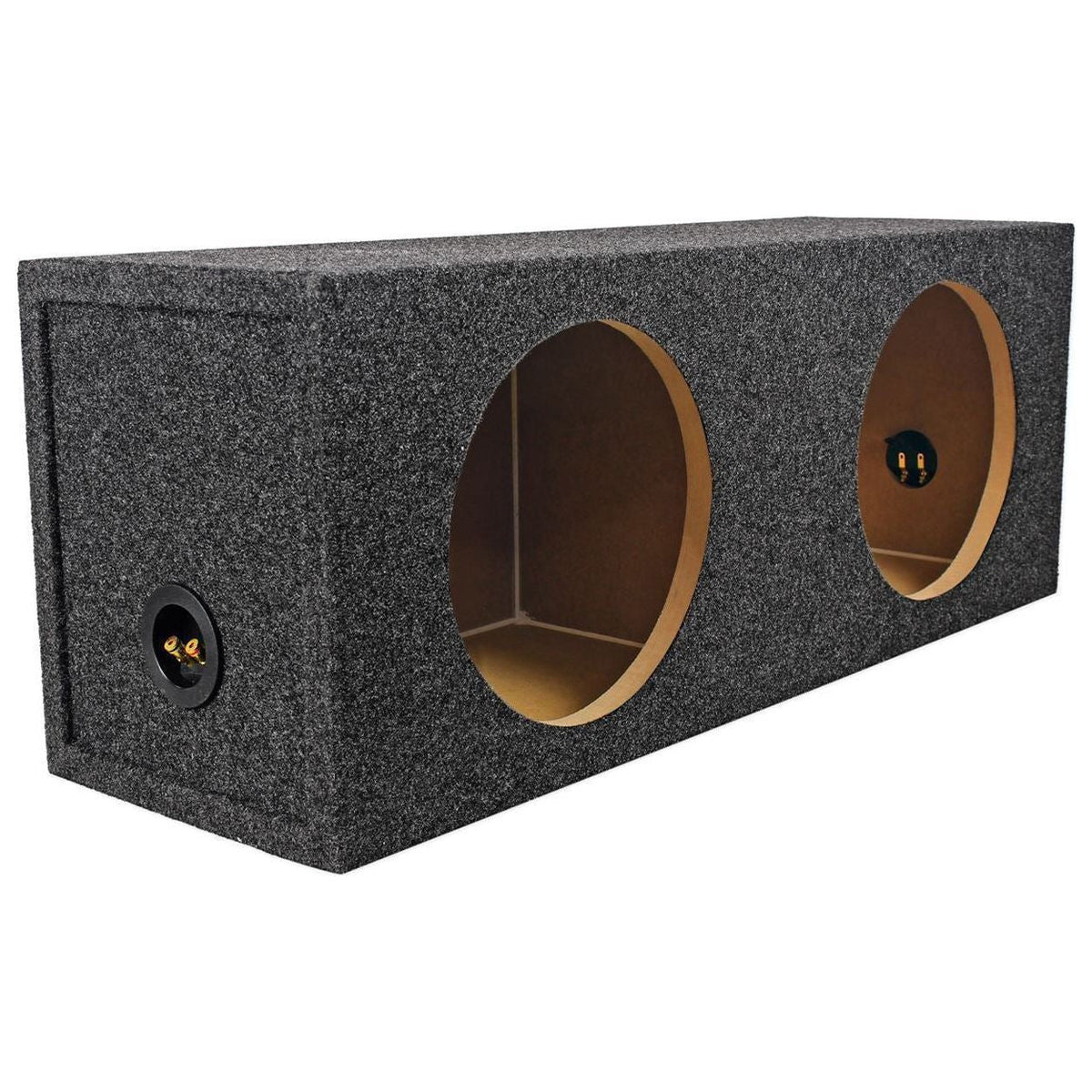

(1) Dual 10-inch sealed subwoofer enclosure

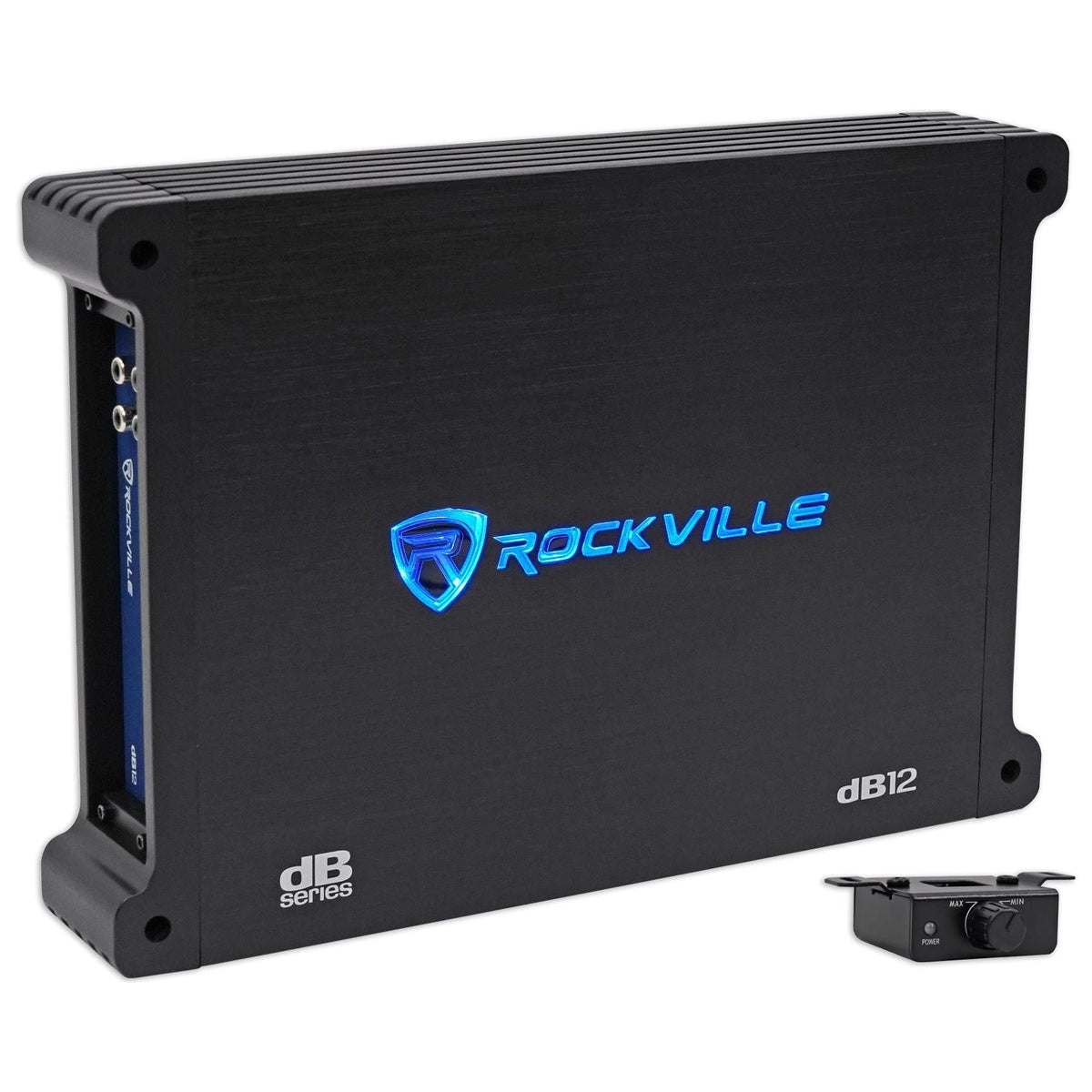

(1) dB12 mono amplifier

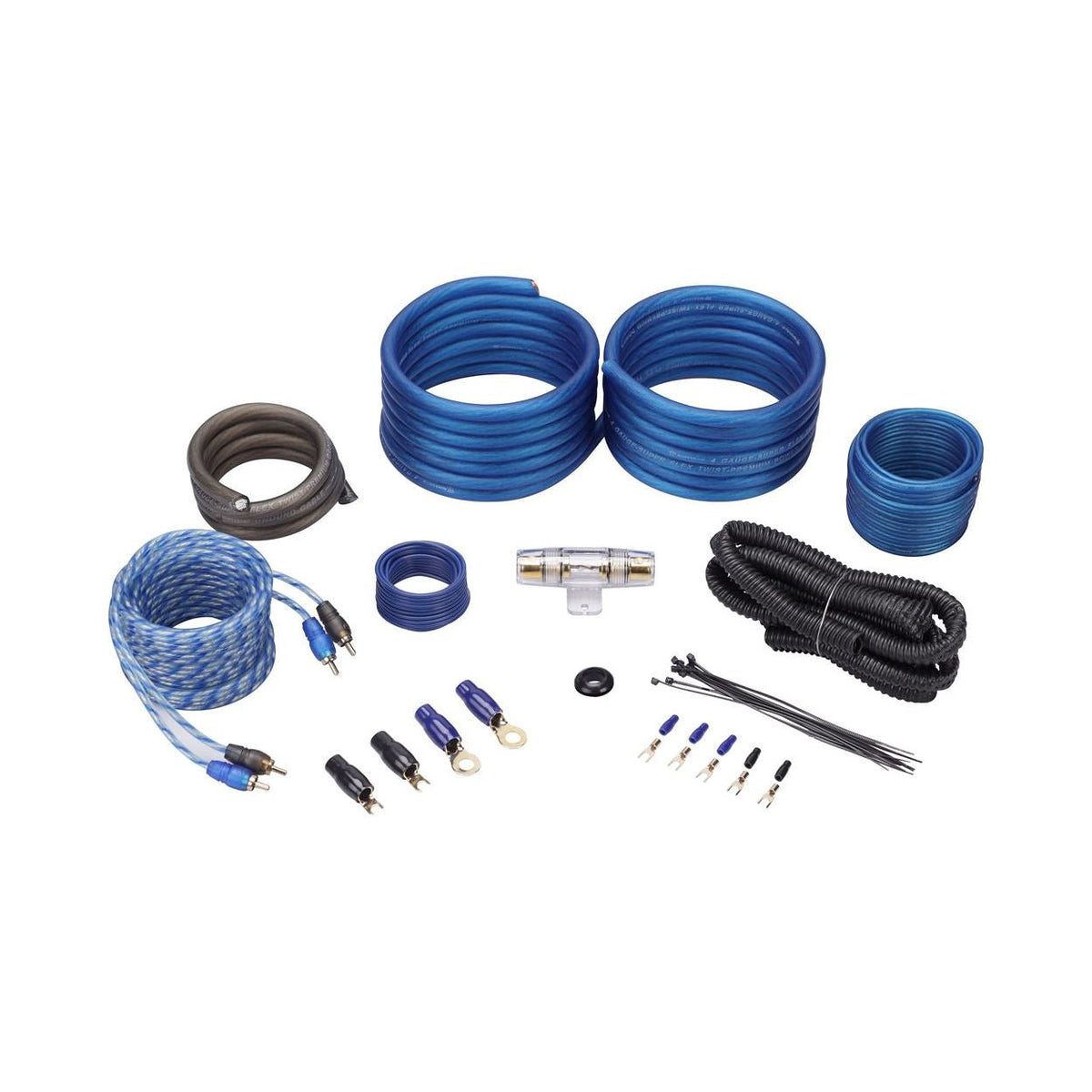

(1) RWK41 4-gauge amplifier wiring kit
17 ft of 100% copper twisted-pair RCA cable
17 ft of 4-gauge translucent blue power cable
17 ft of 18-gauge blue remote cable
17 ft of translucent blue 16-gauge wire
3 ft of 4-gauge translucent black ground wire
Gold-plated heat-resistant AGU fuse holder
Gold-plated AGU fuse
7 ft split loom tube
Wire ties, ring terminals, butt connectors, spades and grommets
20 metal drywall screws
20 ft of blue 14 AWG speaker wire
(4) spade terminals

SKU: SKU: (2) TN10-04+dB12+RWK81+RD10+K2

View full details

Product Description

Put a dual-subwoofer bass setup in your vehicle with two 10-inch TN10-04 subwoofers, a sealed dual-10 enclosure, a mono amplifier and a 4-gauge installation kit. Each sub is rated at 150W RMS and 300W peak, with a 4-ohm impedance and 29 Hz to 160 Hz frequency response. The amplifier is rated at 500W Dyno Certified RMS at 2 ohms and 2,000W peak, with a 12 dB/octave crossover, subsonic filter, bass equalizer, phase control and dashboard subwoofer control. The enclosure uses 3/4-inch MDF, spring-loaded terminals and 1.0 cubic foot net volume per sub. Kit contents include RCA and power cables, installation accessories, 20 feet of blue 14 AWG speaker wire, 20 screws and four spade terminals.

Features

Dual Subwoofer Output
Each TN10-04 handles 150W RMS and 300W peak, with a 4-ohm impedance and 29 Hz to 160 Hz response for low-frequency car audio.
Sealed MDF Enclosure
The dual-10 box uses 3/4-inch MDF, spring-loaded terminals and 1.0 cubic foot net volume per sub for a fixed, sealed enclosure.
Adjustable Amplifier Controls
At 500W RMS at 2 ohms, the mono amp offers a 12 dB/octave crossover, subsonic filtering, adjustable bass EQ and phase control for system tuning.
Vehicle Wiring Coverage
The 4-gauge kit includes copper RCA cable, power and ground leads, a remote lead, fuse hardware and loom for routing through a vehicle.
Extra Installation Materials
Twenty feet of blue 14 AWG wire, 20 metal screws and four spade terminals are included for internal speaker connections and enclosure assembly.

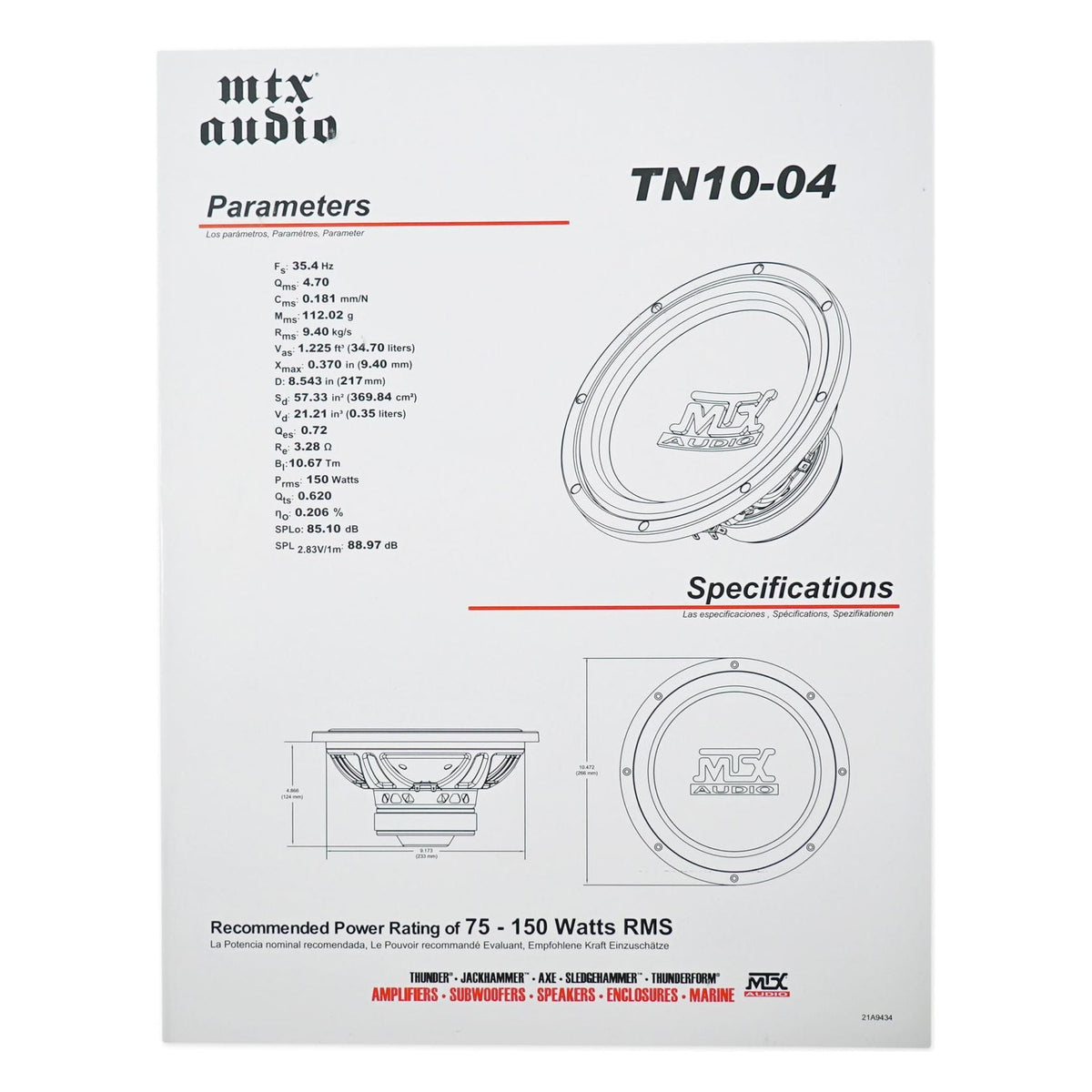

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Model TN10-04
Subwoofer Quantity 2
Subwoofer Size 10 in
Power Handling (Each Subwoofer) 150W RMS, 300W peak
Impedance (Each Subwoofer) 4 ohms
Frequency Response 29 Hz to 160 Hz
Sensitivity 84.9 dB (1 W/1 m)
Voice Coil 1.50 in (3.81 cm)
Magnet Weight (Each Subwoofer) 27 oz
Amplifier Model dB12
Amplifier Type Mono, 2 ohm
Amplifier Output 500W Dyno Certified RMS at 2 ohms, 2,000W peak
Amplifier Features 12 dB/octave crossover, subsonic filter, adjustable bass equalizer, phase control, dashboard subwoofer control
Enclosure Model RD10
Enclosure Type Sealed, dual 10 in
Enclosure Construction 3/4 in MDF
Enclosure Net Volume 1.0 cu ft per subwoofer
Enclosure Terminals Gold spring-loaded
Wiring Kit Model RWK41
Wiring Kit Gauge 4 AWG
Subwoofer Mounting Depth 4.86 in (12.35 cm)
Subwoofer Cutout Diameter 9.19 in (23.33 cm)
Enclosure Mounting Depth Up to 10 in
Dimensions 28 in L × 13 in W × 13 in H
