3510-04S+RXA-T1+RWK81+RSST10+K1 Car Subwoofer Bundle

Name: 3510-04S+RXA-T1+RWK81+RSST10+K1 Car Subwoofer Bundle
Brand: MTX
SKU: 3510-04S+RXA-T1+RWK81+RSST10+K1
Price: 257.85 USD
Availability: InStock

10-Inch Car Subwoofer, 4-Ohm, 300 W RMS, 0.9 Cu Ft Sealed Enclosure, Two-Channel Amp, 8-Gauge Wiring Kit

Free Shipping

$257.85

$257.85 ~~$464.91~~

Save 44%

Shipping calculated at checkout.

Features

10-inch single voice coil subwoofer handles 300 W RMS and 600 W peak
4-ohm impedance and 28 Hz to 130 Hz frequency response
Shallow-mount subwoofer has a 3.375-inch mounting depth
Sealed 0.9 cu ft enclosure uses 5/8-inch MDF
Two-channel amp, 8-gauge kit, 12 ft of speaker wire and mounting parts included

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

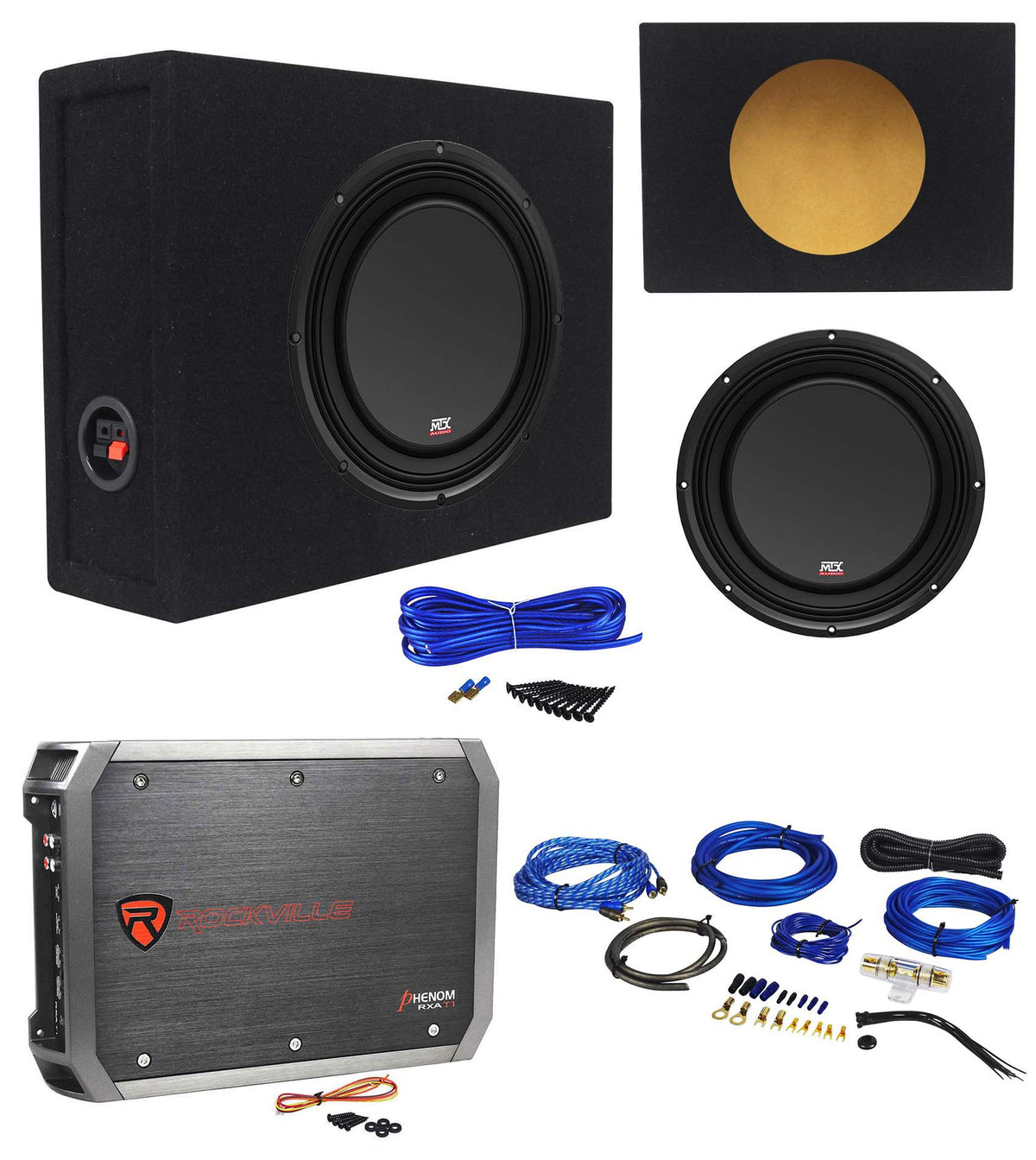

What's Included in the box

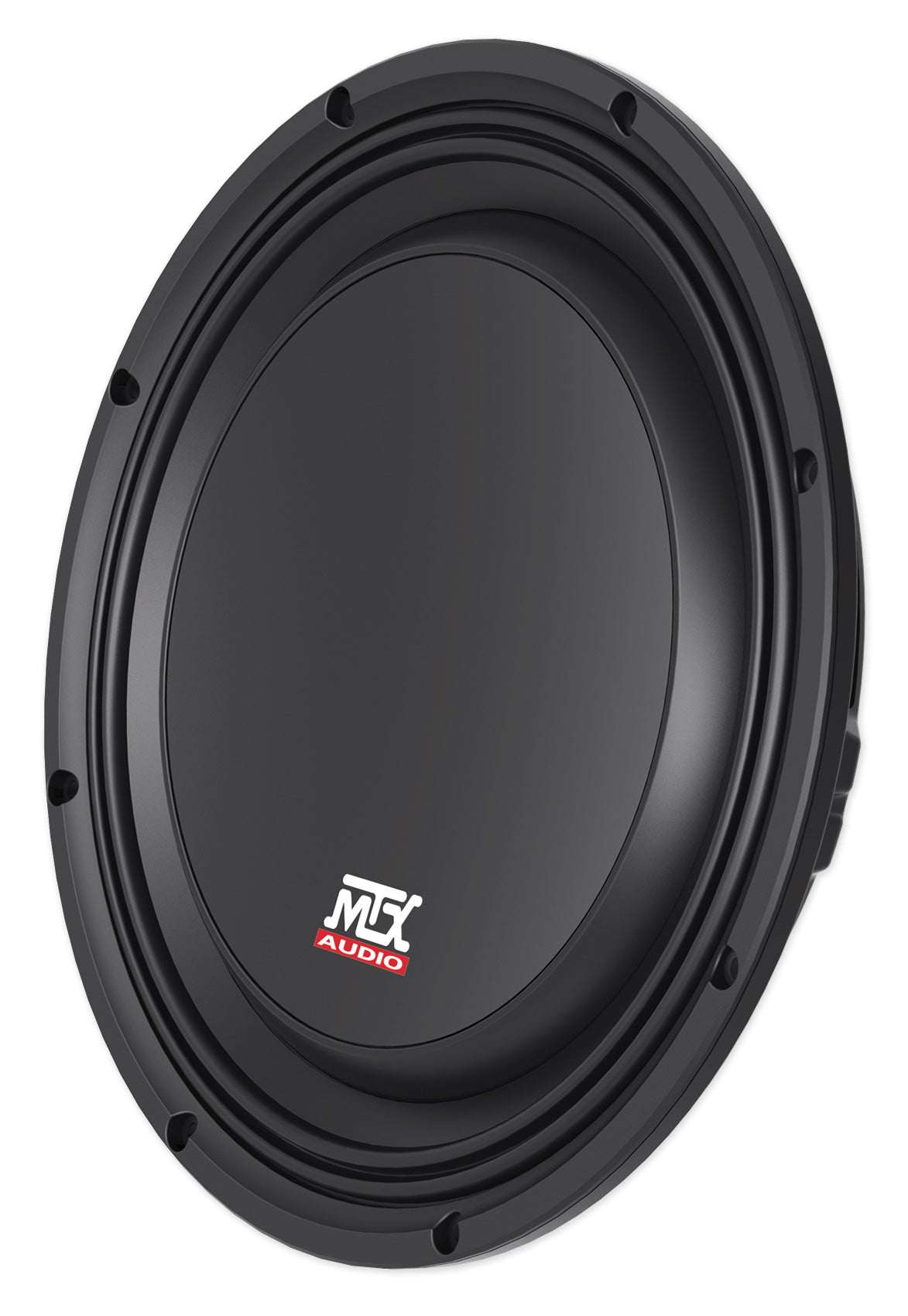

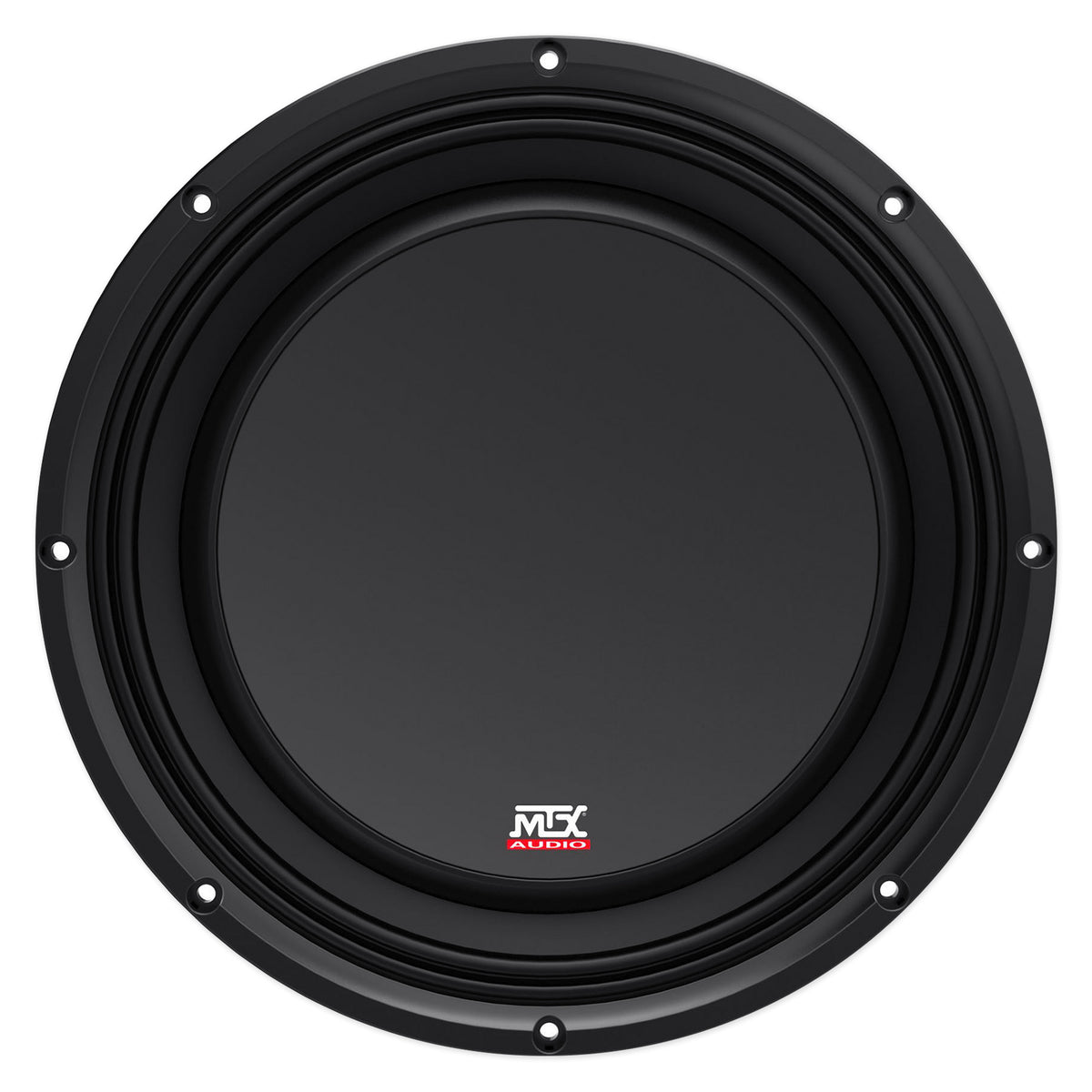

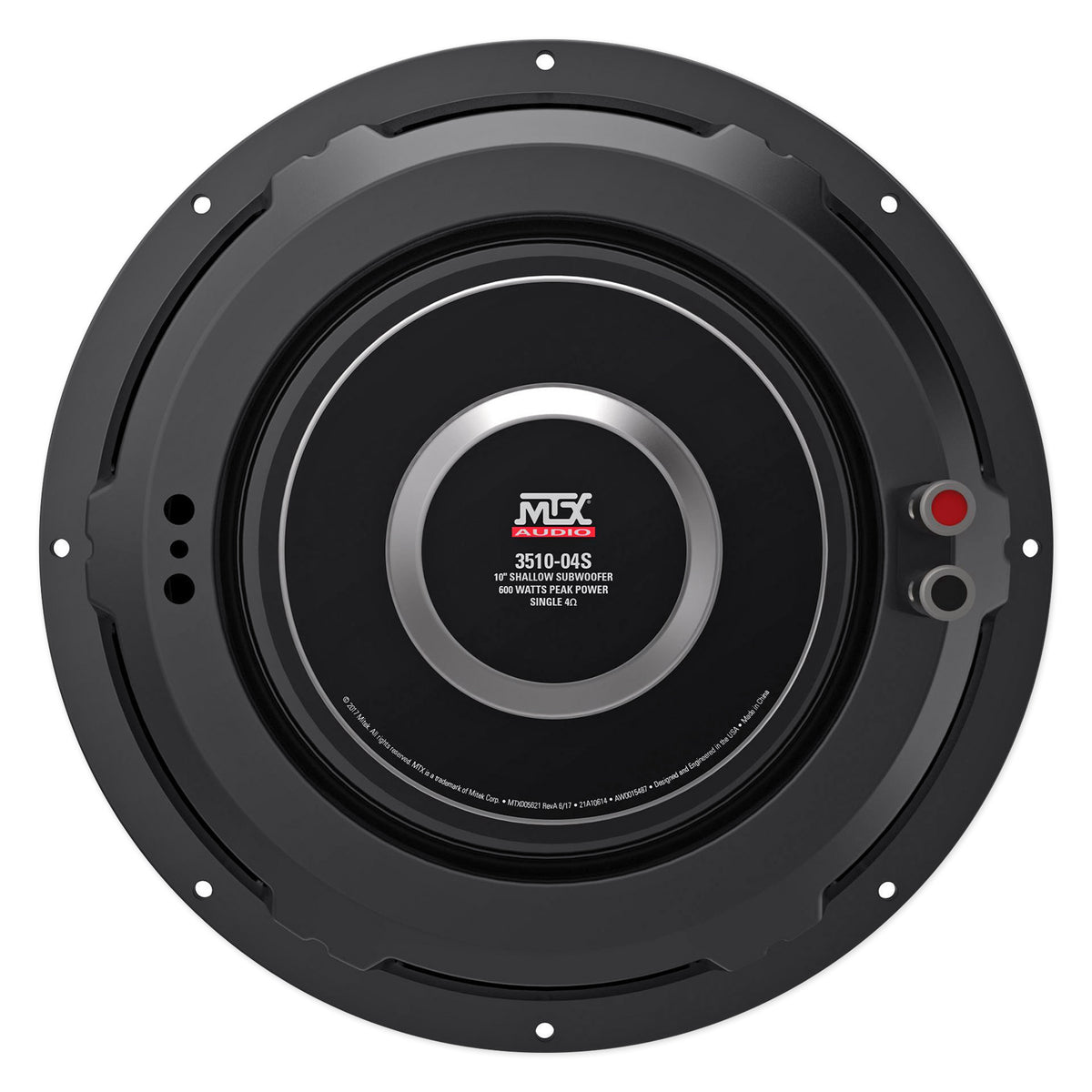

(1) 3510-04S 10-inch shallow-mount, 4-ohm subwoofer

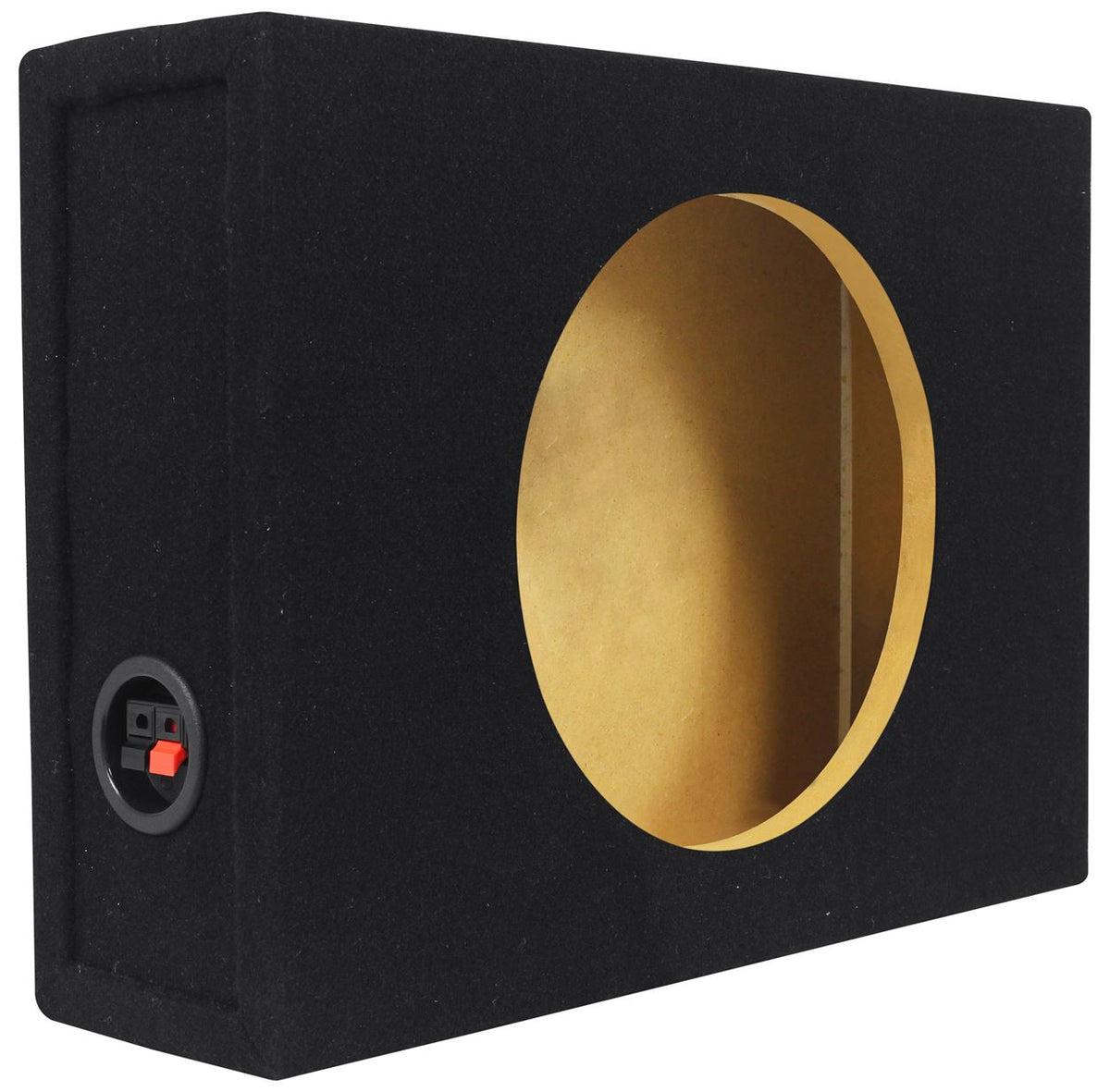

(1) RSST10 sealed enclosure for one 10-inch subwoofer

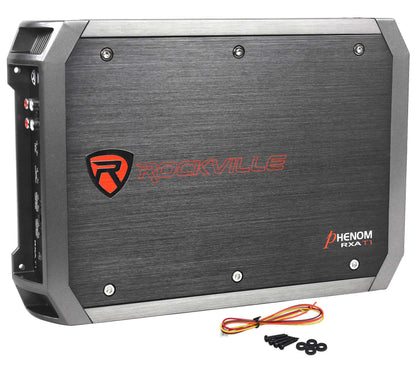

(1) RXA-T1 two-channel amplifier
(1) RWK81 8-gauge amplifier installation kit with 100% copper RCA cables

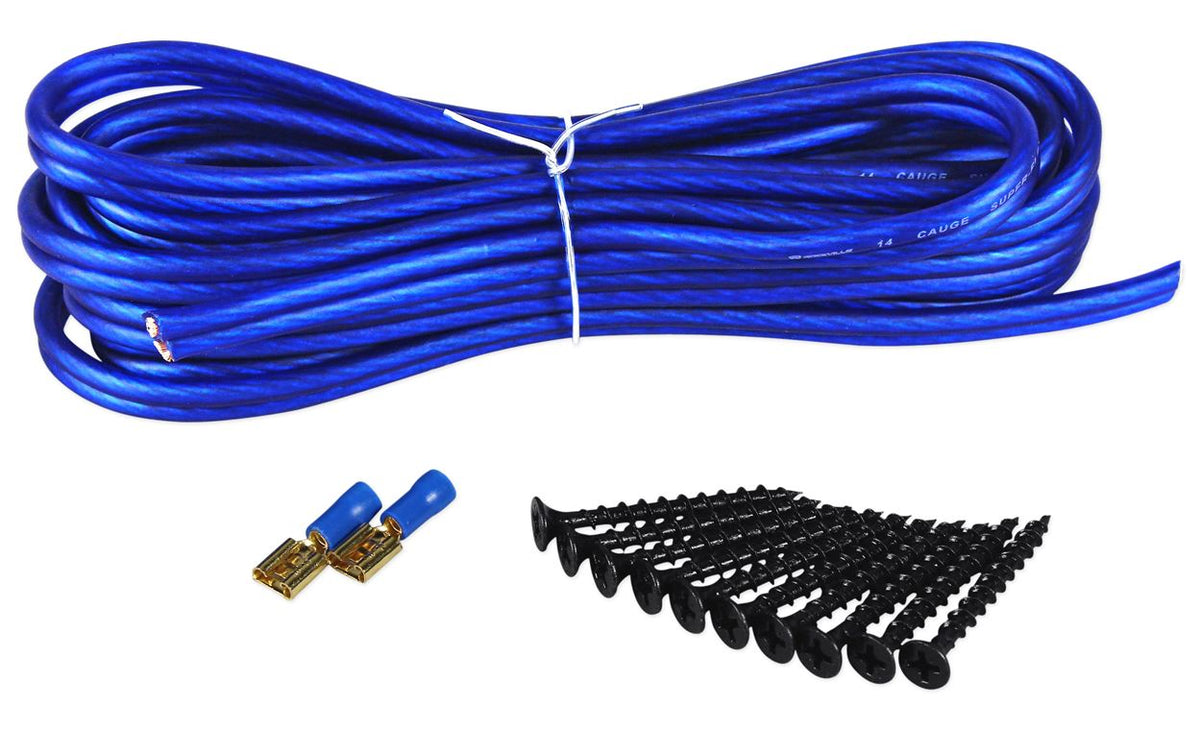

(10) metal screws for the enclosure
12 ft of 14 AWG blue speaker wire
(2) spade terminals

SKU: SKU: 3510-04S+RXA-T1+RWK81+RSST10+K1

View full details

Product Description

Set up a space-conscious car bass system with the 10-inch 3510-04S subwoofer, sealed 0.9 cu ft enclosure, two-channel amplifier and installation wiring kit. The shallow-mount subwoofer measures 3.375 inches deep and handles 300 W RMS, with a 4-ohm single voice coil and a stated frequency response of 28 Hz to 130 Hz. The enclosure uses 5/8-inch MDF, holds one 10-inch subwoofer and measures 15 x 20 inches, with a 7.5-inch bottom depth and 5-inch top depth. An 8-gauge amplifier installation kit with 100% copper RCA cables, 12 feet of 14 AWG blue speaker wire, two spade terminals and 10 metal screws are included for the listed installation. The included two-channel amplifier is identified as 375 W RMS and 1,500 W peak; the subwoofer's recommended amplifier range is 150 to 300 W RMS. Check the amplifier's output at a 4-ohm load before connecting it to the subwoofer.

Features

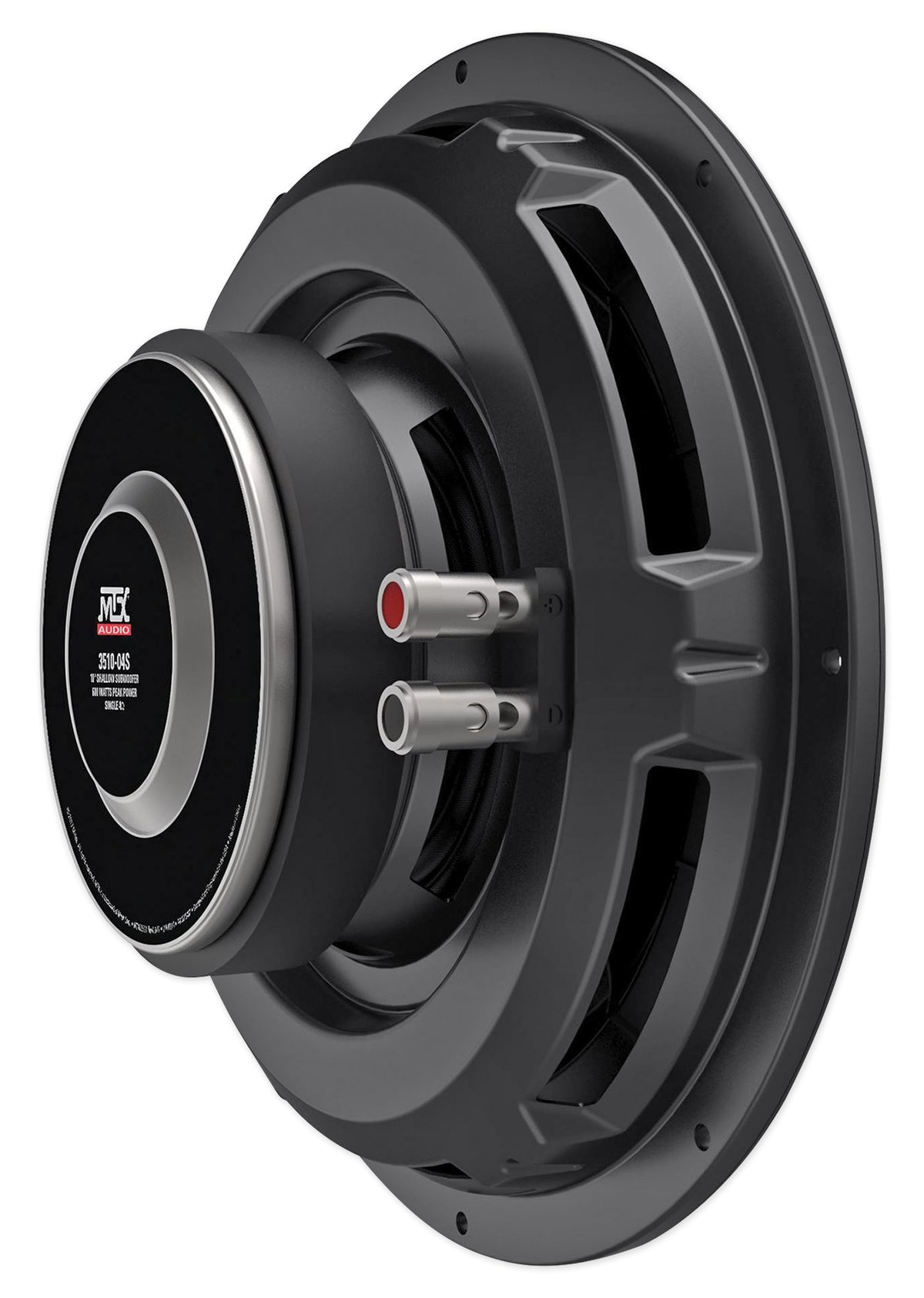

Shallow-Mount Fit

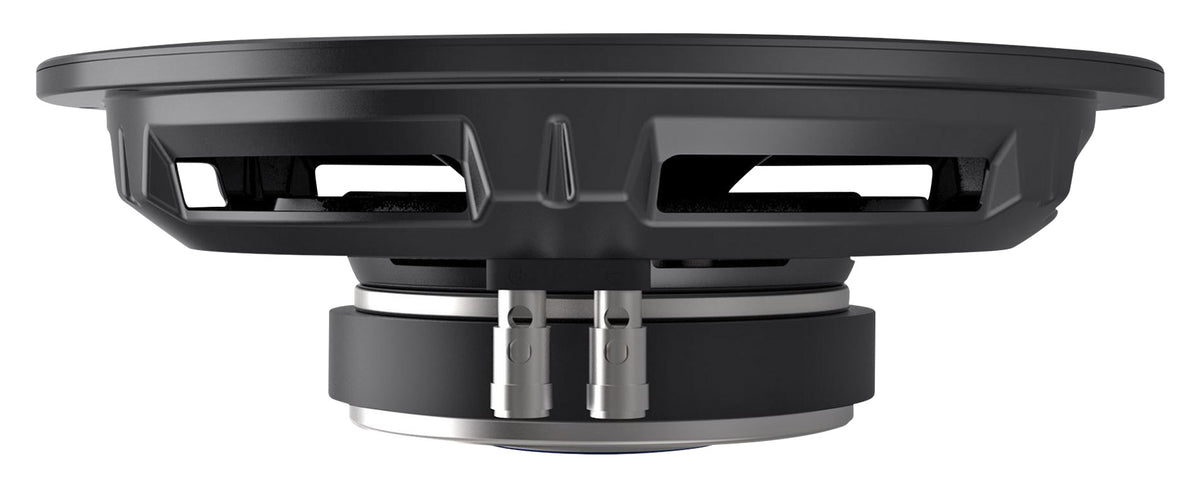

At 3.375 inches deep, the 10-inch subwoofer fits vehicle locations with limited installation depth, leaving more room for passengers or cargo.
Defined Bass Output
The 4-ohm single voice coil model handles 300 W RMS and 600 W peak, with a published frequency response from 28 Hz to 130 Hz.
Sealed Enclosure
A sealed 5/8-inch MDF box holds one 10-inch subwoofer and offers 0.9 cu ft of net volume for the specified setup.

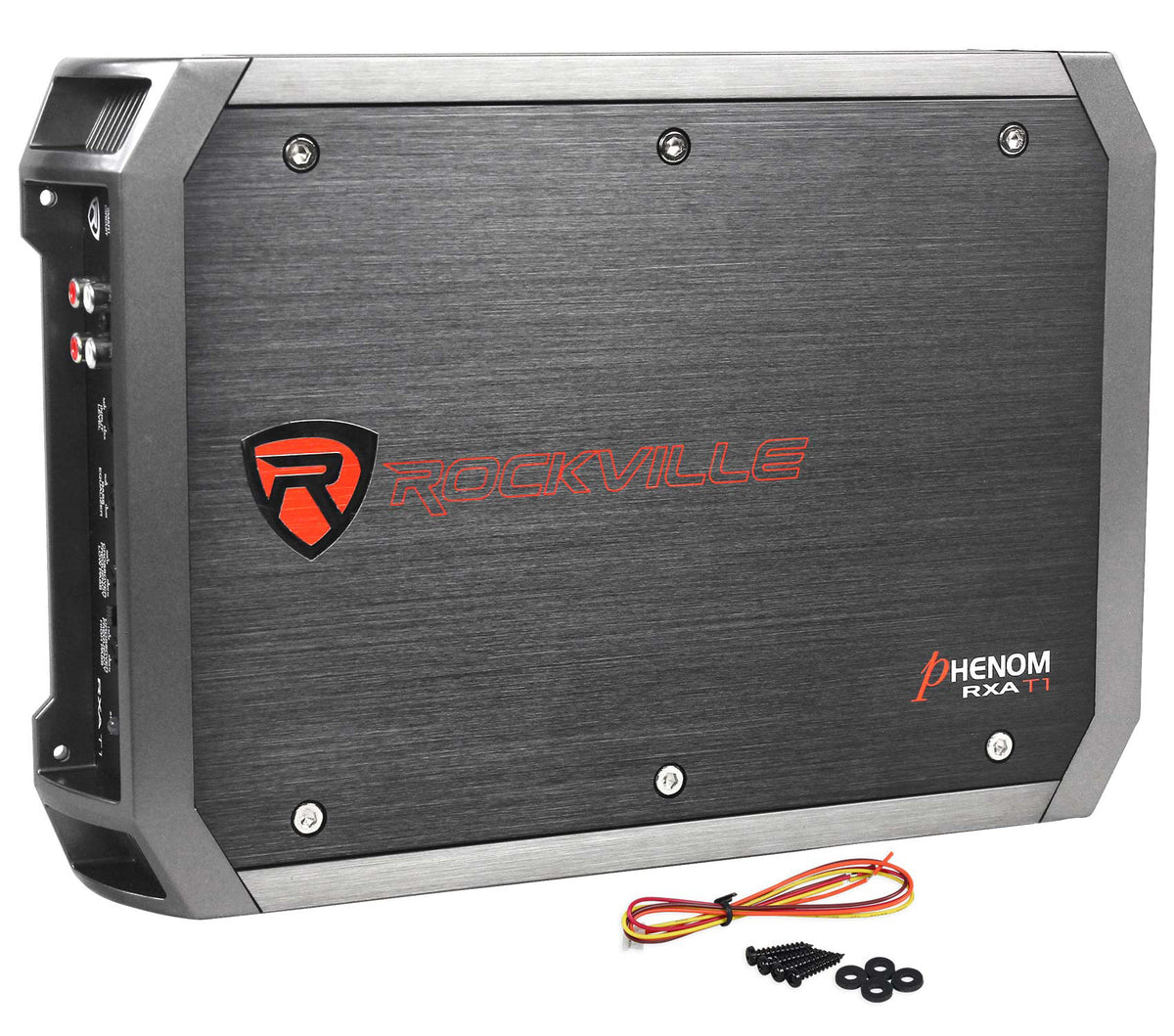

Amplifier Included
The included two-channel amp is rated at 375 W RMS and 1,500 W peak; check its 4-ohm output against the sub's 150 to 300 W RMS recommendation.

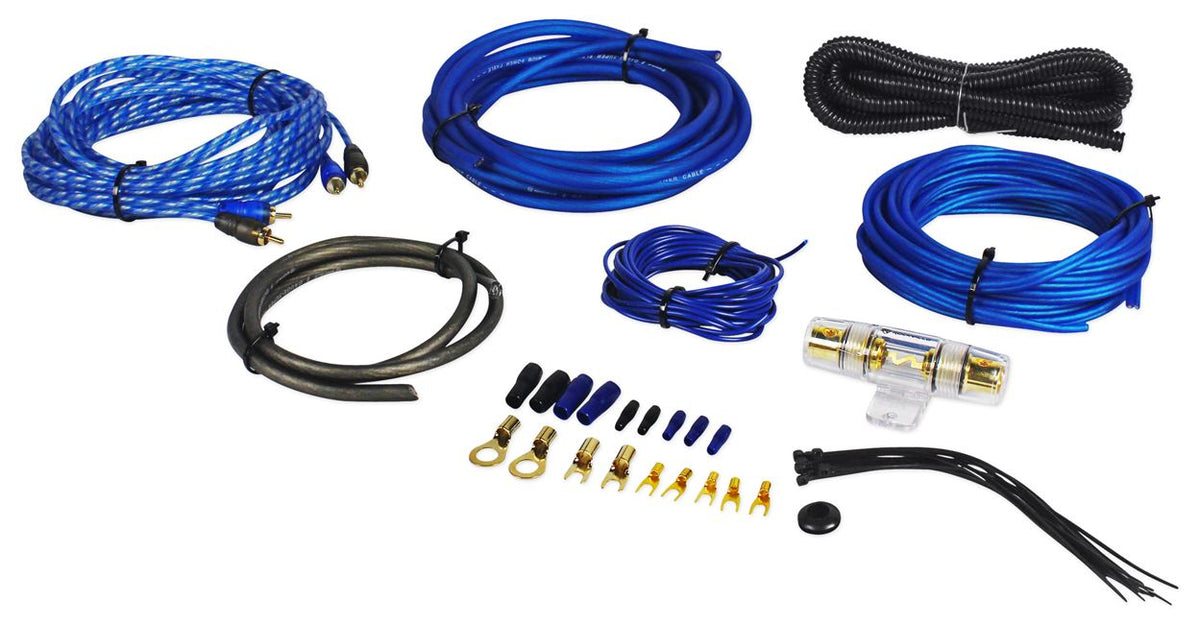

Wiring and Hardware
An 8-gauge kit with 100% copper RCA cables, 12 feet of 14 AWG speaker wire, two spade terminals and 10 metal screws are included.

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Model 3510-04S
Subwoofer Diameter 10 in
Subwoofer Type Shallow-mount, single voice coil
Subwoofer Impedance 4 ohms
RMS Power Handling 300 W
Peak Power Handling 600 W
Recommended Amplifier Power 150-300 W RMS
Frequency Response 28 Hz to 130 Hz
Sensitivity 83.7 dB
Voice Coil 2.0 in, single
Magnet Weight 44 oz
Subwoofer Mounting Depth 3.375 in
Subwoofer Cutout Diameter 9.125 in
Volume Displacement 24.55 cu in
Enclosure Type Sealed
Enclosure Material 5/8 in MDF
Enclosure Net Volume 0.9 cu ft
Enclosure Gross Volume 1.10 cu ft
Enclosure Mounting Depth Up to 5.5 in
Amplifier Model RXA-T1
Amplifier Channels 2
Amplifier Rated Power 375 W RMS, 1,500 W peak
Installation Kit Model RWK81
Installation Kit Gauge 8 AWG
RCA Cables 100% copper
Fuse 60 A AGU, gold plated
Speaker Wire 12 ft, 14 AWG, blue
Dimensions 15 in L x 20 in W x 7.5 in bottom depth x 5 in top depth
