AWC129-BK 12" Outdoor Speakers (4) + RCS1000-6 Amplifier
JBL

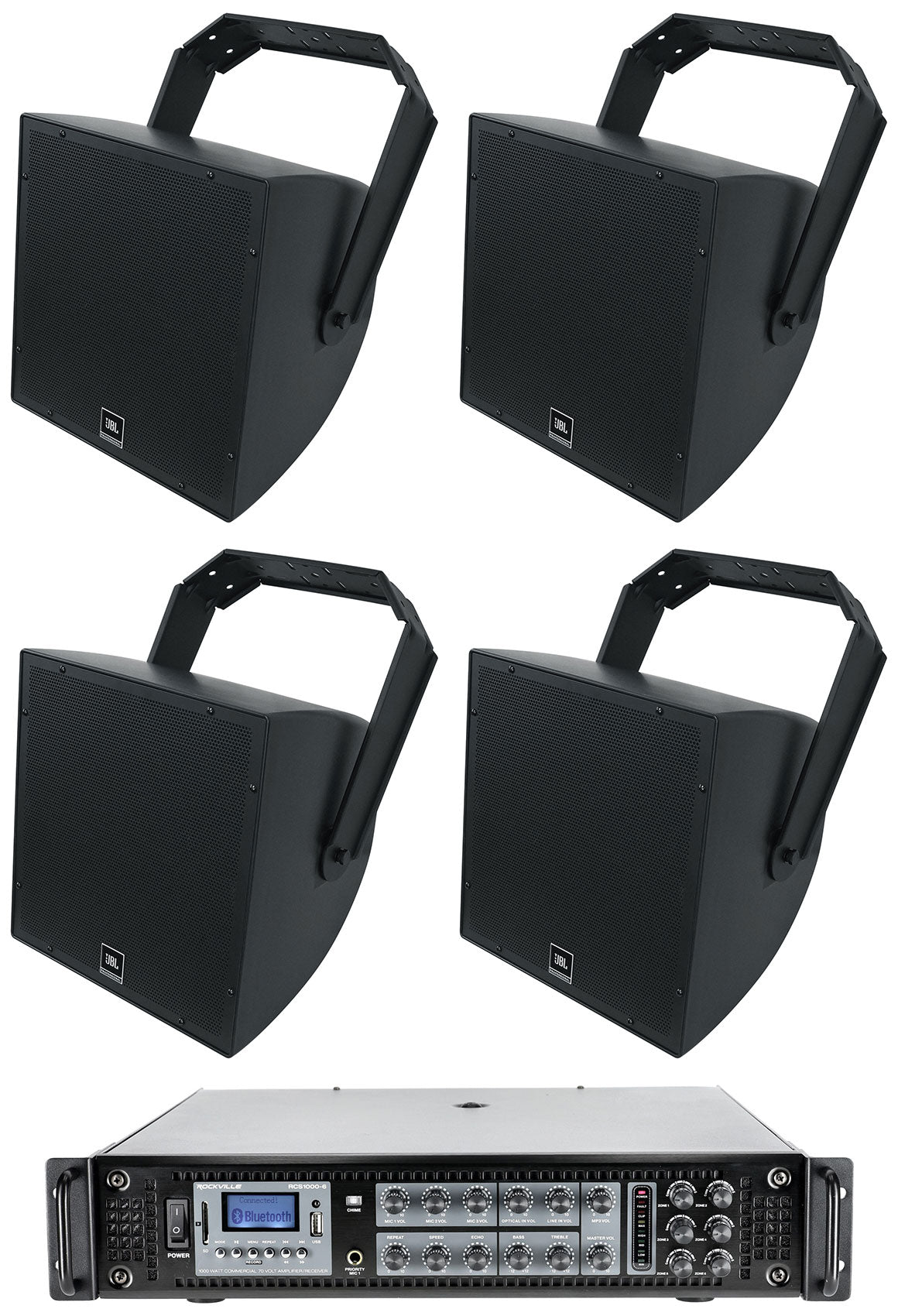

AWC129-BK 12" Outdoor Speakers (4) + RCS1000-6 Amplifier
AWC129-BK 12" Outdoor Speakers (4) + RCS1000-6 Amplifier
IP56 2-Way 70V Speakers, 1000W 6-Zone Bluetooth Amplifier, for Patios, Pools, Stadiums
Features
- Four 12" 2-way coaxial speakers with 400W continuous power handling each
- IP56 weather resistance and powder-coated steel grilles for outdoor installs
- Consistent 90° x 90° coverage for clear speech and music across wide areas
- Included 1000W 6-zone 70V/100V amplifier with up to 300W per zone
- Bluetooth, FM, USB, SD, optical, and 3 mic inputs with echo and chime
Couldn't load pickup availability

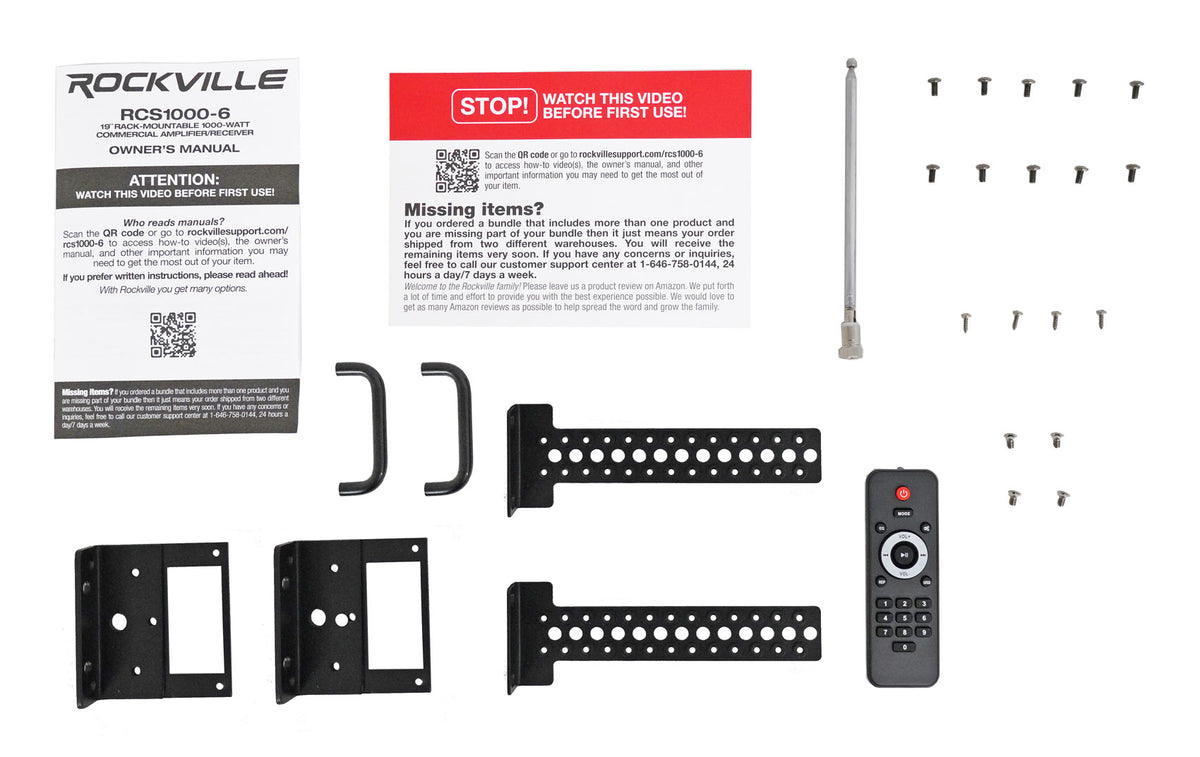

What's Included in the box

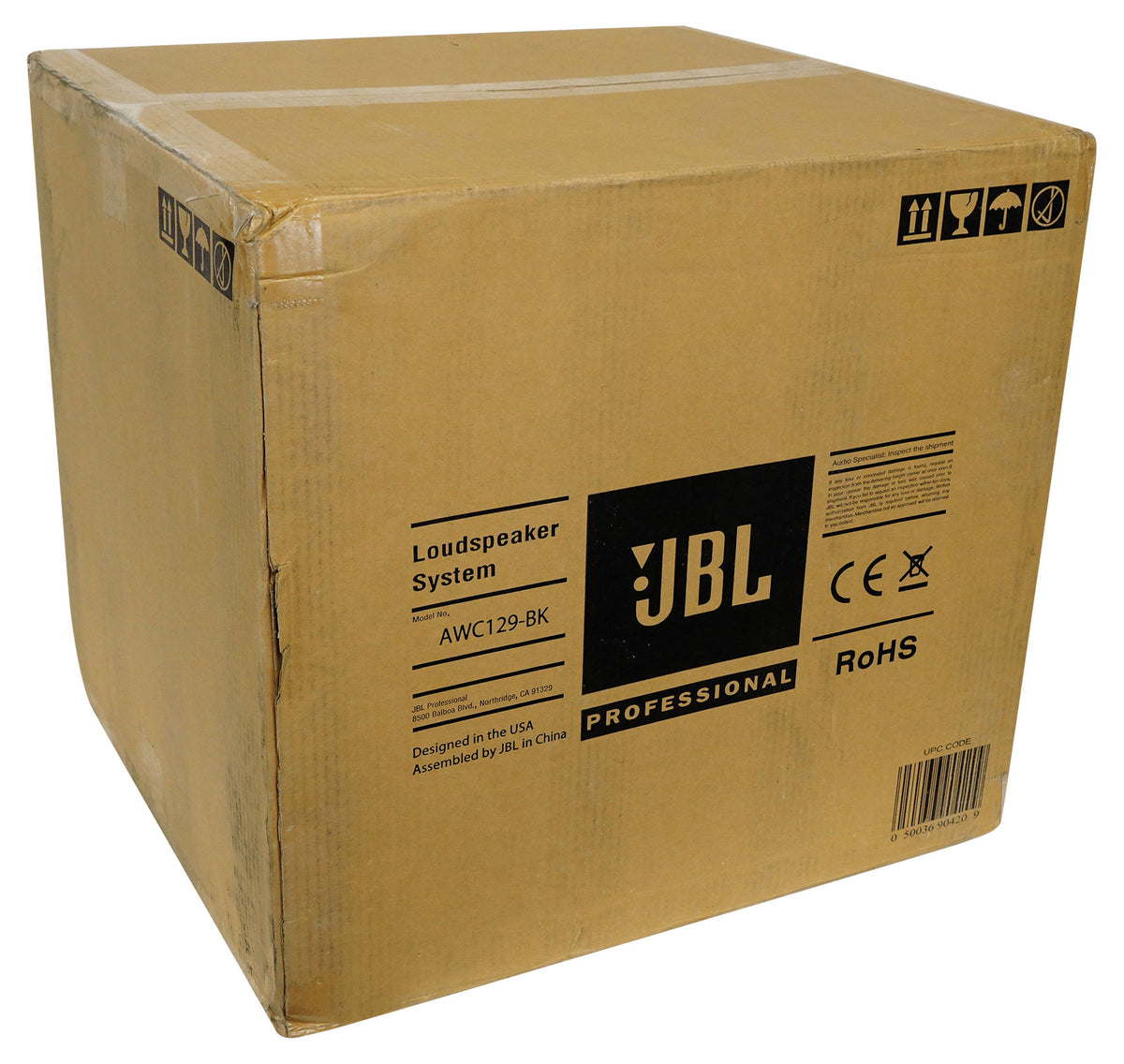

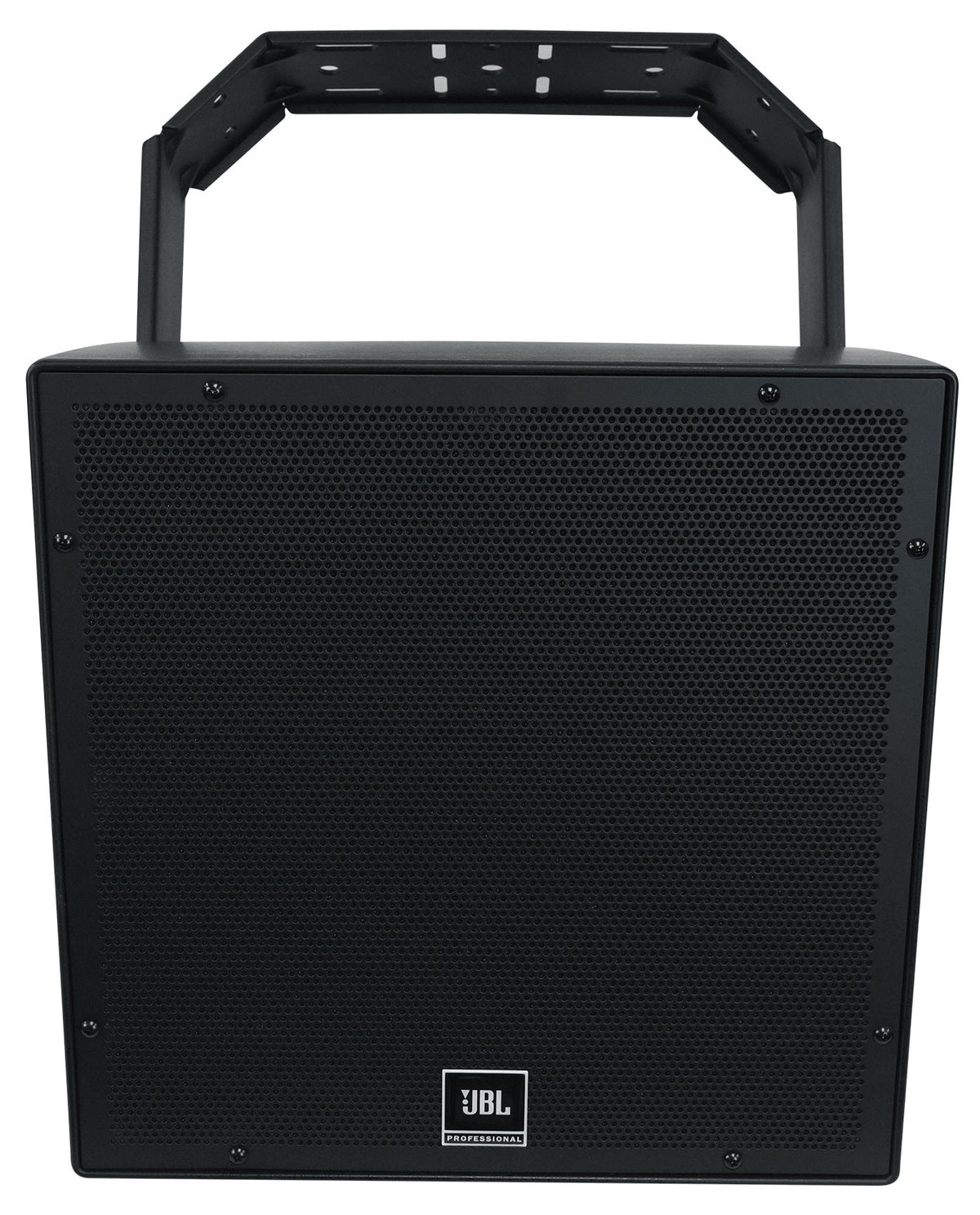

- (4) JBL AWC129-BK 12" 2-Way Indoor/Outdoor Speakers

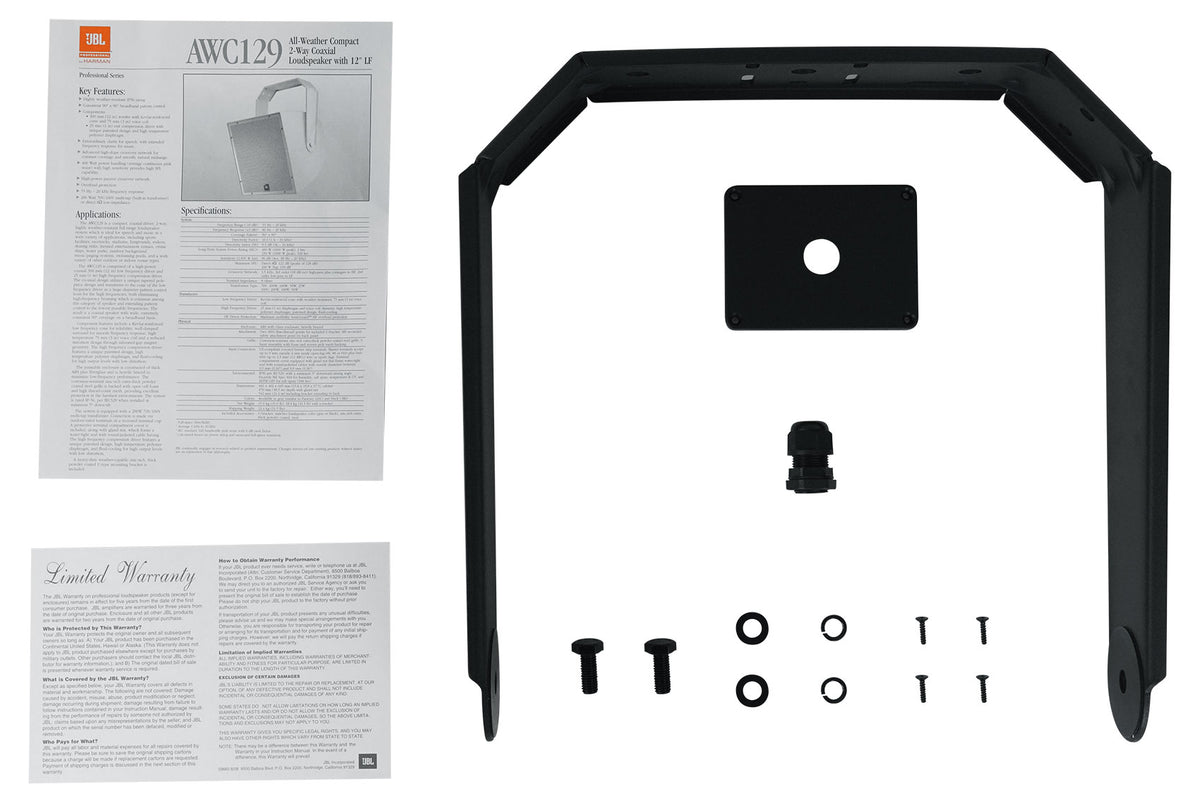

- (4) U-Brackets

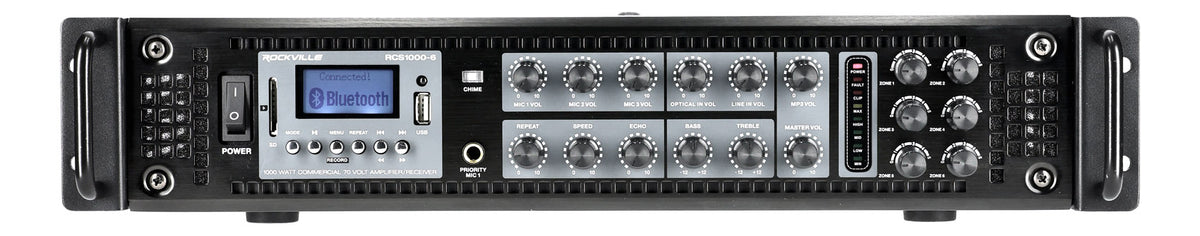

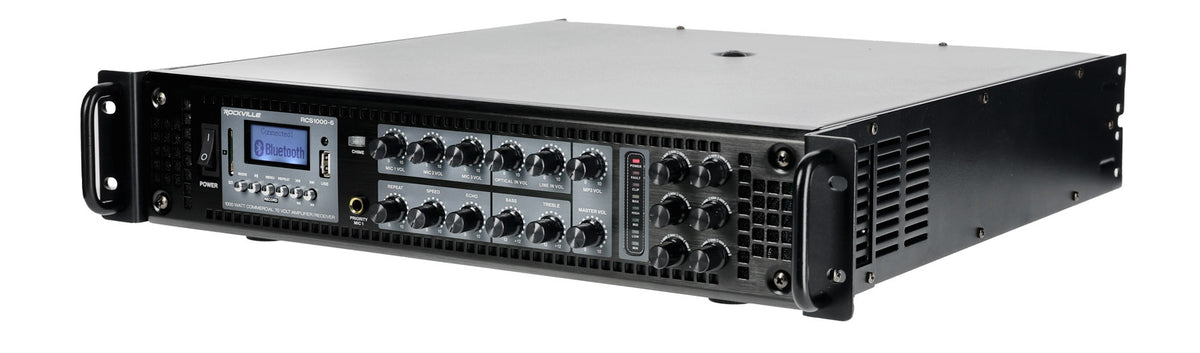

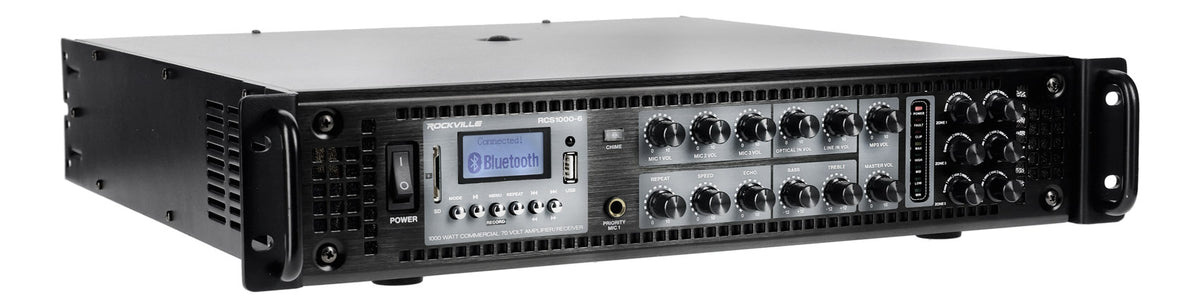

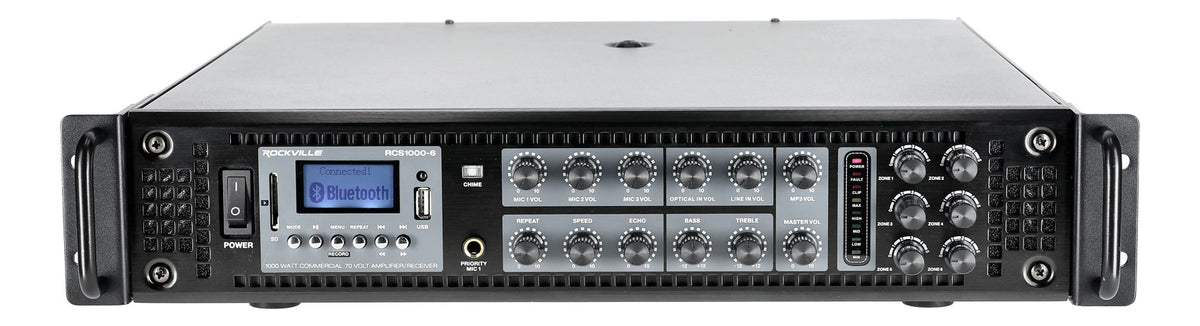

- (1) Rockville RCS1000-6 1000W 6-Zone Amplifier
- (1) Remote
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: (4) AWC129-BK+RCS1000-6
View full details


















Product Description

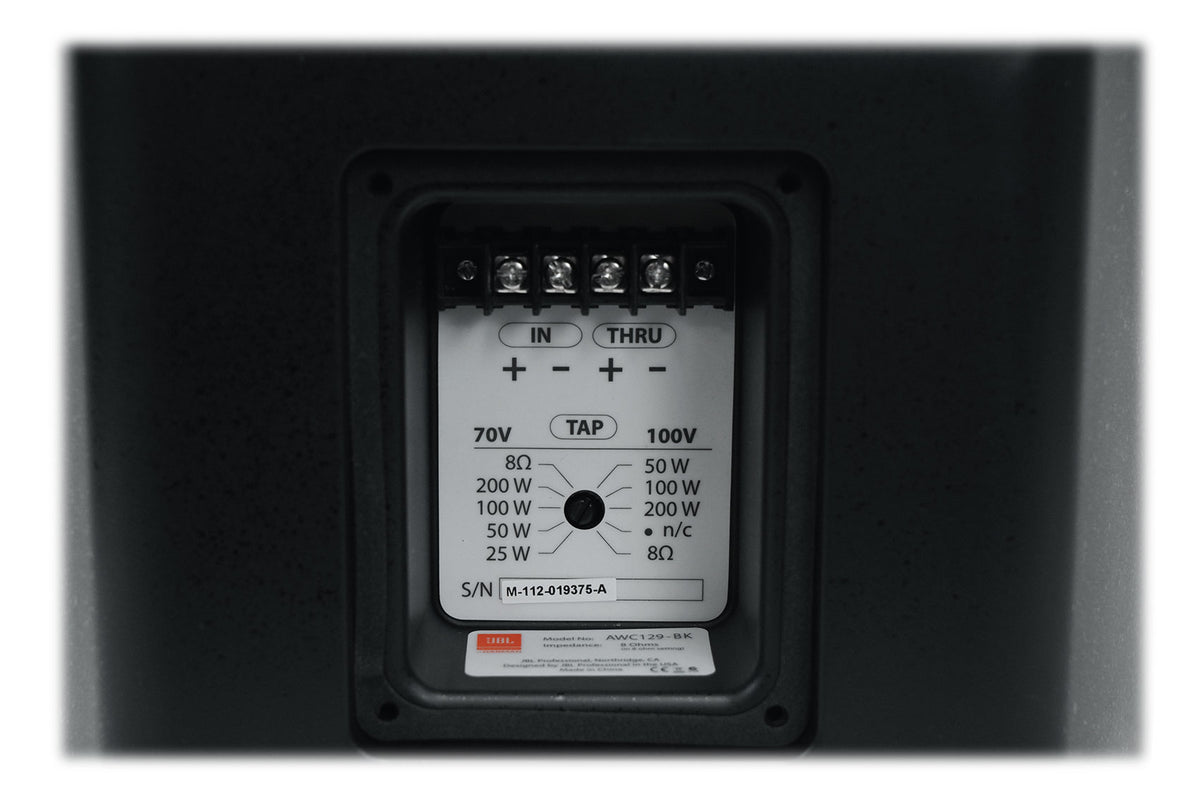

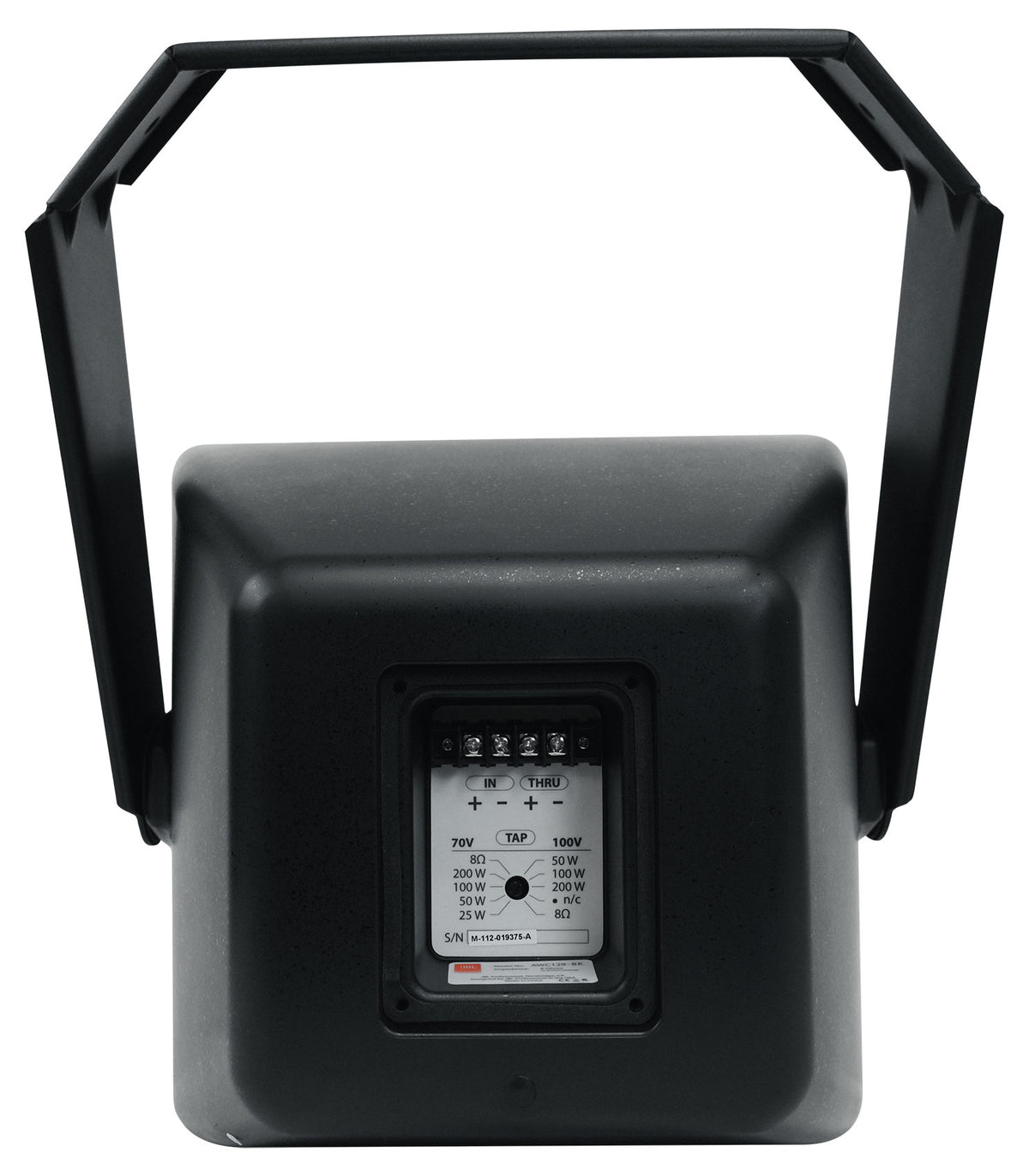

A built-in multi-tap transformer runs each speaker on a 70V or 100V line at 200W, 100W, 50W, or 25W, or direct at 8 ohms, and that is where the included Rockville RCS1000-6 amplifier earns its spot. Its 1000W output splits across six zones with up to 300W each, so four speakers tapped at 200W land at 800W, comfortably under the recommended 900W ceiling, with a separate volume knob for every zone. Bluetooth streaming, FM radio, USB and SD playback, optical and two RCA inputs, plus three mic inputs with echo control and a chime button cover background music and announcements from a single 19" rack unit. You get the speakers and the amplifier you would need to run them in one box, with a U-bracket for each cabinet.
Features

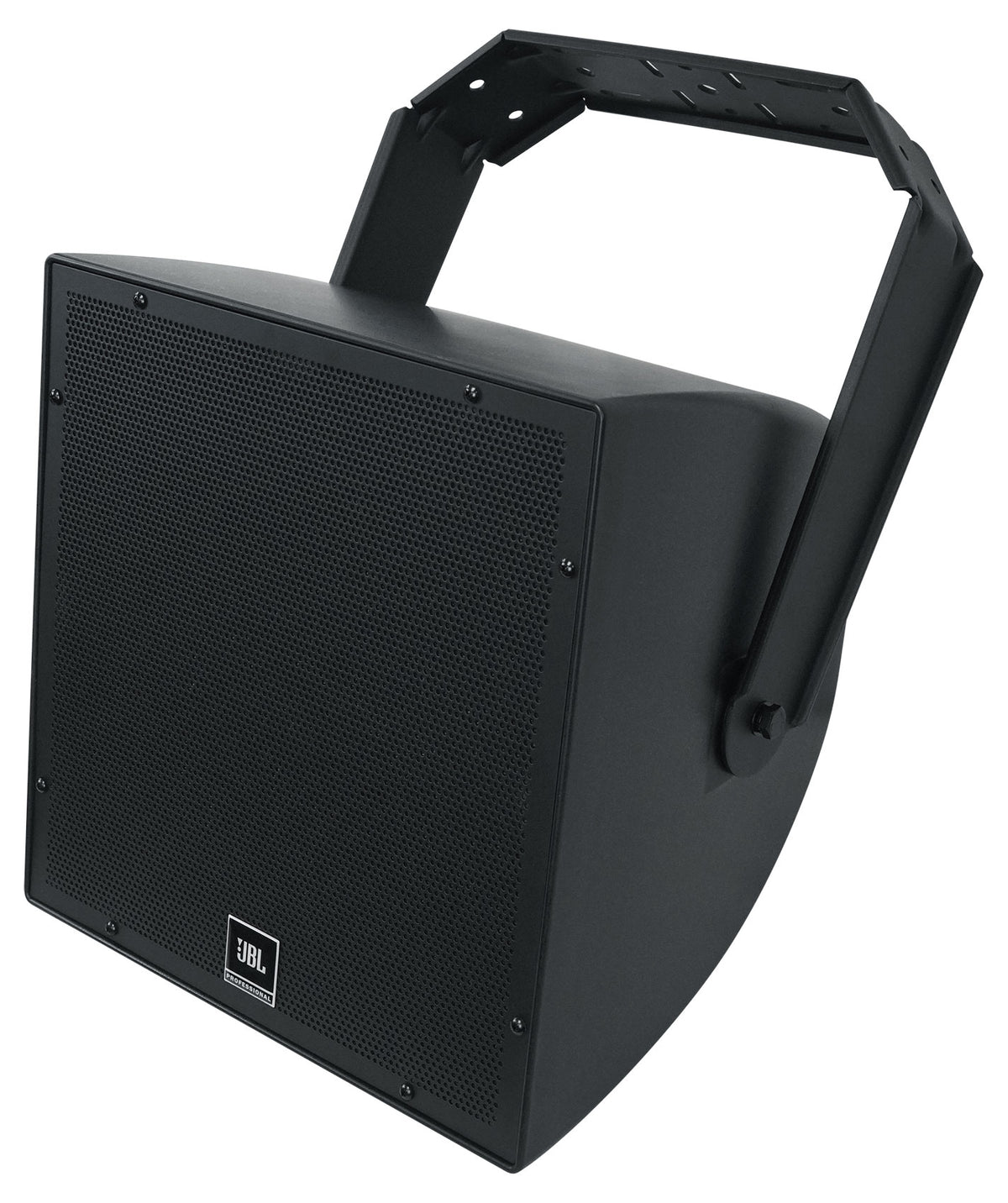

Built To Live Outdoors
An IP56 rating, zinc-rich powder-coated steel grille, and testing beyond Mil Spec 810 for salt spray and UV let these speakers stay on pool decks and patios year-round.
Clear Voice, Full Music

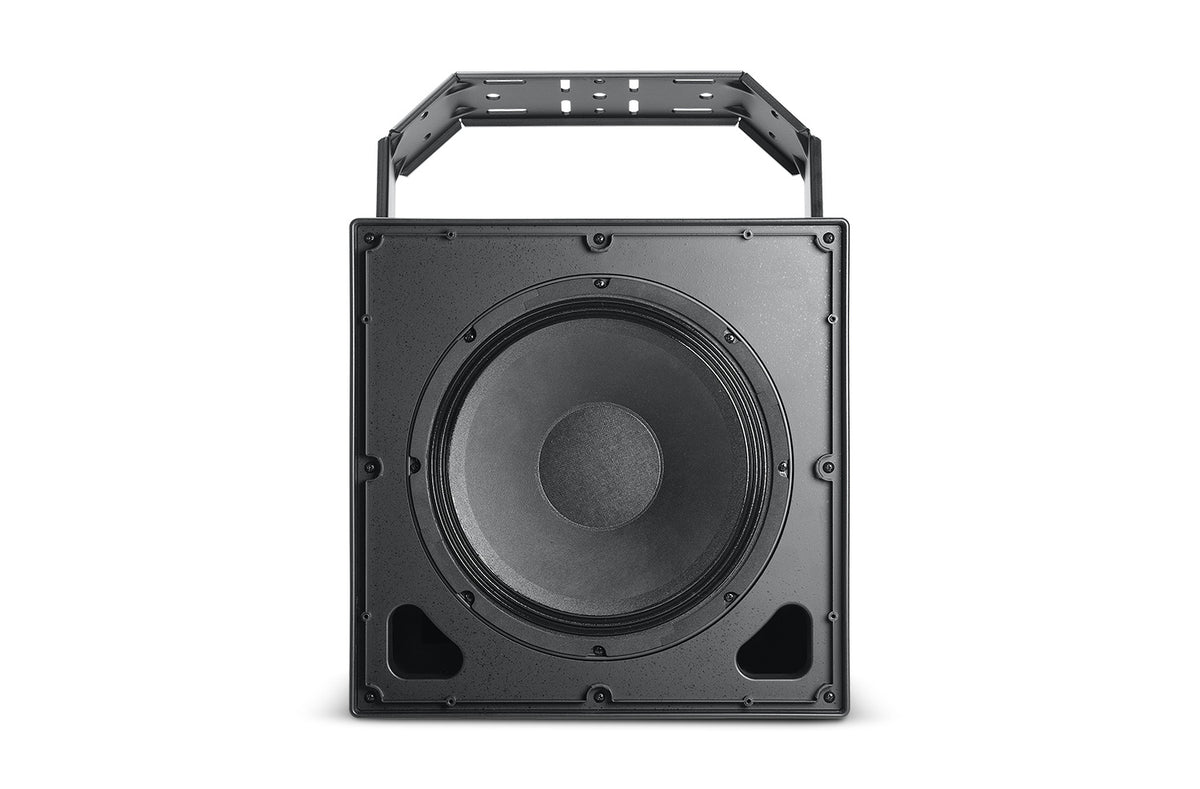

A 12" Kevlar-reinforced woofer and 1" compression driver cover 55 Hz to 20 kHz, keeping announcements intelligible and background music full at stadiums, rinks, and outdoor venues.
Even Coverage Across The Crowd
Consistent 90° x 90° pattern control spreads sound evenly from the front row to the edges, so fewer speakers cover more ground without hot spots or dead zones.
The Amp You Would Need Anyway

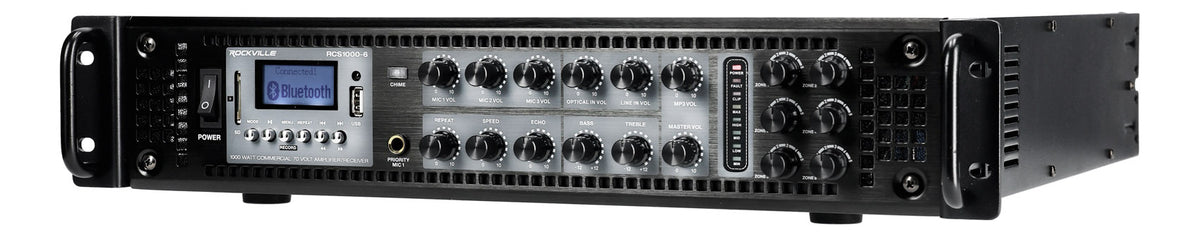

The included Rockville RCS1000-6 splits 1000W across six zones at up to 300W each, so all four speakers tapped at 200W run from one 70V amplifier.
Music And Paging In One Rack
Bluetooth, FM radio, USB, SD, optical, and RCA inputs play background music, while three mic inputs with echo control and a chime button handle paging and announcements.
Technical Specifications
- Product Type 70V Commercial Indoor/Outdoor Speaker System
- Speaker Quantity 4
- Speaker Model JBL AWC129-BK
- Speaker Type 2-Way Coaxial Full-Range
- Woofer 12" (300 mm) Kevlar-Reinforced Cone, 3" Voice Coil
- HF Driver 1" (25 mm) Compression Driver, Polymer Diaphragm
- Speaker Frequency Range (-10 dB) 55 Hz - 20 kHz
- Speaker Frequency Response (±3 dB) 80 Hz - 20 kHz
- Coverage Pattern 90° x 90°
- Speaker Power Rating 400W Continuous (1600W Peak)
- Sensitivity 96 dB (2.83V @ 1m)
- Maximum SPL 122 dB (128 dB Peak)
- Transformer Taps 70V: 200W, 100W, 50W, 25W; 100V: 200W, 100W, 50W
- Nominal Impedance 8 Ohms
- Weather Rating IP56
- Enclosure ABS with Glass, Heavily Braced
- Grille Zinc-Rich Powder-Coated Steel

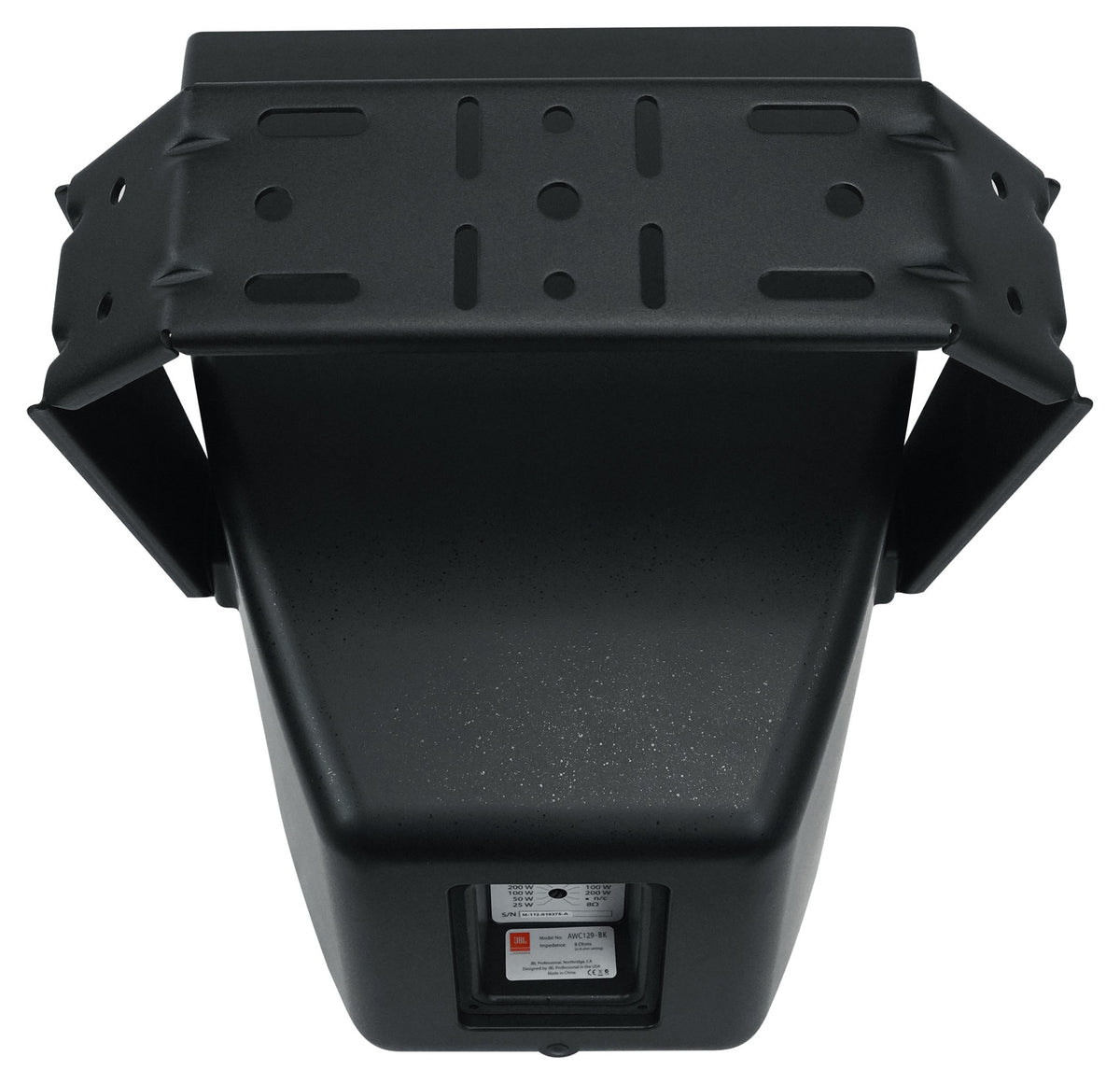

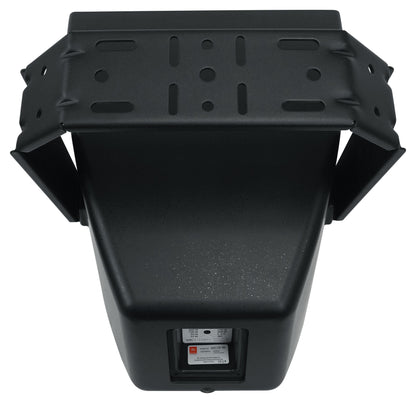

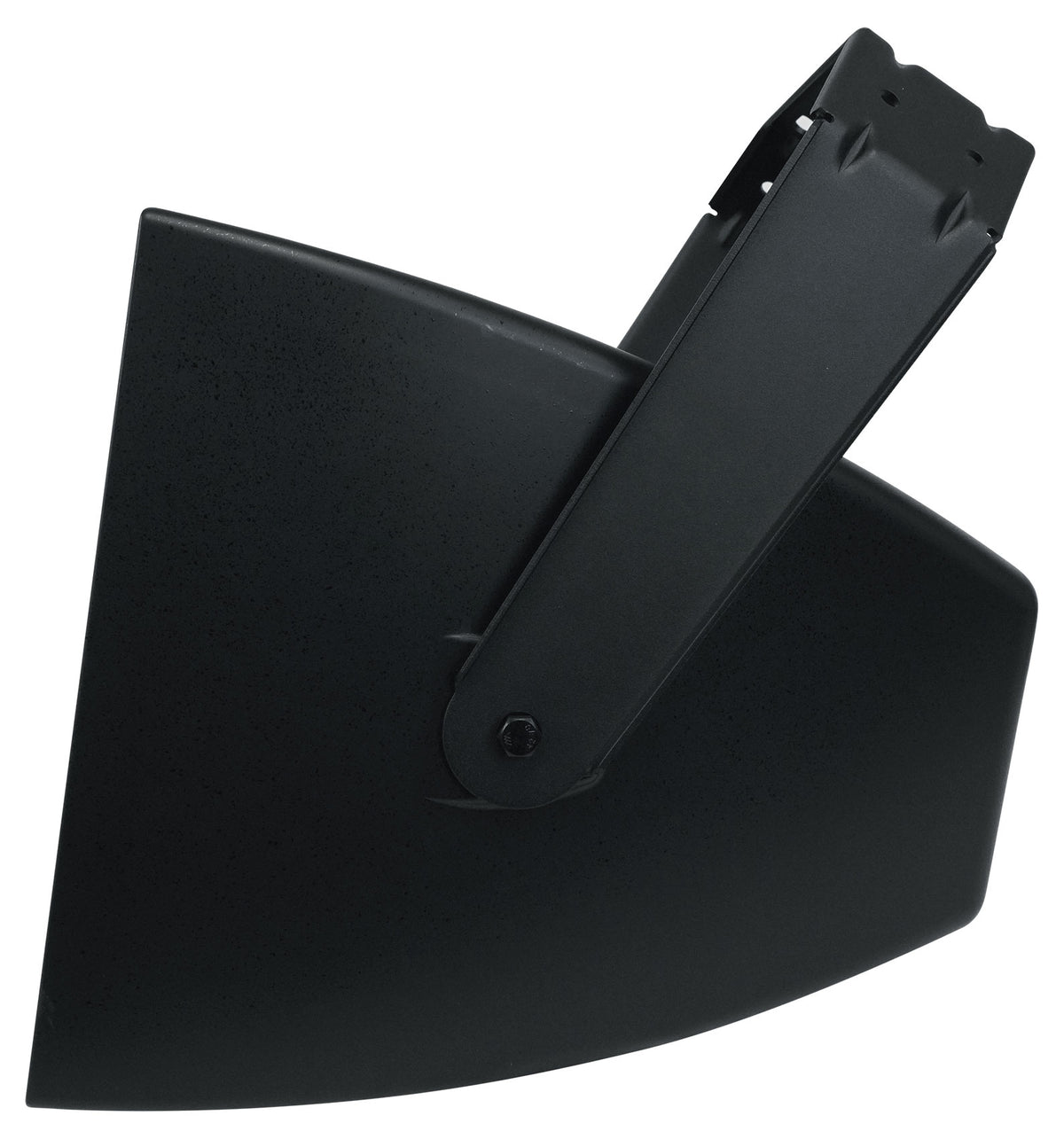

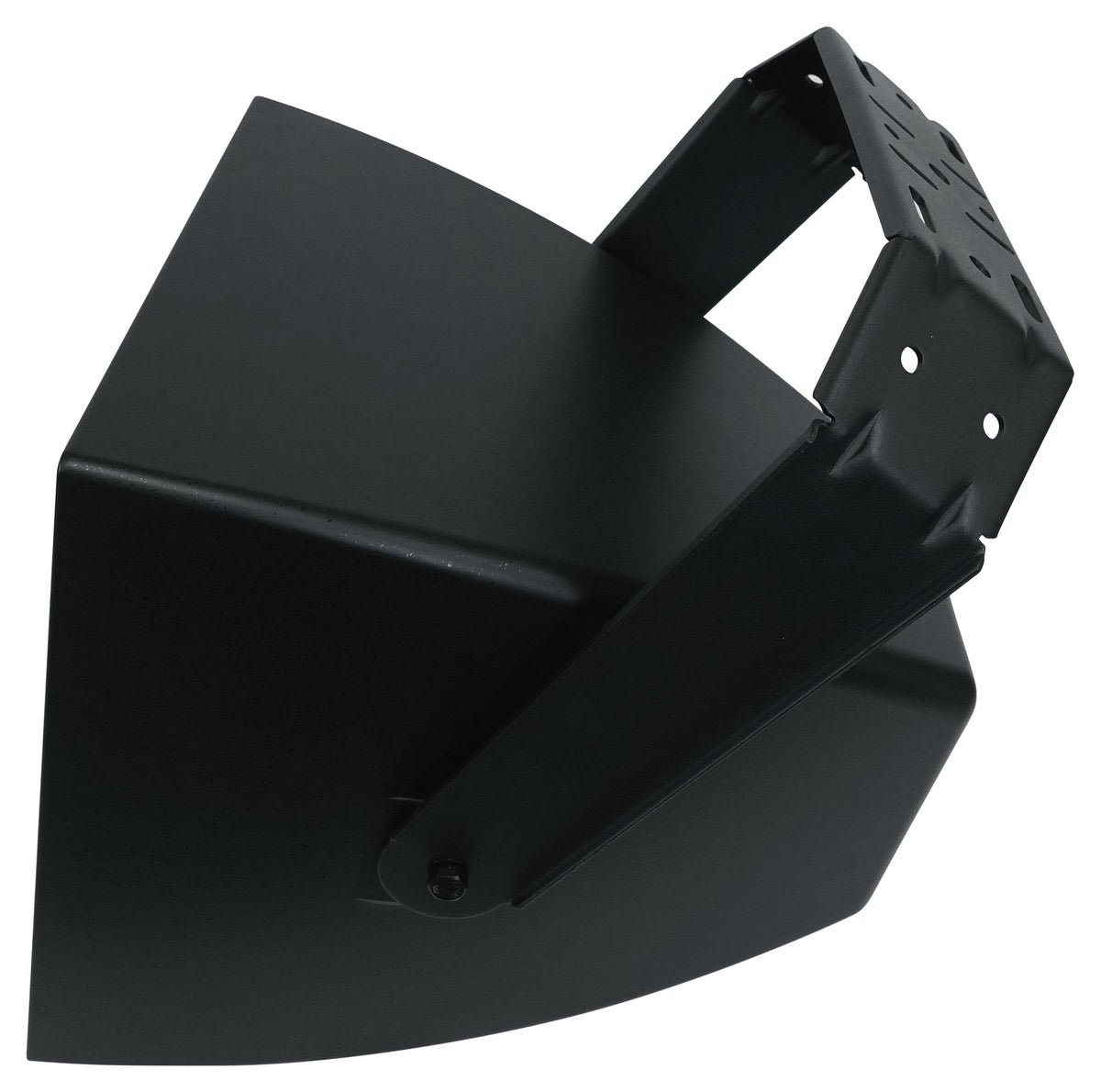

- Speaker Mounting Included U-Bracket, M6 Safety Point

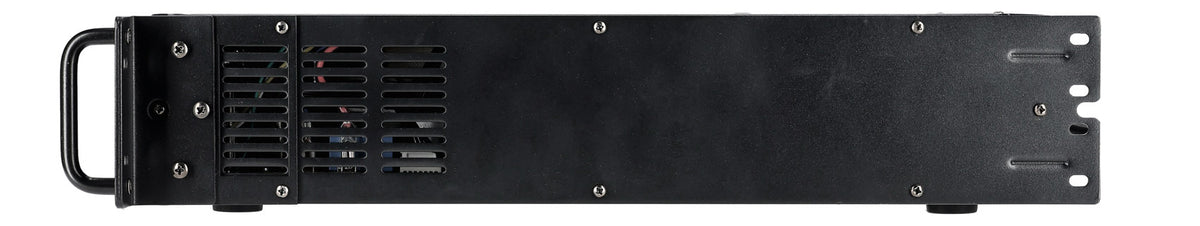

- Amplifier Model Rockville RCS1000-6
- Amplifier Power 1000W RMS at 70V/100V
- Zones 6 (Up to 300W per Zone)

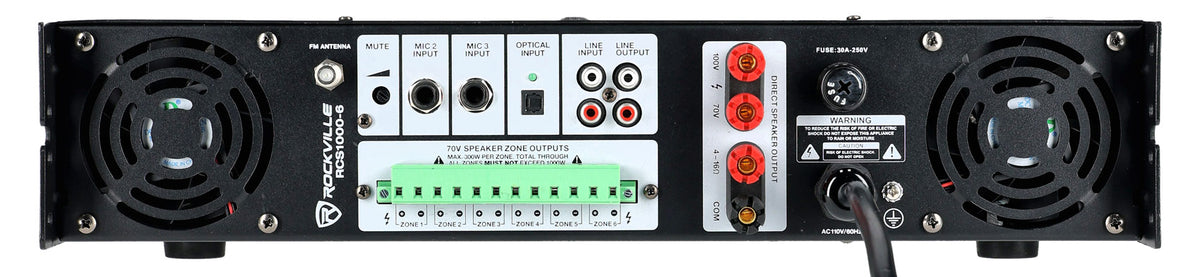

- Amplifier Load Options 70V, 100V, 8 Ohm, 4 Ohm
- Sources Bluetooth, FM Radio, USB (32GB Max), SD Card (32GB Max)
- Inputs (3) Mic, (2) RCA Aux, Optical
- Outputs RCA Line Out, 70V, 100V, 8 Ohm Speaker Terminals
- Amplifier Frequency Response 40 Hz - 24 kHz
- Rack Size 19" Rack Mountable
- Power Requirements 120V, 50/60 Hz
- Weight Speaker: 35.0 lb Each (41.5 lb with U-Bracket); Amplifier: 45.8 lb
- Dimensions Speaker: 15.8" x 15.8" x 17.5"; Amplifier: 19" x 18.1" x 4"
