AWC129 12" Outdoor Speakers (4) + RCS1000-6 Amplifier
JBL
AWC129 12" Outdoor Speakers (4) + RCS1000-6 Amplifier
AWC129 12" Outdoor Speakers (4) + RCS1000-6 Amplifier
Gray IP56 2-Way 70V Speakers, 1000W 6-Zone Bluetooth Amplifier, for Pools, Patios, Stadiums
Features
- Four gray 12" 2-way coaxial speakers rated for 400W continuous power each
- IP56 rating and zinc-rich powder-coated steel grilles hold up to outdoor installs
- 90° x 90° coverage spreads clear speech and music evenly across wide areas
- Included 1000W 6-zone 70V/100V amplifier delivers up to 300W per zone
- Bluetooth, FM, USB, SD, optical, and 3 mic inputs with echo and a chime button
Couldn't load pickup availability

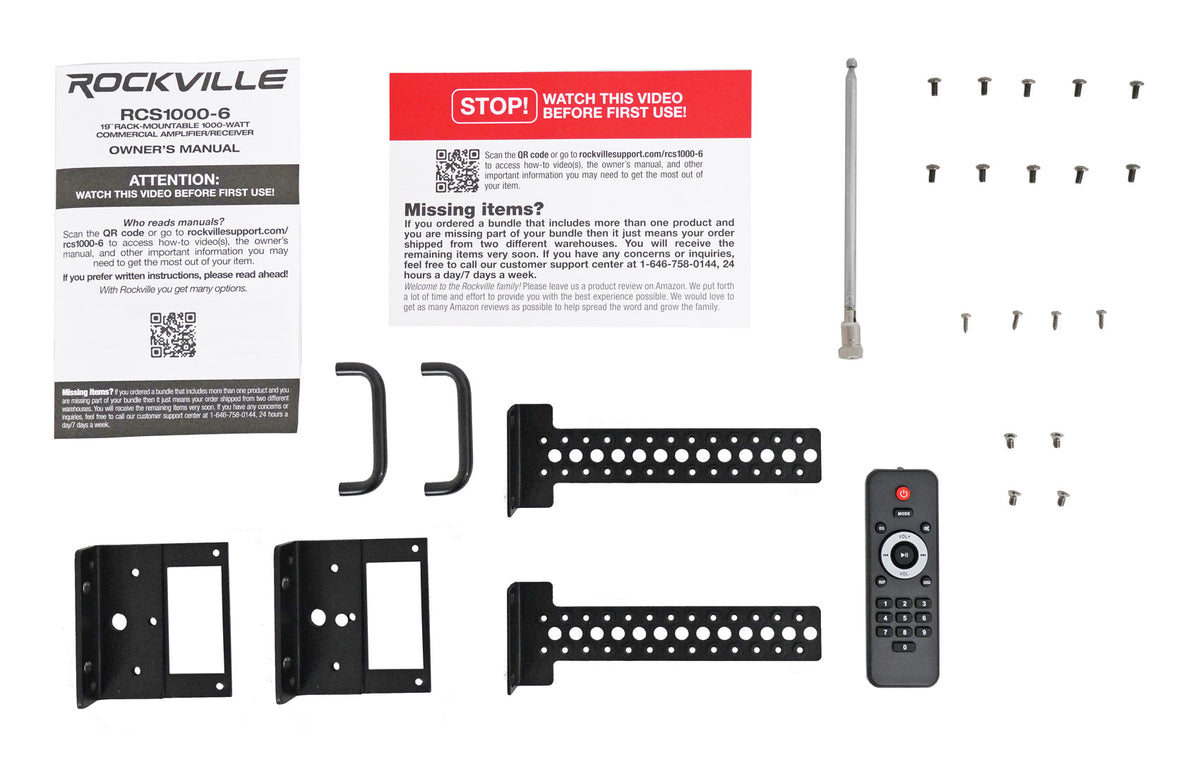

What's Included in the box

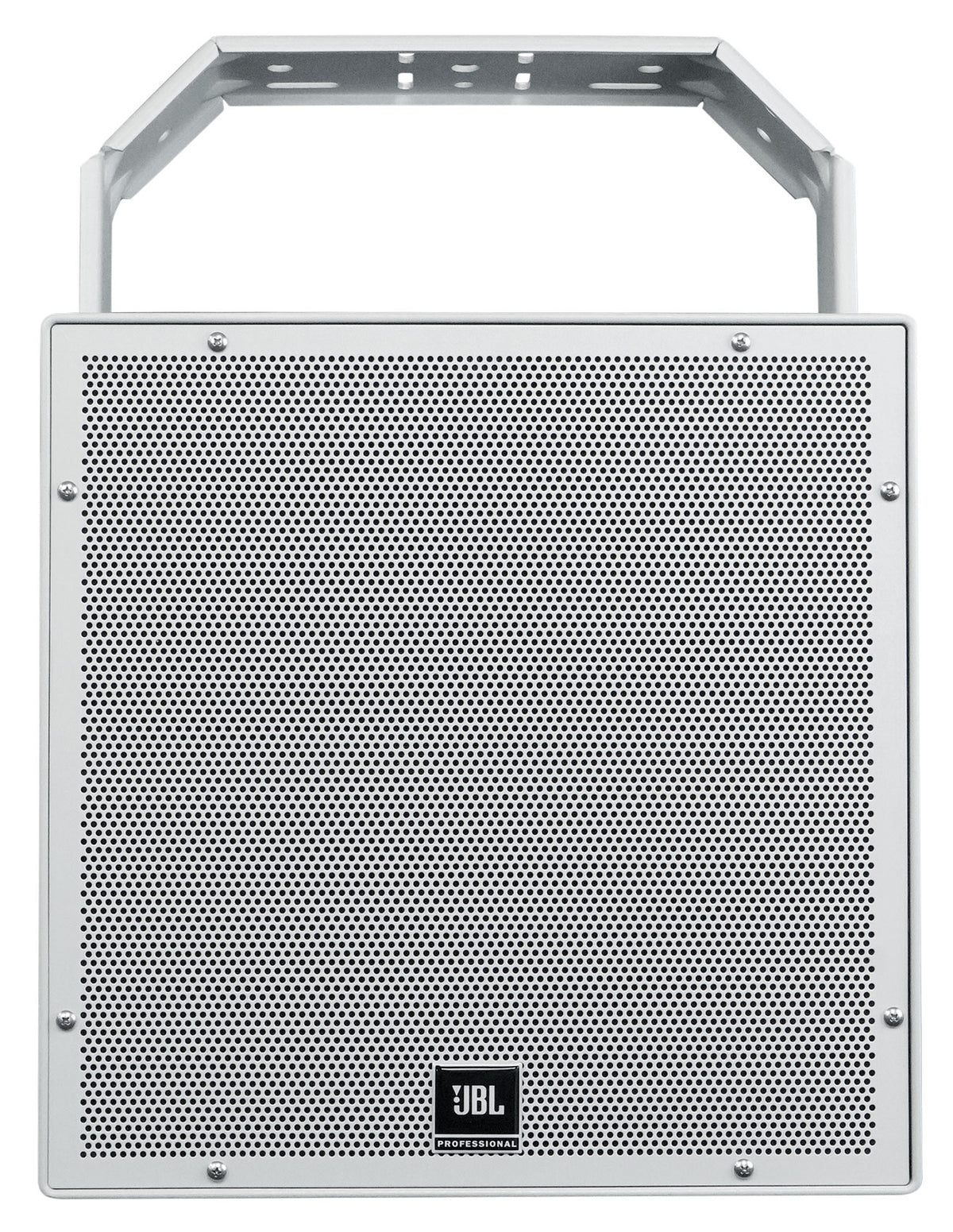

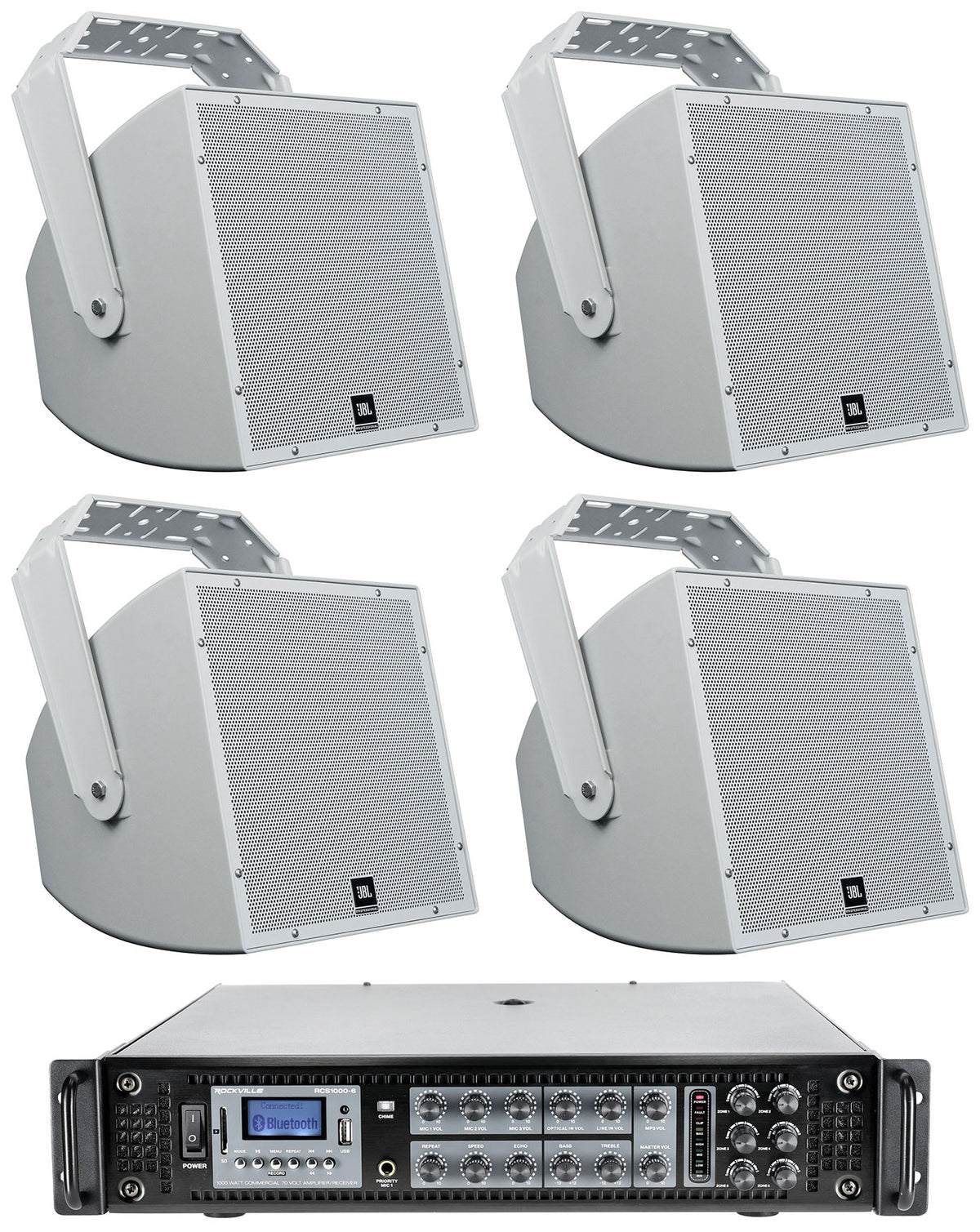

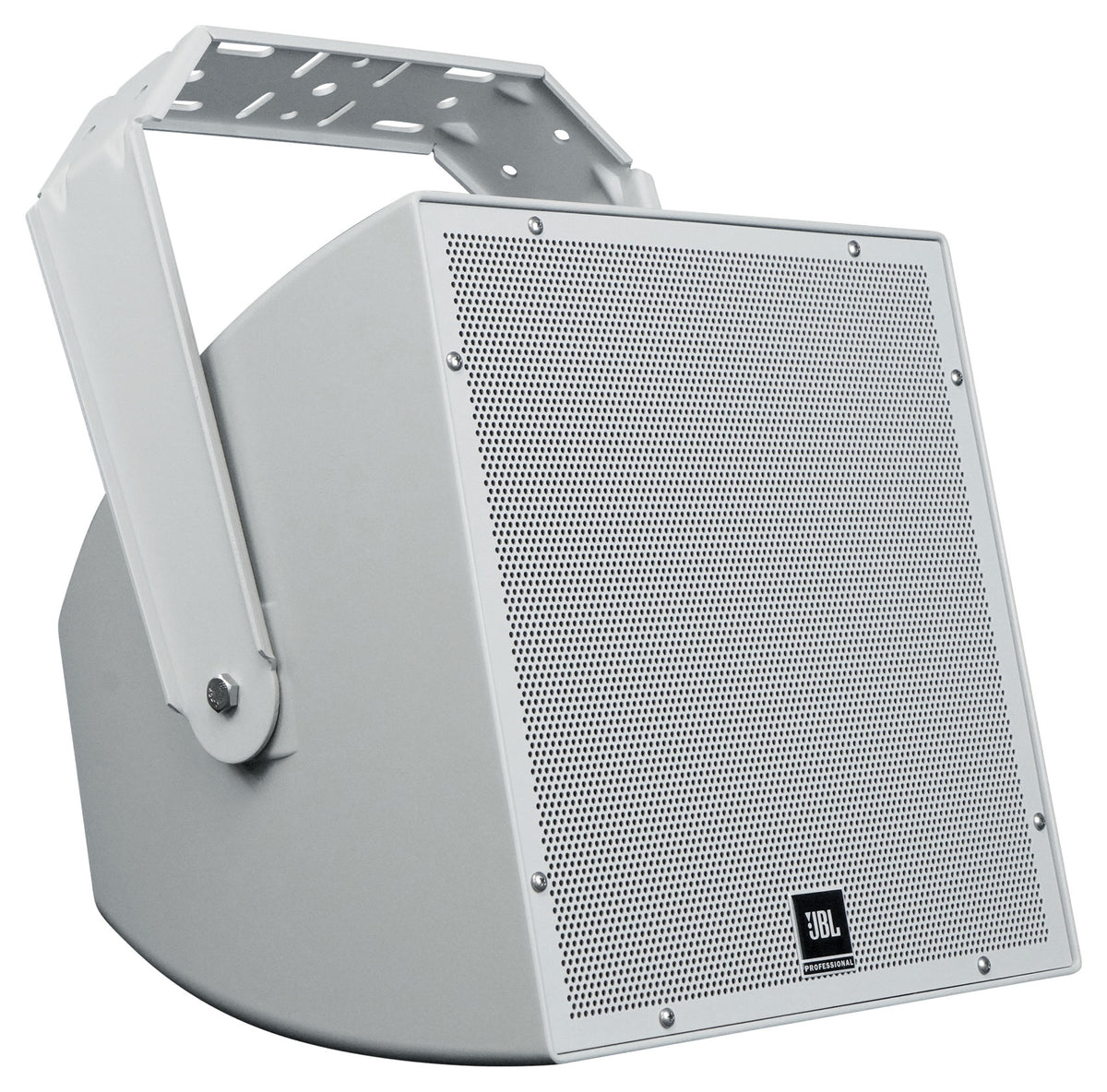

- (4) JBL AWC129 12" 2-Way Indoor/Outdoor Speakers (Gray)

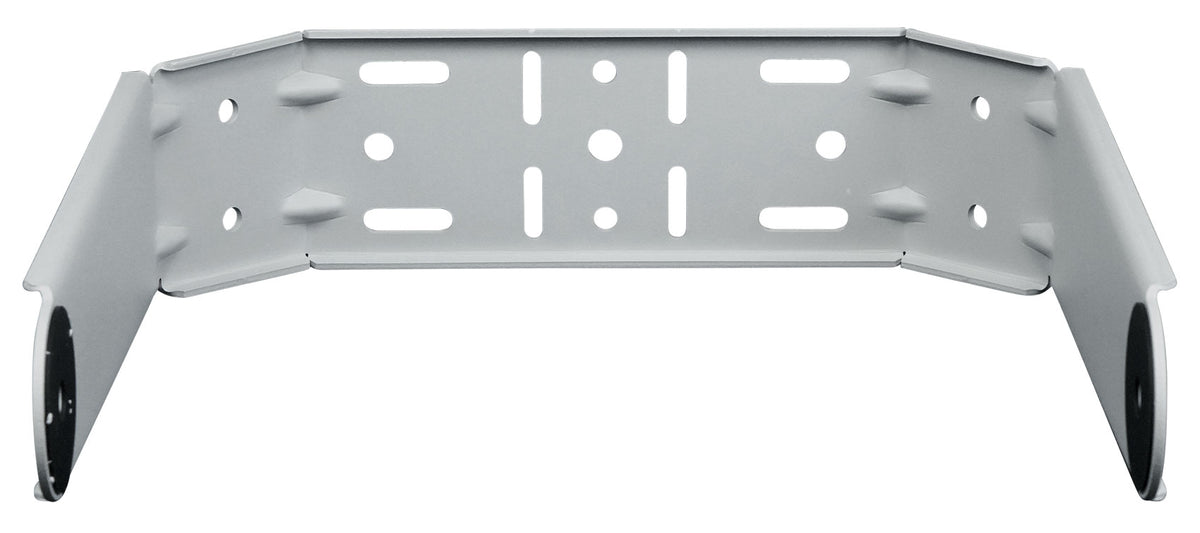

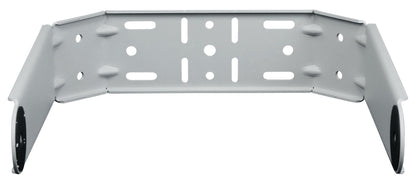

- (4) U-Brackets

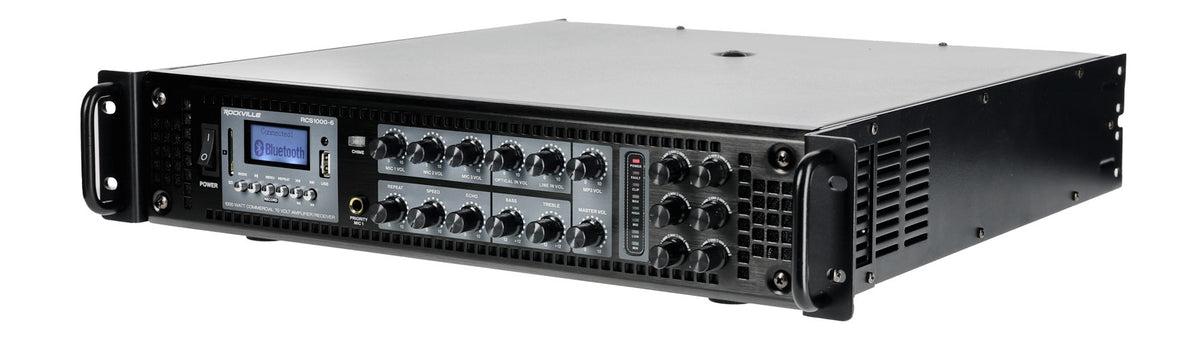

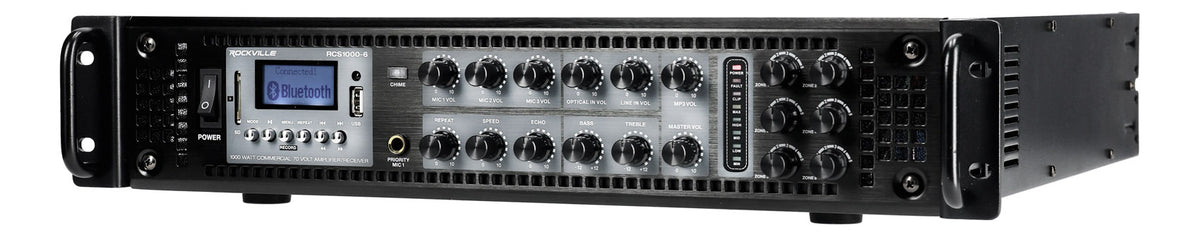

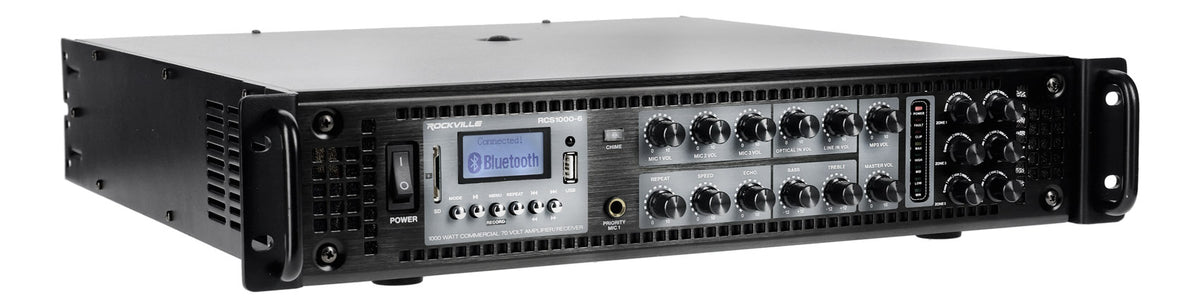

- (1) Rockville RCS1000-6 1000W 6-Zone Amplifier
- (1) Remote
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: (4) AWC129+RCS1000-6
View full details



















Product Description

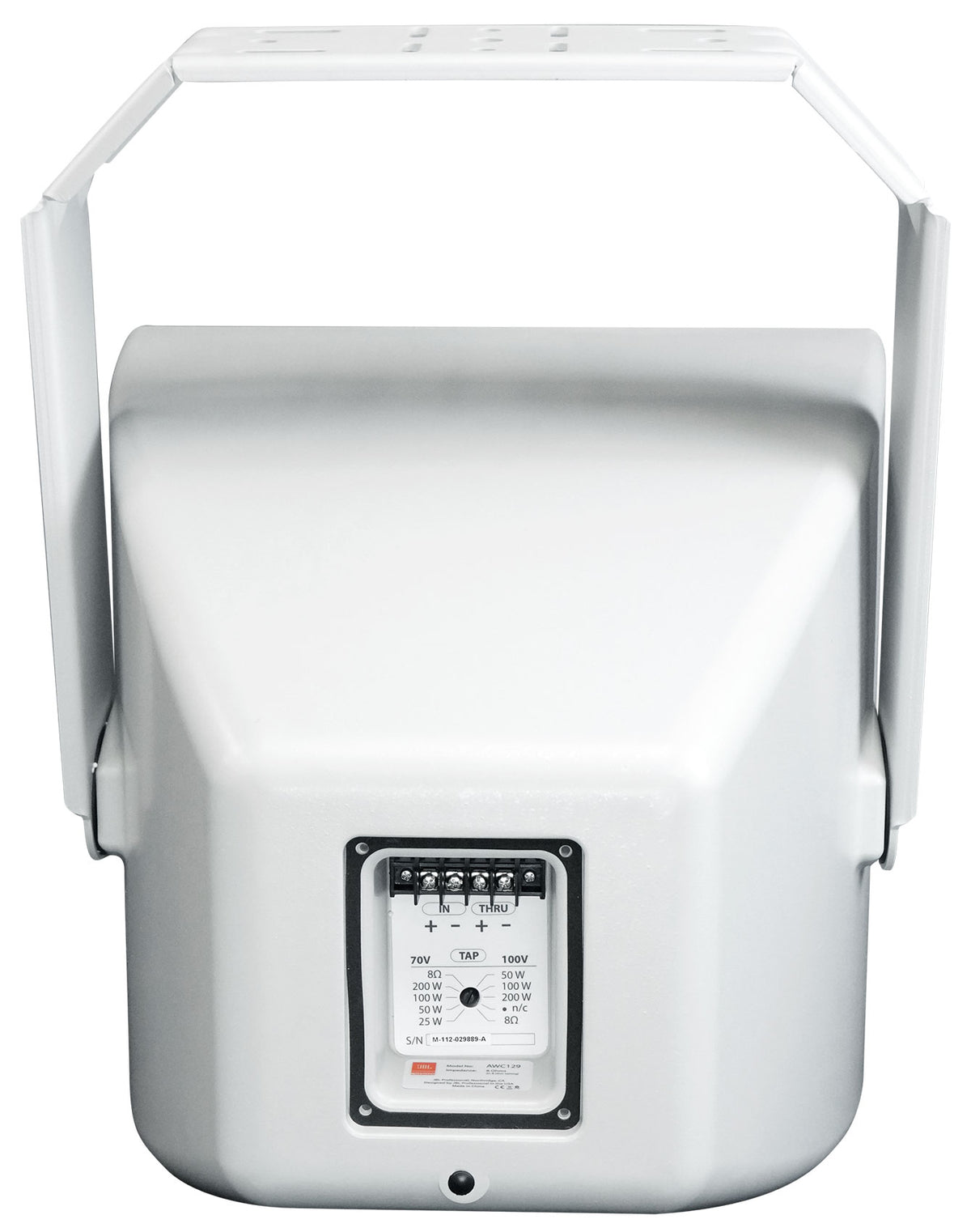

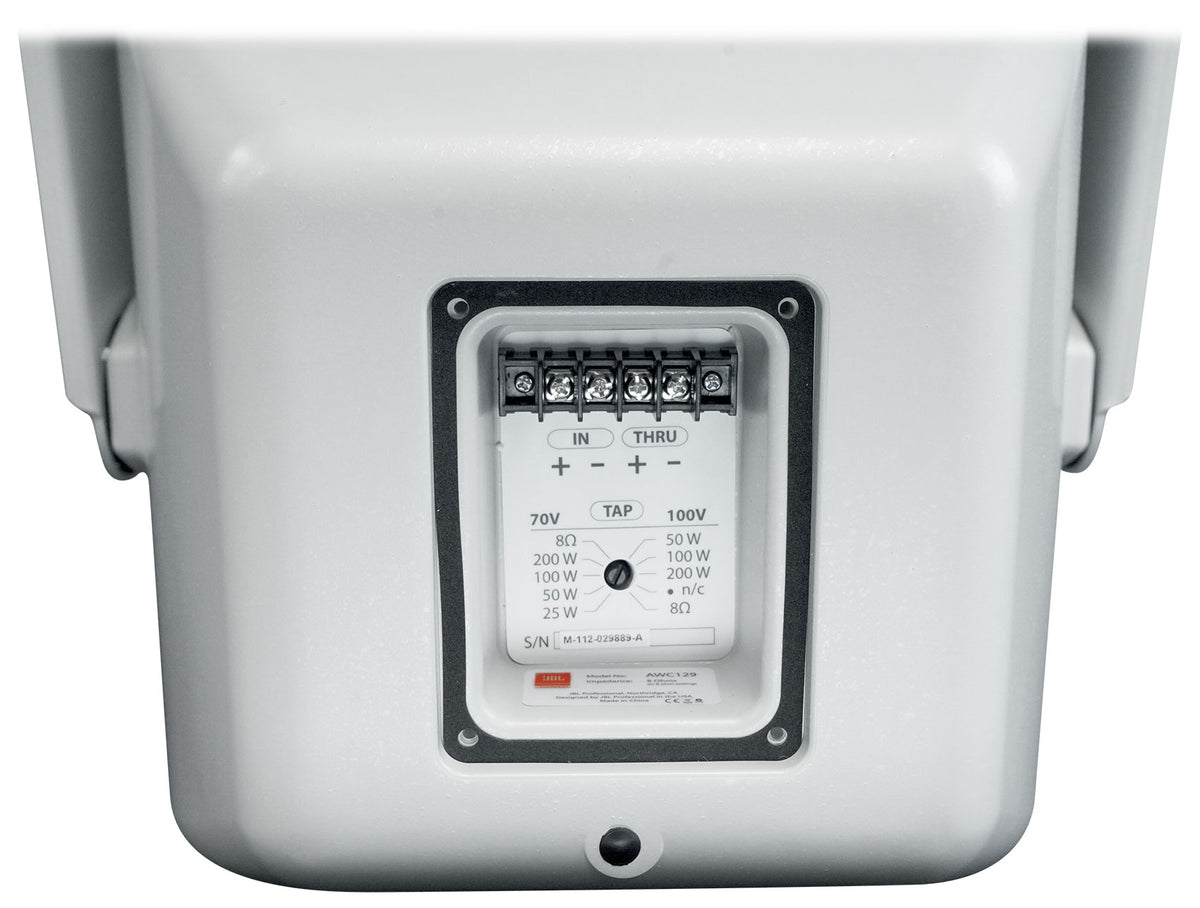

Every AWC129 has a built-in multi-tap transformer for 70V or 100V lines at 200W, 100W, 50W, or 25W, plus direct 8 ohm operation. The included Rockville RCS1000-6 amplifier is what puts that to work out of the box. Its 1000W output splits across six zones at up to 300W each, so all four speakers tapped at 200W total 800W, under the recommended 900W limit, and each zone gets its own volume knob. Sources include Bluetooth, FM radio, USB and SD playback, optical, and two RCA inputs, while three mic inputs with echo control and a chime button handle paging and event announcements from the same 19" rack unit. A U-bracket comes with each speaker, so the full system arrives ready to mount, wire, and run.
Features
Made For Year-Round Outdoor Use
IP56 weather resistance, a zinc-rich powder-coated steel grille, and testing beyond Mil Spec 810 for salt spray and UV keep these speakers working on pool decks and patios.
Announcements That Cut Through
A 12" Kevlar-reinforced woofer and 1" compression driver cover 55 Hz to 20 kHz, so paging stays intelligible and background music sounds full at rinks, tracks, and stadiums.
Consistent Coverage Edge To Edge
The 90° x 90° pattern spreads sound evenly from the front row to the far seats, letting four speakers cover more ground without hot spots or dead zones.
Amplifier Included, Ready To Wire

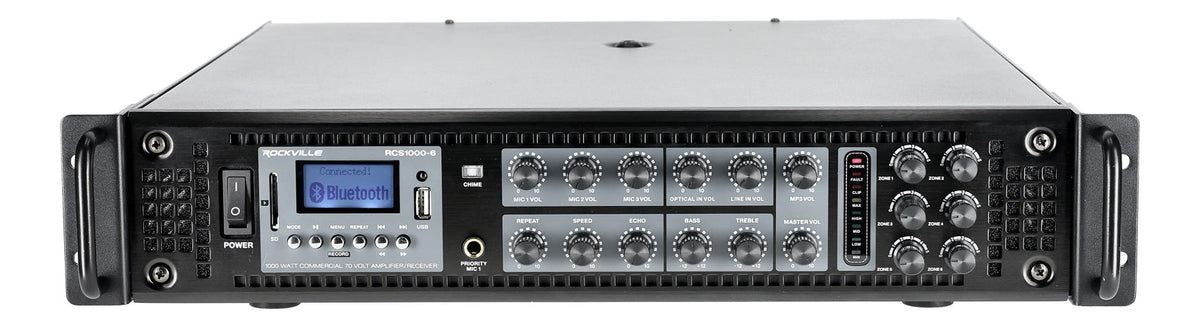

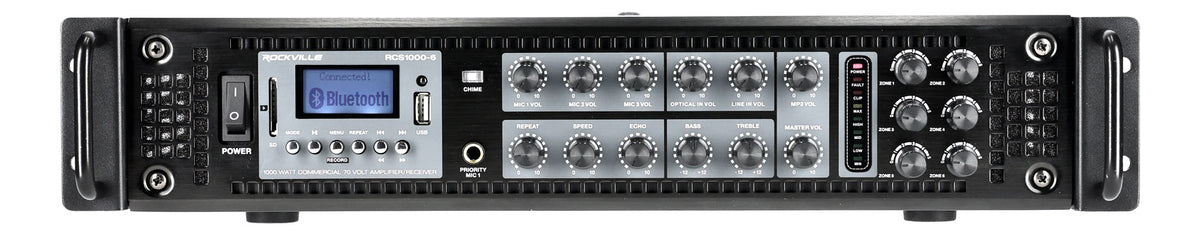

The Rockville RCS1000-6 splits 1000W across six zones at up to 300W each, so all four speakers tapped at 200W run from a single 70V amplifier.
Music And Paging From One Rack
Bluetooth, FM radio, USB, SD, optical, and RCA inputs handle background music, while three mic inputs with echo control and a chime button cover announcements.
Technical Specifications
- Product Type 70V Commercial Indoor/Outdoor Speaker System
- Speaker Quantity 4
- Speaker Model JBL AWC129
- Speaker Color Gray
- Speaker Type 2-Way Coaxial Full-Range
- Woofer 12" (300 mm) Kevlar-Reinforced Cone, 3" Voice Coil
- HF Driver 1" (25 mm) Compression Driver, Polymer Diaphragm
- Speaker Frequency Range (-10 dB) 55 Hz - 20 kHz
- Speaker Frequency Response (±3 dB) 80 Hz - 20 kHz
- Coverage Pattern 90° x 90°
- Speaker Power Rating 400W Continuous (1600W Peak)
- Sensitivity 96 dB (2.83V @ 1m)
- Maximum SPL 122 dB (128 dB Peak)
- Transformer Taps 70V: 200W, 100W, 50W, 25W; 100V: 200W, 100W, 50W
- Nominal Impedance 8 Ohms
- Weather Rating IP56
- Enclosure ABS with Glass, Heavily Braced
- Grille Zinc-Rich Powder-Coated Steel

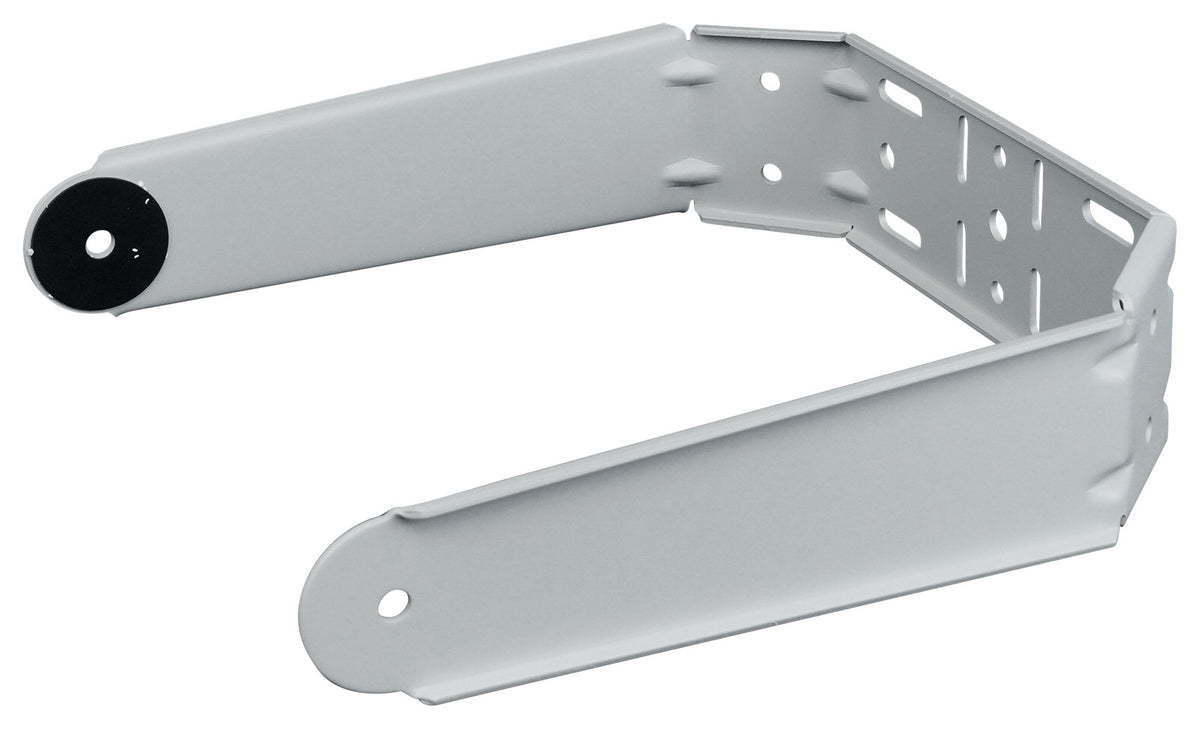

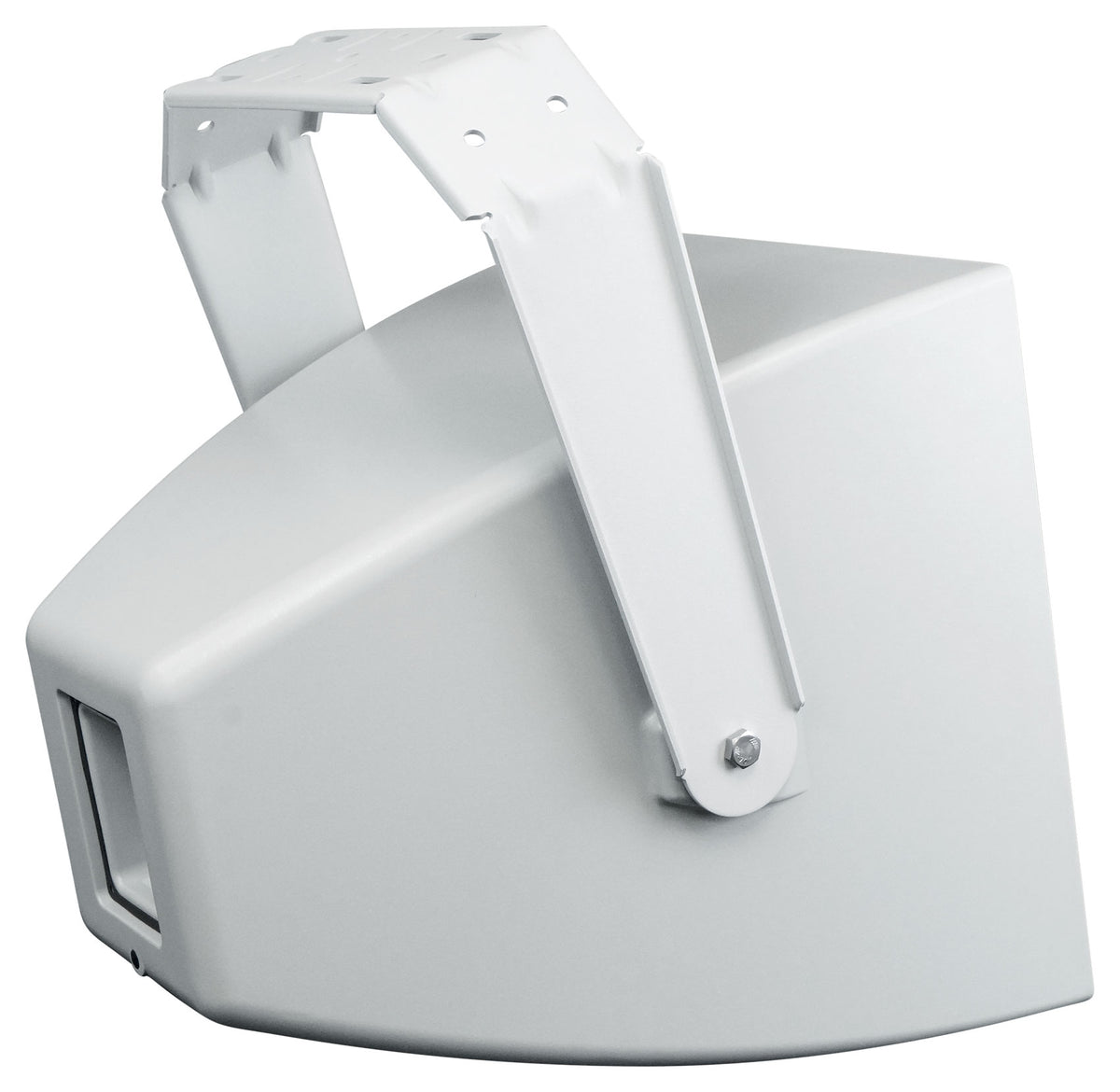

- Speaker Mounting Included U-Bracket, M6 Safety Point
- Amplifier Model Rockville RCS1000-6
- Amplifier Power 1000W RMS at 70V/100V
- Zones 6 (Up to 300W per Zone)
- Amplifier Load Options 70V, 100V, 8 Ohm, 4 Ohm
- Sources Bluetooth, FM Radio, USB (32GB Max), SD Card (32GB Max)

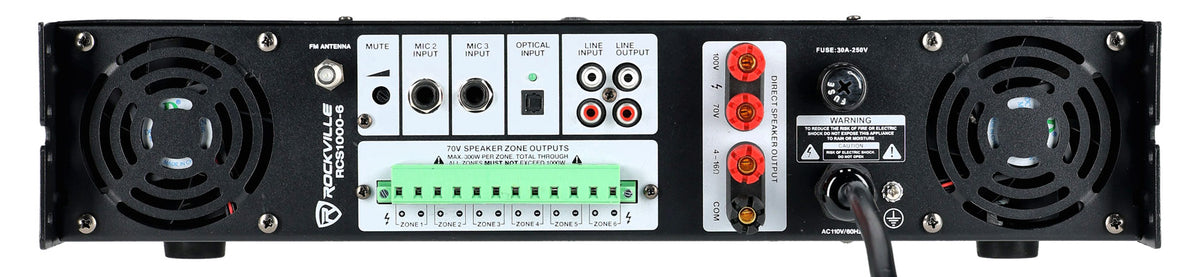

- Inputs (3) Mic, (2) RCA Aux, Optical
- Outputs RCA Line Out, 70V, 100V, 8 Ohm Speaker Terminals
- Amplifier Frequency Response 40 Hz - 24 kHz

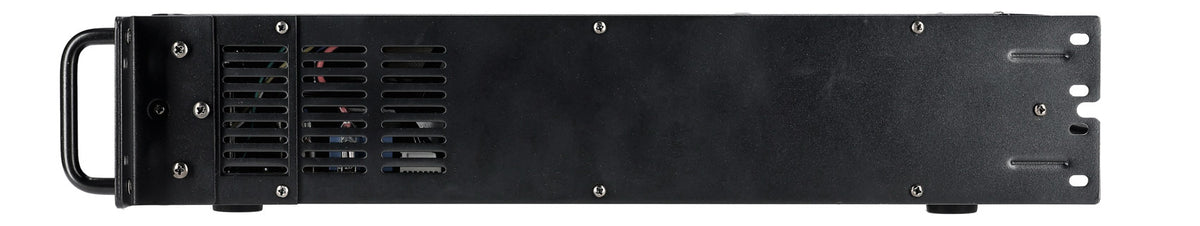

- Rack Size 19" Rack Mountable
- Power Requirements 120V, 50/60 Hz
- Weight Speaker: 35.0 lb Each (41.5 lb with U-Bracket); Amplifier: 45.8 lb
- Dimensions Speaker: 15.8" x 15.8" x 17.5"; Amplifier: 19" x 18.1" x 4"
