AWC82 8" Outdoor Speakers (4) + RCS1000-6 Amplifier
JBL
AWC82 8" Outdoor Speakers (4) + RCS1000-6 Amplifier
AWC82 8" Outdoor Speakers (4) + RCS1000-6 Amplifier
IP56 8" 2-Way 70V Speakers, 1000W 6-Zone Bluetooth Amplifier, for Patios, Pools, Restaurants
Free Shipping
Features
- Four 8" 2-way coaxial speakers with 250W power handling each
- IP56 weather resistance and powder-coated steel grilles for outdoor installs
- Wide 120° x 120° coverage spreads speech and music evenly across seating areas
- Included 1000W 6-zone 70V/100V amplifier with up to 300W per zone
- Bluetooth, FM, USB, SD, optical, and 3 mic inputs with echo and chime
Couldn't load pickup availability

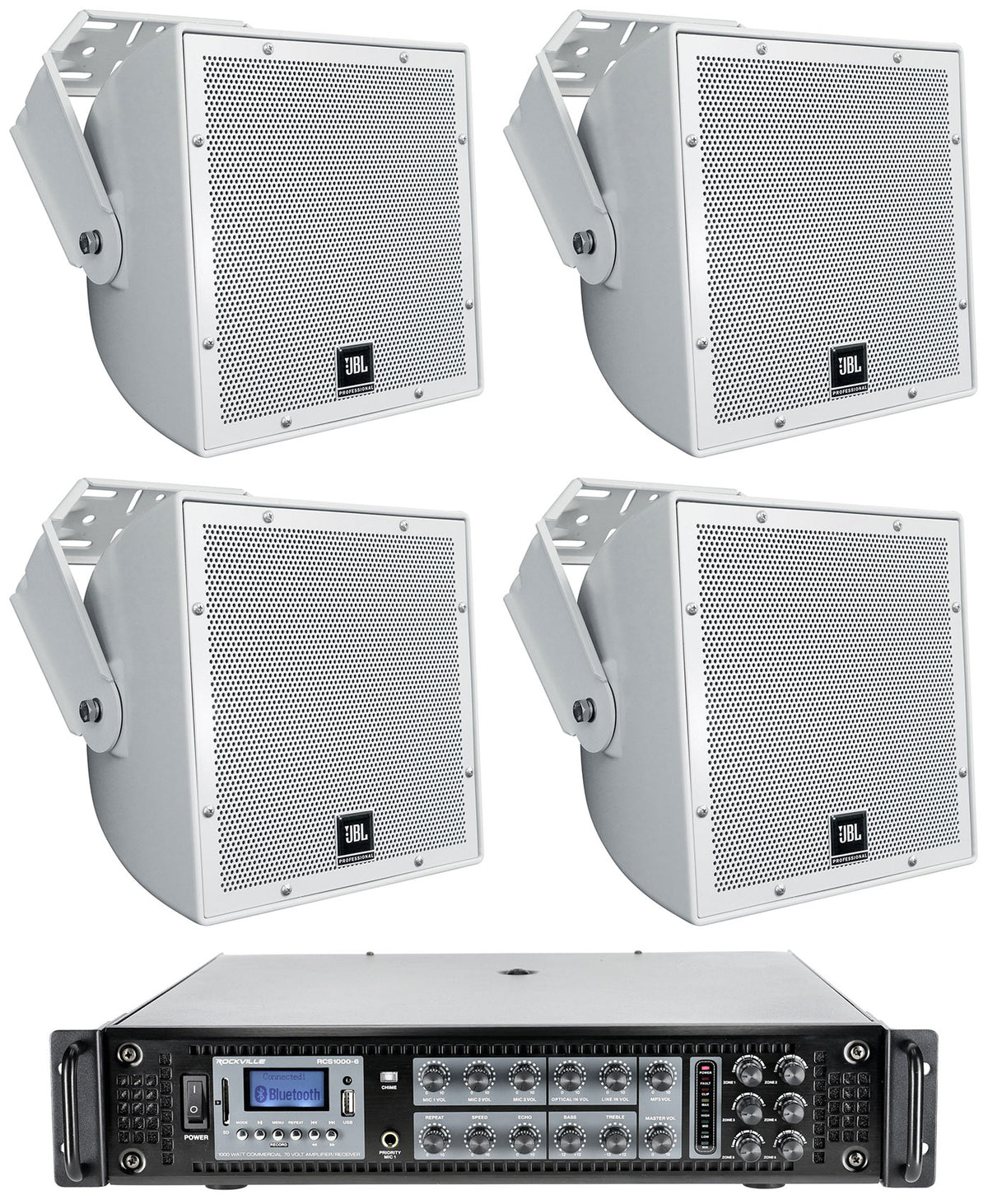

What's Included in the box
- (4) JBL AWC82 8" 2-Way Indoor/Outdoor Speakers

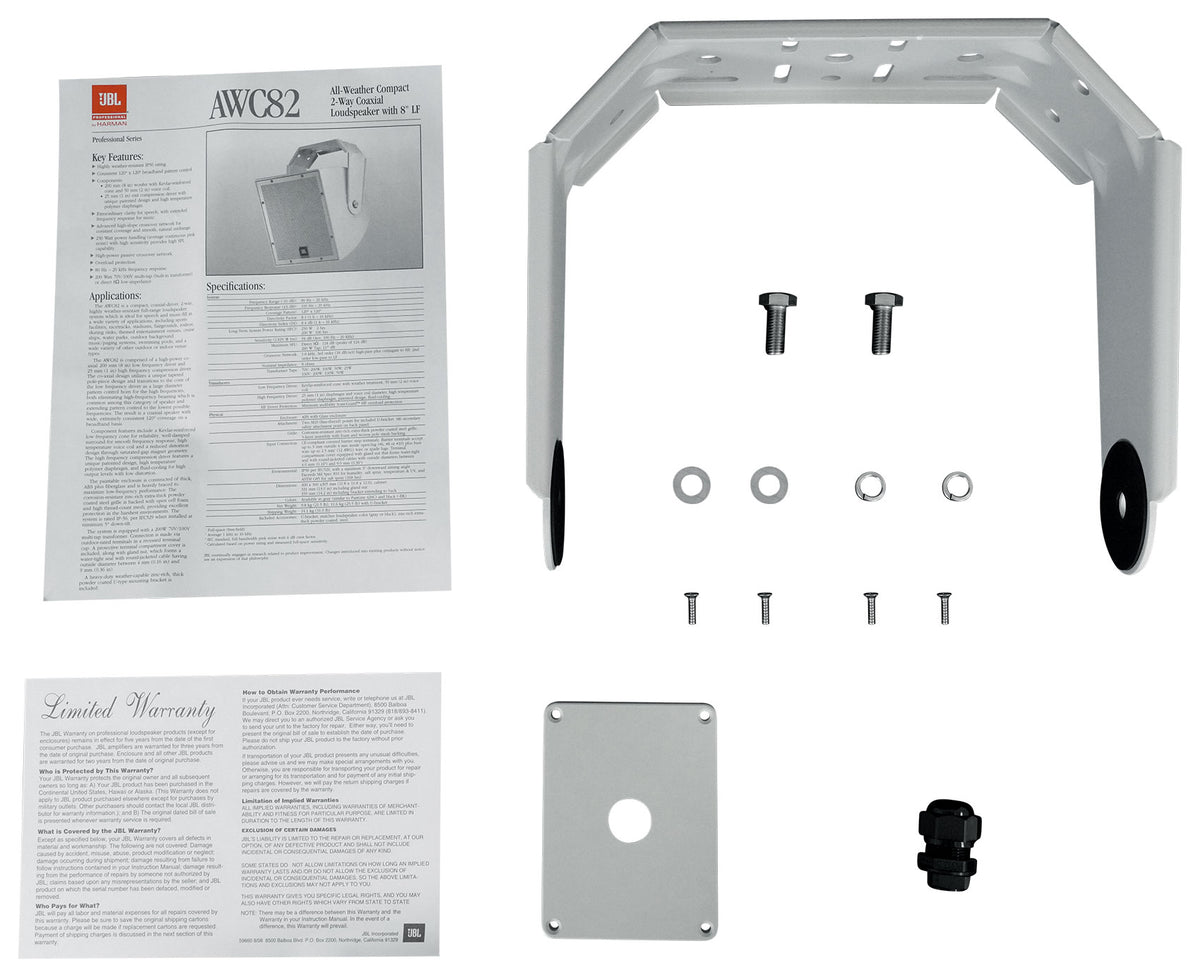

- (4) U-Brackets

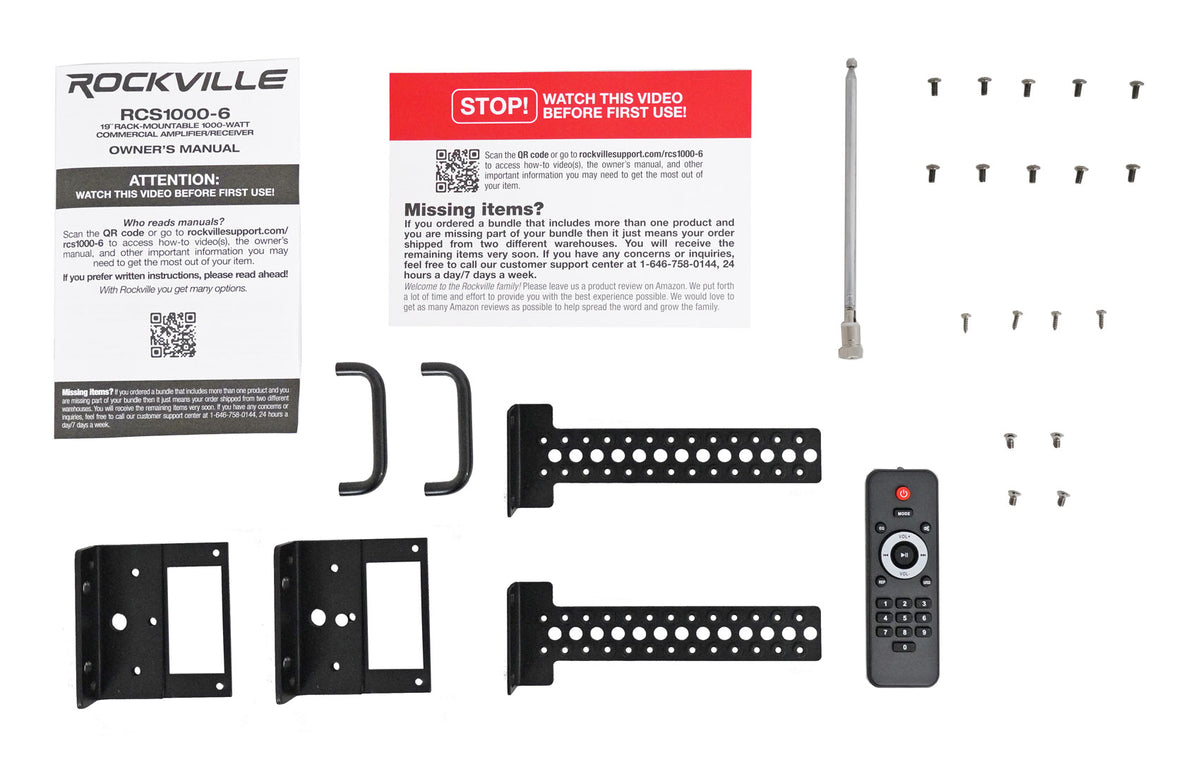

- (1) Rockville RCS1000-6 1000W 6-Zone Amplifier
- (1) Remote
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: (4) AWC82+RCS1000-6
View full details

















Product Description

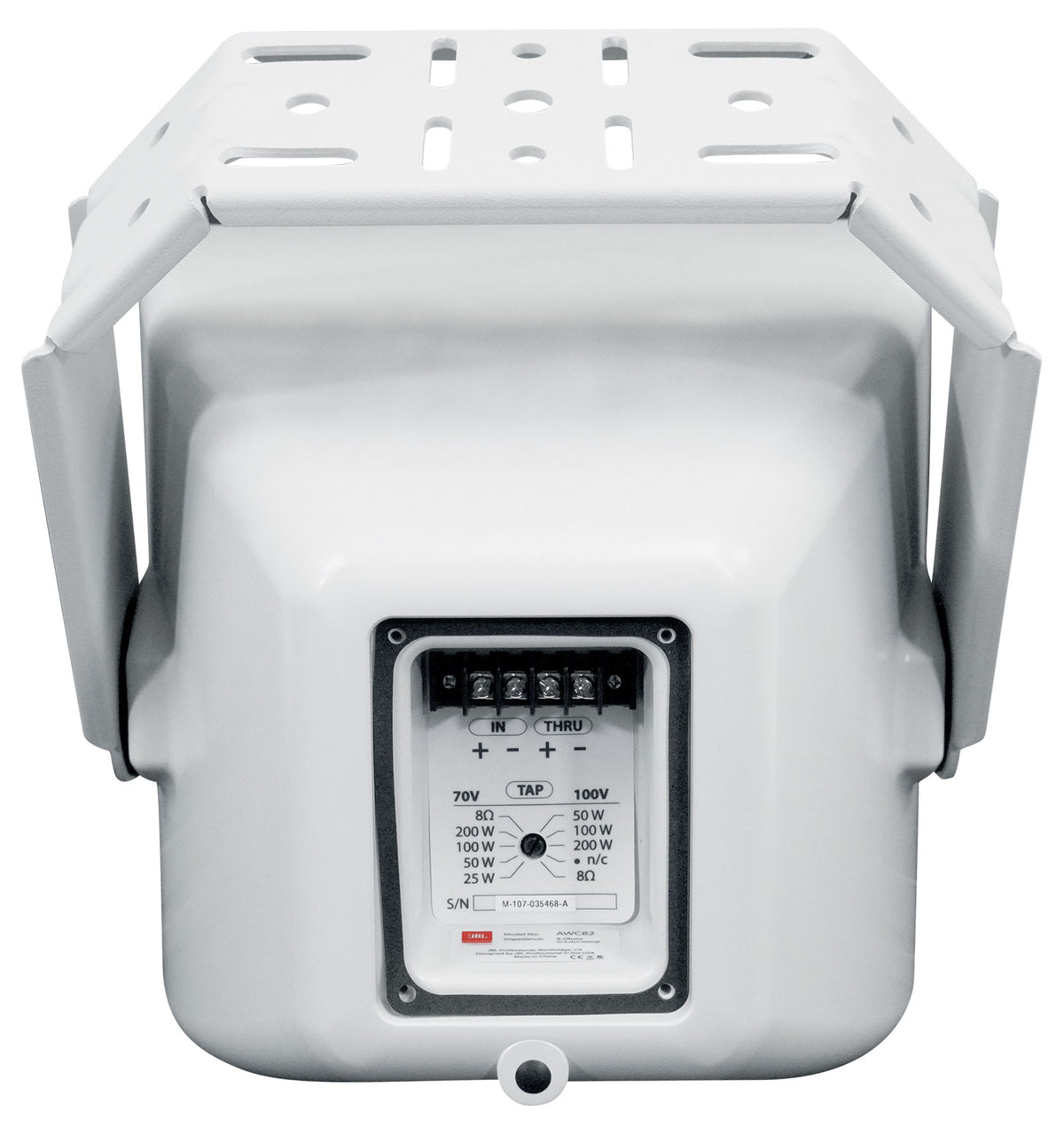

A built-in multi-tap transformer runs each speaker on a 70V line at 200W, 100W, 50W, or 25W, on a 100V line, or direct at 8 ohms, and that is where the included Rockville RCS1000-6 amplifier earns its spot. Its 1000W output splits across six zones with up to 300W each, so all four speakers tapped at 200W land at 800W, under the recommended 900W ceiling, with a separate volume knob for every zone. Bluetooth streaming, FM radio, USB and SD playback, optical and two RCA inputs, plus three mic inputs with echo control and a chime button cover background music and announcements from a single 19" rack unit. The speakers, a U-bracket for each cabinet, and the amplifier to power them all arrive in one box.
This Bundle Includes

AWC82

RCS1000-6
Features

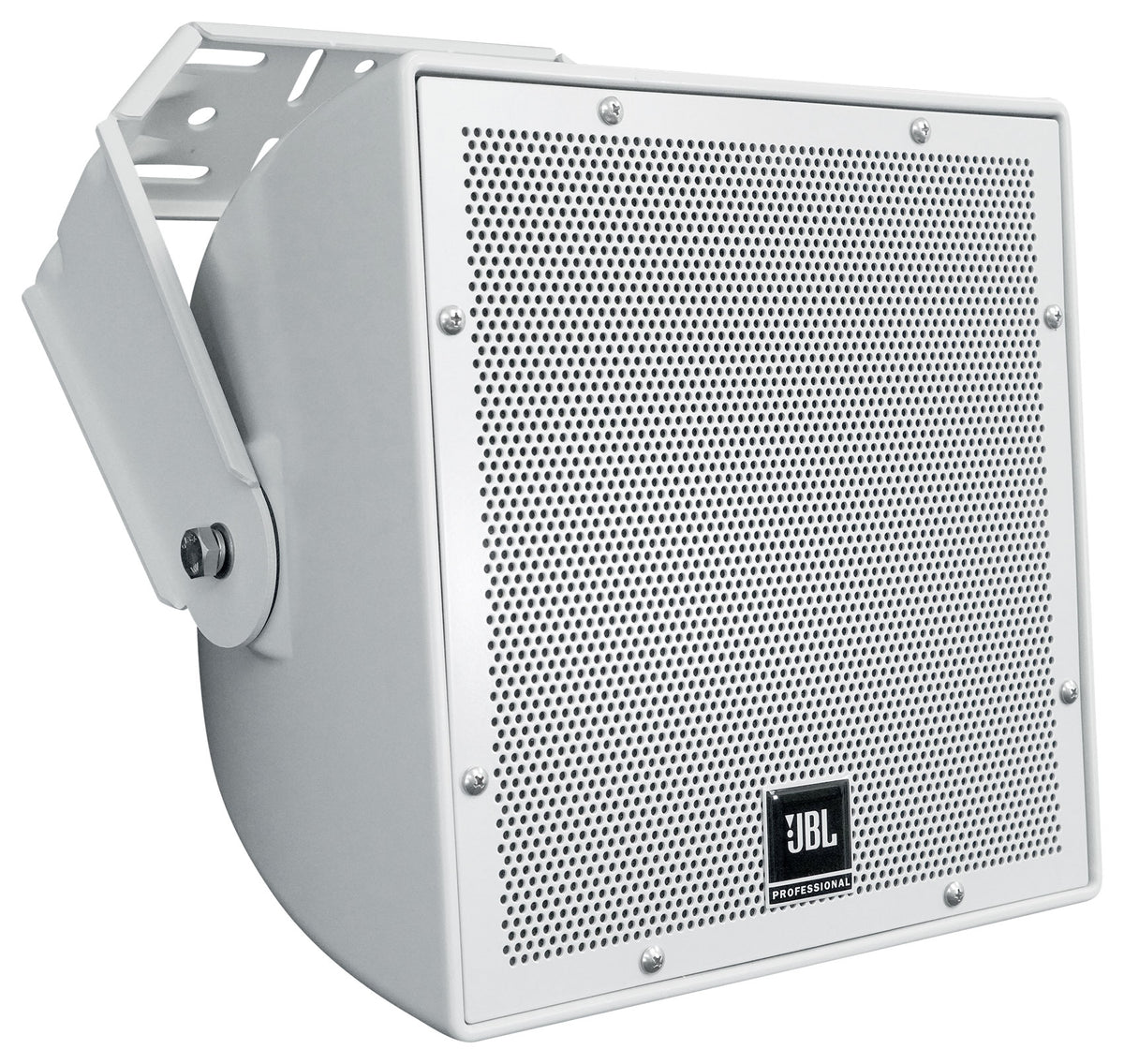

Built For Patios And Pool Decks
An IP56 rating, zinc-rich powder-coated steel grille, and testing beyond Mil Spec 810 for salt spray and UV let these speakers stay mounted outdoors year-round.
Clear Voice, Full Music
An 8" Kevlar-reinforced woofer and 1" compression driver cover 80 Hz to 20 kHz, keeping announcements intelligible and background music full on patios, courtyards, and walkways.
Wide Coverage, Fewer Speakers
A broad 120° x 120° pattern spreads sound evenly across dining areas and pool decks, so four compact cabinets cover more ground without hot spots or dead zones.

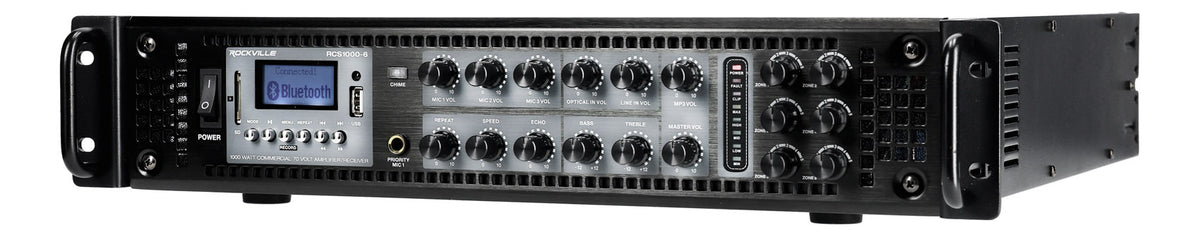

The Amp You Would Need Anyway
The included Rockville RCS1000-6 splits 1000W across six zones at up to 300W each, so all four speakers tapped at 200W run from one 70V amplifier.
Music And Paging In One Rack
Bluetooth, FM radio, USB, SD, optical, and RCA inputs play background music, while three mic inputs with echo control and a chime button handle paging and announcements.
Technical Specifications
- Product Type 70V Commercial Indoor/Outdoor Speaker System
- Speaker Quantity 4

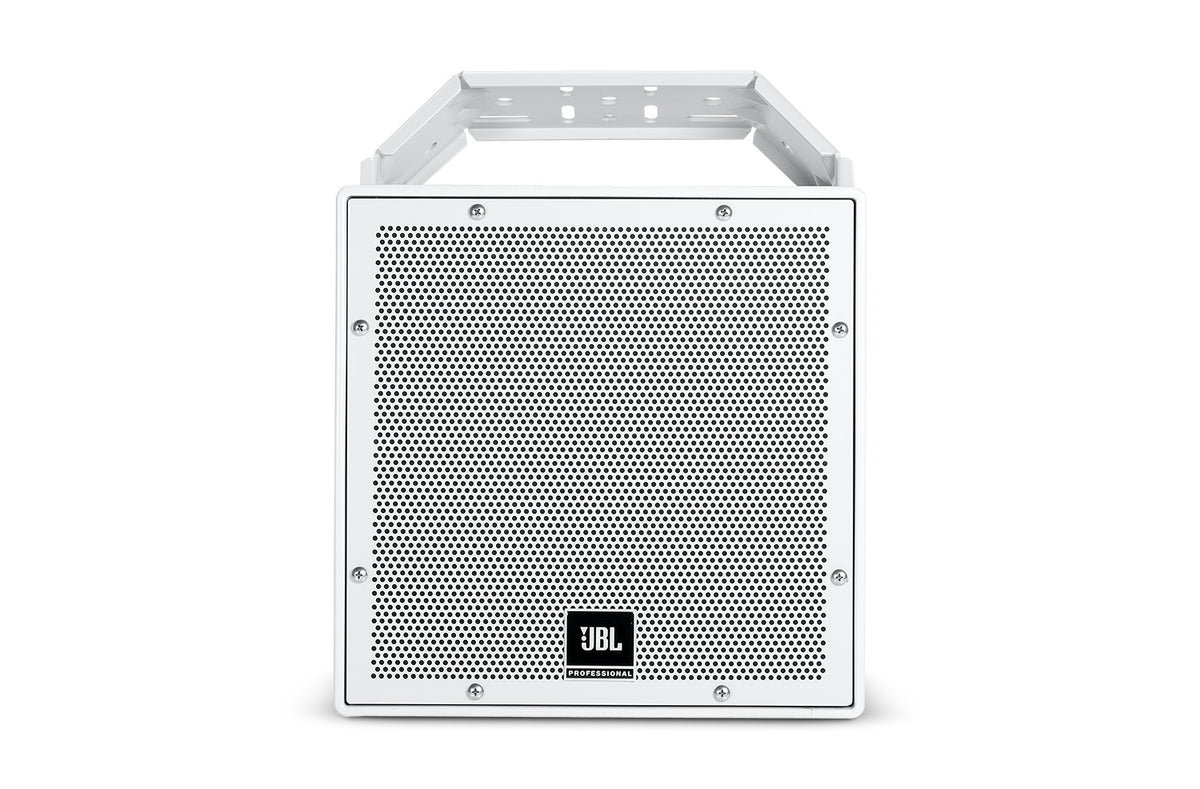

- Speaker Model JBL AWC82
- Speaker Type 2-Way Coaxial Full-Range
- Woofer 8" (200 mm) Kevlar-Reinforced Cone, 2" Voice Coil
- HF Driver 1" (25 mm) Compression Driver, Polymer Diaphragm
- Speaker Frequency Range (-10 dB) 80 Hz - 20 kHz
- Speaker Frequency Response (±3 dB) 100 Hz - 20 kHz
- Coverage Pattern 120° x 120°
- Speaker Power Rating 250W (2 hrs), 200W (100 hrs)
- Sensitivity 94 dB (2.83V @ 1m)
- Maximum SPL 118 dB (124 dB Peak)
- Crossover 1.8 kHz Passive

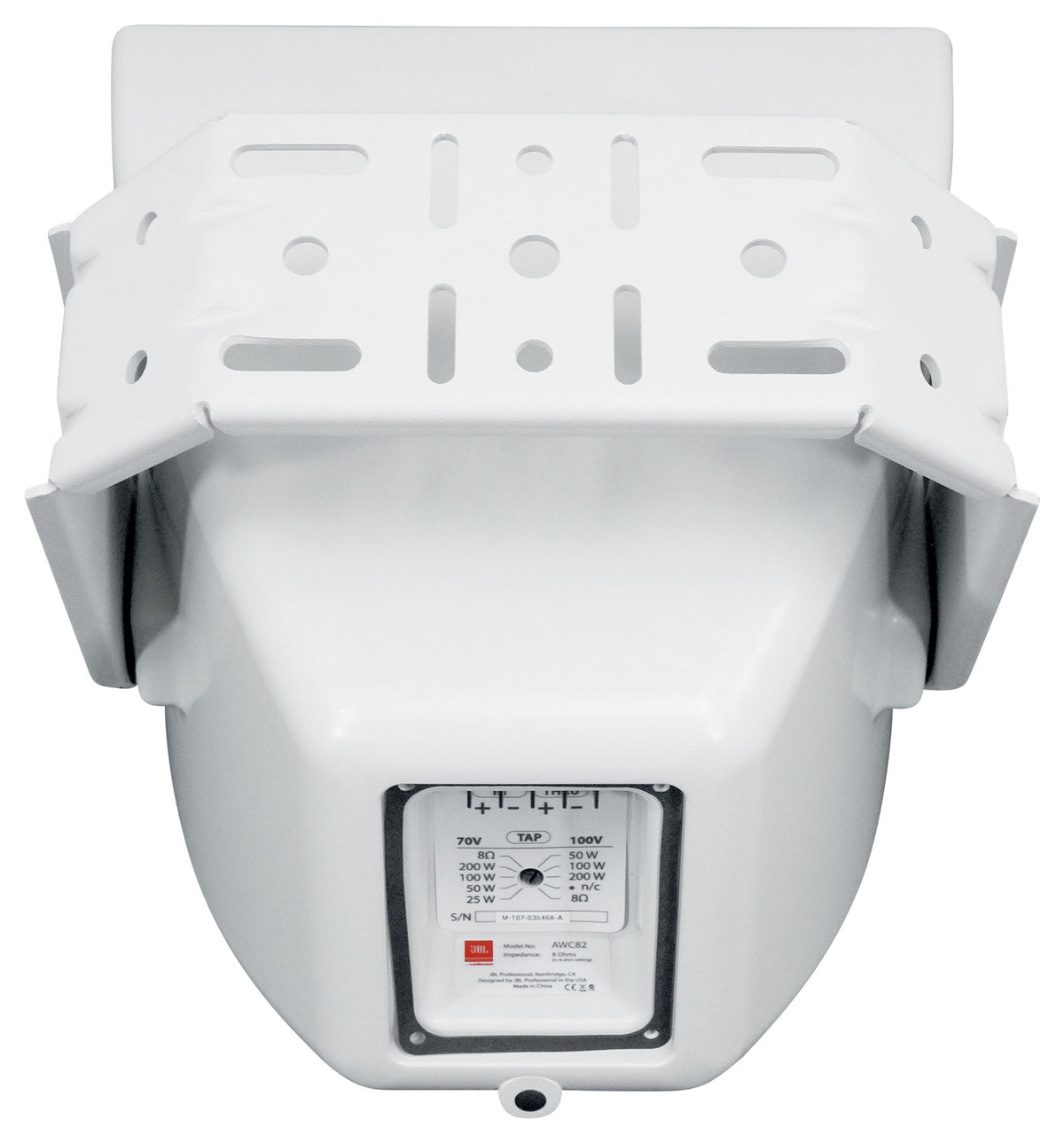

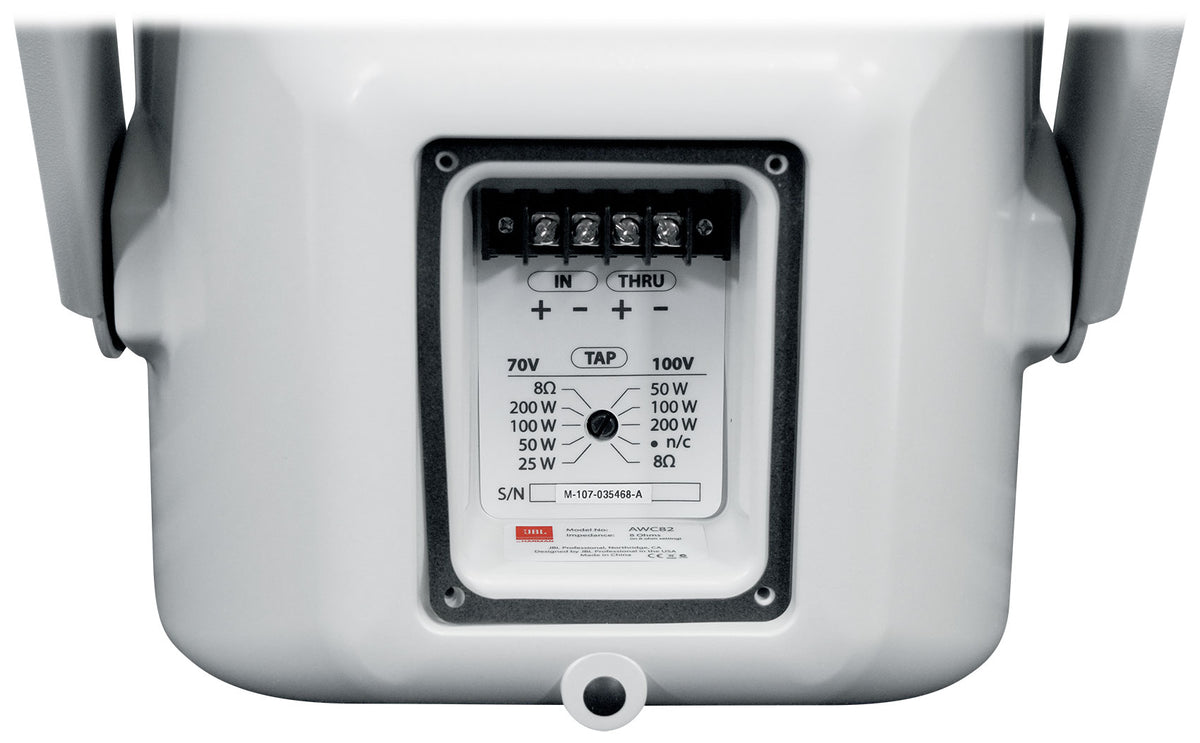

- Transformer Taps 70V: 200W, 100W, 50W, 25W; 100V: 200W, 100W, 50W
- Nominal Impedance 8 Ohms
- Weather Rating IP56
- Enclosure ABS with Glass, Heavily Braced
- Grille Zinc-Rich Powder-Coated Steel

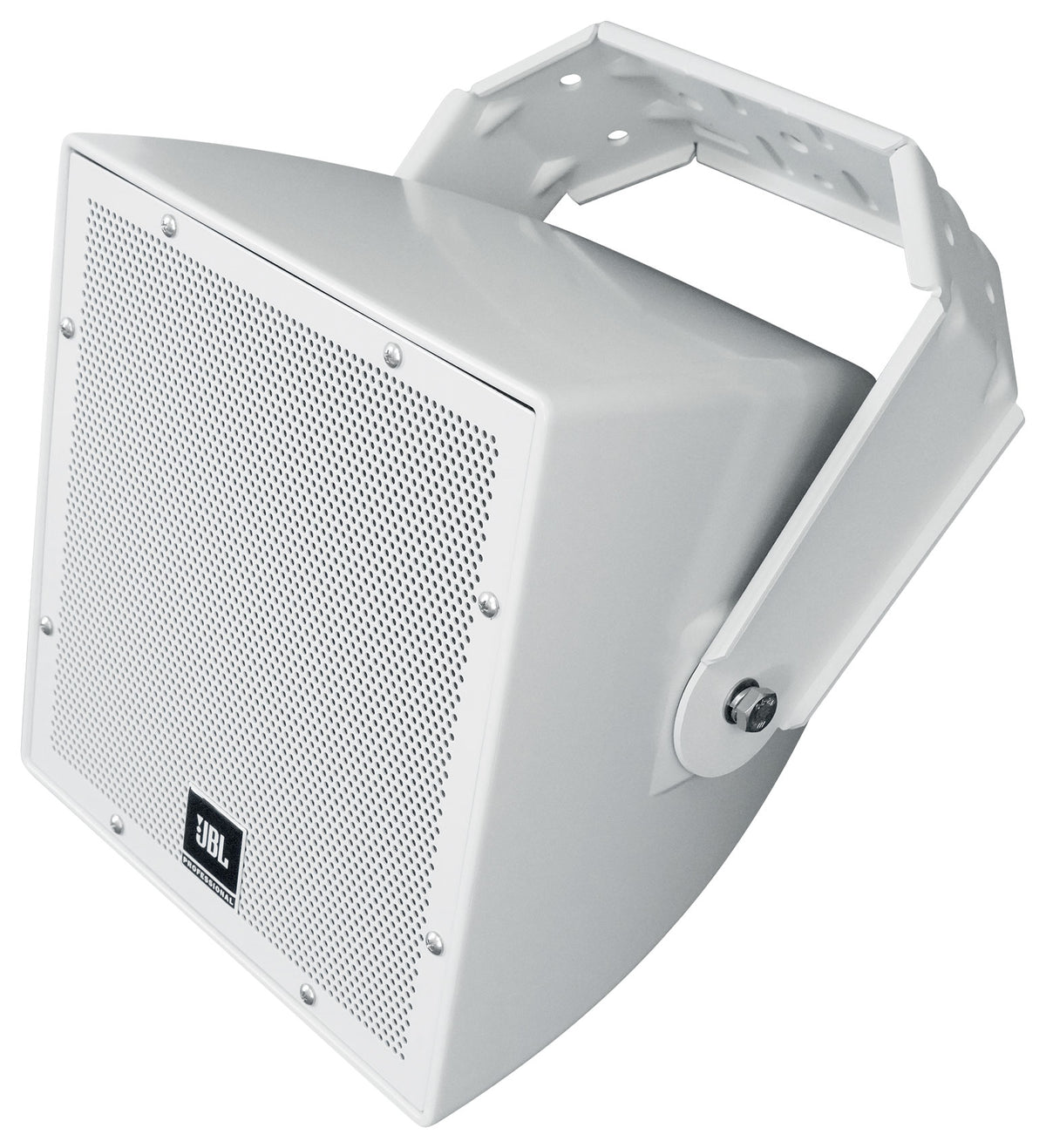

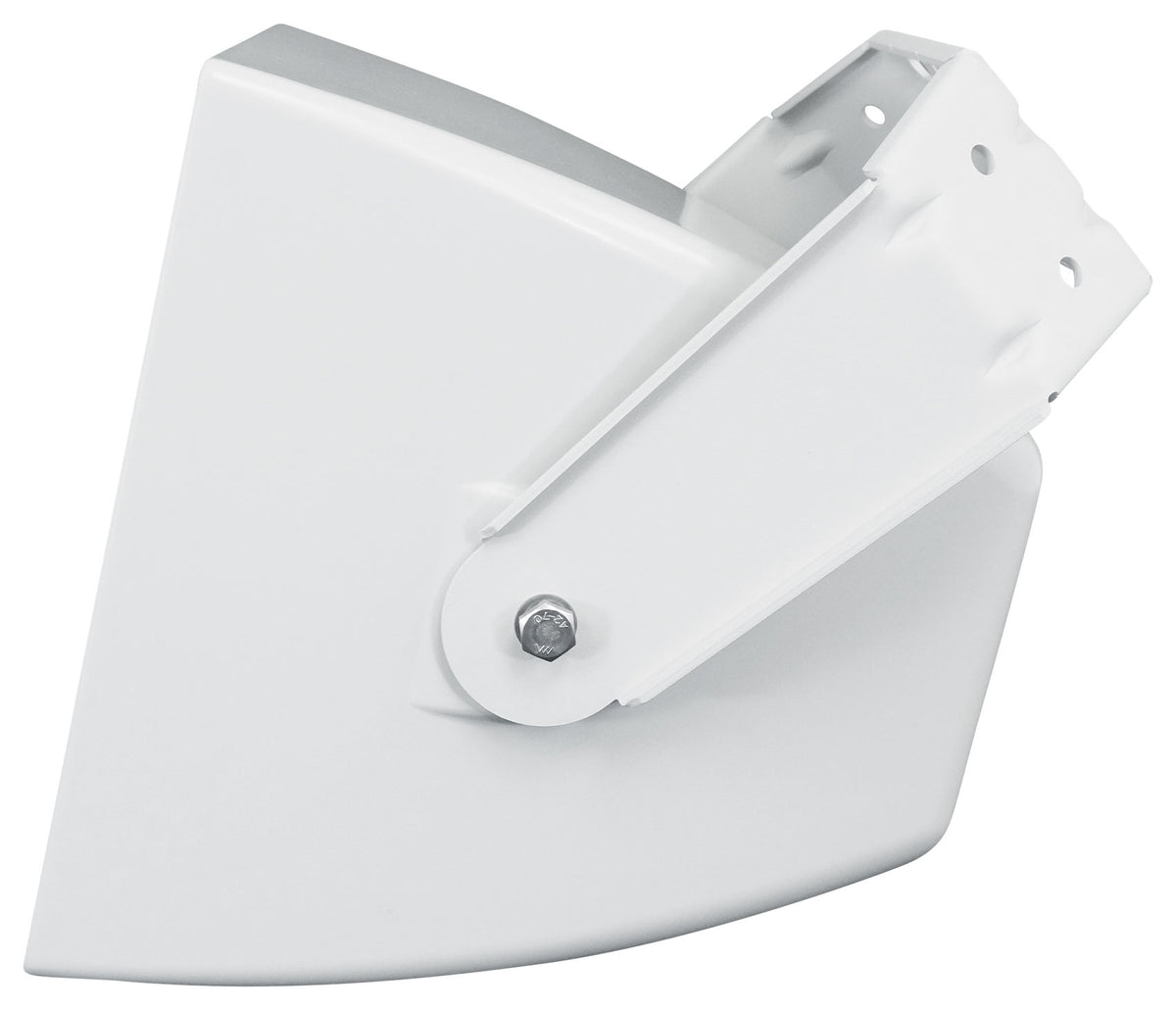

- Speaker Mounting Included U-Bracket, M6 Safety Point

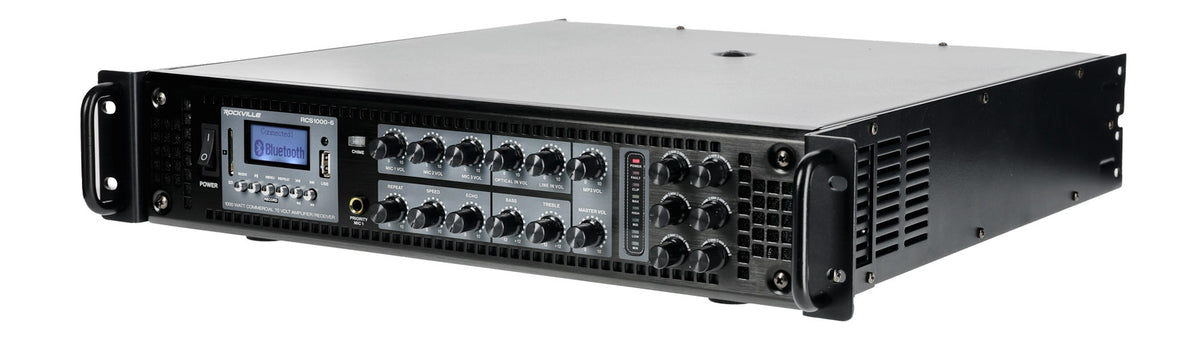

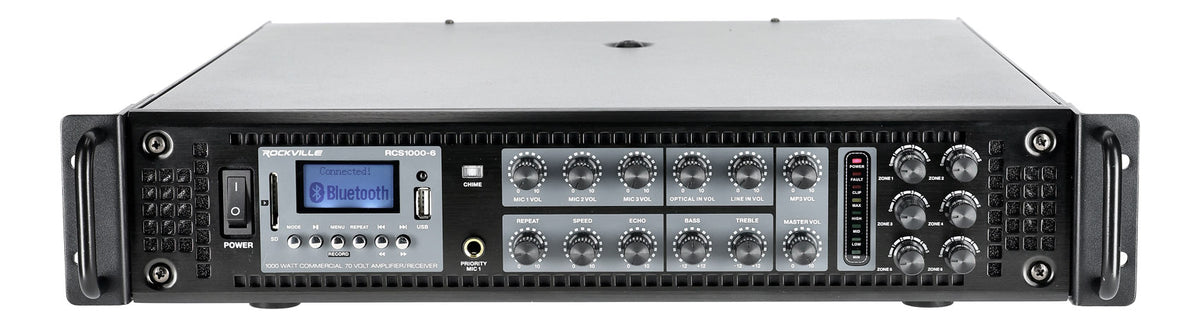

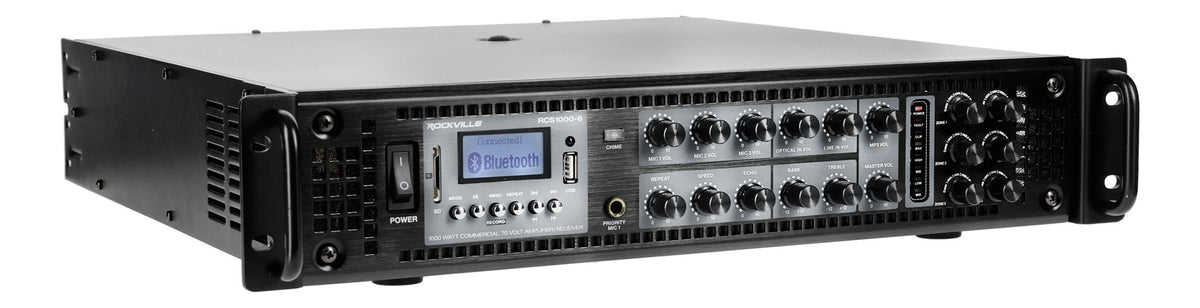

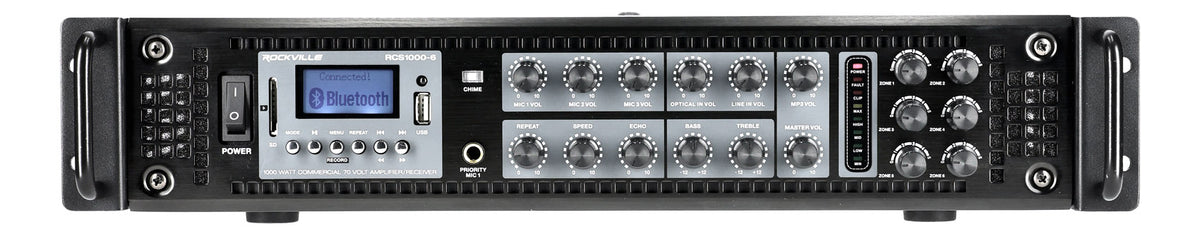

- Amplifier Model Rockville RCS1000-6
- Amplifier Power 1000W RMS at 70V/100V
- Zones 6 (Up to 300W per Zone)
- Amplifier Load Options 70V, 100V, 8 Ohm, 4 Ohm
- Sources Bluetooth, FM Radio, USB (32GB Max), SD Card (32GB Max)
- Inputs (3) Mic, (2) RCA Aux, Optical

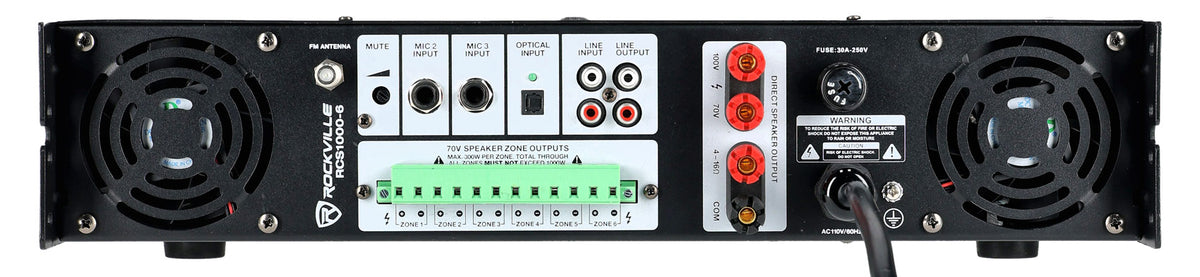

- Outputs RCA Line Out, 70V, 100V, 8 Ohm Speaker Terminals
- Amplifier Frequency Response 40 Hz - 24 kHz

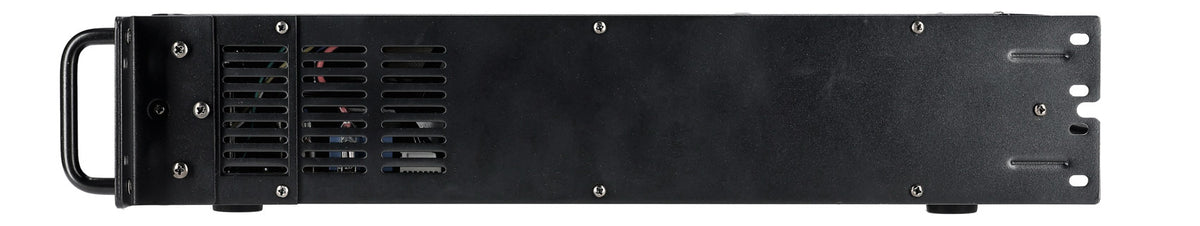

- Rack Size 19" Rack Mountable
- Power Requirements 120V, 50/60 Hz
- Weight Speaker: 21.5 lb Each (25.5 lb with U-Bracket); Amplifier: 45.8 lb
- Dimensions Speaker: 11.8" x 11.8" x 12.0"; Amplifier: 19" x 18.1" x 4"
