5512-44 + dB11 + RWK81 + RBS12 Car Audio Bass Bundle
5512-44 + dB11 + RWK81 + RBS12 Car Audio Bass Bundle
12-Inch Car Audio Bass System, 400 W RMS Subwoofer, 350 W Mono Amp, Vented Enclosure, 8-Gauge Wiring Kit
Free Shipping
Features
- 12-inch dual 4-ohm voice coil subwoofer rated at 400 W RMS
- 350 W RMS mono amp output at 2 ohms within the subwoofer's recommended power range
- Single 12-inch vented enclosure listed at 2.6 cu ft
- 8-gauge amp kit includes 100% copper RCA cable and a 60 A fuse
- 12 ft of 14 AWG blue speaker wire plus screws and spade terminals
Couldn't load pickup availability

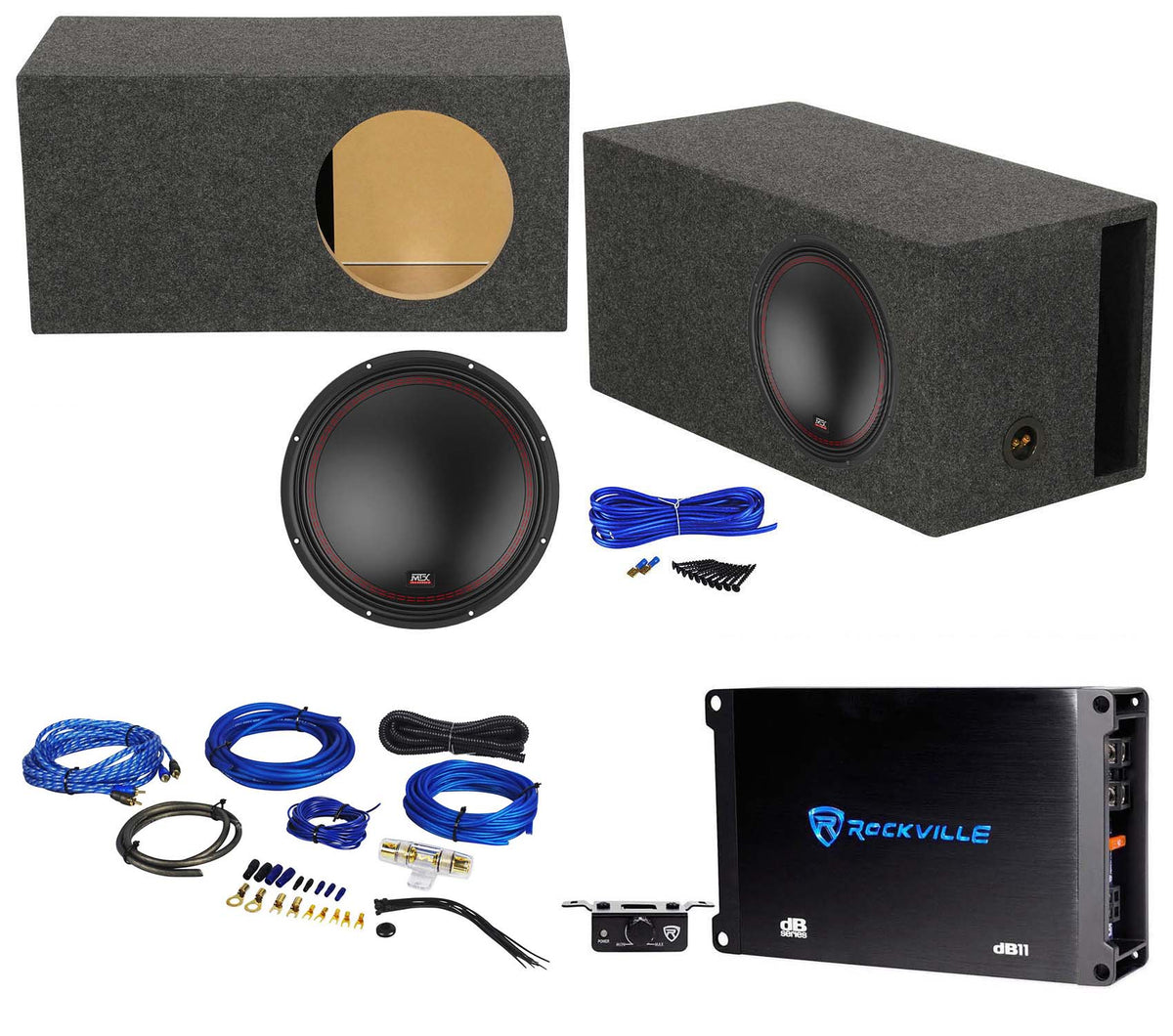

What's Included in the box

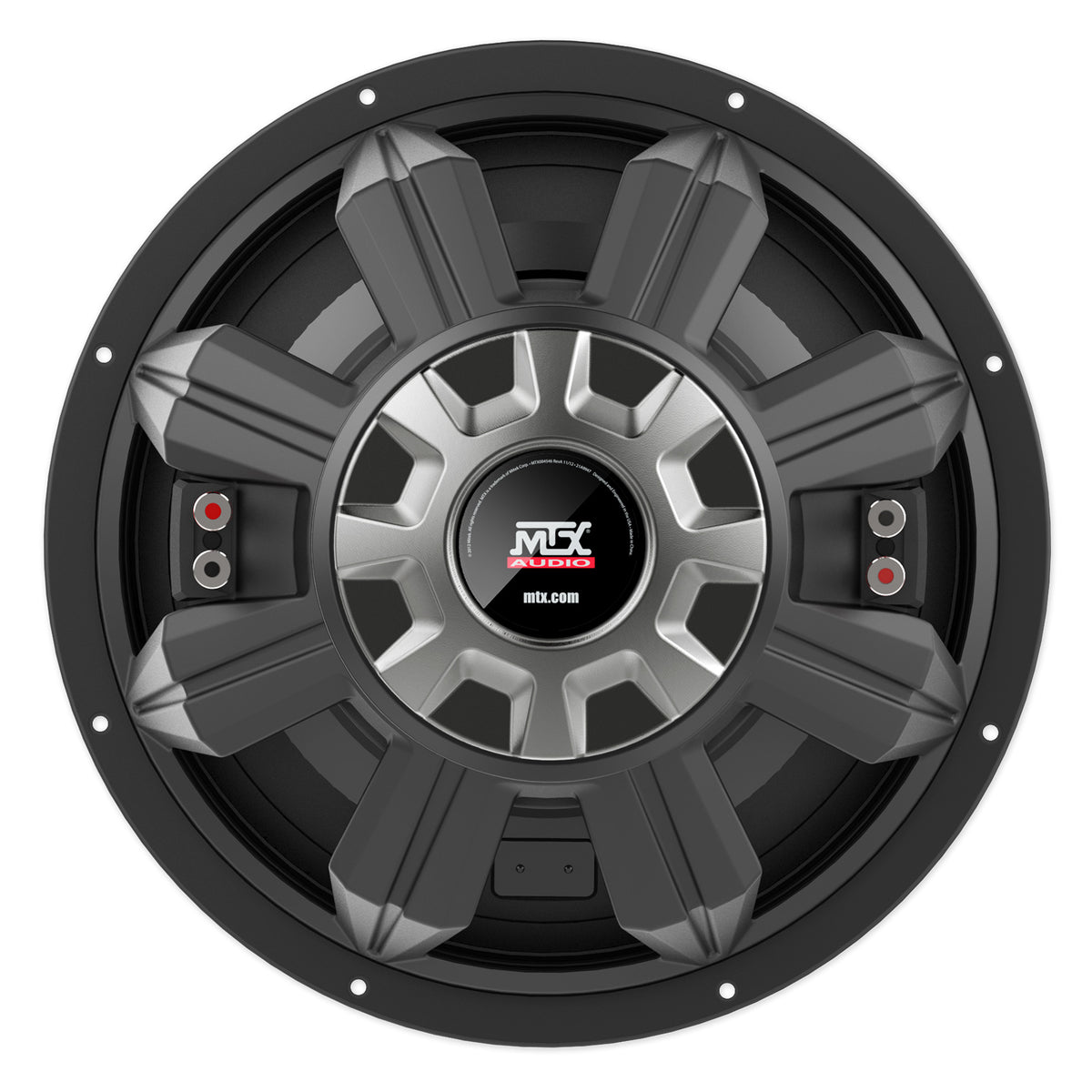

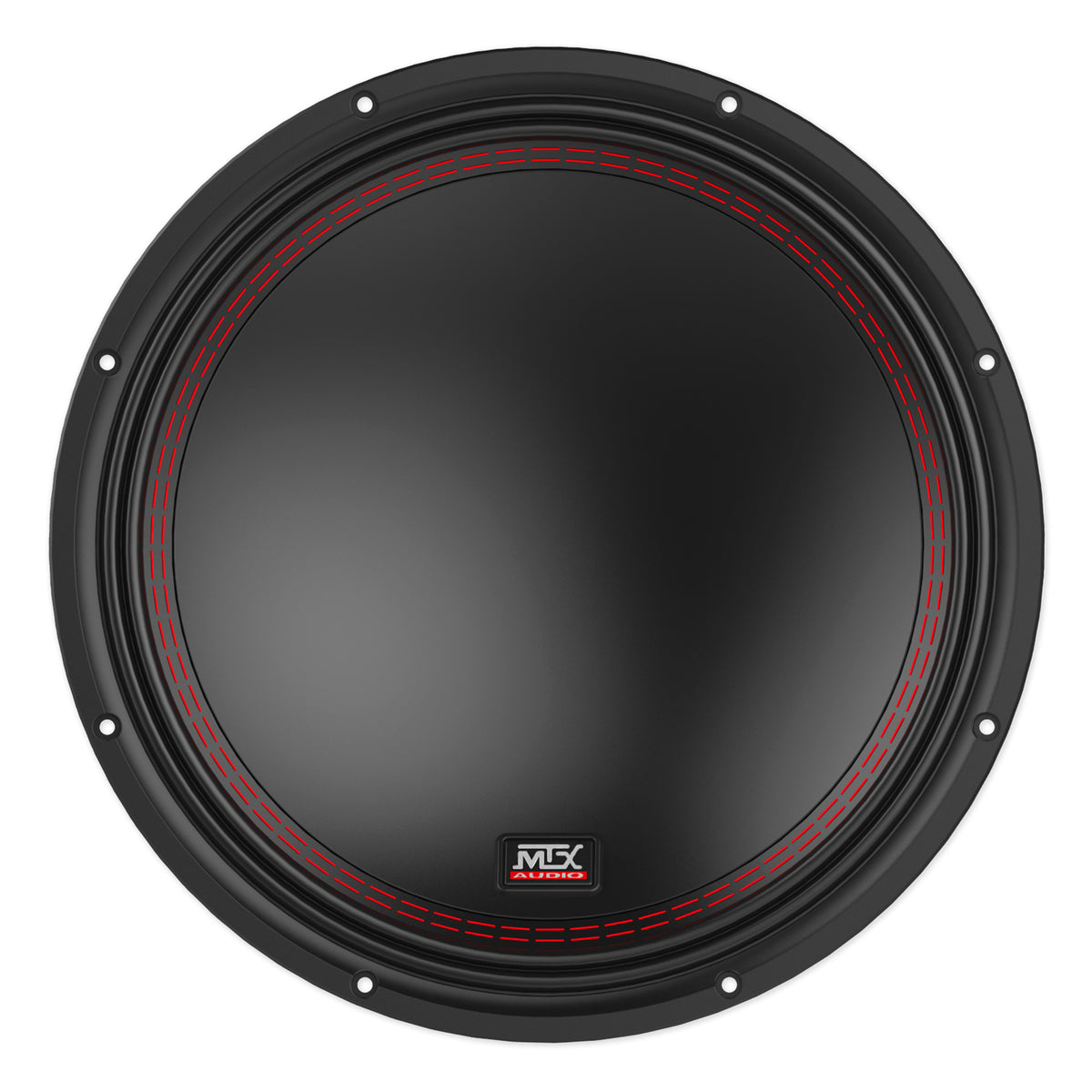

- (1) 5512-44 12-inch dual 4-ohm subwoofer
- (1) RBS12 single 12-inch vented enclosure listed at 2.6 cu ft
- (1) dB11 mono amplifier, (1) bass remote and (1) tested-power birth sheet
- Amplifier mounting hardware
- (1) RWK81 8-gauge amplifier installation kit

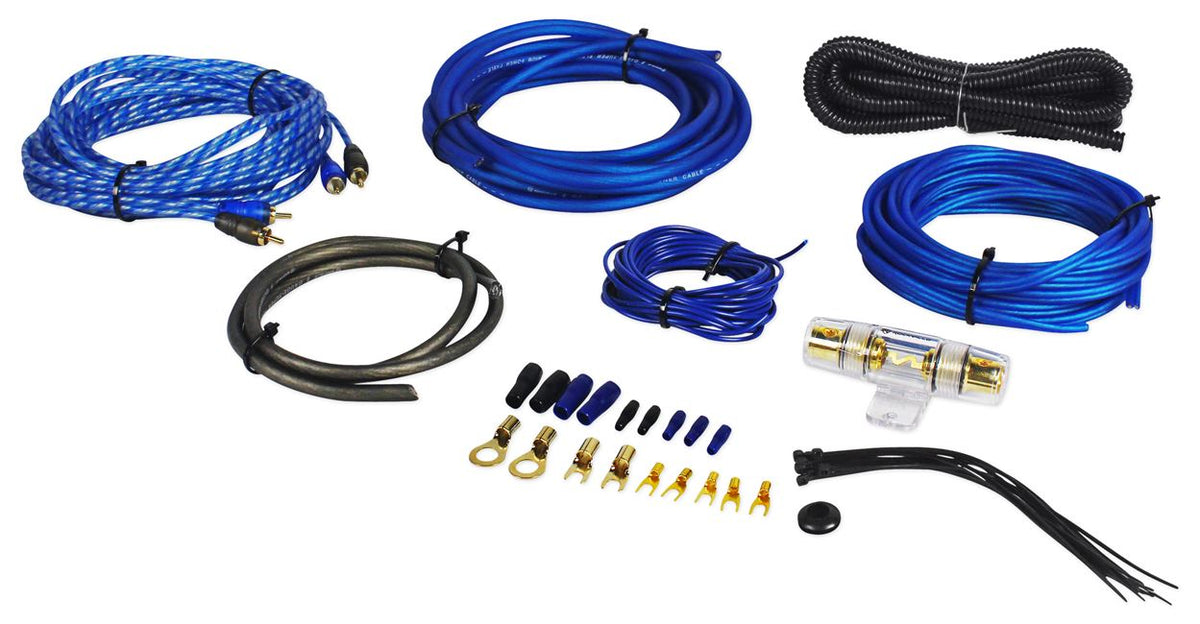

- RWK81 kit contents: 17 ft 100% copper twisted-pair RCA cable, 17 ft 8 AWG blue power cable, 3 ft 8 AWG black ground cable, 17 ft 18 AWG blue remote cable, 17 ft 16 AWG blue speaker wire, 60 A gold-plated AGU fuse and heat-resistant holder, 7 ft split loom, wire ties, ring terminals, butt connectors, spades and grommets

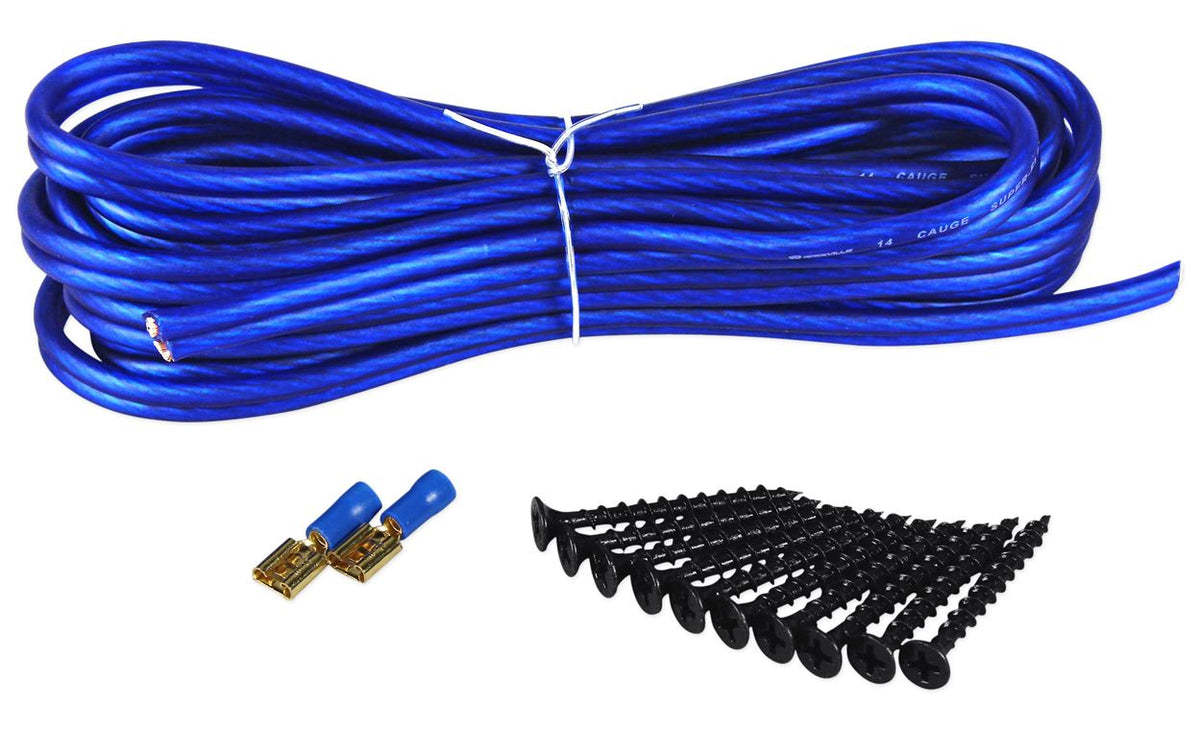

- 12 ft of 14 AWG blue speaker wire
- (10) metal drywall/wood screws
- (2) spade terminals
SKU: SKU: 5512-44+dB11+RWK81+RBS12+K1
View full details










Product Description
Features
Bass For High-Output Setups

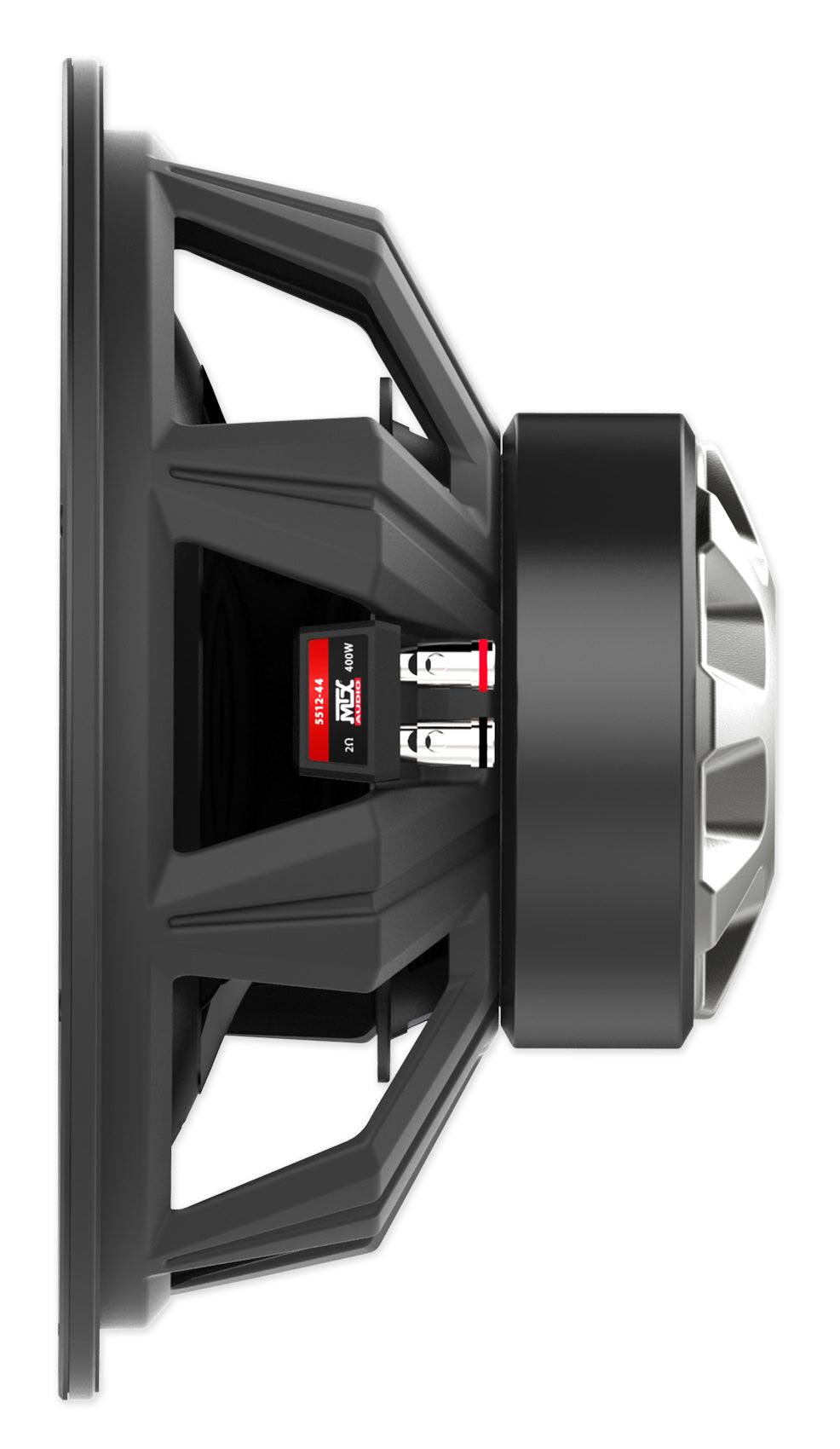

The 12-inch dual 4-ohm subwoofer is rated for 400 W RMS and 800 W peak, with a recommended amplifier range of 200-400 W RMS.
Power Within The Stated Range

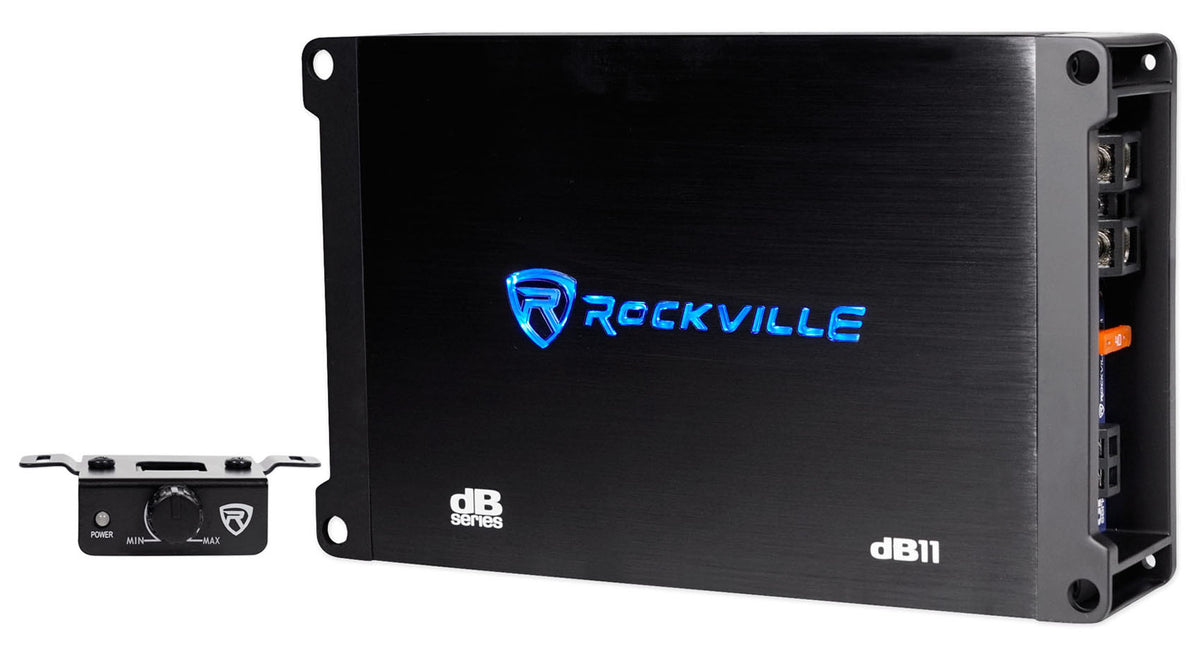

The mono amplifier is rated at 350 W RMS at 2 ohms and 220 W RMS at 4 ohms, matching the subwoofer's recommended power range.
Cooling Under Extended Play

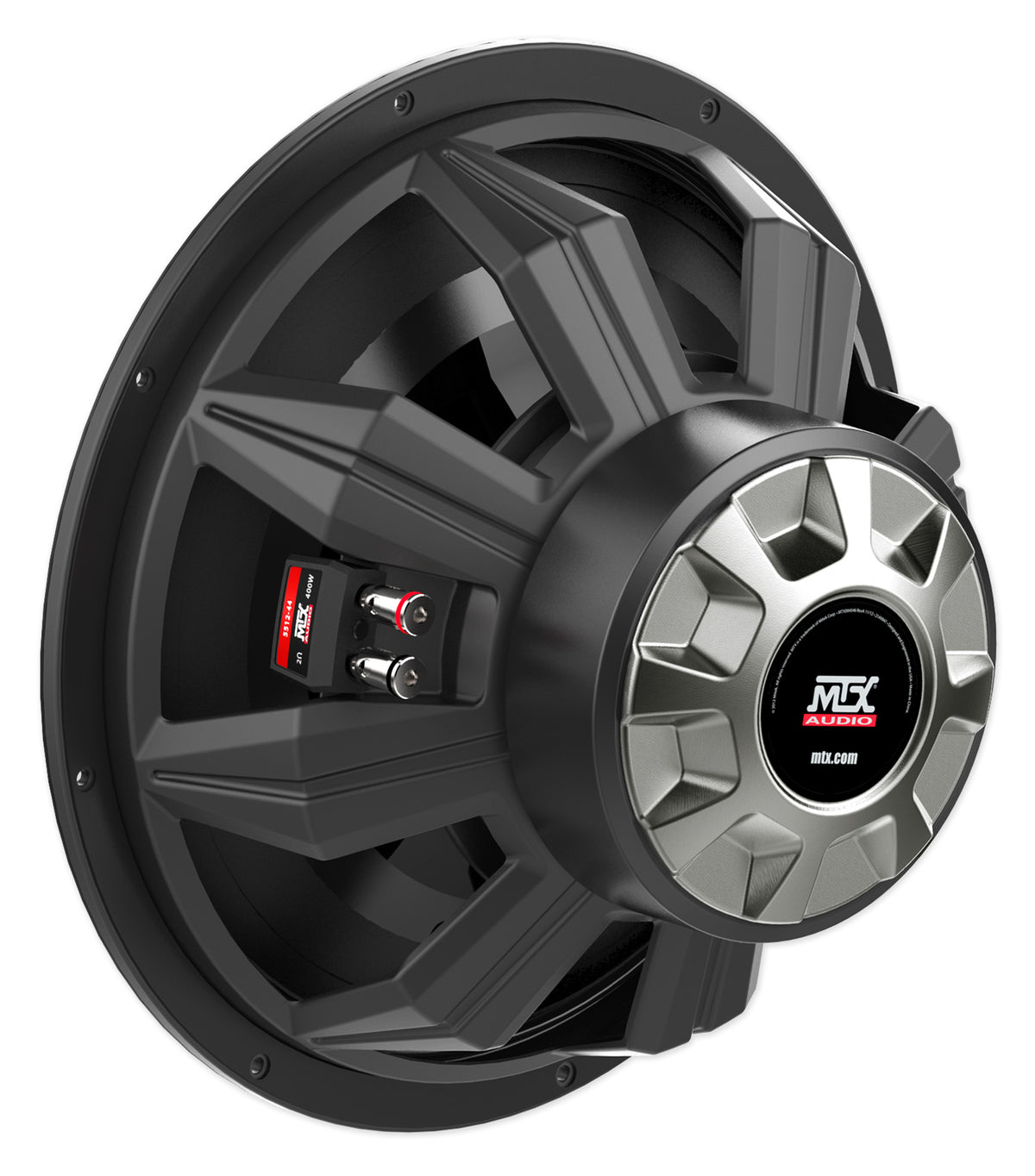

A cooling path directs air toward the voice coil, while the ribbed t-yoke dissipates heat to support long playback sessions.
Controlled Cone Movement

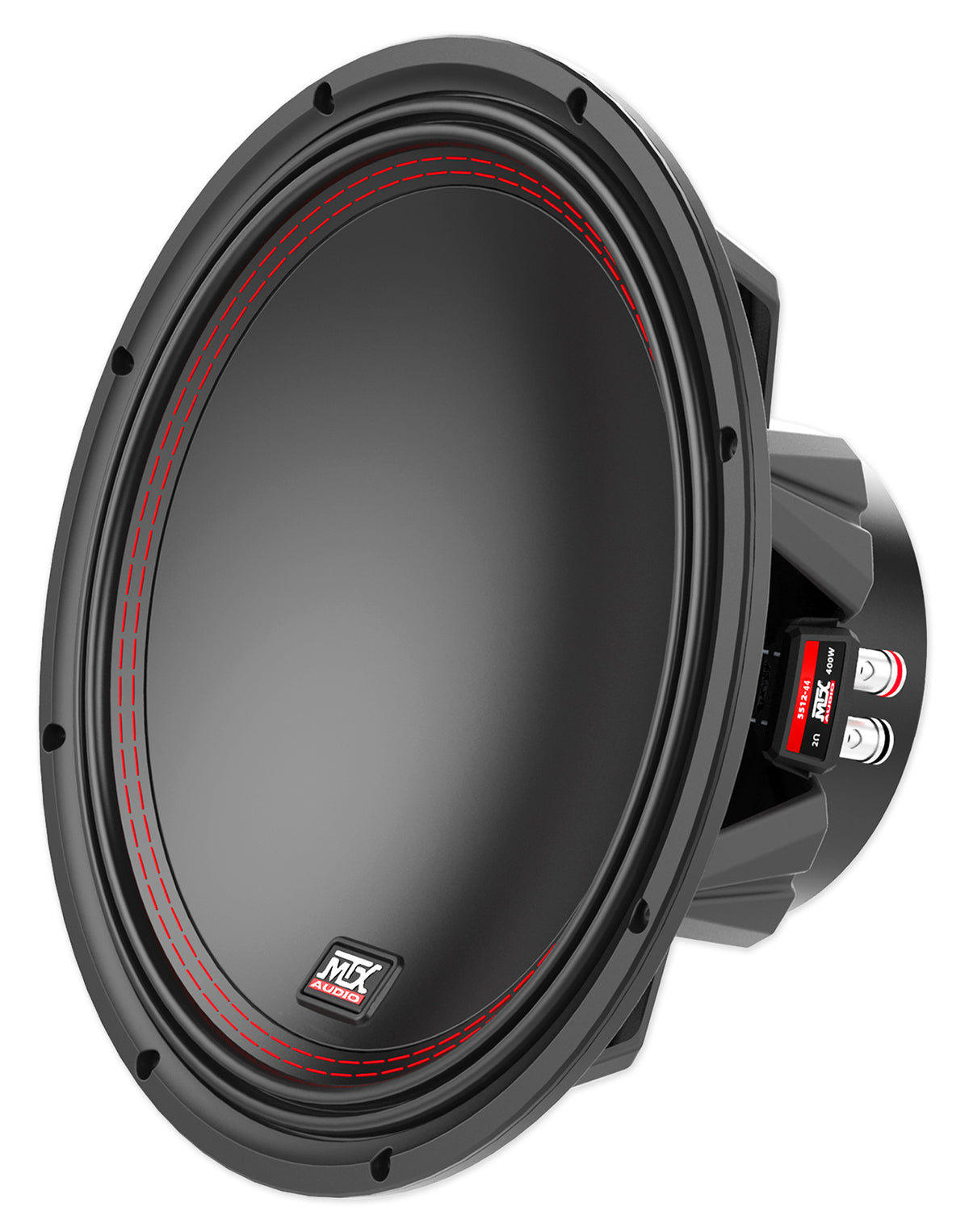

The narrow inverted surround increases usable cone area, and progressive suspension controls excursion to limit distortion when bass plays at higher volume.
Core Installation Parts Included
The 8-gauge kit includes copper RCA cable, power and ground leads, fuse, fuse holder, split loom and connectors, plus extra speaker wire and terminals.
Technical Specifications
- Product Type Car Audio Bass Bundle
- Subwoofer Model 5512-44
- Amplifier Model dB11
- Wiring Kit Model RWK81
- Enclosure Model RBS12
- Subwoofer Size 12 in
- Subwoofer Power Handling 400 W RMS / 800 W peak
- Subwoofer Recommended Amplifier Power 200-400 W RMS

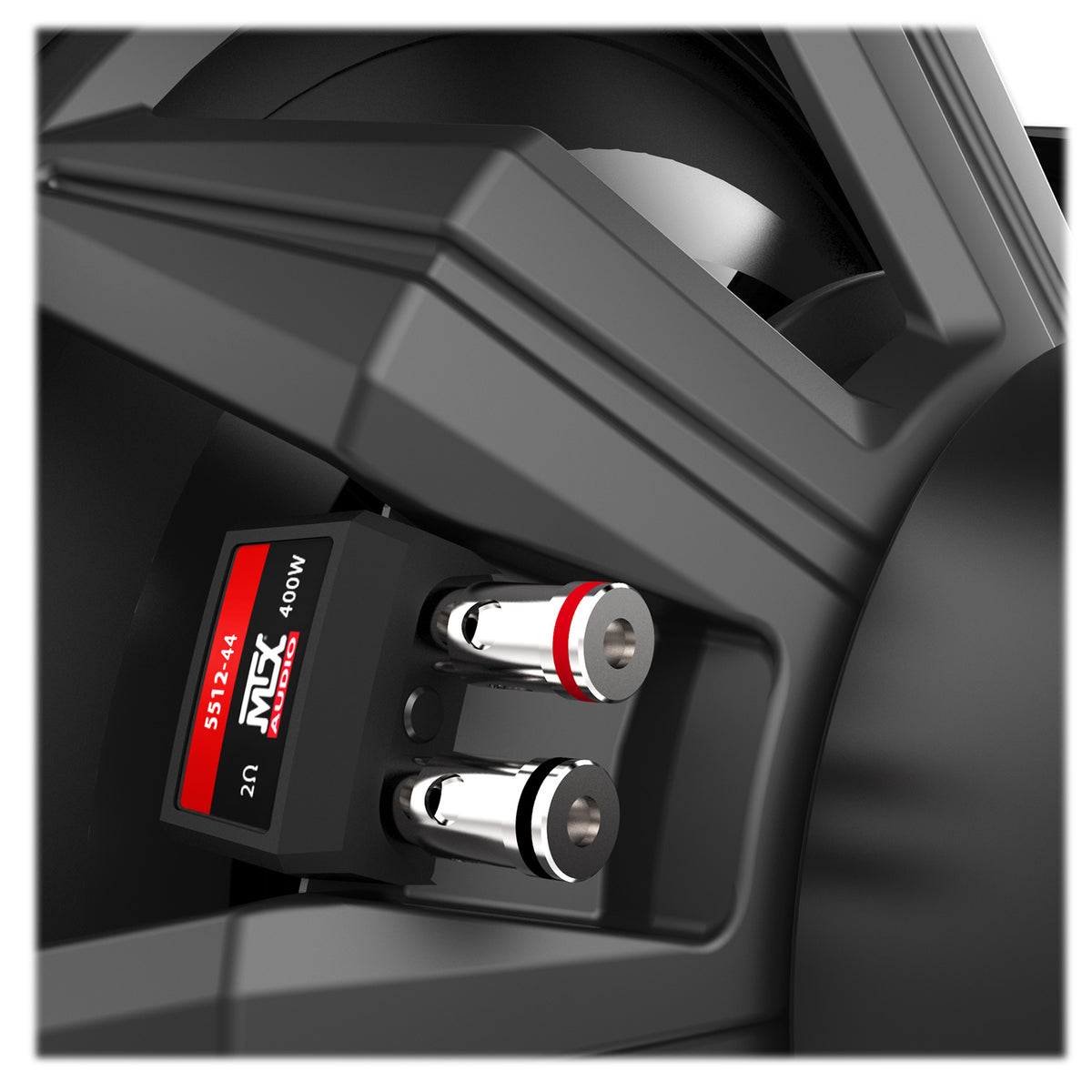

- Subwoofer Impedance Dual 4 ohms
- Subwoofer Frequency Response 26 Hz-130 Hz
- Subwoofer Sensitivity 85.7 dB
- Subwoofer Voice Coil Dual 2 in
- Subwoofer Magnet Weight 56 oz

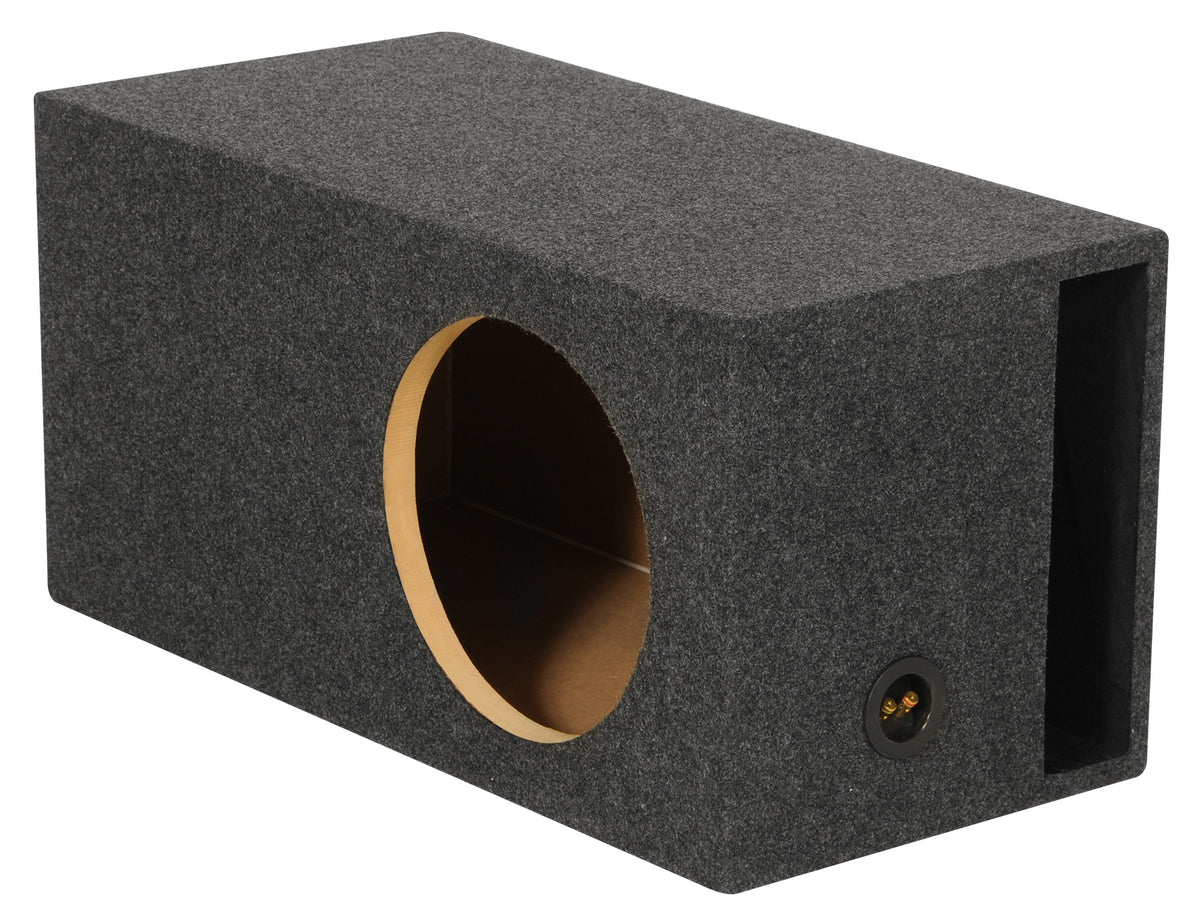

- Enclosure Type Single 12 in vented/ported
- Enclosure Volume 2.6 cu ft (listed in package description)
- Subwoofer Vented Enclosure Net Volume 2.32 cu ft
- Enclosure Material 3/4 in Grade A MDF
- Amplifier RMS Power at 2 Ohms 350 W x 1 channel, less than 1% THD+N
- Amplifier RMS Power at 4 Ohms 220 W x 1 channel, less than 1% THD+N
- Amplifier Peak Power at 2 Ohms 1400 W x 1 channel
- Amplifier Peak Power at 4 Ohms 880 W x 1 channel
- Amplifier Frequency Response 15 Hz-250 Hz
- Low-Pass Filter 50 Hz-250 Hz
- Subsonic Filter 15 Hz-55 Hz
- THD at Rated Power less than 0.1%
- Signal-to-Noise Ratio greater than 90 dB
- Under-Voltage Protection 10 V
- Over-Voltage Protection 16 V
- Dimensions Amplifier: 8.9 in W x 2 in H x 5.5 in D; subwoofer mounting depth: 6.188 in; subwoofer cutout diameter: 11.125 in
