5512-44 + dB11 + RWK81 + RS12

Name: 5512-44 + dB11 + RWK81 + RS12
Brand: MTX
SKU: 5512-44+dB11+RWK81+RS12+K1
Price: 333.33 USD
Availability: InStock

12-Inch Car Audio Subwoofer System, 400W RMS, 3/4-Inch MDF Enclosure, 350W RMS Mono Amplifier, 8-Gauge Wiring Kit

Free Shipping

Retail ~~Retail price $514.91~~ Save 35.26%

$333.33

Shipping calculated at checkout.

Features

12-inch dual 4-ohm subwoofer handles 400W RMS and 800W peak
The 3/4-inch MDF sealed box provides a 1.0 cu ft net volume
Mono amp is rated at 350W RMS at 2 ohms and 220W at 4 ohms
8-gauge wiring kit includes 100% copper RCA cables and a 60A fuse
Includes 12 ft of 14 AWG speaker wire, 10 metal screws, and 2 spade terminals

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

Member-Exclusive Prices

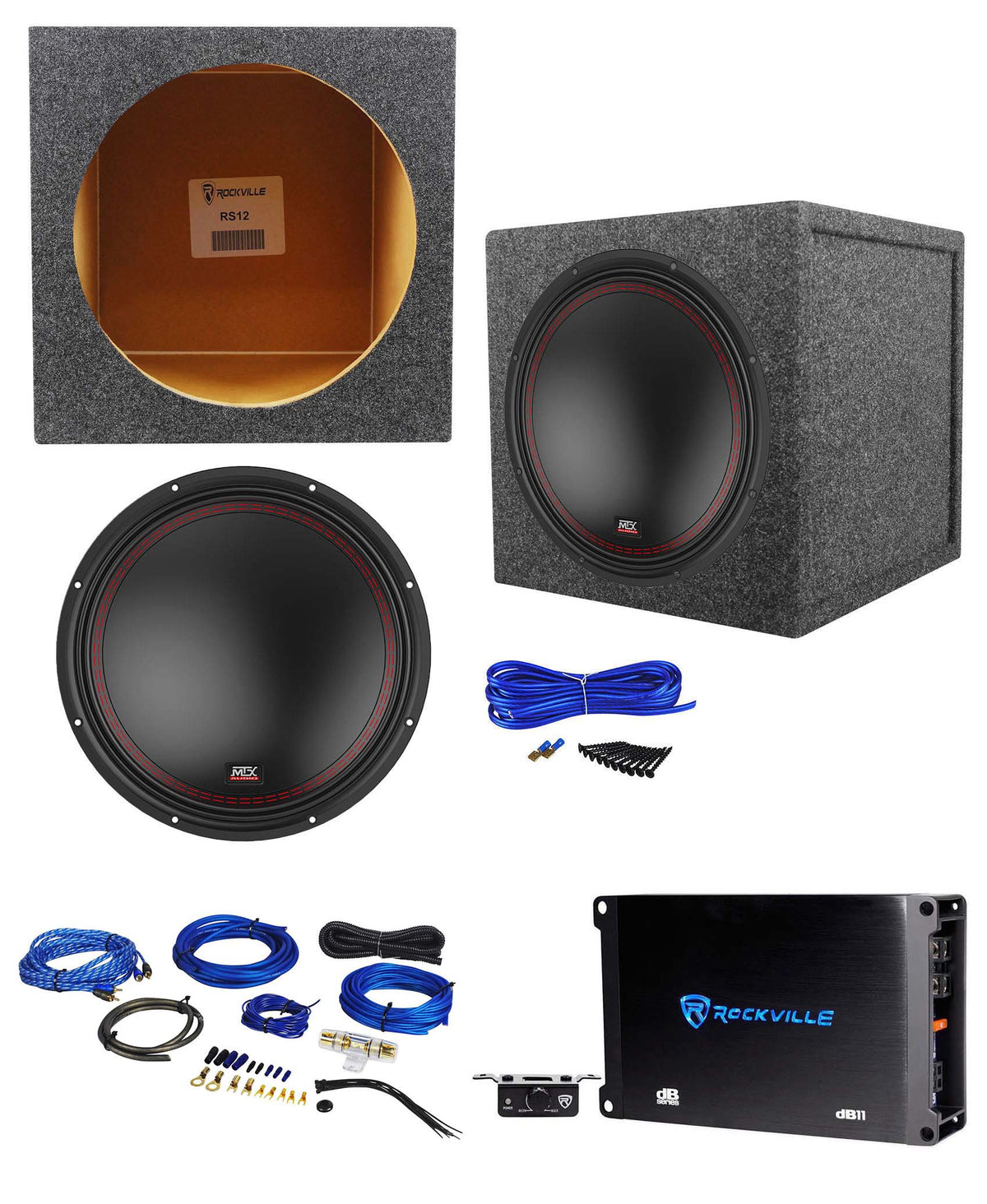

What's Included in the box

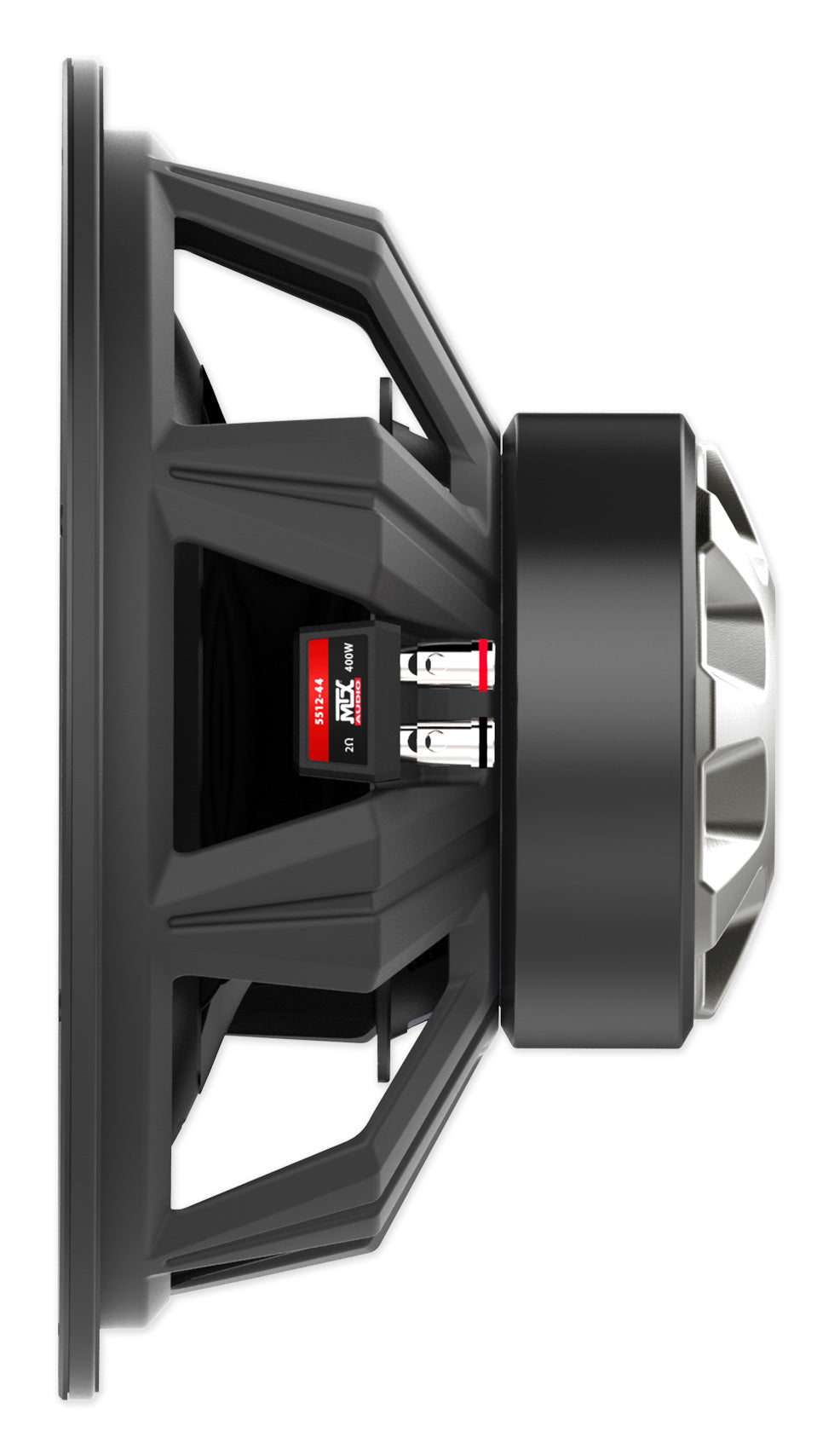

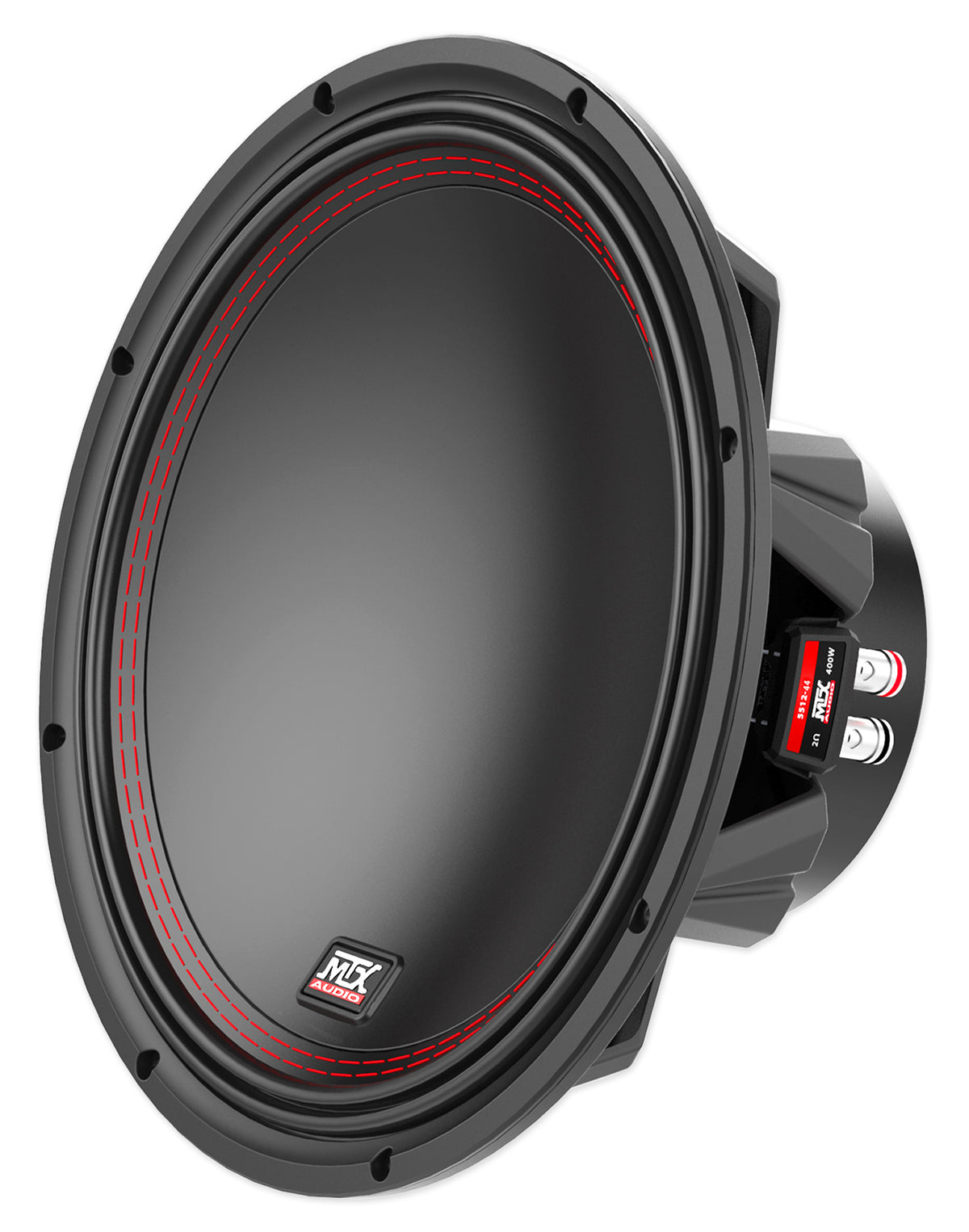

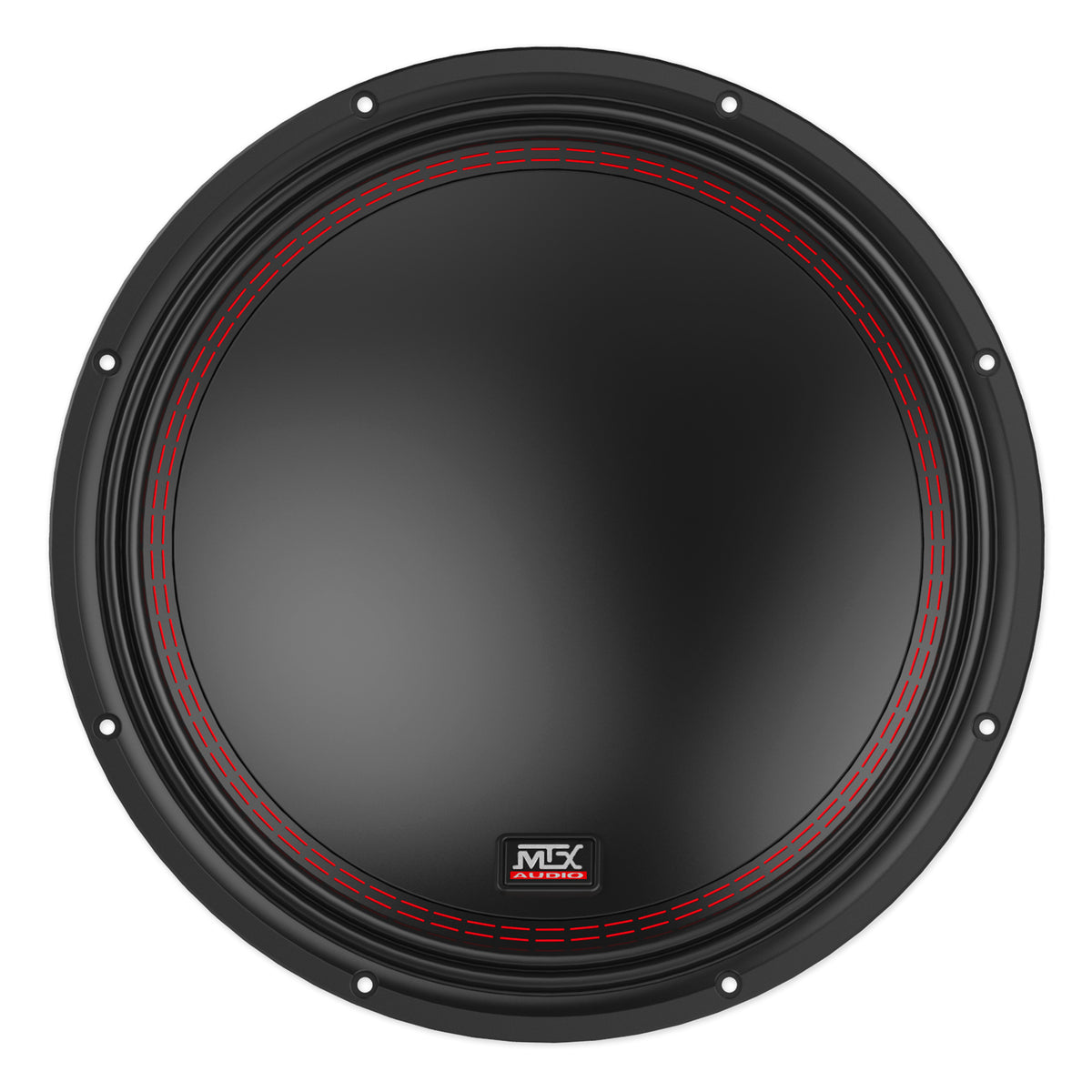

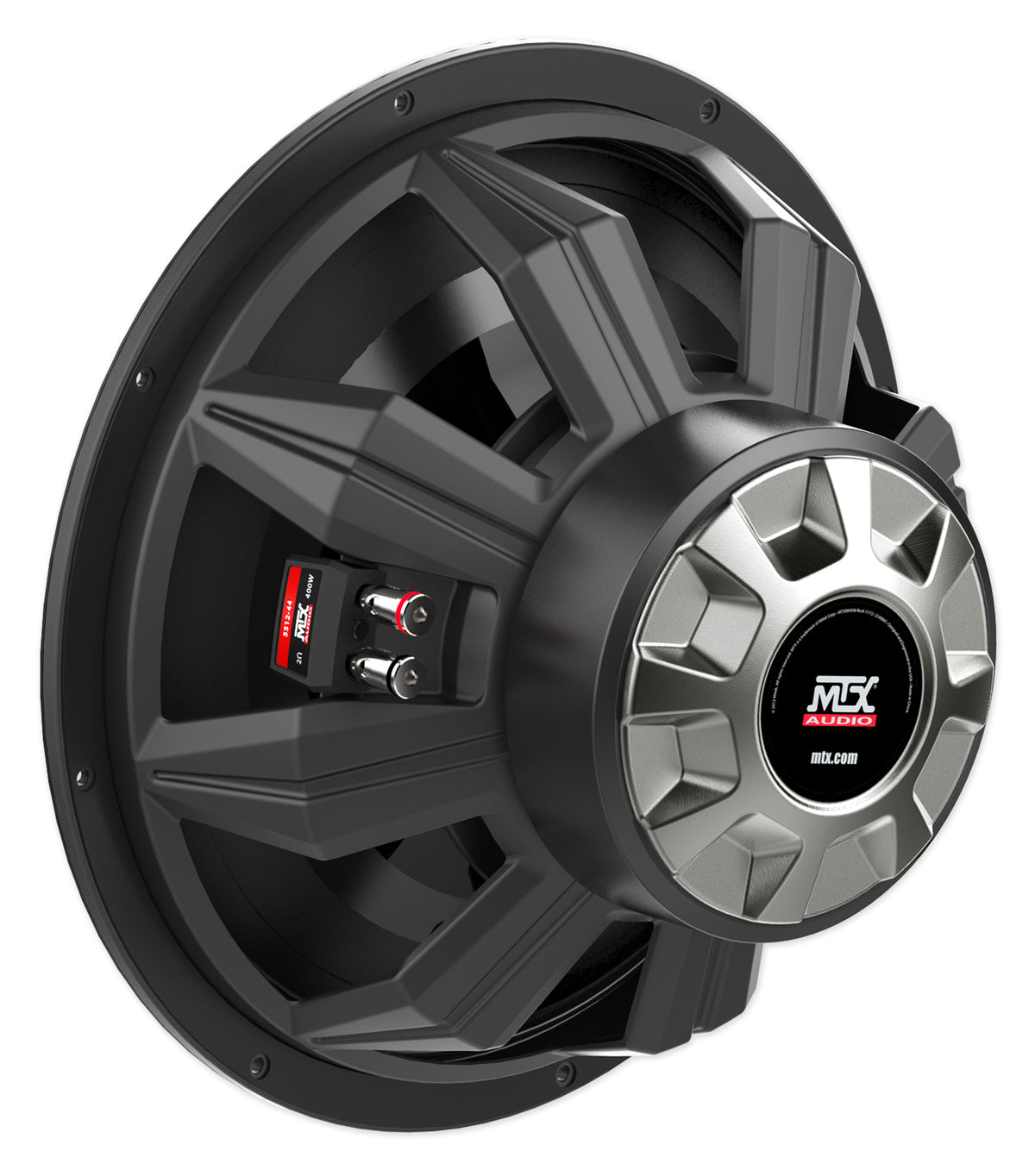

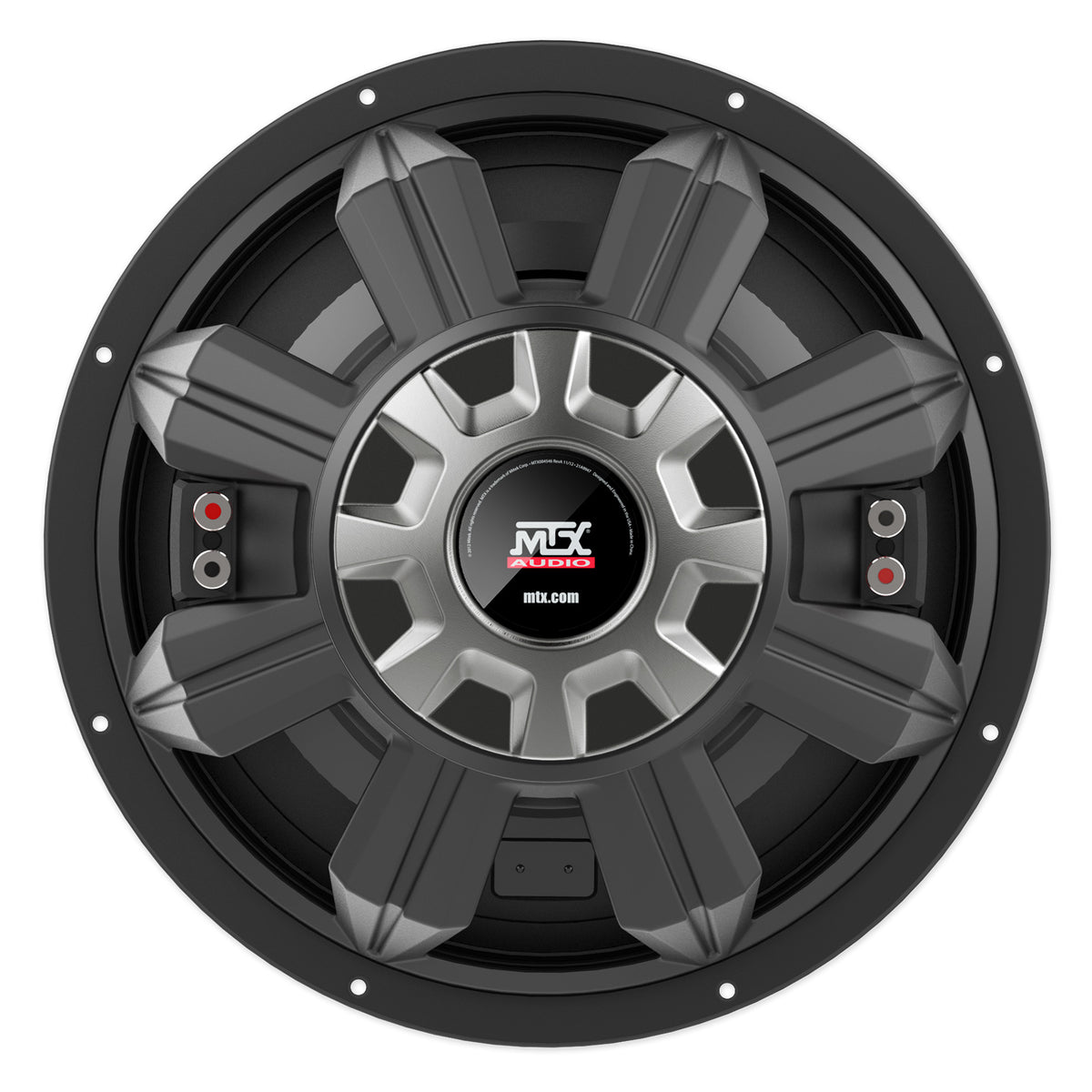

(1) 5512-44 12-inch dual 4-ohm subwoofer

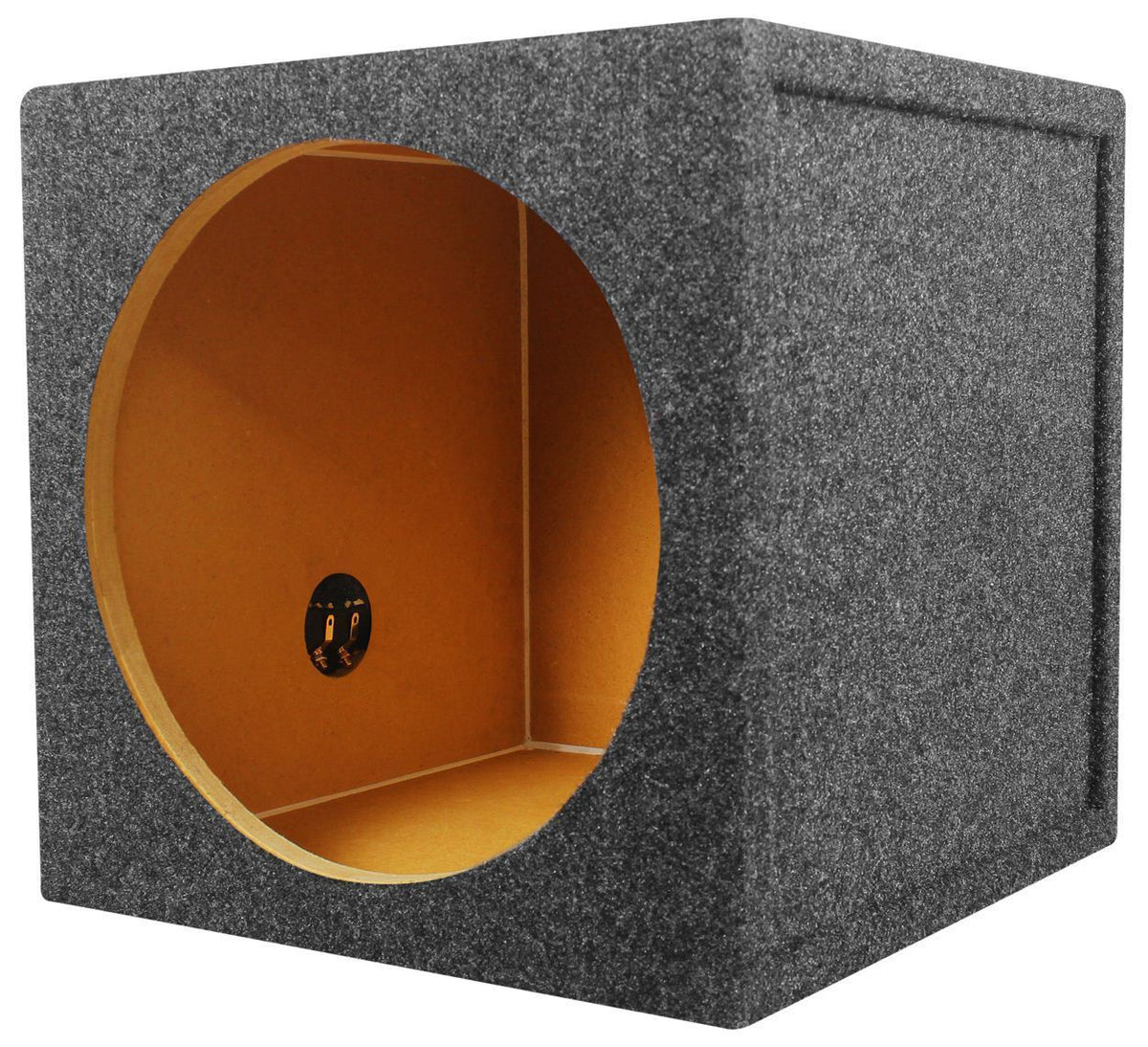

(1) RS12 single 12-inch, 3/4-inch MDF sealed enclosure, 1.0 cu ft

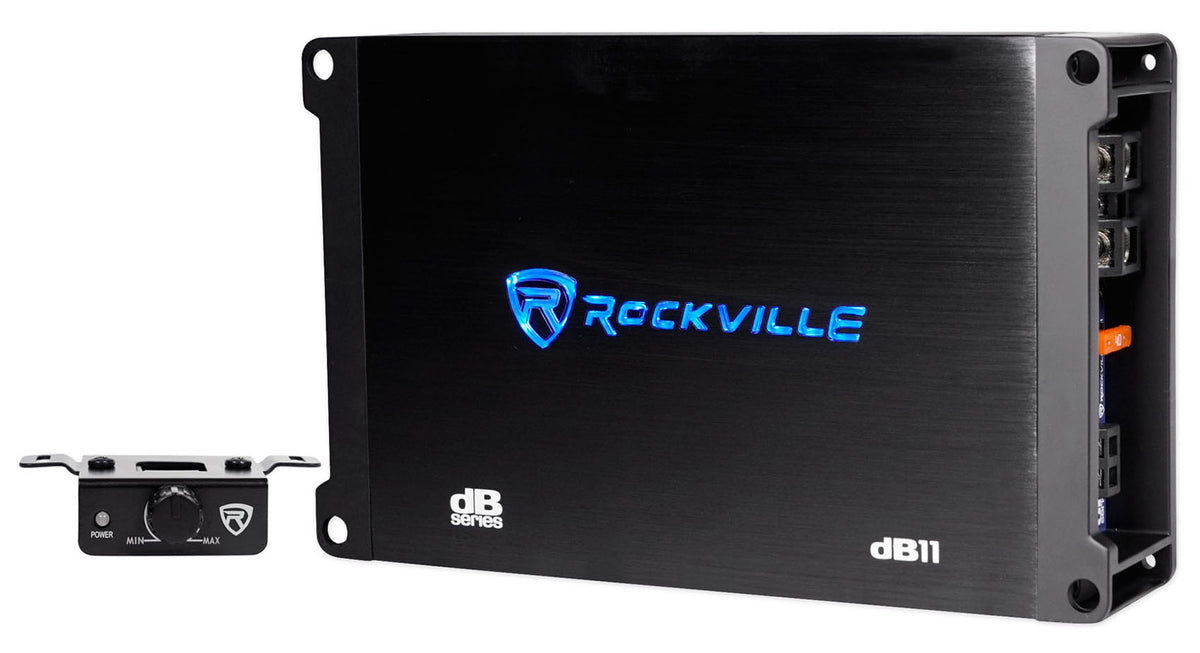

(1) dB11 mono amplifier
(1) Bass remote
(1) Tested-power birth sheet
Amplifier mounting hardware

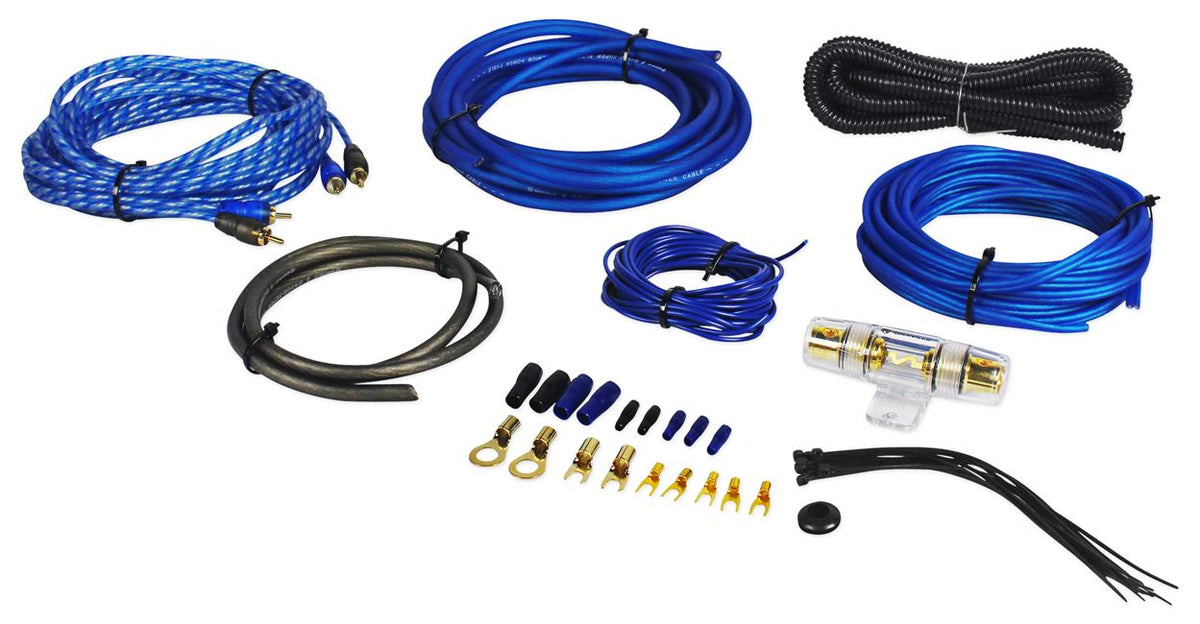

(1) RWK81 8-gauge, 2-channel wiring kit
17 ft of 100% copper twisted-pair RCA cable
17 ft of 8 AWG blue power cable
3 ft of 8 AWG black ground cable
17 ft of 18 AWG blue remote cable
17 ft of 16 AWG blue speaker wire
(1) Gold-plated AGU fuse holder
(1) 60A gold-plated AGU fuse
7 ft of split loom tube
Wire ties, ring terminals, butt connectors, and grommets

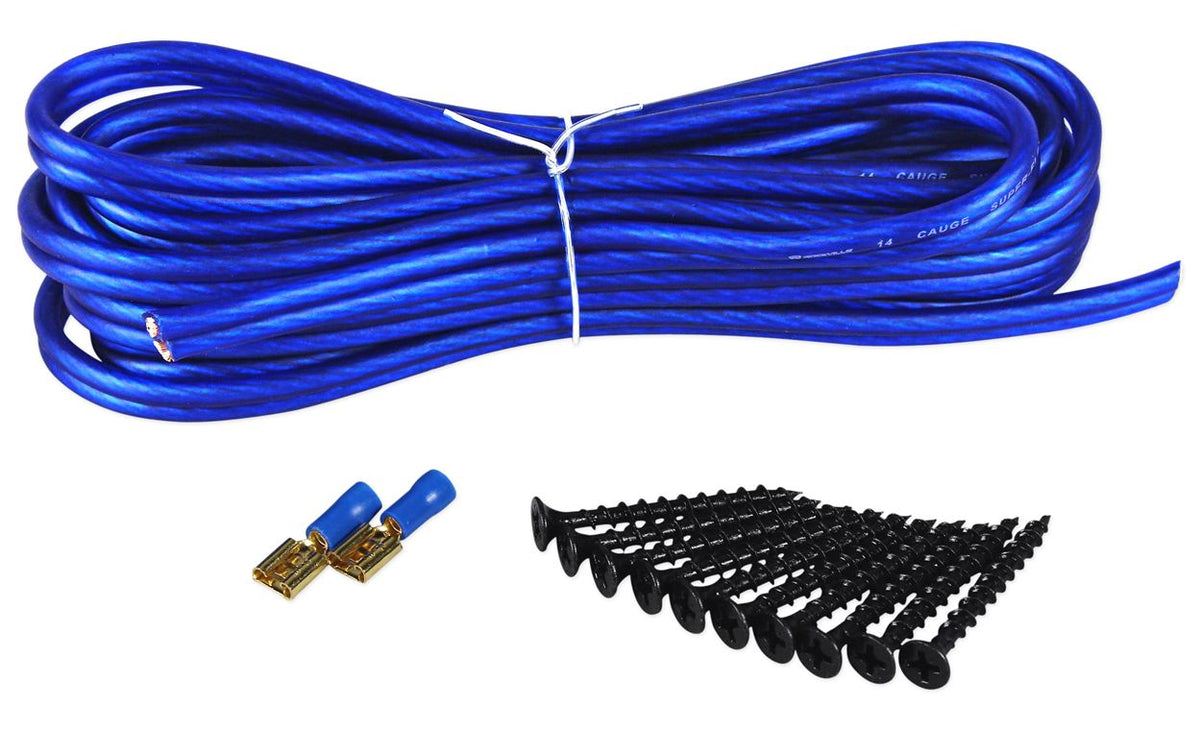

12 ft of 14 AWG blue speaker wire
(10) Metal drywall screws
(2) Spade terminals

SKU: SKU: 5512-44+dB11+RWK81+RS12+K1

View full details

Product Description

The 5512-44 12-inch car subwoofer, sealed enclosure, mono amplifier, and 8-gauge wiring kit bring the core pieces of an in-car bass system together. Rated for 400W RMS with 800W peak handling, the dual 4-ohm subwoofer is recommended for amplifiers from 200 to 400W RMS. The included amplifier is rated at 350W RMS into 2 ohms and 220W RMS into 4 ohms, with adjustable low-pass and subsonic filters, phase control, and bass equalization. Its final output depends on the load created by the speaker wiring, so confirm the intended impedance before installation. The 3/4-inch MDF sealed enclosure has a 1.0 cu ft net volume. A two-channel, 8-gauge wiring kit adds 100% copper RCA cables, power and ground leads, remote wire, a fuse holder and 60A fuse, loom, and terminals. Extra speaker wire, screws, and spade terminals are also listed in the package contents. This set suits a vehicle installation where a single 12-inch subwoofer and the core amp connections are wanted together.

Features

Bass That Fits the Vehicle
A 12-inch dual 4-ohm subwoofer rated for 400W RMS and 800W peak adds low-frequency output for music playback in a vehicle sound system.
A Box Sized for Sealed Use
The included 3/4-inch MDF enclosure has a 1.0 cu ft net volume, giving the subwoofer a sealed cabinet for a defined vehicle installation.
Amplifier Output Within the Recommended Range
At 2 ohms, the mono amp is rated for 350W RMS, within the subwoofer's stated 200 to 400W RMS amplifier range, after load is confirmed.
Adjustable Control for System Setup
Low-pass and subsonic filters, phase control, and adjustable bass EQ let installers tailor the amp's signal to the vehicle's subwoofer setup.
Core Connection Hardware Included
The 8-gauge kit supplies copper RCA cables, power and ground leads, remote wire, a 60A fuse, and loom to cover key amp connections.

Technical Specifications

Product Type 12-Inch Car Audio Subwoofer System Bundle

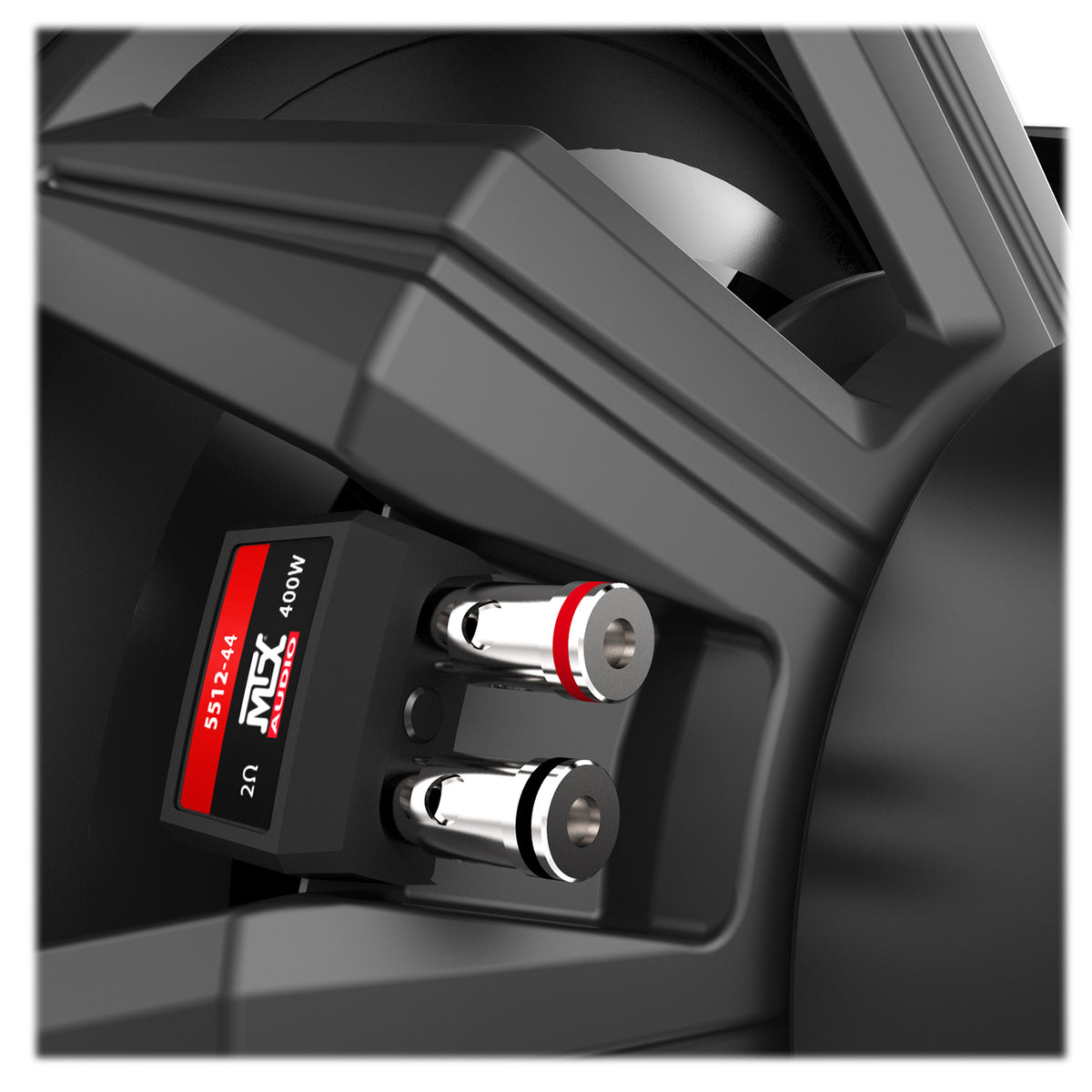

Subwoofer 5512-44, 12-inch, dual 4-ohm voice coil
Subwoofer RMS Power Handling 400W
Subwoofer Peak Power Handling 800W
Recommended Amplifier Power 200 to 400W RMS
Frequency Response 26Hz to 130Hz
Sensitivity 85.7 dB
Voice Coil 2-inch, dual
Mounting Depth 6.188 in
Cutout Diameter 11.125 in
Volume Displacement 52.46 cu in
Sealed Enclosure Net Volume 1.0 cu ft
Vented Enclosure Net Volume 2.32 cu ft
Enclosure Single 12-inch sealed, 3/4-inch MDF
Amplifier RMS Power at 2 Ohms 350W x 1 channel, less than 1% THD+N
Amplifier RMS Power at 4 Ohms 220W x 1 channel, less than 1% THD+N
Amplifier Peak Power at 2 Ohms 1400W x 1 channel
Amplifier Peak Power at 4 Ohms 880W x 1 channel
Amplifier Frequency Response 15Hz to 250Hz
Low-Pass Filter 50Hz to 250Hz
Subsonic Filter 15Hz to 55Hz
Bass Equalizer 12 dB, adjustable
Installation Kit 8 AWG, 2-channel
RCA Cables 17 ft, 100% copper, twisted pair
Power Cable 17 ft, 8 AWG
Ground Cable 3 ft, 8 AWG
Remote Cable 17 ft, 18 AWG
Speaker Wire (Kit) 17 ft, 16 AWG
Additional Speaker Wire 12 ft, 14 AWG
Fuse 60A AGU, gold-plated
Magnet Weight 56 oz
Dimensions dB11 amplifier: 8.9 x 2 x 5.5 in (W x H x D)
