7512-44 + dB13 + RWK41 + RS12 + K1 Car Subwoofer System

Name: 7512-44 + dB13 + RWK41 + RS12 + K1 Car Subwoofer System
Brand: MTX
SKU: 7512-44+dB13+RWK41+RS12+K1
Price: 642.85 USD
Availability: InStock

12-Inch Subwoofer System, 750 W RMS Amp, Sealed Enclosure, 4 AWG Wiring Kit

Free Shipping

Retail ~~Retail price $914.92~~ Save 29.74%

$642.85

Shipping calculated at checkout.

Features

12-inch dual 4-ohm subwoofer rated for 750 W RMS and 1,500 W peak
dB13 mono amplifier listed at 750 W RMS at 2 ohms
RS12 sealed MDF enclosure with 1.0 cu ft gross volume
RWK41 4 AWG amp wiring kit with RCA cables
12 ft of 14 AWG speaker wire, 10 screws and 2 spade terminals

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

Member-Exclusive Prices

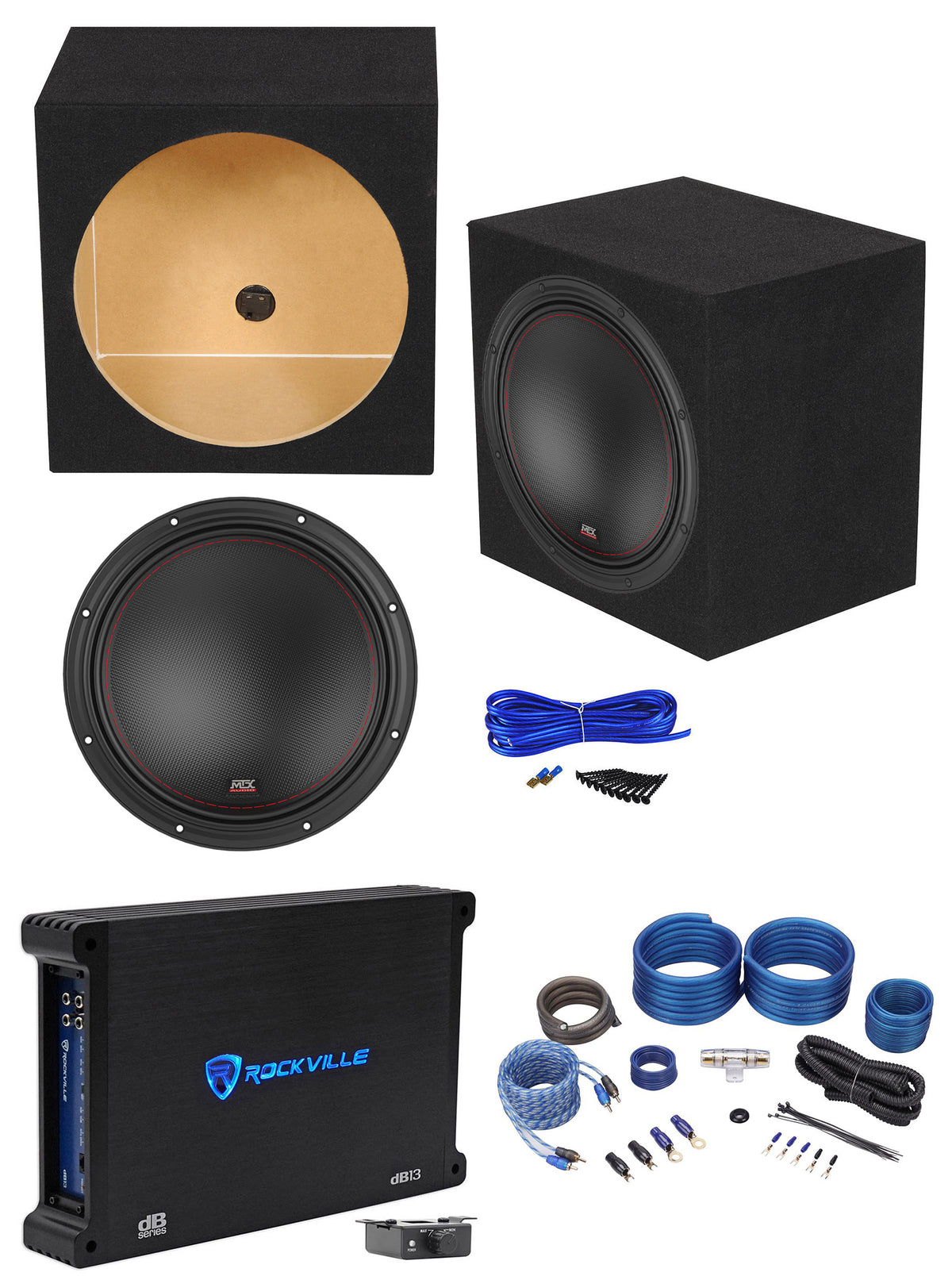

What's Included in the box

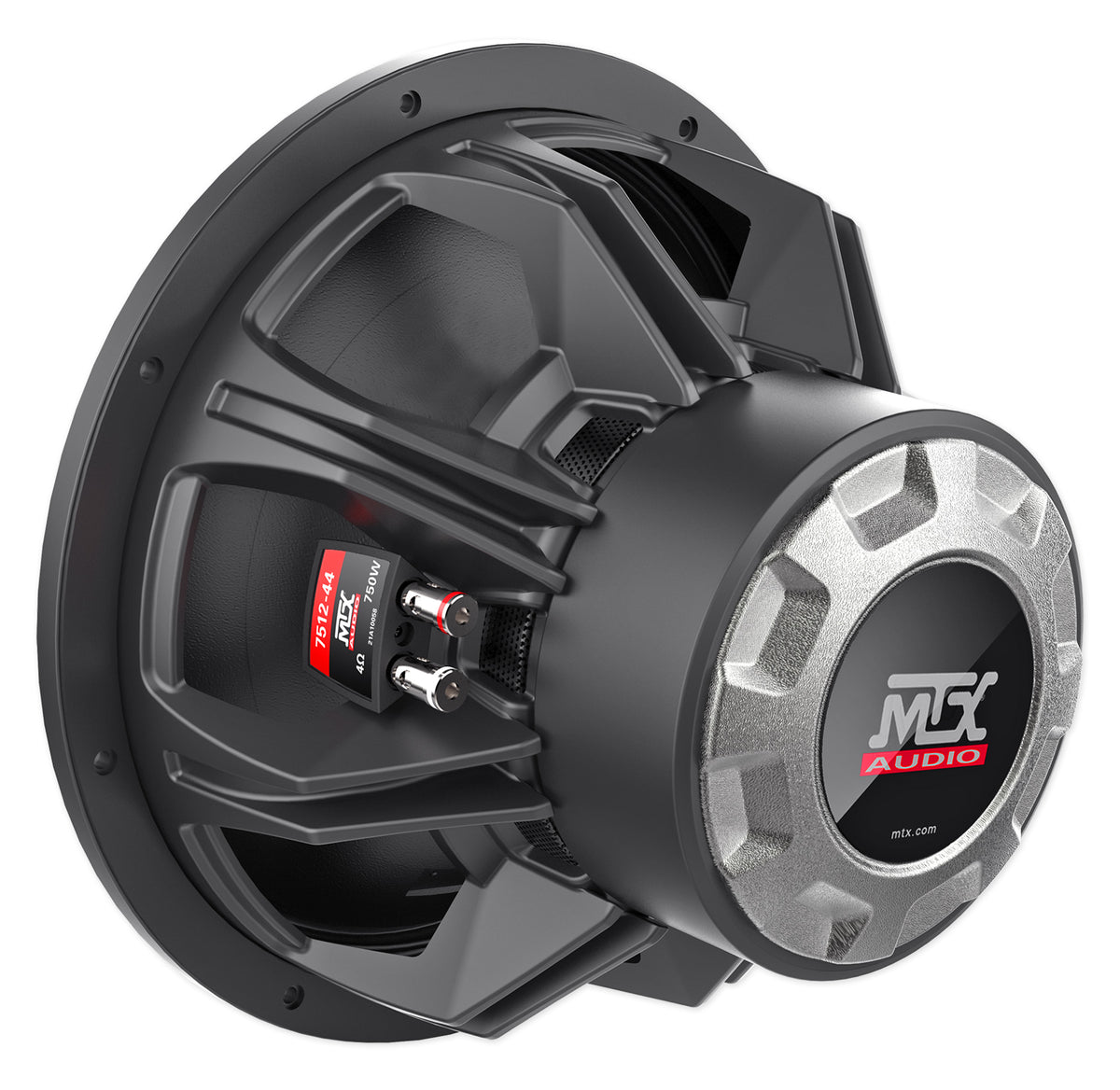

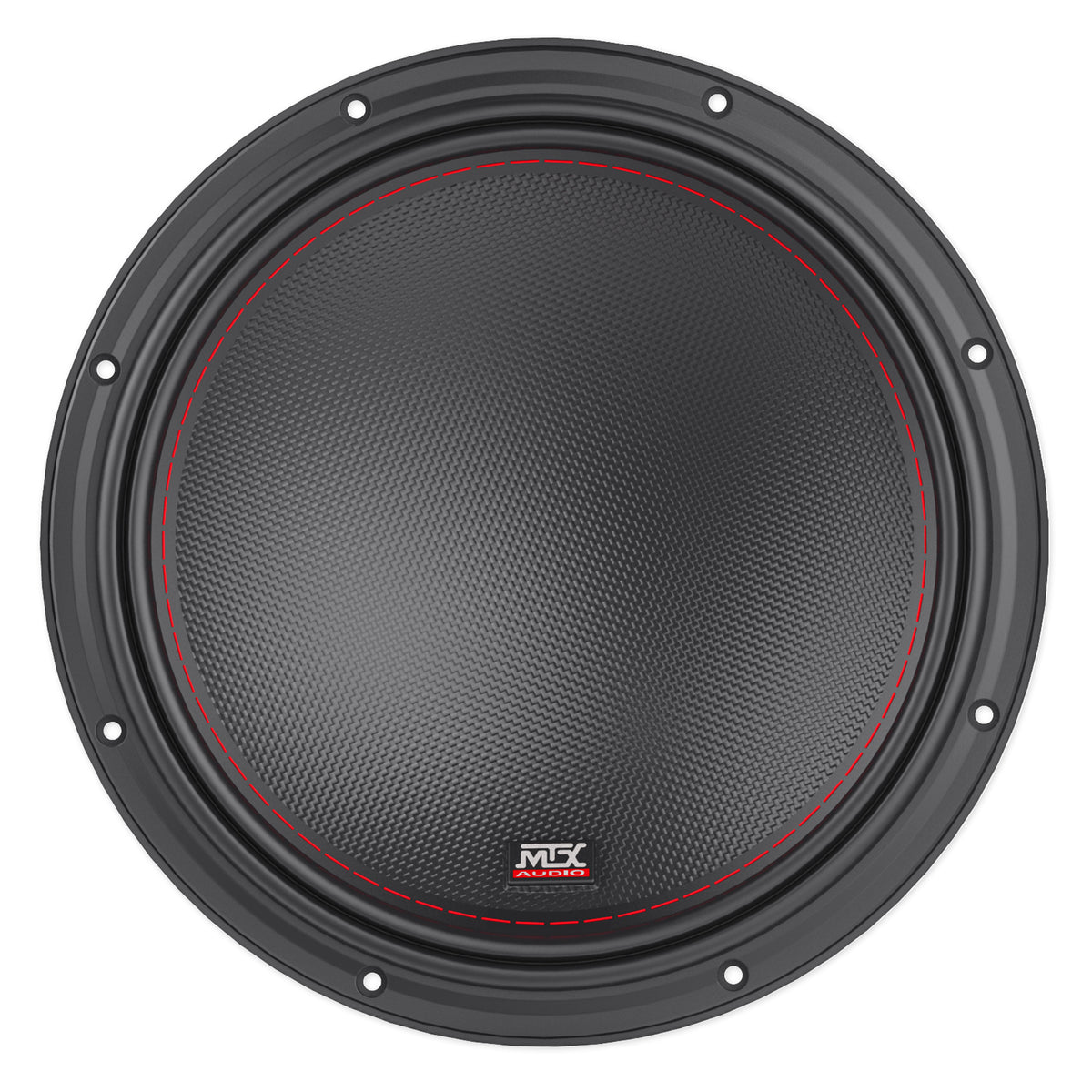

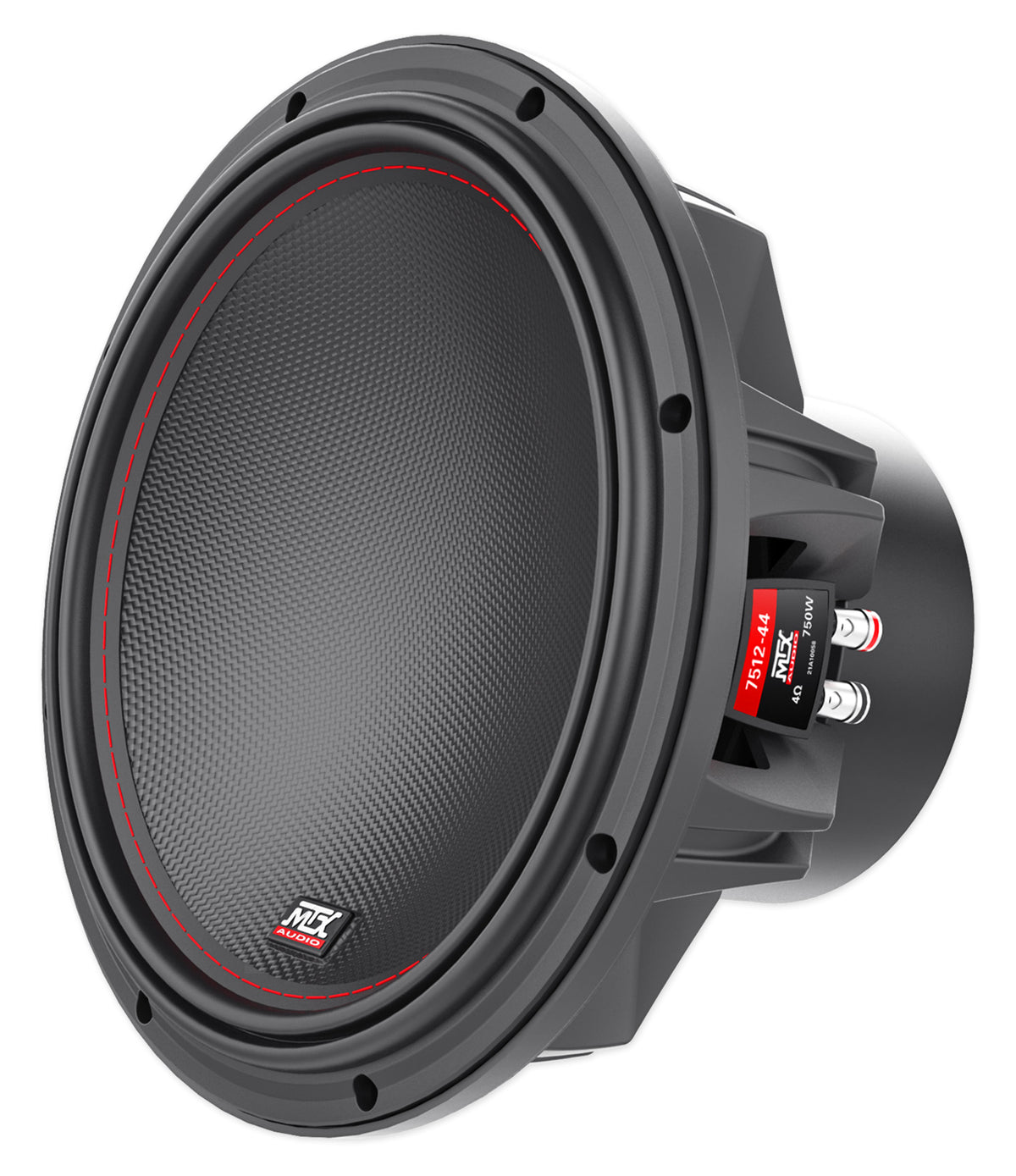

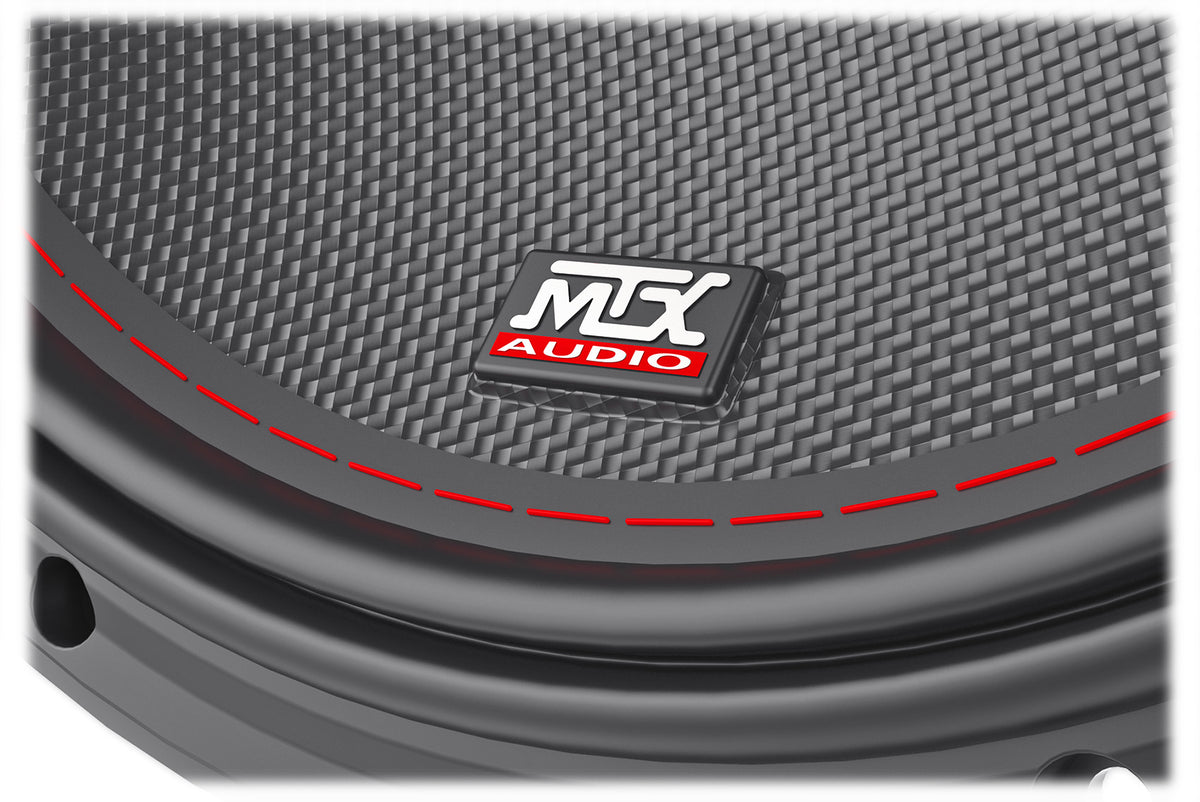

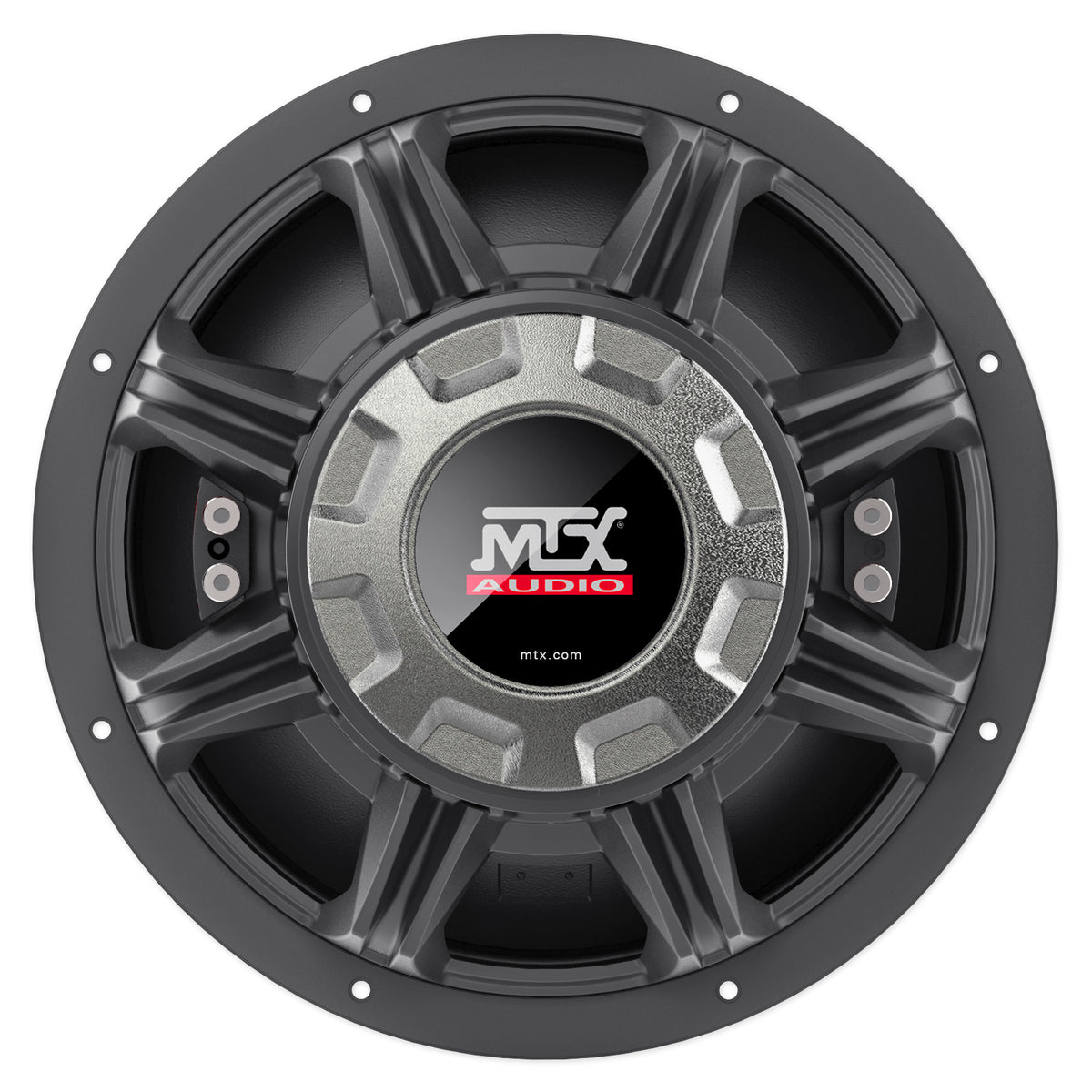

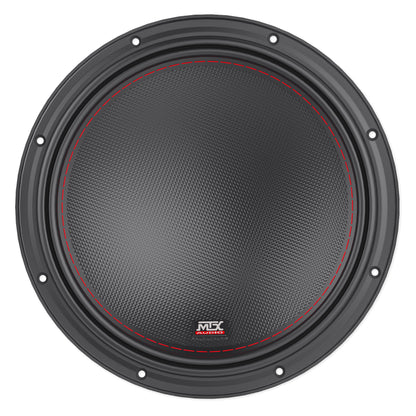

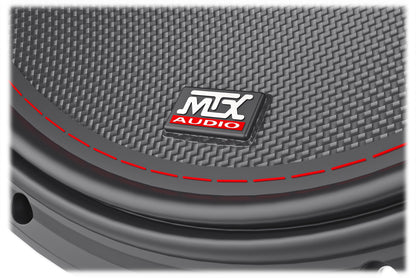

(1) 7512-44 12-inch dual 4-ohm subwoofer

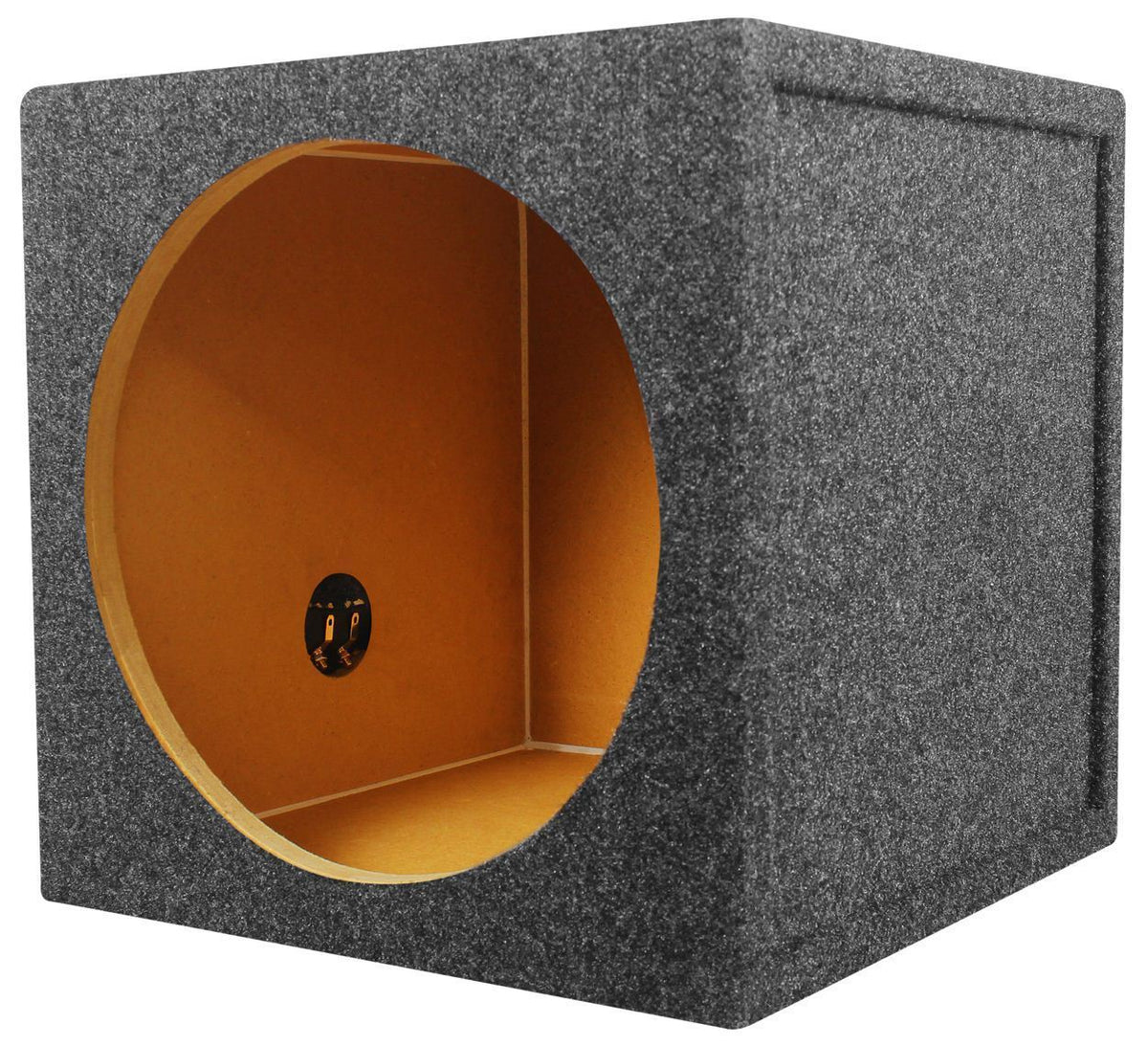

(1) RS12 single 12-inch sealed MDF enclosure

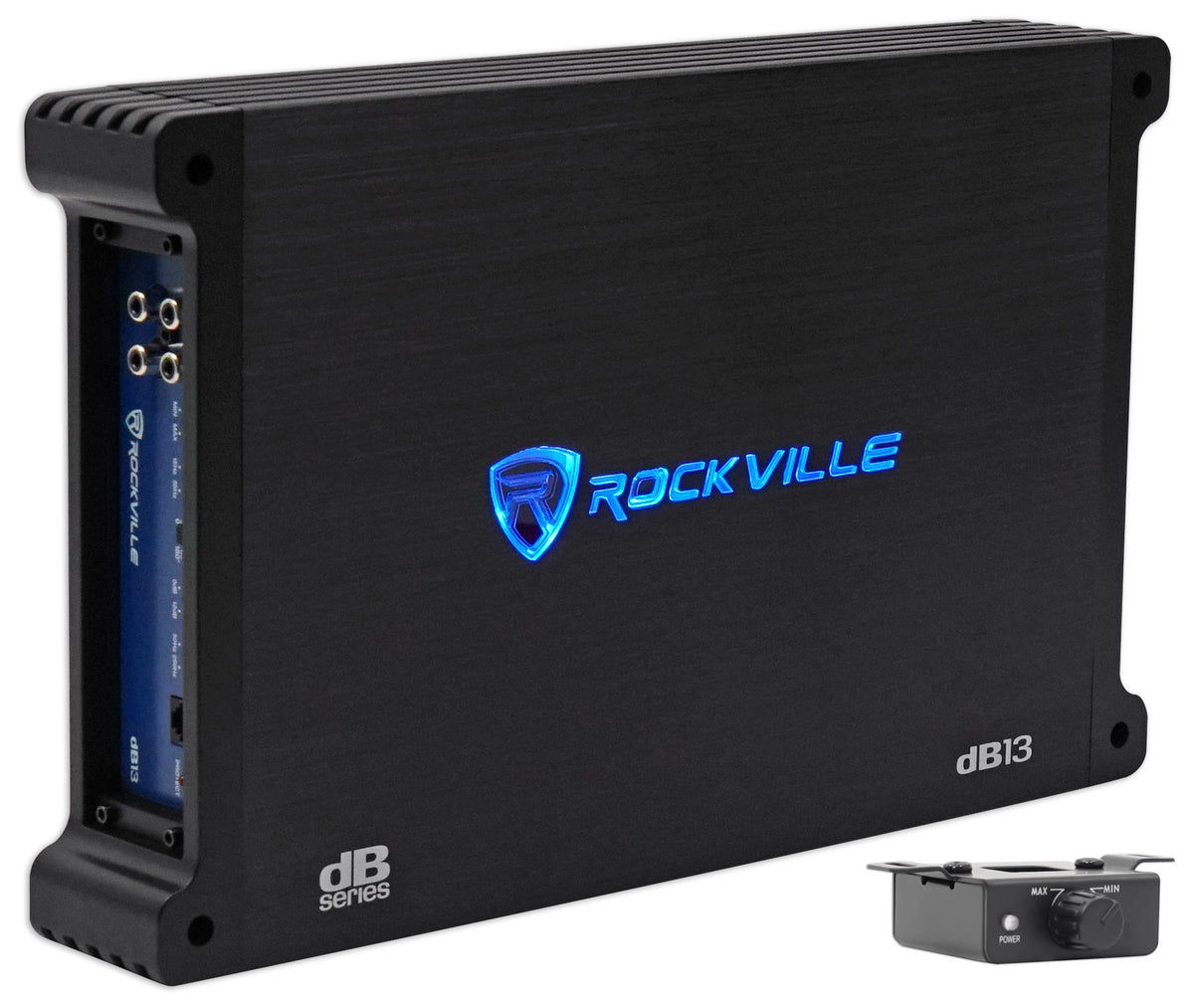

(1) dB13 mono amplifier

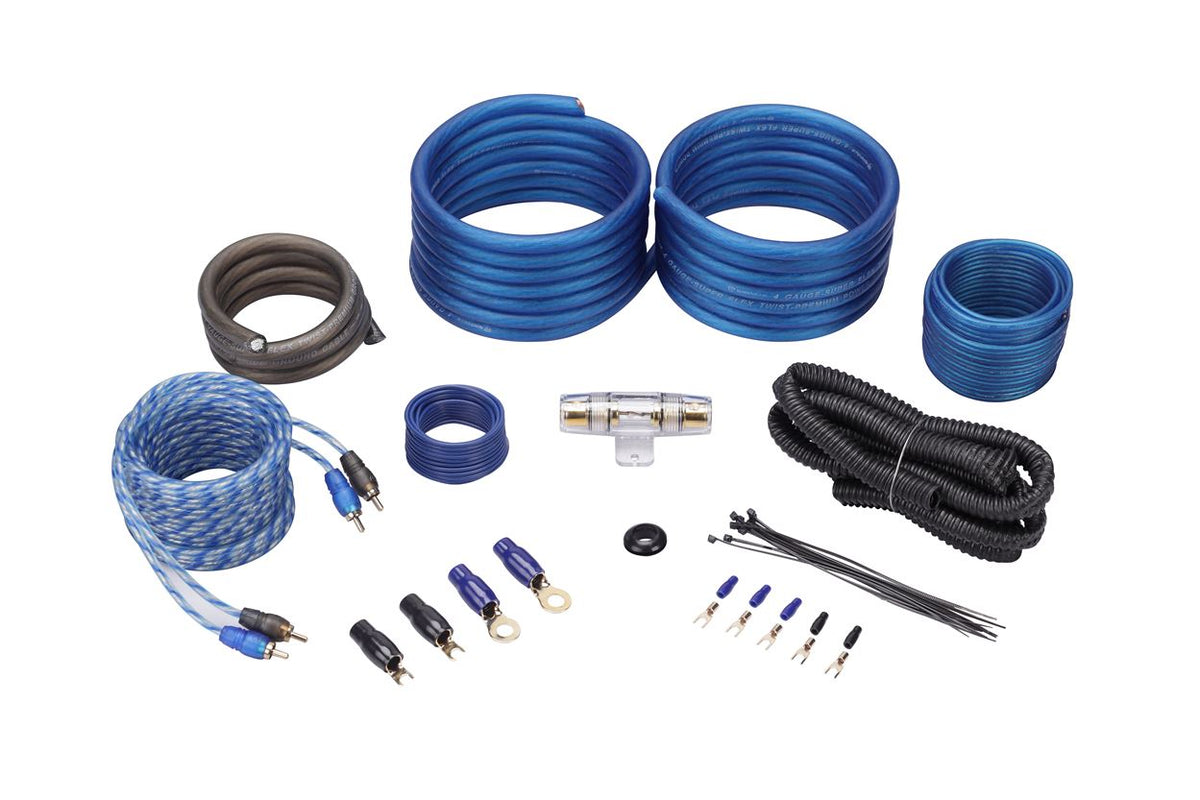

(1) RWK41 4 AWG amp wiring kit with RCA cables
10 metal drywall-type screws

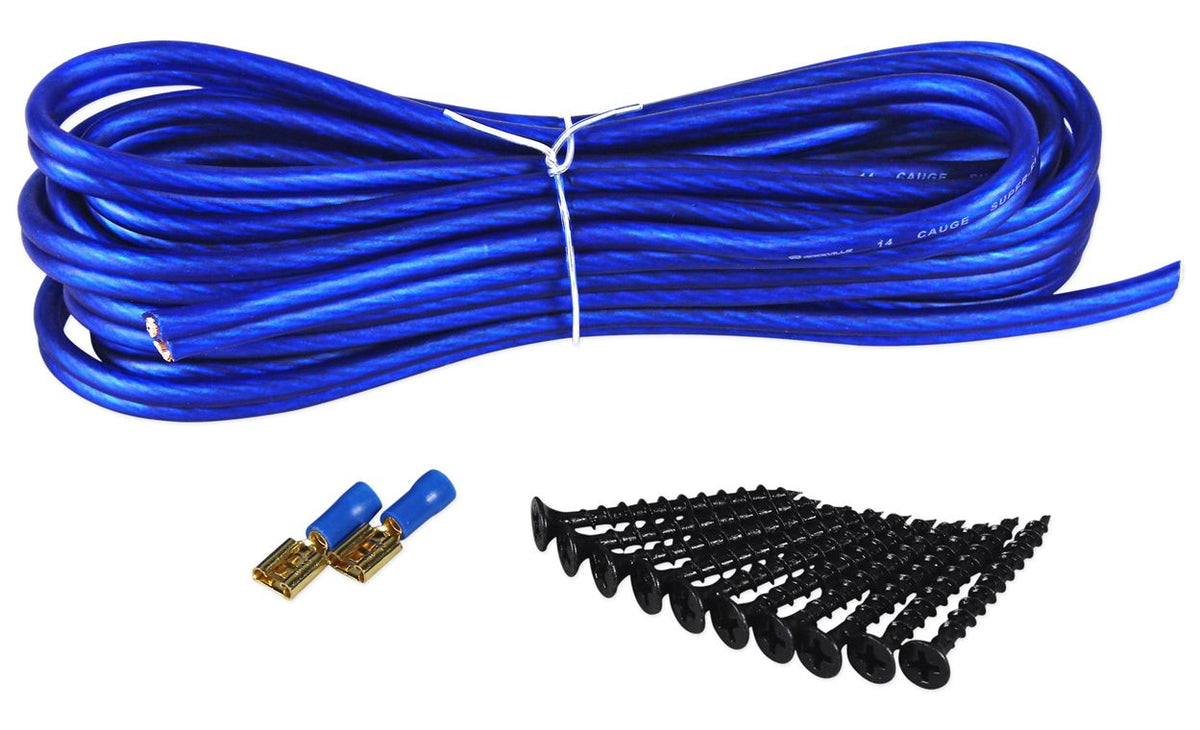

12 ft of 14 AWG blue speaker wire
2 spade terminals

SKU: SKU: 7512-44+dB13+RWK41+RS12+K1

View full details

Product Description

The 7512-44 package brings a single 12-inch car subwoofer, sealed enclosure, mono amplifier, and installation accessories together for one bass system. The dual 4-ohm voice coils can be wired in parallel for a 2-ohm load, matching the dB13 amplifier's listed 750 W RMS at 2 ohms. That output sits at the upper end of the subwoofer's recommended 375 to 750 W RMS range; the sub is rated for 750 W RMS and 1,500 W peak, with a 22 Hz to 140 Hz frequency response. The included RS12 enclosure uses 3/4-inch MDF and spring-loaded terminals, with 1.0 cu ft gross and 0.75 cu ft net volume. The package also lists a 4 AWG RWK41 amp wiring kit with RCA cables, 12 feet of blue 14 AWG speaker wire, ten metal drywall-type screws, and two spade terminals. Check the enclosure's space and final coil wiring before installation.

Features

Matched Power Components

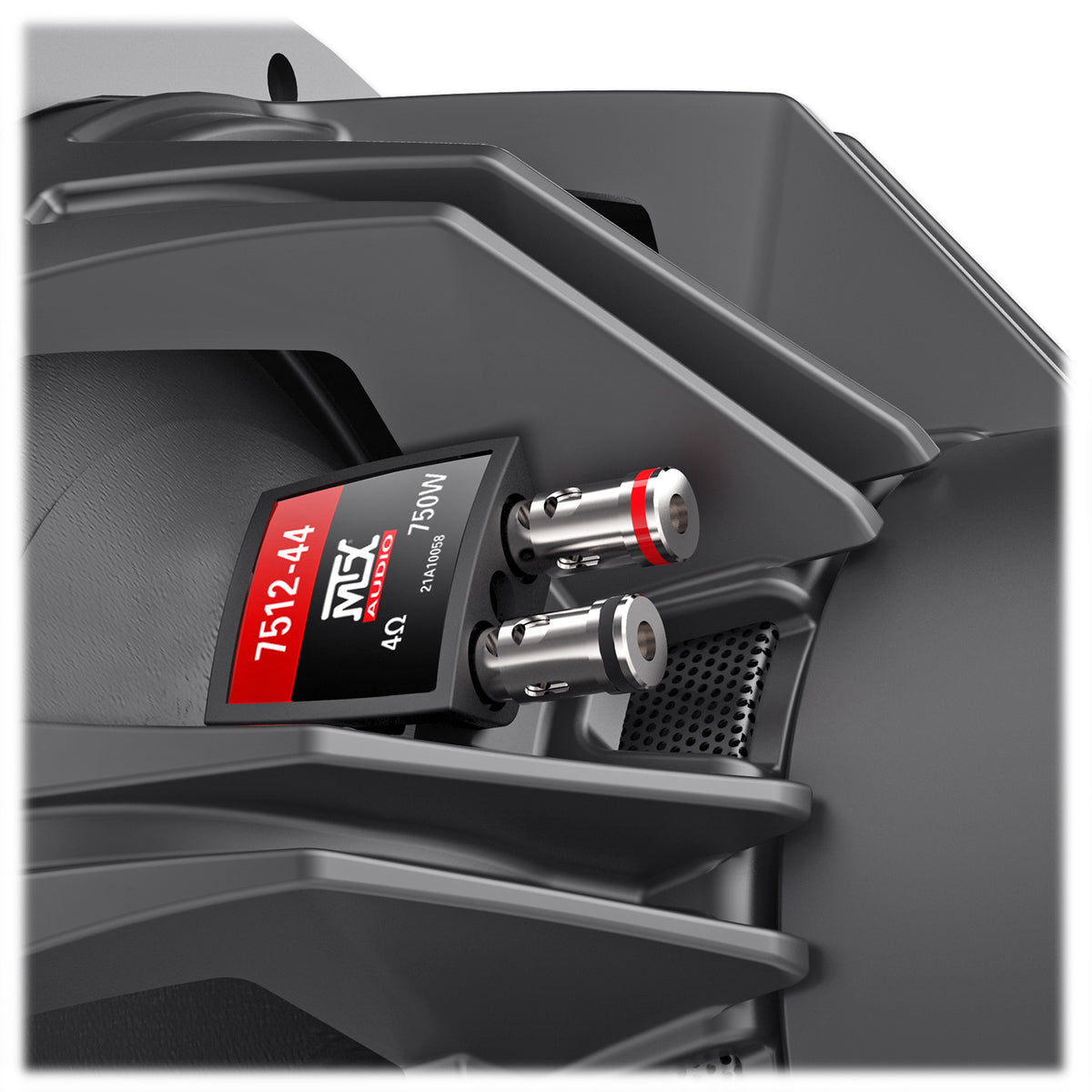

Wire the dual 4-ohm voice coils in parallel for a 2-ohm load, matching the amplifier's listed 750 W RMS output to the sub's recommended 375 to 750 W RMS range.
Subwoofer Performance
With 750 W RMS handling, 1,500 W peak handling, and a 22 Hz to 140 Hz response, the 12-inch sub covers the low end of a car audio system.
Sealed Enclosure
The RS12 uses 3/4-inch MDF with spring-loaded terminals and lists 1.0 cu ft gross, 0.75 cu ft net volume for a compact sealed setup.
Amplifier Wiring Kit
The RWK41 package includes a 4 AWG amplifier wiring kit with RCA cables, giving the mono amp its listed power and signal wiring.
Installation Accessories
Ten metal drywall-type screws, 12 feet of blue 14 AWG speaker wire, and two spade terminals are listed for mounting and internal subwoofer connections.

Technical Specifications

Product Type 12-Inch Car Subwoofer System Bundle
Subwoofer Model 7512-44
Subwoofer Size 12 in
Subwoofer Power Handling 750 W RMS / 1,500 W peak
Recommended Amplifier Power 375 to 750 W RMS
Voice Coil Dual 4 ohm, 2.5 in
Frequency Response 22 Hz to 140 Hz
Sensitivity 85.44 dB
Magnet Weight 103.4 oz
Subwoofer Mounting Depth 7.437 in
Cutout Diameter 11.125 in
Amplifier dB13, 750 W RMS at 2 ohms, 3,000 W peak
Enclosure RS12, sealed, single 12 in
Enclosure Material 3/4 in Grade A MDF
Enclosure Gross Volume 1.0 cu ft
Enclosure Net Volume 0.75 cu ft
Subwoofer Sealed Enclosure Volume Listed 1.25 cu ft
Enclosure Mounting Depth Up to 12.25 in
Speaker Wire 12 ft, 14 AWG, blue
Amp Wiring Kit RWK41, 4 AWG, RCA cables
Screws 10 metal drywall-type screws
Spade Terminals 2
Enclosure Dimensions 18 x 13.2 x 13.2 in
