7515-22 + dB13 + RWK41 + RSV15 + K1

Name: 7515-22 + dB13 + RWK41 + RSV15 + K1
Brand: MTX
SKU: 7515-22+dB13+RWK41+RSV15+K1
Price: 549.95 USD
Availability: InStock

15-Inch Subwoofer, 750 W RMS Mono Amplifier, 2.6 cu ft Vented Enclosure, 4-Gauge Wiring Kit

Free Shipping

$549.95

$549.95 ~~$1,004.92~~

Save 45%

Shipping calculated at checkout.

Features

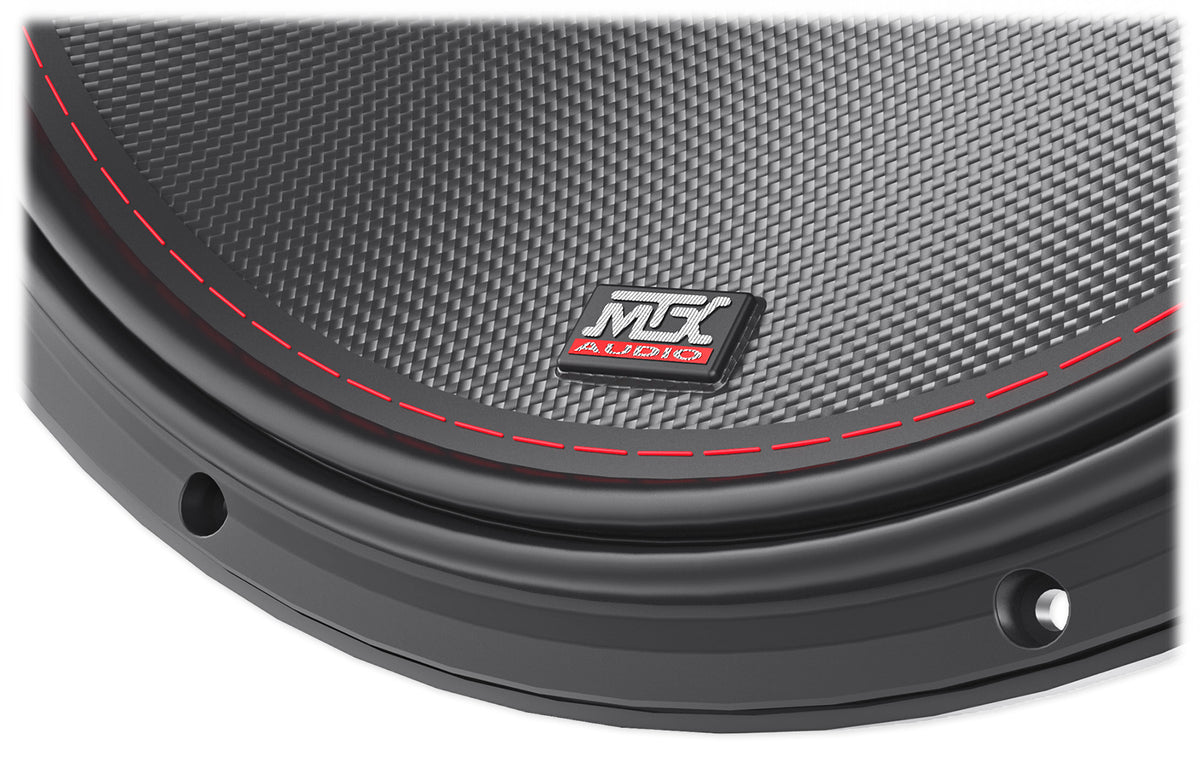

15-inch dual 2-ohm subwoofer rated for 750 W RMS and 1,500 W peak
Mono amplifier listed at 750 W RMS and 3,000 W peak at 2 ohms
Vented enclosure offers 2.6 cu ft net volume and 32 Hz tuning
4-gauge amplifier wiring kit includes RCA cables
Package includes 12 ft of 14 AWG blue wire, two terminals, and ten screws

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

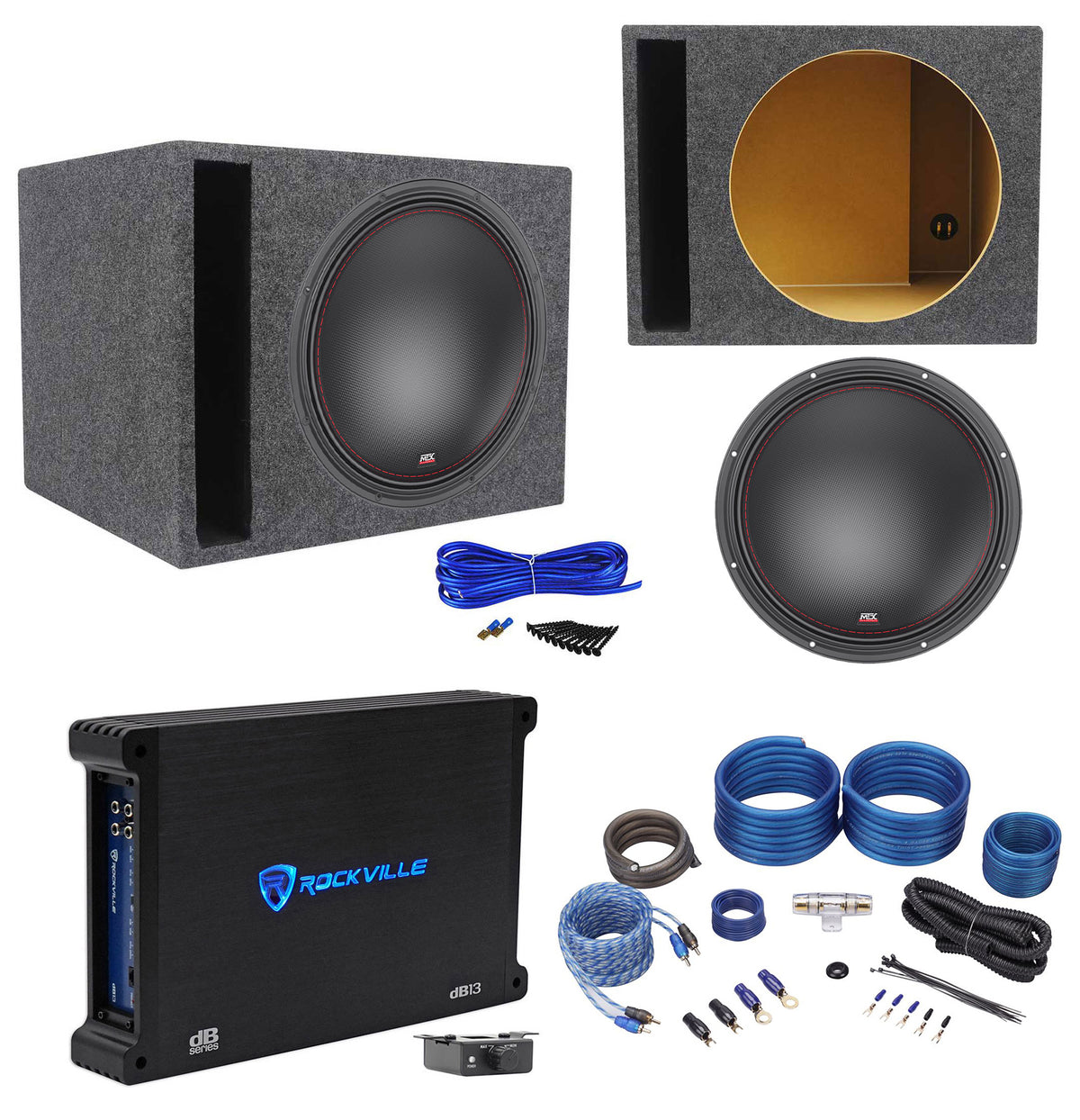

What's Included in the box

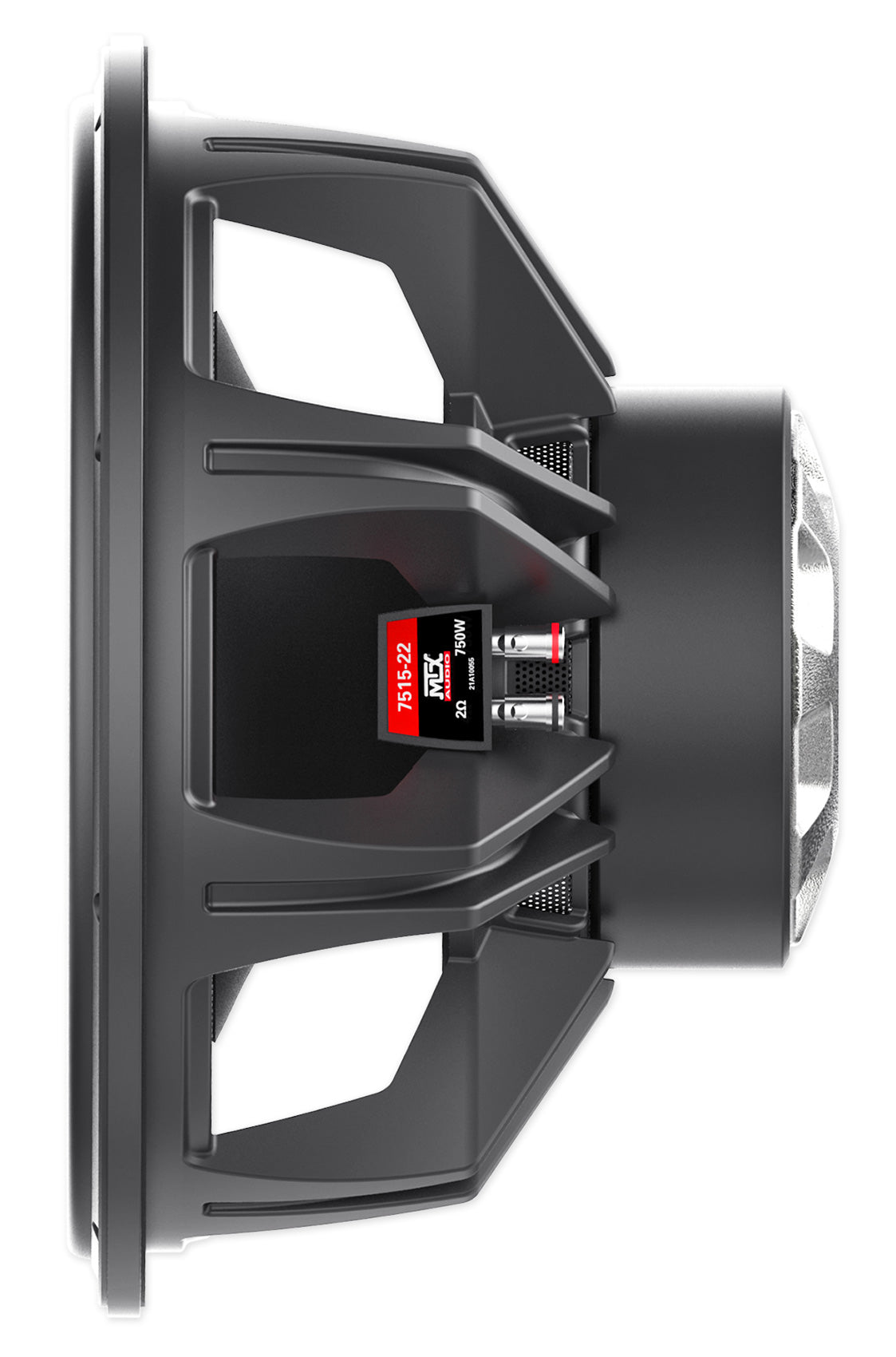

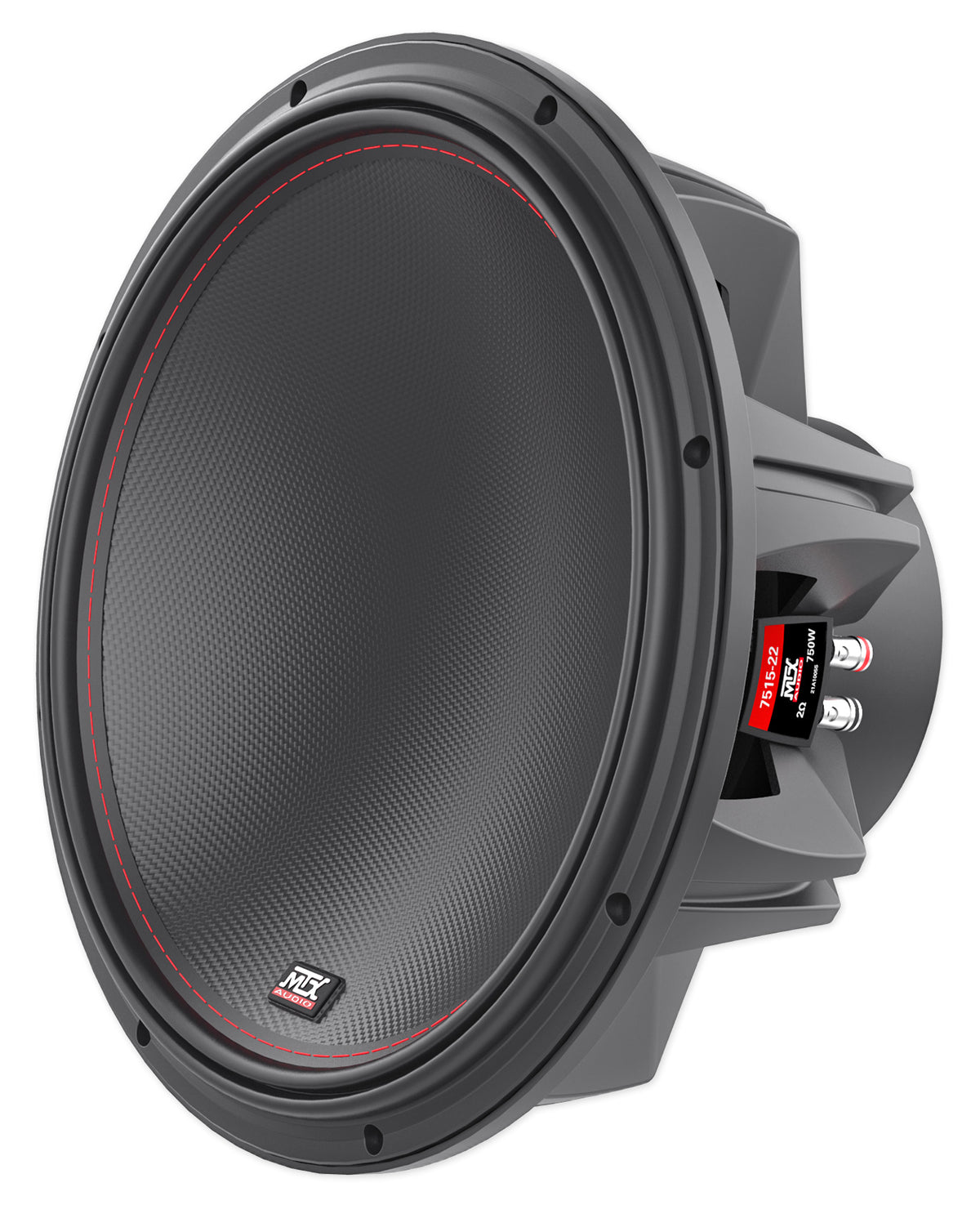

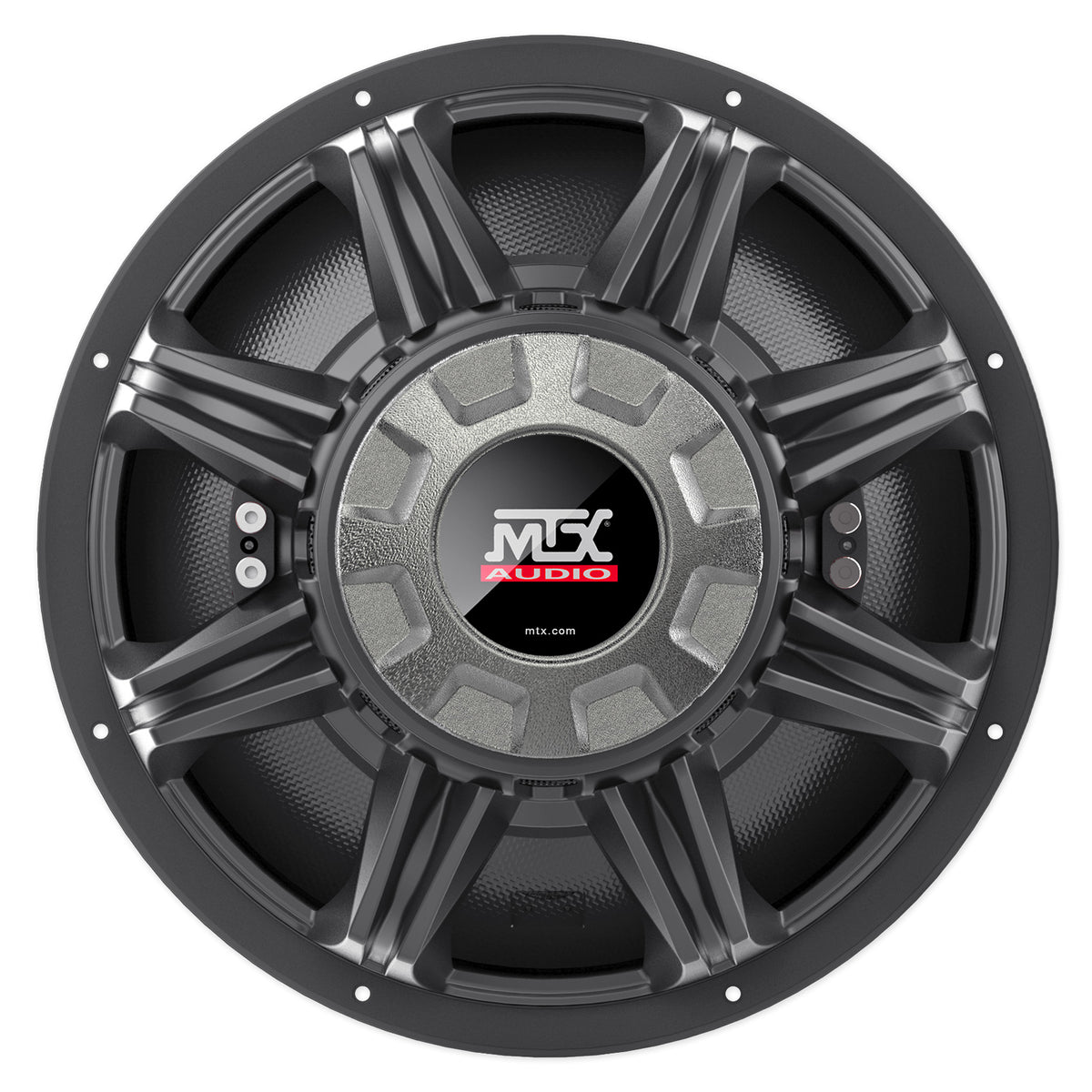

(1) 7515-22 15-inch dual 2-ohm subwoofer

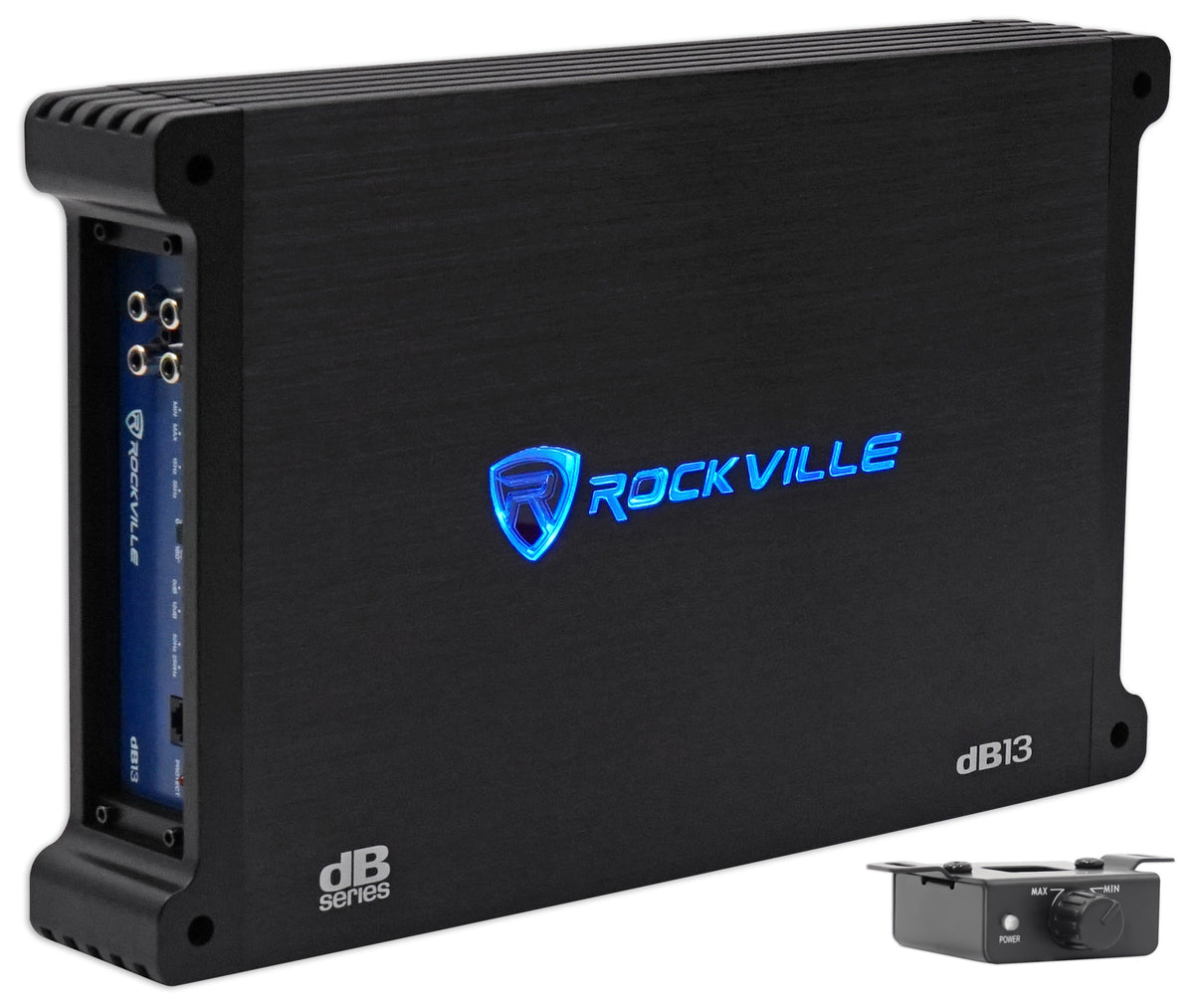

(1) dB13 mono amplifier
(1) RWK41 4-gauge amplifier wiring kit with RCA cables
(1) RSV15 15-inch ported/vented enclosure
10 metal drywall screws (wood-screw type)
12 ft of 14 AWG blue speaker wire
2 spade terminals

SKU: SKU: 7515-22+dB13+RWK41+RSV15+K1

View full details

Product Description

Build a single-subwoofer car audio setup with a 15-inch dual 2-ohm subwoofer, a mono amplifier listed at 2 ohms, a vented enclosure, and installation accessories. The subwoofer handles 750 W RMS and 1,500 W peak, with a stated frequency response of 20 Hz to 140 Hz and 87.53 dB sensitivity. Its inverted apex surround increases surface area and excursion, while spider plateau venting directs air toward the voice coil. The enclosure has 2.6 cu ft net volume, a 32 Hz tuning frequency, and 3/4-inch MDF construction; its listed dimensions are 21 x 18 x 16.25 inches. The package also includes a 4-gauge wiring kit with RCA cables, 12 feet of 14 AWG blue speaker wire, two spade terminals, and ten metal drywall screws. The amplifier is listed at 750 W RMS and 3,000 W peak, and the subwoofer's recommended amplifier range is 375 to 750 W RMS. Confirm the final voice-coil wiring with the amplifier's supported load before powering the system.

Features

Rated Power Range
This 15-inch subwoofer handles 750 W RMS and 1,500 W peak, giving a single-driver build clear power-handling figures for amplifier planning.
More Cone Travel
The inverted apex surround increases cone area and excursion, helping the 15-inch subwoofer move more air for stronger output in a vented enclosure.
Thermal Design

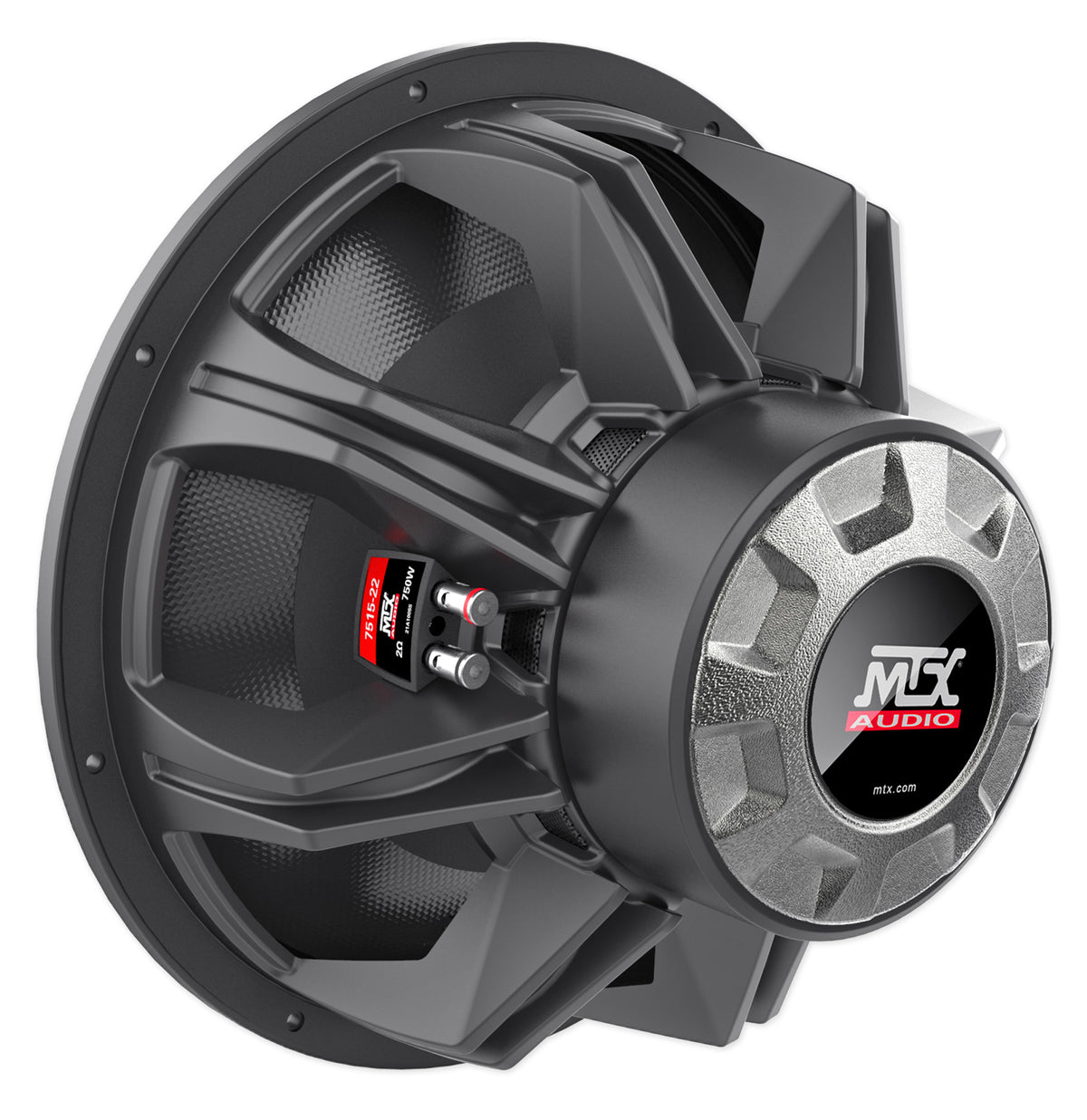

Spider plateau venting directs cool air toward the voice coil, while the t-yoke heat sink and dual-layer thermal design support long-term performance.
Vented Cabinet

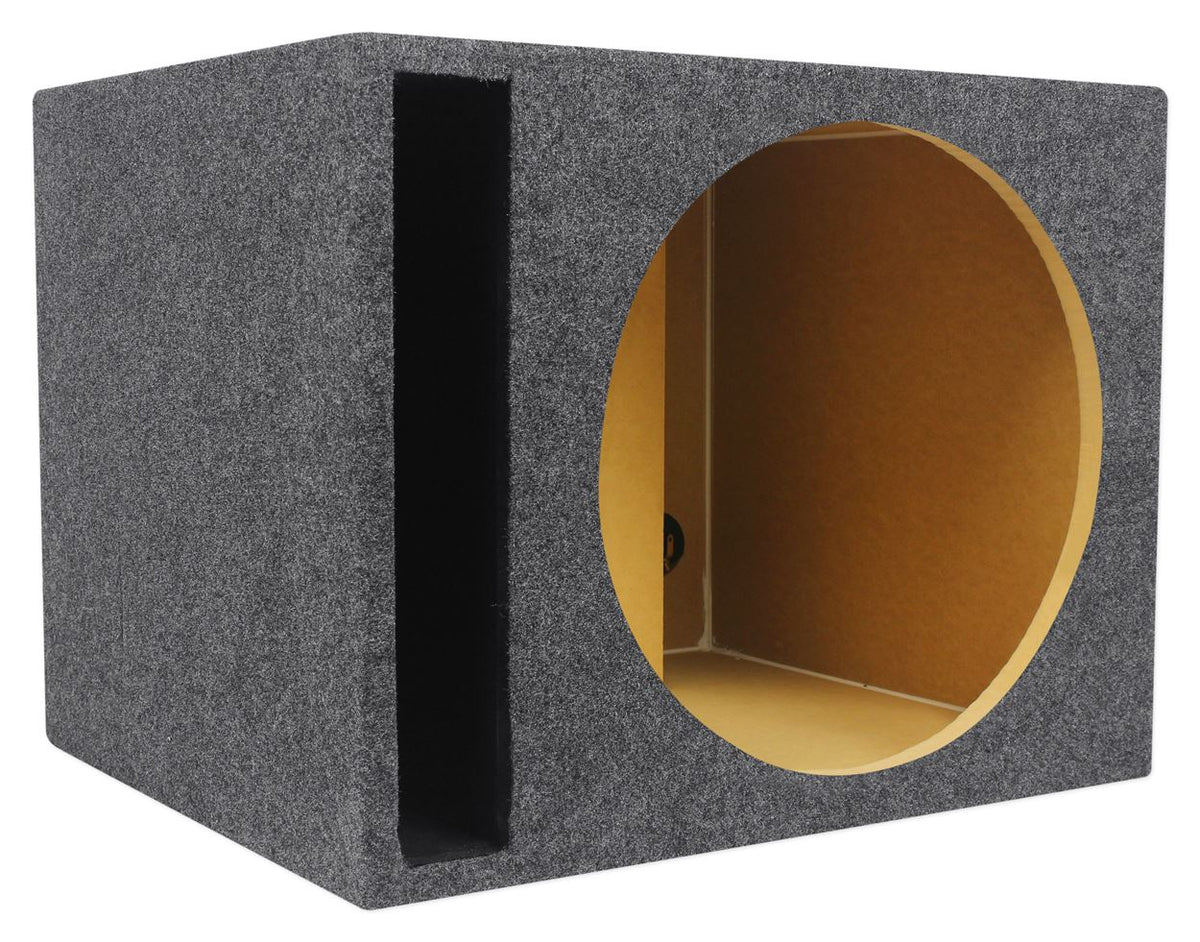

The ported enclosure is sized for a single 15-inch subwoofer and tuned to 32 Hz, with 3/4-inch MDF construction and spring-loaded terminals.
Wiring Items Included

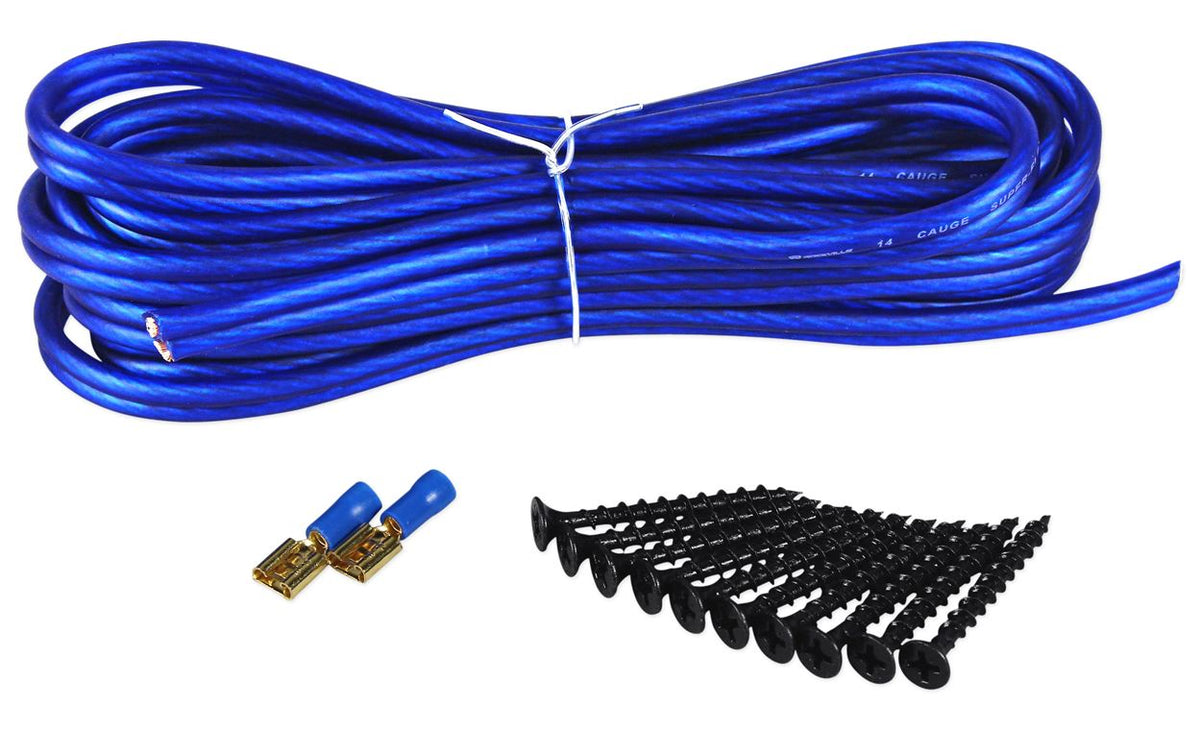

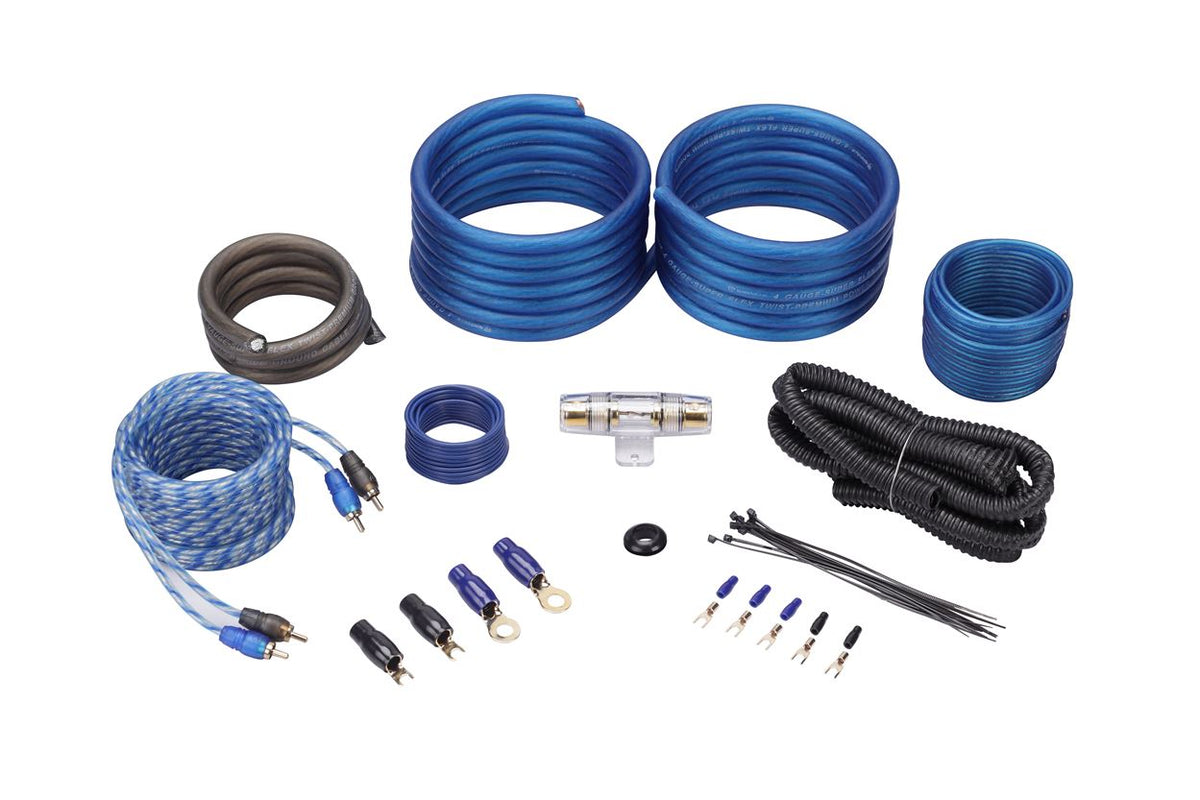

A 4-gauge kit with RCA cables is supplied alongside 12 feet of 14 AWG blue speaker wire, two spade terminals, and ten screws.

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Size 15 in
Subwoofer Power Handling 750 W RMS / 1,500 W peak
Recommended Amplifier Power 375 to 750 W RMS

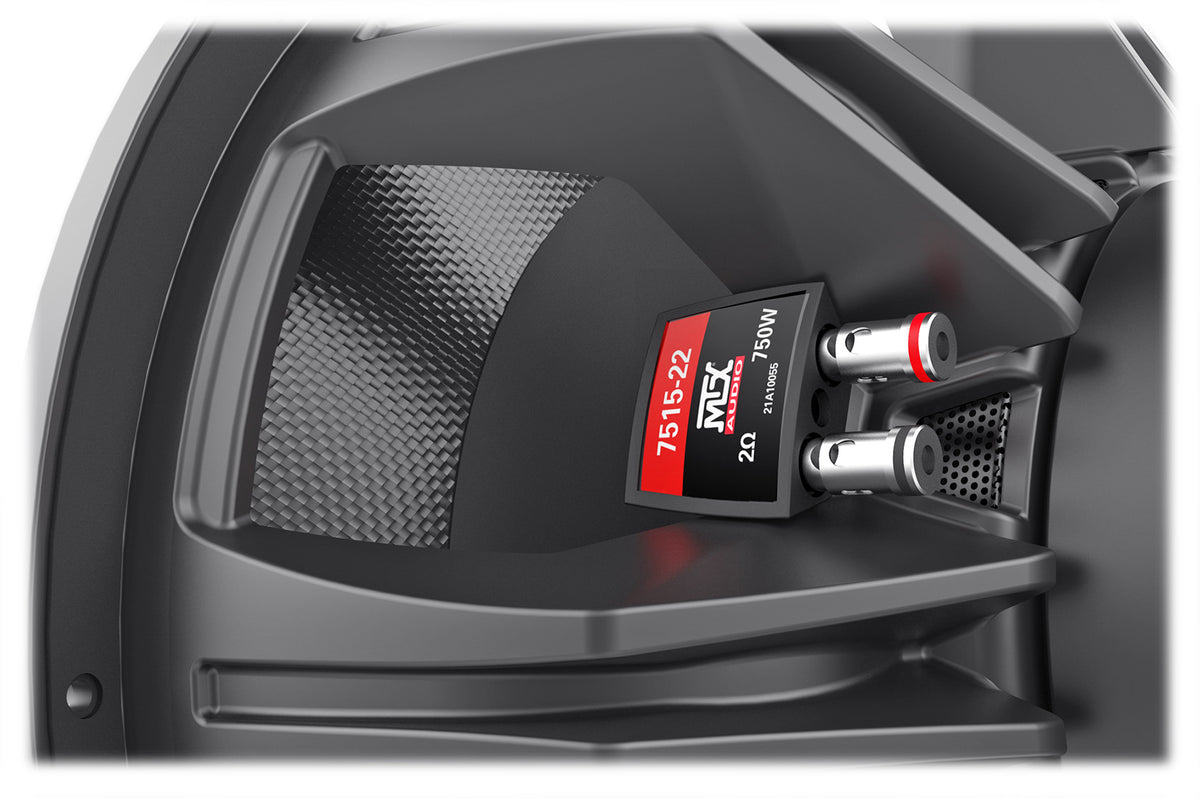

Voice Coil Configuration Dual 2 ohm
Frequency Response 20 Hz to 140 Hz
Sensitivity 87.53 dB
Voice Coil Diameter 2.5 in, dual
Subwoofer Mounting Depth 8.375 in
Subwoofer Cutout Diameter 13.875 in
Subwoofer Volume Displacement 91.66 cu in
Recommended Sealed Enclosure Net Volume 1.5 cu ft
Recommended Vented Enclosure Net Volume 2.48 cu ft
Enclosure Net Volume 2.6 cu ft
Enclosure Type Ported/vented
Enclosure Tuning Frequency 32 Hz
Enclosure Construction 3/4 in MDF
Amplifier Rating 750 W RMS, 3,000 W peak, mono, 2 ohm
Wiring Kit 4 AWG, with RCA cables
Speaker Wire 12 ft, 14 AWG, blue
Install Screws 10 metal drywall screws
Spade Terminals 2
Magnet Weight 119 oz
Dimensions 21 x 18 x 16.25 in
