7515-22 Subwoofer with RSV15 Enclosure and Installation Kit

Name: 7515-22 Subwoofer with RSV15 Enclosure and Installation Kit
Brand: MTX
SKU: 7515-22+RSV15+K1
Price: 402.67 USD
Availability: InStock

15-Inch DVC 2-Ohm Subwoofer, 750W RMS, Vented 15-Inch Enclosure, Wiring Kit

Free Shipping

$402.67

$402.67 ~~$674.93~~

Save 40%

Shipping calculated at checkout.

Features

15-inch dual-voice-coil subwoofer handles 750 W RMS and 1,500 W peak
Recommended amplifier power ranges from 375 to 750 W RMS
Vented 15-inch enclosure has 2.6 cu. ft. net volume and 32 Hz tuning
Glued and stapled joints with a silicon layer on every seam
Includes 12 ft of 14 AWG wire, two spade terminals, and ten metal screws

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

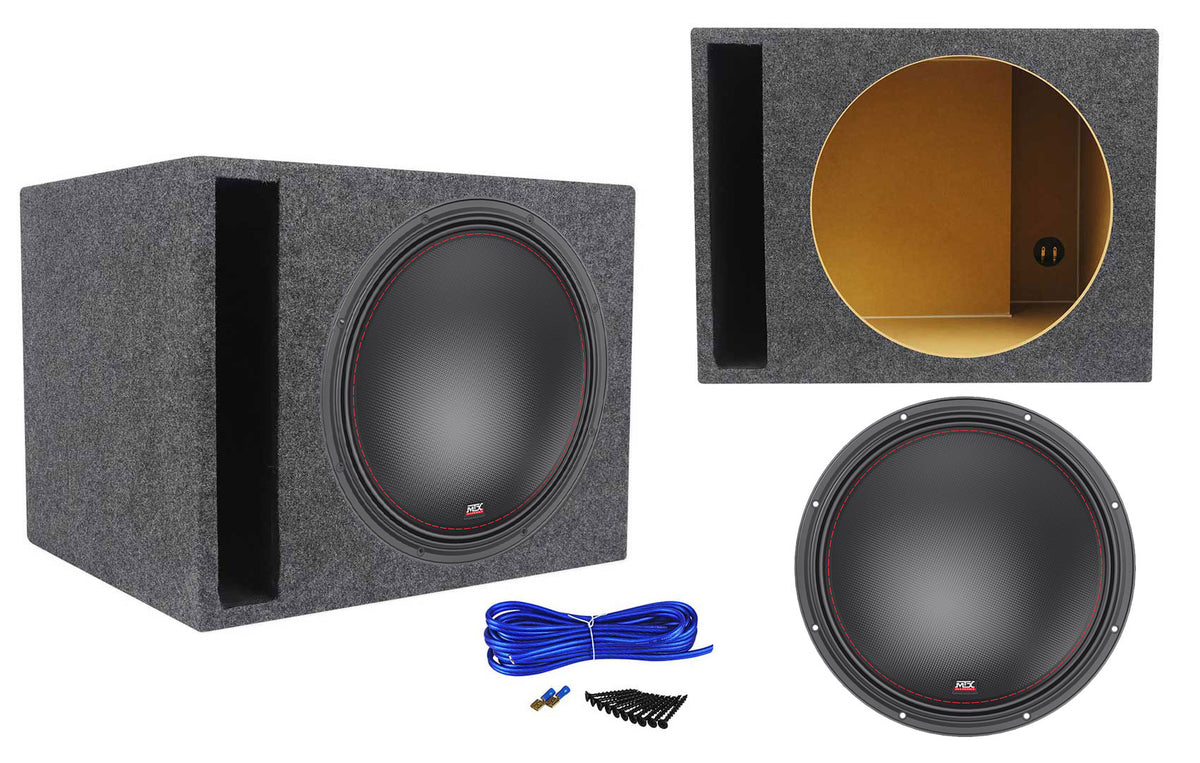

What's Included in the box

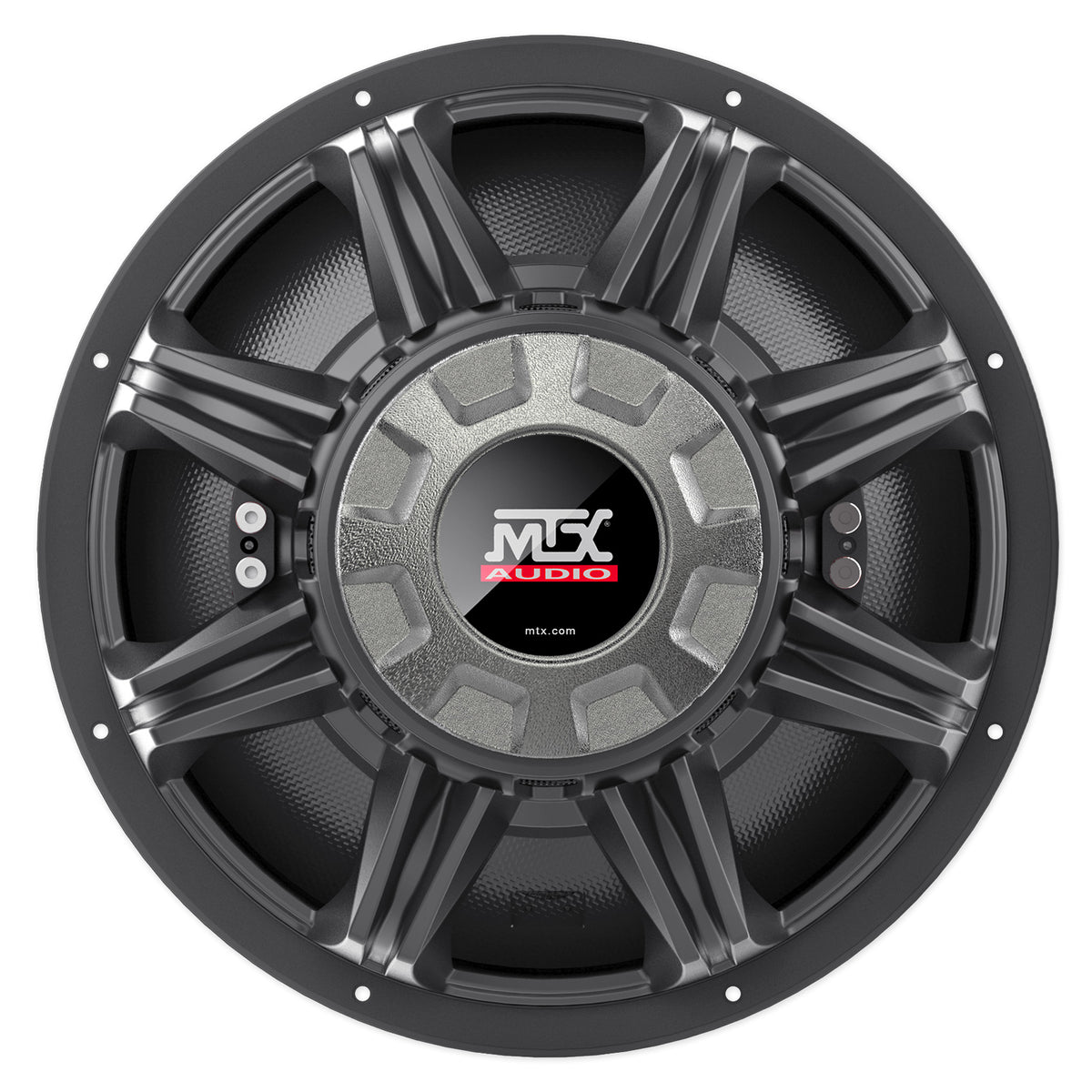

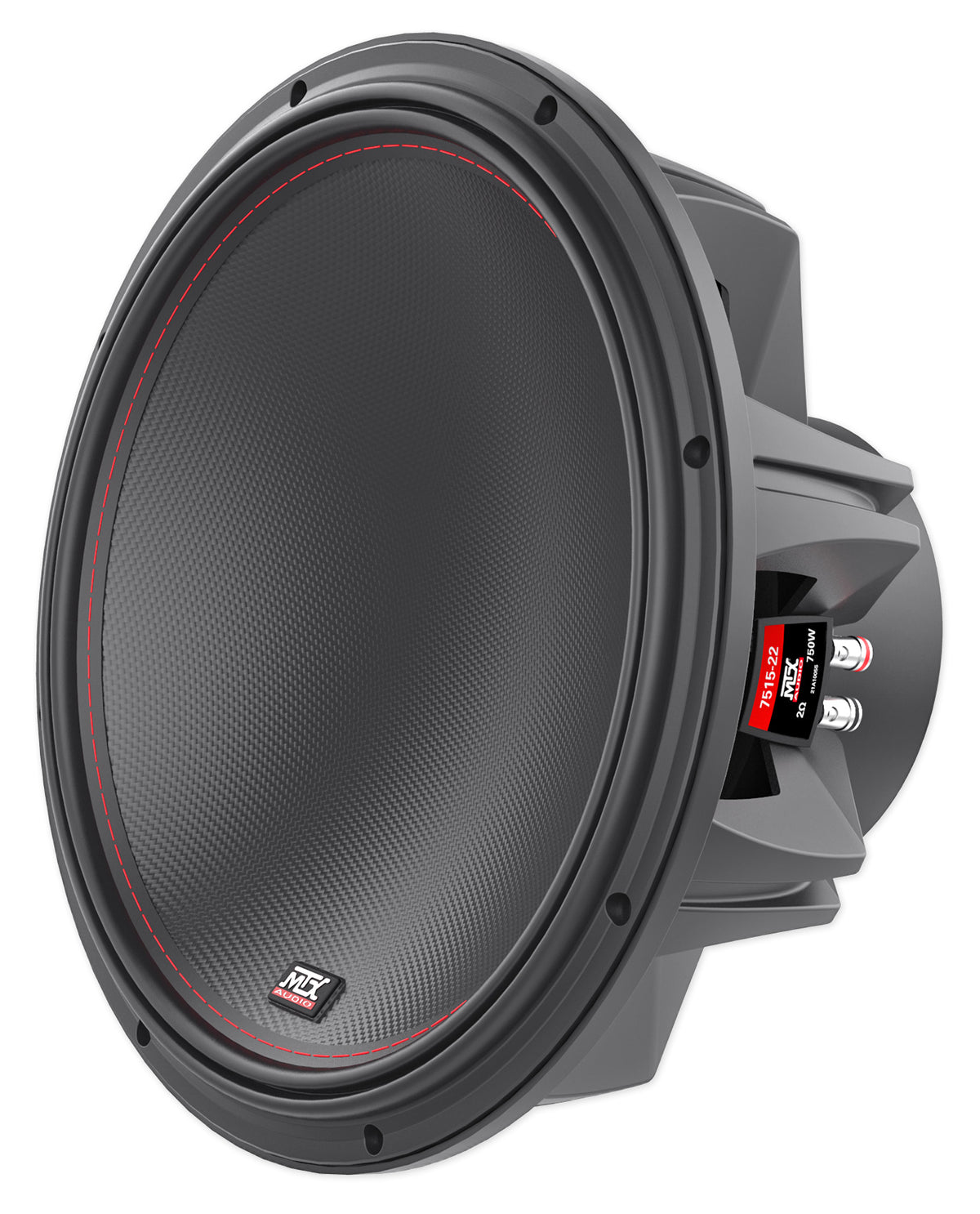

(1) 7515-22 15-inch dual-voice-coil 2-ohm subwoofer
(1) RSV15 15-inch vented subwoofer enclosure
(10) metal drywall-type screws
12 feet of 14 AWG blue speaker wire
(2) spade terminals

SKU: SKU: 7515-22+RSV15+K1

View full details

Product Description

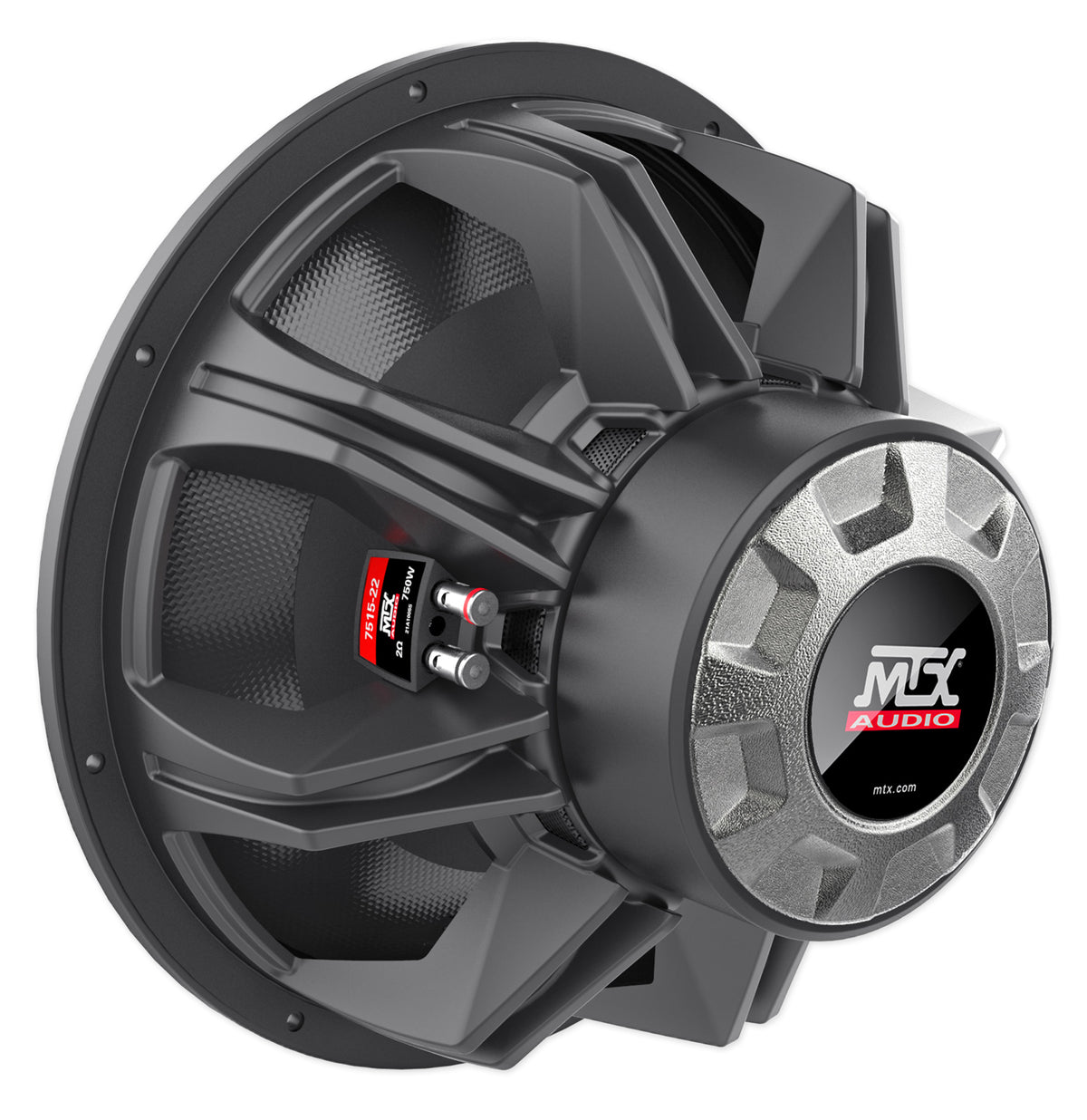

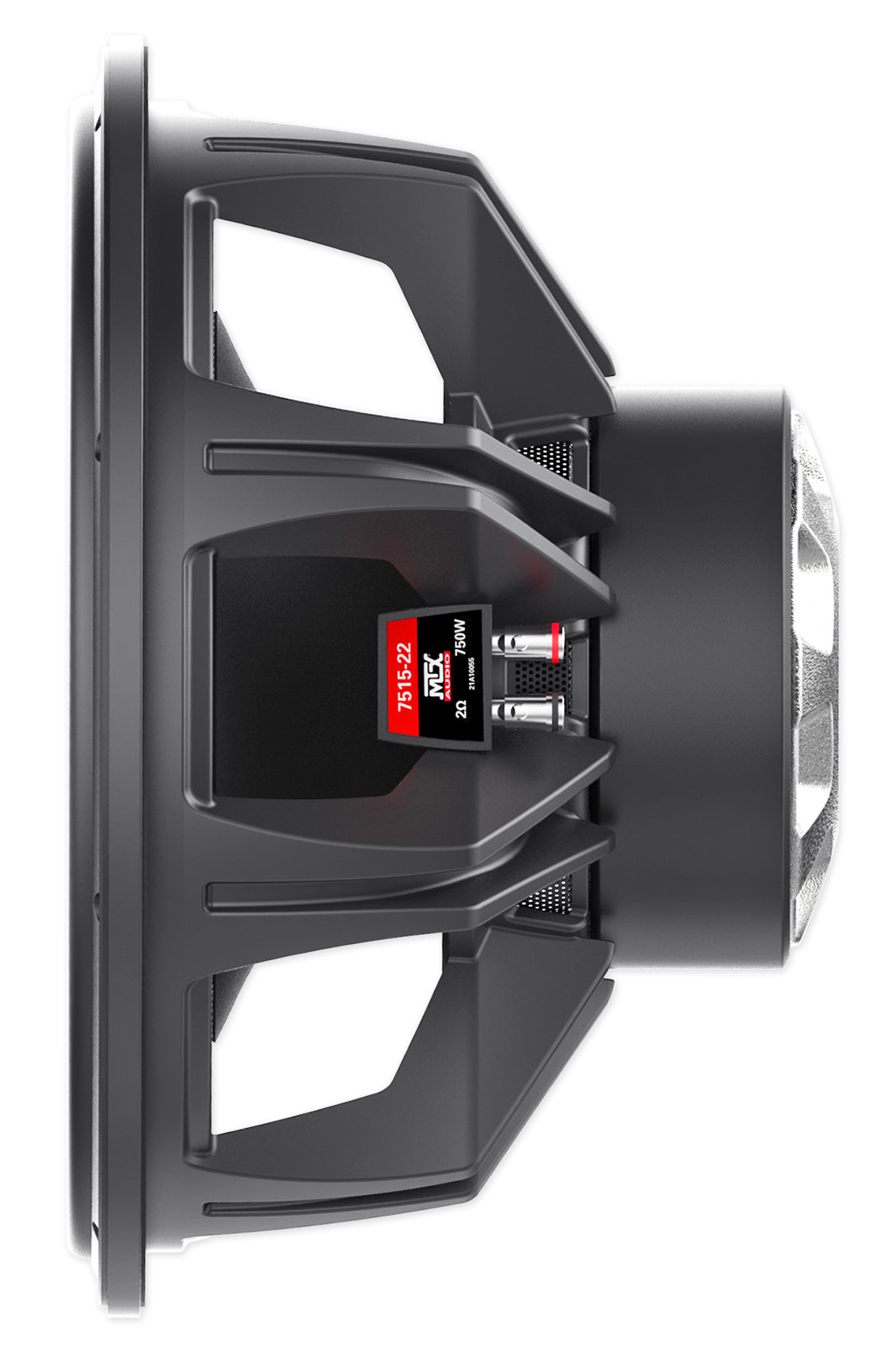

Build a complete single-subwoofer setup with the 7515-22 15-inch dual-voice-coil subwoofer, a single-15-inch vented enclosure, and hardware and wire for installation. The driver handles 750 W RMS and 1,500 W peak, with recommended amplifier power from 375 to 750 W RMS. Its inverted apex surround increases surface area and Xmax for greater displacement, while spider plateau venting directs cooling air toward the voice coil. A progressive layered spider manages excursion at high power, and the glass-fiber cone pairs stiffness with low weight. The enclosure uses 3/4-inch Grade A MDF, with joints glued and stapled and each seam layered with silicon. It has gold spring-loaded terminals, 2.6 cu. ft. net volume, and 32 Hz tuning. The subwoofer specifications separately list 2.48 cu. ft. as the recommended vented enclosure net volume. The package also includes ten metal drywall-type screws, 12 feet of 14 AWG blue speaker wire, and two spade terminals for mounting and wiring.

Features

Higher Output Potential

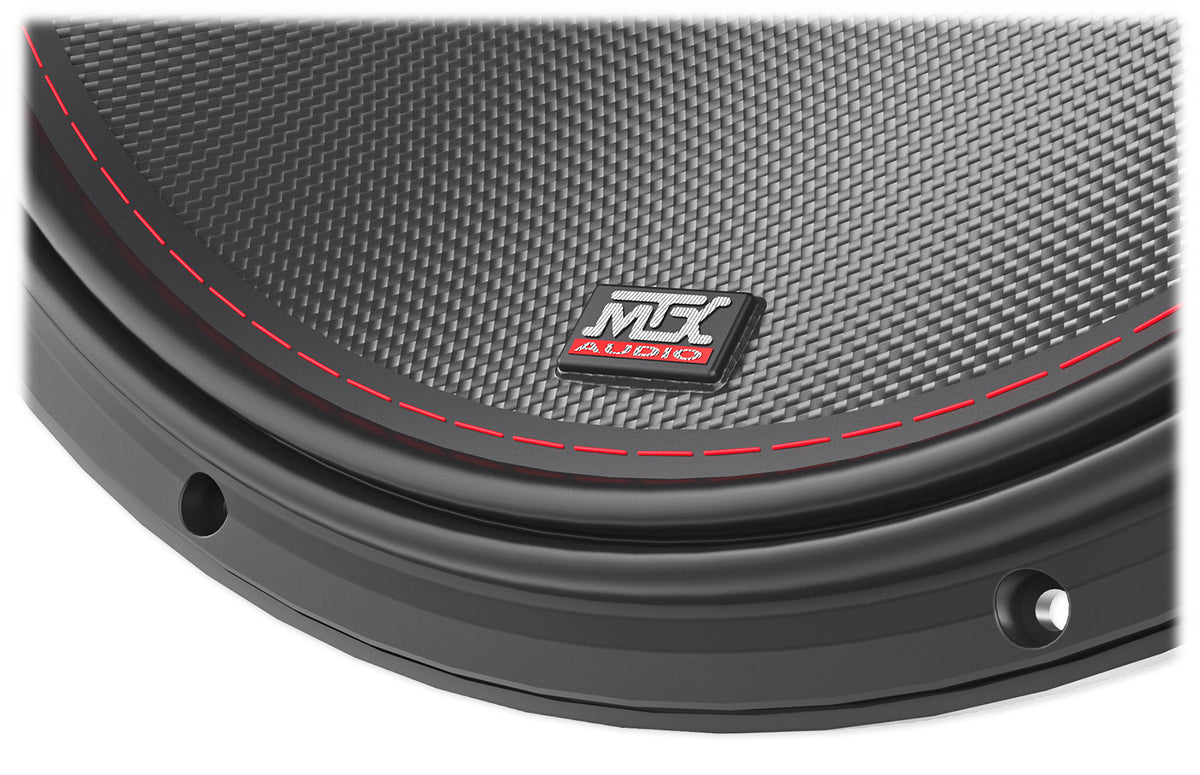

The inverted apex surround increases cone surface area and Xmax, allowing greater air displacement to support stronger sound pressure levels from the 15-inch driver.
Heat Management
Spider plateau venting sends cool air toward the voice coil, and an integrated t-yoke heat sink helps manage excess temperature during extended playback.
Controlled High-Power Movement
A progressive, layered spider controls cone excursion at higher power, reducing distortion and helping the subwoofer retain clearer sound during loud passages.
Responsive Cone Material
The glass-fiber cone balances stiffness with low weight, supporting sensitivity and responsive output as bass tracks shift from sustained notes to transients.
Installation Parts Included

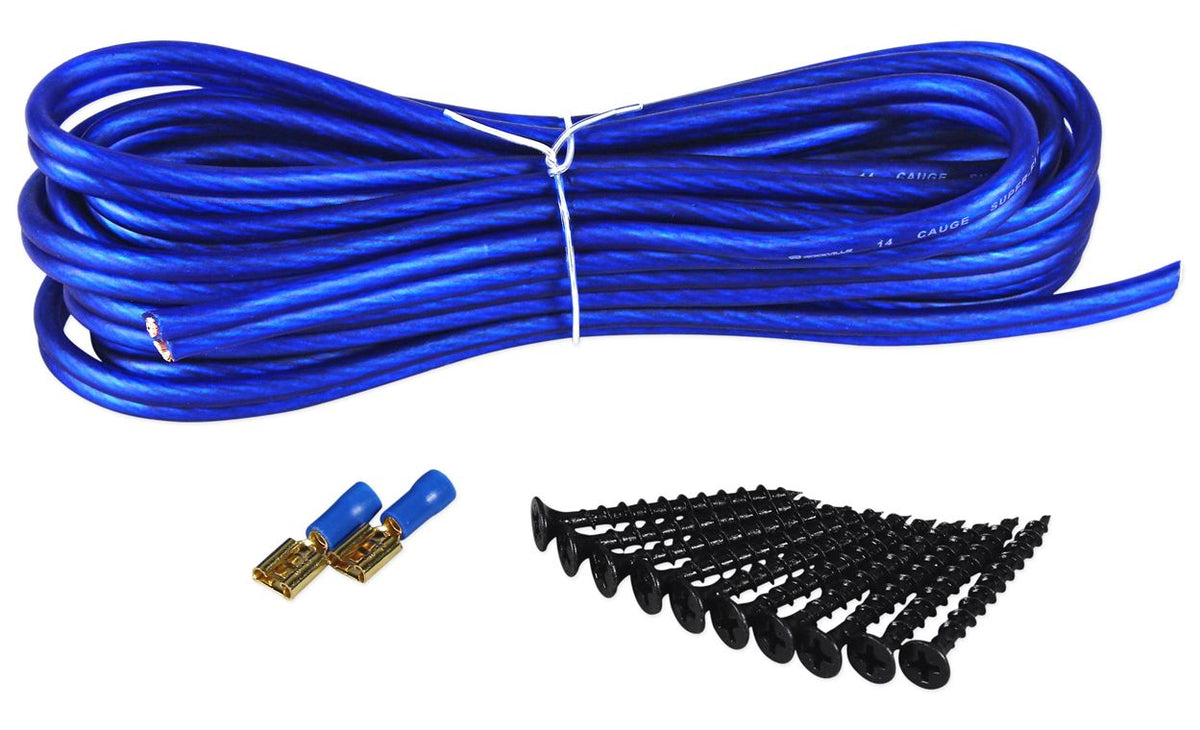

The package supplies ten metal screws, 12 feet of blue 14 AWG speaker wire, and two spade terminals for mounting and wiring.

Technical Specifications

Product Type Car Audio Subwoofer Bundle
Subwoofer Size 15 in
Voice Coil Dual 2.5 in
Power Handling 750 W RMS, 1,500 W peak
Recommended Amplifier Power 375-750 W RMS

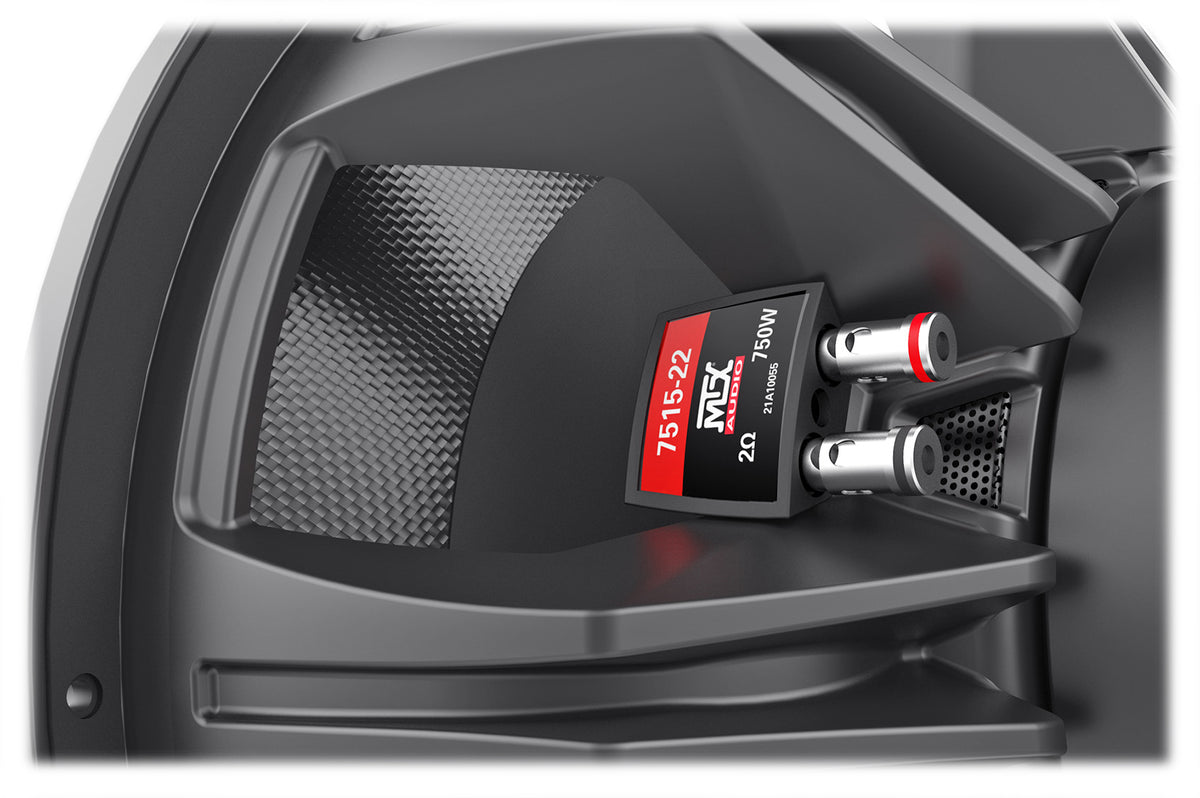

Impedance Dual 2 ohm
Frequency Response 20 Hz-140 Hz
Sensitivity 87.53 dB
Magnet Weight 119 oz.
Subwoofer Mounting Depth 8.375 in
Cutout Diameter 13.875 in
Volume Displacement 91.66 cu. in
Recommended Sealed Enclosure Net Volume 1.5 cu. ft.
Recommended Vented Enclosure Net Volume 2.48 cu. ft.

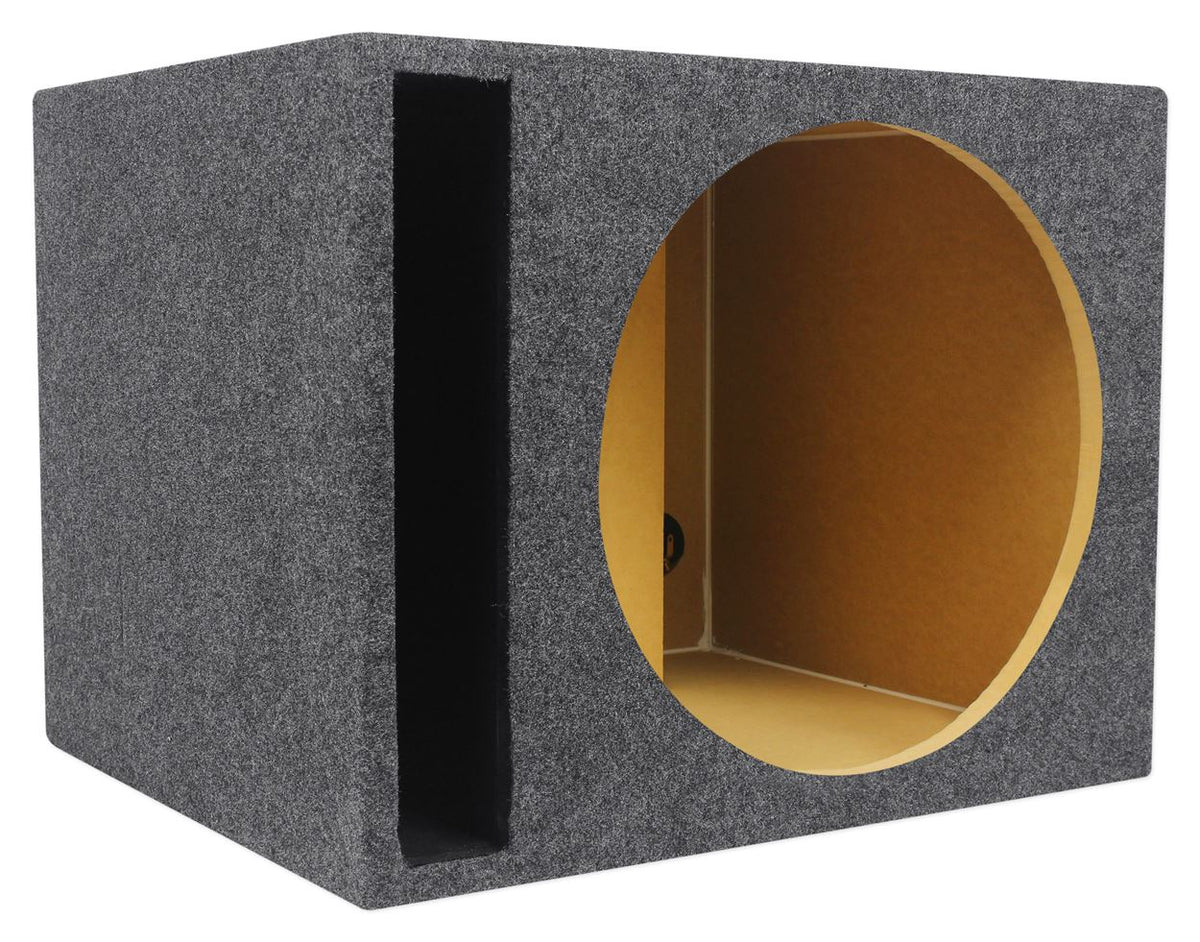

Enclosure Type Ported/vented
Enclosure Driver Capacity Single 15 in subwoofer
Enclosure Net Volume 2.6 cu. ft.
Enclosure Tuning Frequency 32 Hz
Enclosure Material 3/4 in Grade A MDF
Enclosure Mounting Depth Up to 15 in
Enclosure Gross Volume 3.5 cu. ft.
Enclosure Dimensions 21 x 18 x 16.25 in
