American DJ ADJ 18P HEX RGBAW + UV LED DMX RF Metal Par Can Wash Stage Up-Light

American DJ ADJ 18P HEX RGBAW + UV LED DMX RF Metal Par Can Wash Stage Up-Light

LED Par Wash Light With 18 x 12W RGBAW+UV HEX LEDs, 25-Degree Beam, Metal Gel Frame, Scissor Yoke

Free Shipping

Regular price $499.99
Sale price $499.99 Regular price $653.95
Save 23%
Shipping calculated at checkout.
Features
    • 18 x 12W six-in-one HEX LEDs for high-output washes on large surfaces
    • 63 built-in color macros using red, green, blue, amber, white and UV
    • Daisy chain up to 7 units at 120V or 16 units at 230V
    • Heavy-duty metal housing with a metal gel frame included
    • Scissor yoke lets the fixture hang from truss or sit on the floor
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • American DJ 18P HEX RGBAW+UV LED Wash Light
    • Power Cord
    • Gel Frame

SKU: SKU: 18P HEX

View full details

Product Description

The ADJ 18P HEX is the high-output end of the HEX par line: 18 x 12W six-in-one LEDs mixing red, green, blue, amber, white and UV inside a heavy-duty all-metal housing. A 25-degree beam angle and 63 built-in color macros give you wide washes with even color blending across large surfaces.

That output is the point. Where a smaller par runs out of reach, the 18P HEX still covers a two-story hotel wall or throws color across a wide stage from a distance. Locking power in and out connections daisy chain up to 7 units at 120V or 16 units at 230V, which keeps cable runs sane on a room full of uplights. The included scissor yoke lets you hang it from truss or set it on the floor, and the metal gel frame accepts a beam diffuser (sold separately) to soften the edge.

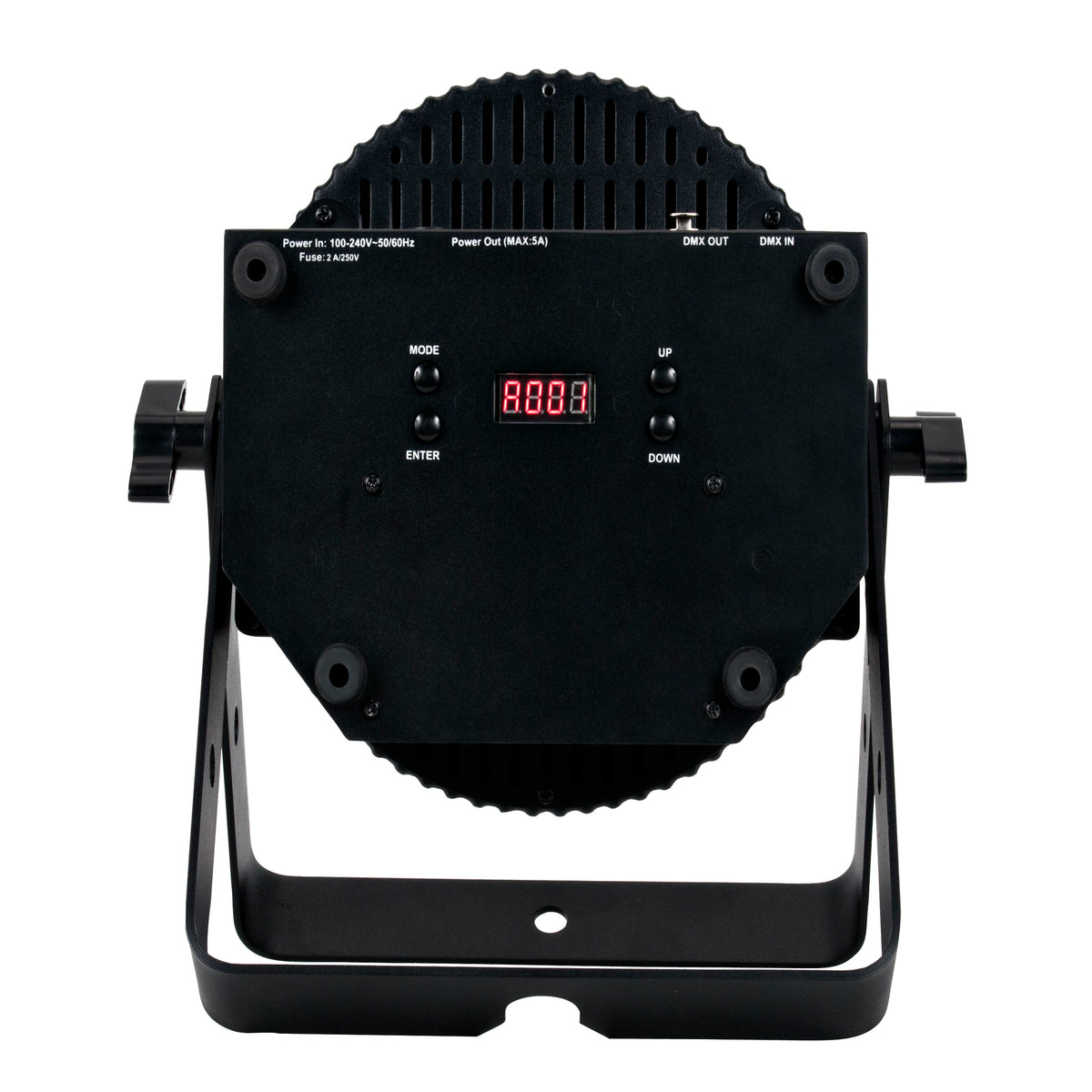

Control includes four DMX channel modes (6, 7, 8 and 12), five operational modes covering manual color, color fade, auto program, sound active and DMX, five dimming curves and RDM. Electronic dimming runs 0-100% and output is flicker free, so it holds up on camera at a 3.6 kHz refresh rate. Data connects over 3-pin or 5-pin DMX in/out and a 4-button digital display handles setup at the fixture. The Dotz Par RF wireless remote (sold separately) covers jobs where running DMX is not practical.

It is IP30 rated for dry areas, weighs 12.9 lb and carries cETLus approval. Best fits: large venue uplighting, stage washes and permanent installs that need punch.

Features

    • Output For Big Rooms

      Eighteen 12W HEX LEDs push enough light to cover tall walls and wide stages from a distance, where smaller pars start to thin out.

    • Fewer Power Runs

      Locking power in and out connections daisy chain up to 7 units at 120V or 16 at 230V, cutting the cable count on a room full of uplights.

    • Built To Take Abuse

      Heavy-duty all-metal construction with a metal gel frame stands up to load-ins, tight truck packs and repeat install work.

    • Color Without Programming

      63 built-in color macros across red, green, blue, amber, white and UV give repeatable looks fast, with five operational modes for standalone use.

    • Camera Safe Dimming

      Flicker-free output at a 3.6 kHz refresh rate with 0-100% electronic dimming and five dimming curves keeps video and broadcast footage clean.

Technical Specifications

  • Product Type LED Par Wash Light
  • Light Source 18 x 12W RGBAW+UV HEX LEDs
  • LED Life 50,000 hours
  • Refresh Rate 3.6 kHz
  • Beam Angle 25 degrees
  • Color Macros 63 built-in
  • Operational Modes 5 (Manual Color, Color Fade, Auto Program, Sound Active, DMX)
