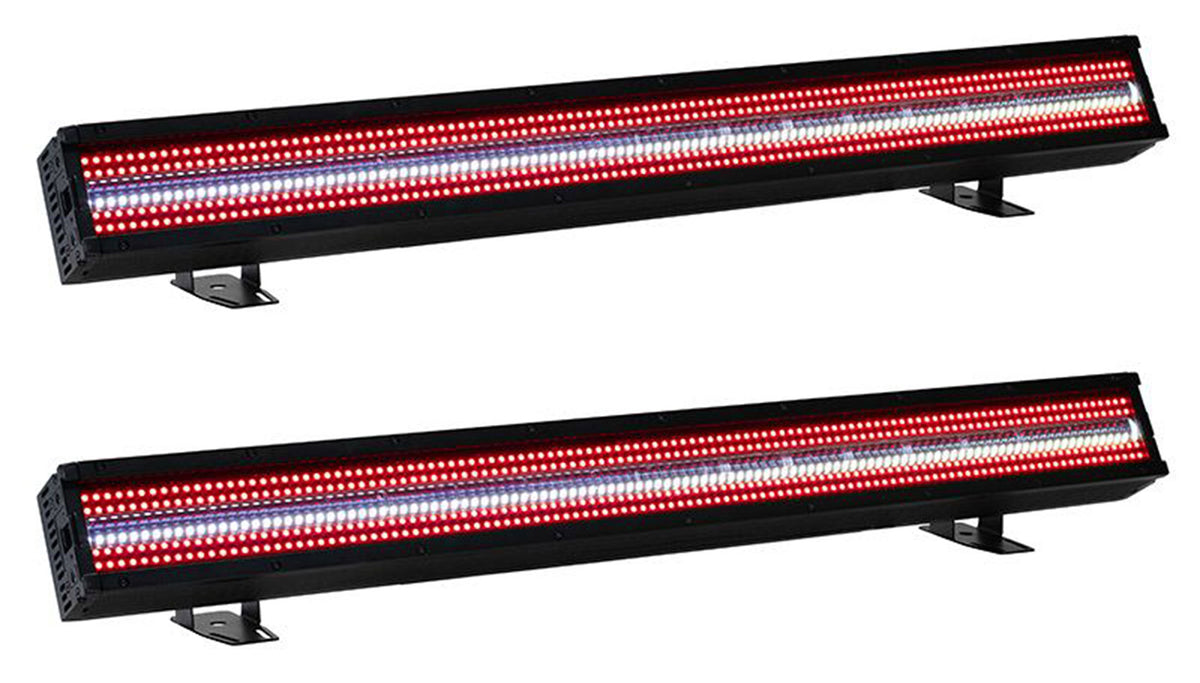

(2) Jolt Bar FXIP RGB SMD LED DMX Strobe/Blinder/Wash Lights
AMERICAN DJ
(2) Jolt Bar FXIP RGB SMD LED DMX Strobe/Blinder/Wash Lights
(2) Jolt Bar FXIP RGB SMD LED DMX Strobe/Blinder/Wash Lights
IP65 LED Strobe Bars, 112 White and 448 RGB SMD LEDs, Wireless DMX, Frost Lens
Features
- 112 cool white 5W and 448 RGB 0.5W SMD LEDs per fixture
- 48 independently controllable zones for chases and effects
- IP65 rated for temporary outdoor and indoor use
- Aria X2 wireless DMX built in, compatible with WiFLY EXR
- Frost lens assembly included to blur pixel dots
Couldn't load pickup availability
What's Included in the box

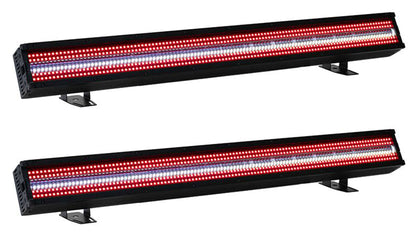

- (2) ADJ Jolt Bar FXIP LED Strobe/Blinder/Wash Light
- (2) IP65-Rated 6' Locking Power to Edison Cable
- (2) Frost Filter
- (4) Omega Receiver Brackets
SKU: SKU: (2) Jolt Bar FXIP
View full details












Product Description
ADJ's proprietary Aria X2 wireless DMX is built into each fixture (also compatible with WiFLY EXR), so data distribution happens without cable runs. The included frost lens assembly snaps onto the front to blur the pixel dots for a different visual character. Each unit also ships with a connecting plate to join fixtures together for continuous zone effects. A 117-degree beam angle fills wide areas, and 13 DMX modes from 6 to 126 channels scale the control resolution. Built-in macros (25 RGB and 9 white) speed up programming. Variable strobe from 0.35 Hz to 25 Hz and adjustable LED refresh from 900 to 25,000 Hz keep the effects clean on camera.
Features

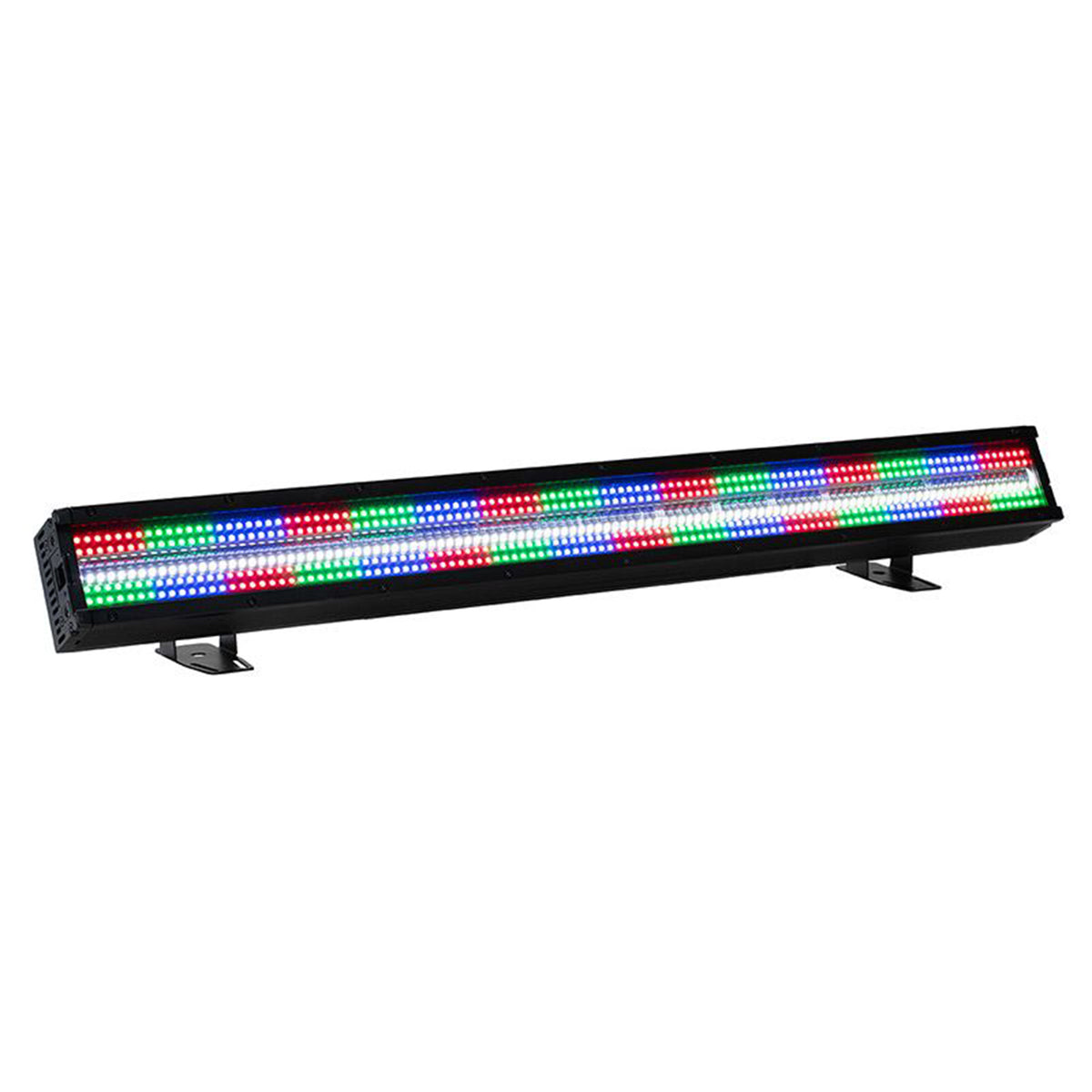

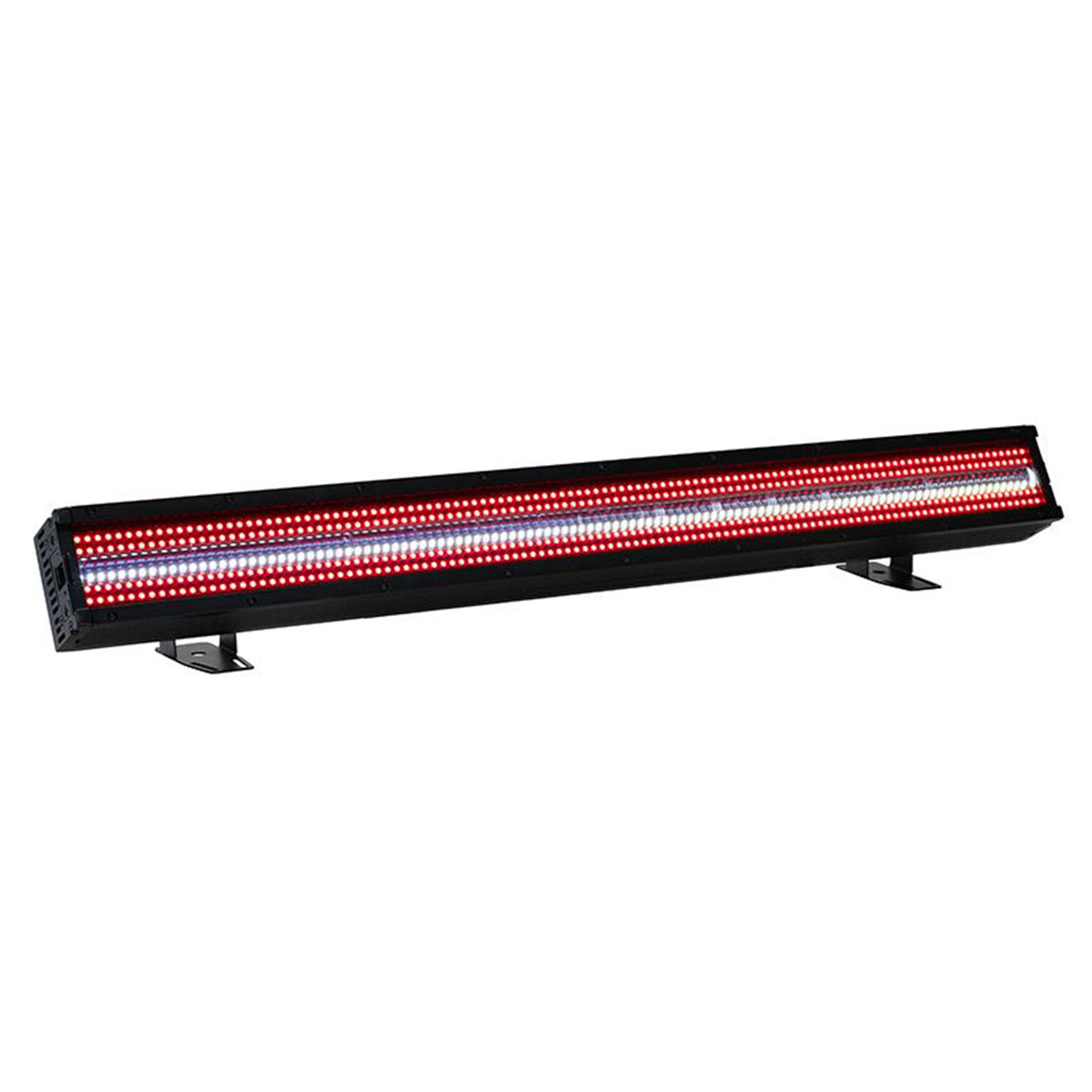

Dual LED Arrays
A central strip of 112 cool white 5W LEDs for intense strobing is flanked by 448 RGB 0.5W LEDs for colored washes and chases, all from a single compact bar fixture.

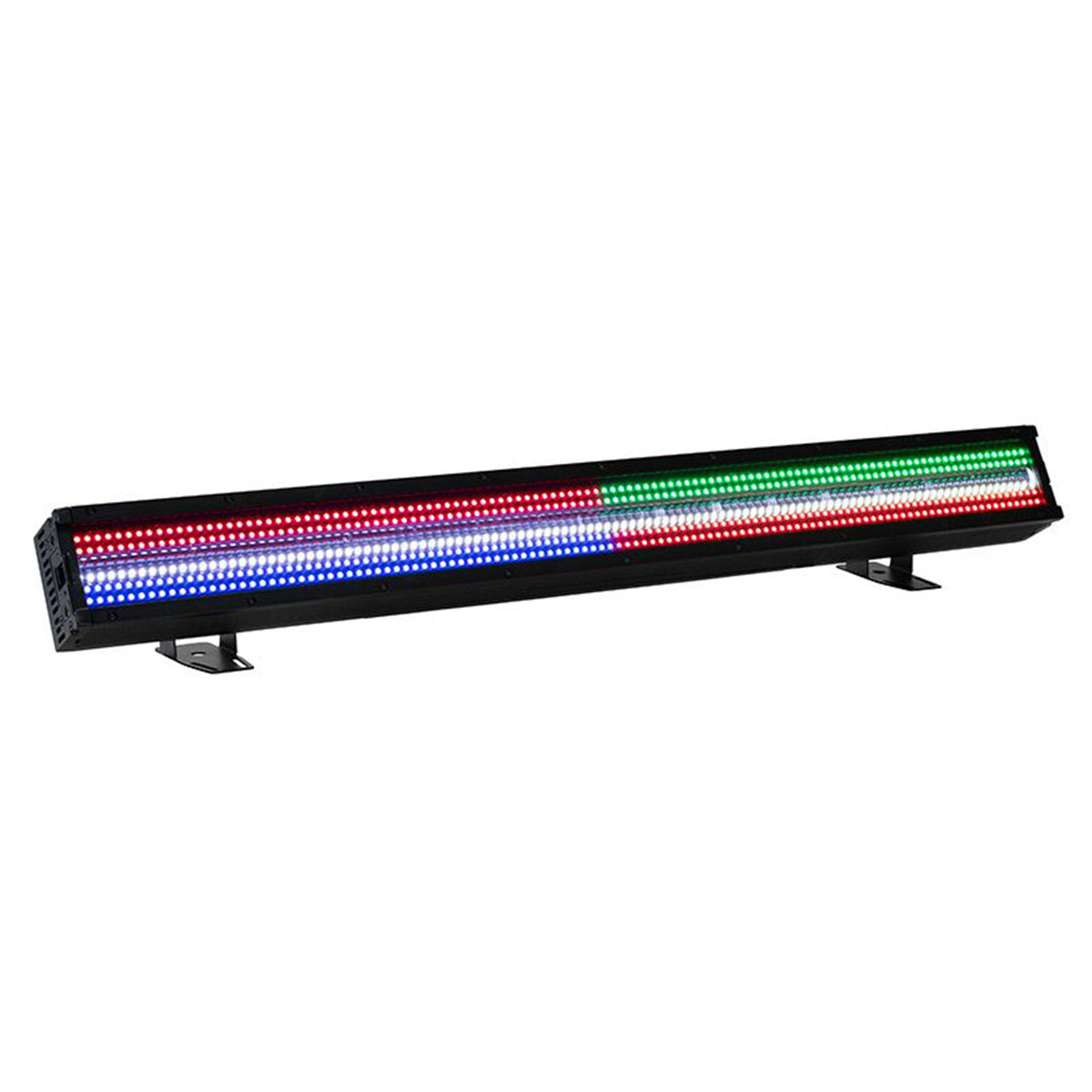

Zone-Based Control
Sixteen white zones and 32 color zones on each bar can be addressed independently for animated chase patterns, pixel effects, and synchronized multi-unit displays.
Built-In Wireless DMX
Aria X2 wireless DMX in each fixture eliminates data cable runs between units, simplifying setup on large stages and outdoor events where cable management is difficult.

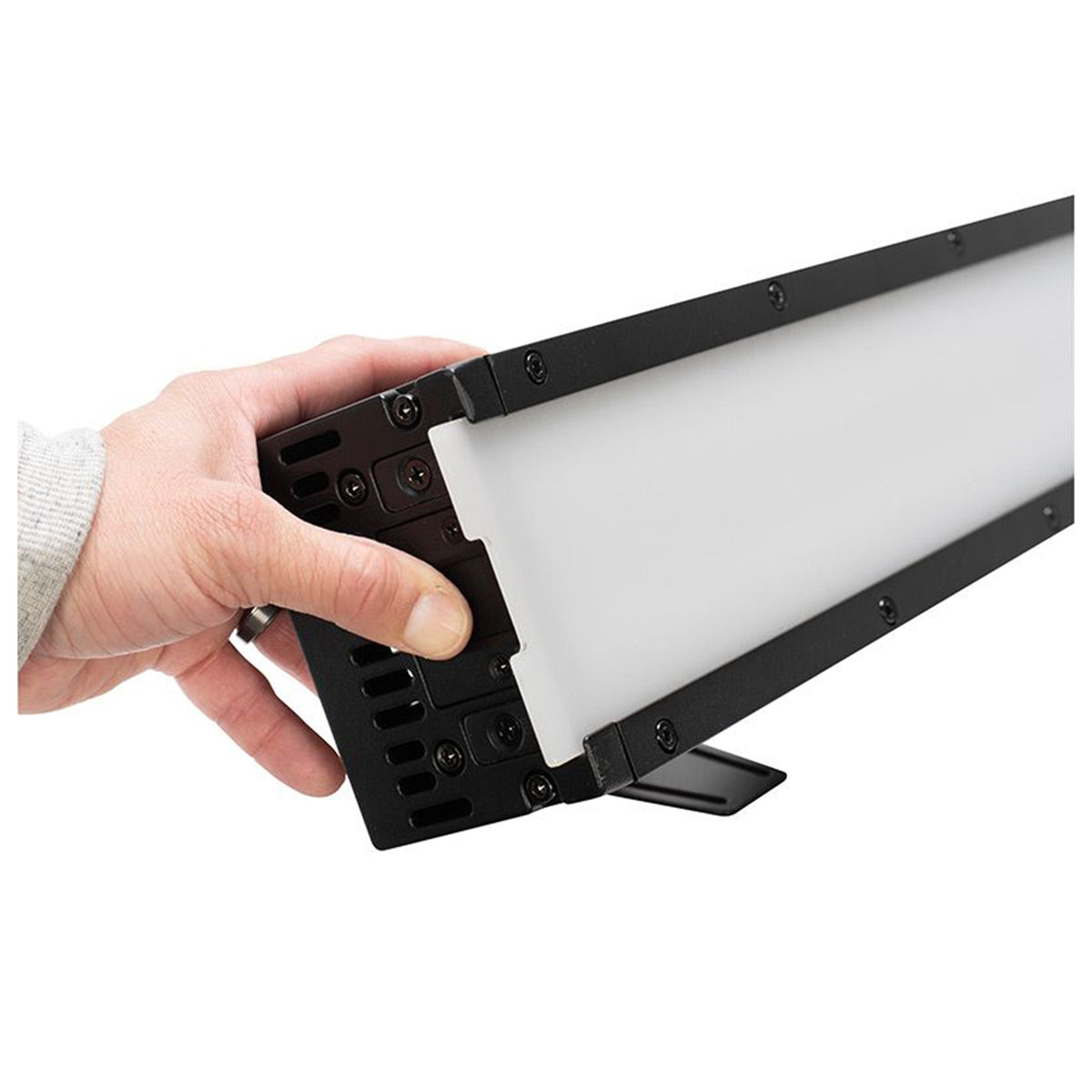

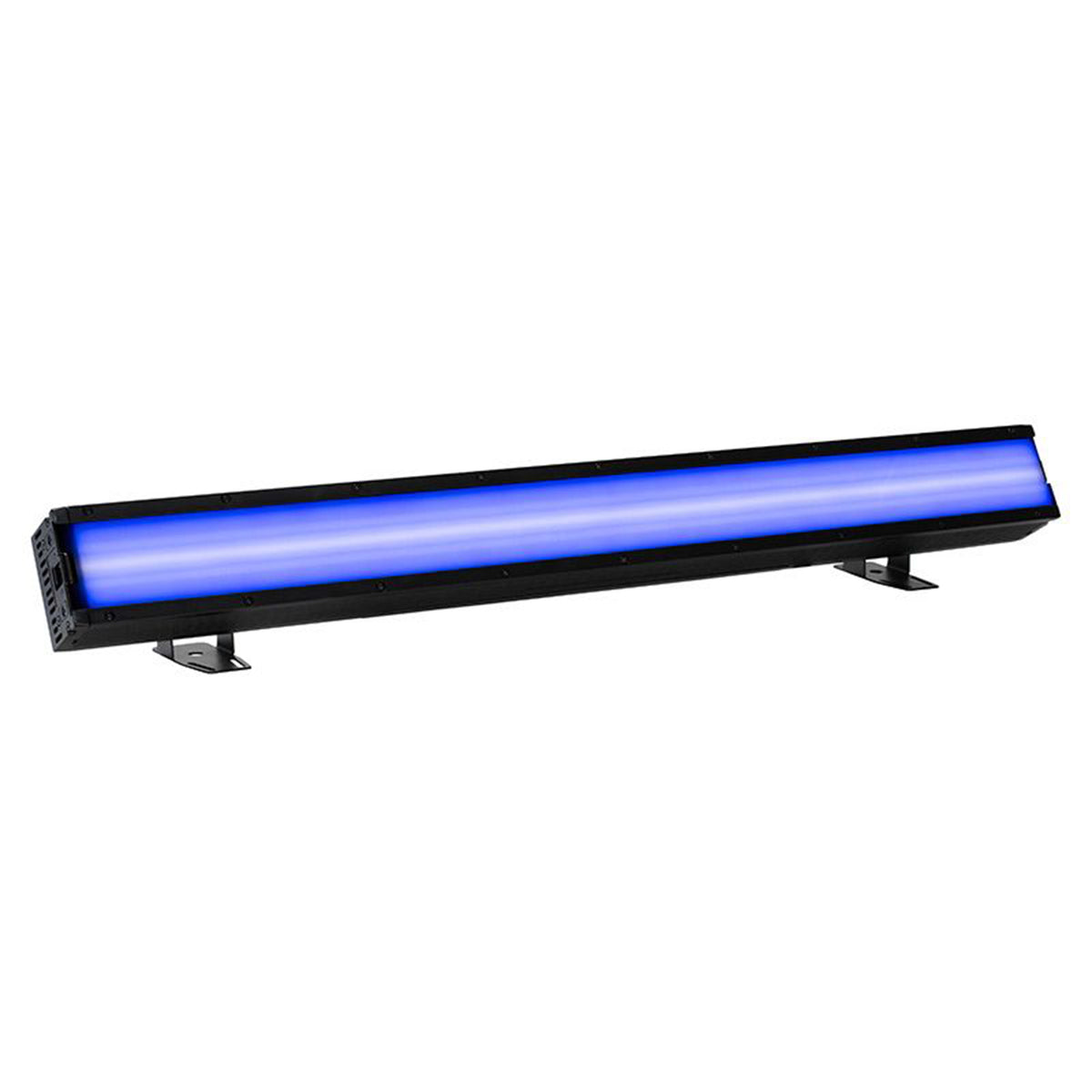

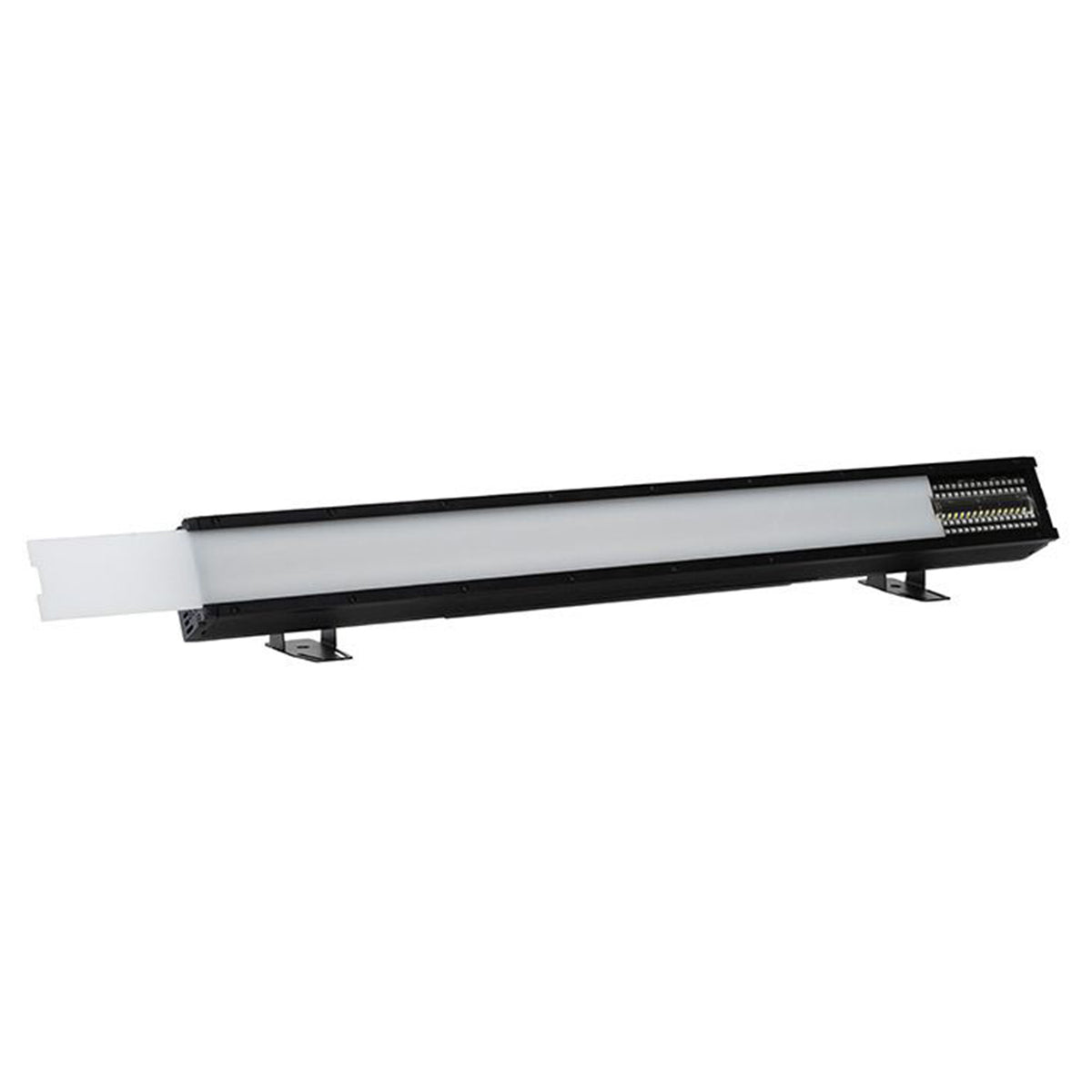

Swappable Frost Lens
The included frost lens assembly snaps onto the front of each bar to soften pixel dots and change the visual character, giving designers two distinct looks from one fixture.
Wide Beam Coverage
A 117-degree beam angle fills a broad area from a single unit, so fewer fixtures are needed to cover wide stages, audience areas, and architectural surfaces.
Technical Specifications
- Product Type LED Strobe/Blinder/Wash Bar (Pair)
- White LEDs 112 x 5W Cool White SMD (per unit)
- RGB LEDs 448 x 0.5W RGB SMD (per unit)
- White Zones 16 (per unit)
- Color Zones 32 (per unit)
- Beam Angle 117 degrees
- DMX Modes 13 (6 to 126 channels)
- Strobe Speed 0.35 to 25 Hz
- Refresh Rate 900 to 25,000 Hz
- Wireless DMX Aria X2 (WiFLY EXR compatible)
- Protection IP65
