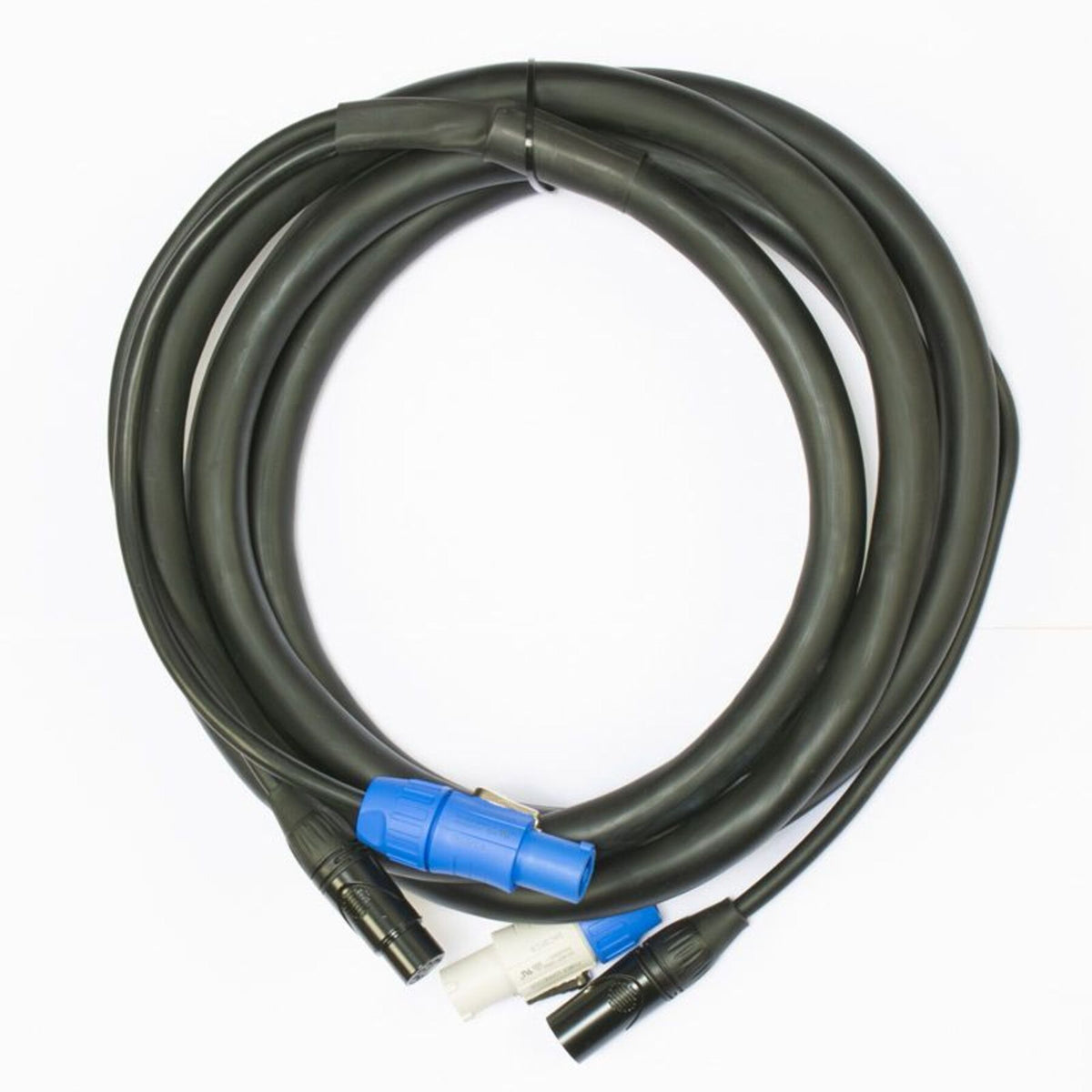

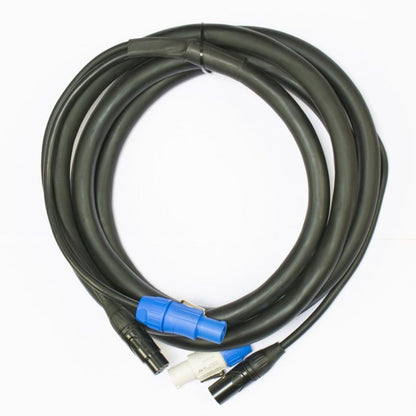

Accu-Cable AC5PPCON12 12 Foot 5-Pin Male To Female Power Link + DMX Combo Cable

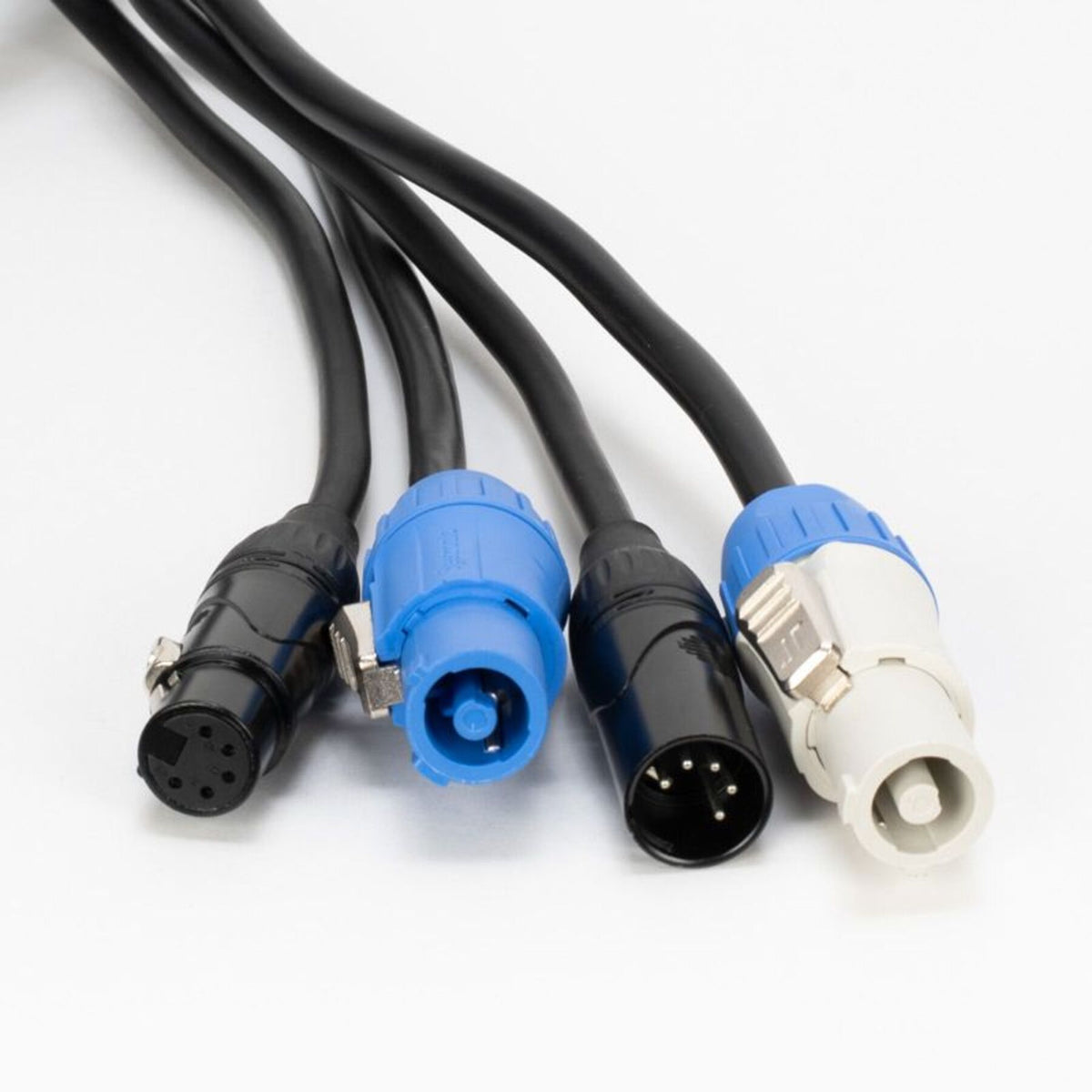

The Accu-Cable AC5PPCON12 carries DMX data and AC power in a single 12 ft run, so one cable handles both connections between two fixtures. A 5-pin male to female XLR end moves control data while male to female locking power connectors pass AC down the line. Fewer cables on a truss span means a faster load-in and less to coil at the end of the night.

Construction is built for repeat use: (66 x 0.20) x3 copper power conductors, HDPE insulation, 4 x 19 x 0.15 tinned copper data conductors and a 8 x 16 x 0.12 braided tinned copper shield that keeps DMX clean where it runs alongside power. The PVC jacket handles being stepped on, rolled over and packed tight in a case.

This cable is rated for dry locations only, which puts it on indoor stages, in clubs and ballrooms, on trade show booths and in studio rigs. Check the power linking limit of your fixtures at your operating voltage before building a long daisy chain. For temporary outdoor work, use the IP65 rated Accu-Cable TRUE series instead. Length is 12 foot (3.66M) end to end.
