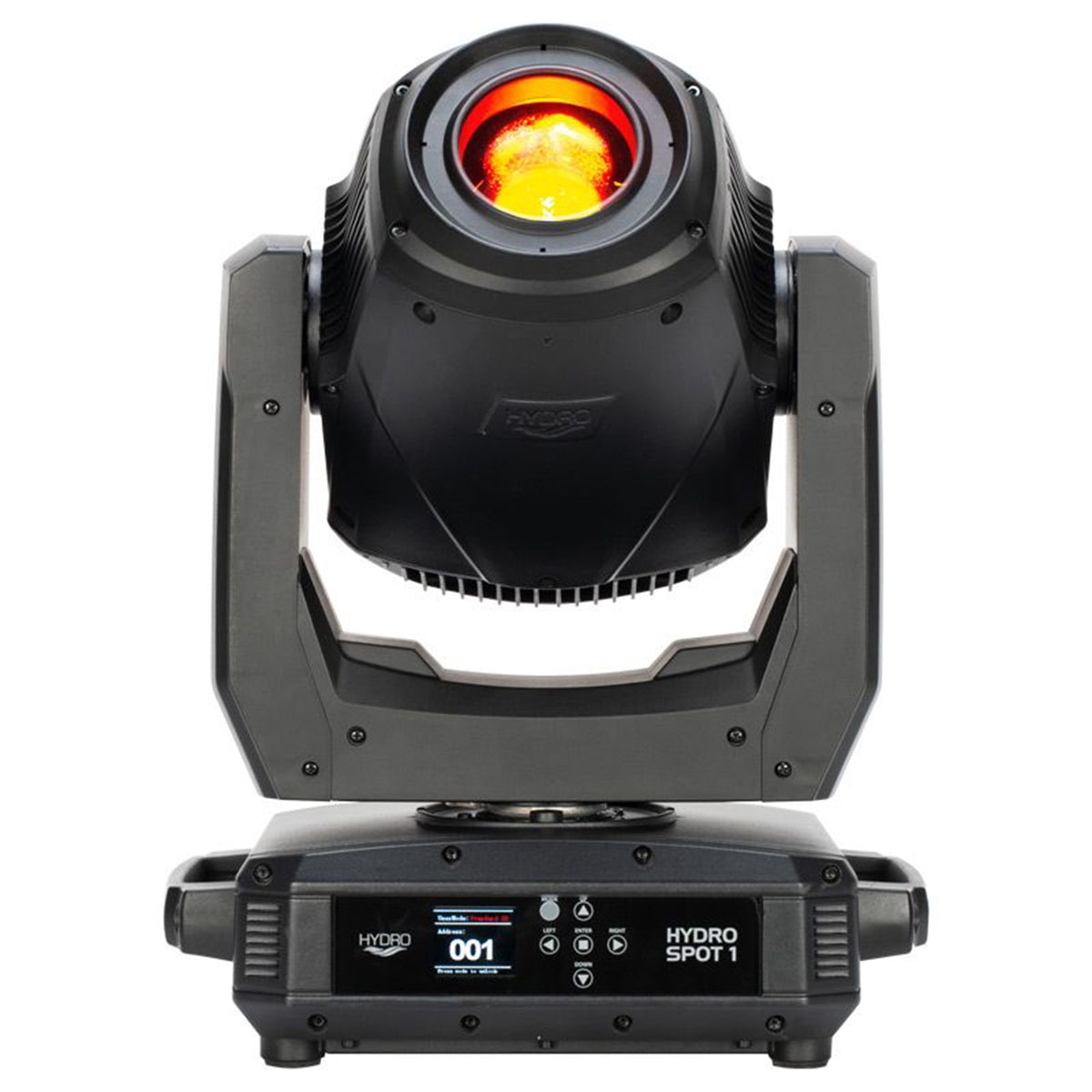

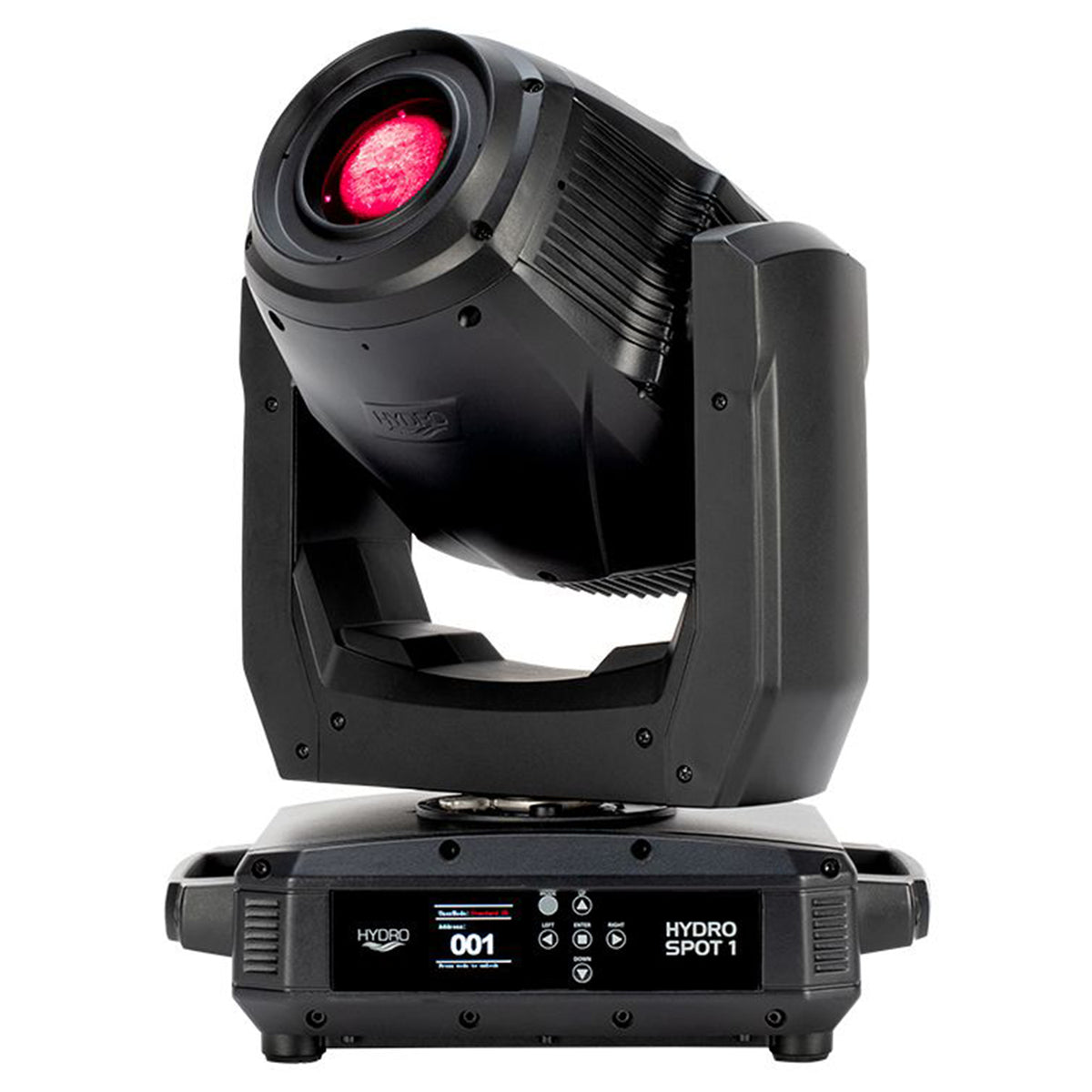

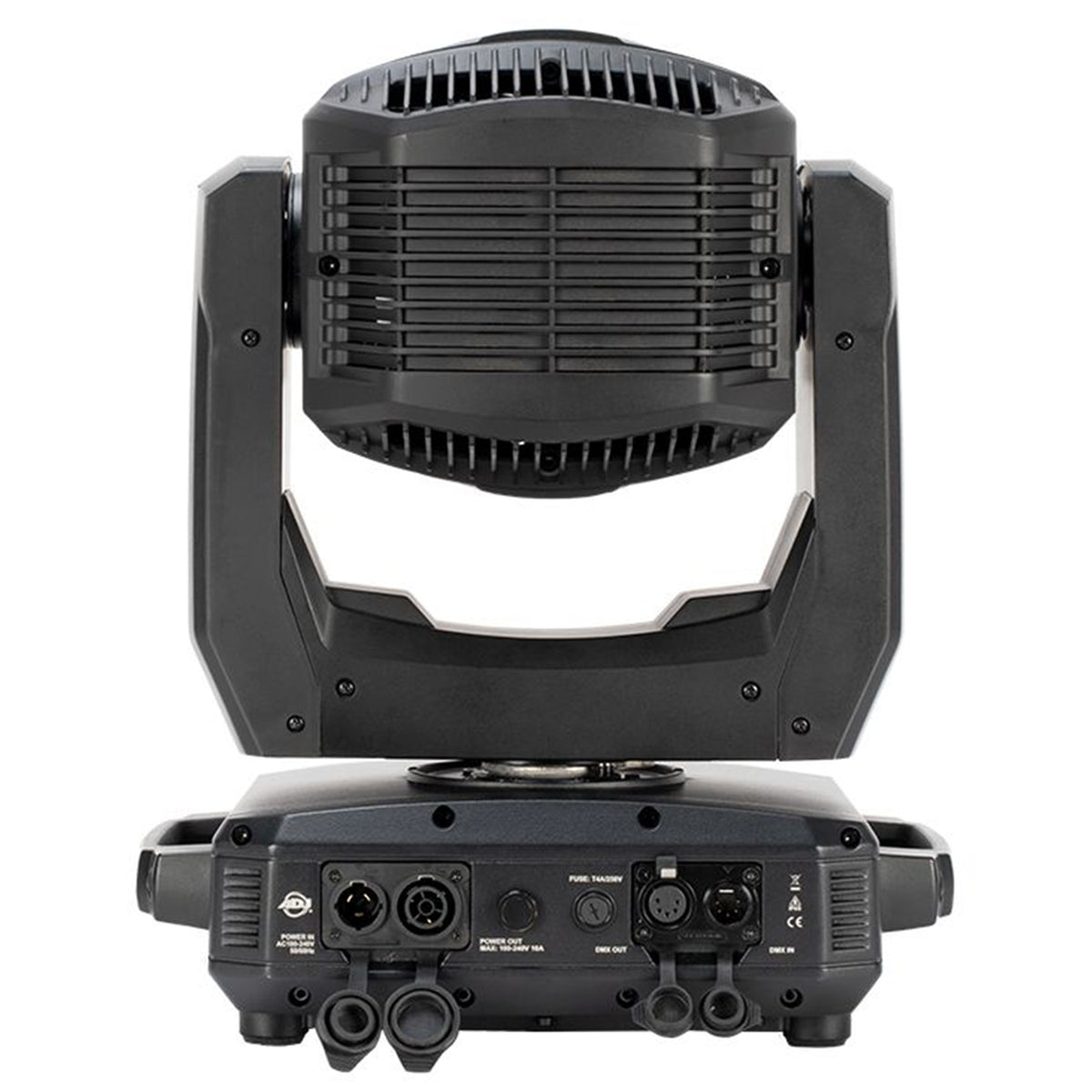

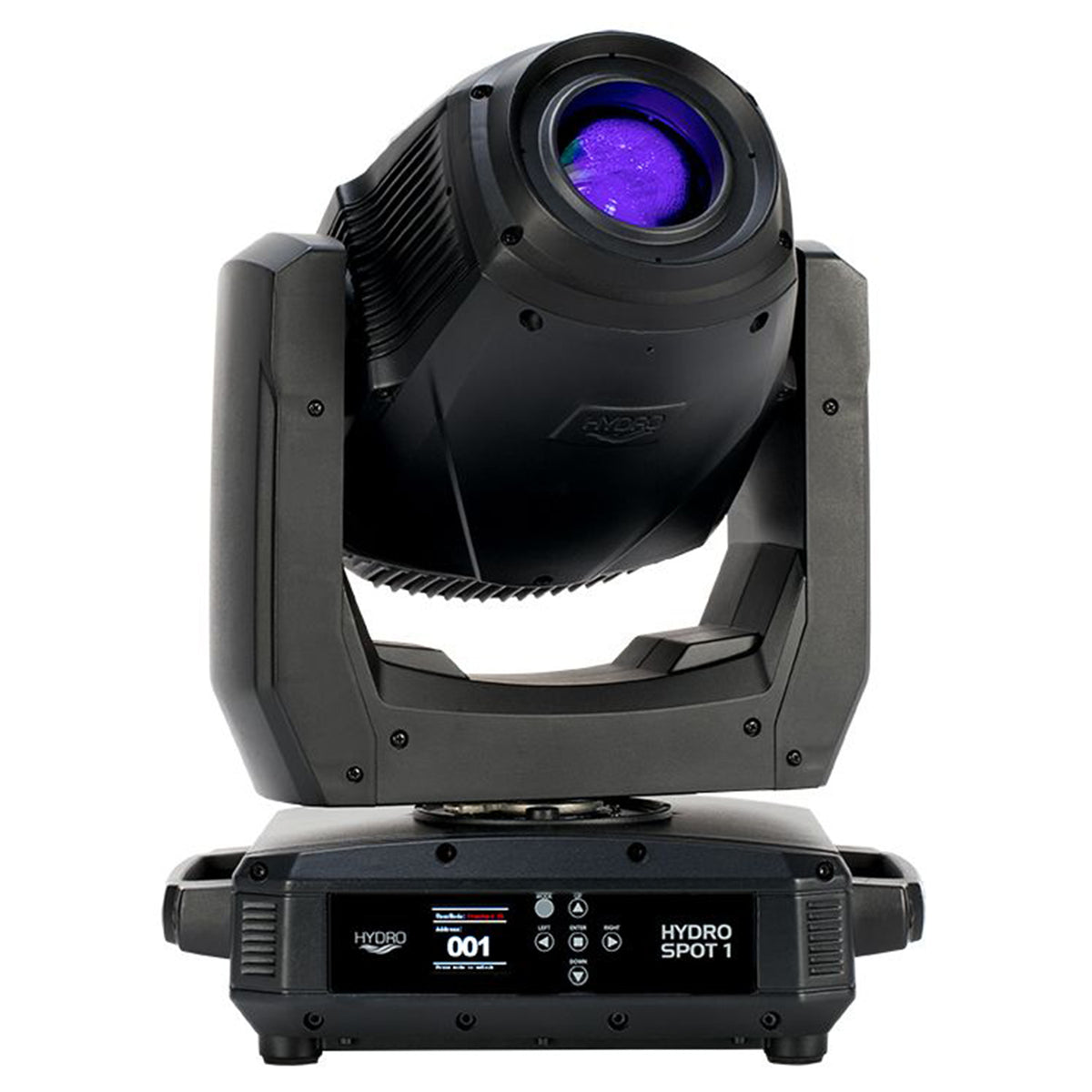

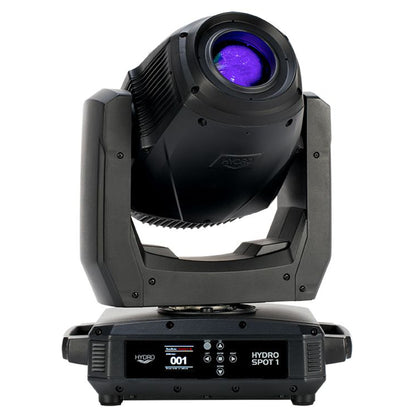

Hydro Spot 1 IP65 Outdoor LED Wireless DMX Moving Head Spot Light
Hydro Spot 1 IP65 Outdoor LED Wireless DMX Moving Head Spot Light
IP65 200W LED Moving Head Spot, Dual Color Wheels, Motorized Zoom, Wireless DMX
Features
- 200W LED engine in an IP65-rated case for outdoor use
- Two color wheels with 16 dichroic colors including CTO and UV
- Motorized zoom (12-23 degrees) and motorized focus
- 6 replaceable rotating GOBOs plus dual rotating prisms
- WiFly EXR wireless DMX with 630/270 degree pan/tilt
Couldn't load pickup availability
What's Included in the box
- (1) American DJ Hydro Spot 1 Moving Head
- (1) Omega Bracket
- (1) 1.83M Locking Power Cable
SKU: SKU: Hydro Spot 1*
View full details











Product Description
A rotating GOBO wheel holds 6 replaceable patterns (aluminum or glass), and two rotating prisms (5-facet linear and 6-facet circular) generate aerial effects and surface projections. Two frost filters (heavy for wash output, medium for softened GOBO edges) add further flexibility. The fixture supports WiFly EXR wireless DMX and wired 5-pin DMX, with 17, 20, or 22-channel modes. Pan and tilt ranges of 630 and 270 degrees exceed standard ranges for wider coverage. At 35.2 lb with a marine-coated exterior and conformal-coated PCBs, the Hydro Spot 1 is built for festivals, outdoor events, and permanent installations in clubs, churches, and theatres where dust and moisture are concerns.
Features
IP65 Outdoor Protection
The sealed case with marine-coated exterior and conformal-coated PCBs runs in rain, dust, and humidity without extra covers or domes.
Dual Color Wheels

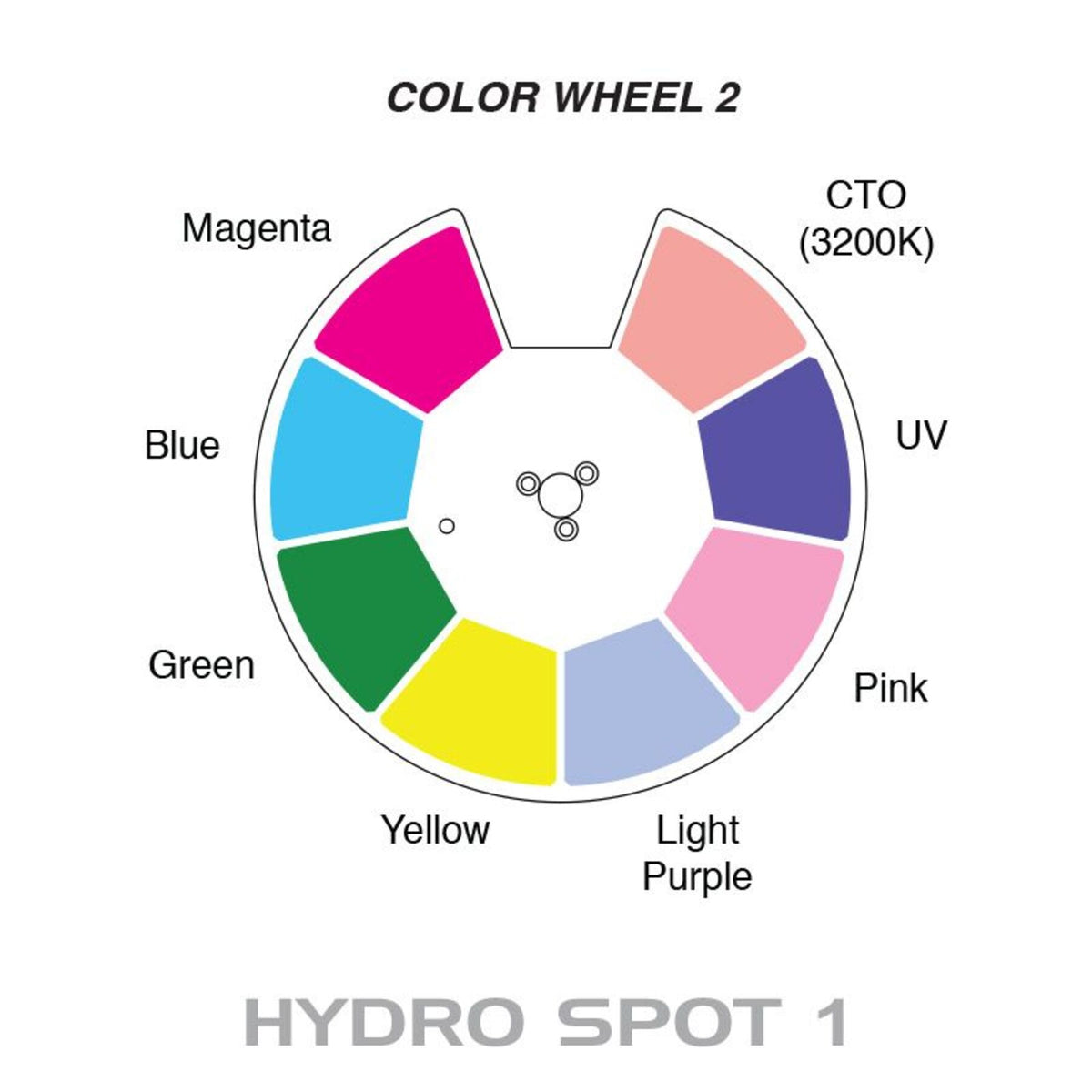

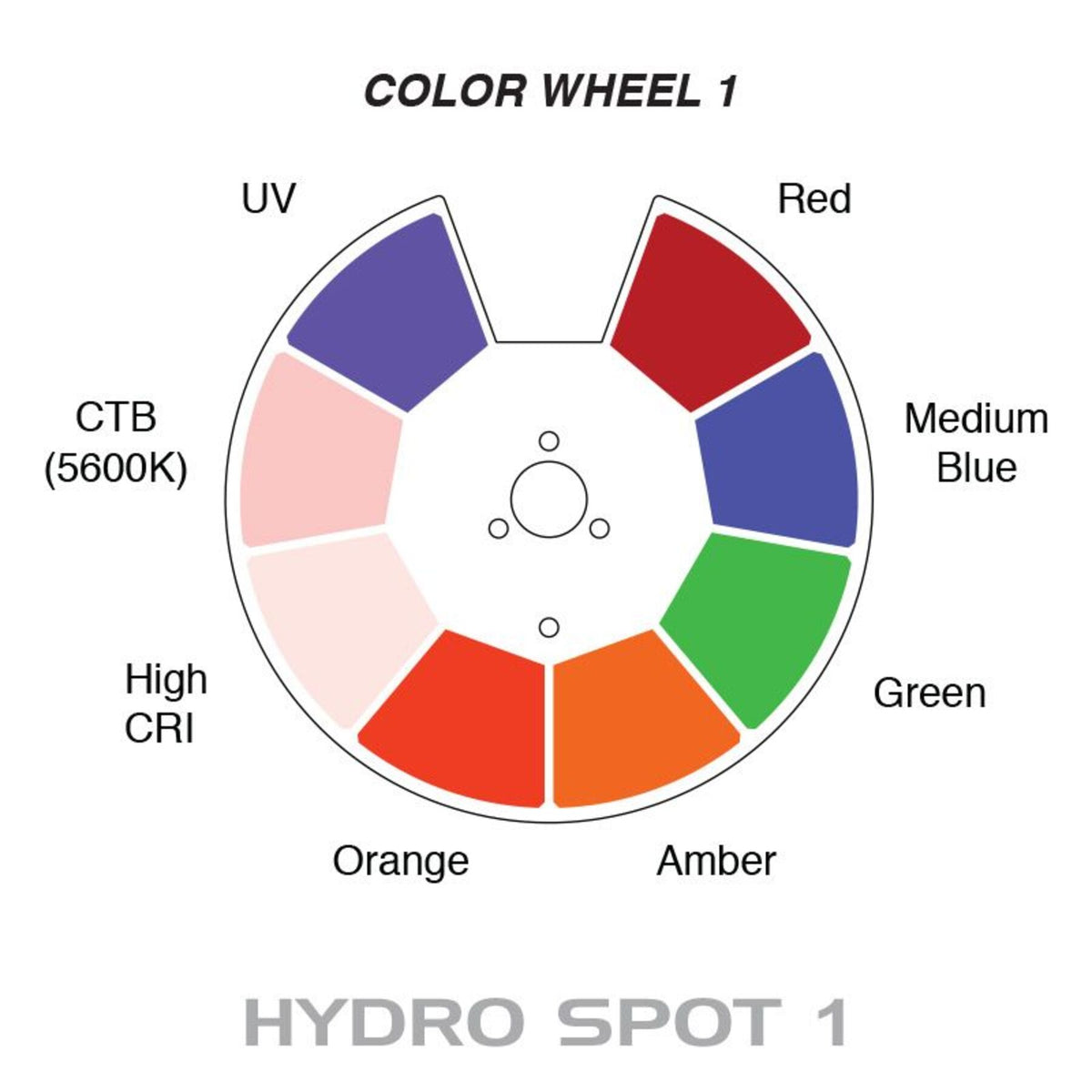

Two independent wheels with 8 dichroic colors each (including CTO, CTB, and UV) give you 16 color options for fast, split-second color changes.
Sharp Pattern Projection
Motorized zoom and focus keep 6 replaceable rotating GOBOs sharp at any distance, from tight close-up projections to long-throw stage work.
Aerial Prism Effects
Two indexed, rotating prisms (5-facet linear and 6-facet circular) split the beam into dynamic multi-point aerial patterns.
Extended Pan Range
A 630-degree pan range exceeds the standard 540 degrees, giving the fixture wider coverage without needing to reposition during a show.
Technical Specifications
- Product Type IP65 LED Moving Head Spot
- LED Engine 200W Cool White (50,000 hr)
- Color Wheels 2 wheels, 8 dichroic colors each (includes CTO, CTB, UV)

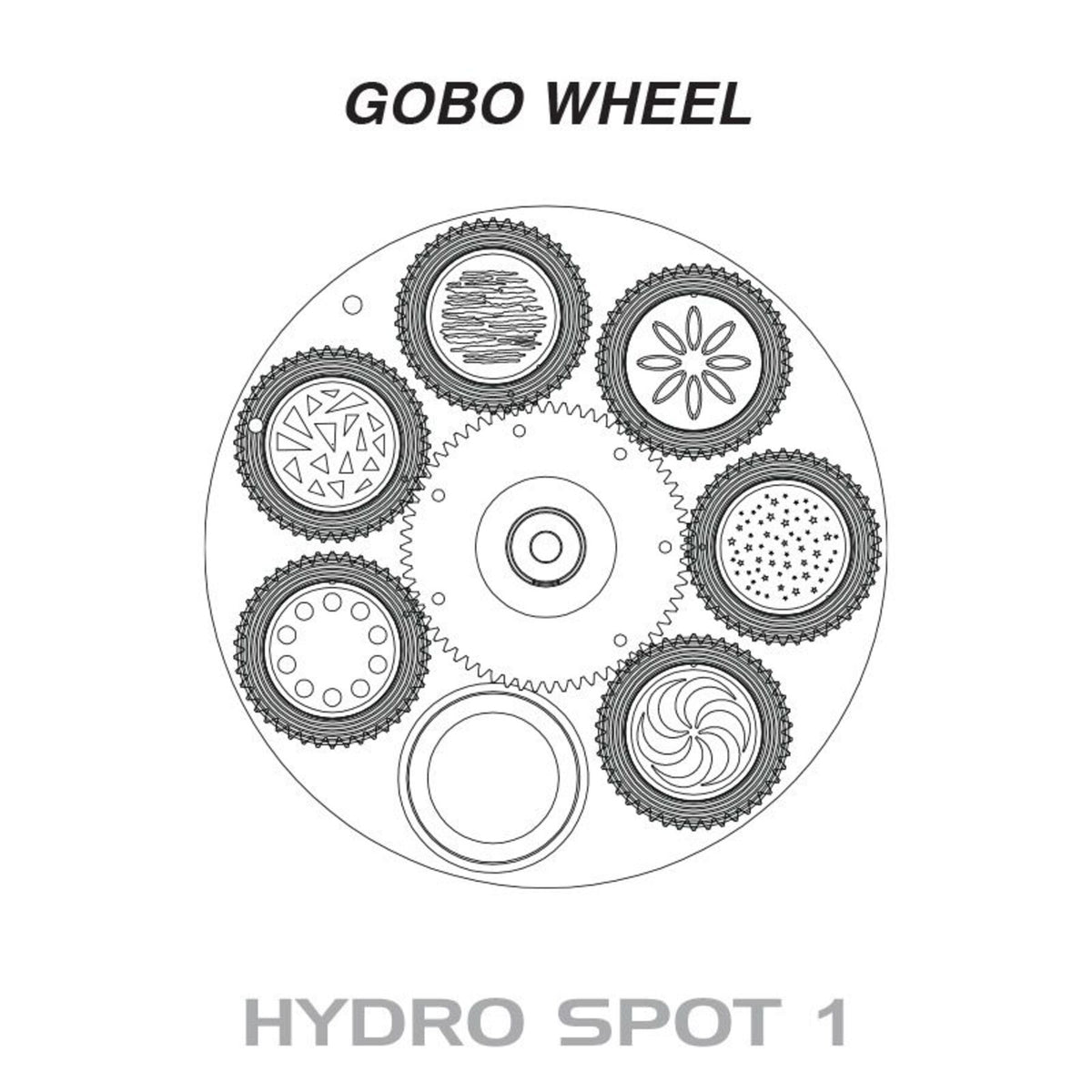

- GOBO Wheel 6 rotating/replaceable GOBOs
- Prism 1 6-facet circular (rotatable, indexable)
- Prism 2 5-facet linear (rotatable, indexable)
- Frost Filters 2 (heavy and medium)
- Motorized Zoom 12-23 degrees
- DMX Modes 17/20/22 channels
- Wireless DMX WiFly EXR
- Pan/Tilt 630/270 degrees
- Power Consumption 280W max
- Dimensions (LxWxH) 9.49" x 14.57" x 19.21"
- Weight 35.2 lb
