ADJ JOLT 300 RF RGB+CW SMD LED DMX Blinder/Strobe Effects Light
AMERICAN DJ
ADJ JOLT 300 RF RGB+CW SMD LED DMX Blinder/Strobe Effects Light
ADJ JOLT 300 RF RGB+CW SMD LED DMX Blinder/Strobe Effects Light
RGB and Cool White SMD LED Strobe/Blinder, 3-Section Zone Control, 64 Color Macros
Free Shipping
Features
- 144x 1.5W RGB + 144x 0.5W cool white SMD LEDs
- 3-section RGB zone control for chases and eye-candy effects
- 64 built-in color macros and 32 built-in programs
- 8 DMX modes from 4 to 18 channels
- Twist-lock power in/out to daisy chain up to 4 units at 120V
Couldn't load pickup availability
What's Included in the box
- (1) American DJ Jolt 300 Strobe/Blinder
- (1) Omega Bracket
- (1) Locking Power Cable
SKU: SKU: JOLT 300*
View full details







Product Description

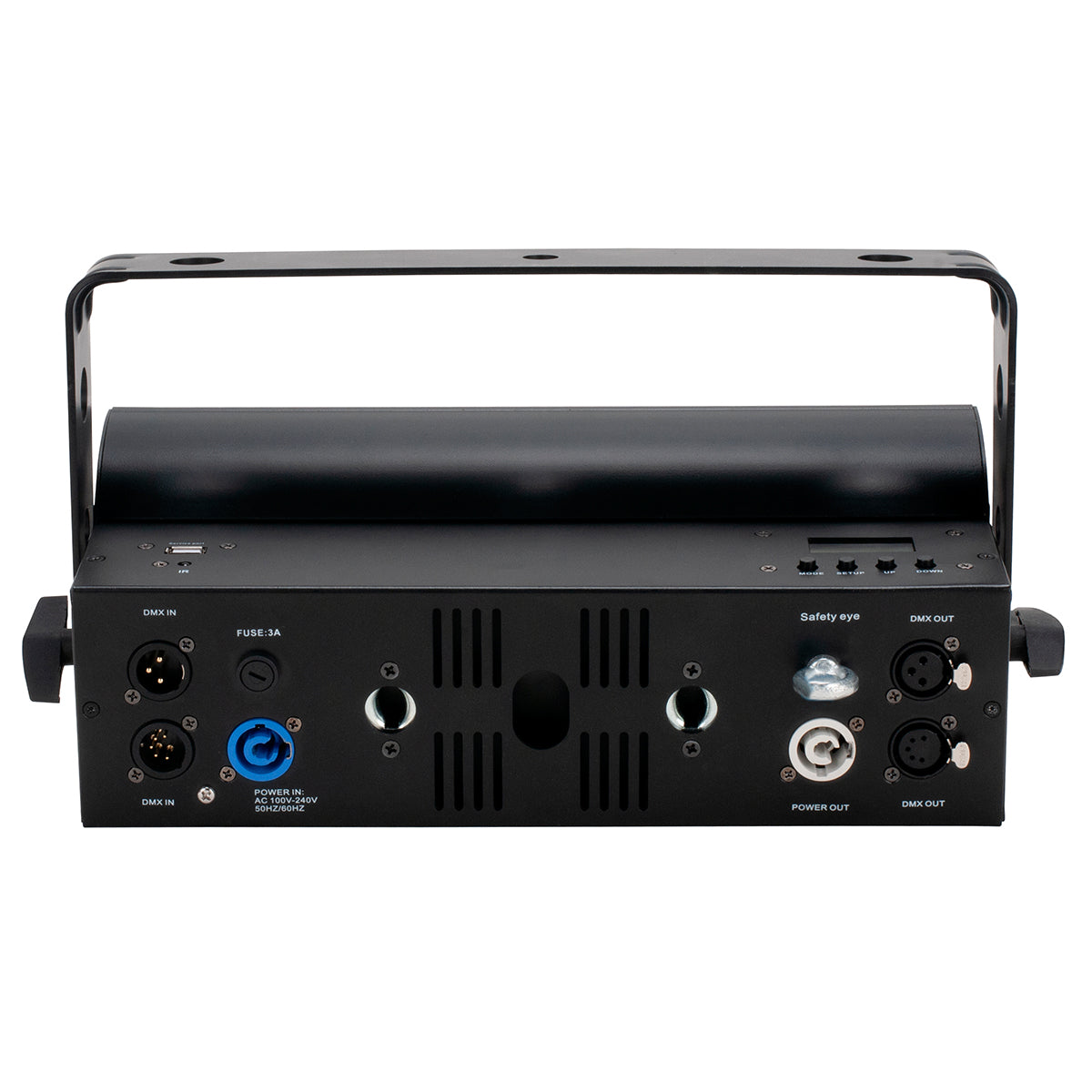

The rear panel carries 3-pin and 5-pin DMX in/out plus twist-locking power in/out for daisy chaining up to 4 units at 120V. An LCD display with 4-button navigation handles DMX addressing, dimming mode selection (6 presets), dim speed control, LED refresh rate adjustment, and gamma settings. The Jolt 300 offers 8 DMX modes ranging from 4 to 18 channels, and it is compatible with ADJ's UC IR wireless remote for additional control. The fixture ships with a scissor yoke and omega bracket for truss or clamp mounting. At 10.5 lb and 15.3 by 5.63 by 8.38 inches, it is sized for concert tours, nightclub installations, and event production rigs where high-impact strobe and color effects need to come from the same fixture.
Features
Strobe and Color in One Fixture
A central white LED strip handles blinding strobe effects while flanking RGB zones produce colored washes and chases without needing a second fixture.
Zone Chase Effects
Three independently controllable RGB sections create eye-catching zone chasing patterns when combined with the white strip for visual depth.
64 Color Macros
Built-in color macros give you instant access to 64 preset looks, speeding up programming for events with tight setup windows.
Adjustable Refresh Rate
LED refresh rate adjusts from 900Hz to 25kHz, so the fixture looks flicker-free on camera for broadcast and streaming applications.
Daisy Chain Power
Twist-locking power in/out lets you connect up to 4 Jolt 300 units at 120V from a single circuit, reducing cable clutter on your rig.
Technical Specifications
- Product Type LED Strobe/Blinder/Color Wash
- Light Source 144x 1.5W RGB SMD + 144x 0.5W Cool White SMD
- Beam Angle 120 degrees
- Color Temperature (White) 6000K
- LED Life 50,000 hours
- DMX Modes 4, 8, 10, 10a, 12, 15, 18, 18a channels
- Dim Modes 6 presets
- Refresh Rate 900Hz - 25kHz (adjustable)
- Color Macros 64
- Built-In Programs 32
- Power Connection Twist-lock In/Out (4 units max at 120V)
- Max Power 226W
- Voltage 100-240V 50/60Hz
- Dimensions (LxWxH) 15.3" x 5.63" x 8.38"
- Weight 10.5 lb
