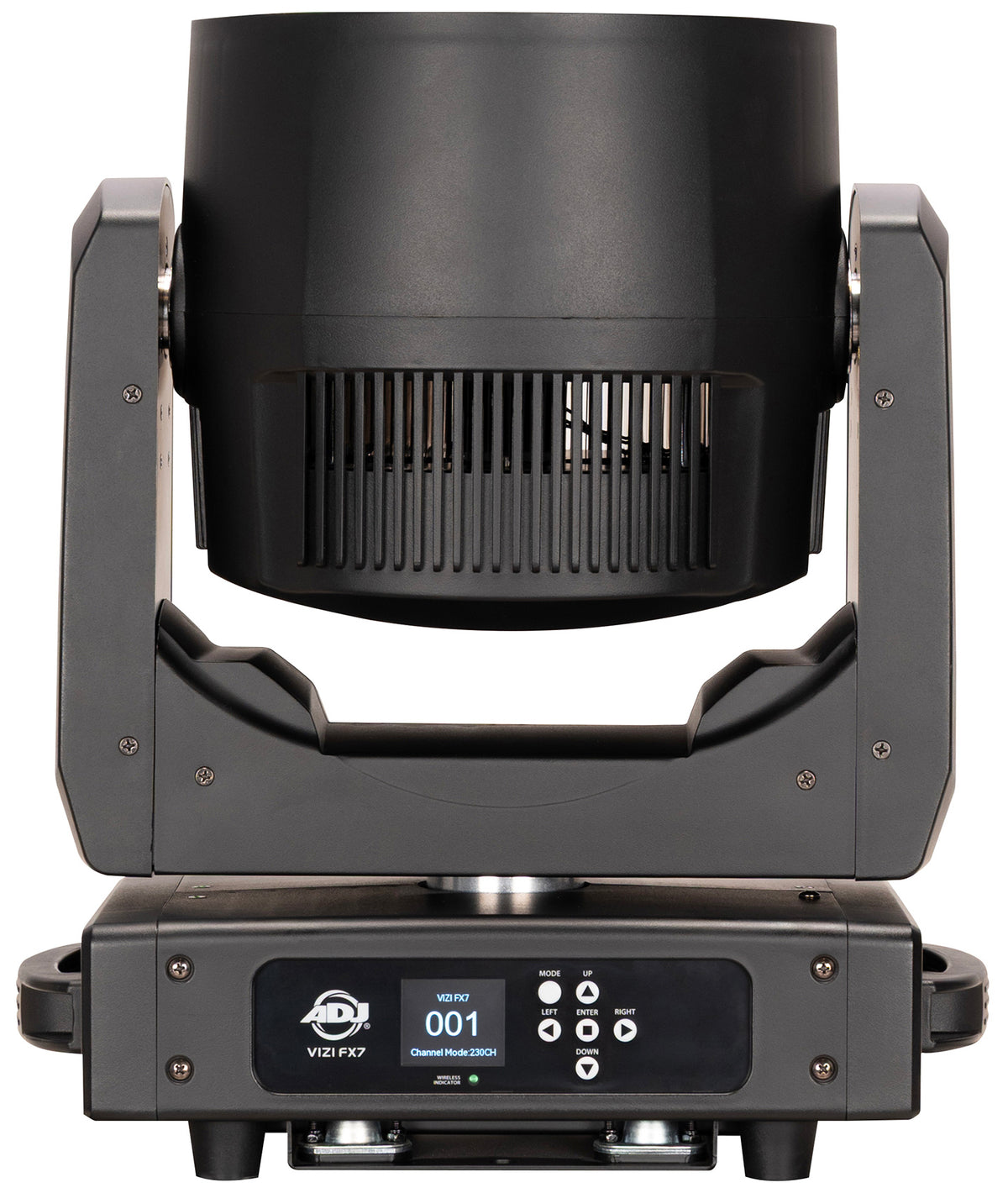

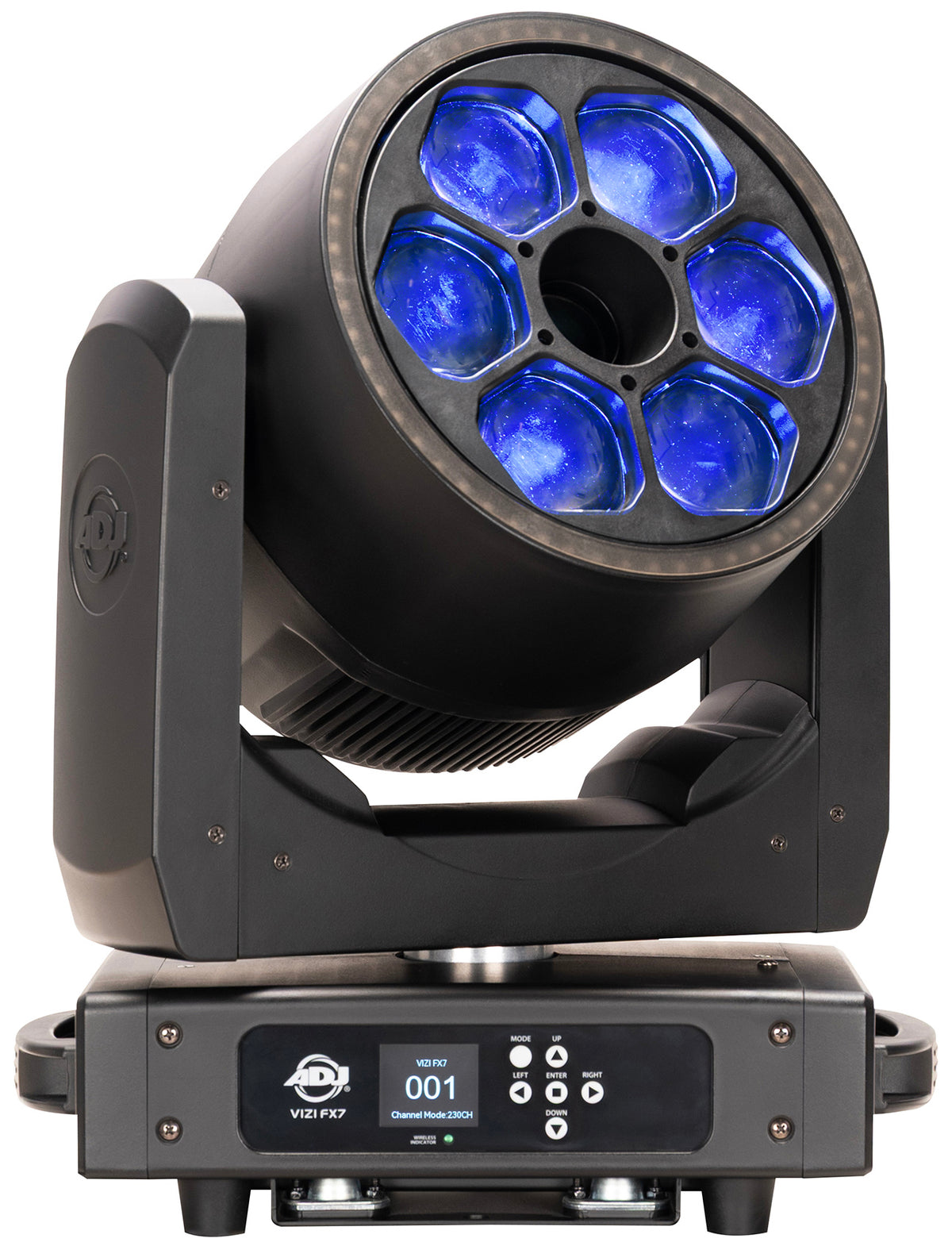

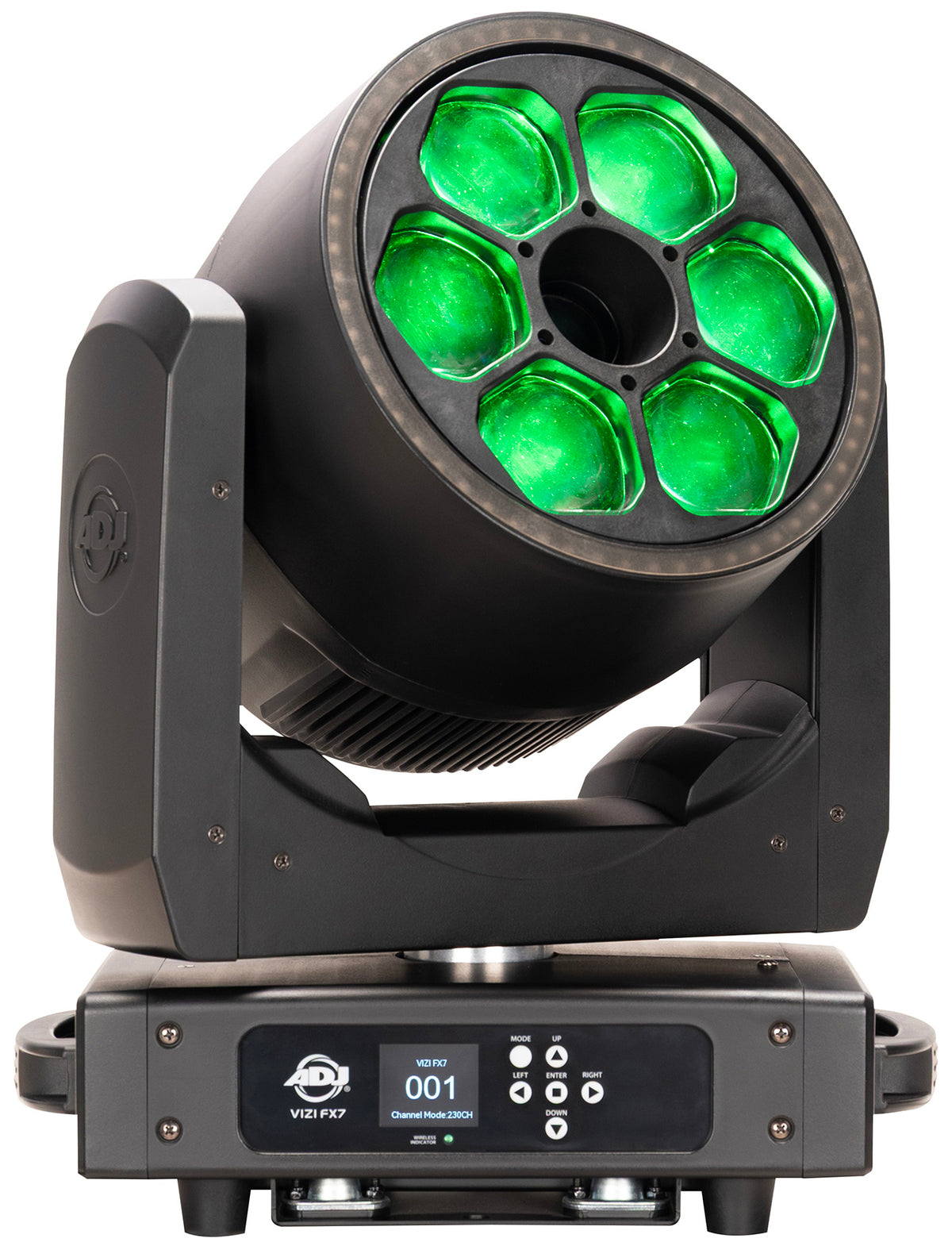

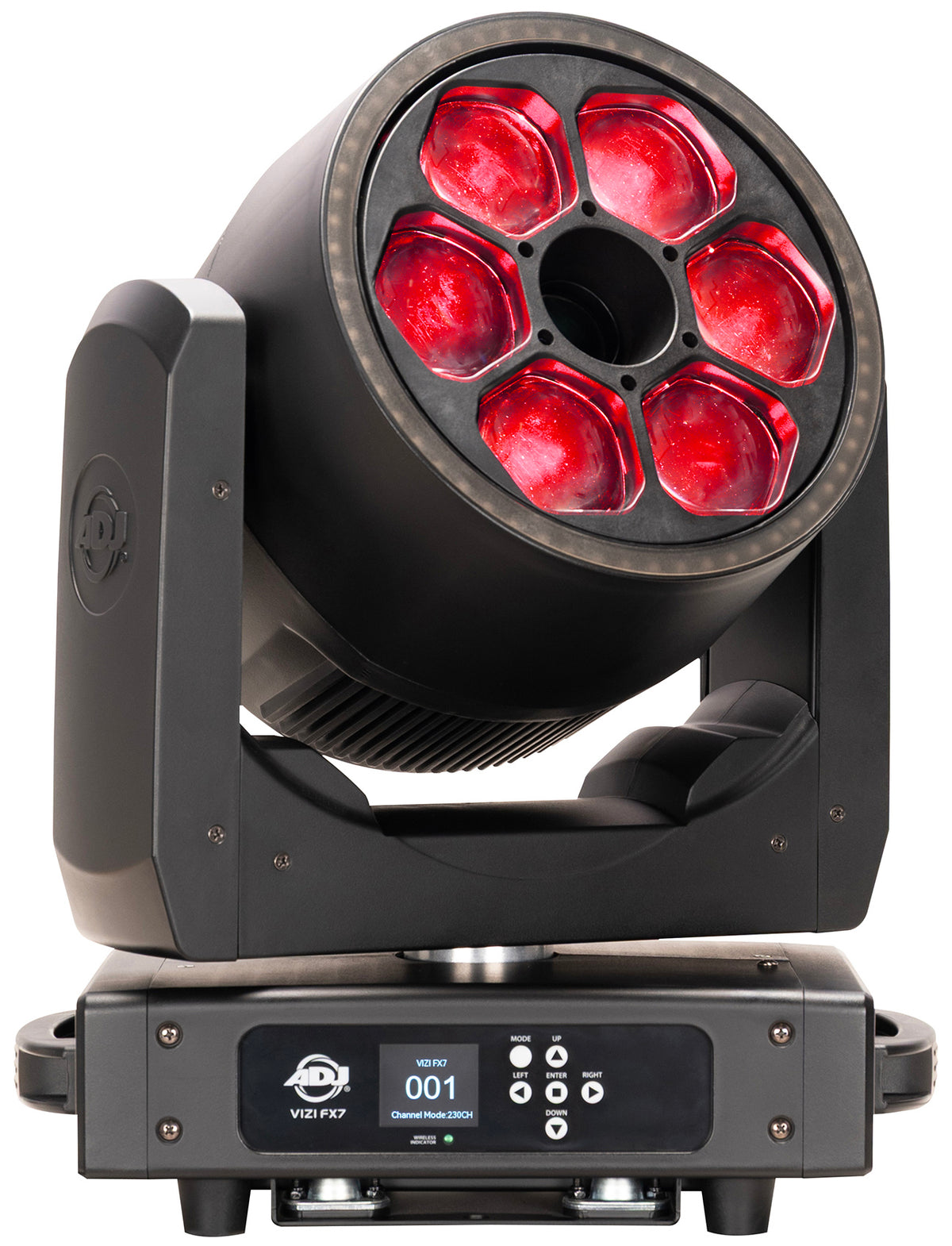

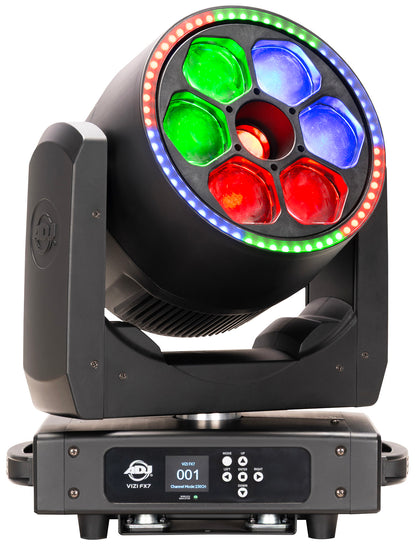

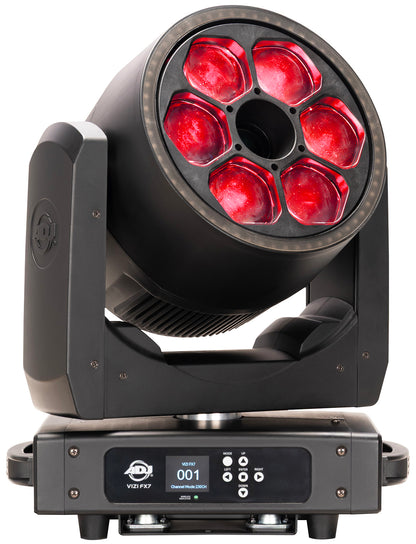

American DJ Vizi FX7 Beam/Wash/Kaleidoscope LED Ring Effect Moving Head Light
American DJ Vizi FX7 Beam/Wash/Kaleidoscope LED Ring Effect Moving Head Light
420W RGBL Moving Head, 7x60W LEDs, 60-LED Ring, 8-38 Degree Zoom, Includes Omega Brackets And Cable
Features
- Beam, wash, kaleidoscope, and LED ring effects in one fixture
- Seven 60W RGBL LEDs with motorized 8 to 38 degree zoom
- Bidirectional lens rotation creates moving multi-beam looks

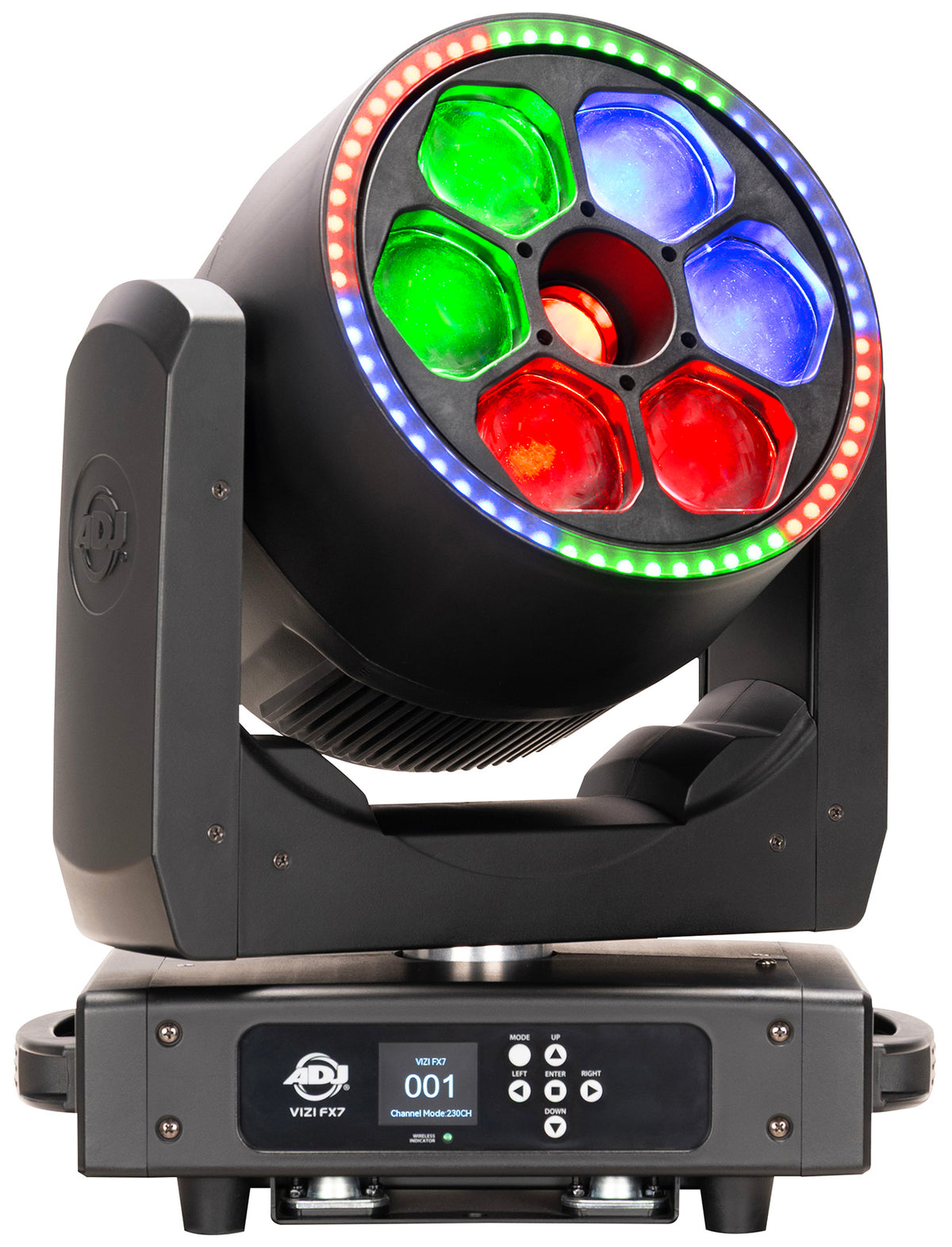

- Sixty 0.5W RGB ring LEDs for on-camera eye candy
- Aria X2 wireless plus 5-pin DMX with RDM support
Couldn't load pickup availability
What's Included in the box
- 1x Vizi FX7 moving head fixture
- 2x Omega brackets (107mm)
- 1x Outdoor locking power cable (6 ft)
SKU: SKU: Vizi FX7
View full details







Product Description
Features
Four Effects, One Fixture
Beam, wash, rotating kaleidoscope, and LED ring functions run alone or together, so a single hang produces a much wider variety of aerial looks.
Zoom From Beam To Wash
Motorized zoom from 8 to 38 degrees moves between tight mid-air beams and wide stage coverage without swapping or refocusing fixtures.
Movement Inside The Beam
Bidirectional lens rotation spins the six primary beams while the head moves, adding depth that a fixed multi-beam cluster cannot deliver.
Pixel Control Included
Every primary LED is individually controllable, and built-in FX macros with speed adjustment get layered chases running without long programming sessions.
Camera-Ready Output
Selectable refresh rates up to 25kHz with six dim modes and four dim curves keep output flicker free for broadcast and livestream work.
Technical Specifications
- Product Type 420W RGBL Moving Head Beam, Effect and Wash
- Main And Kaleidoscope Source 7 x 60W RGBL LEDs
- Ring Source 60 x 0.5W RGB LEDs
- LED Life 50,000 hour average
- Color Temperature 2,800K to 8,500K, linear control 2,700K to 10,000K
- Color Temperature Presets 2,800, 3,200, 3,600, 4,500, 5,000, 5,600, 6,200, 6,800, 7,500 and 8,500K
- Effects Bidirectional primary LED beam rotation, individual pixel control, bidirectional multi-color rotating kaleidoscope, built-in FX programs with speed control
- Zoom Motorized, 8 to 38 degrees
- Strobe Electronic, 1Hz to 20Hz
- Dimming 0-100%
- Dim Modes Standard, Stage, TV, Architectural, Theatre, Stage 2, plus user set dim speed
- Dim Curves 4 (Square, Linear, Inv. Square, S. Curve)
- Refresh Rates Selectable, 900Hz to 25kHz
- DMX Channel Modes 31, 55, 57, 60 and 237 channels plus 1 user definable mode
- Protocols DMX, RDM, Aria X2 wireless management system
- Display Full color 180 degree reversible LCD with 6-button touch panel
- Movement Resolution 8 or 16 bit adjustable
- Pan/Tilt 540 degree pan, 190 degree tilt, 3-phase motors
- DMX Connections 5-pin XLR in/out
- Power Connections IP65 locking power in/out
- Power Consumption 400W maximum, 3.7 amps at 120V
- Power Link 3 units at 120V, 6 units at 230V
- Voltage AC 100-240V, 50/60Hz
- Cooling Fan cooled
- Operating Temperature -13F to 113F (-25C to 45C)
- IP Rating IP20
- Certifications cETLus, CE, FCC, UKCA
- Weight 29.8 lb
- Dimensions (LxWxH) 14.39" x 8.66" x 17.11" (365 x 220 x 434.4mm)
