VS3

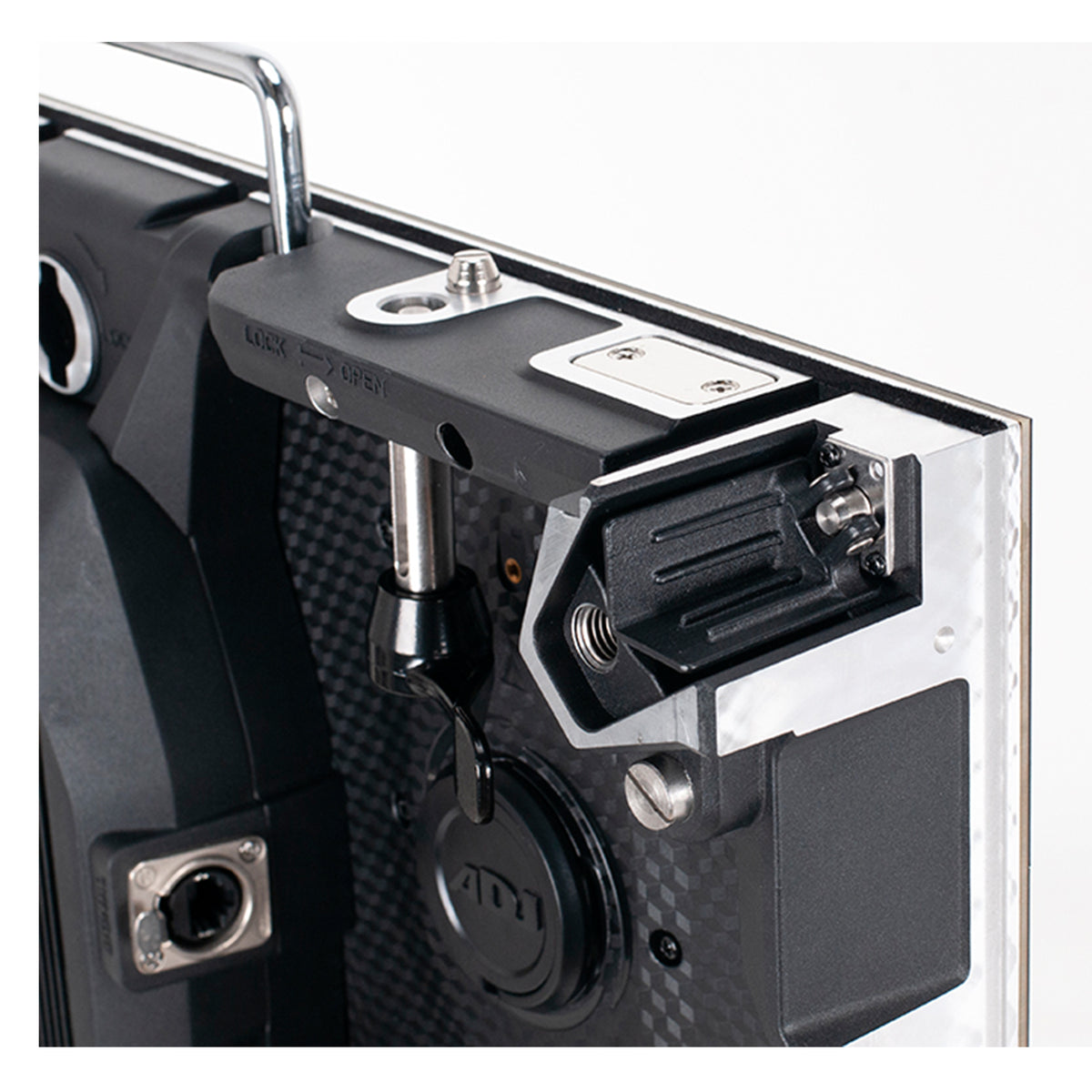

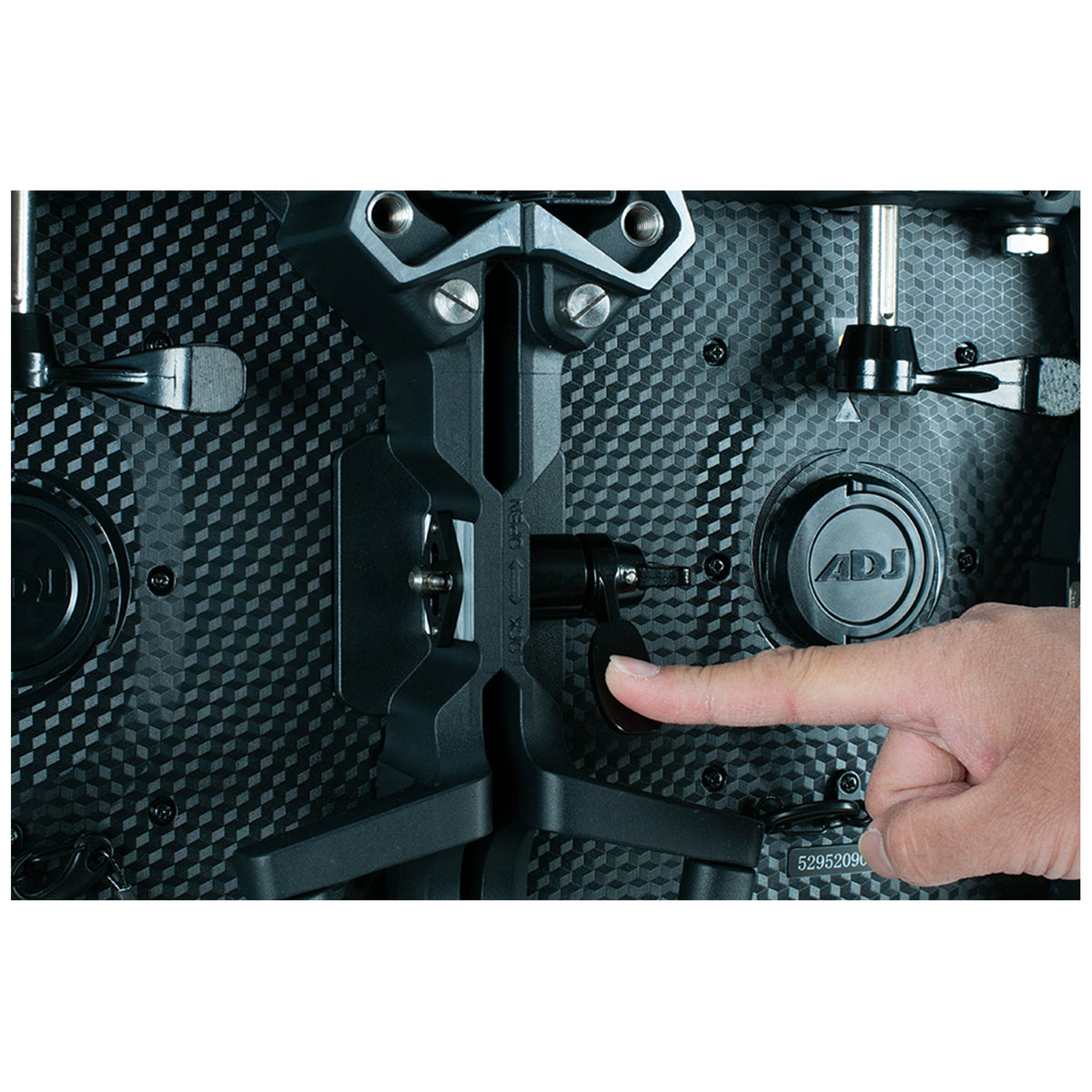

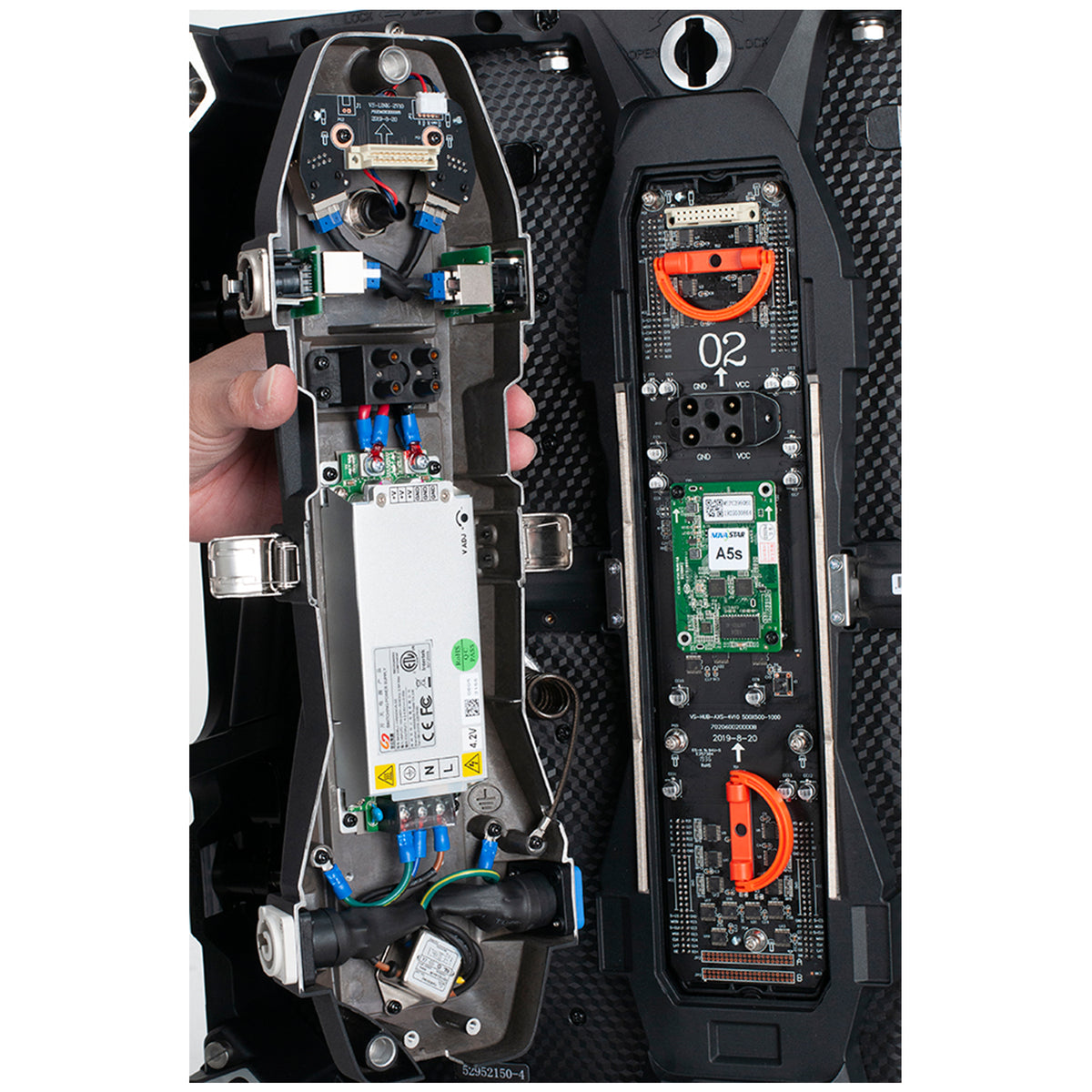

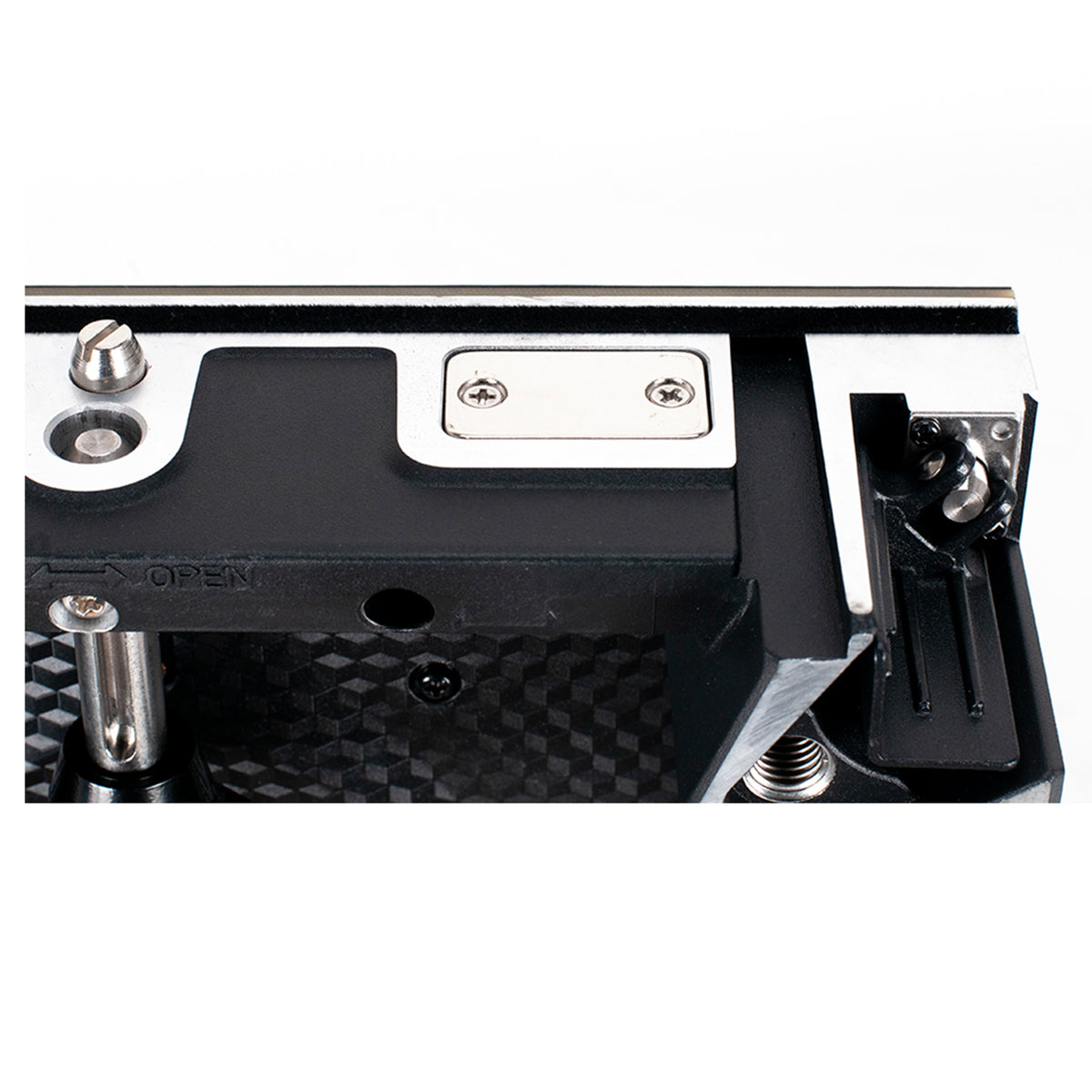

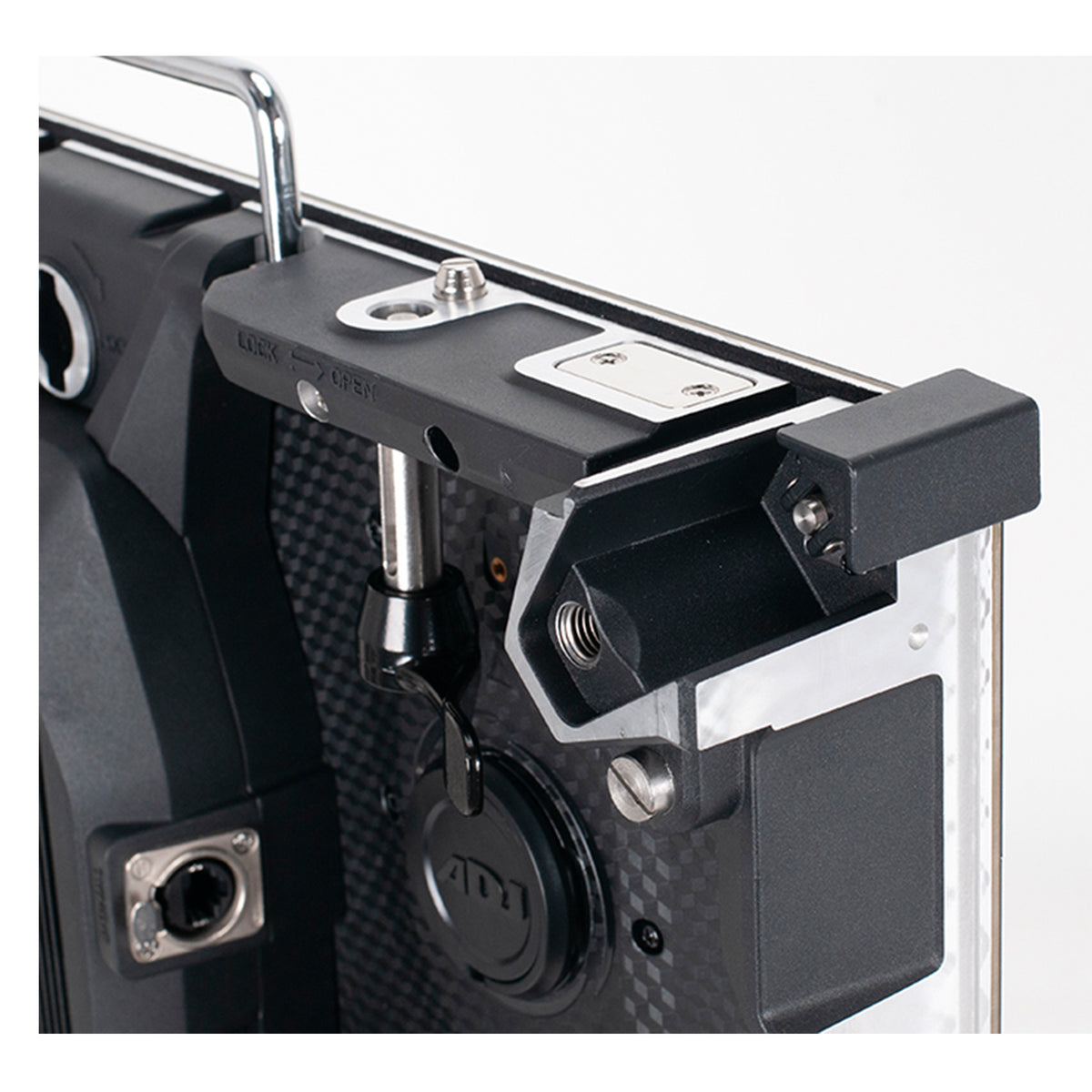

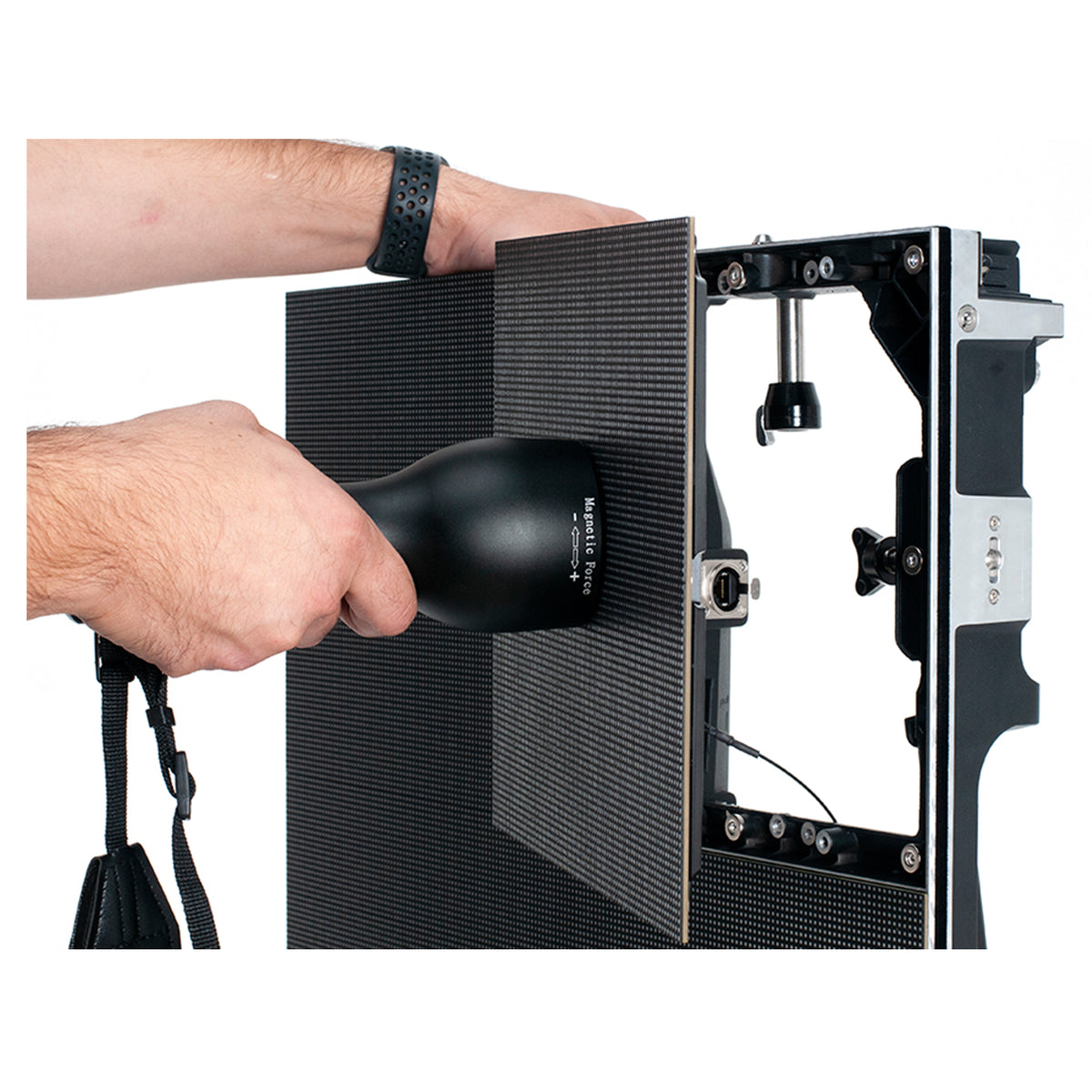

The VS3 is an LED video panel from the ADJ Vision Series, built with a 3.91mm pixel pitch and 3-in-1 RGB SMD2121 LEDs. Pixel density is 128 x 128 per panel, or 65,536 per square meter, a resolution suited to stage backdrops, concert walls, and corporate sets where the audience sits back far enough that a wider pitch reads clean while costing less power and weight per square meter than a fine pitch panel. Brightness is 1000 NITS with a 5000:1 contrast ratio, 14-bit processing, and a 3,840Hz refresh rate for clean capture on camera. Each panel splits into four mini modules and is serviceable from the front or the back, so a failed module gets swapped in place instead of pulling the wall apart. Magnets on the top and bottom edges hold two panels together while you latch them from behind, which means one person can install a full wall alone. Moveable corner protectors guard the frame during transport, setup, and teardown. Connections are PowerLock in and out with DataLock in and out, and a Novastar A5s receiving card is built into every panel. All Vision Series panels share the same frame, rigging bar, and flight case, so panels of different resolutions can be used together in one wall. Up to 8 VS3 panels fit inside a VSFC8 flight case, and up to 20 hang vertically from a VSRB1 rigging bar. ADJ also offers full packages with video processors, software, cabling, rigging bars, and flight cases.
