American DJ ADJ VSGSB Ground Support Base For Vision Series LED Video Panels

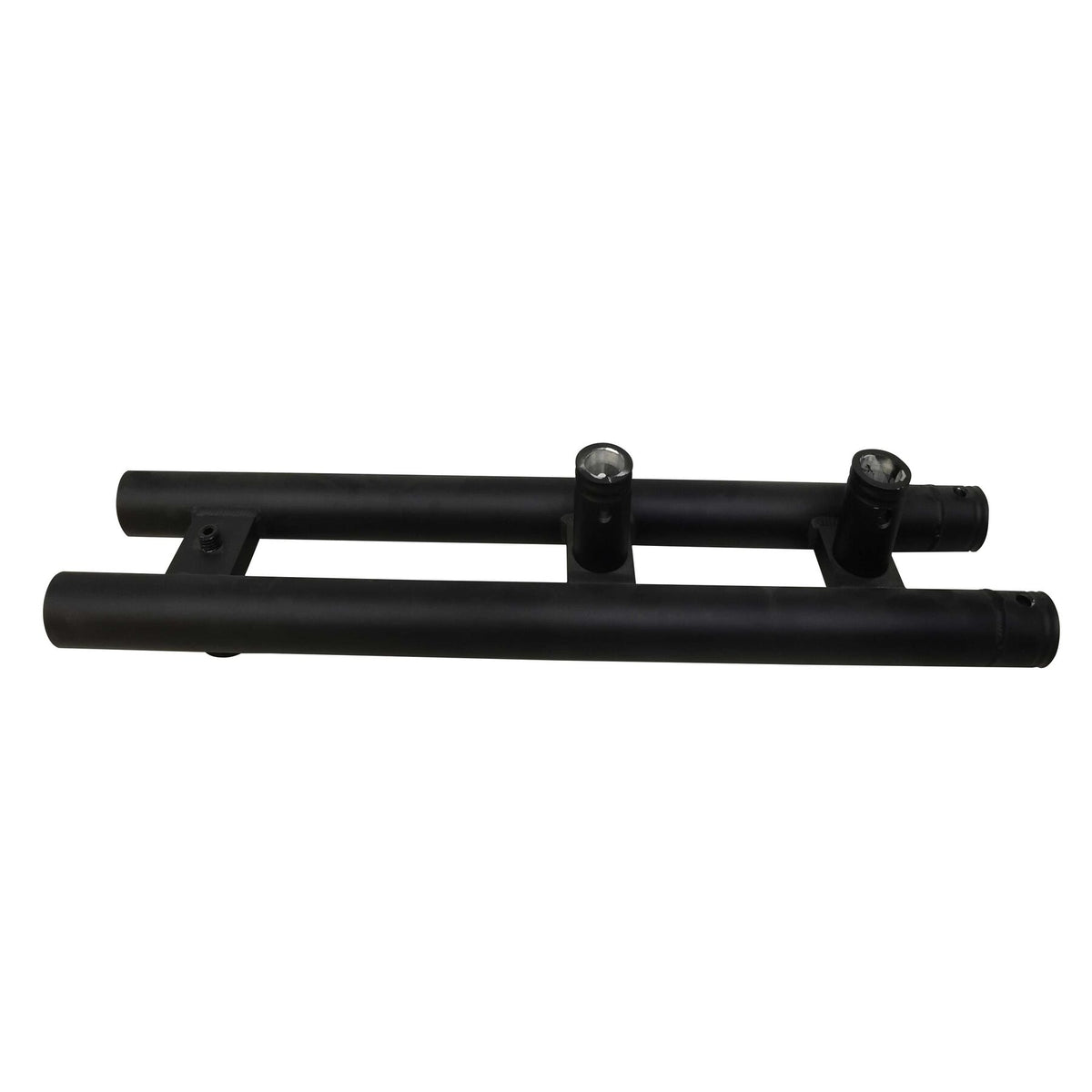

The ADJ VSGSB is a 3 ft ground support base for Vision Series LED video panels, compatible with VS2, VS3, and VS5. It forms the floor anchor of the Vision Series ground stack system, which builds a freestanding video wall from the deck when there is no truss to fly from.

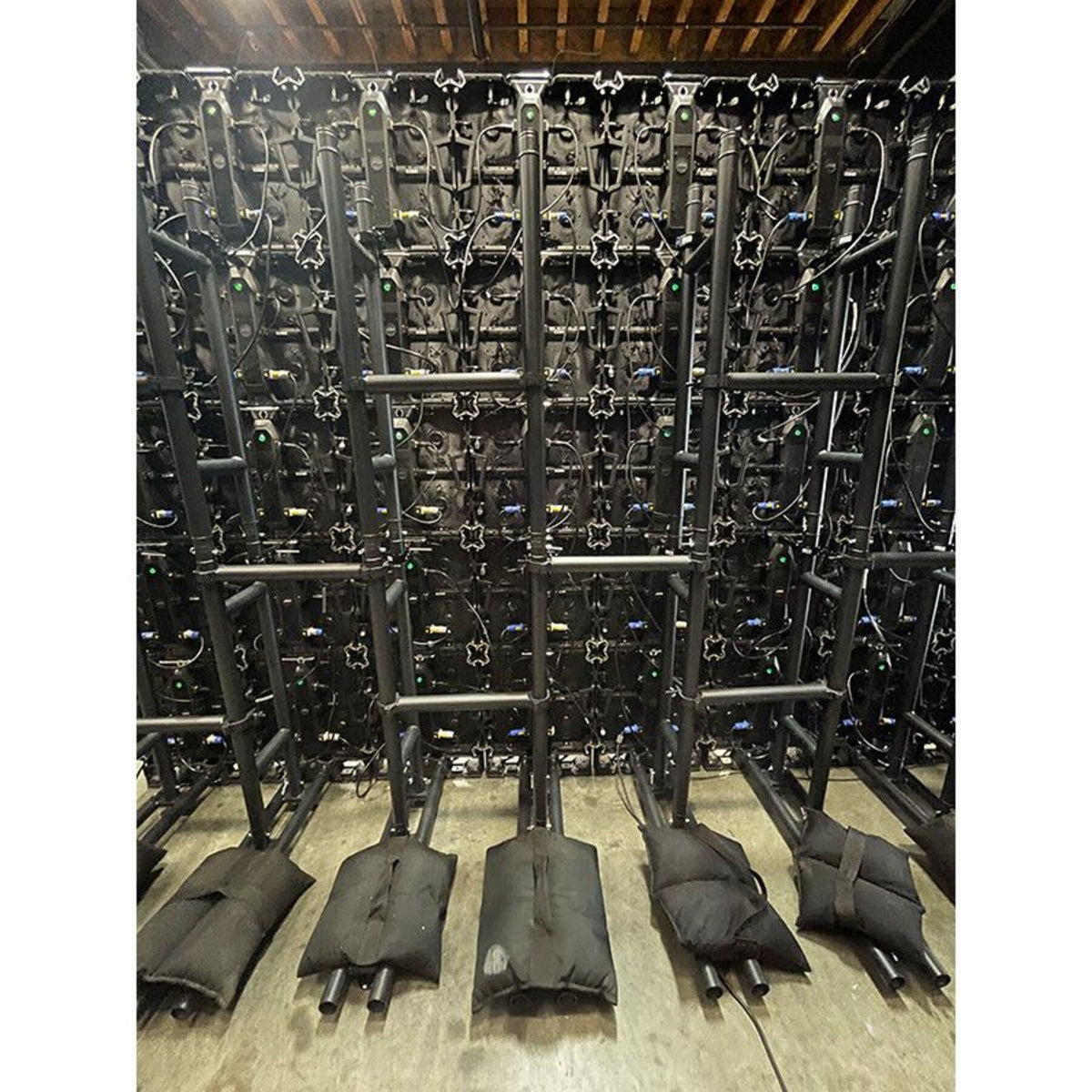

The base pairs with the VSGSLT Ground Support Ladder Truss and the VSGSCSB Clamp Support Bar to create a rigid frame behind the wall. Used together, the system supports a freestanding screen up to six panels tall with unlimited width, ballasted with conventional sandbags or stage weights. The VSRB1 Rigging and Ground Stack Bar sits between the lowest panel and the floor, while the VSRQR Rear Quick Clamp ties the back of a panel to the ladder truss so the wall cannot tip forward.

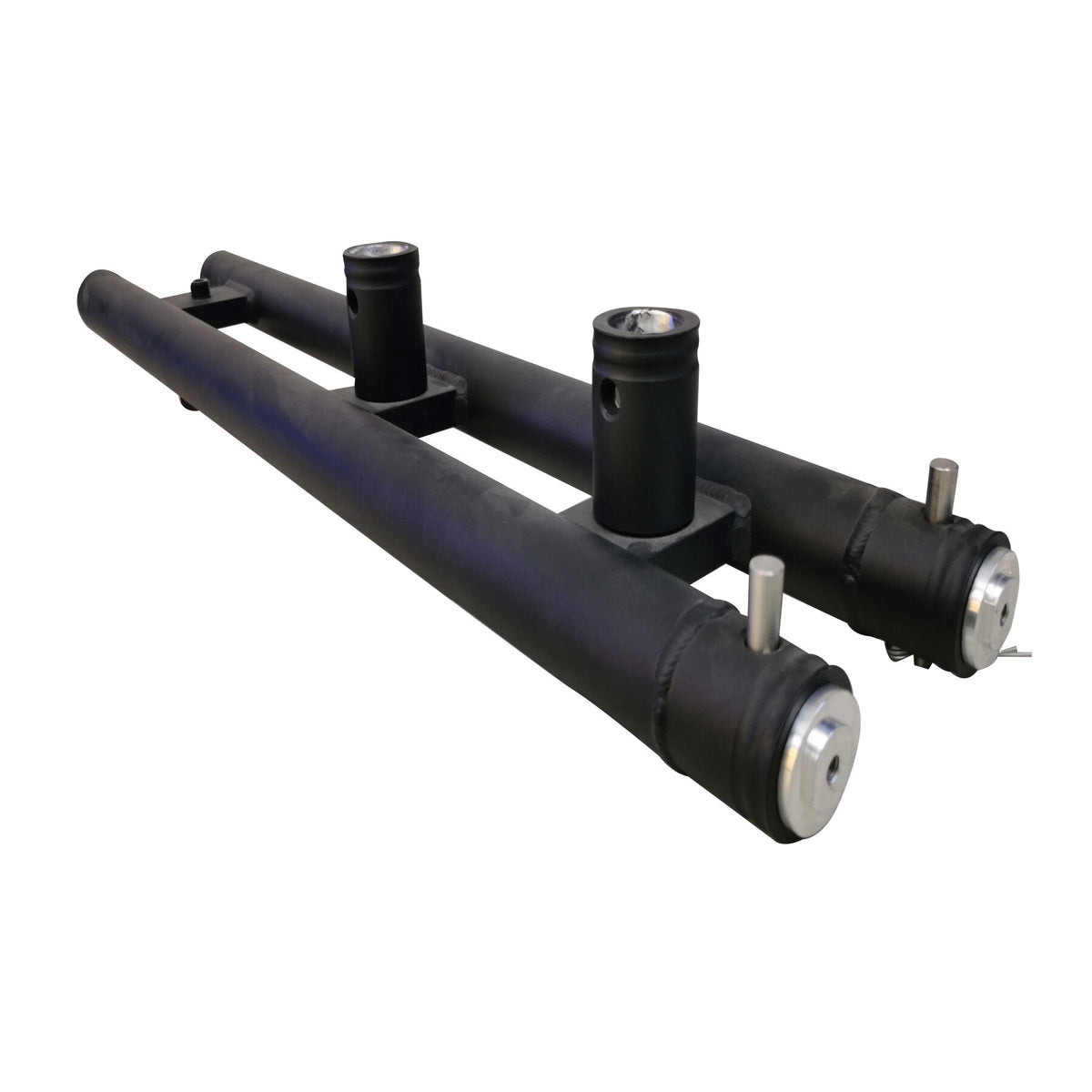

Housing is aluminum extrusion and steel, rated IP20 for dry locations, and the base ships with two couplers and pins so it connects to truss without hunting for extra hardware. At 12 lb and 40 x 9 x 8 inches, it stays light enough for one person to carry and load, and the matte black finish disappears behind the wall under stage light. This is the base for production companies, touring video crews, corporate AV teams, and rental houses building walls in ballrooms, clubs, trade show halls, and any room where the ceiling is not an option.
