ADJ VSGSB Ground Support Base For Vision Series LED Video Panels

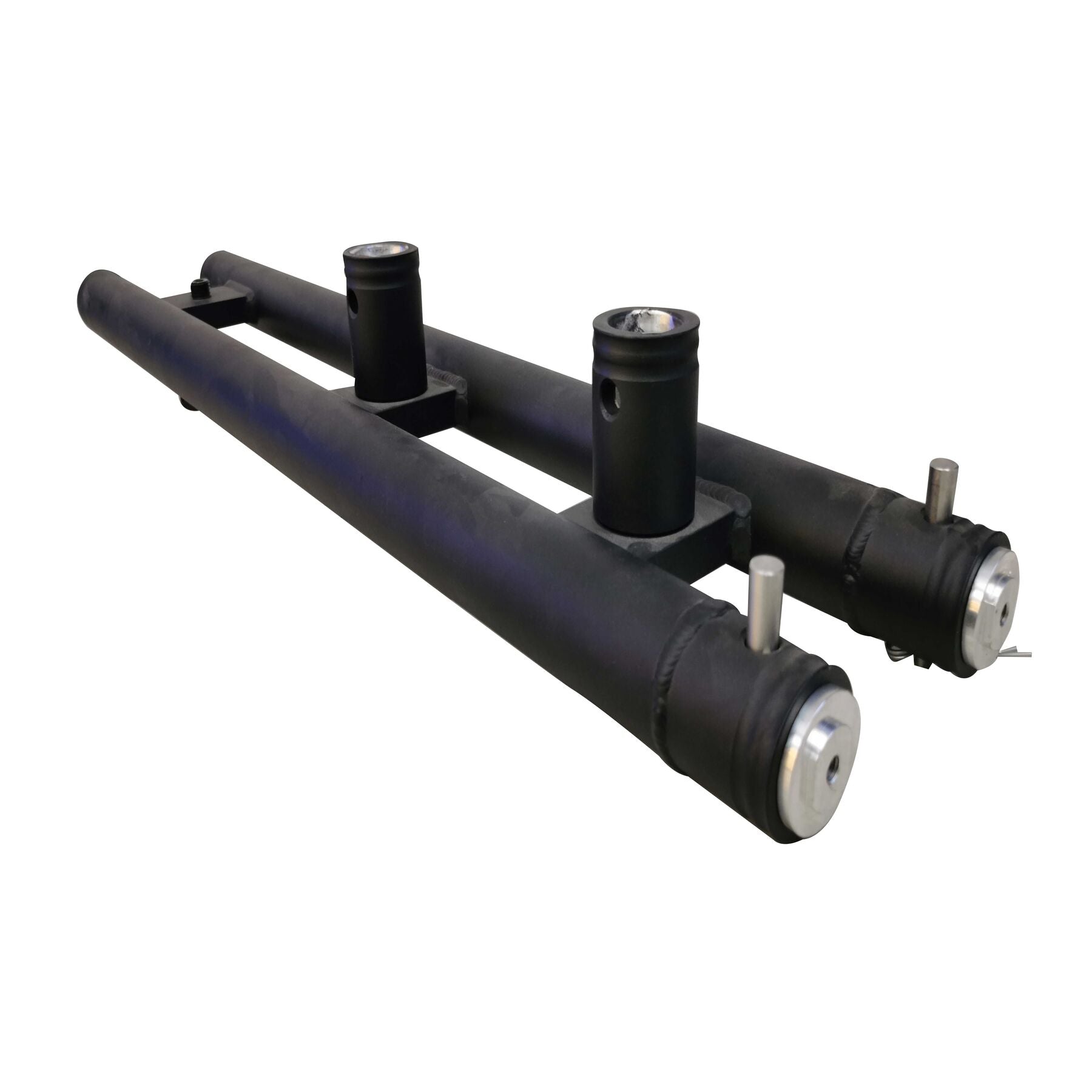

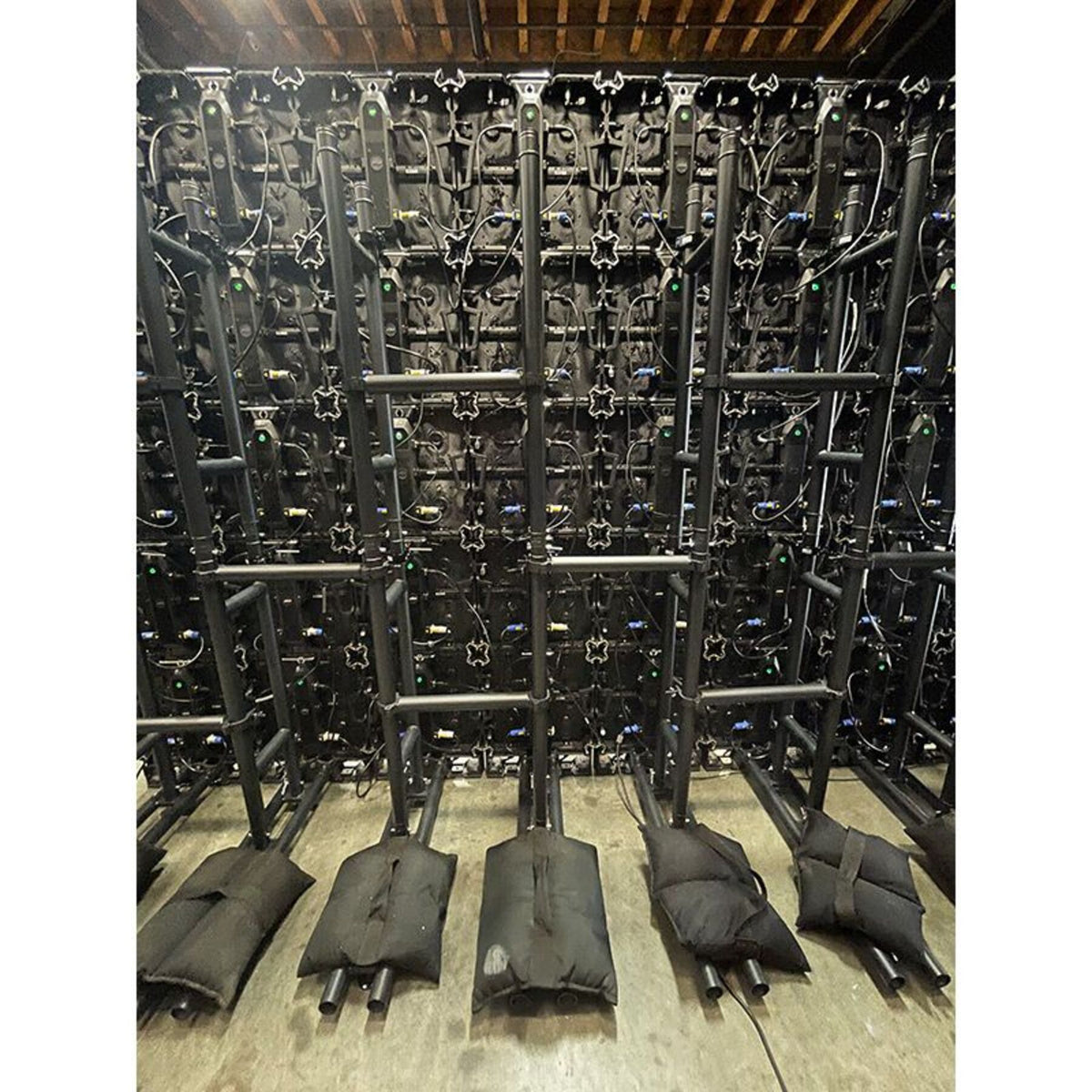

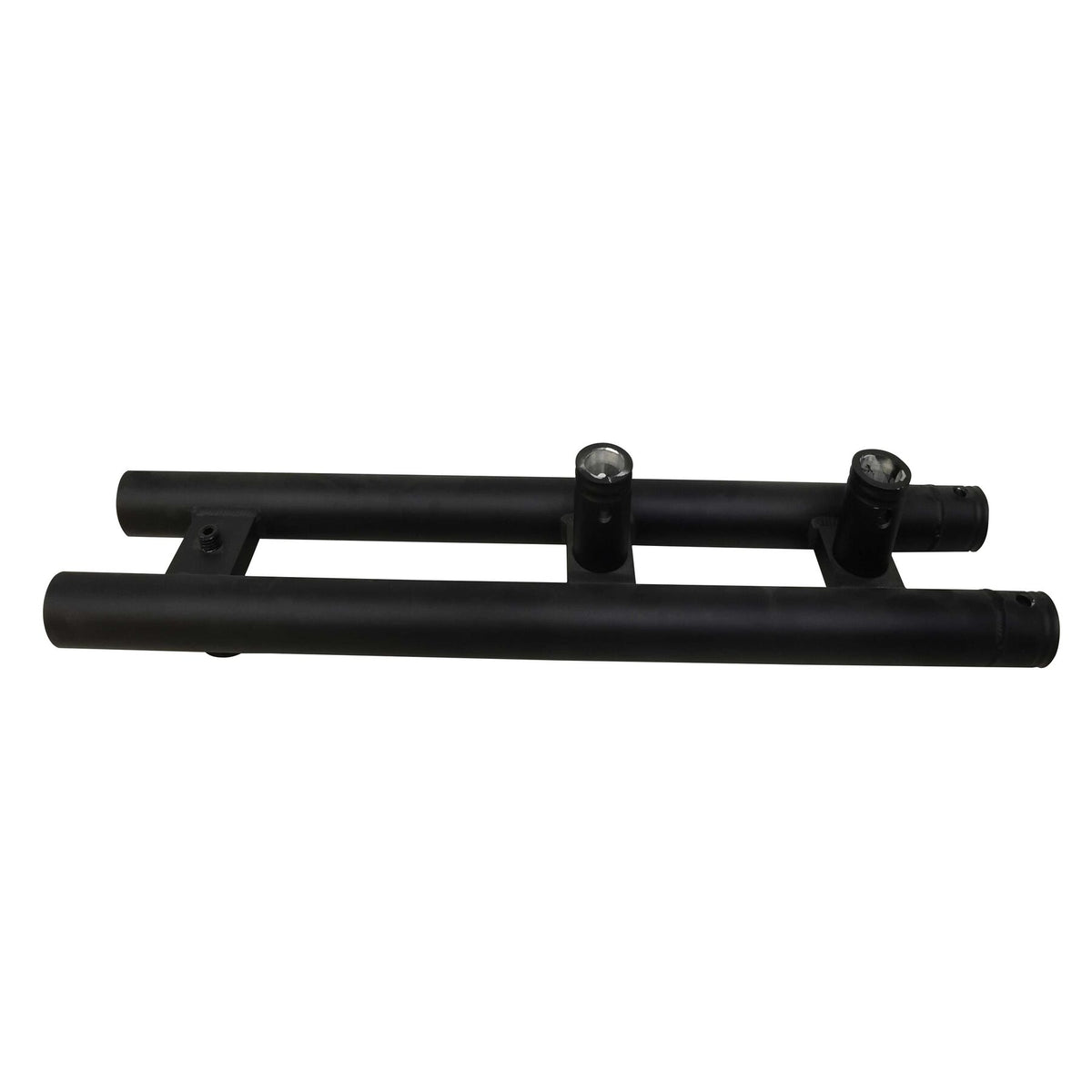

The VSGSB is a ground support base built to anchor a freestanding Vision Series video wall from behind, compatible with VS2, VS3, and VS5 panels. It works as part of a larger ground stack system alongside the VSGSLT ground support ladder truss and the VSGSCSB clamp support bar, together forming a solid frame that holds a video wall upright without rigging points overhead. This setup supports a freestanding screen up to six panels in height and unlimited width, with ballast added using standard sandbags or stage weights rather than specialized hardware. The base pairs with the existing VSRB1 rigging bar, which sits between the lowest panel and the ground, and the VSRQR rear quick clamp, which connects the back of a panel to the ladder truss behind it. Built from aluminum extrusion and steel and finished in matte black, the VSGSB is rated IP20 for dry locations and ships with 2 couplers and pins included. At 12 lb and 3 feet long, it's light enough for quick setup by production crews working ground-supported walls at events without truss or rigging points available.
