WMS2

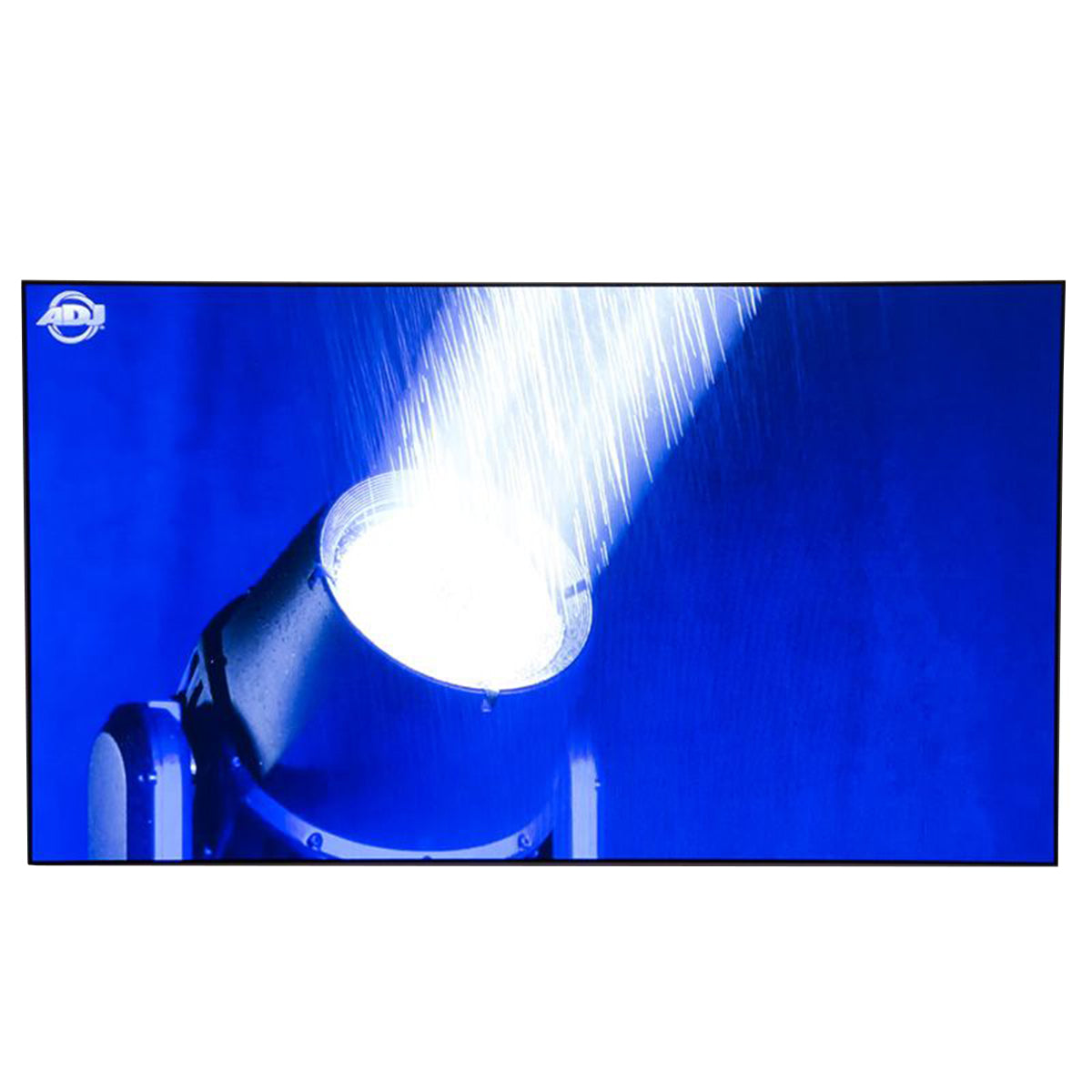

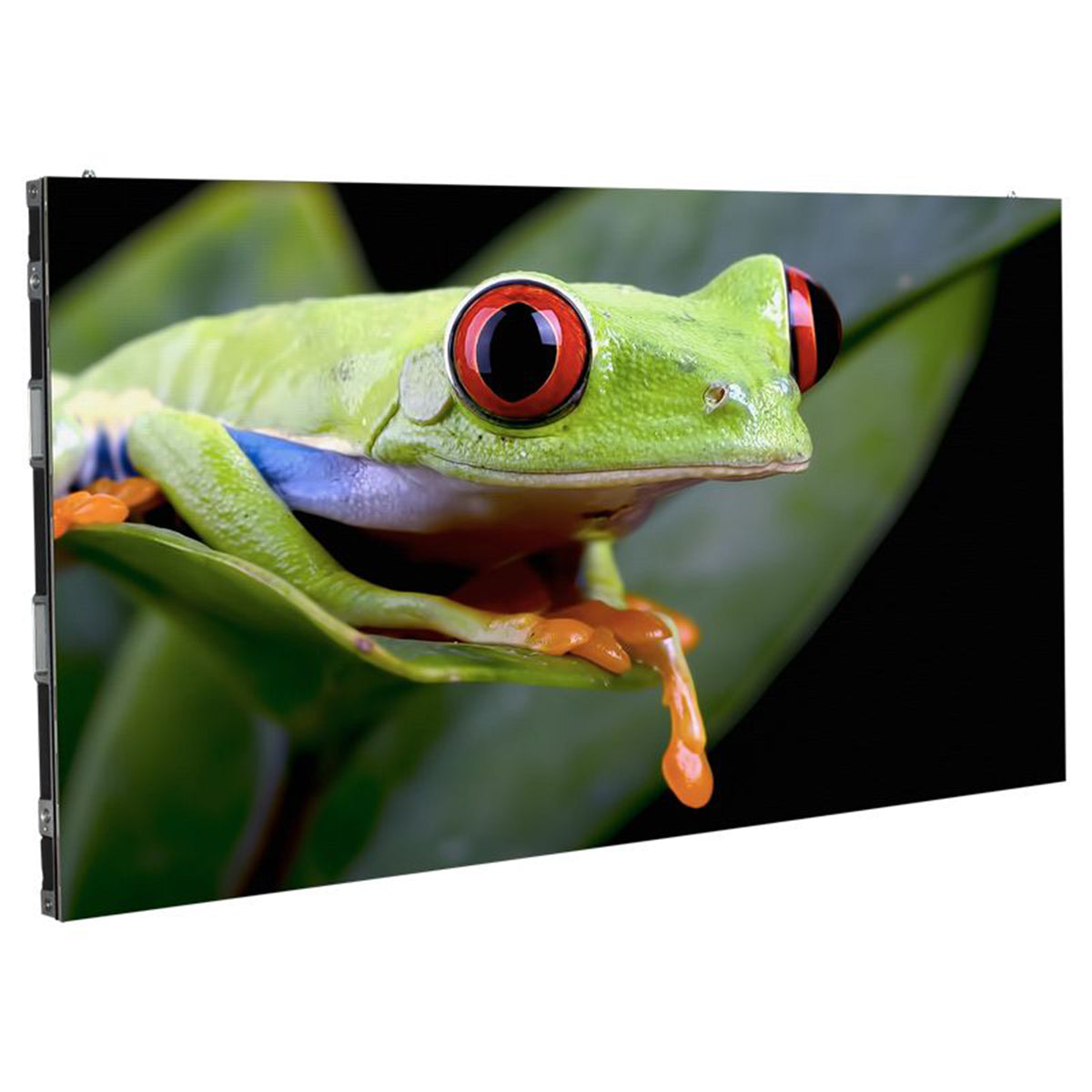

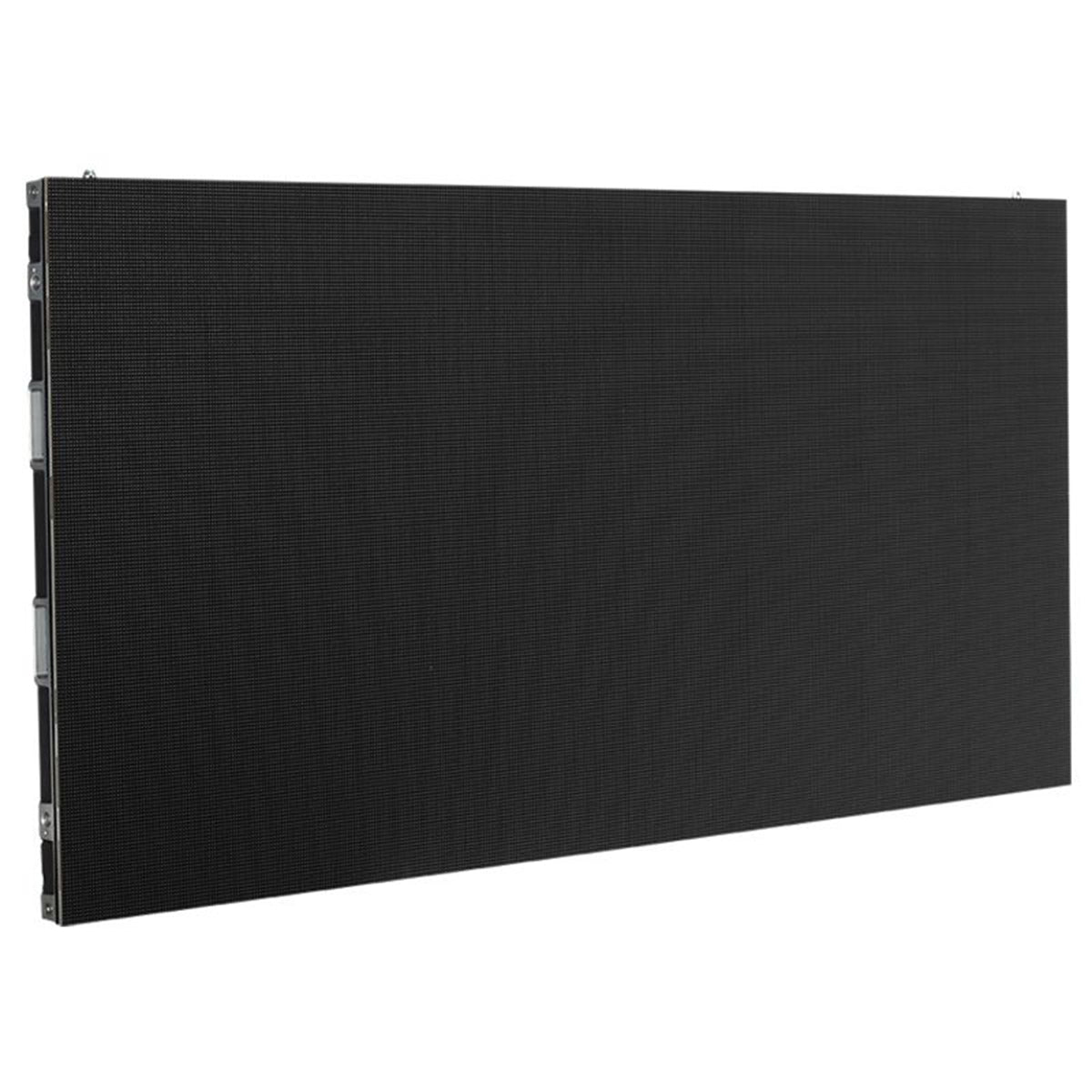

The ADJ WMS2 is a 2.6mm pixel pitch LED video panel for integration work, with a pixel density of 147,456 per square meter and 800 NITS of output. RGB SMD1515 Kinglight Copper LEDs produce the color, a 160 by 140 degree viewing angle keeps the image readable from off-axis seats, and a 3840Hz refresh rate keeps the wall clean on camera.

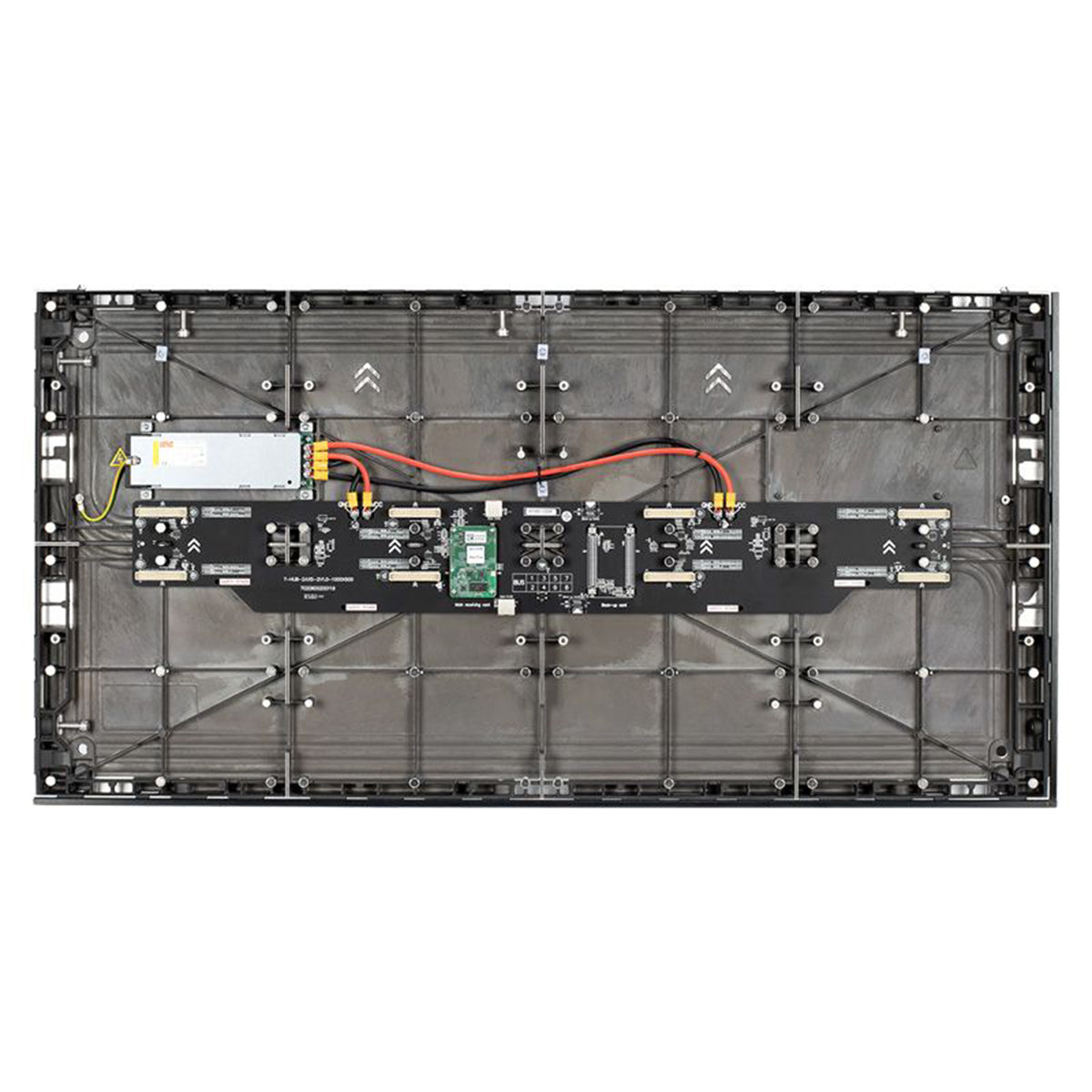

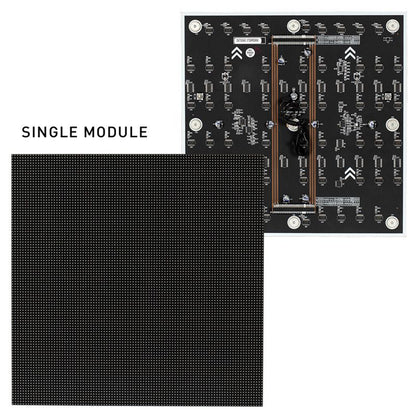

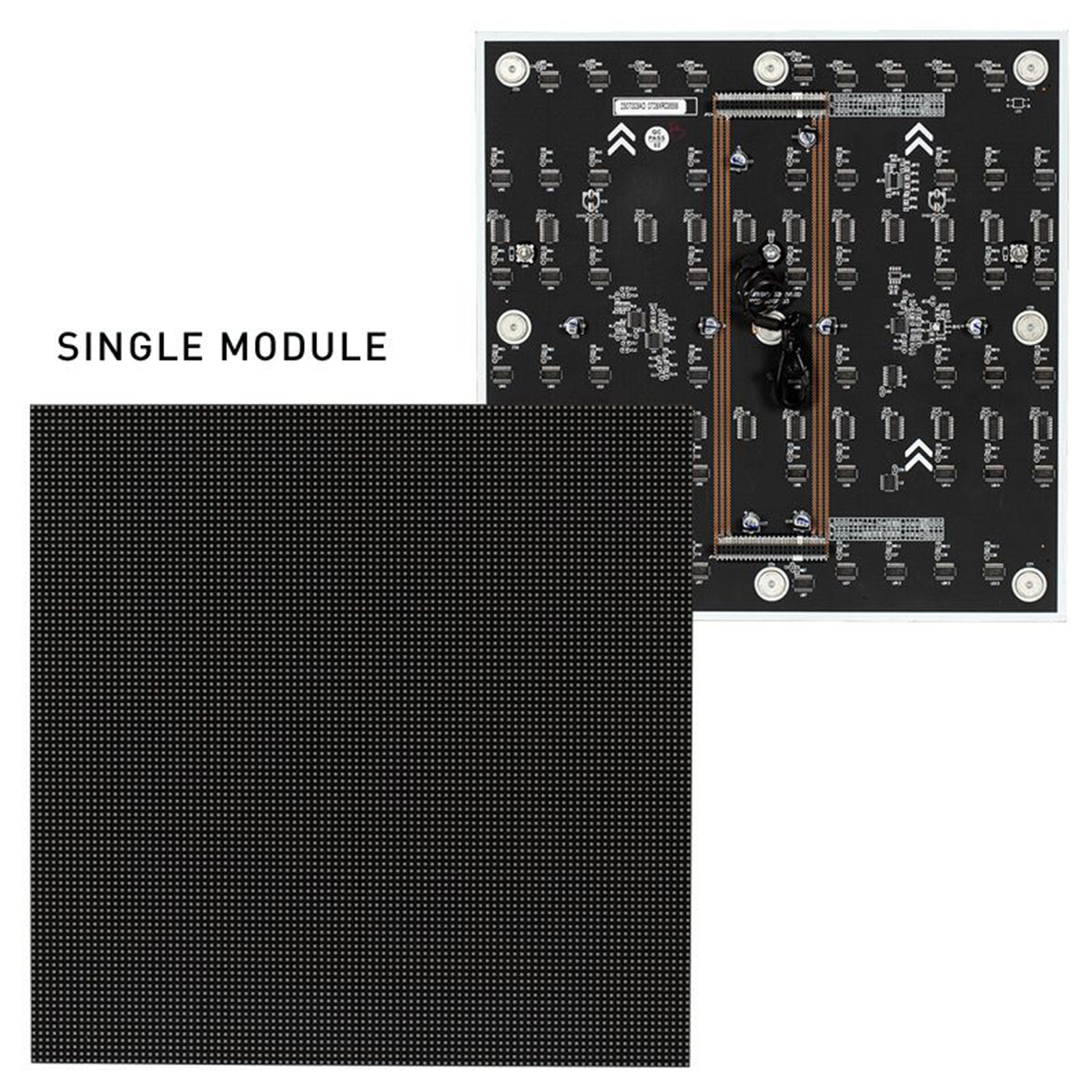

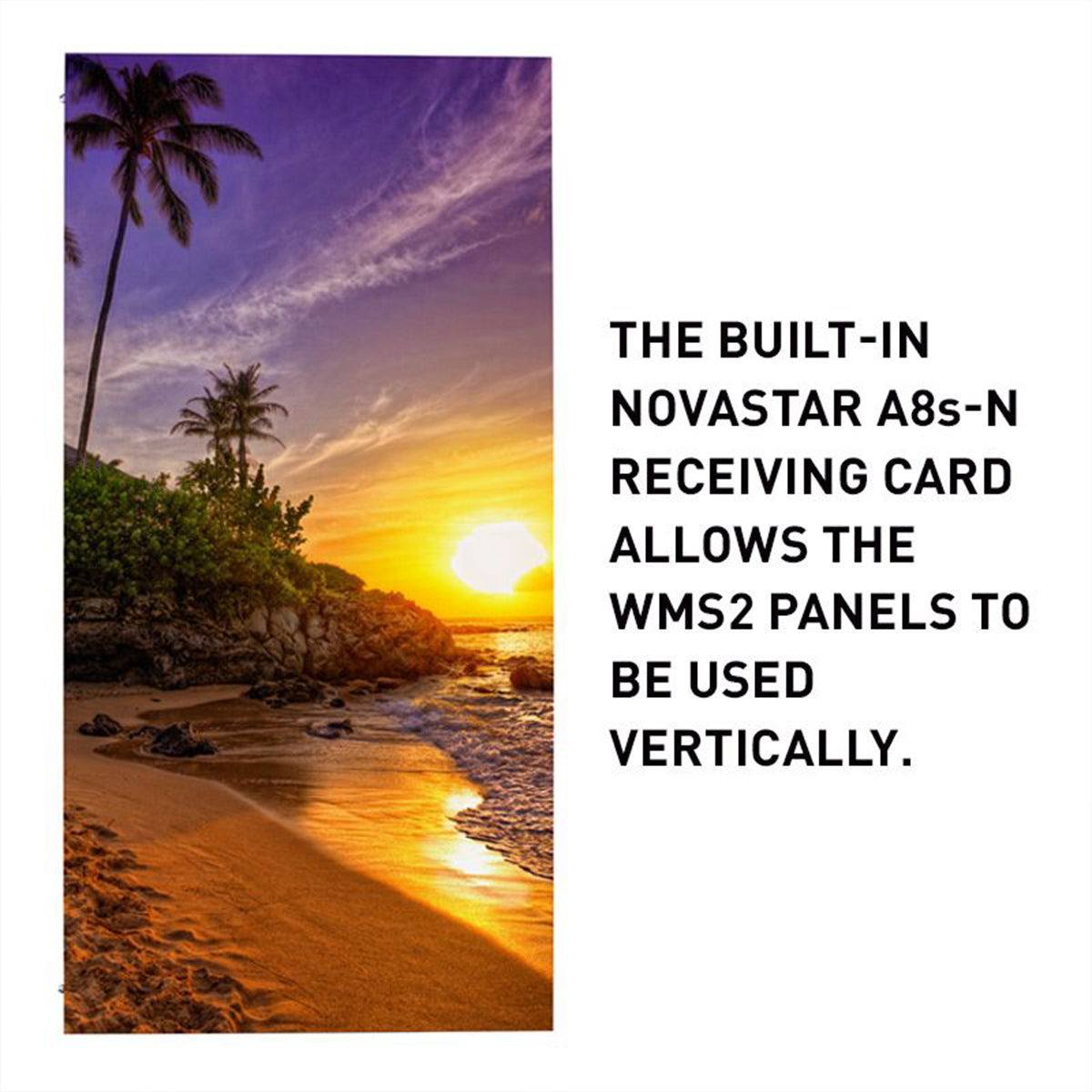

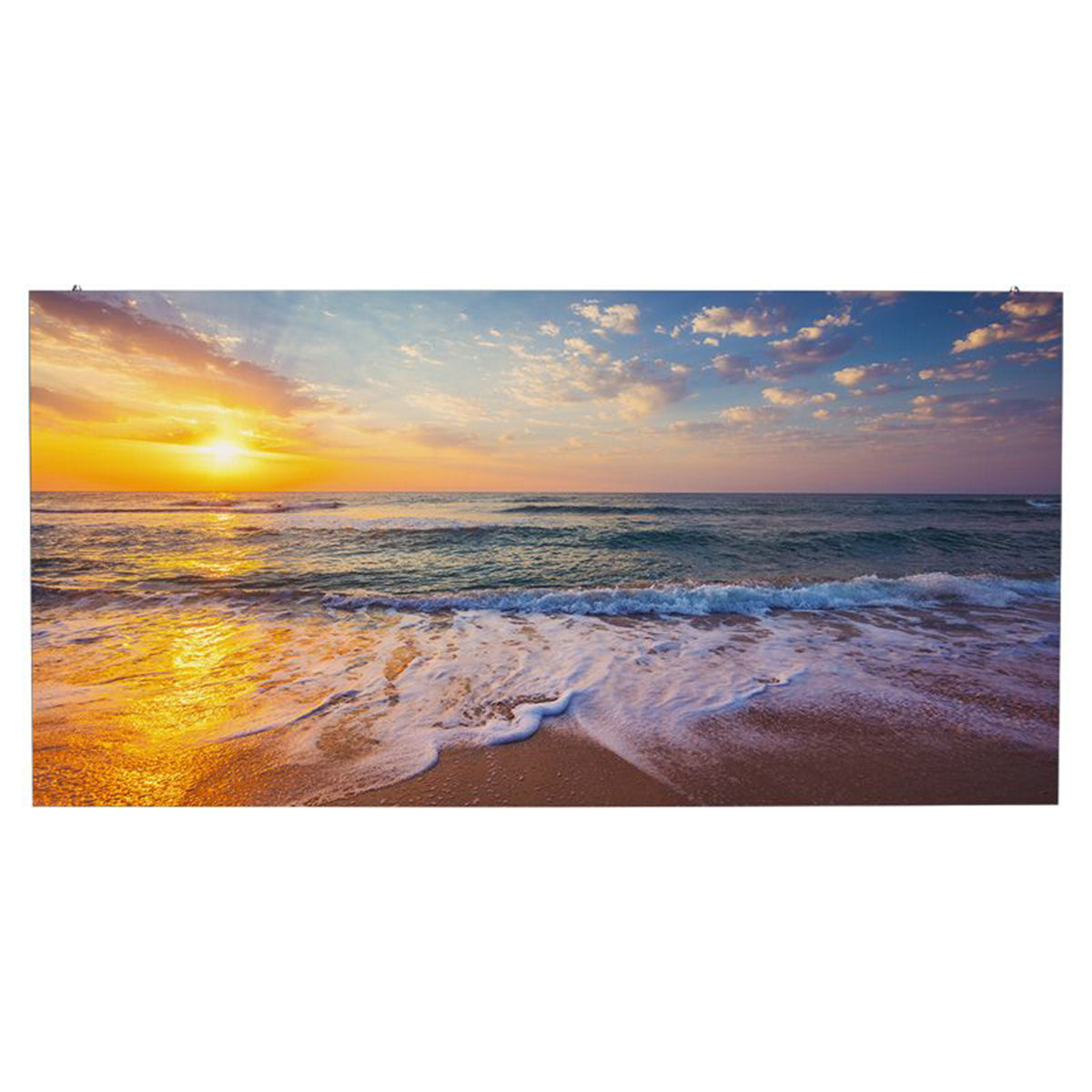

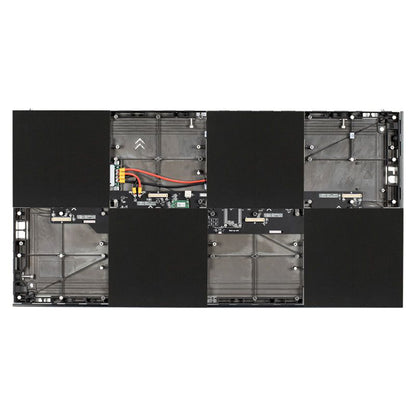

The panel is wall mountable, ground stackable, or temporarily hangable, which covers permanent installs and event builds with one product. It measures 39.3 by 19.6 inches, carries eight modules at 96 by 96 pixels each, and delivers 384 x 192 pixels horizontally or 192 x 384 vertically. A built-in Novastar A8s-N receiving card handles both orientations for wall mounting, so portrait signage is a configuration choice rather than a hardware change.

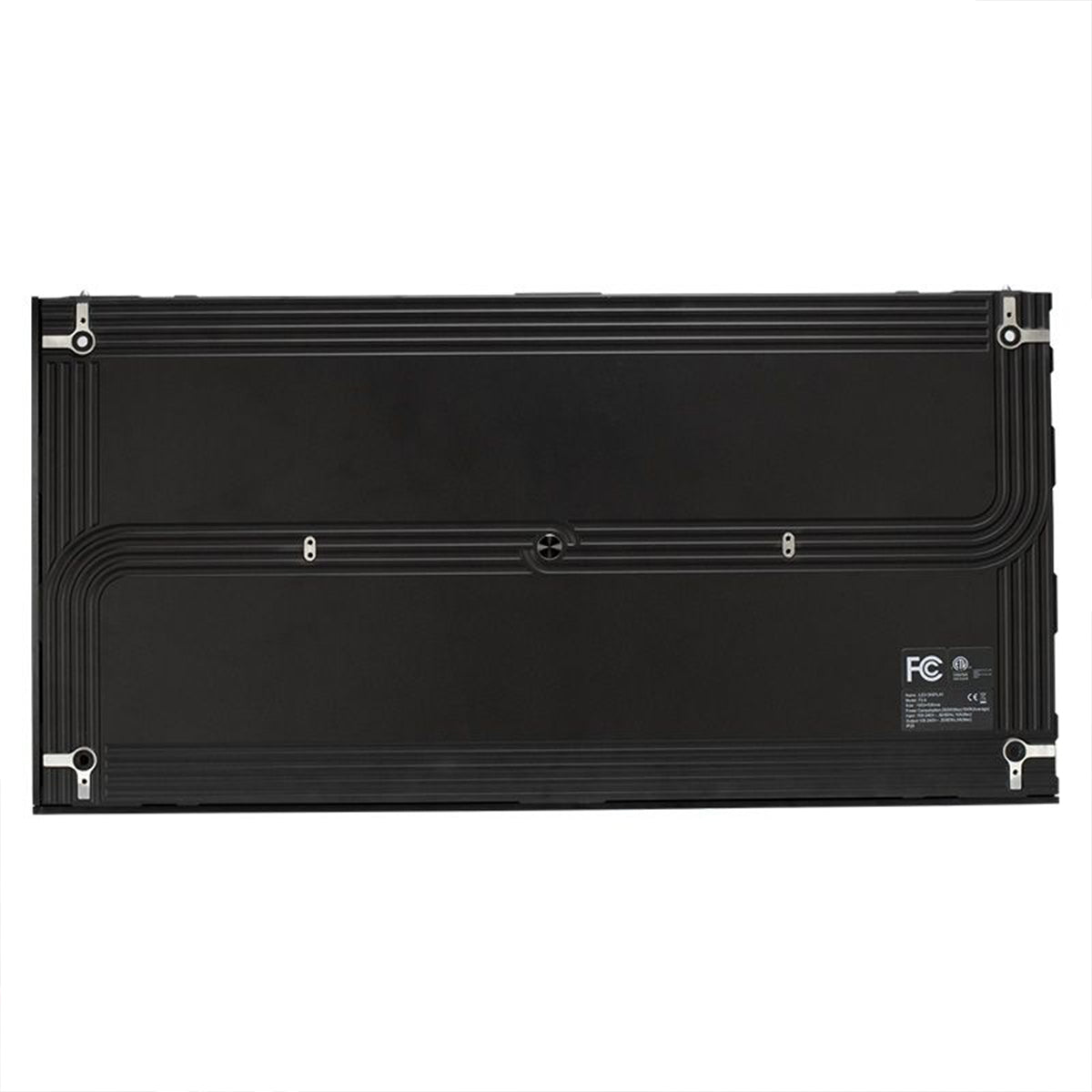

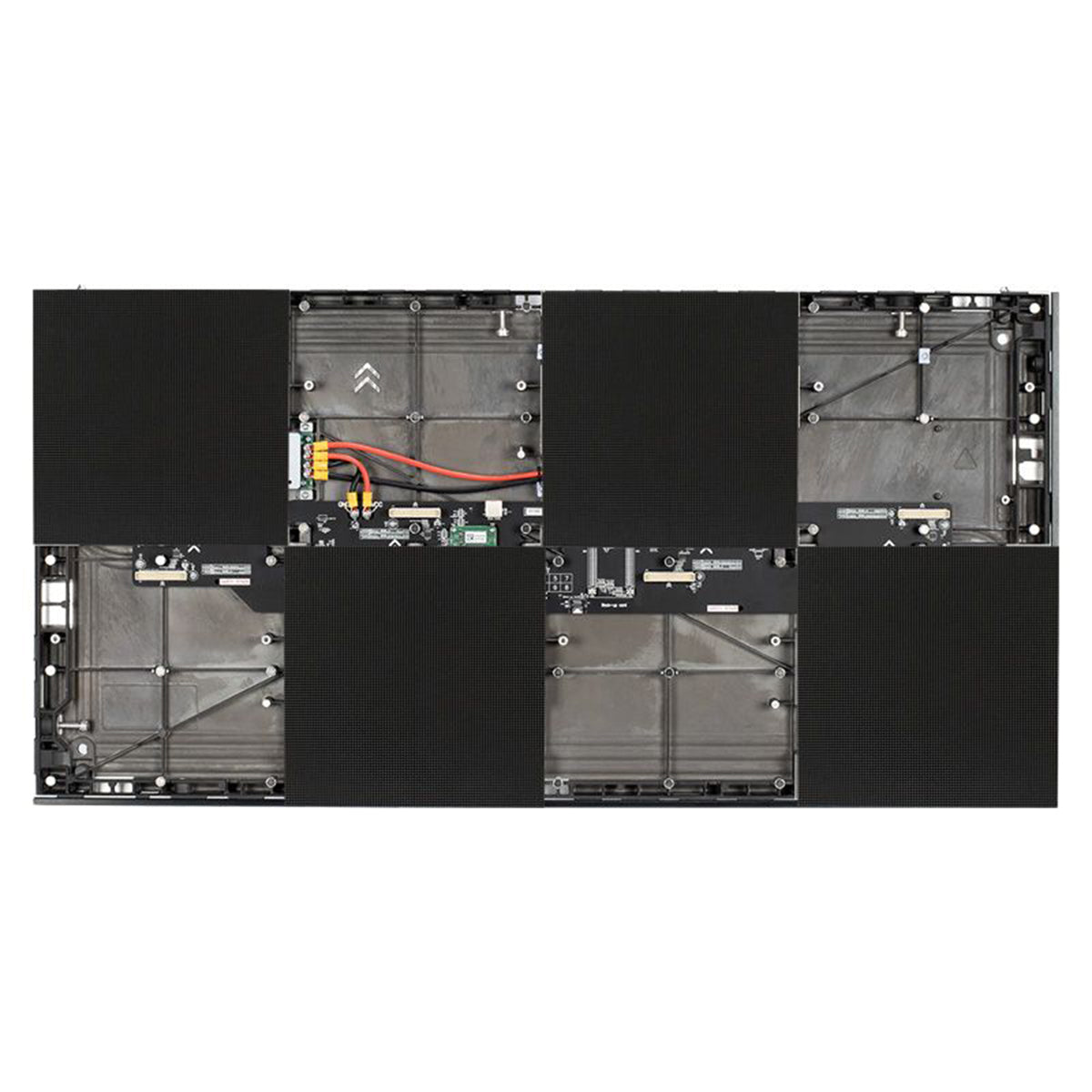

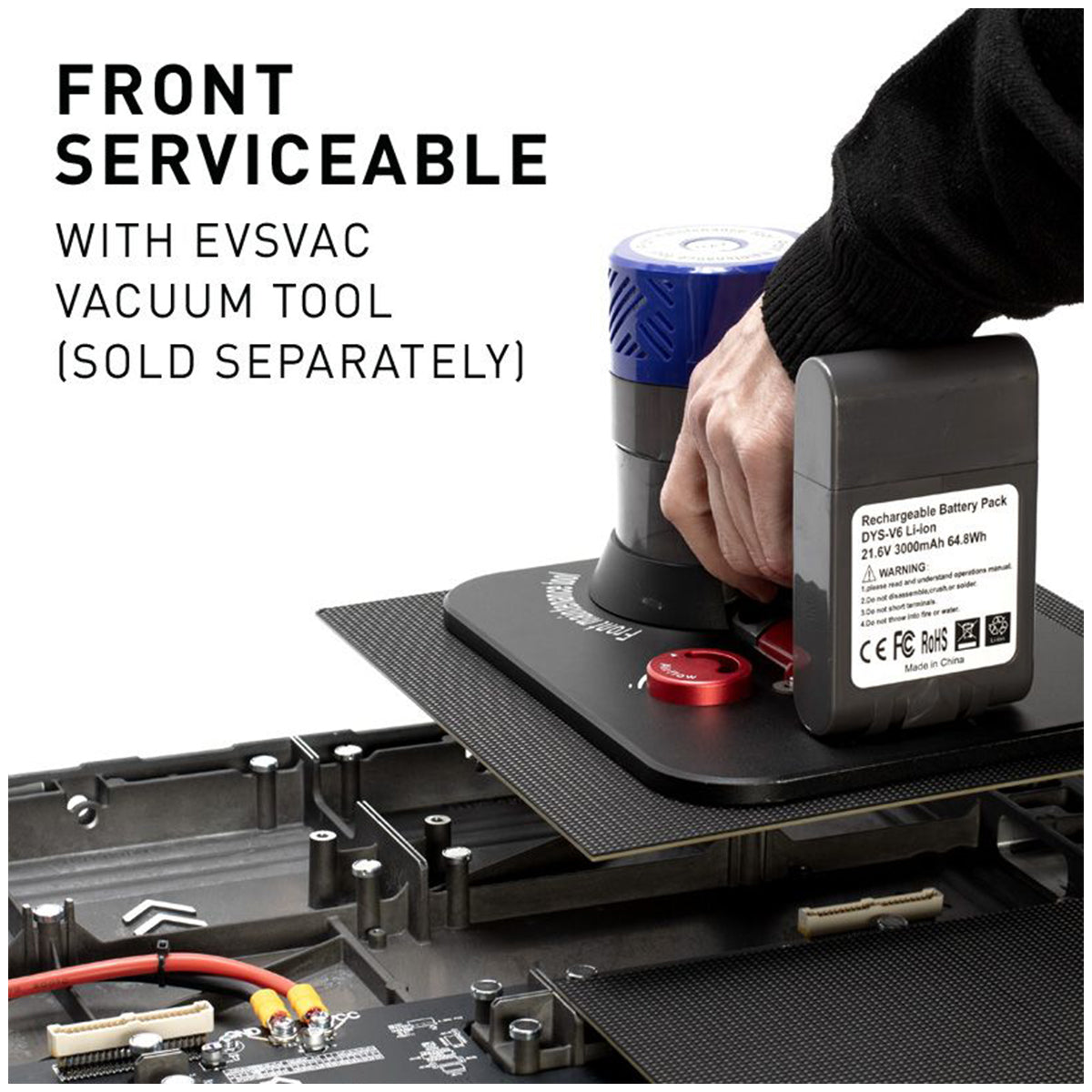

The frame assembly locks to adjacent panels, and mounting points are built in for direct wall installation. Front service means a module comes out from the face of a mounted panel, so a repair does not mean pulling the wall apart.

At 1.3 inches thick and 21 lb per panel, the WMS2 mounts cleanly in finished rooms and stays manageable during a build. Typical applications include shop window displays, museums, boardrooms, digital signage, lobbies, and entertainment venues. Rated IP20 for indoor use and ETL certified.
