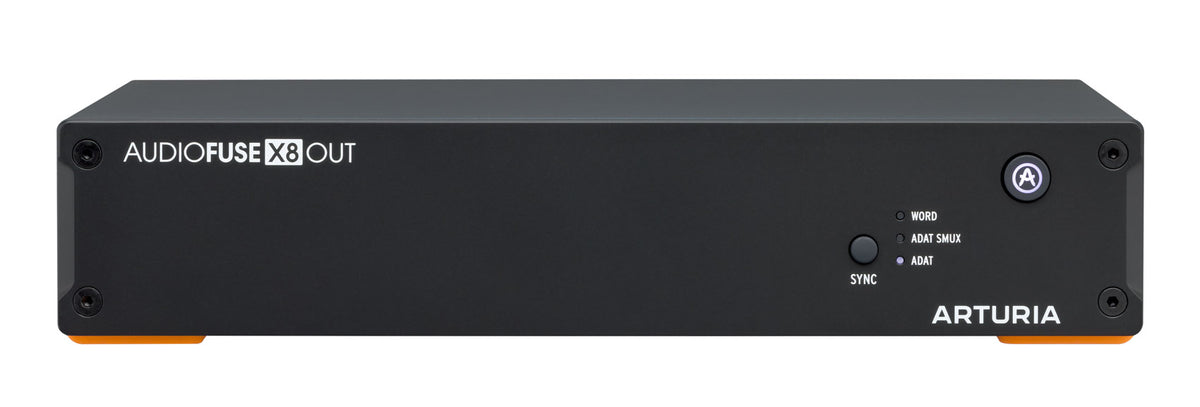

Arturia AUDIOFUSE X8 OUT Add 8 Line Outputs to Audio Interfaces, 24-bit 96 kHz

AudioFuse X8 OUT adds eight line-level analog outputs to any ADAT-compatible audio interface over a single optical cable, opening up monitoring layouts, outboard routing, and synth control that your current output count cannot cover.

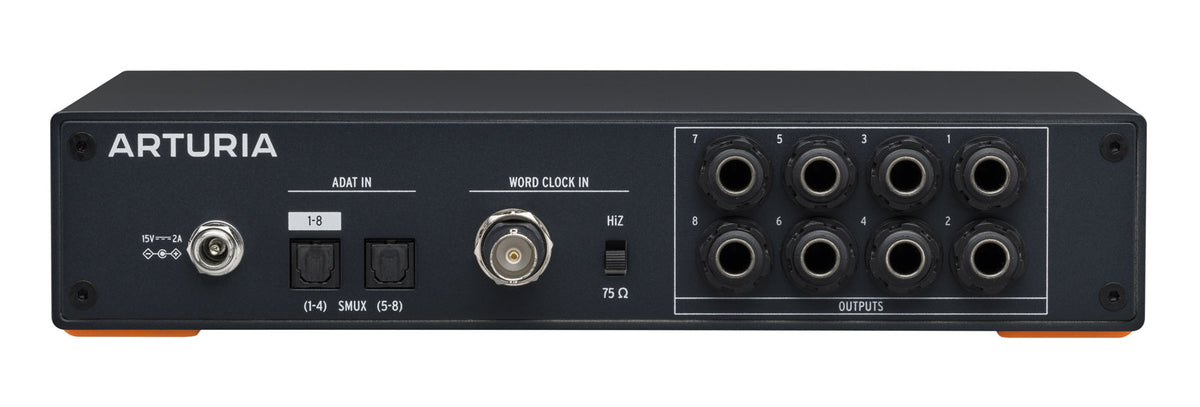

Eight 1/4 in TRS outputs run through latest-generation DA converters at up to 96 kHz, with 120.5 dB of dynamic range and harmonic distortion at -106 dB. Output impedance is 240 ohm balanced and 120 ohm unbalanced, which holds signal integrity across long cable runs and a wide range of destinations.

The outputs are DC-coupled, so they send CV to hardware synths for automating pitch, filter cutoff, and modulation directly from a DAW timeline. Mix engineers can feed additional speakers for multi-point monitoring or surround arrays used in film, television, and immersive projects. Producers can send audio to outboard compressors, equalizers, and reverb units and return it for hybrid mixing, and broadcasters can route separate mixes to different streaming or recording devices at the same time.

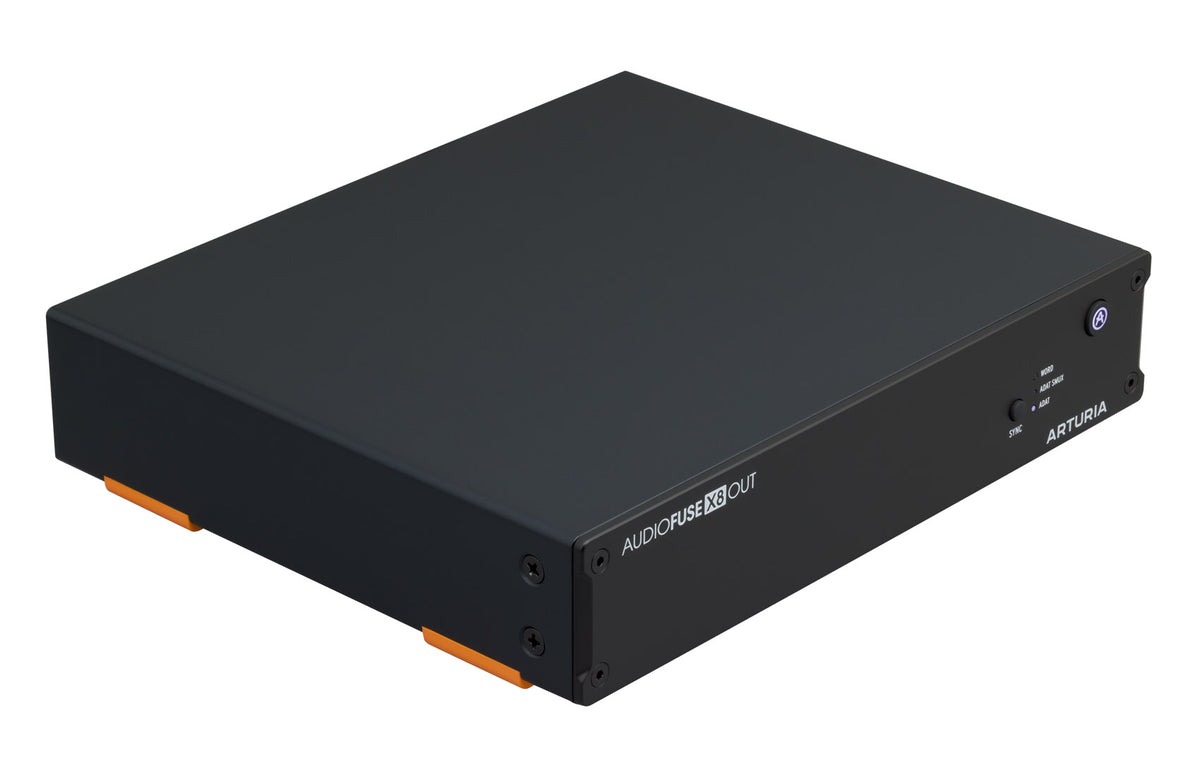

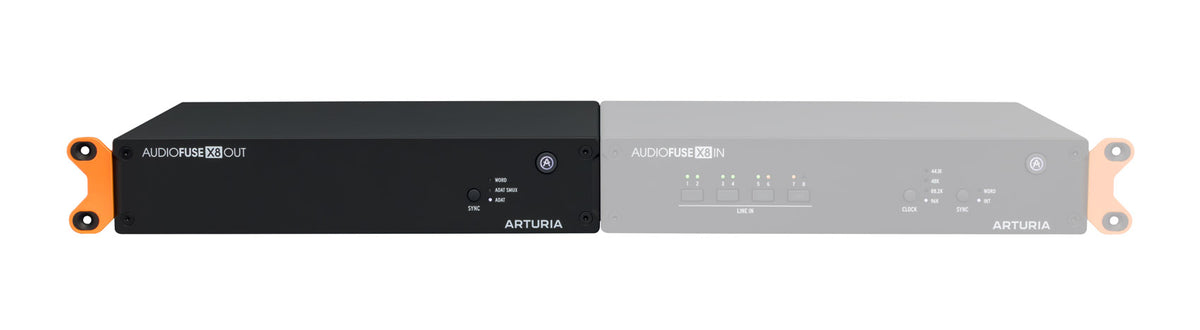

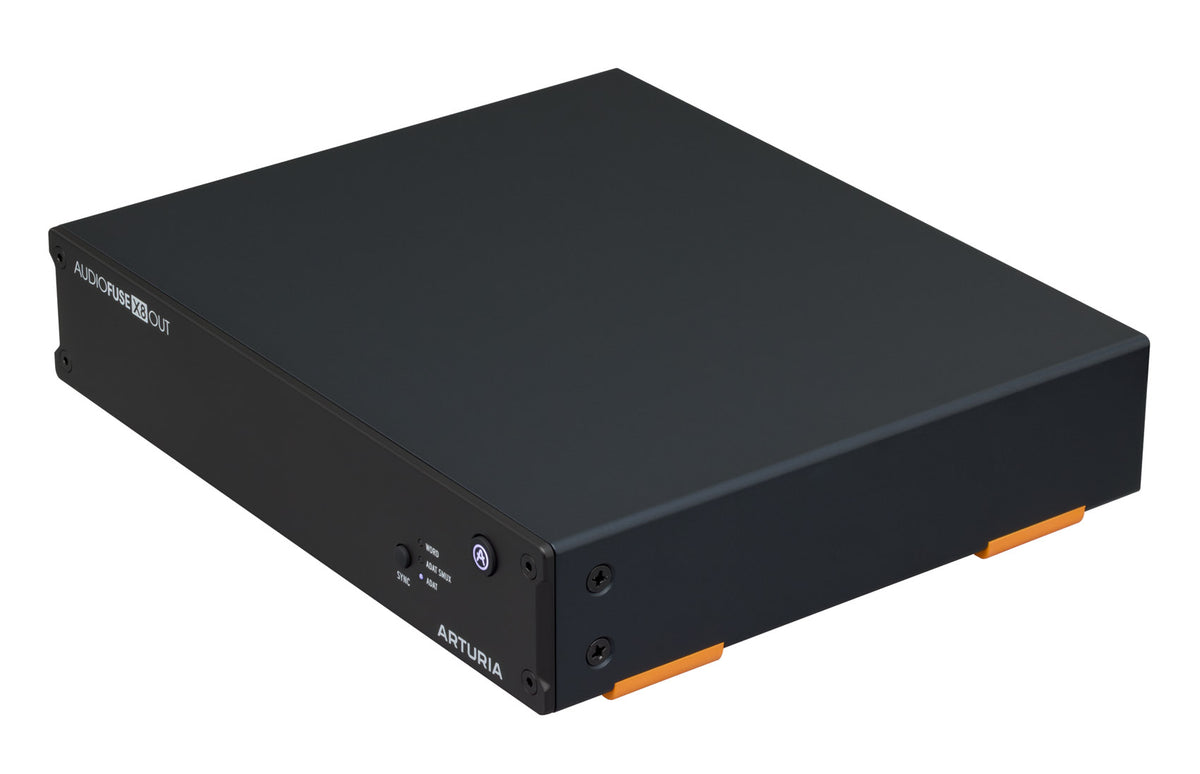

A BNC word clock input keeps the unit aligned with the rest of your digital chain. The half 1U aluminum chassis weighs 3.11 lb, ships with a removable rack ear, and includes an assembly kit for mounting two AudioFuse X8 units in one rack space. The AudioFuse Creative Suite is included.
