AUDIO TECHNICA
AT2020
AT2020

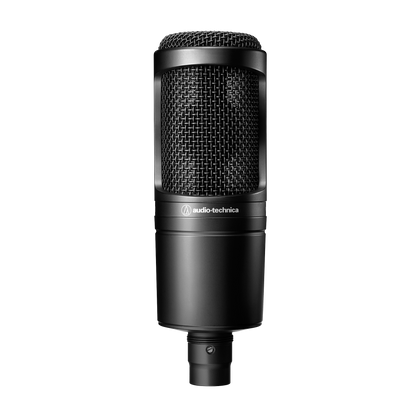

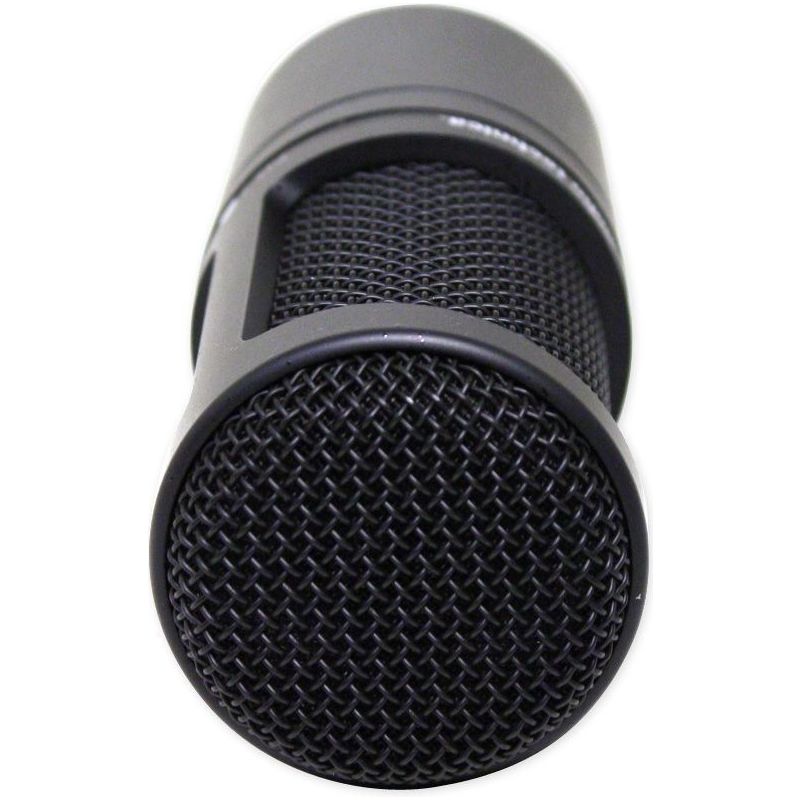

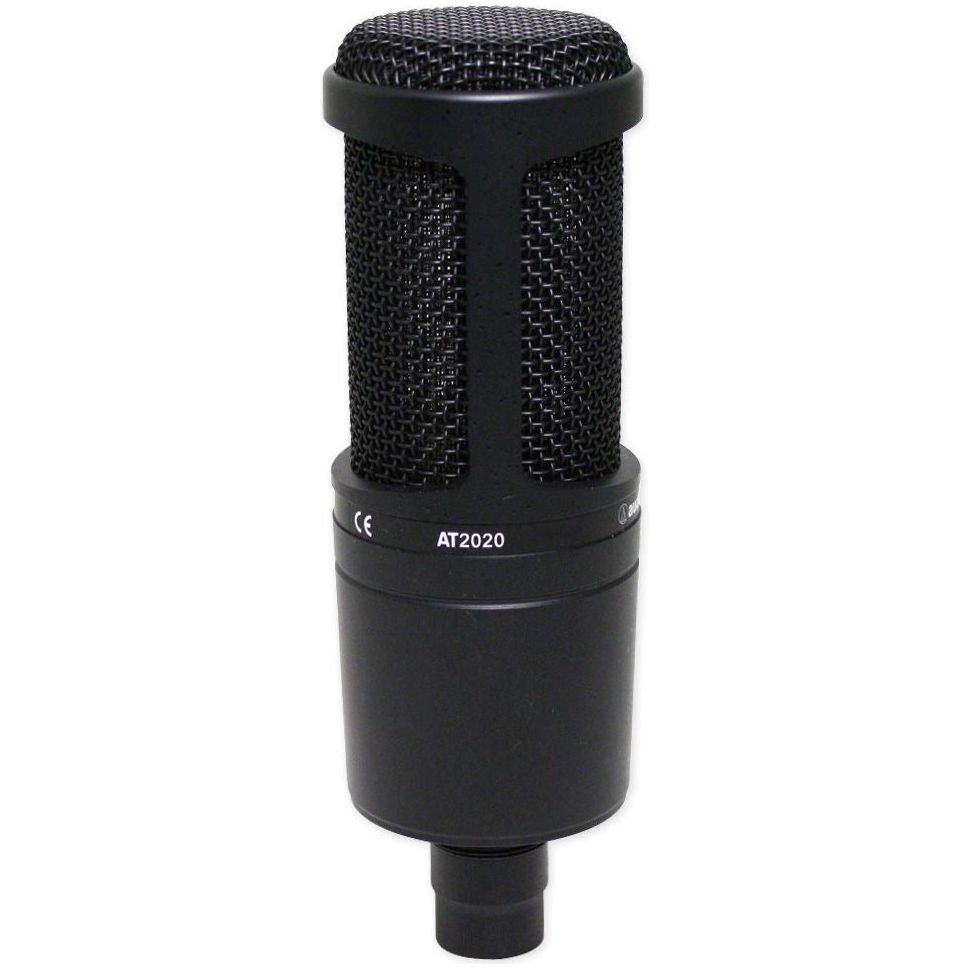

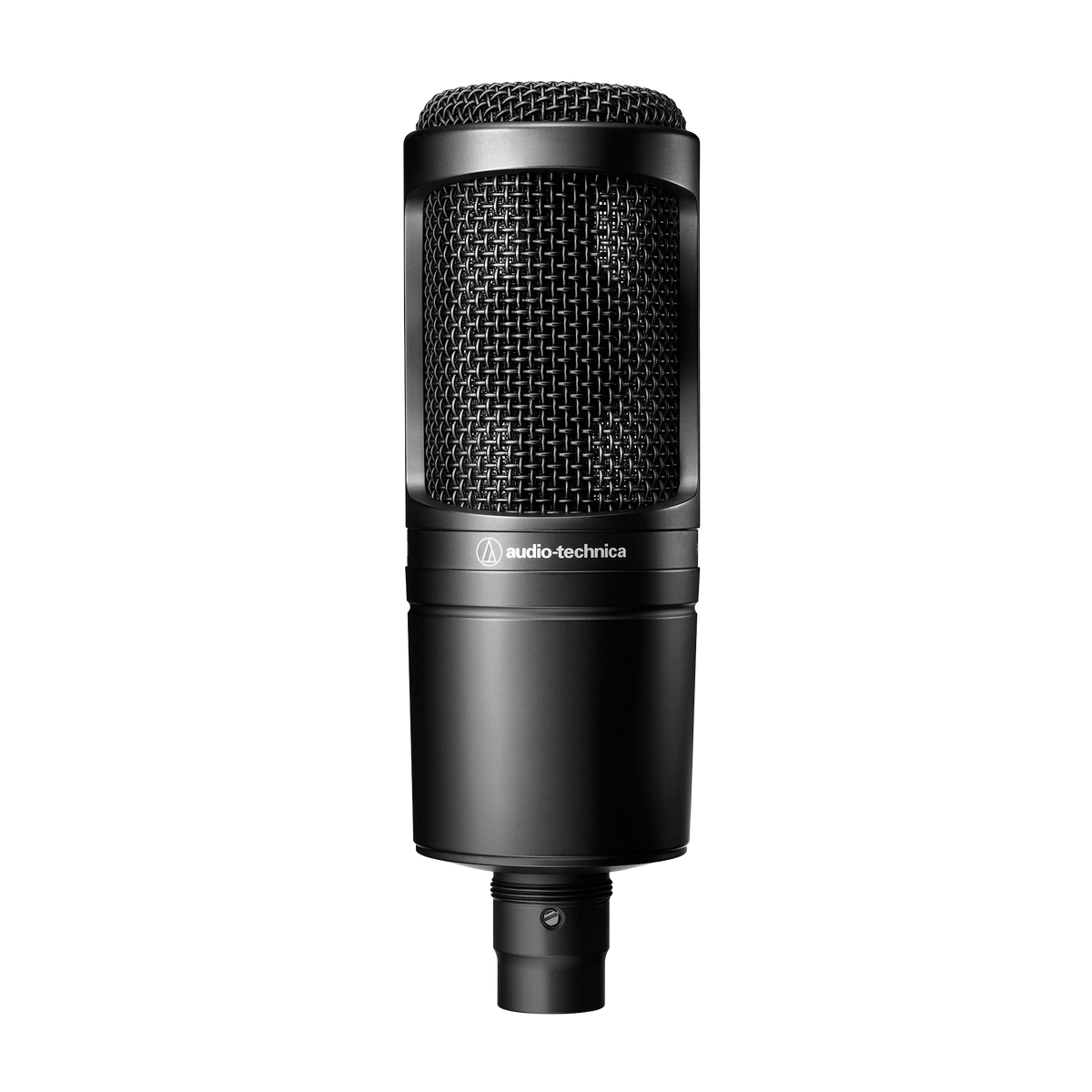

Cardioid Condenser Studio Microphone, 20-20,000 Hz, 144 dB SPL, Includes Pivoting Stand Mount, Thread Adapter, Protective Pouch
Free Shipping
Features
- Cardioid pattern rejects side and rear sound for cleaner takes in untreated rooms
- Low-mass diaphragm captures fast transients across a 20-20,000 Hz range
- Handles up to 144 dB SPL, so loud amps and drums stay clean up close
- Self-noise of 20 dB SPL keeps quiet vocals and acoustic parts free of hiss
- Includes pivoting stand mount, thread adapter, and soft protective pouch
Couldn't load pickup availability
What's Included in the box
- AT2020 Cardioid Condenser Microphone

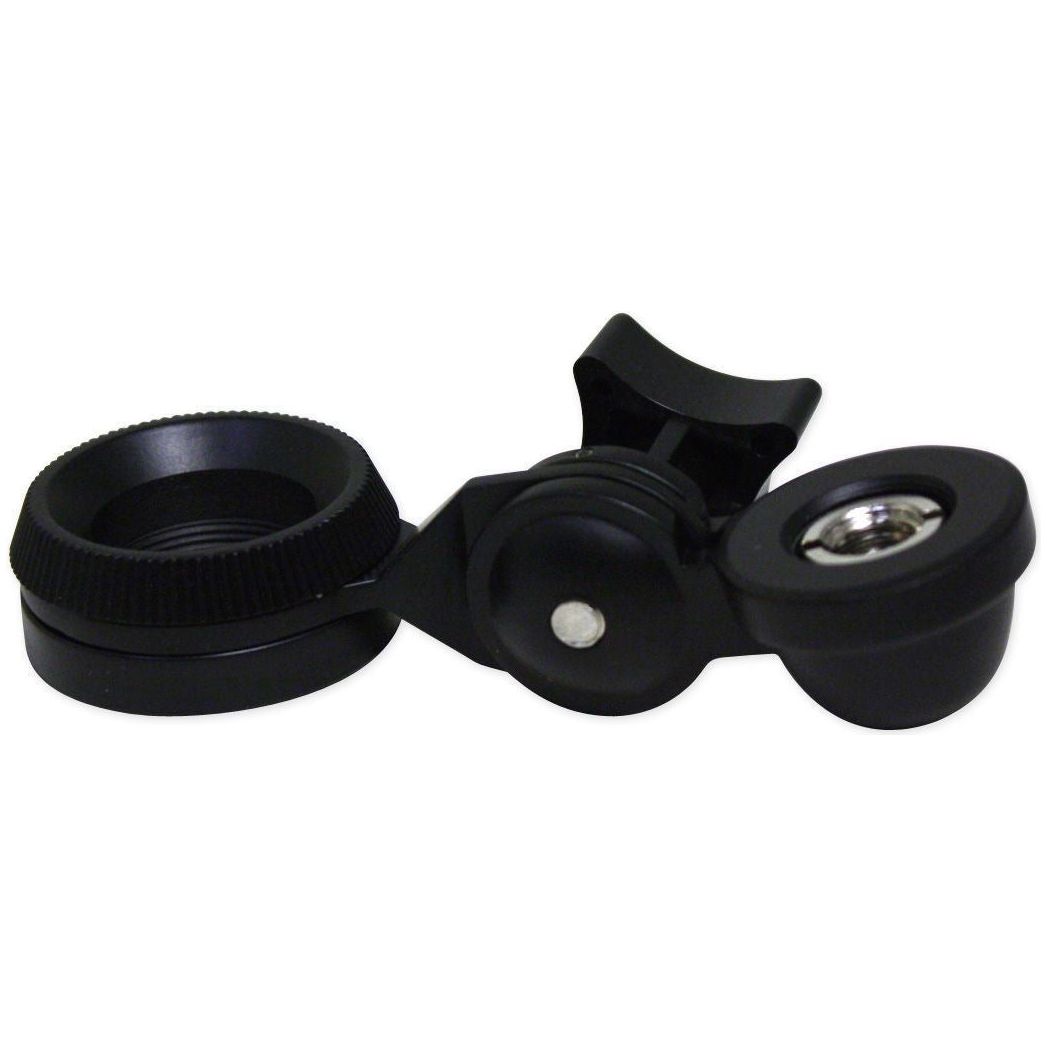

- Pivoting Threaded Stand Mount for 5/8"-27 Stands
- 5/8"-27 to 3/8"-16 Threaded Adapter
- Soft Protective Pouch
SKU: SKU: AT2020
View full details







Product Description
Features
-
Focused Pickup, Fewer Room Problems
The cardioid polar pattern reduces sound from the sides and rear, keeping keyboard clatter, computer fans, and wall reflections out of your vocal and instrument tracks.
-
Detail Across The Full Range
A custom-engineered low-mass diaphragm tracks fast transients over 20-20,000 Hz, so picked strings, cymbals, and consonants land with their attack intact.
-
Loud Sources Without Breakup
Maximum input of 144 dB SPL lets you close-mic guitar cabinets, snare drums, and belted vocals while the signal stays clean and undistorted.
-
Quiet Enough For Soft Passages
Self-noise of 20 dB SPL and a 124 dB dynamic range keep fingerpicked acoustic parts and spoken word clear of background hiss on close takes.
-
Fits The Stand You Already Own

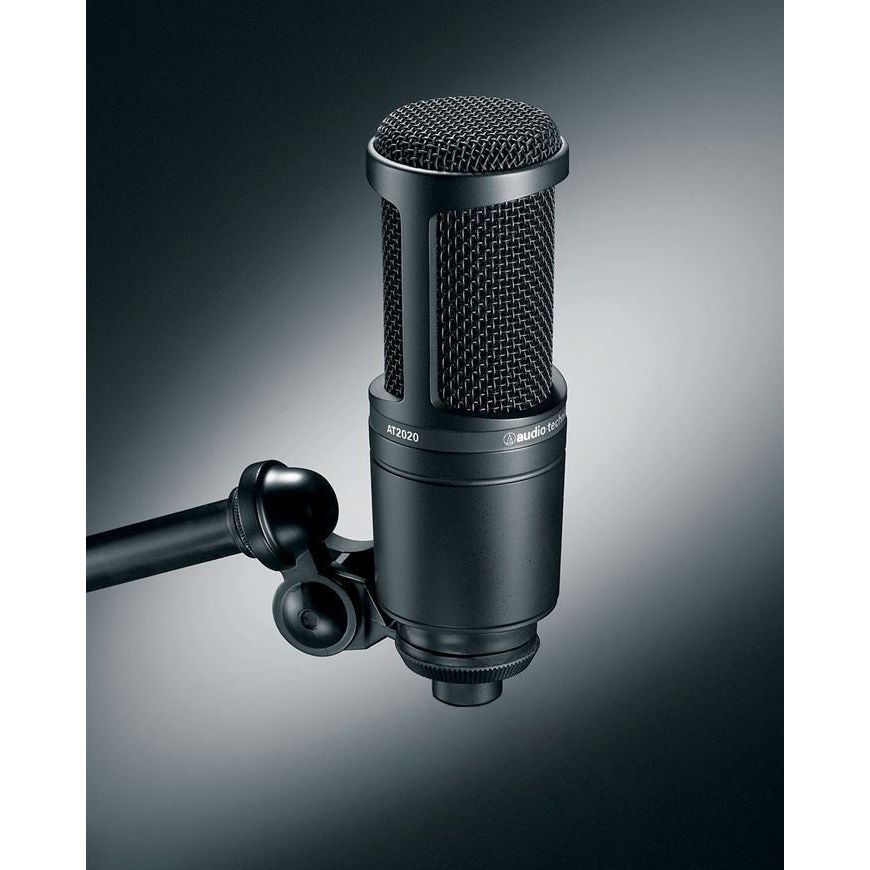

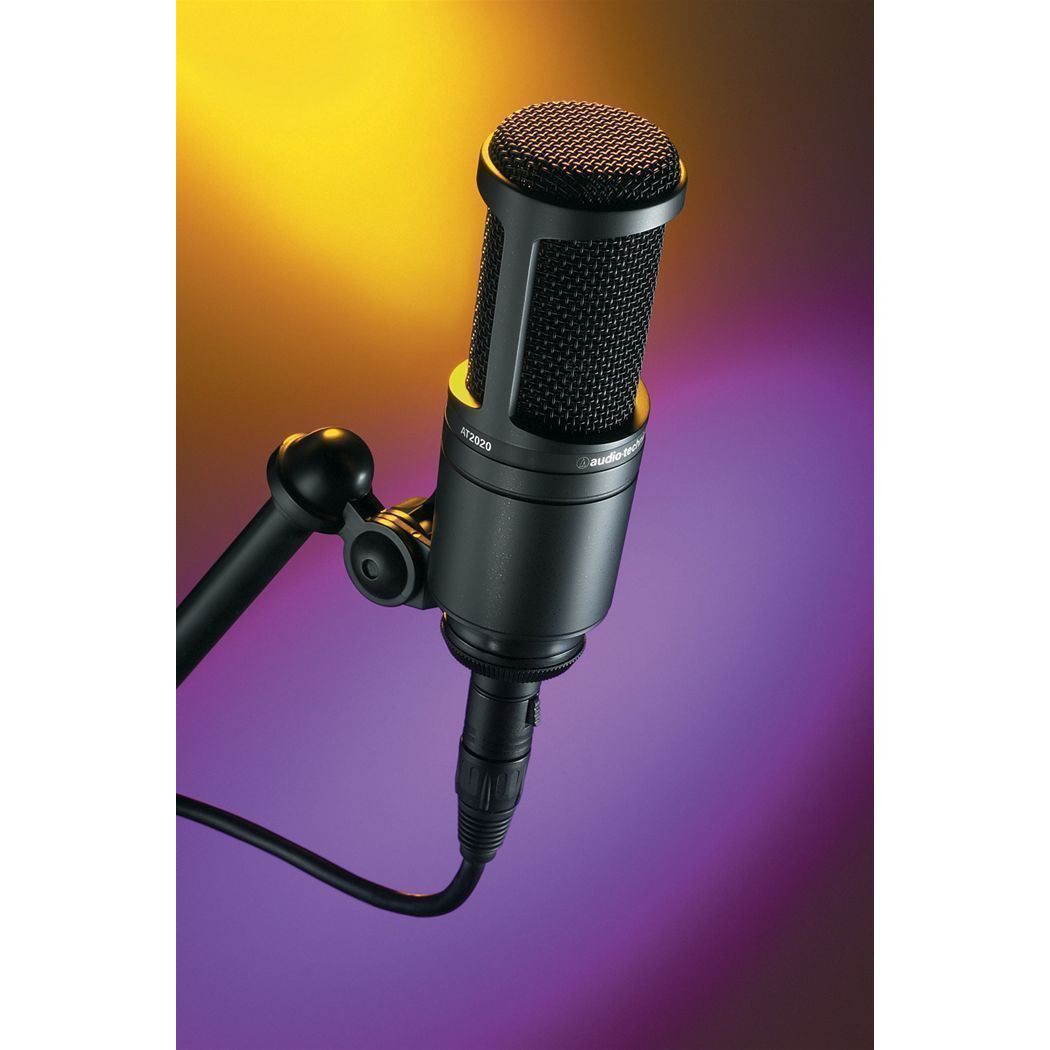

The pivoting mount threads onto 5/8"-27 stands and ships with a 3/8"-16 adapter, so desktop arms and floor booms both hold the 12.1 oz body securely.
Technical Specifications
- Product Type Side-Address Cardioid Condenser Studio Microphone
- Element Fixed-Charge Back Plate, Permanently Polarized Condenser
- Polar Pattern Cardioid
- Frequency Response 20-20,000 Hz
- Open Circuit Sensitivity -37 dB (14.1 mV) re 1V at 1 Pa
- Impedance 100 ohms
- Maximum Input Sound Level 144 dB SPL, 1 kHz at 1% T.H.D.
- Noise 20 dB SPL
- Dynamic Range (typical) 124 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio 74 dB, 1 kHz at 1 Pa
- Phantom Power Requirements 48V DC, 2 mA typical

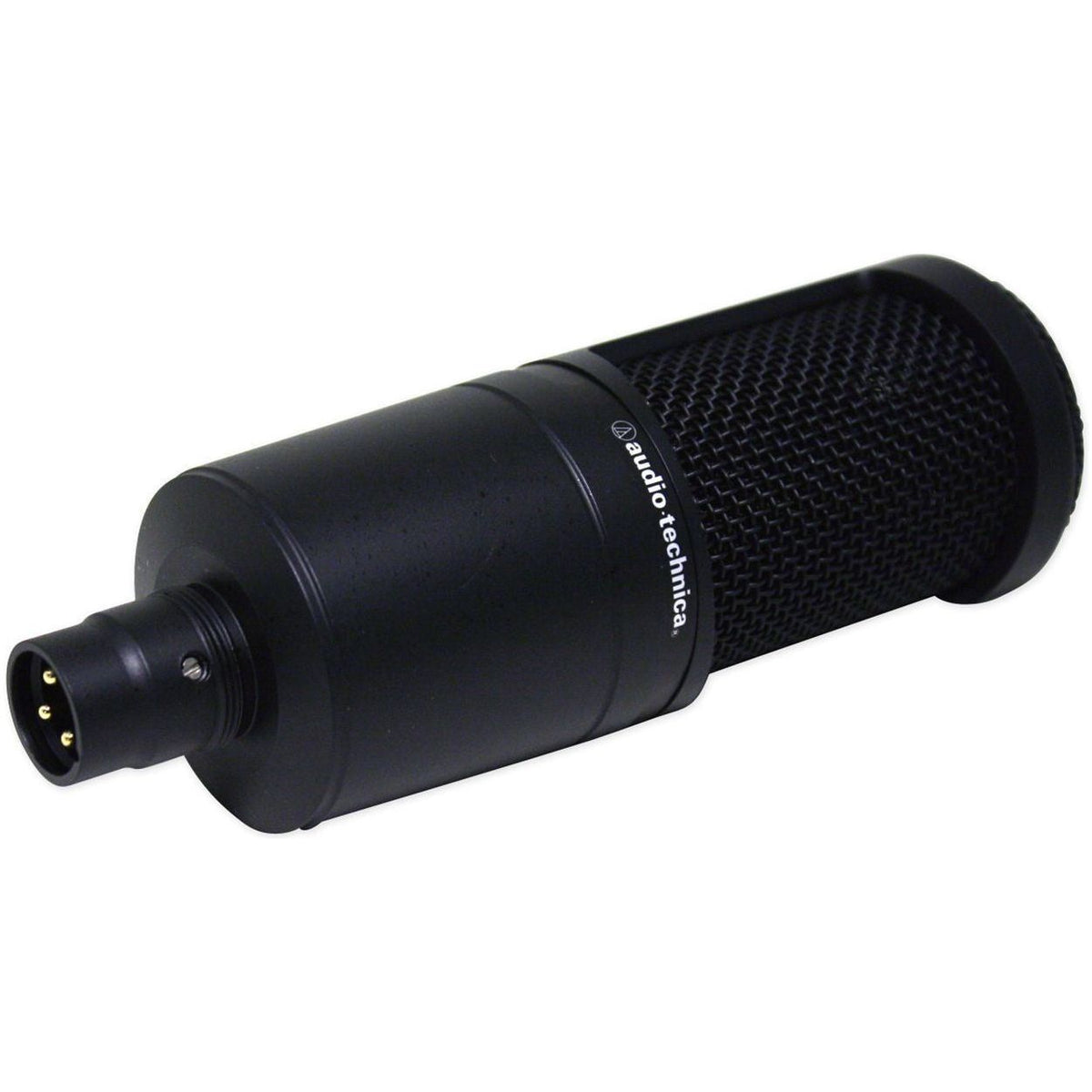

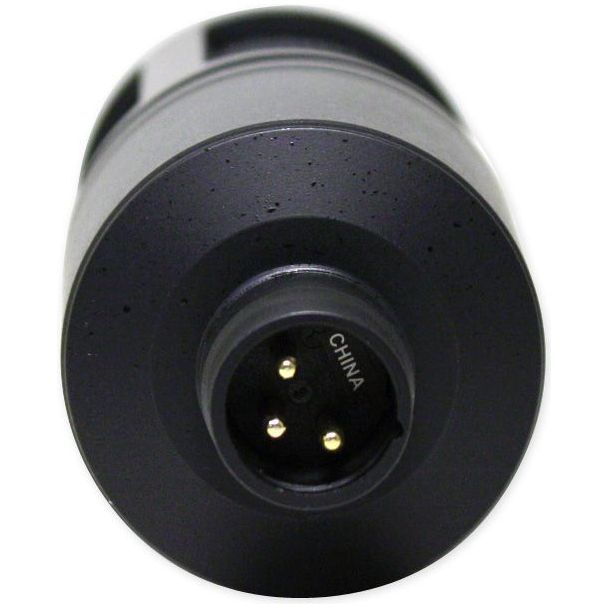

- Output Connector Integral 3-Pin XLRM-Type
- Weight 12.1 oz (345 g)
- Dimensions 6.38" (162.0 mm) Long, 2.05" (52.0 mm) Maximum Body Diameter
