Audio Technica ATV-SG1 Professional Mono On-Camera Shotgun Microphone w - Li-ION
Audio Technica ATV-SG1 Professional Mono On-Camera Shotgun Microphone w - Li-ION
On-Camera Shotgun Microphone, 60-20,000 Hz, 24-Hour Battery, Headphone Monitoring, Wind Muff Included
Free Shipping
Features

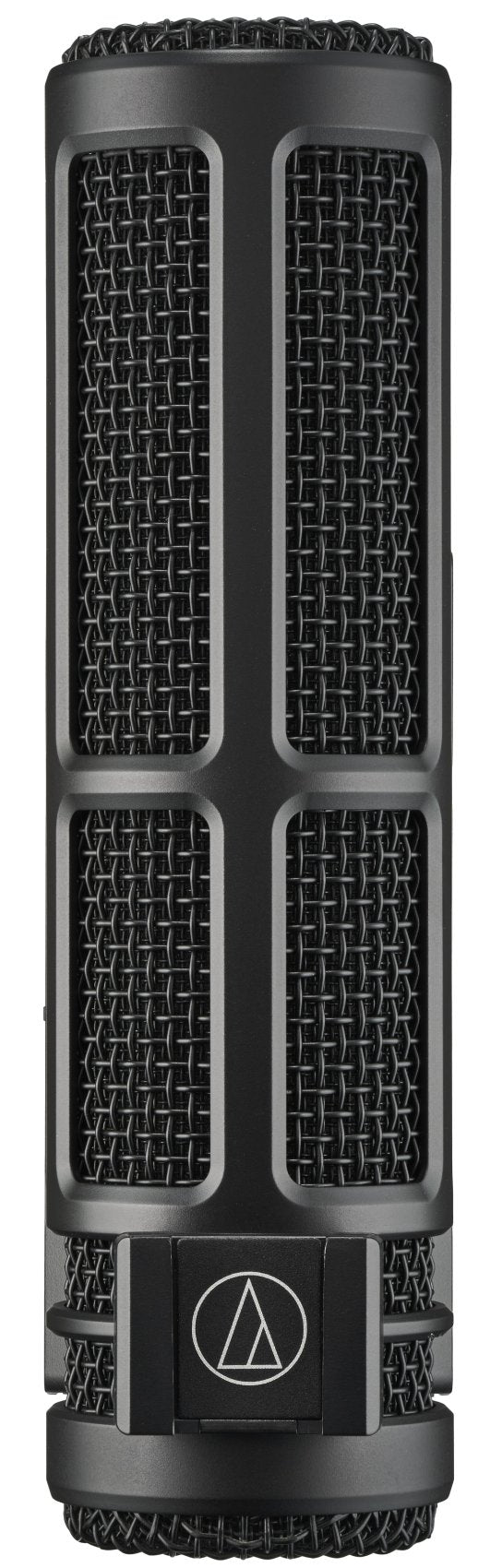

- 100 mm acoustic tube keeps pickup focused on the subject
- 14 mm large-diameter diaphragm captures detailed, low-noise audio
- Safety track records a -6 dB backup to the right channel
- Built-in rechargeable battery runs about 24 hours per charge
- Headphone jack with volume control for real-time monitoring
Couldn't load pickup availability

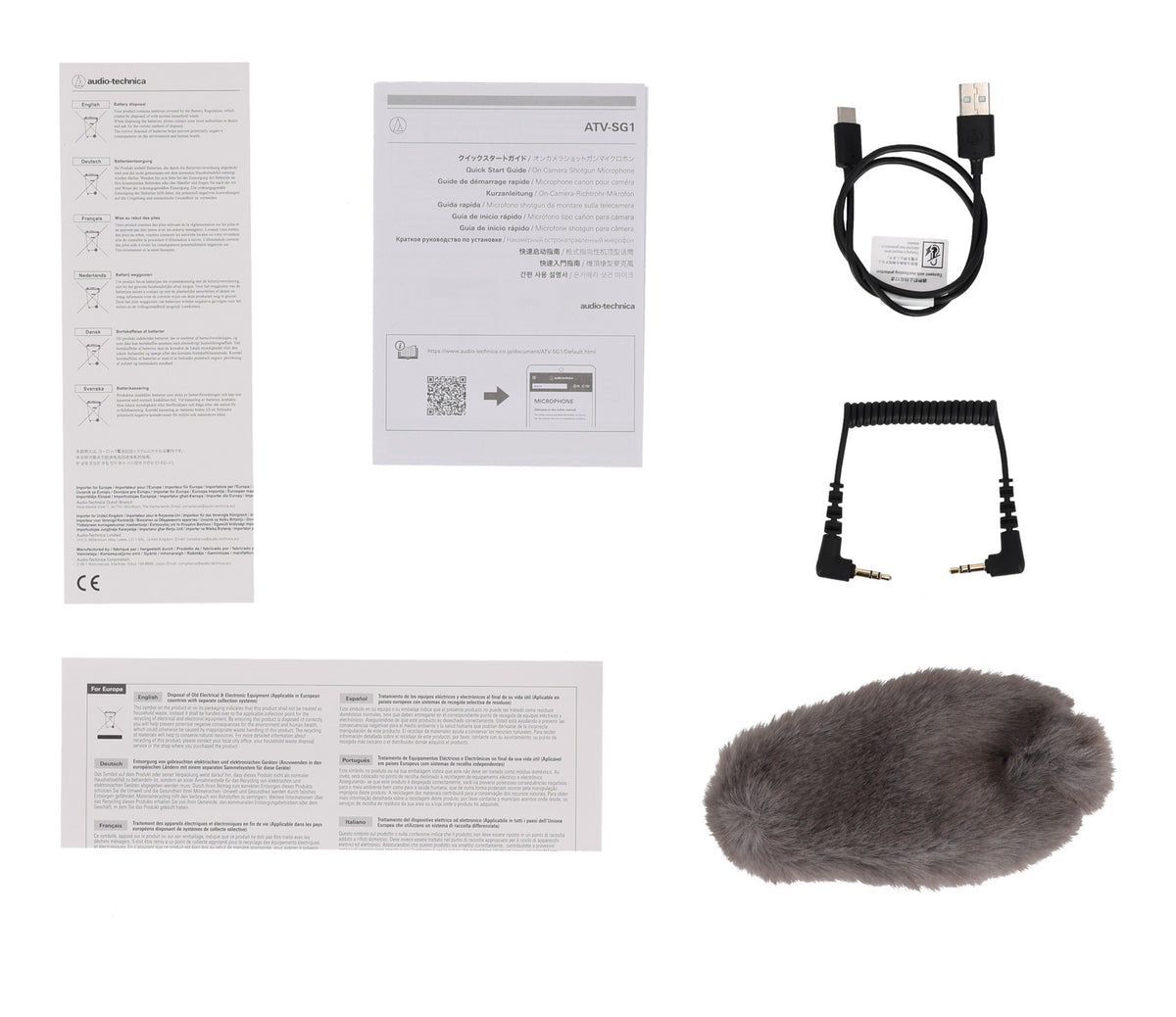

What's Included in the box
- ATV-SG1 On-Camera Shotgun Microphone
- Coiled 3.5 mm Stereo Mini Cable
- USB Charging Cable (USB-A to USB-C)

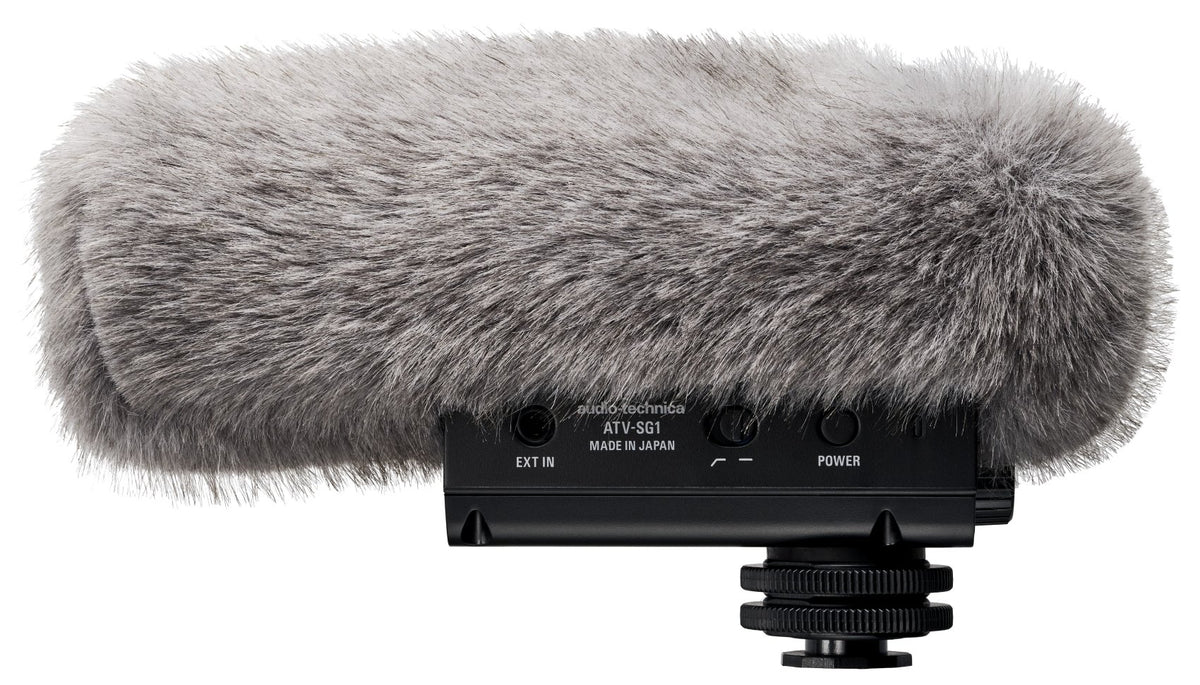

- Windjammer Wind Muff
SKU: SKU: ATV-SG1
View full details










Product Description
Field shoots punish audio, and the SG1 answers each way. An integrated shock mount absorbs handling noise from camera movement and vibration. A low-cut filter switch attenuates wind, traffic, and HVAC rumble. Patented noise-immunity technology blocks hum from nearby phones and other electronics. A rear gain knob makes stepless adjustments mid-shoot without diving into menus.

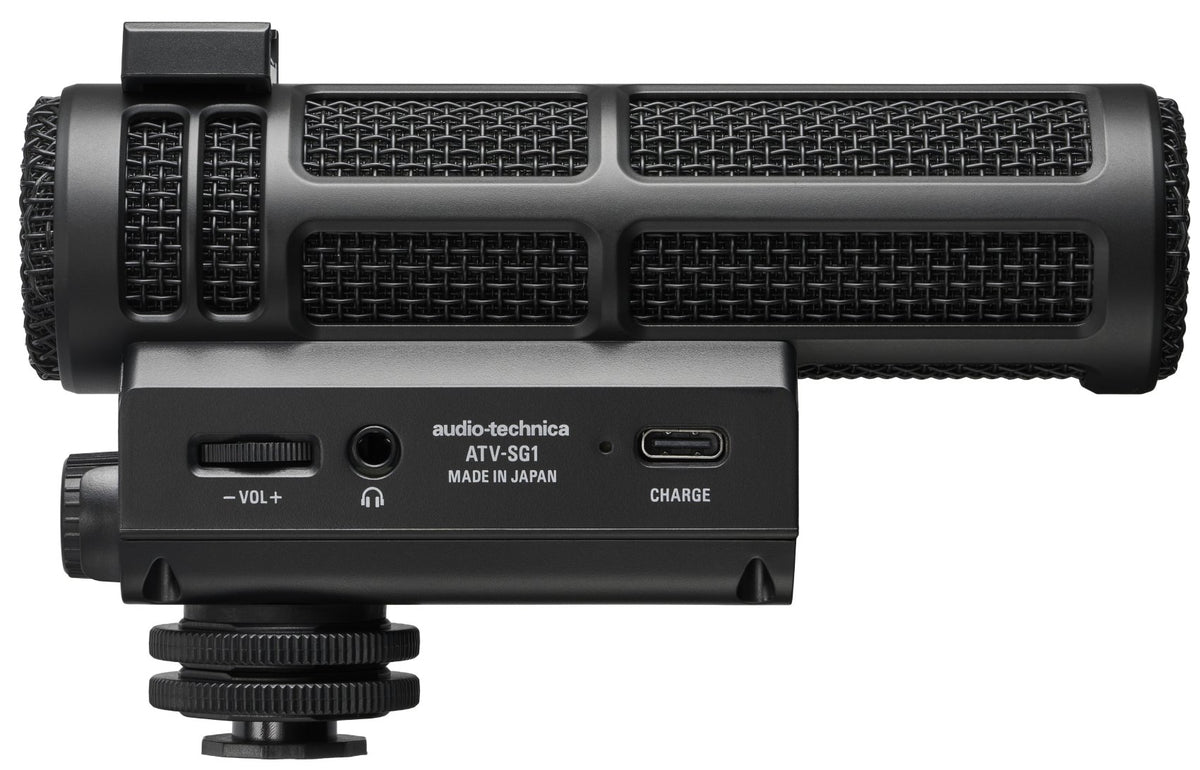

The safety track feature records your set level to the left channel and a backup at -6 dB to the right, so an unexpected volume spike does not cost you the take. A headphone jack with volume control lets you monitor in real time, and an external input jack with accessory shoe accepts a wireless lavalier receiver or plug-in-powered lav for recording shotgun and lav together.

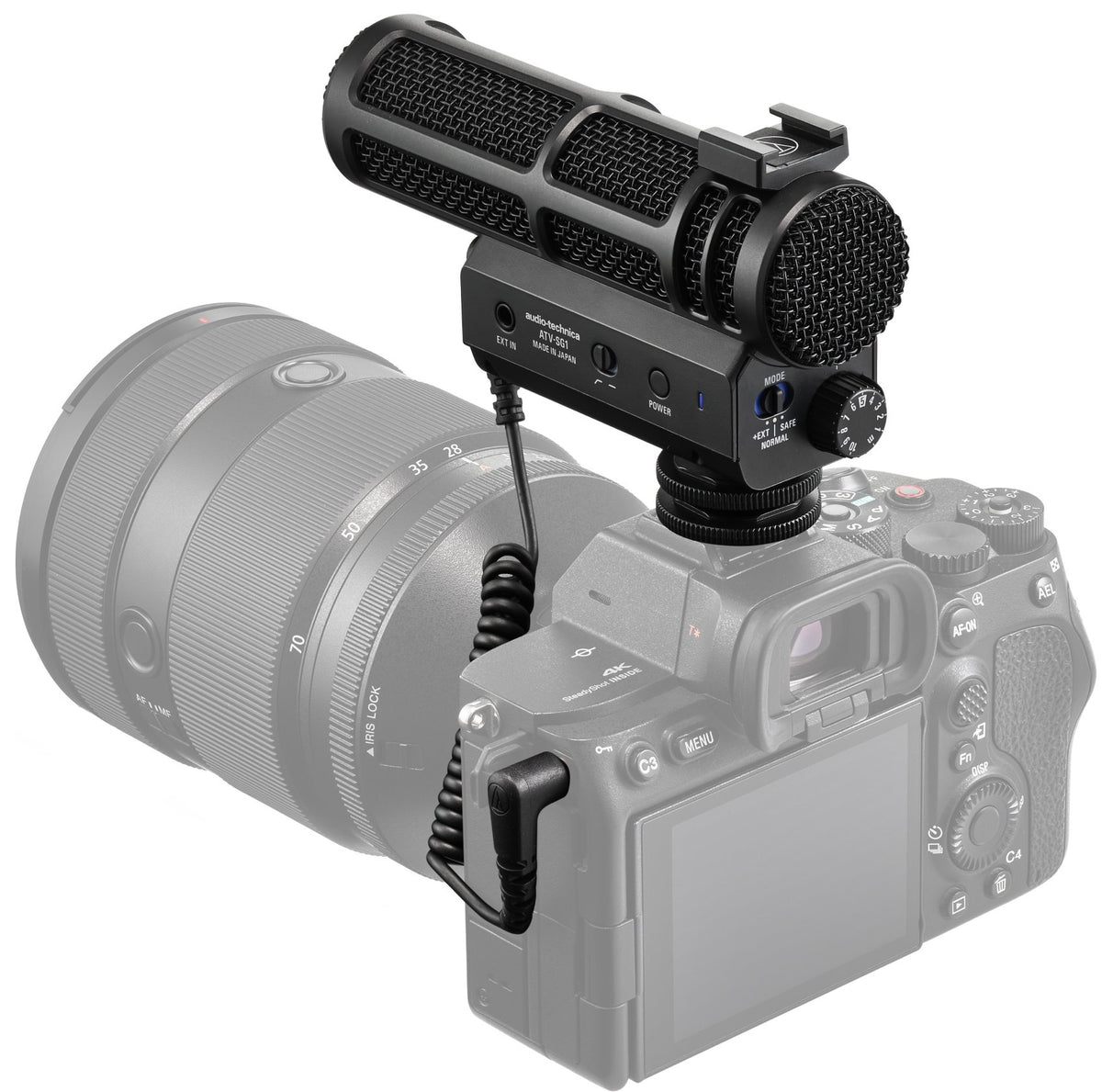

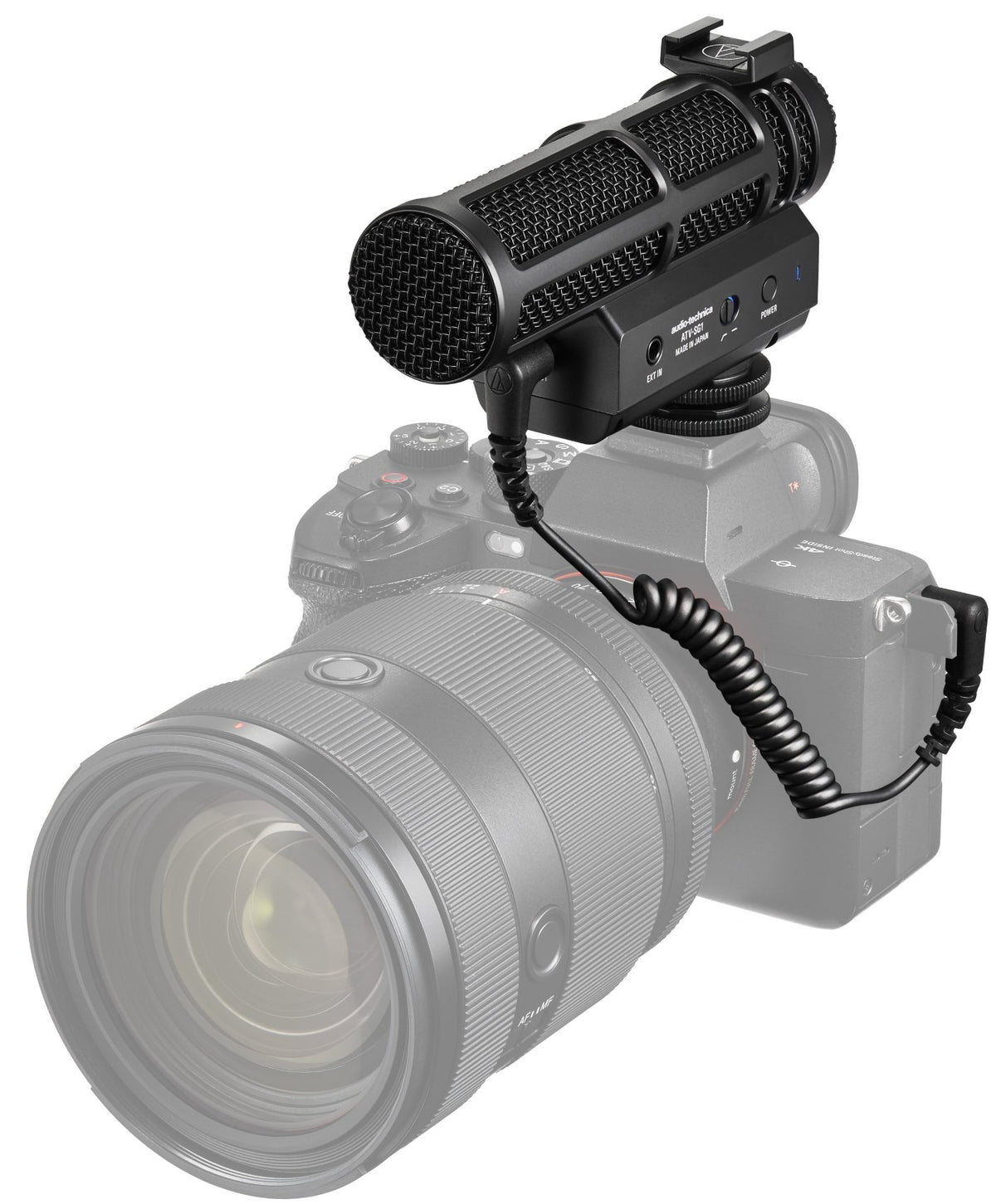

The built-in USB-rechargeable battery runs about 24 hours, and the mic powers on and off with the camera. A 12-sided shoe plate rotates in 30-degree steps for off-center sources, and the slide rail moves the mic forward or back to stay out of frame. Designed and manufactured in Japan.
Features
-
Focused On The Subject
A highly directional 100 mm acoustic tube keeps pickup on the person speaking while rejecting traffic, crowd, and room noise behind them.
-
Insurance On Every Take
Safety track splits the signal, sending your set level left and a -6 dB backup right, so a sudden volume spike does not ruin the recording.
-
Control Without Menus

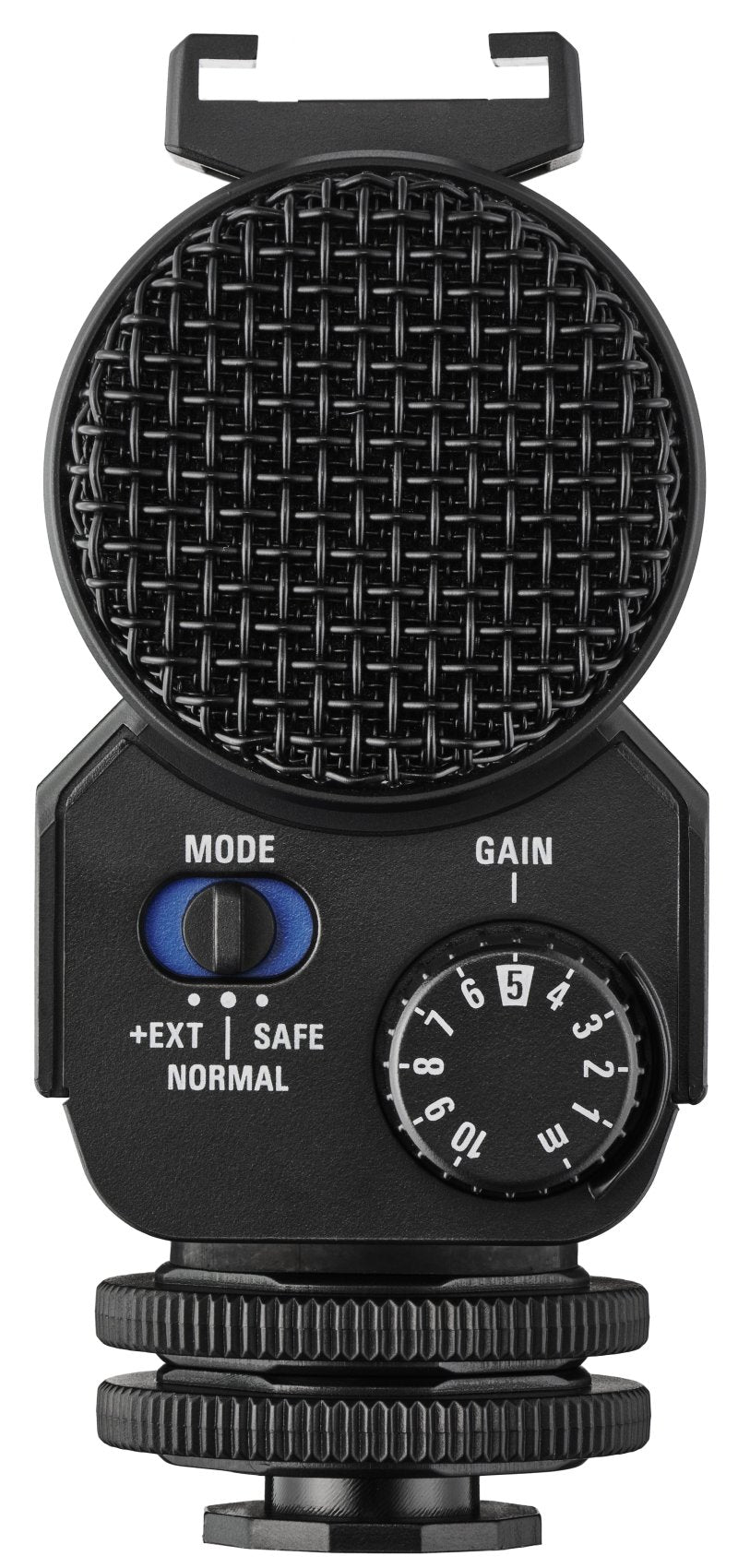

A stepless gain knob on the rear and a low-cut filter switch let you adjust levels and cut wind or HVAC rumble mid-shoot.
-
All-Day Power
The built-in USB-rechargeable battery runs roughly 24 hours and powers on and off with the camera, so nothing gets left running.
-
Two Mics, One Shoot

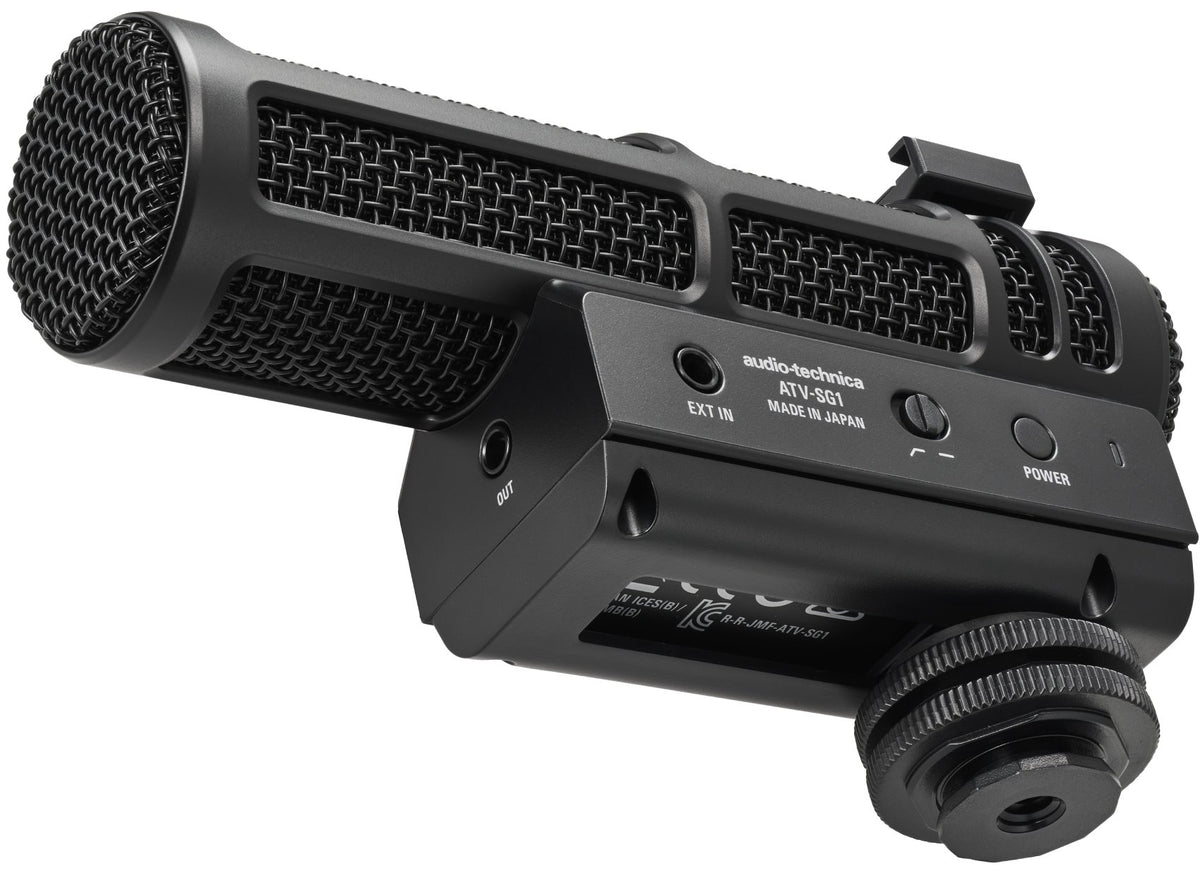

An external input jack and accessory shoe accept a wireless lavalier receiver or plug-in-powered lav for simultaneous shotgun and lav recording.
Technical Specifications
- Product Type Mono On-Camera Shotgun Microphone
- Element Fixed-charge back plate, permanently polarized condenser
- Polar Pattern Line + gradient
- Frequency Response 60 - 20,000 Hz
- Low Cut 160 Hz, 24 dB/octave
- Open Circuit Sensitivity -28 dBV (maximum gain); -35 dBV (gain setting 5)
- Gain Range 37 dB (stepless)
- Maximum Input Sound Level 126 dB SPL at maximum gain; 132 dB SPL at minimum gain (1 kHz, THD 3%)
- Dynamic Range 109 dB (1 kHz, THD 3%, maximum gain)
- Signal-To-Noise Ratio 77 dB (1 kHz at 1 Pa, A-weighted, maximum gain)
- Output Terminal 3.5 mm (1/8") stereo mini-jack
- Input Terminal 3.5 mm (1/8") stereo mini-jack, mixed to mono
- External Power Supply Plug-in power (2.7 V)
- Power Supply DC 3.85 V lithium ion battery
- Charging Time Approx. 2.5 hours
- Operating Time Max. approx. 24 hours
- Compatible Headphone Impedance Minimum 16 ohms
- Operating Temperature Range 32 F to 104 F
- Weight 0.34 lb (155 g)
- Dimensions 5.0" long, 1.4" maximum body diameter, 3.2" height
