Audio Technica ATW-1423/L Wireless Microphone System Receiver+Handheld+Lav Mics

Name: Audio Technica ATW-1423/L Wireless Microphone System Receiver+Handheld+Lav Mics
Brand: AUDIO TECHNICA
SKU: ATW-1423/L
Price: 1179.00 USD
Availability: InStock

2.4 GHz Digital Wireless System, 24-Bit/48 kHz, 4-Channel Receiver, Handheld Mic, Body-Pack, Lavalier Mic

$1,179.00

$1,179.00 ~~$1,074.00~~

Shipping calculated at checkout.

Features

Handheld hypercardioid dynamic mic and lavalier in one system
Four-channel receiver leaves two channels open for expansion
Standard mode runs 10 channels, HD mode runs 20
Water- and sweat-resistant cW-style body-pack connector
AES128 encryption and auto-lock protect live events

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

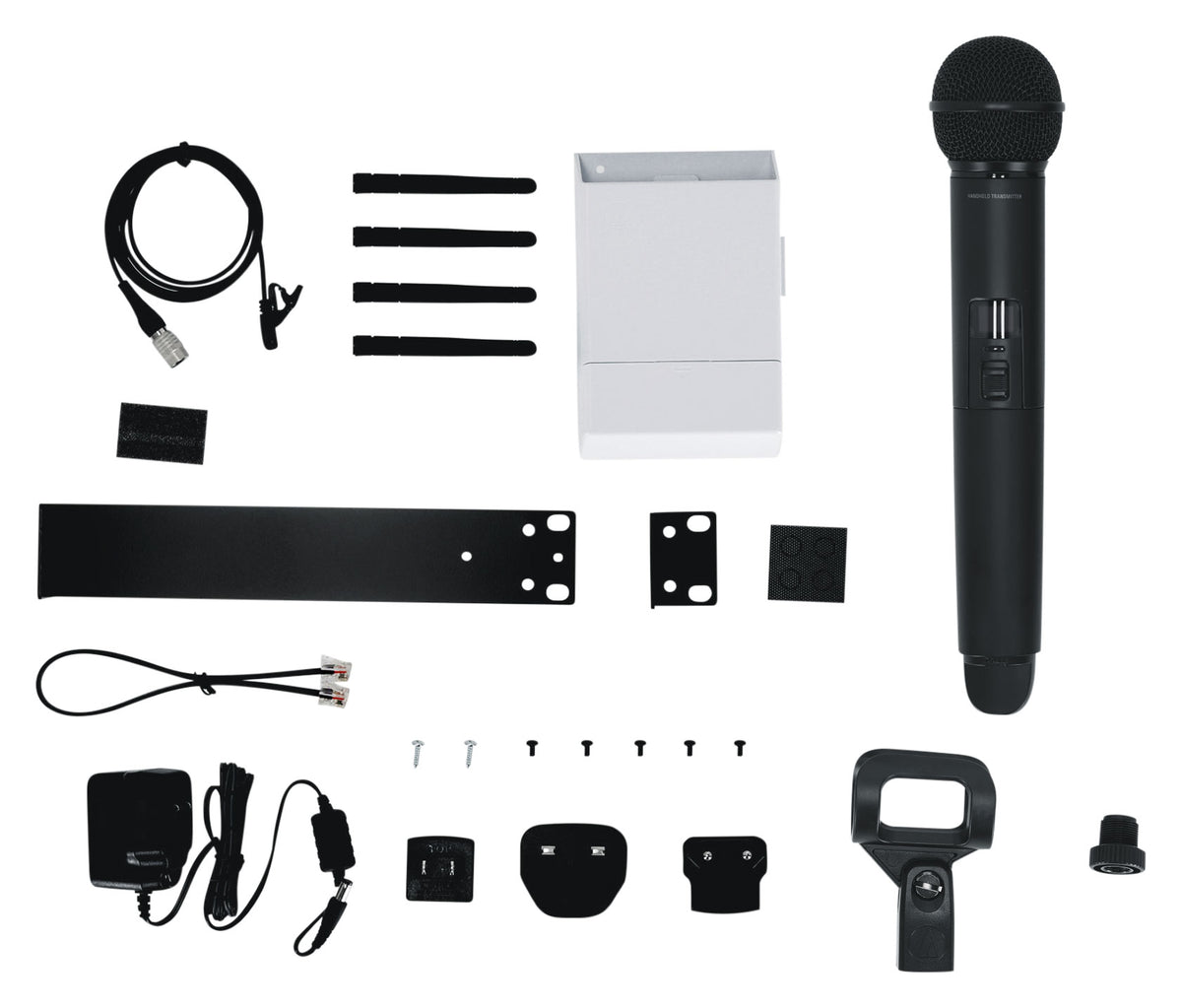

What's Included in the box

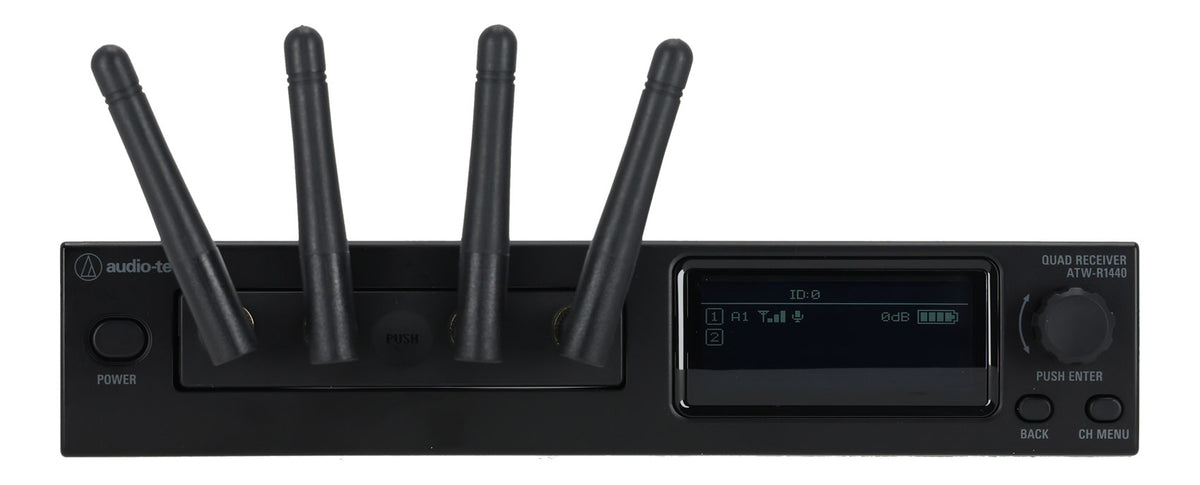

ATW-R1440 4-Channel Receiver

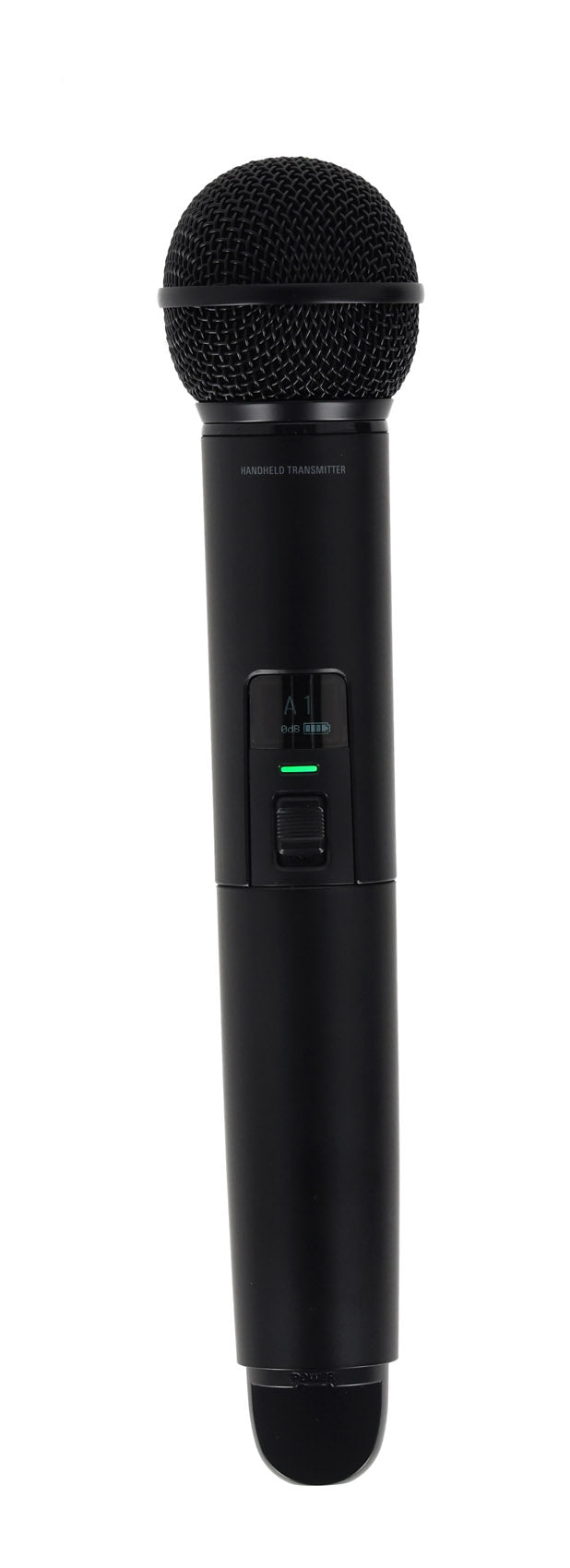

ATW-T1402 Handheld Microphone Transmitter

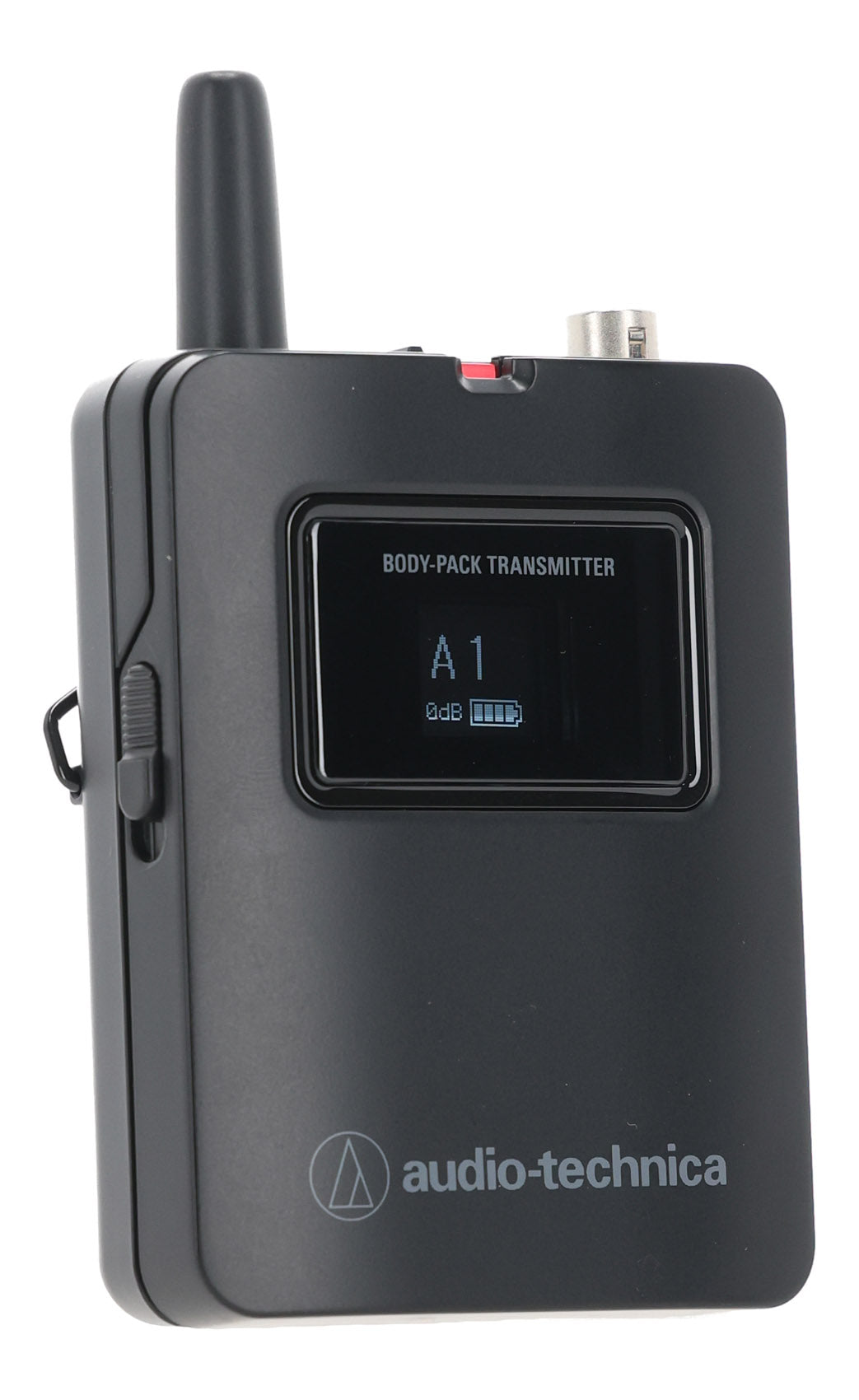

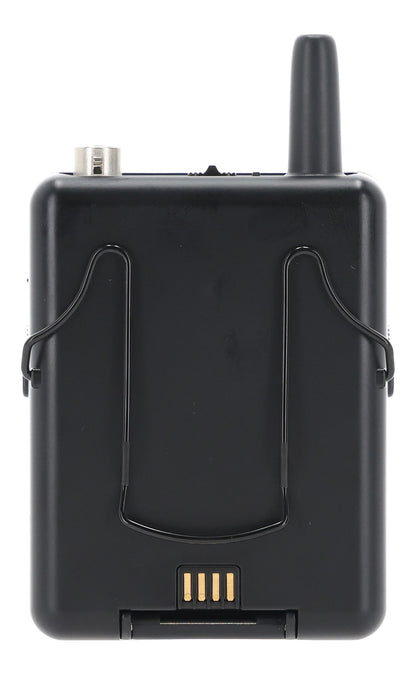

ATW-T1401 Body-Pack Transmitter
MT830cW Lavalier Microphone
AT8456a Mic Holder
3/8" to 5/8" Thread Adapter
Short And Long Rack Ears
Power Supply

SKU: SKU: ATW-1423/L

View full details

Product Description

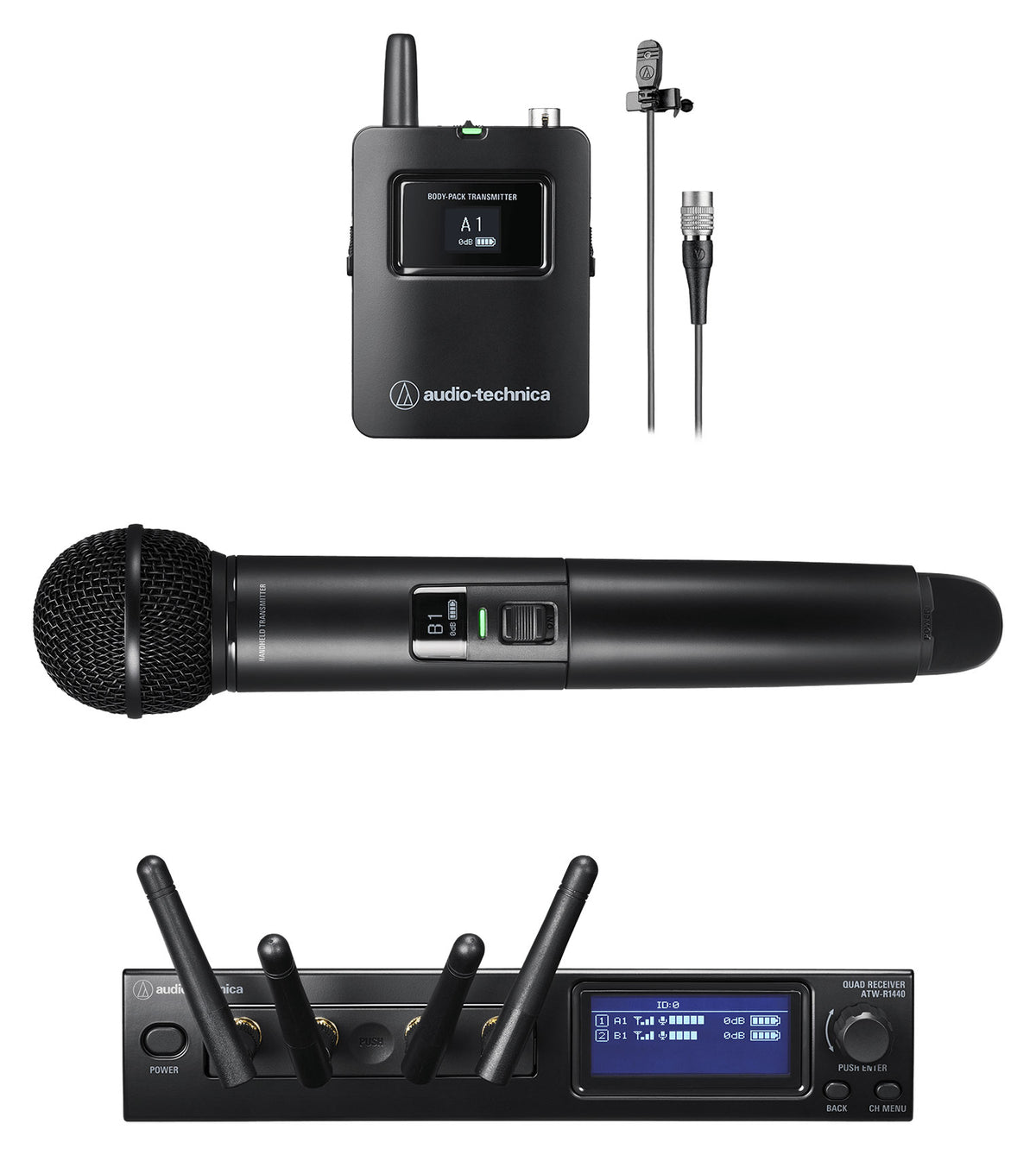

The ATW-1423/L combines the two microphone formats most events need. It includes the ATW-R1440 four-channel receiver, one ATW-T1402 handheld transmitter with a hypercardioid dynamic capsule, one ATW-T1401 body-pack transmitter, and one MT830cW lavalier microphone. Two receiver channels remain open for additional transmitters.

The handheld covers vocals, awards, and audience questions. The lav keeps a presenter hands-free at the podium or on camera. Both run plug-and-play at 24-bit/48 kHz in the 2.4 GHz range, with Standard mode supporting 10 channels at 2.8 ms latency and HD mode supporting 20 channels at 6.7 ms.

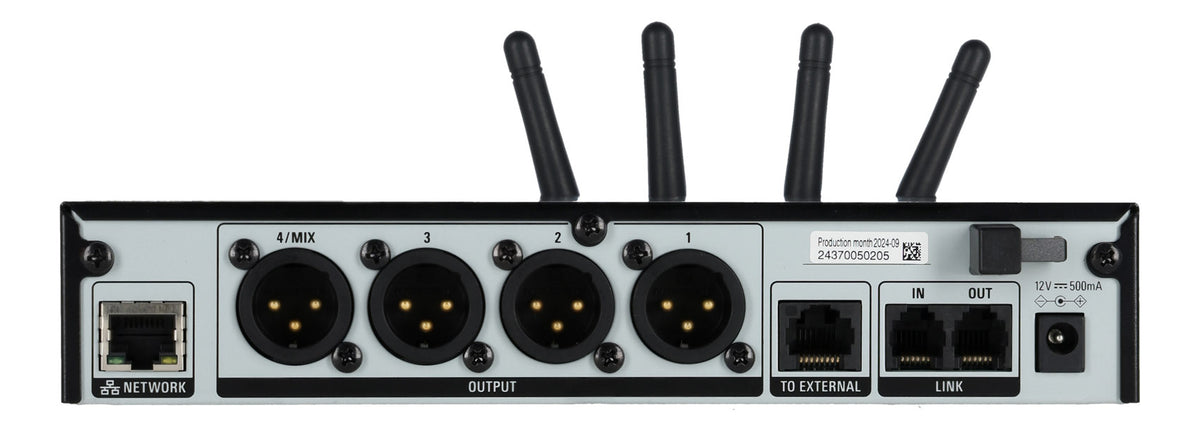

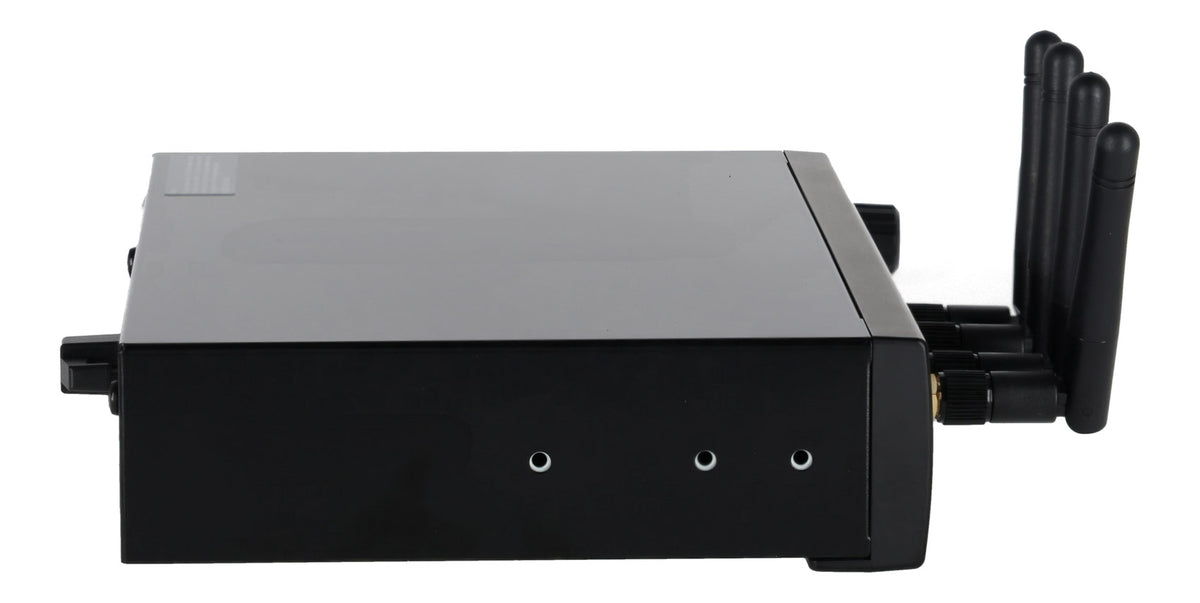

The half-rack chassis includes a short and long rack ear, and two long ears join two chassis in a single rack space. Receiver units mount remotely up to 328 feet away over Ethernet, and up to five chassis link together.

The handheld runs about 18 hours on AA alkalines, the body-pack about 15 hours, and both accept charging terminals for ATW-CHG3 and ATW-CHG3N docks. The body-pack uses a water- and sweat-resistant cW-style connector. OLED screens, auto-lock, AES128 encryption, and Wireless Manager compatibility round out the system.

Features

Both Formats Covered

A handheld for vocals and questions plus a body-pack and lavalier for hands-free presenting handle most event and worship setups.
Room To Expand

The four-channel ATW-R1440 receiver leaves two channels free, so extra body-pack or handheld transmitters join the system later without buying new receiver hardware.
Long Event Coverage

The handheld runs about 18 hours on AA alkalines and the body-pack about 15 hours, with charging terminals for ATW-CHG3 docks.
Reliable Connections

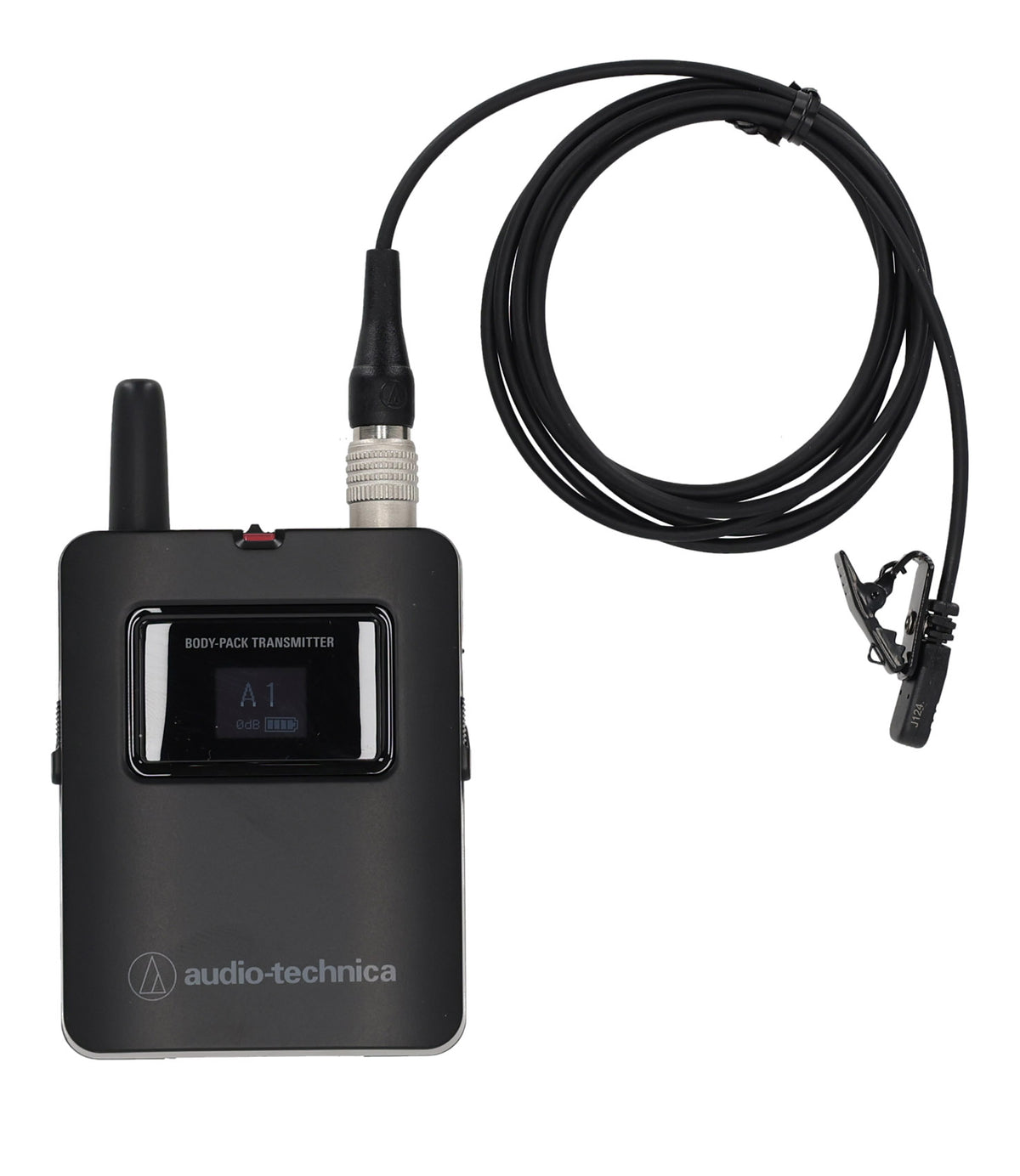

A water- and sweat-resistant cW-style connector holds the lavalier securely to the body-pack, so active presenters and performers keep a solid connection throughout.
Managed Centrally

AES128 encryption, auto-lock, OLED screens, and Wireless Manager compatibility keep multi-channel setups controlled, monitored, and protected from accidental changes during an event.

Technical Specifications

Product Type Digital Wireless Handheld And Lavalier Microphone System
Operating Frequencies 2,402 to 2,480 MHz
Audio Sampling Rate 24-bit/48 kHz (Standard and HD mode)
Dynamic Range 120 dB (A-weighted), typical
Total Harmonic Distortion < 0.05%, typical
Maximum Simultaneous Use Standard: 10 channels; HD mode: 20 channels
System Frequency Response 20 to 20,000 Hz
Delay Standard: 2.8 ms; HD mode: 6.7 ms
Encryption AES128
Handheld Modulation Mode GFSK
Handheld RF Output Power 10 mW EIRP
Handheld RF Sensitivity -90 dBm, typical
Handheld Antenna True diversity
Handheld Microphone Type Dynamic
Handheld Polar Pattern Hypercardioid
Handheld Battery 3 V DC (two 1.5 V AA)
Handheld Battery Life Approx. 18 hours (alkaline); 16 hours 30 minutes (NiMH); 35 hours (lithium)
Body-Pack Modulation Mode GFSK
Body-Pack RF Output Power 10 mW EIRP
Body-Pack RF Sensitivity -90 dBm, typical
Body-Pack Antenna True diversity
Body-Pack Input Connection Four-pin locking connector, DC bias +10 V
Body-Pack Battery 3 V DC (two 1.5 V AA)
Body-Pack Battery Life Approx. 15 hours (alkaline); 14 hours 30 minutes (NiMH); 29 hours (lithium)
Weight 0.66 lb (300 g) handheld transmitter; 0.18 lb (80 g) body-pack transmitter, without batteries
Dimensions 10" x 2.1" (handheld transmitter); 2.5" W x 0.89" D x 4.2" H (body-pack transmitter)
