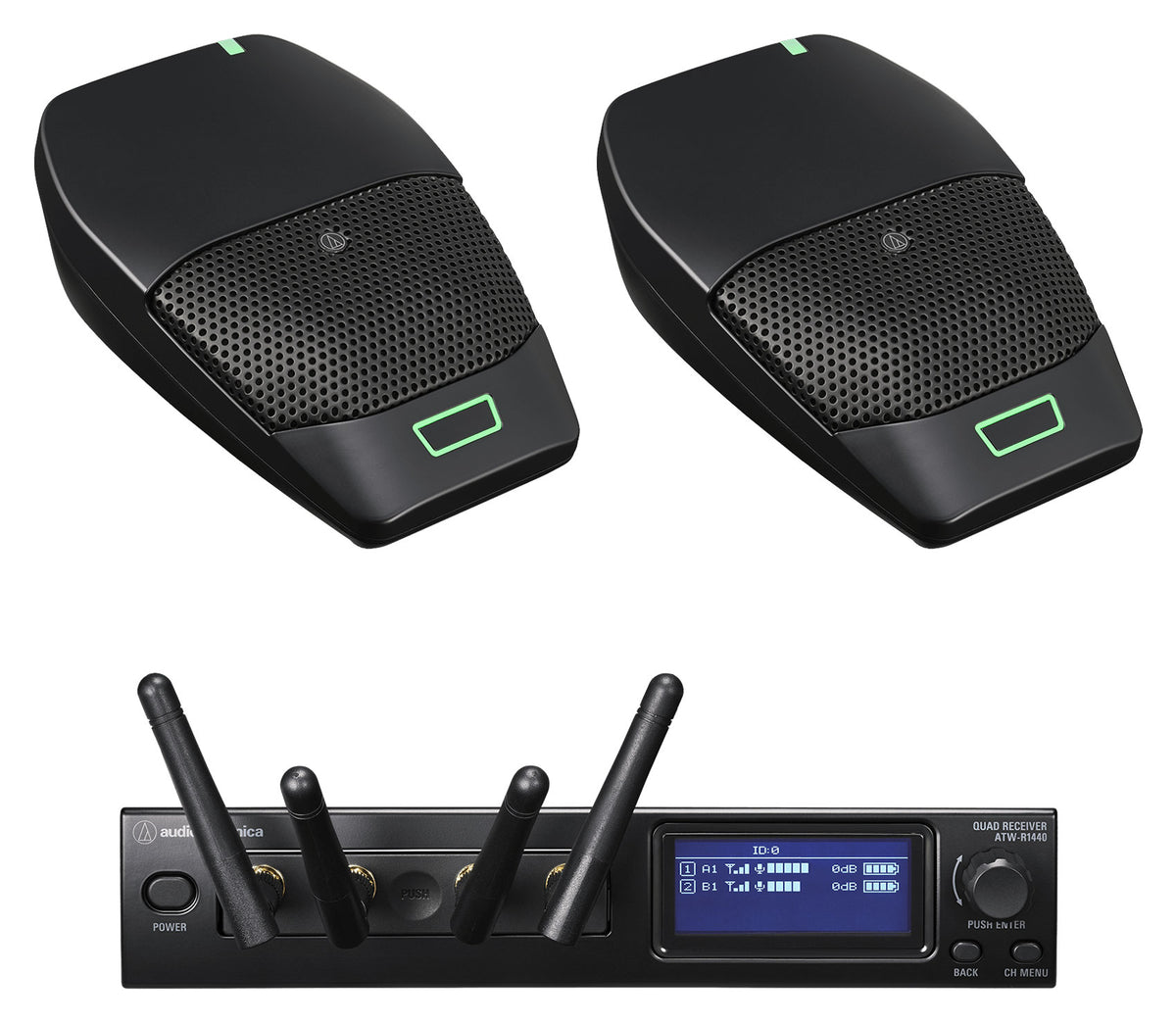

2.4 GHz Digital Wireless System, 24-Bit/48 kHz, 4-Channel Receiver, Two Cardioid Boundary Microphones
Features

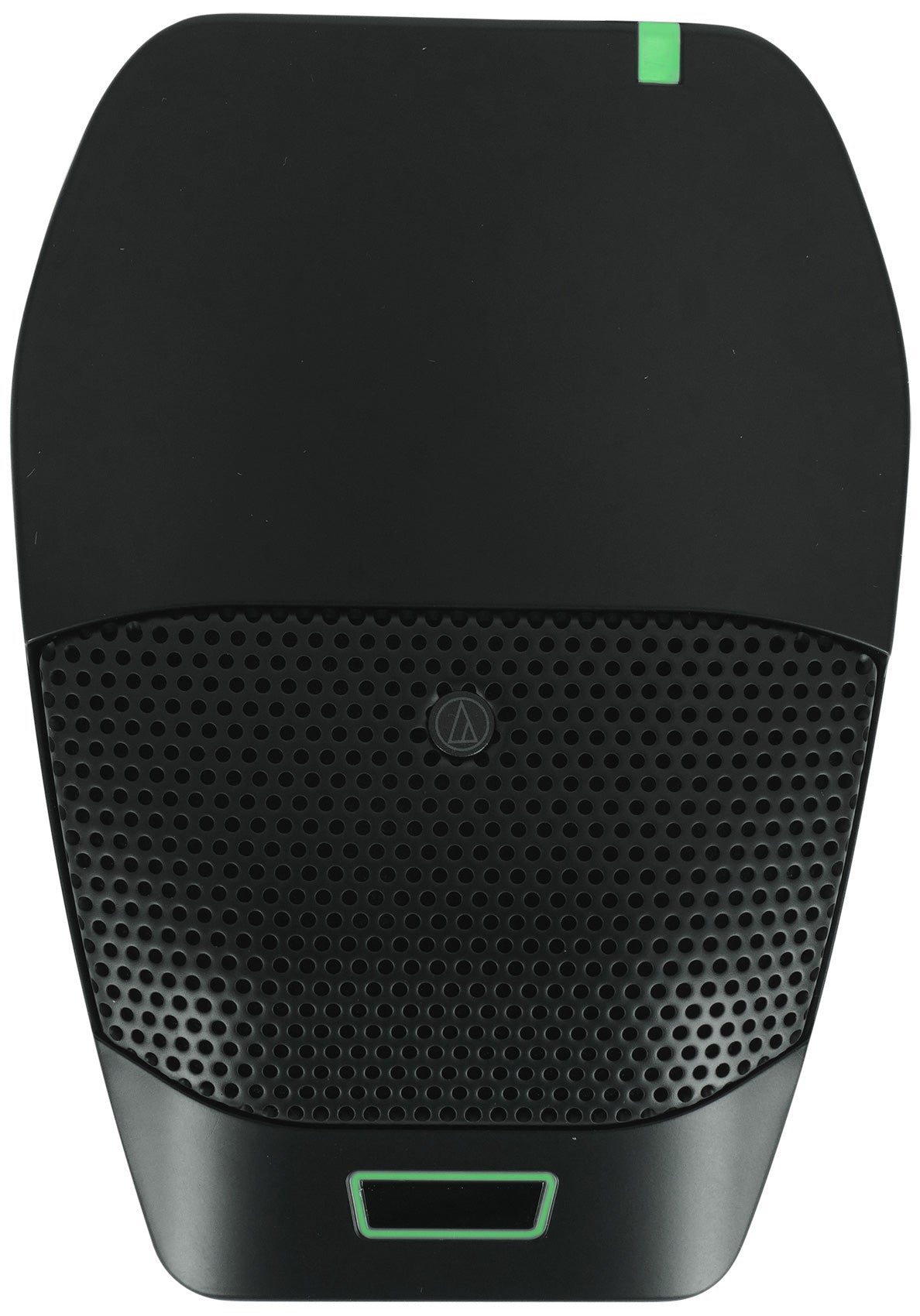

- Two ATW-T1406 cardioid condenser boundary microphone transmitters
- Built-in batteries run about 12 hours and recharge over USB-C
- Boundary mics handle up to 139 dB SPL
- Four-channel receiver leaves two channels open for expansion
- AES128 encryption and Syslog support for managed rooms
Couldn't load pickup availability

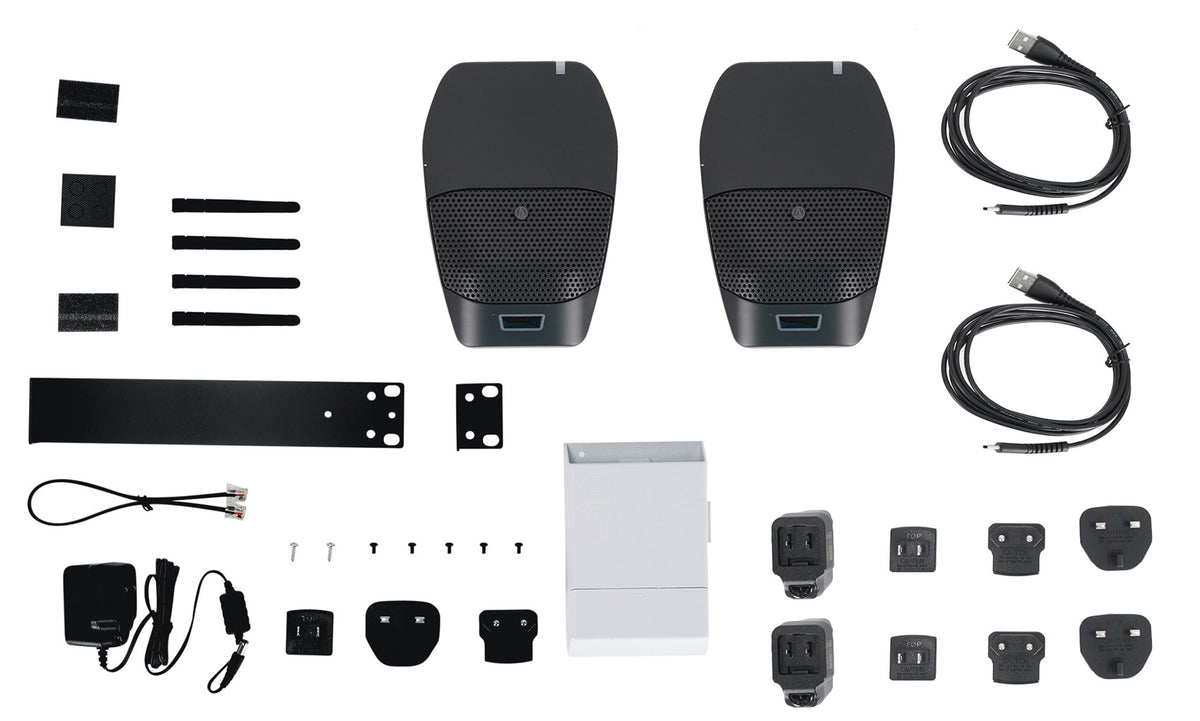

What's Included in the box

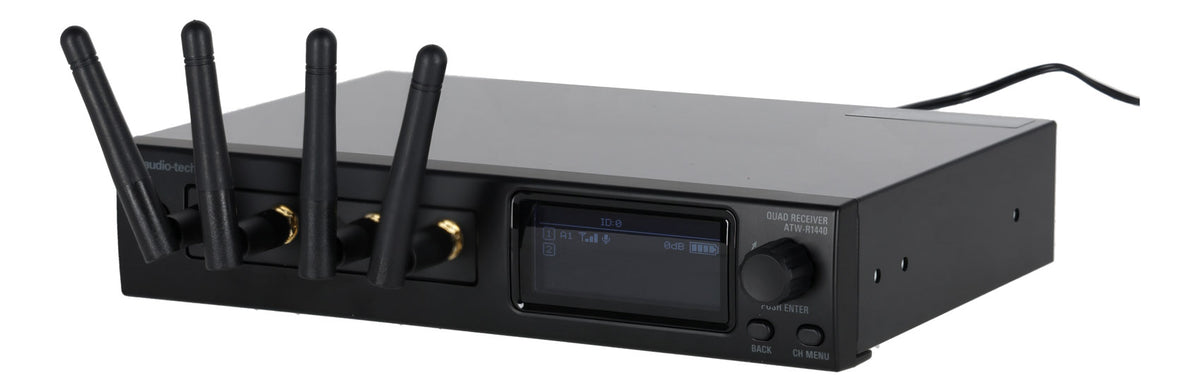

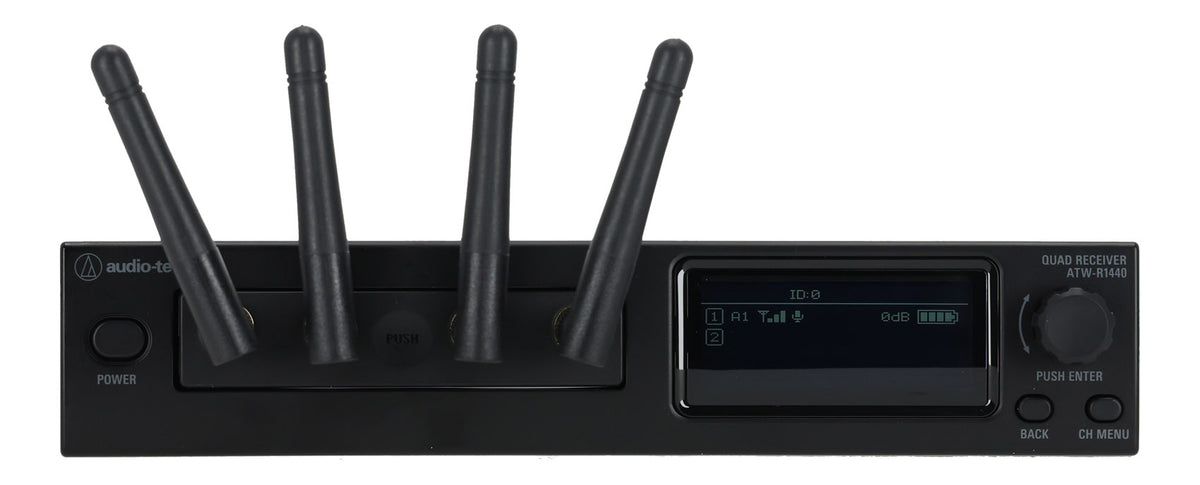

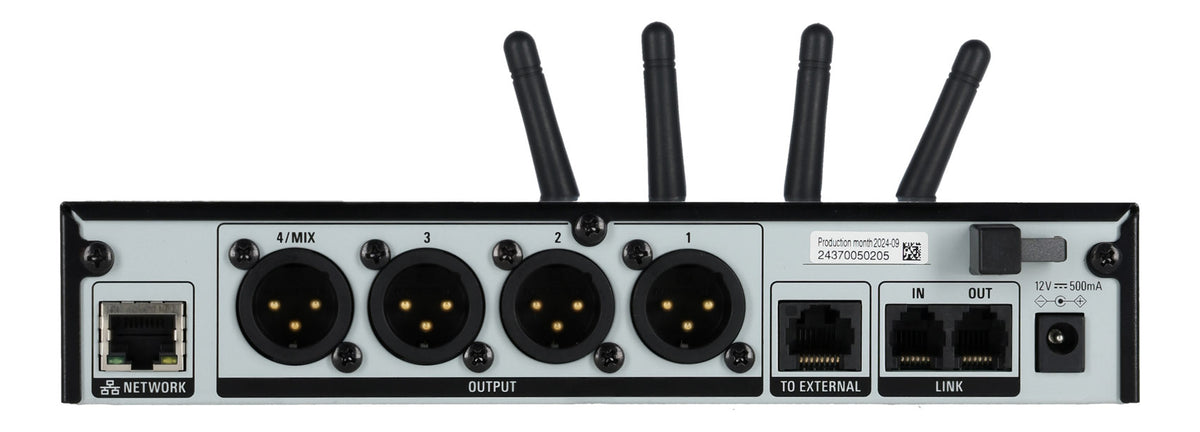

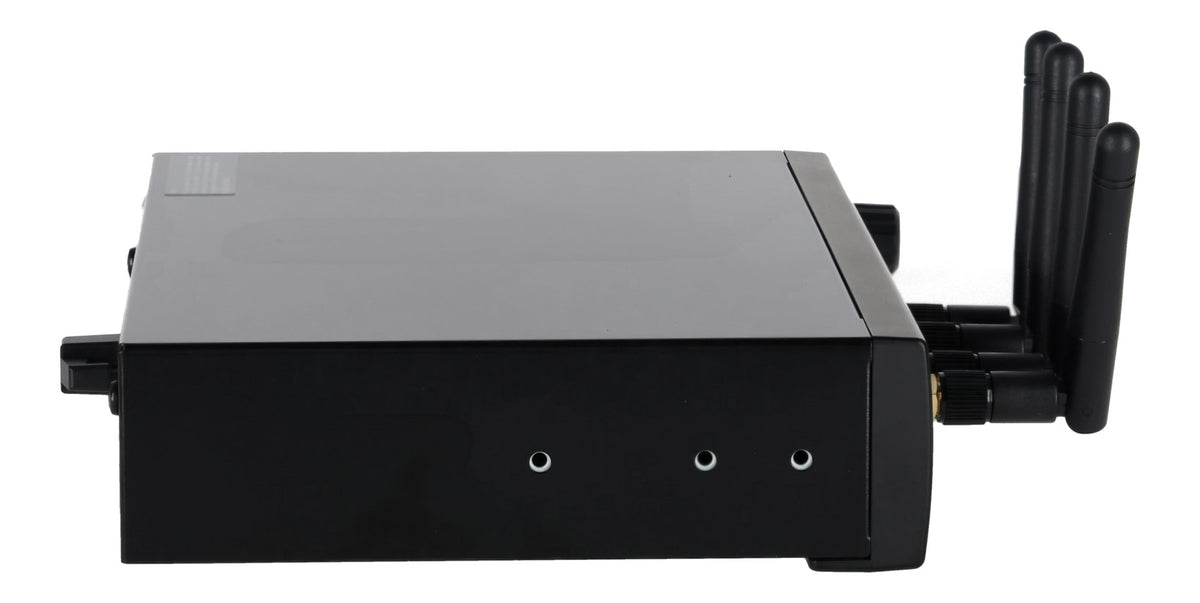

- ATW-R1440 4-Channel Receiver

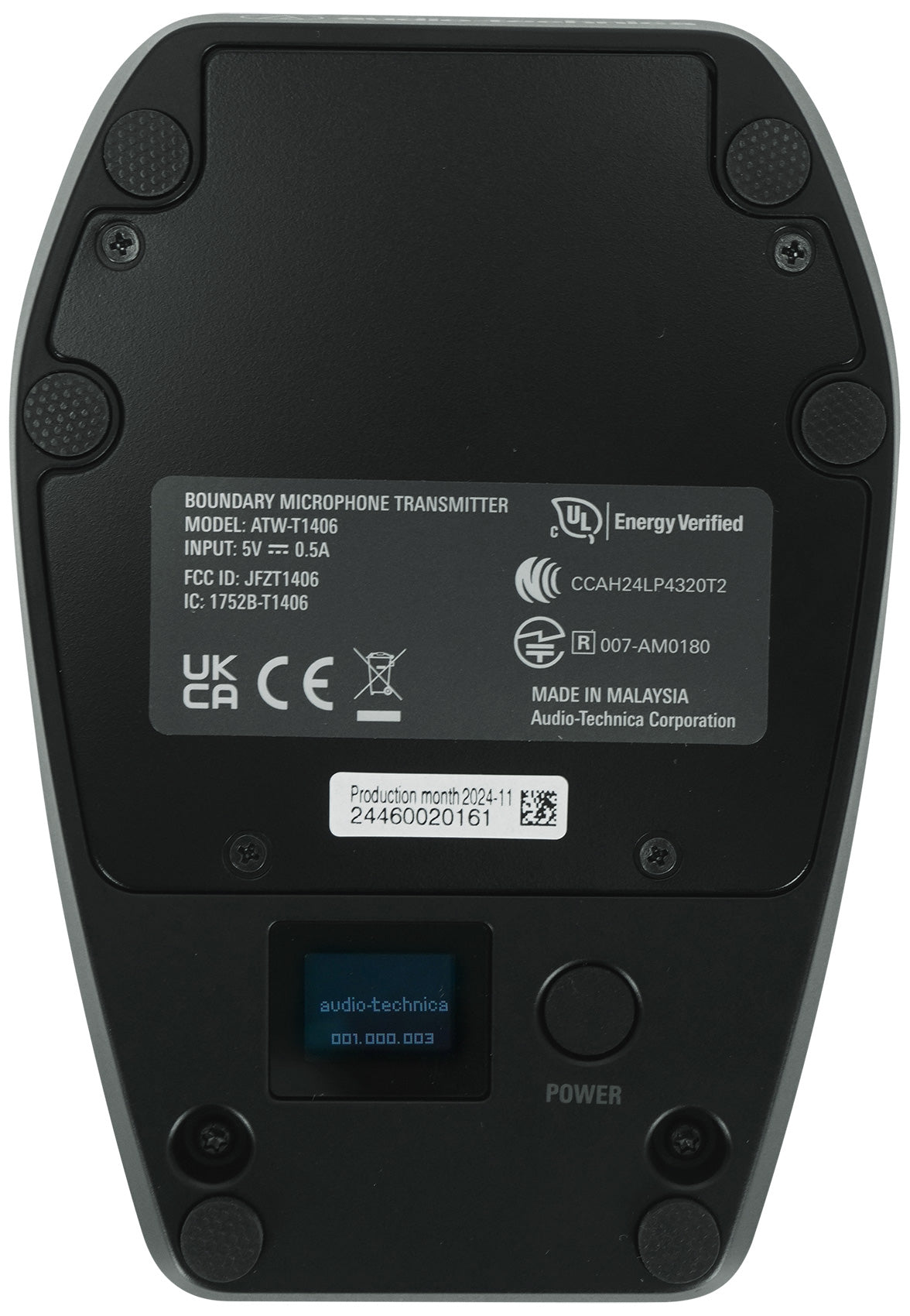

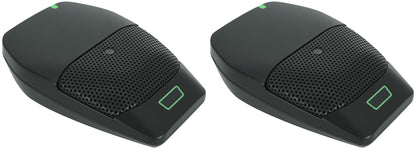

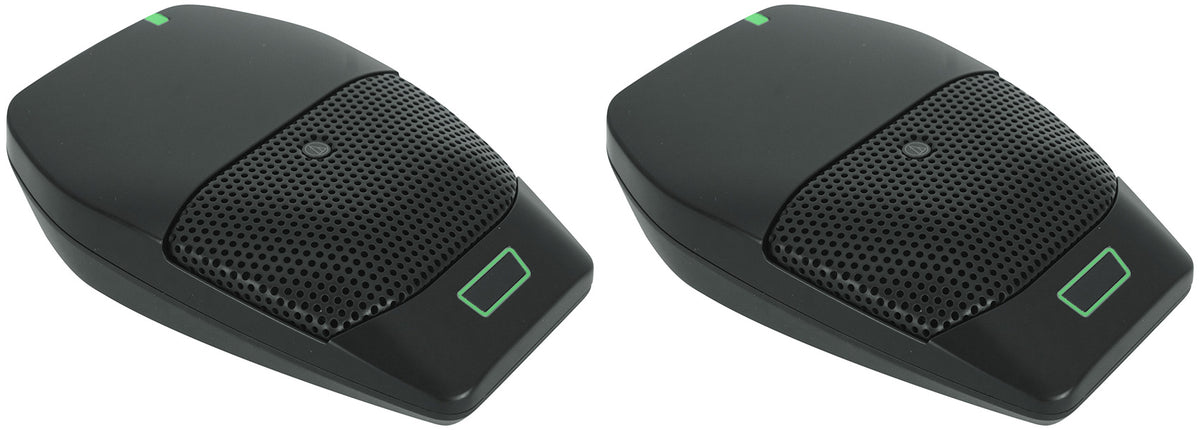

- (2) ATW-T1406 Boundary Microphone Transmitters
- (2) USB Power Supply Adapters With Blades
- (2) USB Cables (1.5 m)
- Short And Long Rack Ears
- Power Supply
SKU: SKU: ATW-1426
View full details










Product Description
Because the transmitter is built into the boundary housing, setup is a matter of placing the mics and powering them on. That suits rented rooms, board rooms without floor boxes, and hybrid meeting spaces where furniture moves week to week.
Operation is plug-and-play at 24-bit/48 kHz in the 2.4 GHz range. Standard mode supports 10 channels at 2.8 ms latency, HD mode supports 20 channels at 6.7 ms, and two receiver channels stay open for body-pack or handheld transmitters.
Each boundary mic carries a built-in 3.7V lithium-ion battery good for about 12 hours, recharging over USB Type-C in roughly 3 hours 10 minutes. USB power adapters and cables are included. AES128 encryption protects meeting audio, auto-lock stops accidental changes mid-session, and Syslog and Wireless Manager support give IT teams centralized monitoring. Receiver units also mount remotely up to 328 feet away over Ethernet, and up to five chassis link together.
Features
-
No Cables On The Table

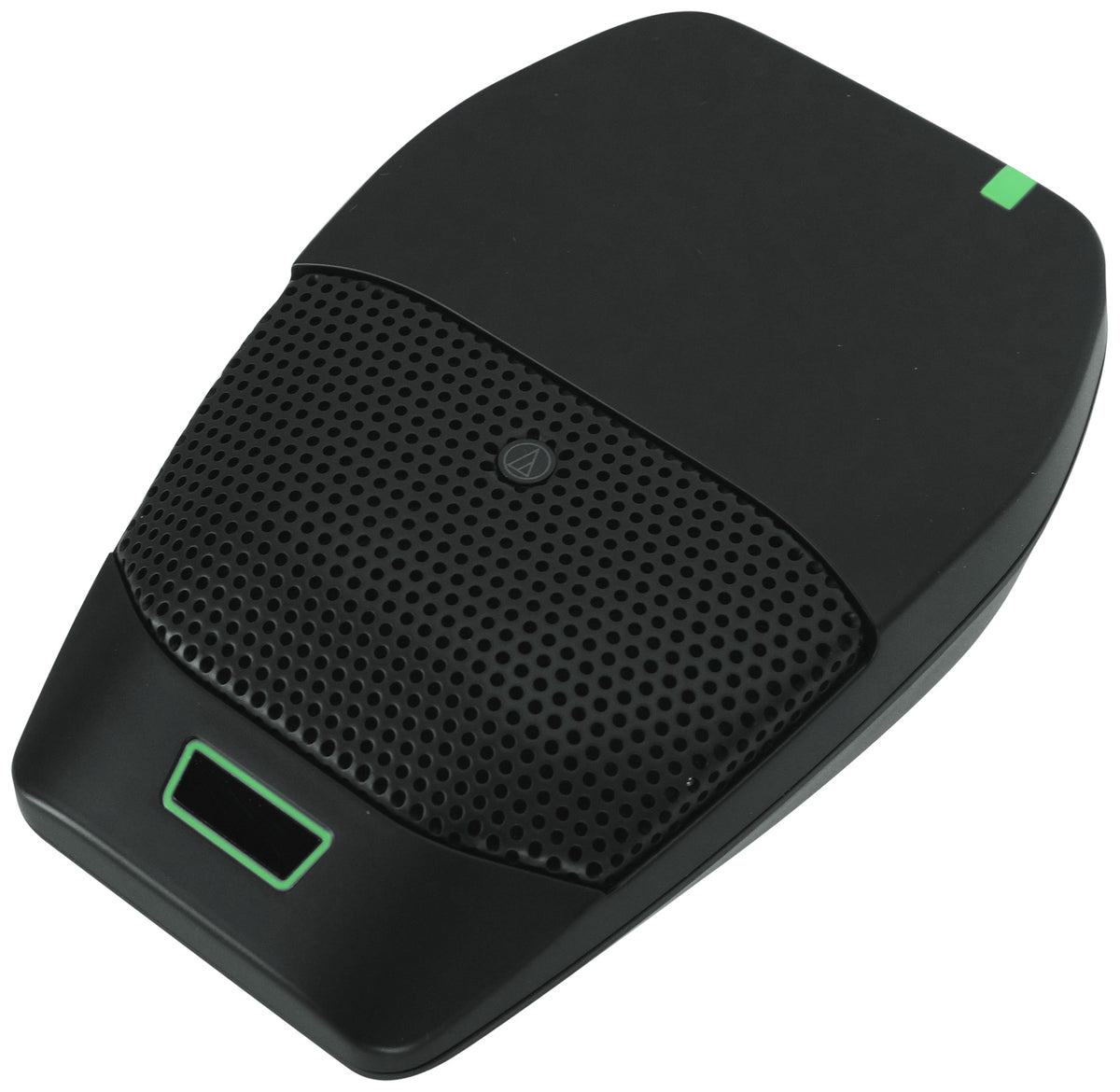

Transmitters are built into the boundary housings, so setting up a meeting room means placing two mics and switching them on.
-
A Full Day Of Meetings
Each mic runs about 12 hours on its built-in lithium-ion battery and recharges over USB Type-C in roughly 3 hours 10 minutes.
-
Clear Table Pickup
Cardioid condenser capsules rated to 139 dB SPL capture speech across the table while rejecting sound from behind the mic.
-
Built For IT
AES128 encryption, Syslog compatibility, and Wireless Manager software let technical teams configure, monitor, and audit meeting rooms centrally instead of walking to each space.
-
Grows With The Room
Two receiver channels stay open for body-pack or handheld transmitters, and up to five chassis link together for larger boardrooms and multi-room installations.
Technical Specifications
- Product Type Digital Wireless Boundary Microphone System
- Operating Frequencies 2,402 to 2,480 MHz
- Audio Sampling Rate 24-bit/48 kHz (Standard and HD mode)
- Dynamic Range 120 dB (A-weighted), typical
- Total Harmonic Distortion < 0.05%, typical
- Maximum Simultaneous Use Standard: 10 channels; HD mode: 20 channels
- System Frequency Response 20 to 20,000 Hz
- Delay Standard: 2.8 ms; HD mode: 6.7 ms
- Encryption AES128
- Boundary Transmitter Modulation Mode GFSK
- Boundary Transmitter RF Output Power 10 mW EIRP
- Boundary Transmitter RF Sensitivity -90 dBm, typical
- Boundary Transmitter Antenna True diversity
- Maximum Input Sound Pressure Level 139 dB SPL
- Microphone Type Condenser
- Microphone Polar Pattern Cardioid
- Built-In Battery 3.7V lithium-ion (5.5 Wh, 1460 mAh)
- Battery Life Approx. 12 hours
- Charging Time Approx. 3 hours 10 minutes
- USB Charging Port USB Type-C (USB 2.0)
- Operating Temperature Range 41 F to 104 F
- Weight 1.12 lb (510 g) per boundary microphone, including battery
- Dimensions 3.6" W x 5.1" D x 1.3" H (boundary microphone)
