Audio Technica ATW-1701 System 10 Camera Mount Digital Wireless Microphone Mic
Audio Technica ATW-1701 System 10 Camera Mount Digital Wireless Microphone Mic
AUDIO TECHNICA
Audio Technica ATW-1701 System 10 Camera Mount Digital Wireless Microphone Mic
Audio Technica ATW-1701 System 10 Camera Mount Digital Wireless Microphone Mic
2.4 GHz Camera-Mount Digital Wireless System, 24-Bit/48 kHz, 12-Hour Receiver Battery, Body-Pack Transmitter
Free Shipping
Features

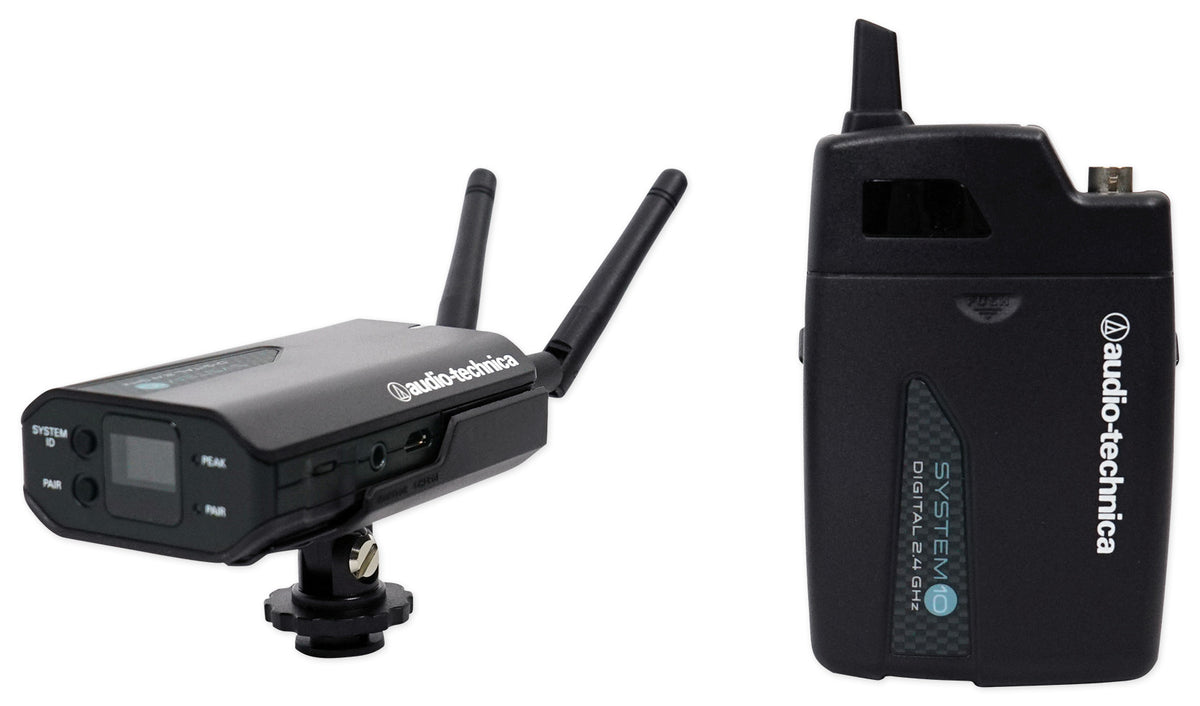

- Compact receiver mounts to a camera shoe with multiple options
- Internal rechargeable battery runs the receiver 12 hours
- Digital 24-bit/48 kHz operation in the 2.4 GHz band

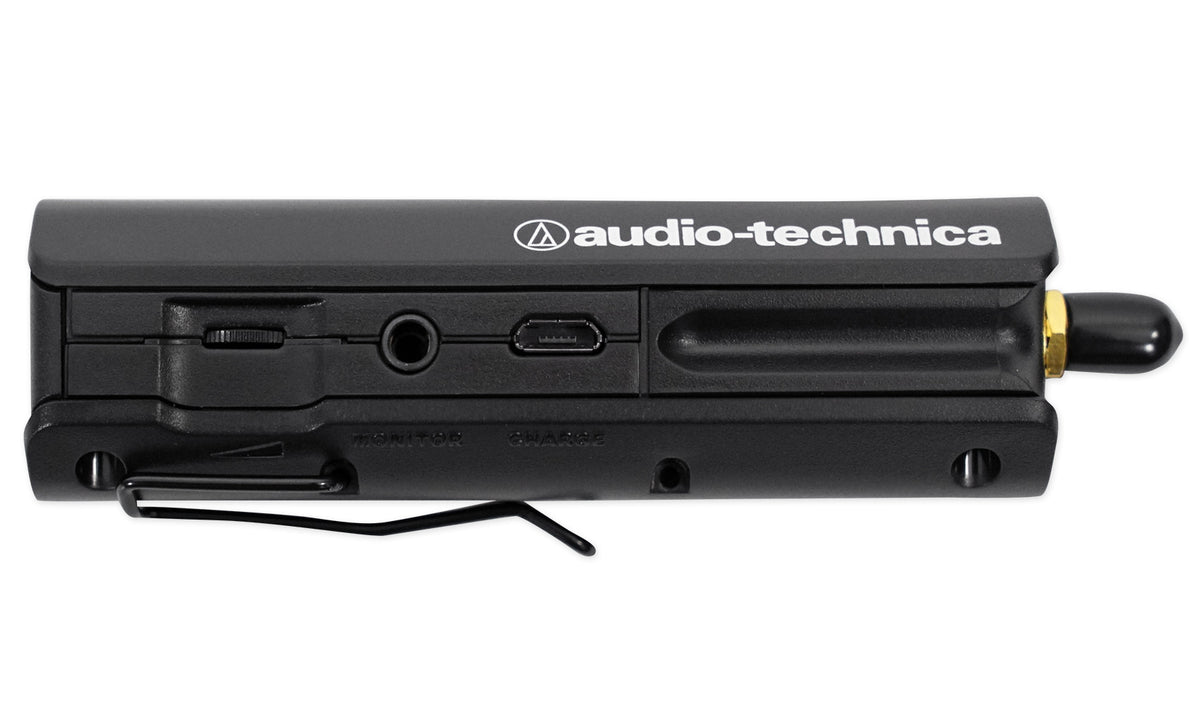

- Headphone port with volume control for on-camera monitoring
- Multi-pairing links one receiver with up to eight transmitters
Couldn't load pickup availability

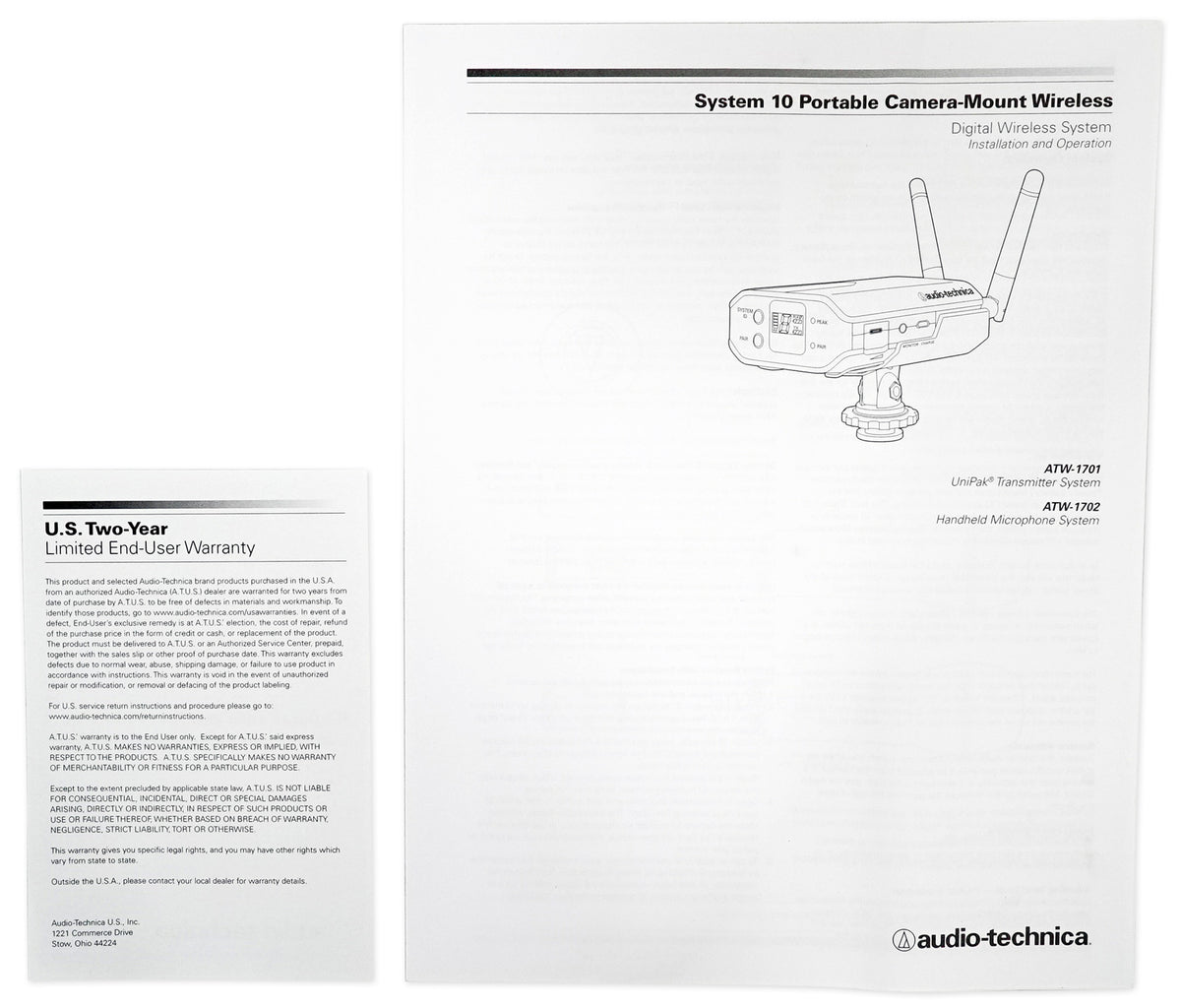

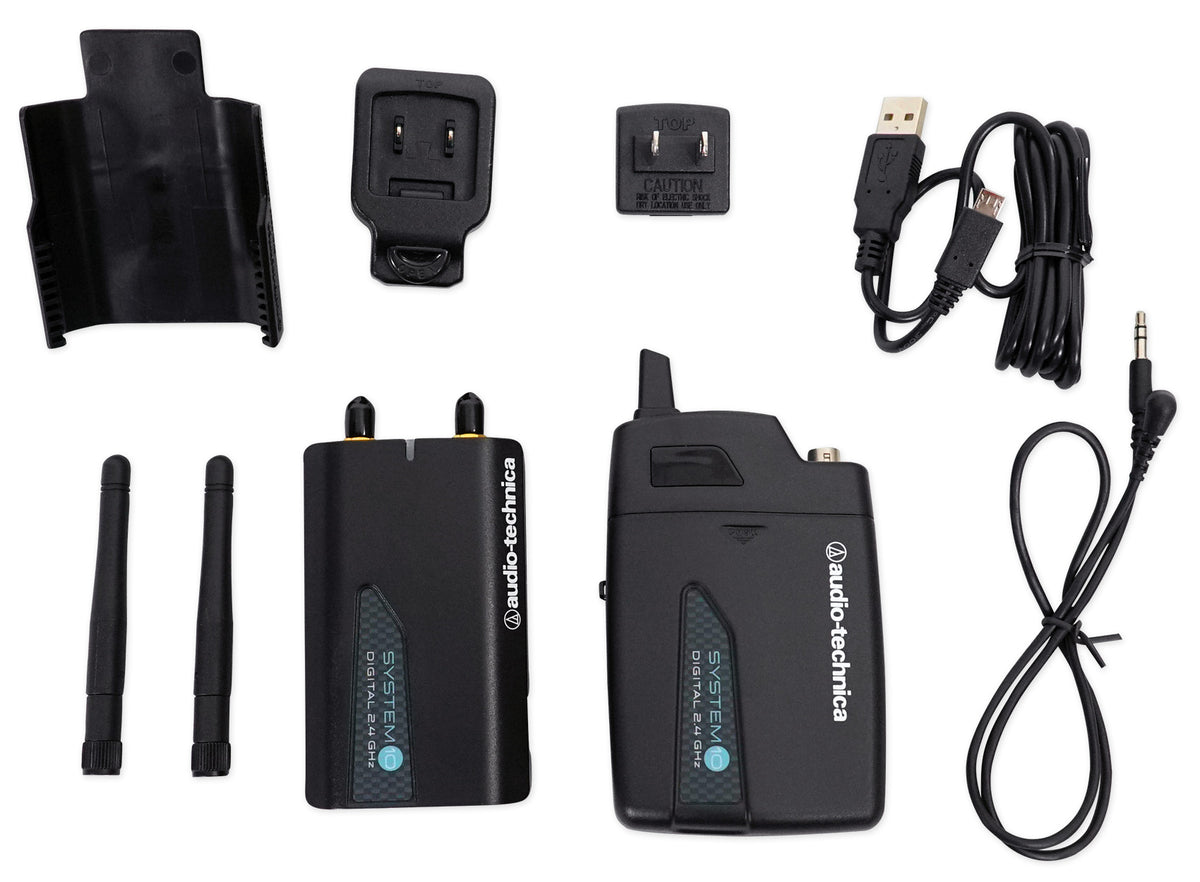

What's Included in the box
- Camera-Mount Receiver

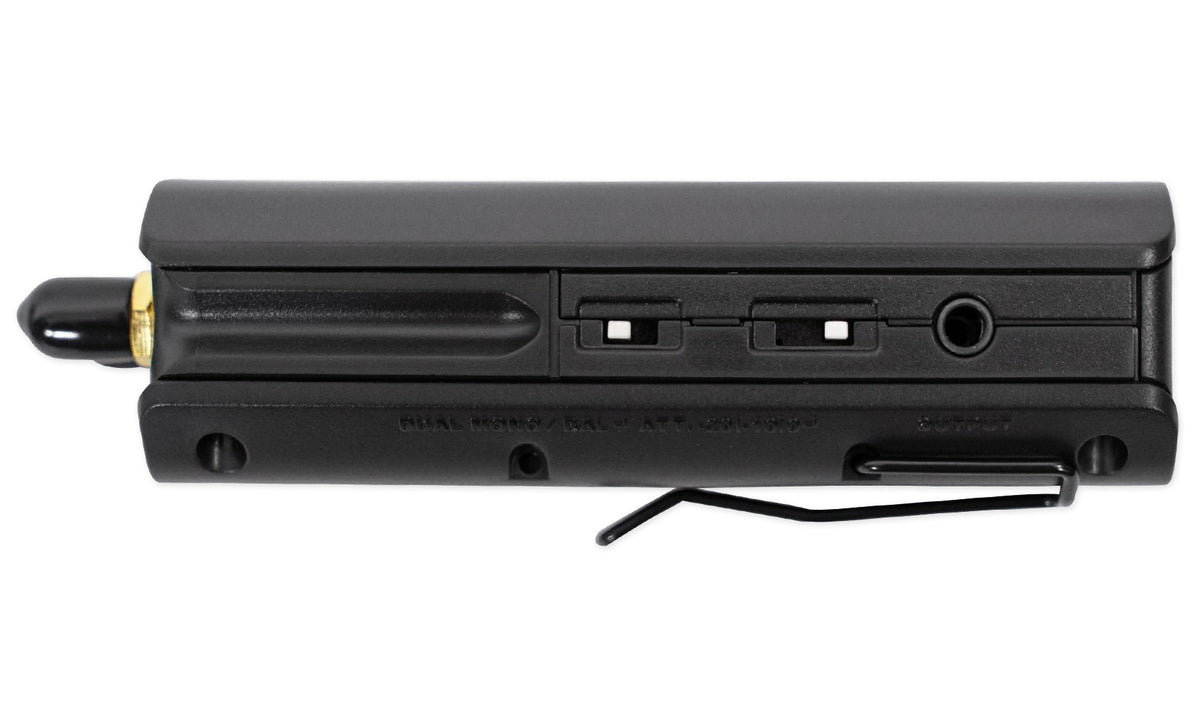

- Body-Pack Transmitter
- Two Antennas

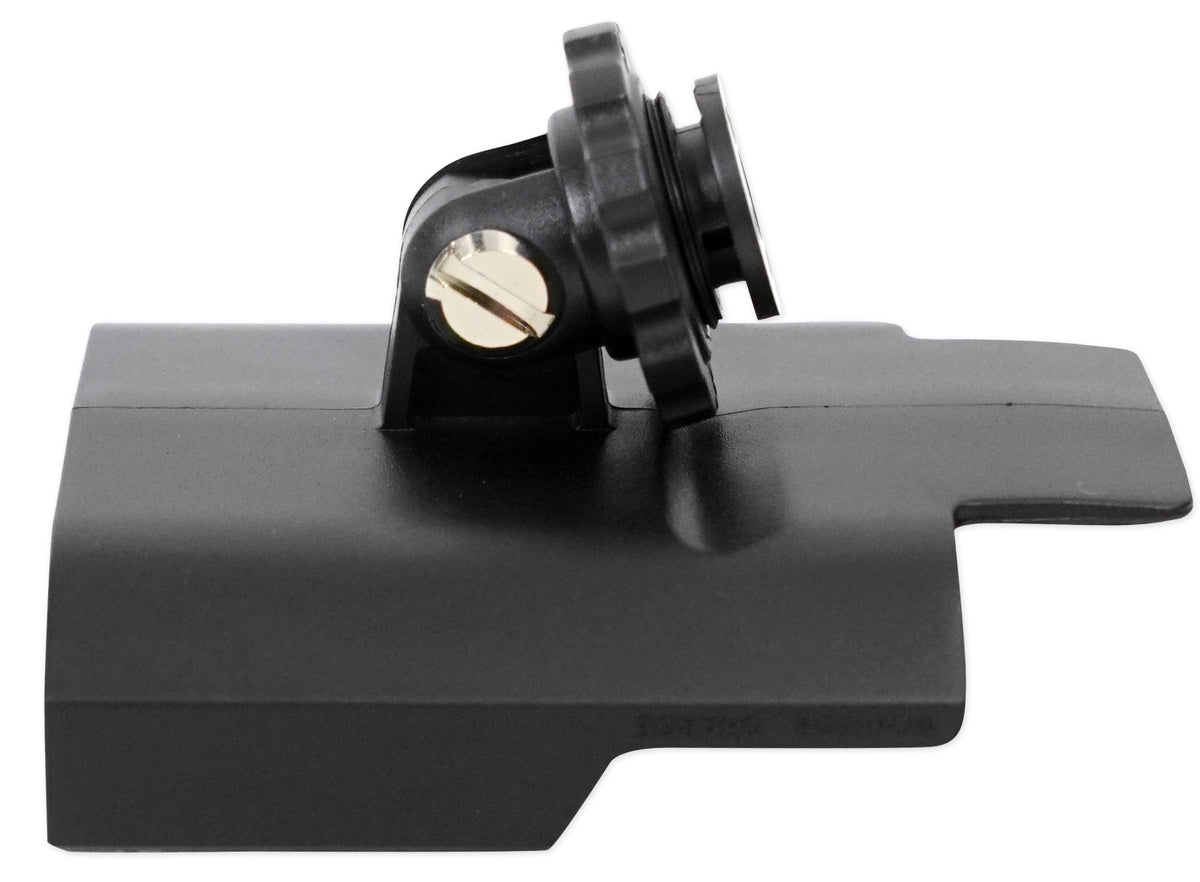

- Camera Shoe Mount
- AC Adapter (USB-Type)
- USB Cable
- 3.5 mm (1/8") Stereo Cable
SKU: SKU: ATW-1701
View full details







Product Description
Audio runs at 24-bit/48 kHz in the 2.4 GHz range, so the system stays clear of TV interference in any market you shoot in. Channel selection, sync, and setup happen instantly, which matters when a subject is already waiting.
Three levels of diversity assurance keep the link solid: two dynamically allocated frequencies, multiple time slots against multipath, and two antennas on each unit. Typical operating range is 30 m (100 ft) radius.
An internal rechargeable lithium-ion battery runs the receiver 12 hours, removing AA batteries from the receive side entirely. Selectable balanced and unbalanced output jacks with level control match most cameras and recorders, and a separate headphone port with volume control lets you monitor audio at the camera. A multi-pairing function links one receiver with up to eight body-pack or handheld transmitters, so a single receiver can follow different subjects across a shoot.
Features
-
Built For The Field
A compact receiver with multiple mounting options rides on a camera shoe without unbalancing a handheld or shoulder rig during run-and-gun shooting.
-
No AA Batteries To Chase
An internal rechargeable lithium-ion battery runs the receiver for 12 hours and charges back up in about 4 hours 30 minutes.
-
Monitor At The Camera
A separate headphone port with its own volume control lets the operator check audio in real time instead of stopping to review takes.
-
One Receiver, Many Subjects
Multi-pairing links a single receiver with up to eight body-pack or handheld transmitters, so switching subjects on location takes seconds instead of a full re-sync.
-
Matches Any Recorder
Selectable balanced and unbalanced output jacks with level control connect cleanly to cameras, field recorders, and mixers without adapters or level guesswork.
Technical Specifications
- Product Type Camera-Mount Digital Wireless Microphone System
- Operating Frequencies 2.4 GHz ISM band
- Audio Sampling Rate 24-bit/48 kHz
- Dynamic Range > 109 dB (A-weighted), typical
- Total Harmonic Distortion < 0.05% typical
- Operating Range 30 m (100 ft) radius typical
- Frequency Response 20 Hz to 20 kHz, depending on microphone type
- Operating Temperature Range 32 F to 104 F
- Receiving System Diversity (frequency/time/space)
- Maximum Output Level 3.5 mm (1/8") TRS balanced: +6 dBV; dual mono unbalanced: 0 dBV
- Receiver Battery 3.7V rechargeable lithium-ion, internal
- Receiver Battery Life 12 hours
- Receiver Battery Charging Time 4 hours 30 minutes
- Transmitter RF Power Output 10 mW

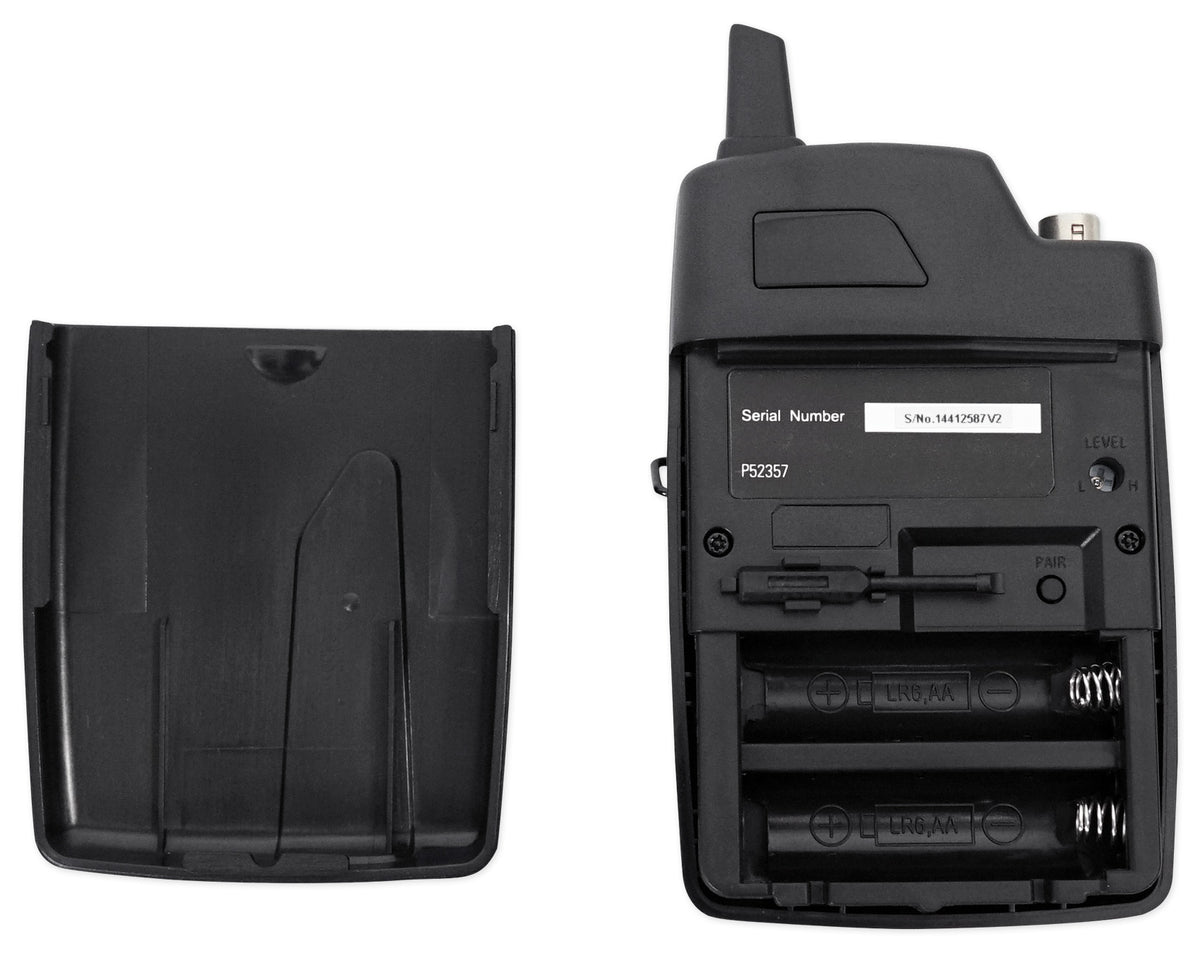

- Transmitter Batteries Two 1.5V AA (not included)
- Transmitter Battery Life > 7 hours (alkaline)
- Weight 0.23 lb (105 g) receiver; 0.22 lb (100 g) body-pack transmitter without batteries
- Dimensions 2.20" W x 3.60" H x 1.09" D (receiver); 2.76" W x 4.21" H x 0.98" D (body-pack transmitter)
