Audio-Technica ATW-2129CS Wireless System - Receiver, Transmitter & Lavalier Mic
Audio-Technica ATW-2129CS Wireless System - Receiver, Transmitter & Lavalier Mic
UHF Wireless Lavalier System, Band S 508.125-526.825 MHz, Receiver, Body-Pack Transmitter, AT829cW Mic
Free Shipping
Features

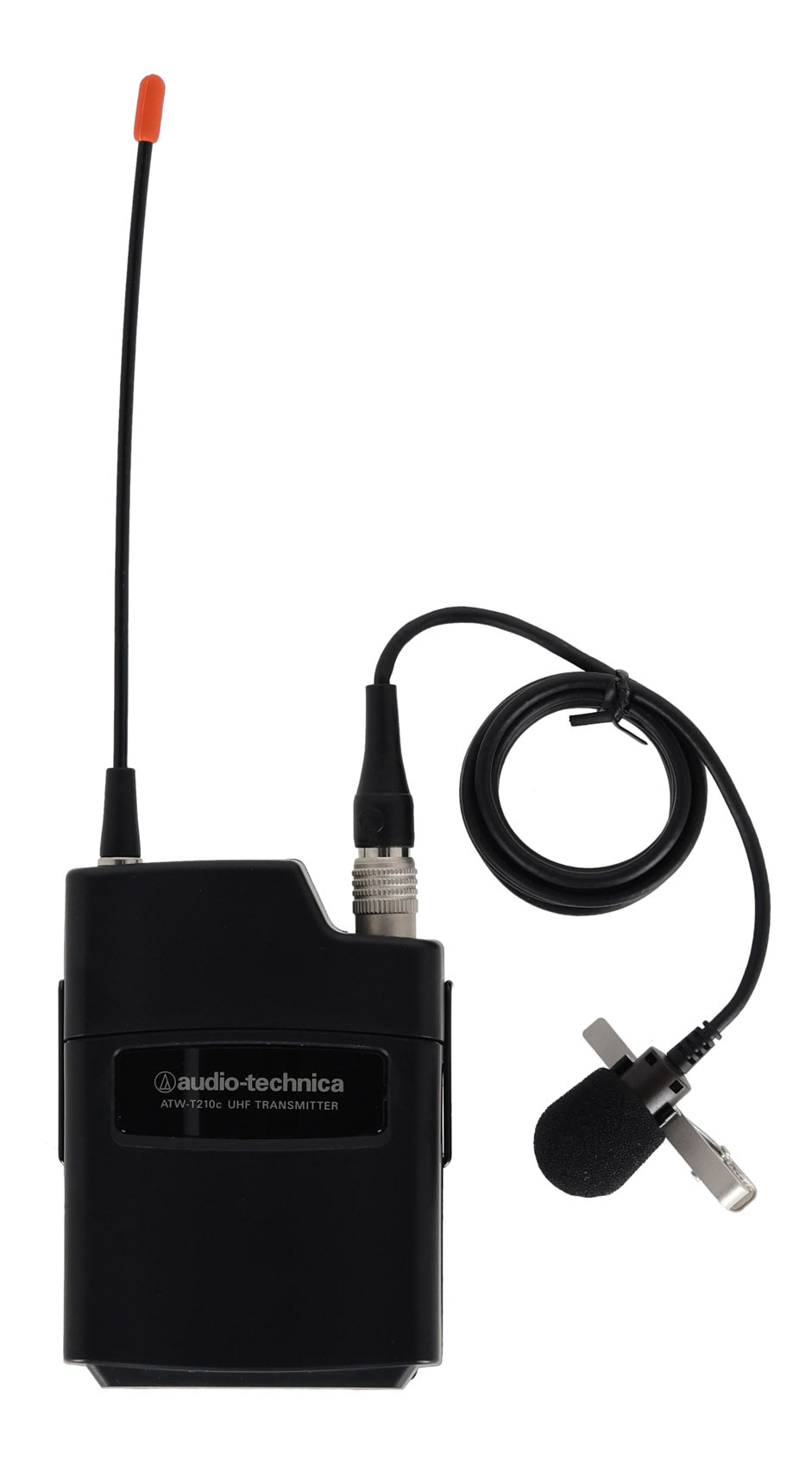

- AT829cW lavalier microphone and ATW-T210c body-pack included
- Band S operation from 508.125 to 526.825 MHz with 10 channels
- True diversity receiver holds a steady signal at up to 300 ft
- Switchable 30 mW or 10 mW RF power for range or battery life
- Balanced XLR and unbalanced 1/4" outputs with rack adapters
Couldn't load pickup availability

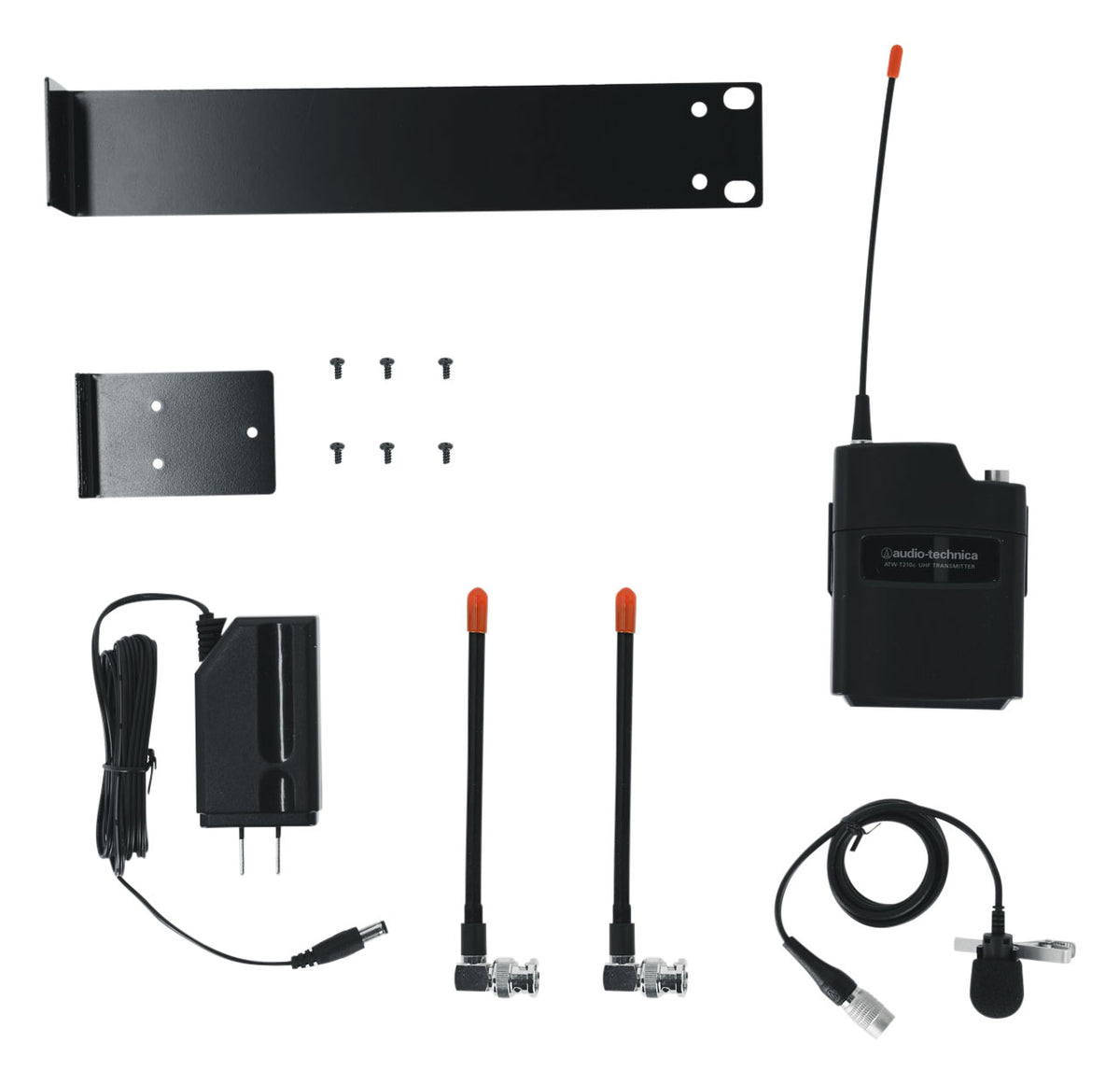

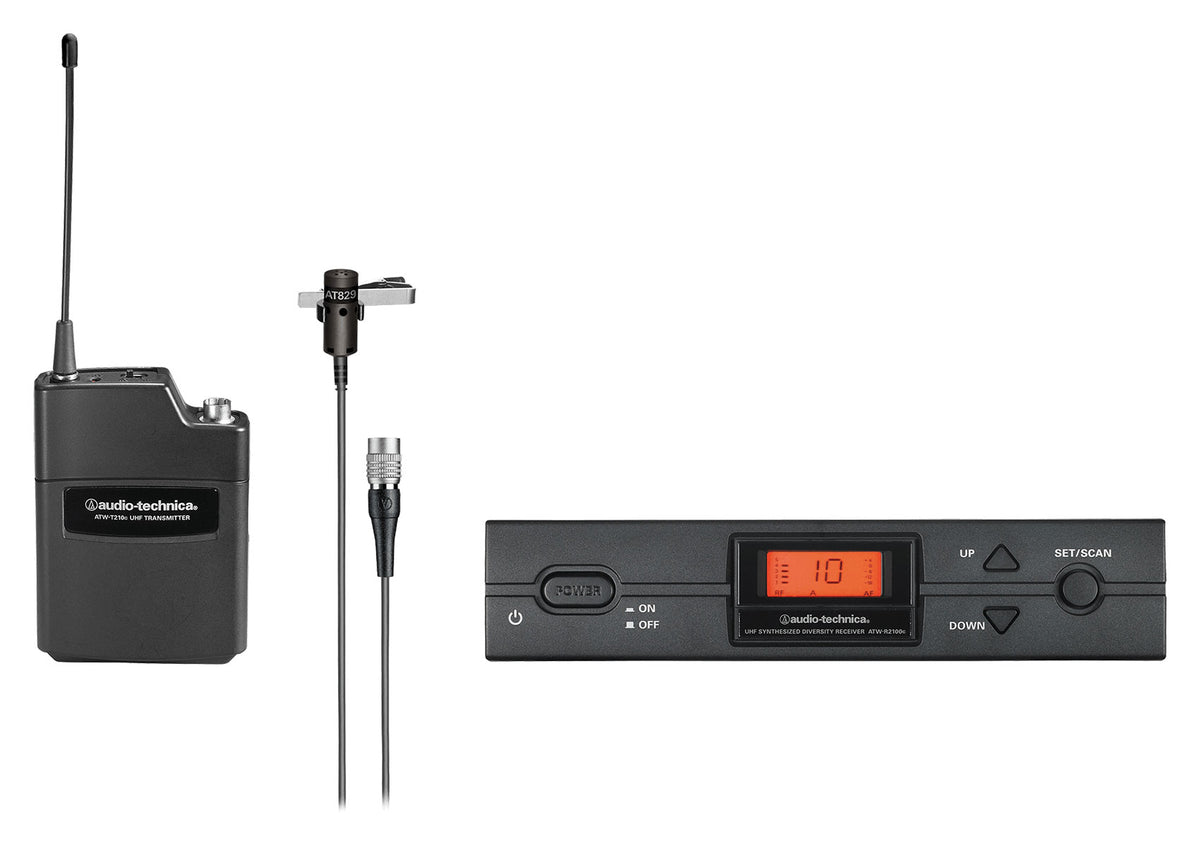

What's Included in the box

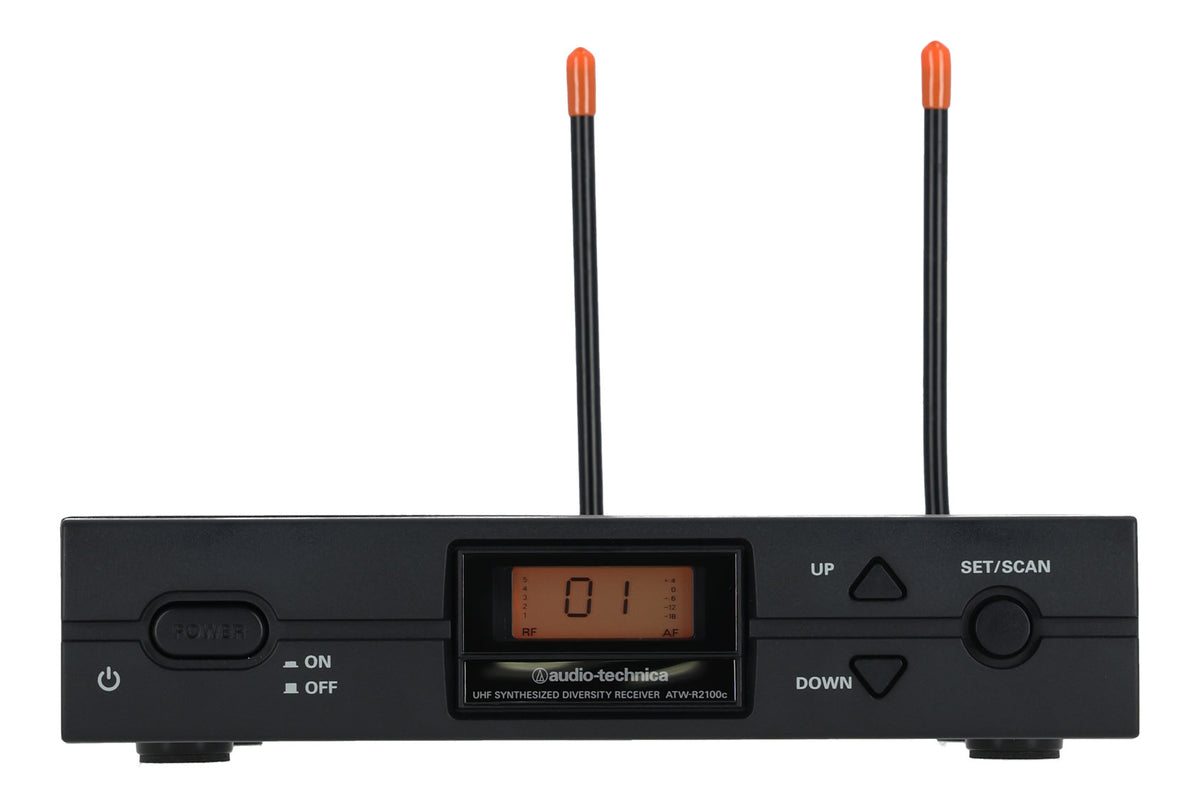

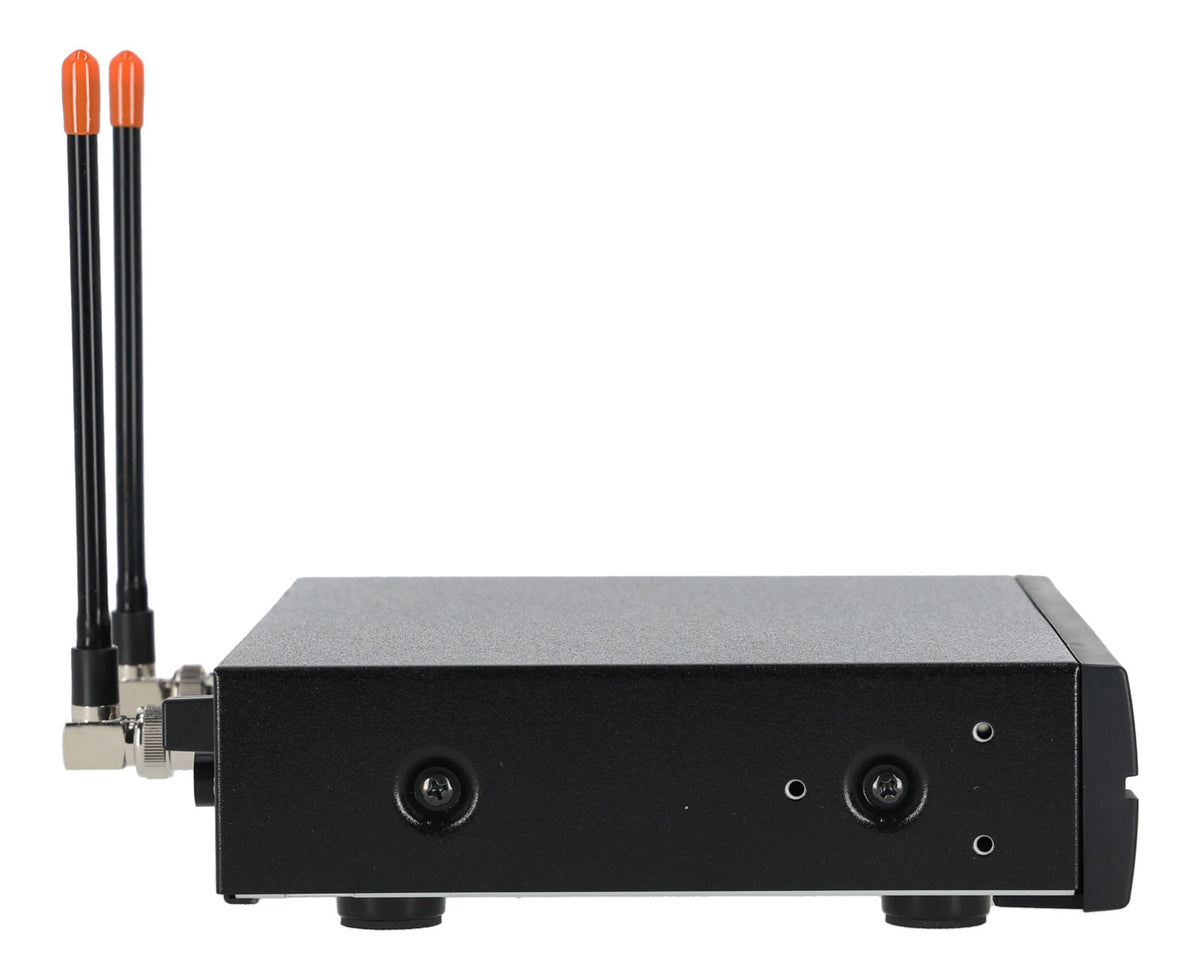

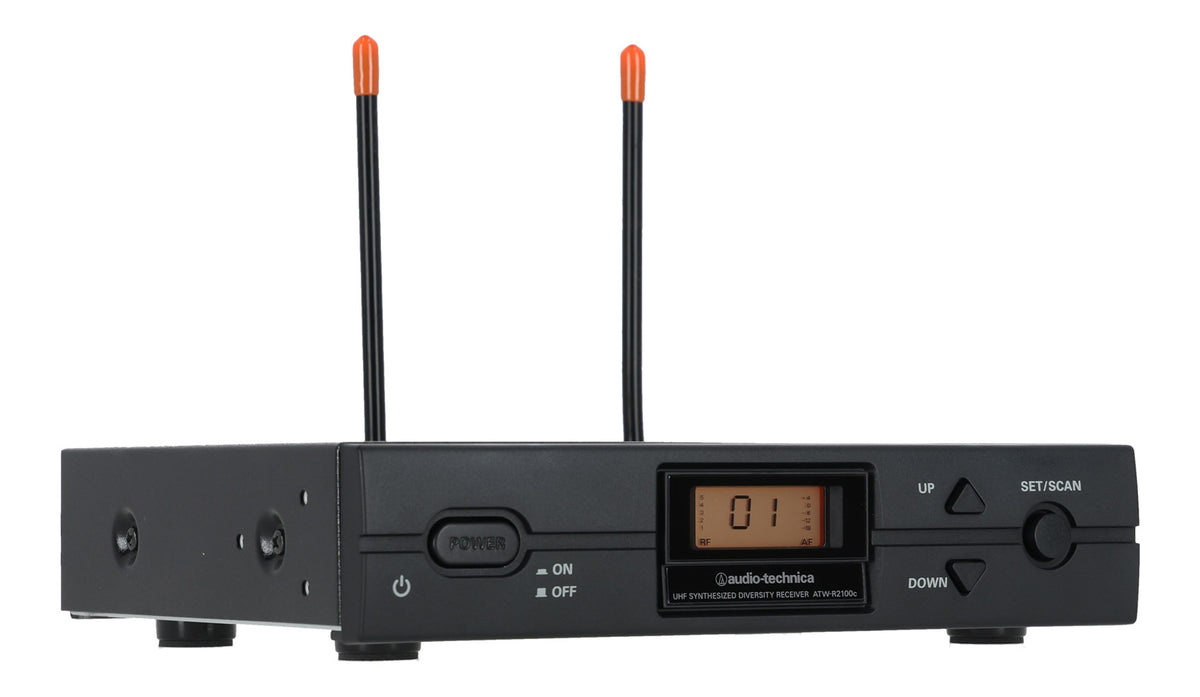

- ATW-R2100c Receiver

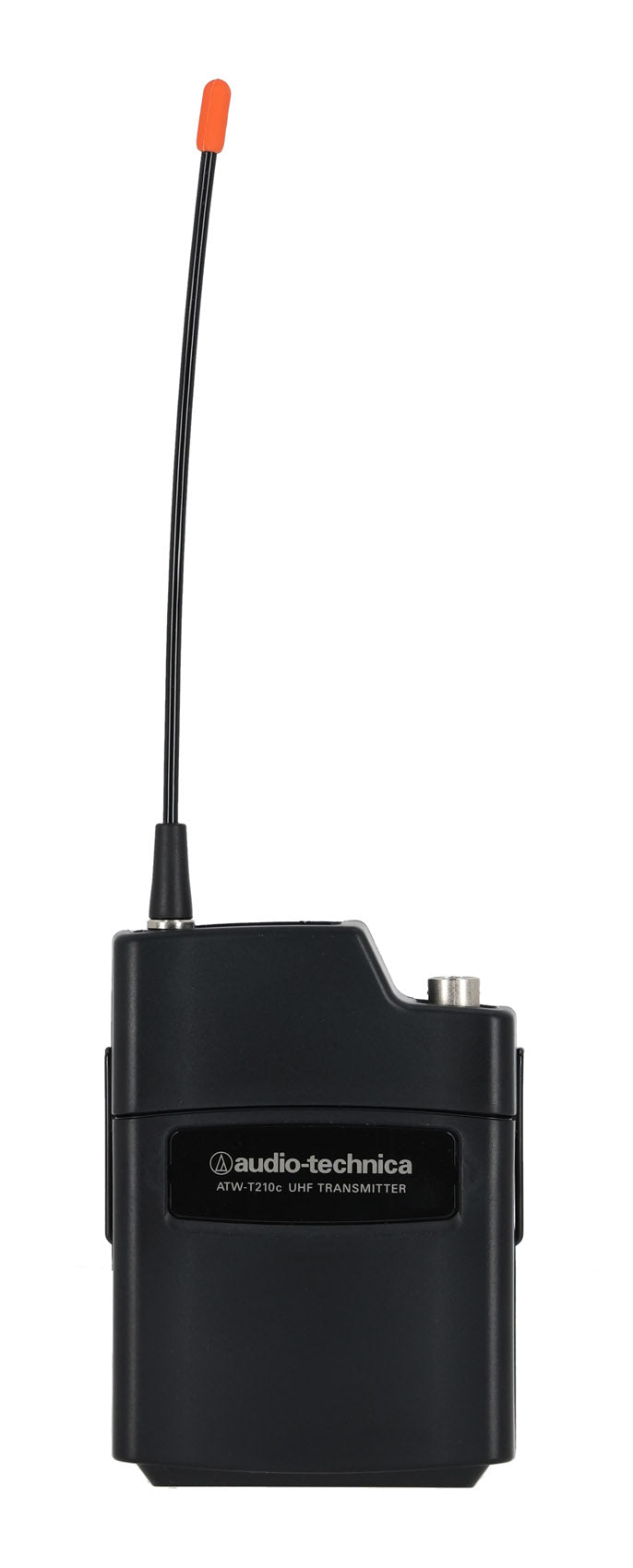

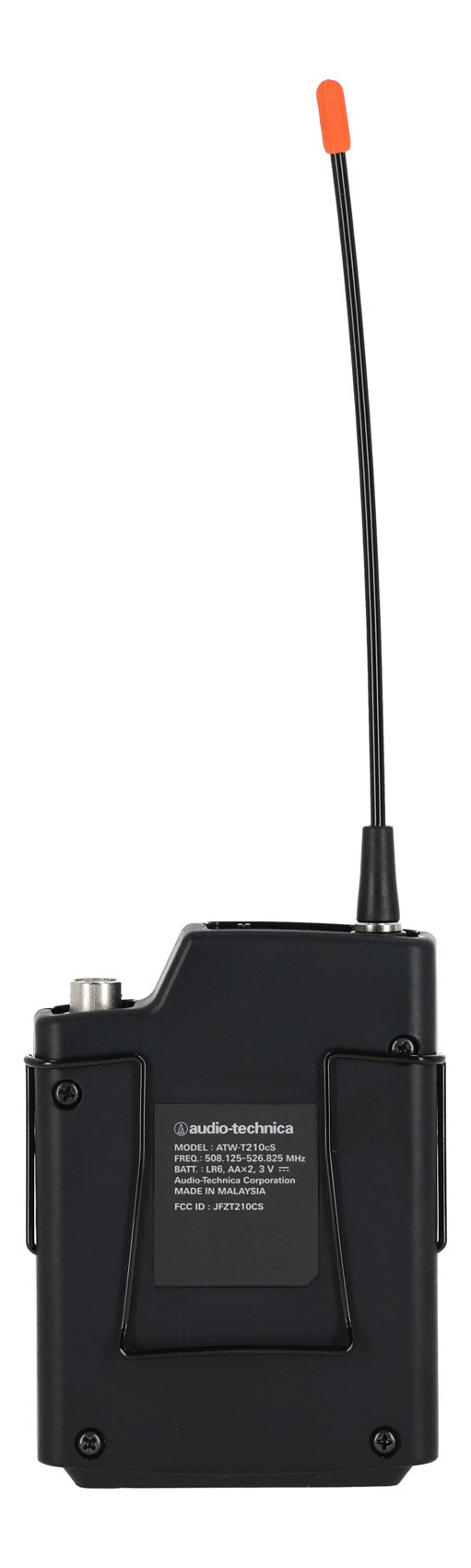

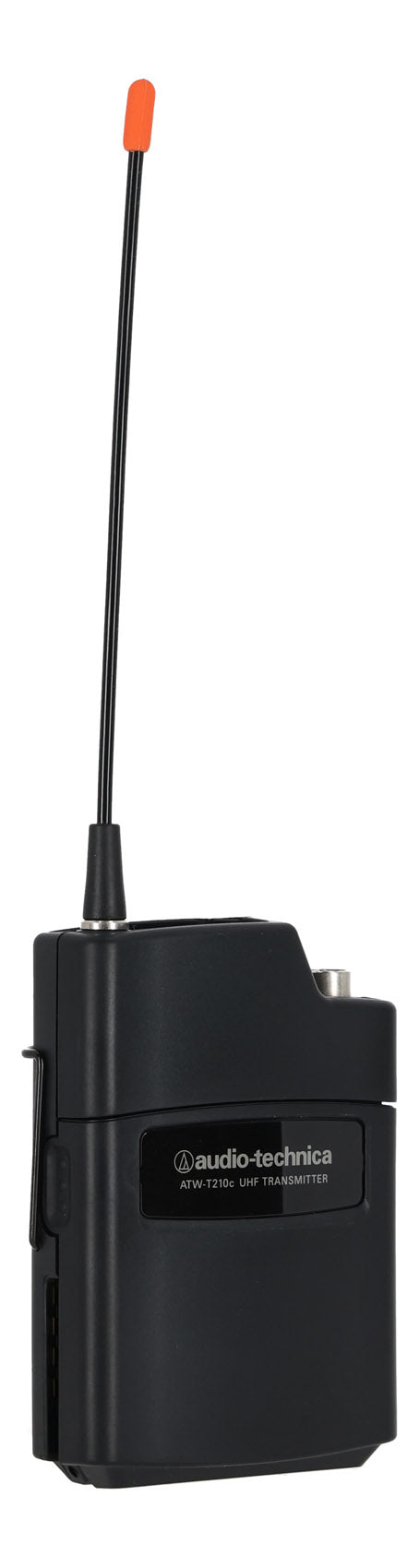

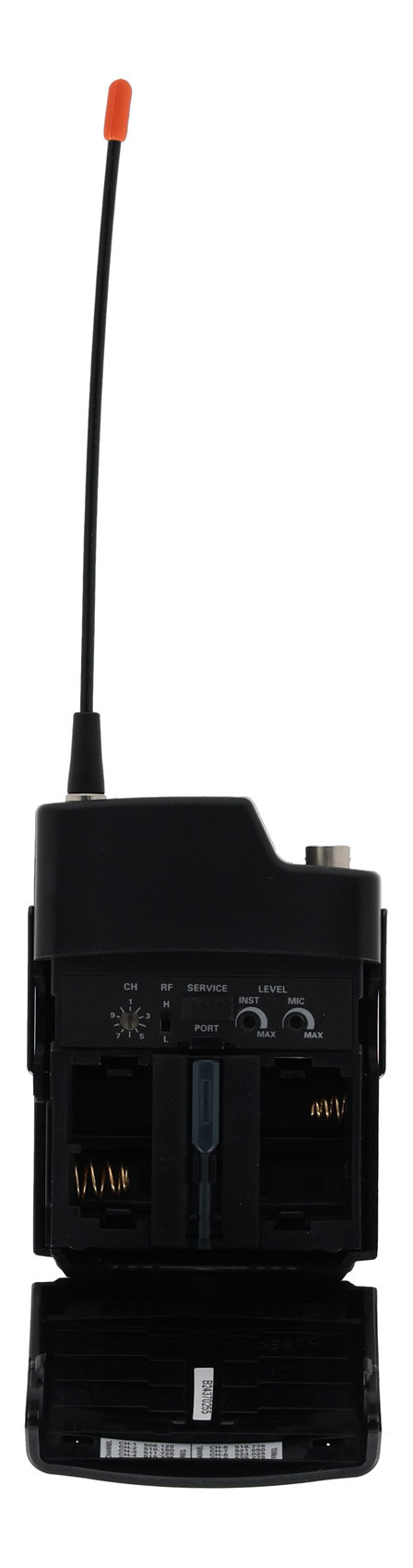

- ATW-T210c Body-Pack Transmitter
- AT829cW Lavalier Microphone
- Two Flexible UHF Antennas
- AC Adapter
- Rack-Mount Adapters
SKU: SKU: ATW-2129CS
View full details











Product Description
A lavalier keeps both hands free and holds a consistent distance from the mouth, so level stays even whether the speaker turns to a whiteboard or walks the aisle. The body-pack weighs 81 g without batteries and clips to a belt or waistband without pulling.
True diversity reception uses two antennas and continuously selects the stronger signal, holding audio steady across a typical 300 ft range even when the presenter turns away or moves behind an audience. Image rejection of 60 dB nominal and 20 dBuV RF sensitivity keep the channel clean, with a 100 Hz to 15 kHz response tuned for speech.
Switchable 30 mW and 10 mW RF power lets you extend range or stretch two AA batteries to 9 hours. The receiver mounts in a rack with the included adapters and outputs balanced XLR at +9 dBV or unbalanced 1/4" at +4 dBV with a 0 / -12 dB attenuator switch.
Features
-
Hands Free All Session
The AT829cW lavalier holds a consistent distance from the mouth, keeping level even as a presenter turns, writes, or walks the room.
-
Steady Signal
True diversity reception continuously selects the stronger of two antennas, keeping audio connected across a typical 300 ft range even when bodies block line of sight.
-
Light On The Belt
The body-pack weighs 81 g without batteries and measures 2.60" x 0.89" x 3.63", so it clips on without pulling at clothing.
-
Range Or Runtime
Switchable 30 mW and 10 mW RF power lets you trade distance for battery life, reaching 9 hours from two AA alkalines on the low setting.
-
Rack Ready
Rack-mount adapters ship in the box, and balanced XLR plus unbalanced 1/4" outputs with a -12 dB attenuator match any console.
Technical Specifications
- Product Type UHF Wireless Lavalier Microphone System
- Operating Frequencies Band S: 508.125 to 526.825 MHz
- Modulation Mode FM
- Maximum Deviation +/-40 kHz
- Frequency Response 100 Hz to 15 kHz (+1 dB, -3 dB)
- Operating Range 100 m (300 ft) typical, open range with no interfering signals
- Total Harmonic Distortion < 1% (at 1 kHz, +/-20 kHz deviation)
- Operating Temperature Range 41 F to 113 F
- Number Of Channels 10 total
- Receiving System True diversity
- Image Rejection 60 dB nominal, 55 dB minimum
- RF Sensitivity 20 dBuV at 60 dB S/N ratio (50 ohms termination)

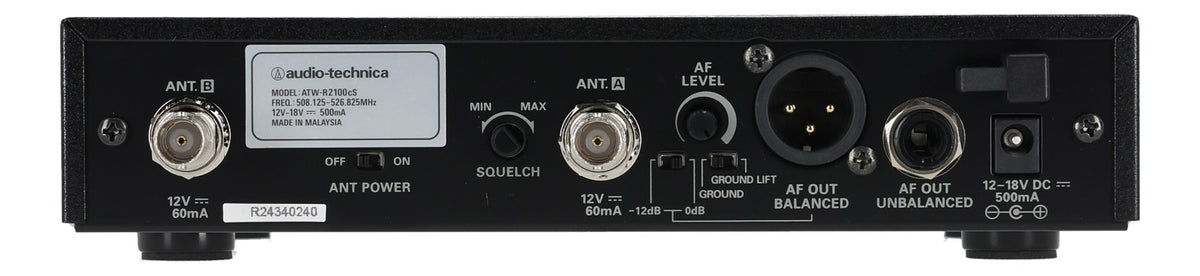

- Maximum Output Level XLR balanced: +9 dBV; 1/4" unbalanced: +4 dBV
- Antenna Input BNC-type, 50 ohms, bias voltage 12V DC, 60 mA each
- Power Requirements 12-18V DC, 500 mA
- Audio Output Attenuator Two position switch: 0 / -12 dB
- Body-Pack RF Power Output High: 30 mW; Low: 10 mW (switchable), at 50 ohms
- Body-Pack Battery Type Two 1.5V AA alkaline or two 1.2V AA NiMH (not included)
- Body-Pack Battery Life High: 7 hours; Low: 9 hours (alkaline)
- Body-Pack Input Connections Four-pin locking connector, DC bias +9V
- Weight 2.2 lb (1.0 kg) receiver without accessories; 0.18 lb (81 g) body-pack transmitter without batteries
- Dimensions 8.27" W x 6.39" D x 1.73" H (receiver); 2.60" W x 0.89" D x 3.63" H (body-pack transmitter)
