MS Stereo Condenser Mic, 40-20,000 Hz, Includes Boundary Housing, 5" Gooseneck, Clip-On Mount, Power Module, Case
Free Shipping
Features
- Independent cardioid and figure-of-eight condenser elements in one capsule
- Switchable MS, wide stereo, and narrow stereo output modes
- Boundary housing with magnetized base plate and four screw-mount holes
- AT8490 5" gooseneck and AT8491UC clip-on mount with 1/4" camera thread
- AT8547 power module with switchable 80 Hz high-pass filter
Couldn't load pickup availability

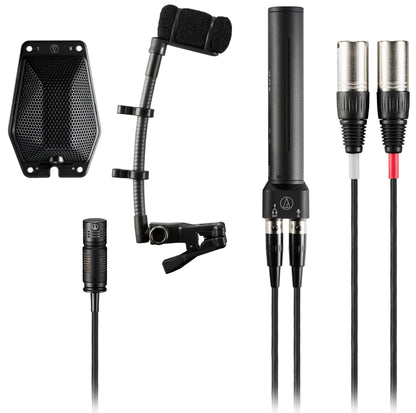

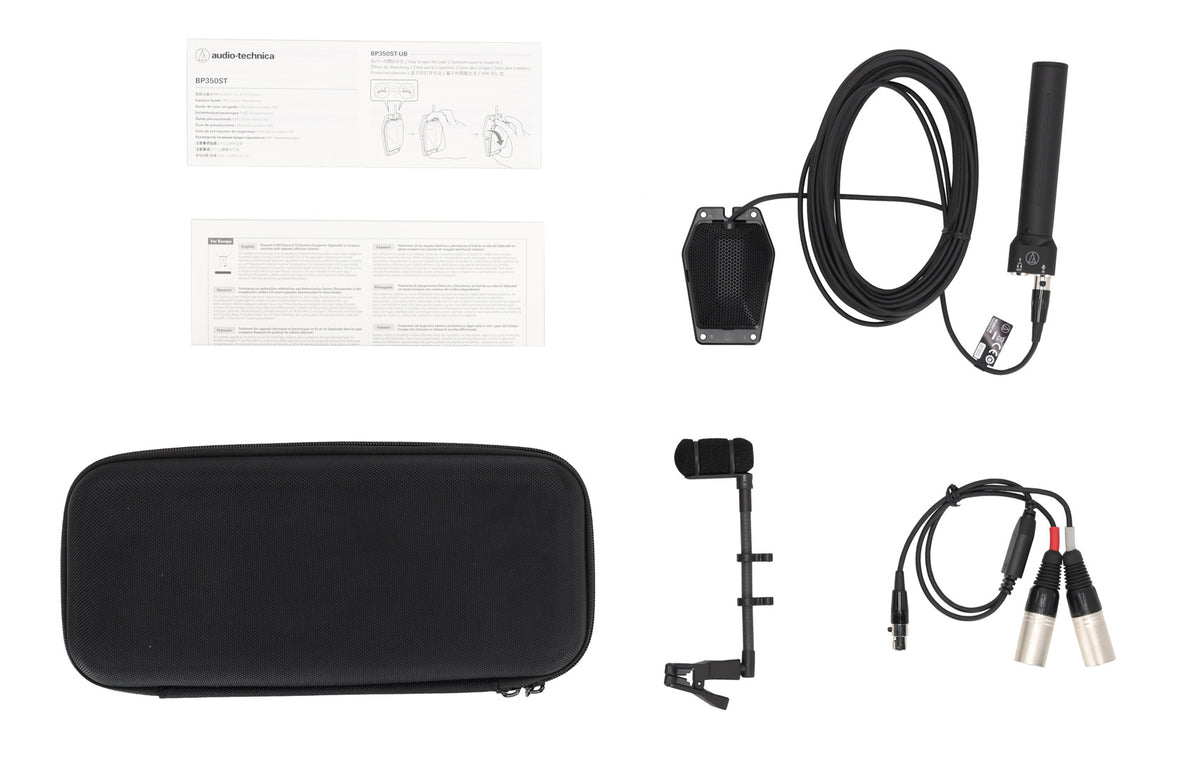

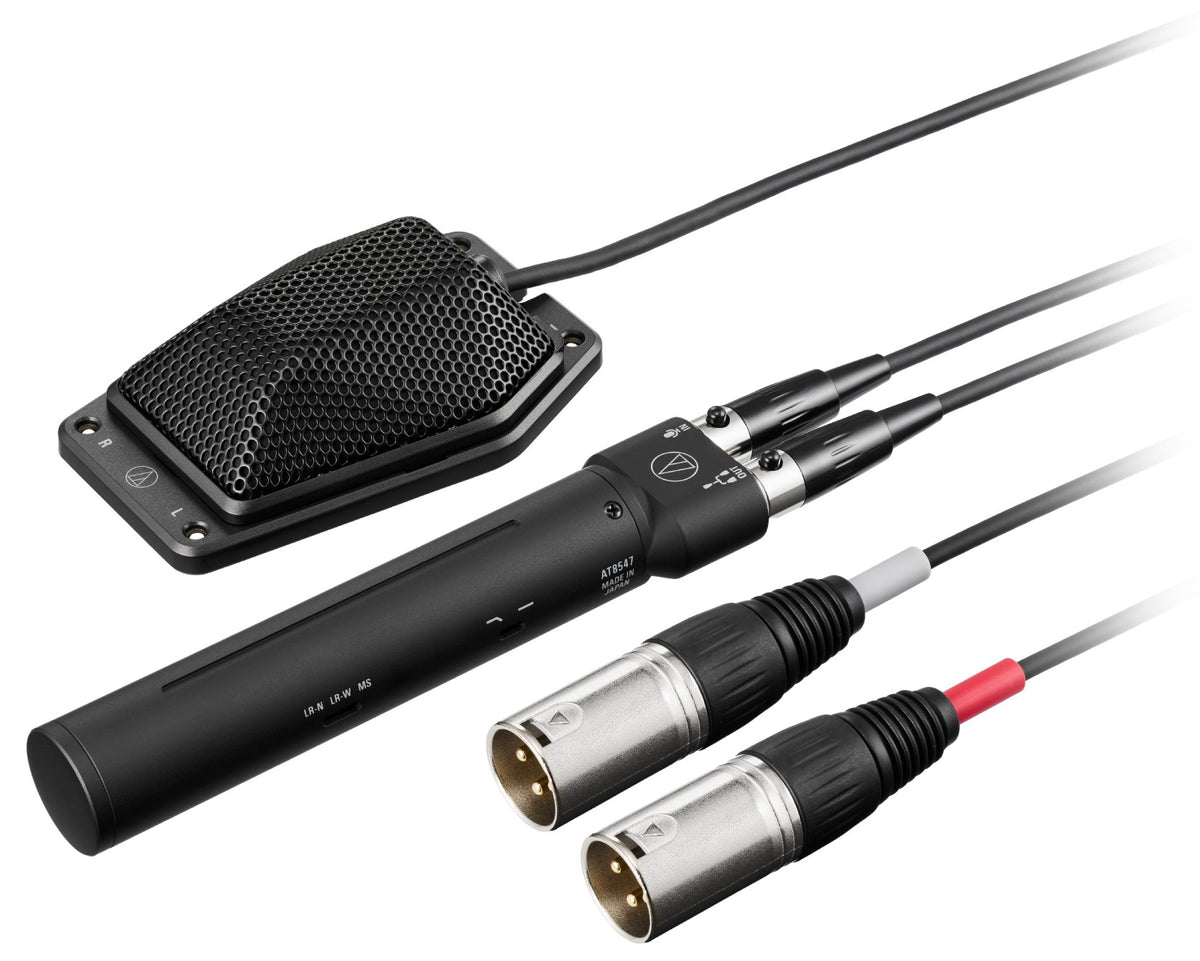

What's Included in the box
- BP350ST-UB microphone with attached 7.6 m (25') TA5F cable
- AT8494 boundary housing
- AT8490 5" gooseneck

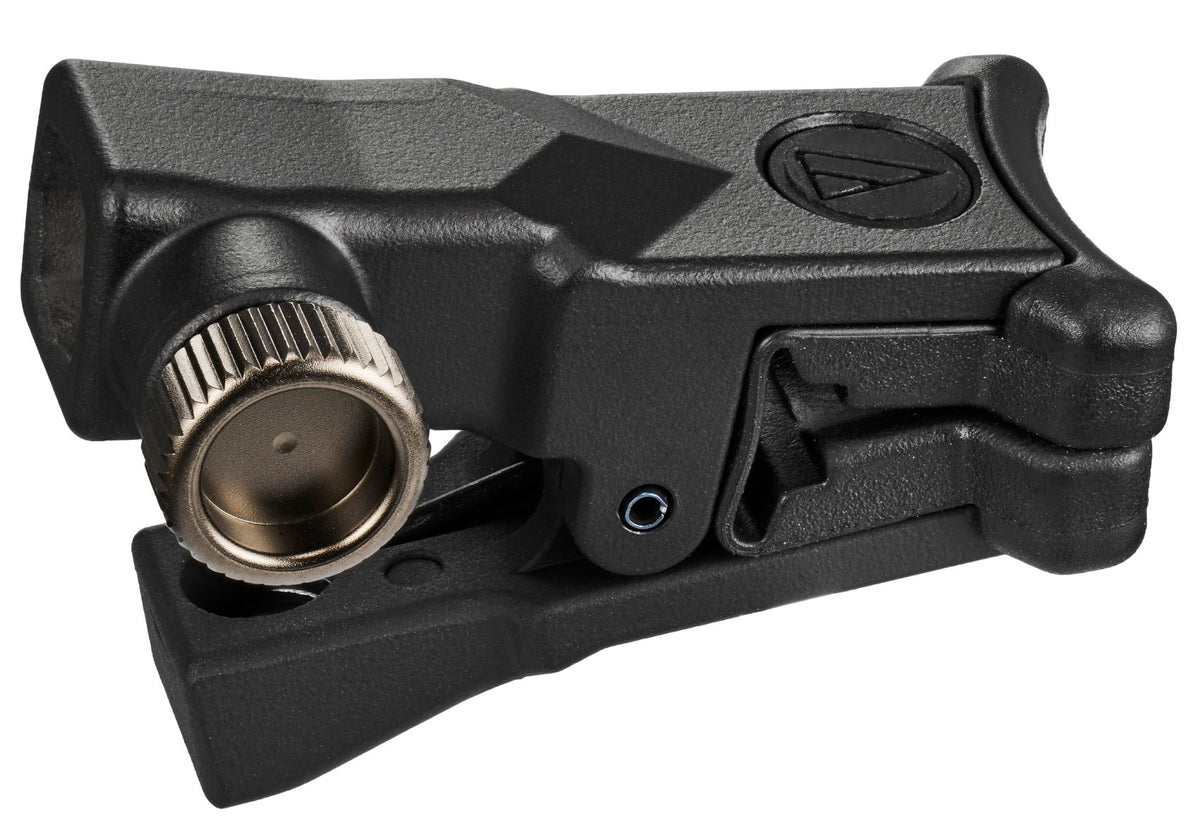

- AT8491UC universal clip-on mount
- AT8547"-line power module

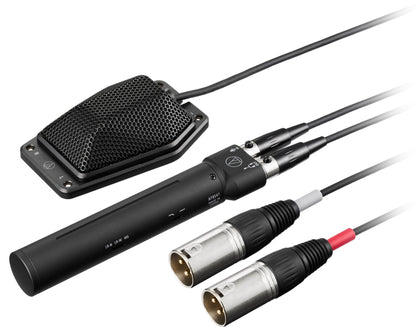

- 36 cm (14.2") TA5F to dual-XLR5-M stereo cable
- AT8418 foam windscreen

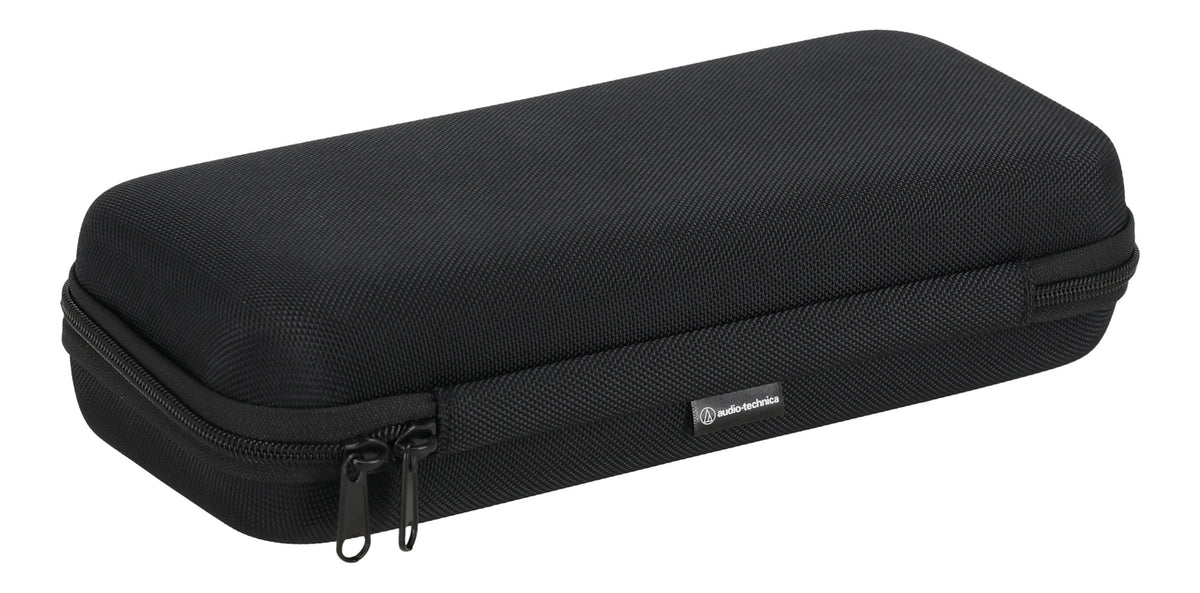

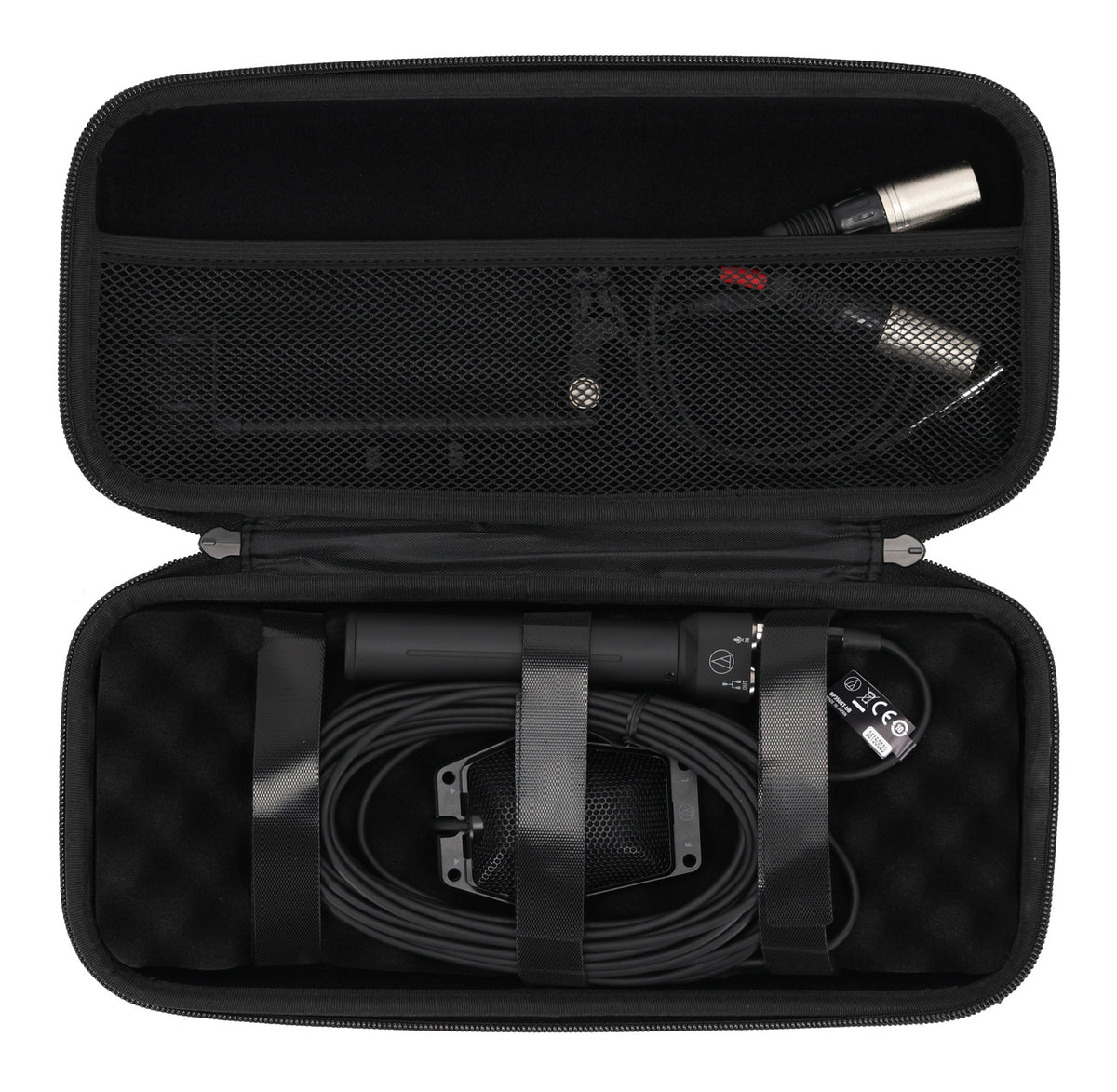

- Hard carrying case
SKU: SKU: BP350ST-UB
View full details








Product Description

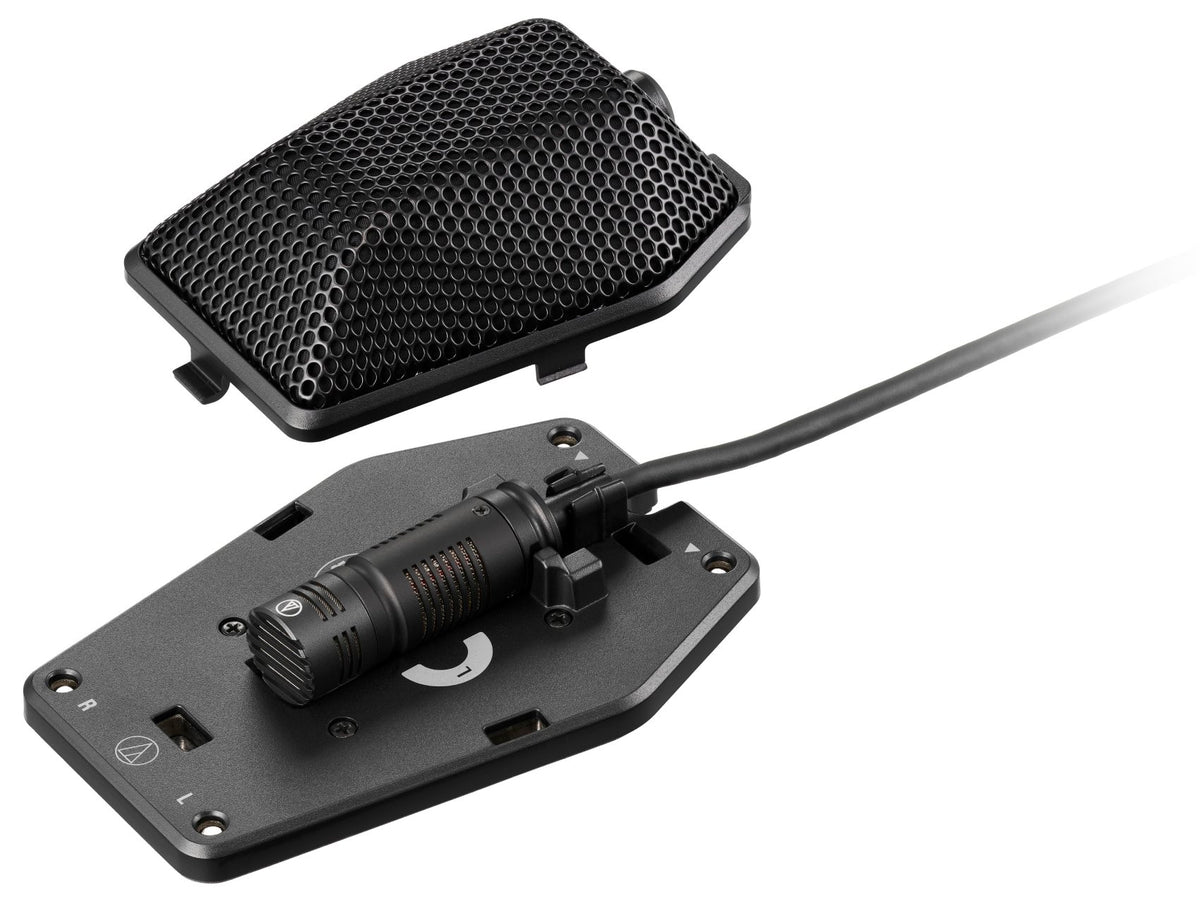

Two mounting options ship in the box, which is what makes this kit adaptable. The AT8494 boundary housing drops the mic flat against a table, stage lip, or altar rail, with a magnetized base plate for metal surfaces and four screw holes for permanent placement. The AT8490 5" gooseneck and AT8491UC clip-on mount put the same capsule close to the action on a podium, a rail, a light stand, or a tripod through the mount's 1/4" camera thread. Because the element shares the ATM350a body, every ATM350a mount and mounting system fits it too.

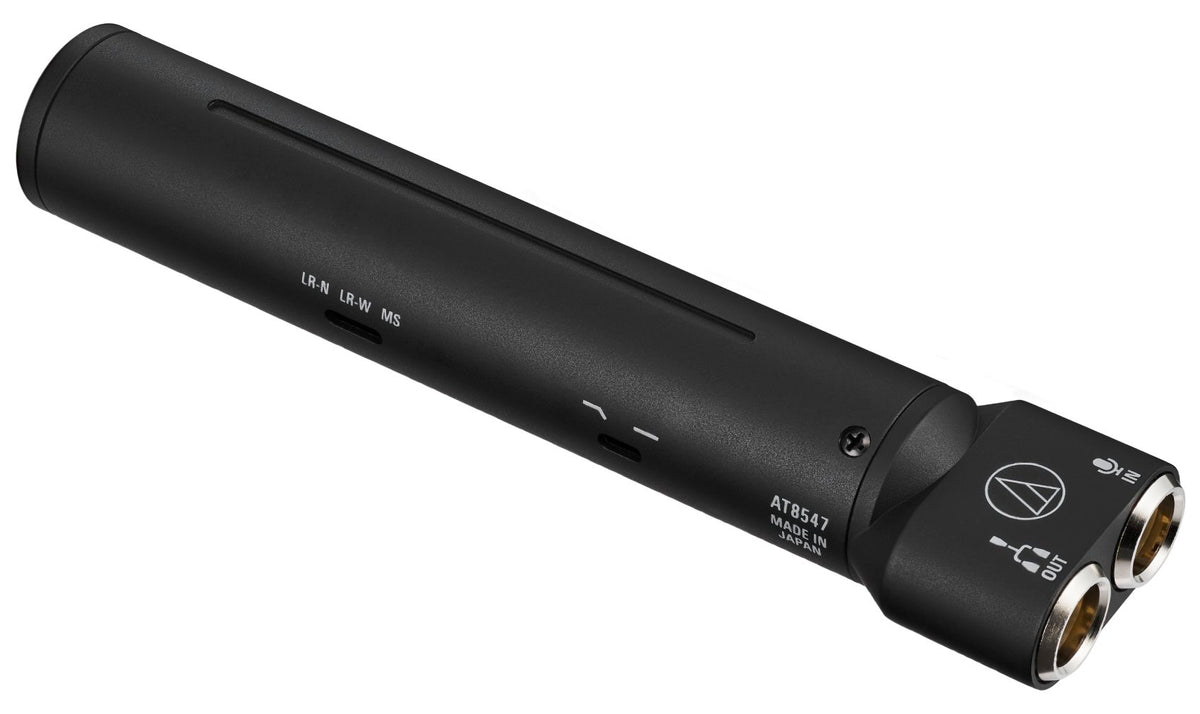

A switch on the included AT8547 power module picks between wide stereo, narrow stereo, and discrete mid-side output. Mid-side gives you stereo width you can adjust after the fact, places voices naturally in a mix, and stays intact when the two channels fold down to mono, which matters for broadcast. The two-in-one capsule also sidesteps the time alignment and comb filtering problems that come with a spaced pair. A second switch adds an 80 Hz high-pass filter to cut HVAC rumble and stage noise.
Response stays clear and well balanced at high SPLs, so the mic holds up on sporting events, press conferences, theater, studio productions, and documentary work. The permanently attached 7.6 m (25') cable terminates in a TA5F connector, and the supplied 36 cm (14.2") TA5F to dual-XLR5-M cable connects to any preamp with phantom power.
Features
-

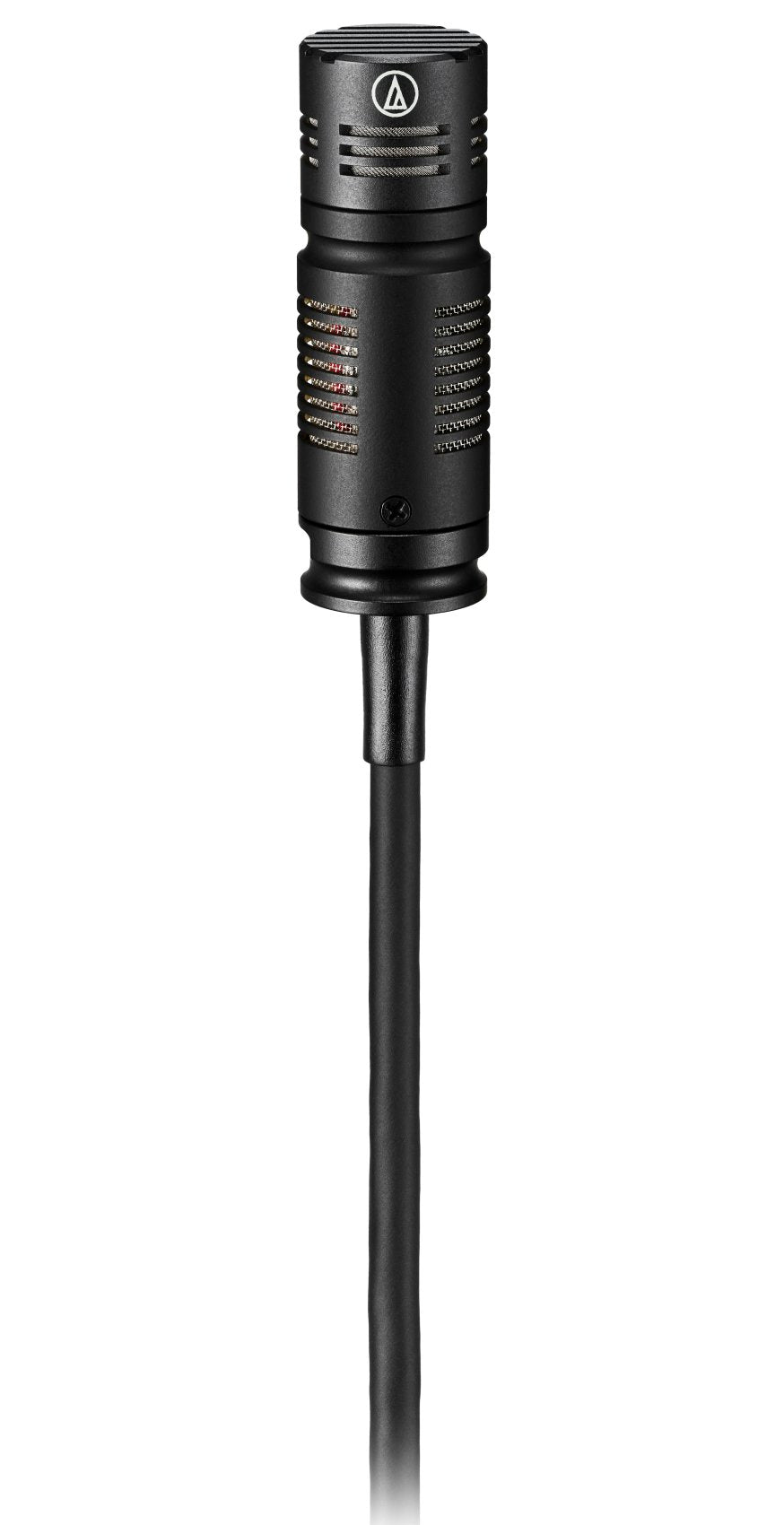

True Stereo From One Small Capsule
Cardioid and figure-of-eight elements share a 12.7 mm body, so you get wide stereo pickup from a mic that stays out of sight on camera.
-
Stereo Width You Set Later
Record discrete mid-side signals and adjust width in post, or pick wide or narrow stereo at the power module when you are going straight to air.
-
Mono Folds Down Cleanly
Mid-side output keeps its depth when both channels collapse to mono, which protects broadcast feeds and avoids the comb filtering of a spaced pair.
-
Two Mounts, Many Positions
The magnetized boundary housing sits flat on tables and stage lips, while the 5" gooseneck and clip-on mount put the capsule close to the source.
-
Quiet In Noisy Rooms
A switchable 80 Hz high-pass filter on the AT8547 power module trims HVAC rumble and crowd noise before it reaches your preamp.
Technical Specifications
- Product Type MS Stereo Condenser Boundary and Clip-On Microphone
- Polar Pattern Cardioid and figure-of-eight
- Element Fixed-charge back plate, permanently polarized condenser
- Frequency Response 40 to 20,000 Hz
- Low Cut 80 Hz, 18 dB/octave
- Open Circuit Sensitivity MID: -33.5 dB (21.1 mV); SIDE: -35 dB (17.8 mV); L/R: -39.5 dB (10.6 mV)
- Impedance 50 ohms
- Maximum Input Sound Level MID: 148 dB SPL; SIDE: 149.5 dB SPL (1 kHz at 1% THD)
- Dynamic Range MID: 126 dB; SIDE: 125.5 dB (1 kHz at max SPL)
- Signal-to-Noise Ratio MID: 72 dB; SIDE: 70 dB; L/R: 69 dB (1 kHz at 1 Pa, A-weighted)
- Phantom Power Requirements 48 V DC, 8.2 mA both channels total
- Switches Stereo mode selection (MS, LR-W, LR-N), Flat, Low cut
- Operating Temperature Range -10 °C (14 °F) to 60 °C (140 °F)
- Cable Length 7.6 m (25') attached main cable
- Output Connector TA5F to dual-XLR5-M
- Weight Microphone: 0.60 oz (17 g); power module: 1.7 oz (49 g); boundary housing: 3.1 oz (87 g)
- Dimensions Microphone: 1.5" long x 0.50" maximum diameter; power module: 4.9" long x 0.83" diameter
