Chauvet DJ
INTIMSPOT60ILS
INTIMSPOT60ILS

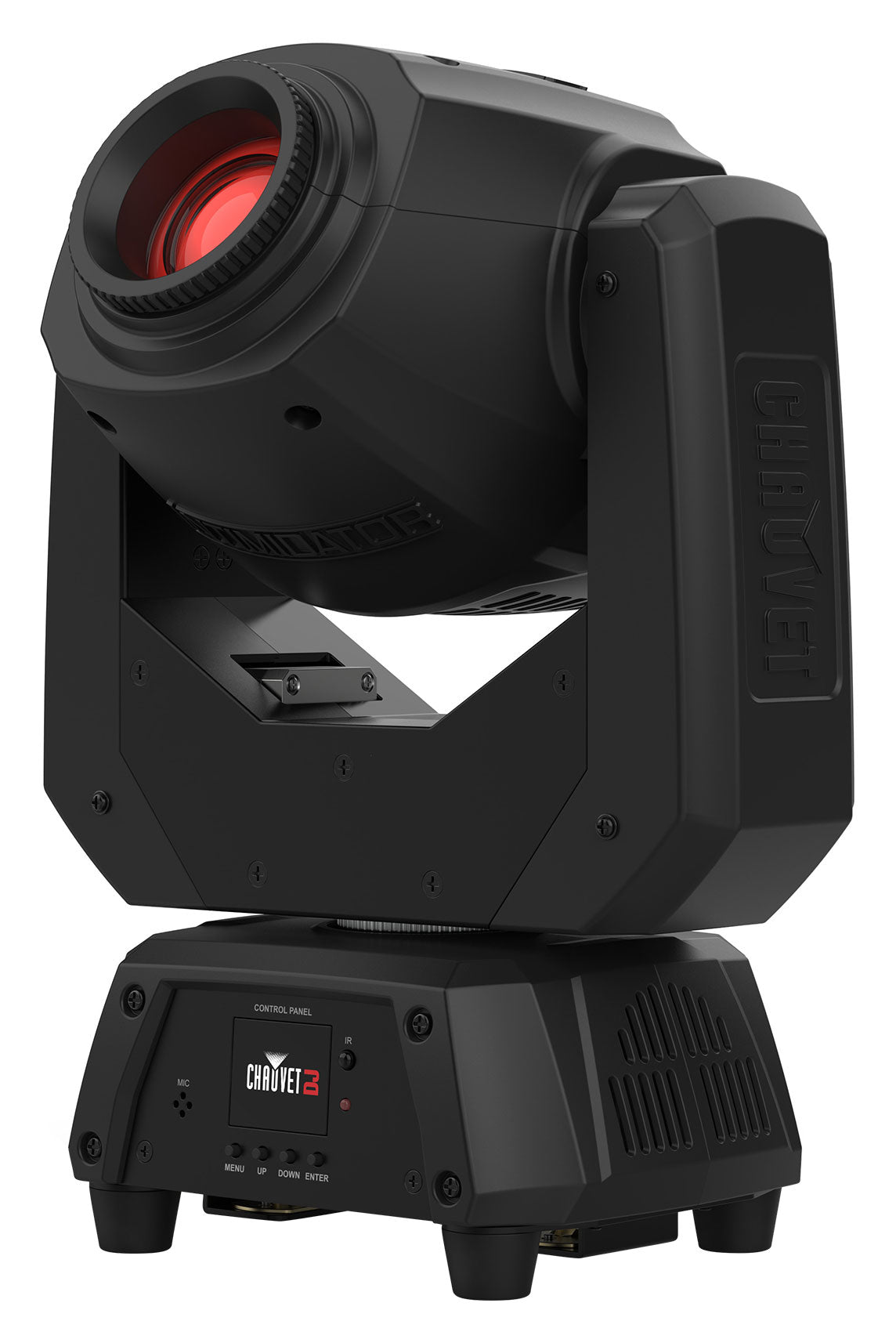

70 W LED Moving Head Spot, 15-17° Manual Zoom, 7 Gobos, ILS and D-Fi USB Compatible
Free Shipping
Features
- 70 W LED produces 10,012 lux at 2 m at the 15 degree zoom setting
- ILS compatibility syncs looks across a mixed fixture rig
- D-Fi USB compatibility adds wireless DMX control
- 7 rotating slot-and-lock gobos plus 8 colors and open
- Link up to 4 fixtures for synchronized Automated or Sound mode shows
Couldn't load pickup availability

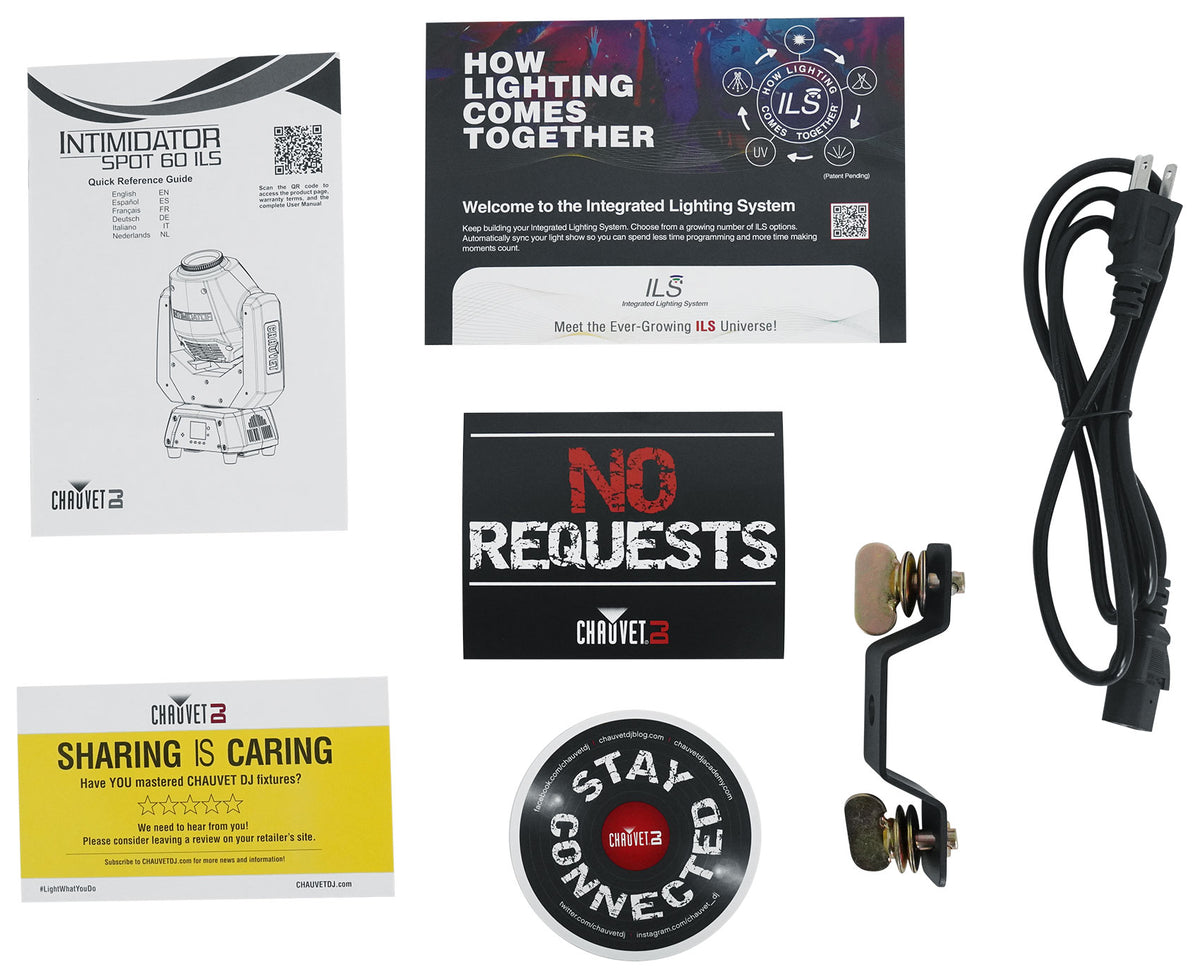

What's Included in the box
- Intimidator Spot 60 ILS
SKU: SKU: INTIMSPOT60ILS
View full details










Product Description
Features
-
Coordinated Multi-Fixture Shows
ILS compatibility syncs this mover with other ILS fixtures automatically, so a mixed rig runs matching looks without channel-by-channel programming.
-
Wireless Data Option
D-Fi USB compatibility sends DMX over the air, removing cable runs across a dance floor or between the stage and the booth.
-
Small Enough To Solo Load
At 11.2 lb and 8.2 x 5.9 x 12 in, several fixtures fit one gear bag, and a quarter-turn bracket takes them down in seconds.
-
Adjustable Throw
Manual zoom from 15 to 17 degrees with motorized focus keeps gobos crisp whether the truss sits close to the floor or across a wide room.
-
Cleaner Cue Starts

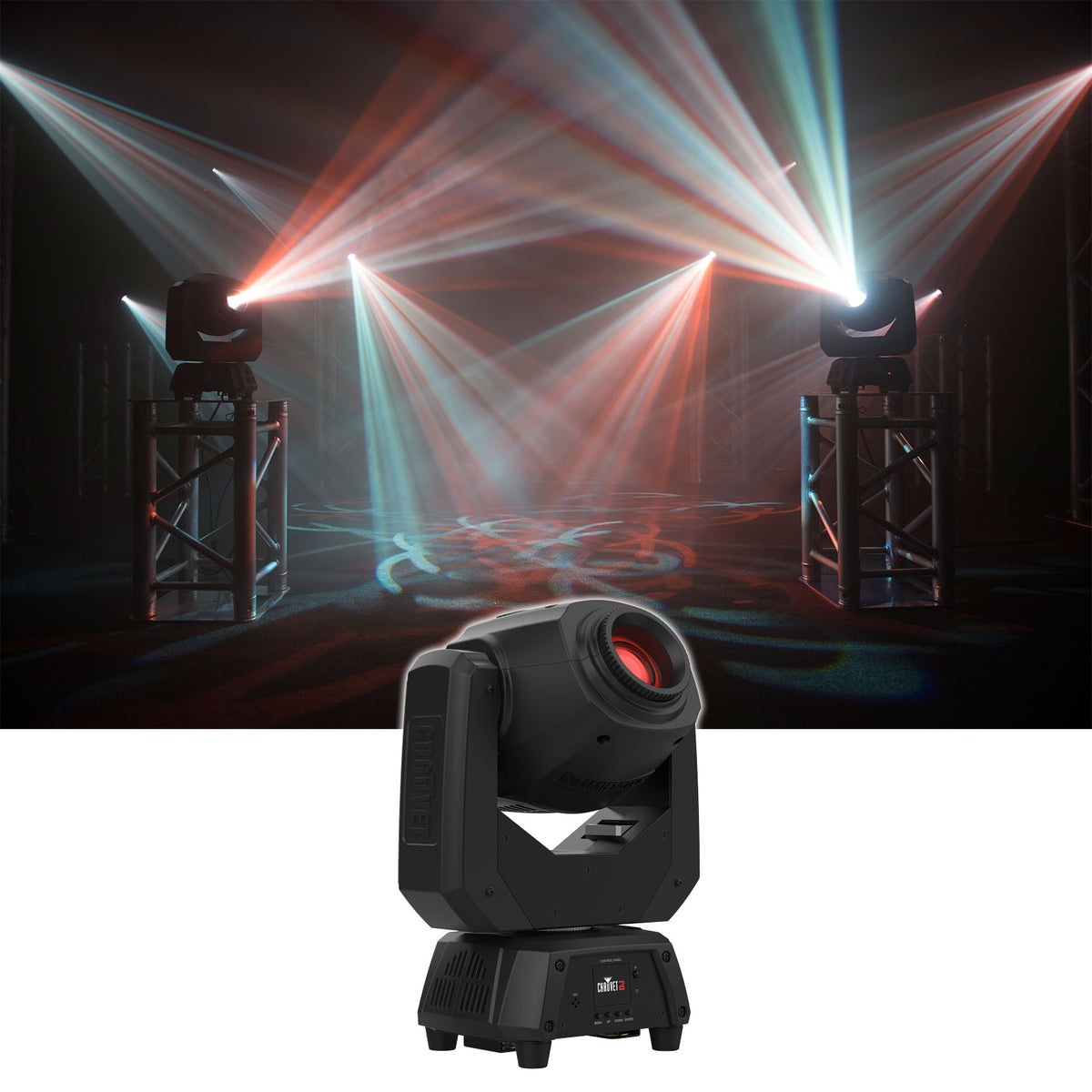

A new home position removes the whip-around rotation at the top of a look, and Totem mode holds beams over the dance floor.
Technical Specifications
- Product Type LED Moving Head Spot Light
- DMX Channels 8, 10, or 14

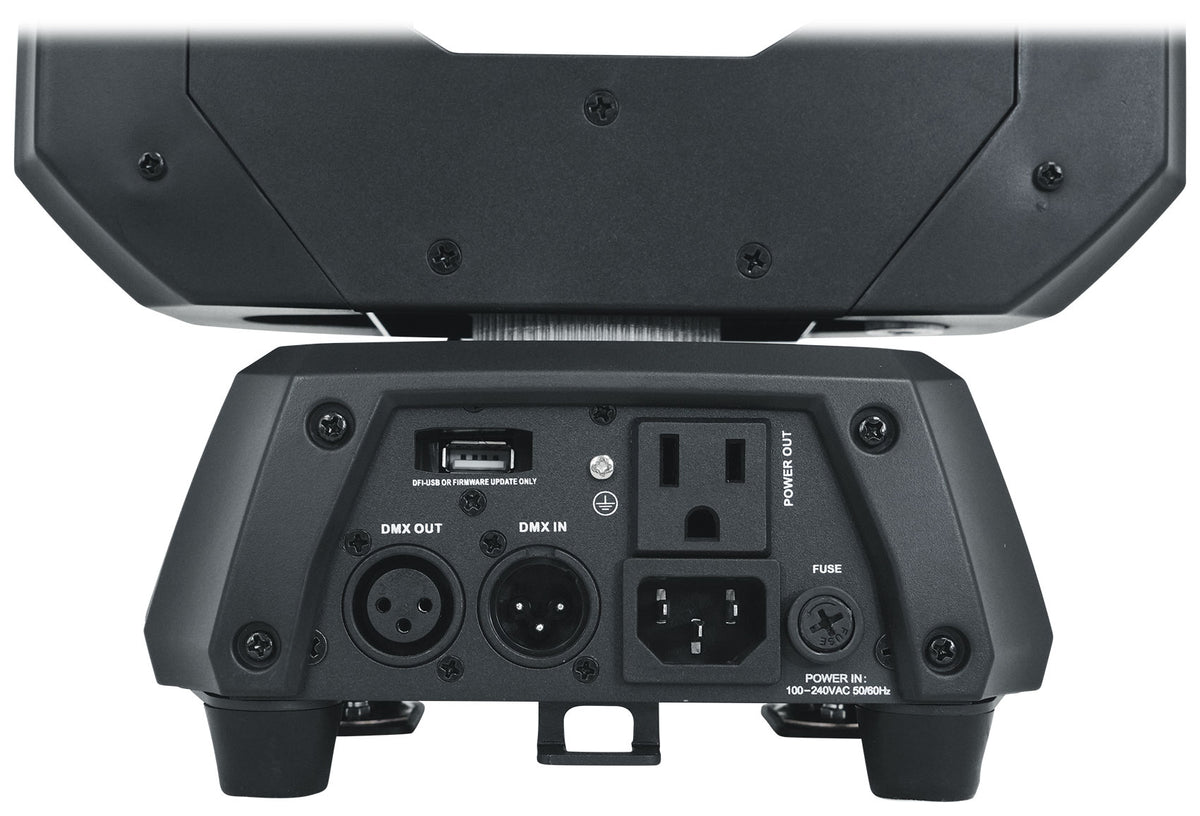

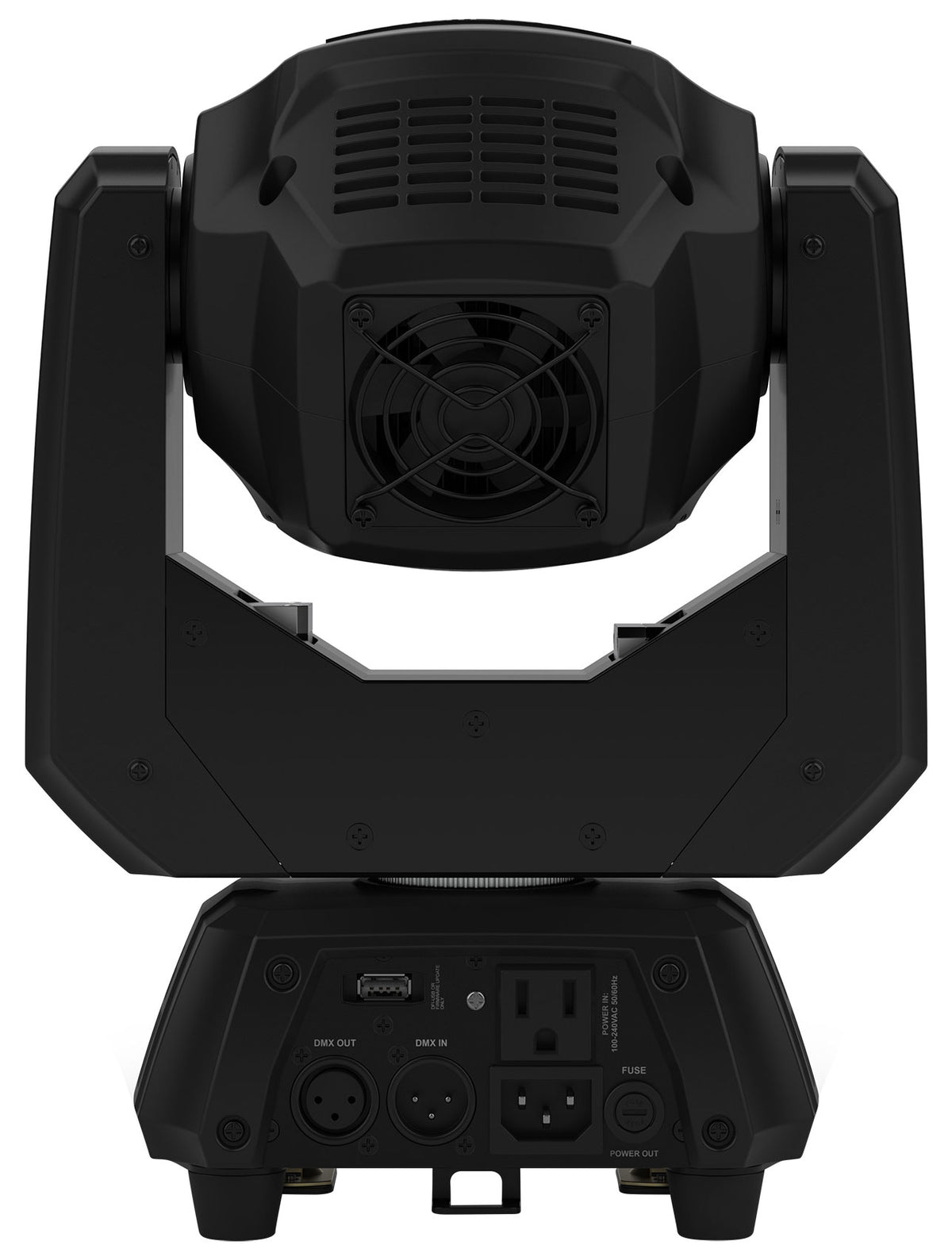

- DMX Connectors 3-pin XLR
- Pan and Tilt 540 degrees / 240 degrees
- Pan and Tilt Ranges 180, 360, 540 degree pan / 90, 180, 240 degree tilt
- Colors 8 + open, split colors, continuous scroll at variable speeds
- Gobos 7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock
- Prism 3-facet round static
- Light Source 1 LED (cool white) 70 W, 3.3 A, 50,000 hours life expectancy
- Zoom Angle (Manual) 15 to 17 degrees
- Illuminance 10,012 lux @ 2 m (15 degrees); 7,792 lux @ 2 m (17 degrees)
- Strobe Rate 0 to 20 Hz
- Color Temperature 15,000 K
- Power Linking 5 units @ 120 V; 9 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 107 W, 1.5 A @ 120 V, 60 Hz; 105 W, 1 A @ 230 V, 50 Hz
- Bracket Mounting Hole 13 mm
- Optional Controllers IRC-6
- Approvals CE, RoHS, UKCA
- Weight 11.2 lb (5.1 kg)
- Dimensions 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)
