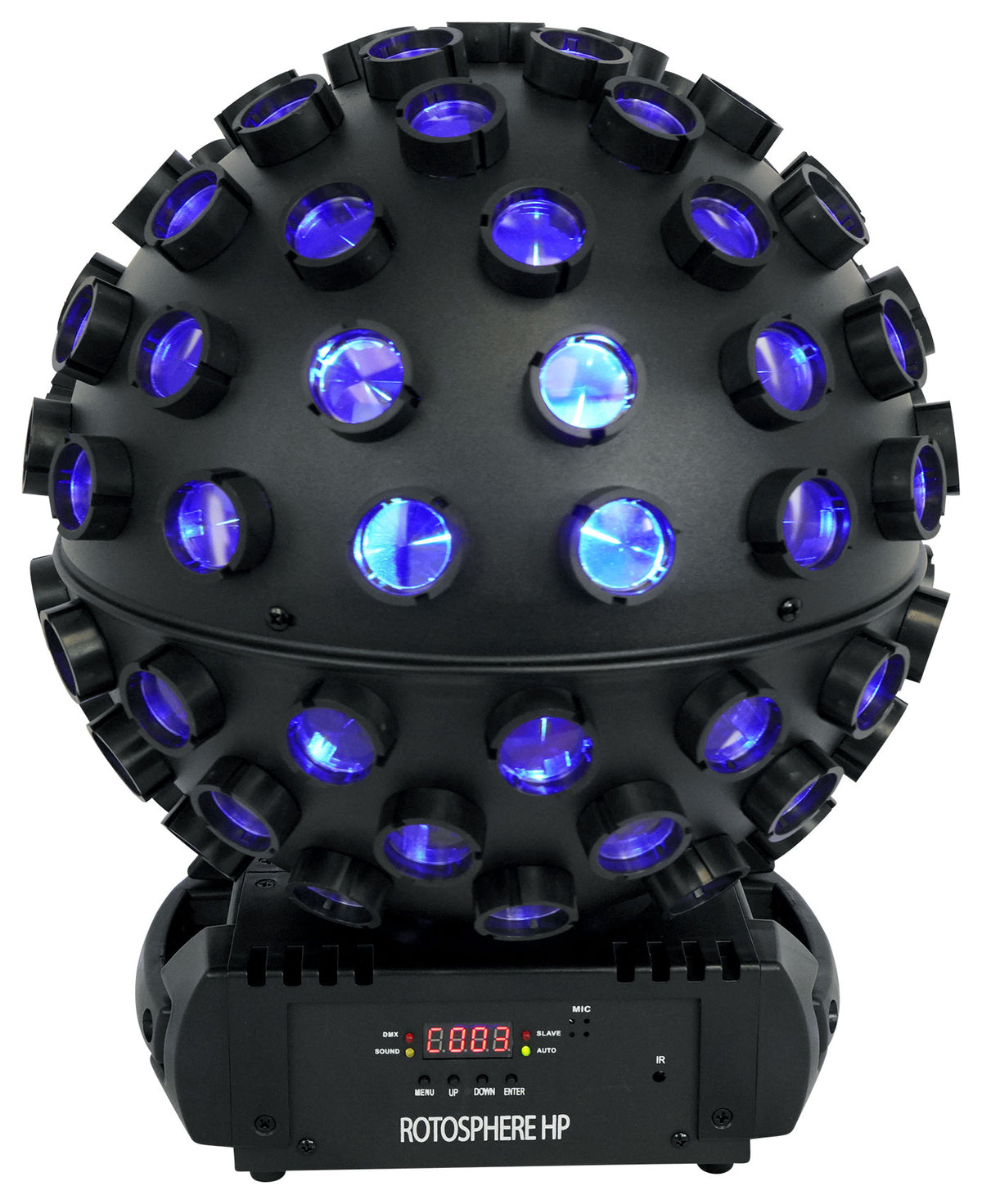

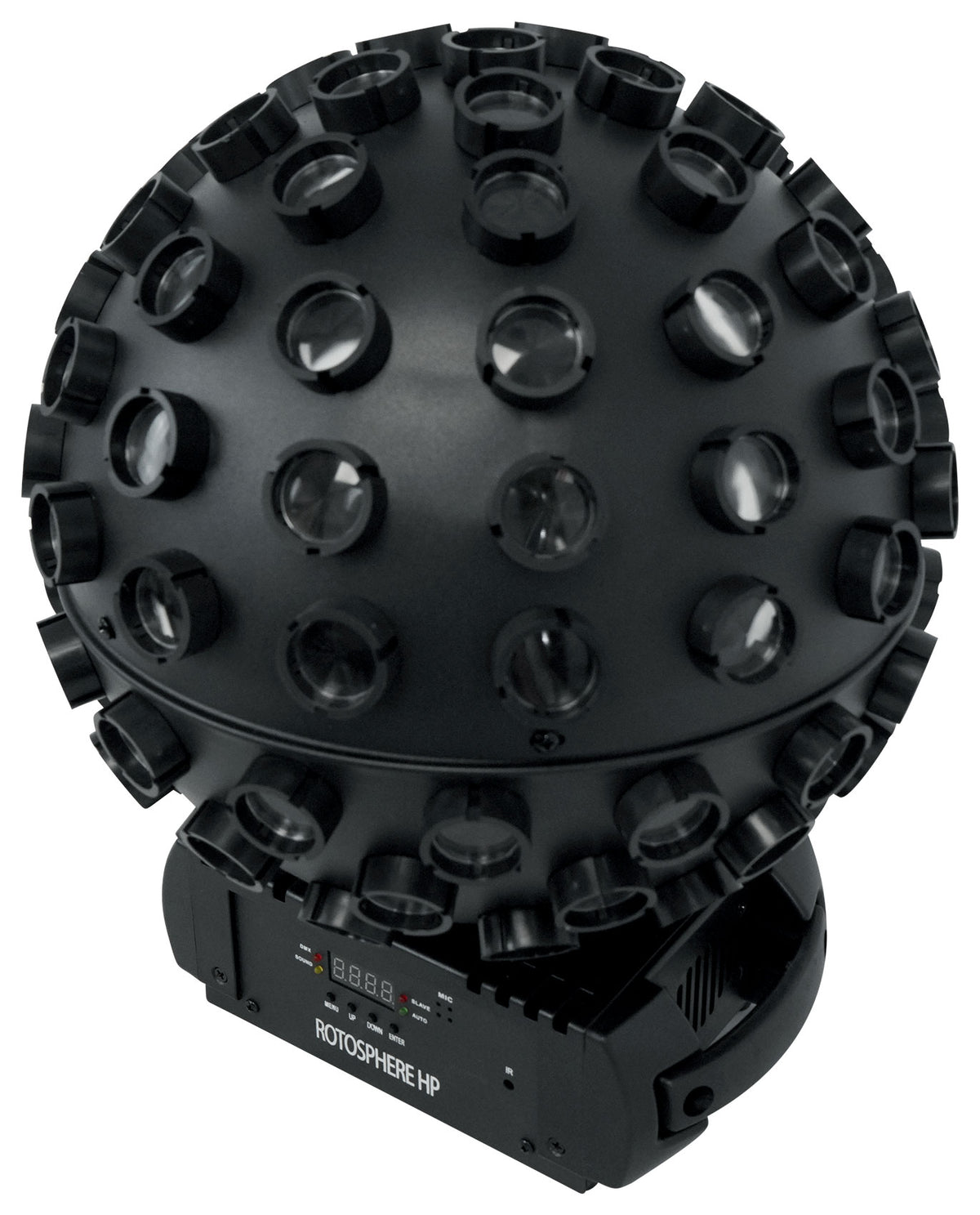

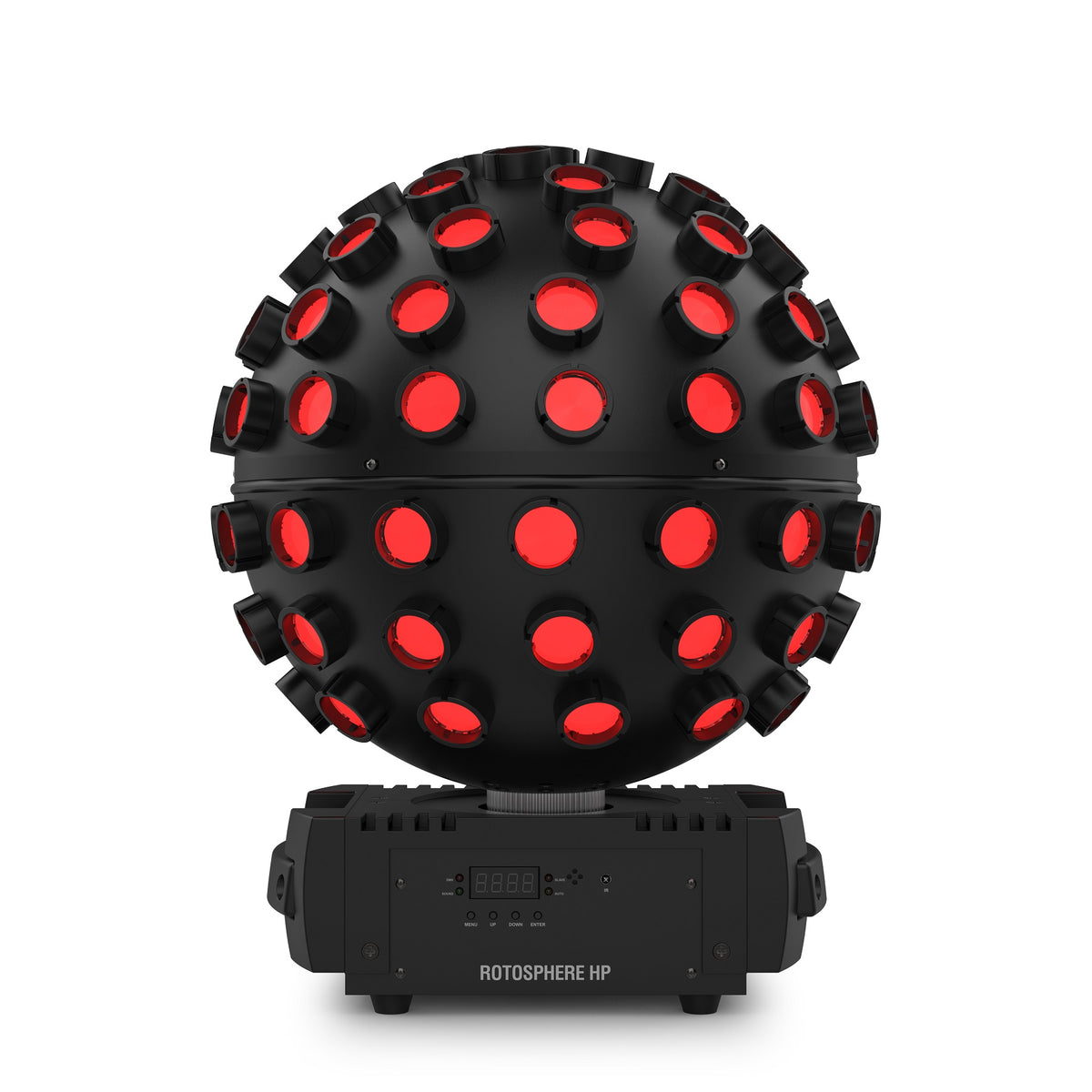

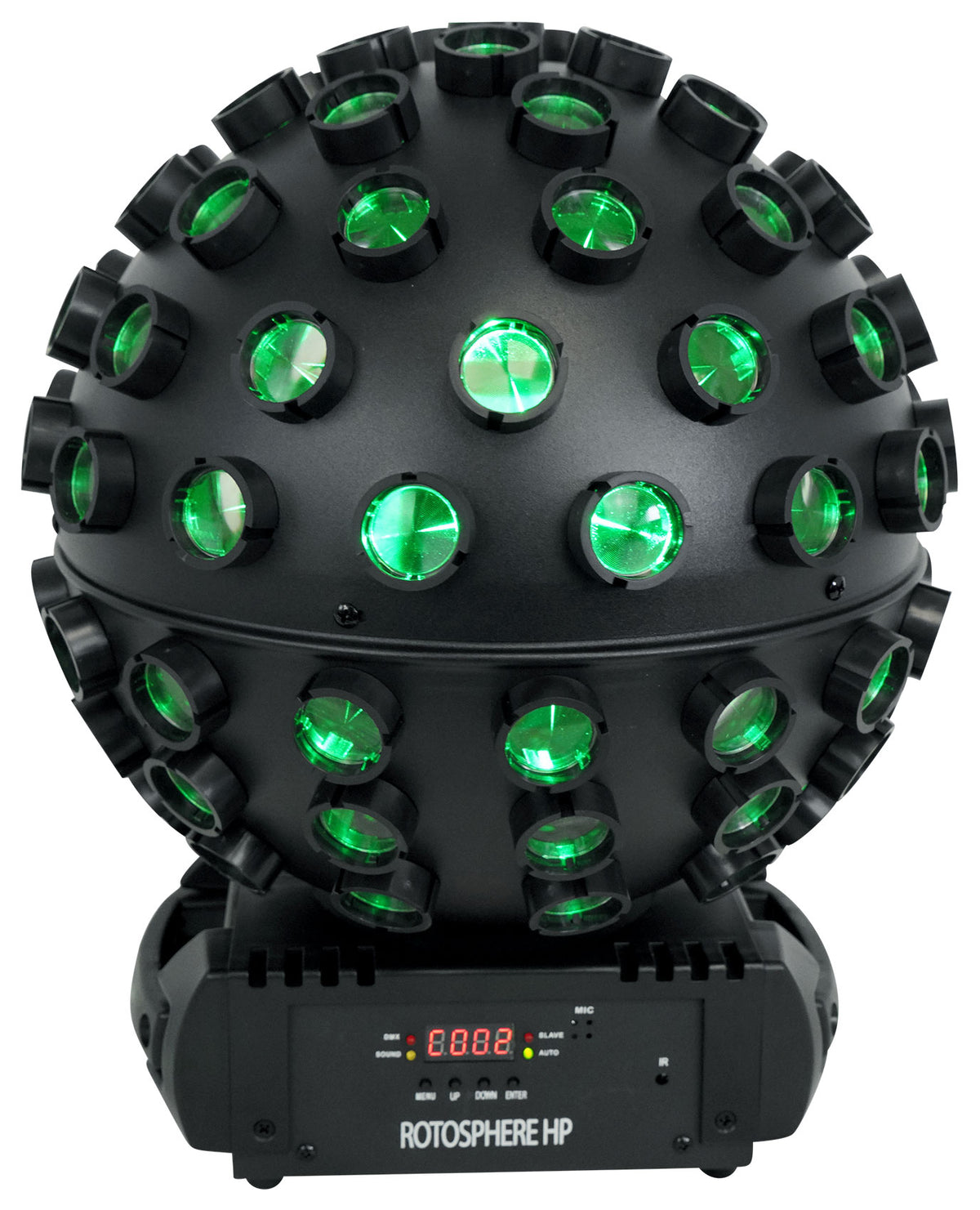

Chauvet DJ Rotosphere HP RGBW + CMYO LED DMX Rotating Mirror Ball Simulator
Chauvet DJ
Chauvet DJ Rotosphere HP RGBW + CMYO LED DMX Rotating Mirror Ball Simulator
Chauvet DJ Rotosphere HP RGBW + CMYO LED DMX Rotating Mirror Ball Simulator
High-Power LED Mirror Ball Simulator, 10 RGBW and CMYO LEDs, 360° Coverage, Mounting Bracket Included
Free Shipping
Features
- Ten LEDs in two quad-color sets, RGBW and CMYO, for wider color mixing
- 360° coverage projects rotating mirror ball beams across the room
- Rotation speed adjusts from 2 to 19 rpm for slow or fast looks

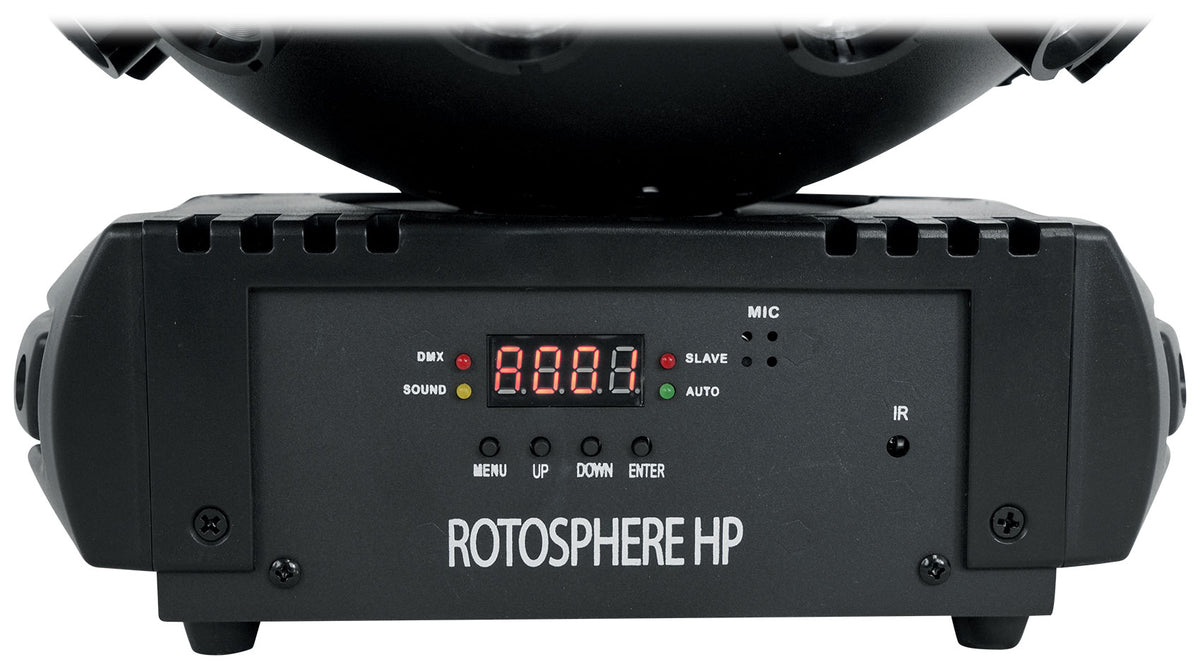

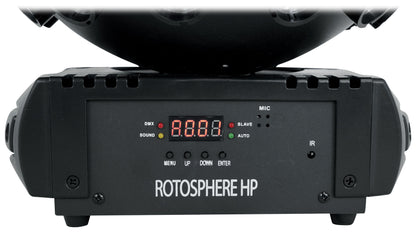

- Digital display sets color and speed with no controller connected
- Power linking runs multiple units from a single circuit
Couldn't load pickup availability

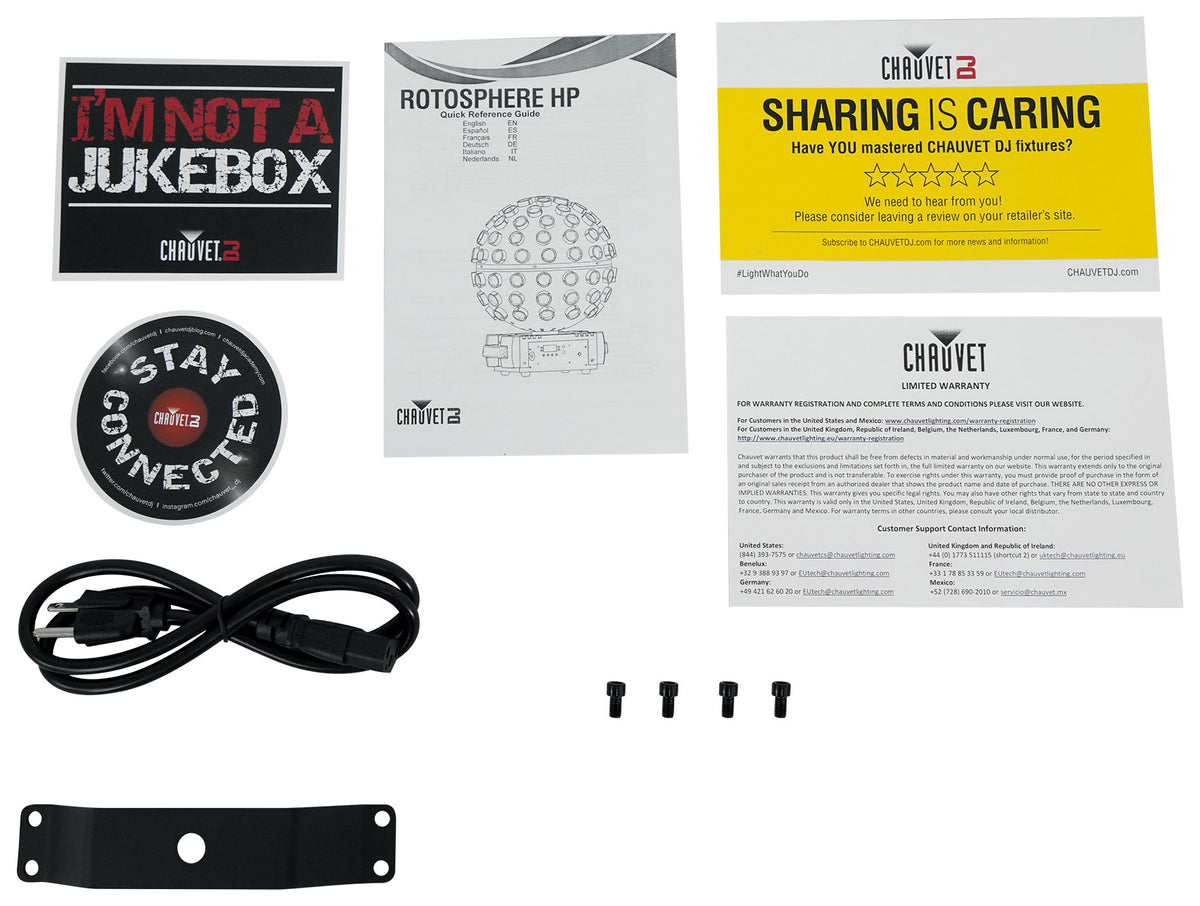

What's Included in the box
- Rotosphere HP
- Mounting bracket
SKU: SKU: Rotosphere HP
View full details








Product Description
Rotation runs from 2 to 19 rpm. At the low end the beams crawl, which suits a first dance, a dinner service or a slow scene change. At the top end it drives a dance floor. A digital display sets color and rotation speed directly on the fixture, so it can run as a standalone centerpiece with no controller attached.
When you do want control, it runs on 3, 12 or 28 DMX channels over 3-pin XLR, responds to the optional IRC-6 remote, and includes sound-activated and automated programs for hands-off operation. Strobe rate reaches 20 Hz.

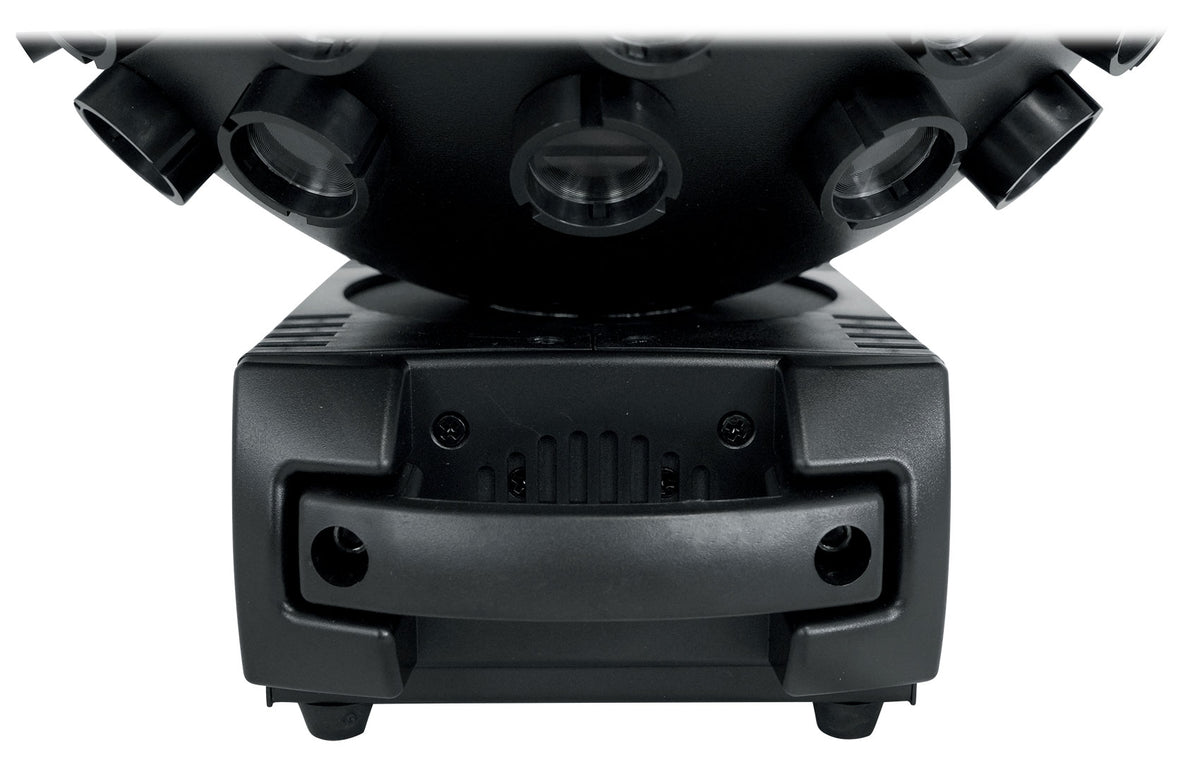

The included bracket mounts the unit to truss, or you can stand it on a table or riser as a room centerpiece. Power linking connects multiple units on one circuit, cutting the extension cord count on a multi-fixture setup. Power draw is 75 W at 120 V.
At 9 lb it is manageable for a one-person load-in. Well suited to mobile DJs, wedding receptions, bars, roller rinks and event spaces that want a classic mirror ball look with modern color control.
Features
-
Classic Effect, Modern Color
Ten LEDs split between RGBW and CMYO quad-color sets produce color combinations, including deep cyan and magenta, that a standard mirror ball cannot.
-

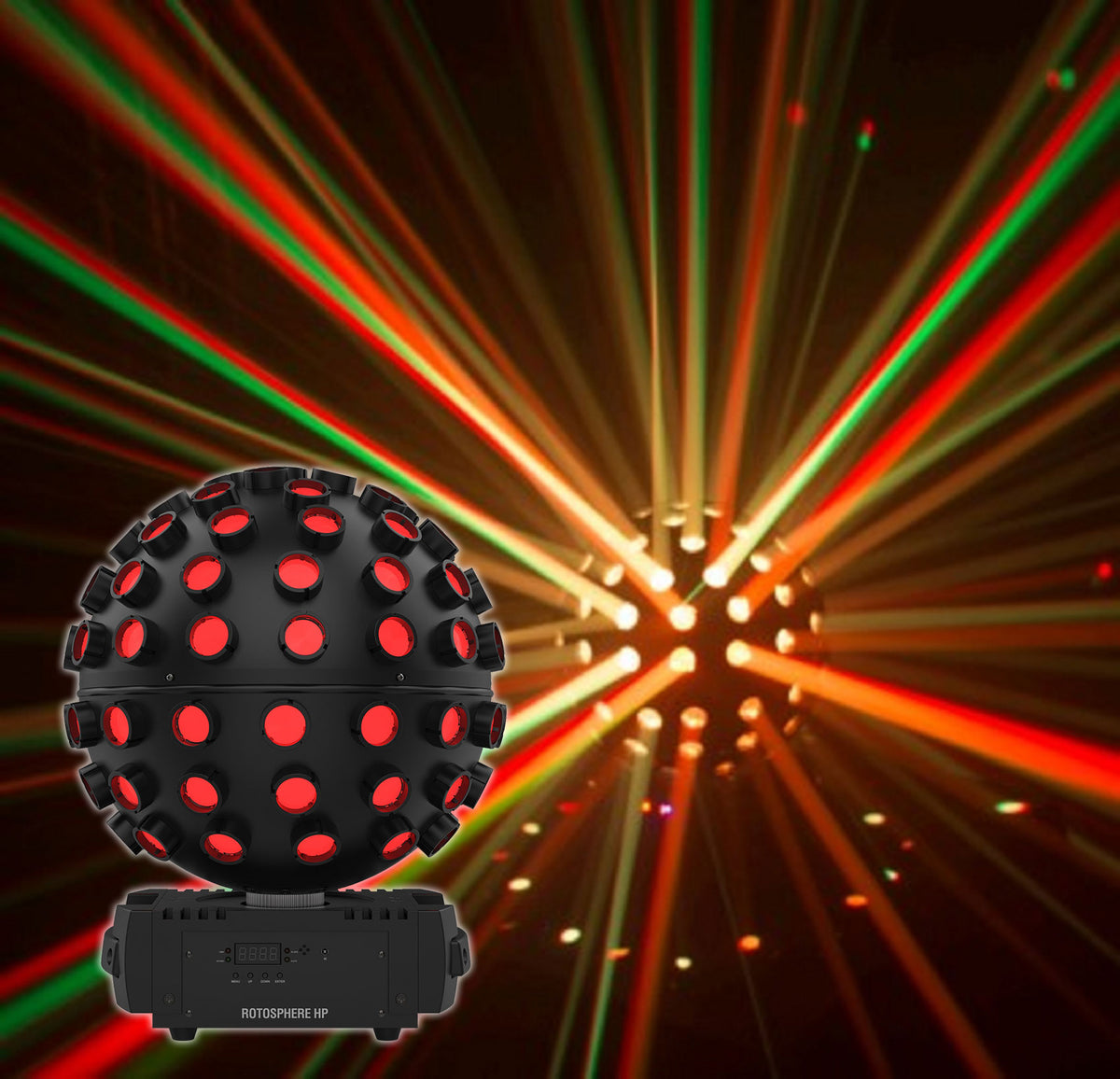

Full-Room Beam Spread
A 360° coverage angle sends rotating beams across walls, ceiling and floor, so one fixture fills a dance floor from a center truss point.
-
Pace It to the Moment
Rotation adjusts from 2 to 19 rpm, letting the beams crawl during a first dance and then pick up speed when the floor gets busy.
-
Standalone Operation
The digital display sets color and rotation speed directly on the fixture, so it works as a centerpiece with no console or DMX line attached.
-
Faster Multi-Unit Setup
Power linking chains several units on one circuit, cutting the number of extension cords you run and the time spent dressing cable.
Technical Specifications
- Product Type LED Mirror Ball Simulator
- Light Source 10 LEDs (5 RGBW + 5 CMYO), 7 W, 50,000-hour life expectancy
- Coverage Angle 360°
- Rotation Speed 2 to 19 rpm
- Strobe Rate 0 to 20 Hz
- DMX Channels 3, 12 or 28
- DMX Connectors 3-pin XLR
- Input Voltage 100 to 240 VAC, 50/60 Hz
- Power and Current (120 V) 75 W, 0.9 A @ 120 V, 60 Hz
- Power and Current (230 V) 73 W, 0.6 A @ 230 V, 50 Hz
- Cable Length 5 ft (1.5 m)
- Bracket Mounting Hole 13 mm
- Optional Controllers IRC-6
- Approvals CE, RoHS, UKCA
- Weight 9 lb (4.0 kg)
- Dimensions 11 x 13 x 17 in (266 x 319 x 419 mm)
