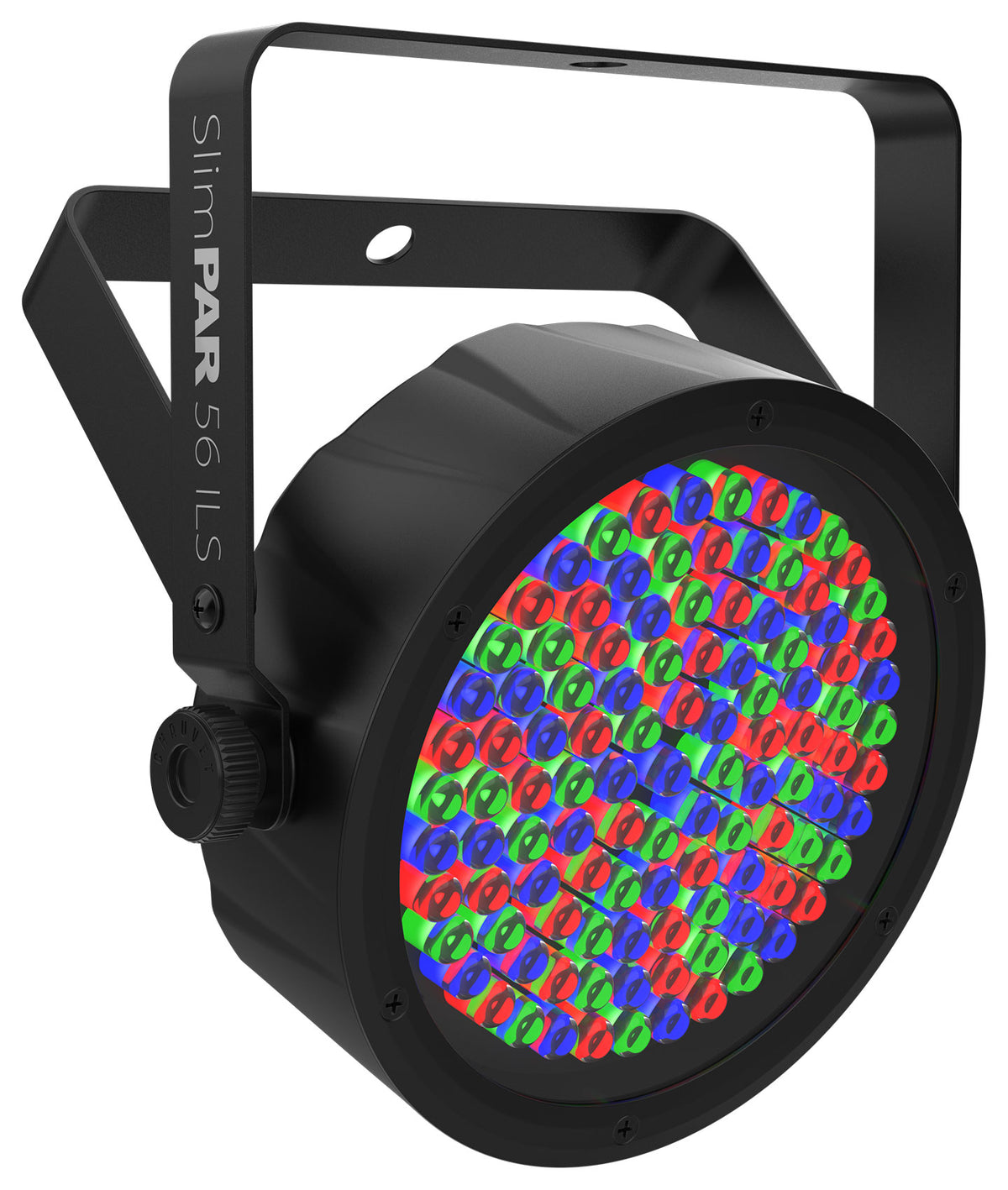

Chauvet DJ SLIMPAR 56 ILS DMX RGB LED Par Wash Up-Light
Chauvet DJ

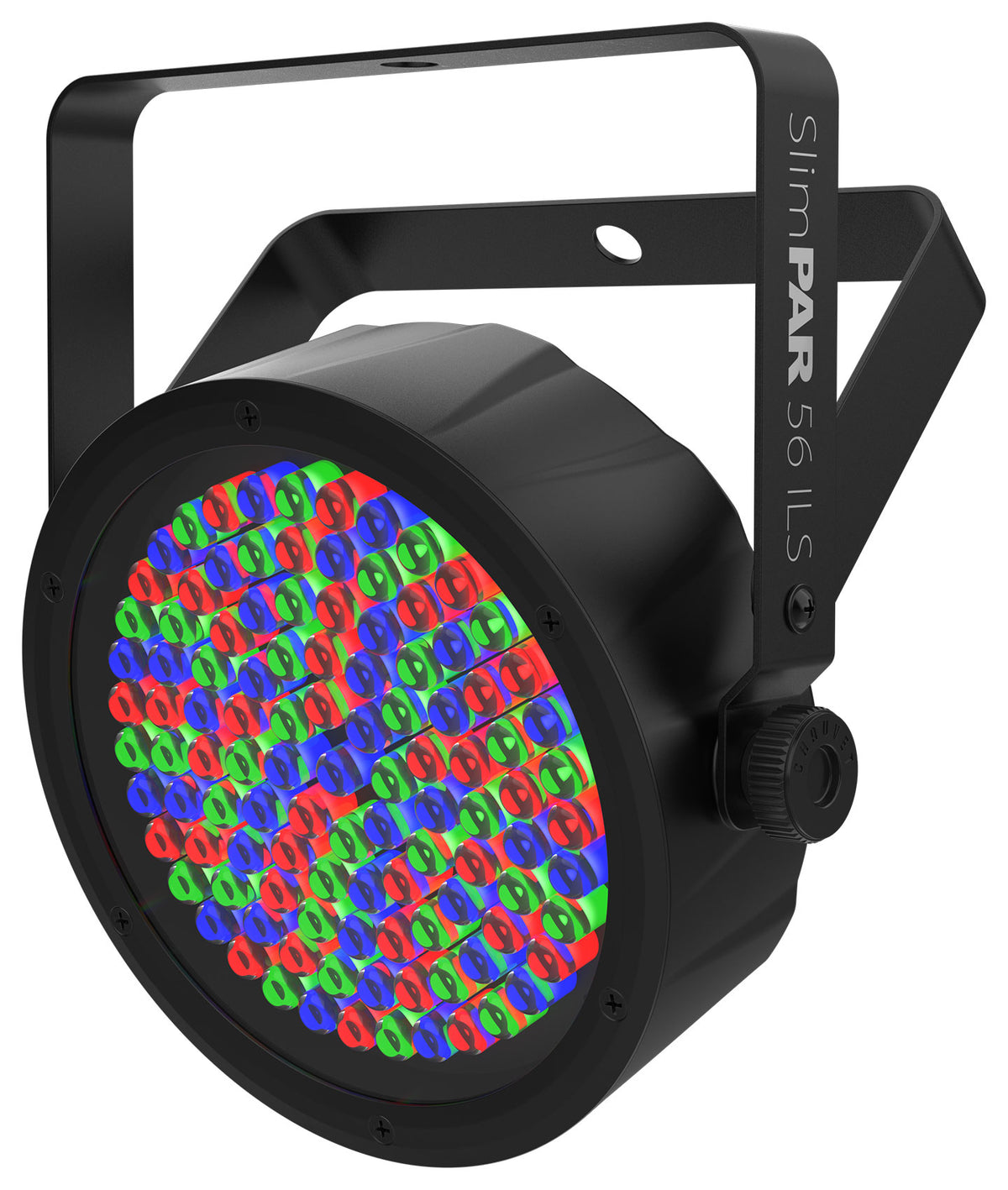

Chauvet DJ SLIMPAR 56 ILS DMX RGB LED Par Wash Up-Light
Chauvet DJ SLIMPAR 56 ILS DMX RGB LED Par Wash Up-Light
Compact RGB LED Wash Par, 108 LEDs, 11W Draw, On-Fixture Color Mixing, Power Cord Included
Free Shipping
Features

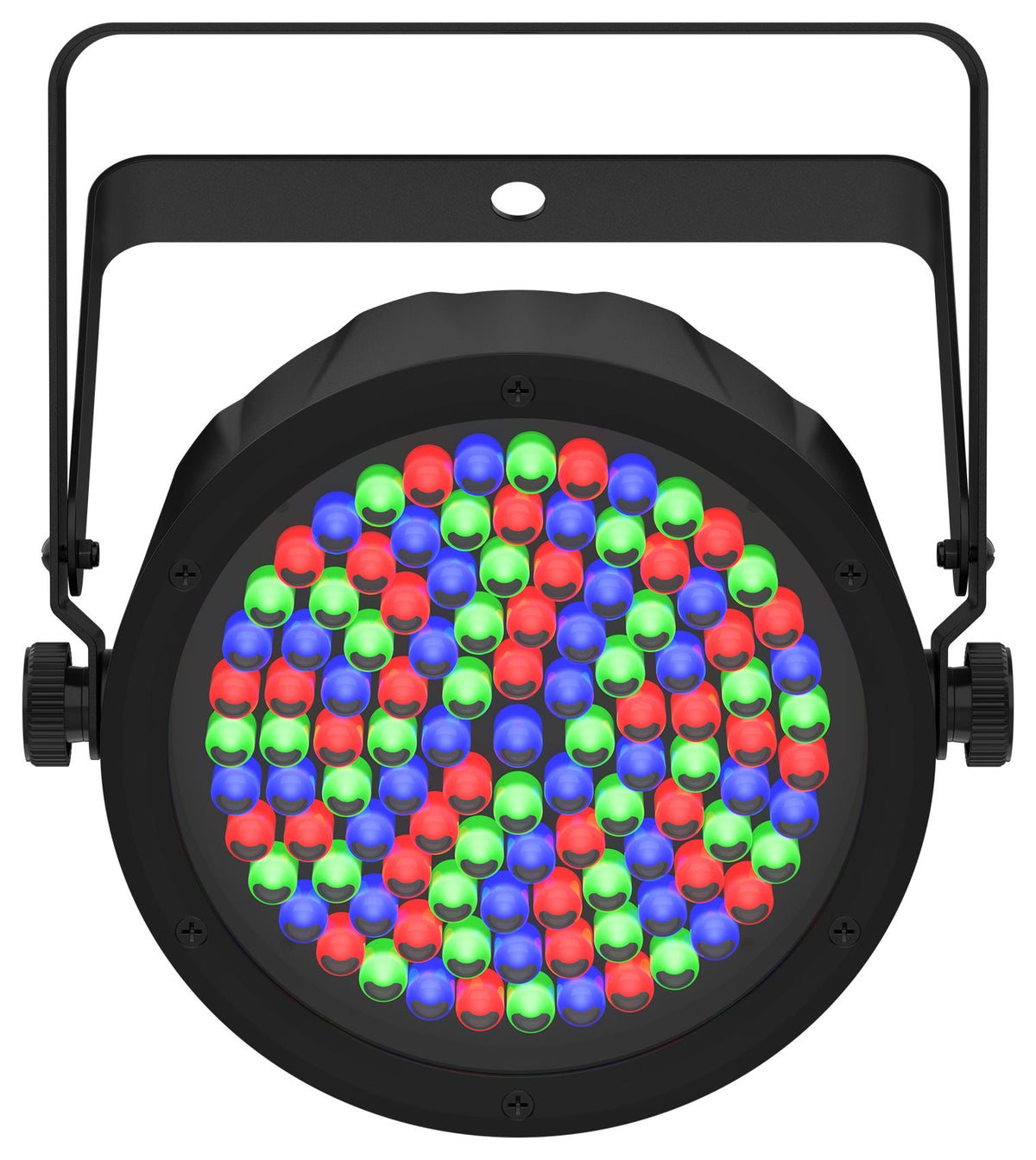

- 108 LEDs, 36 each of red, green and blue, for an even color field
- Draws only 11 W, allowing 50 linked fixtures on one 120 V circuit
- On-fixture menu gives RGB color mixing without any DMX connected
- ILS compatibility coordinates shows across different fixture types
- Weighs 2.2 lb and is 2.5 in deep to hide behind tables and plants
Couldn't load pickup availability

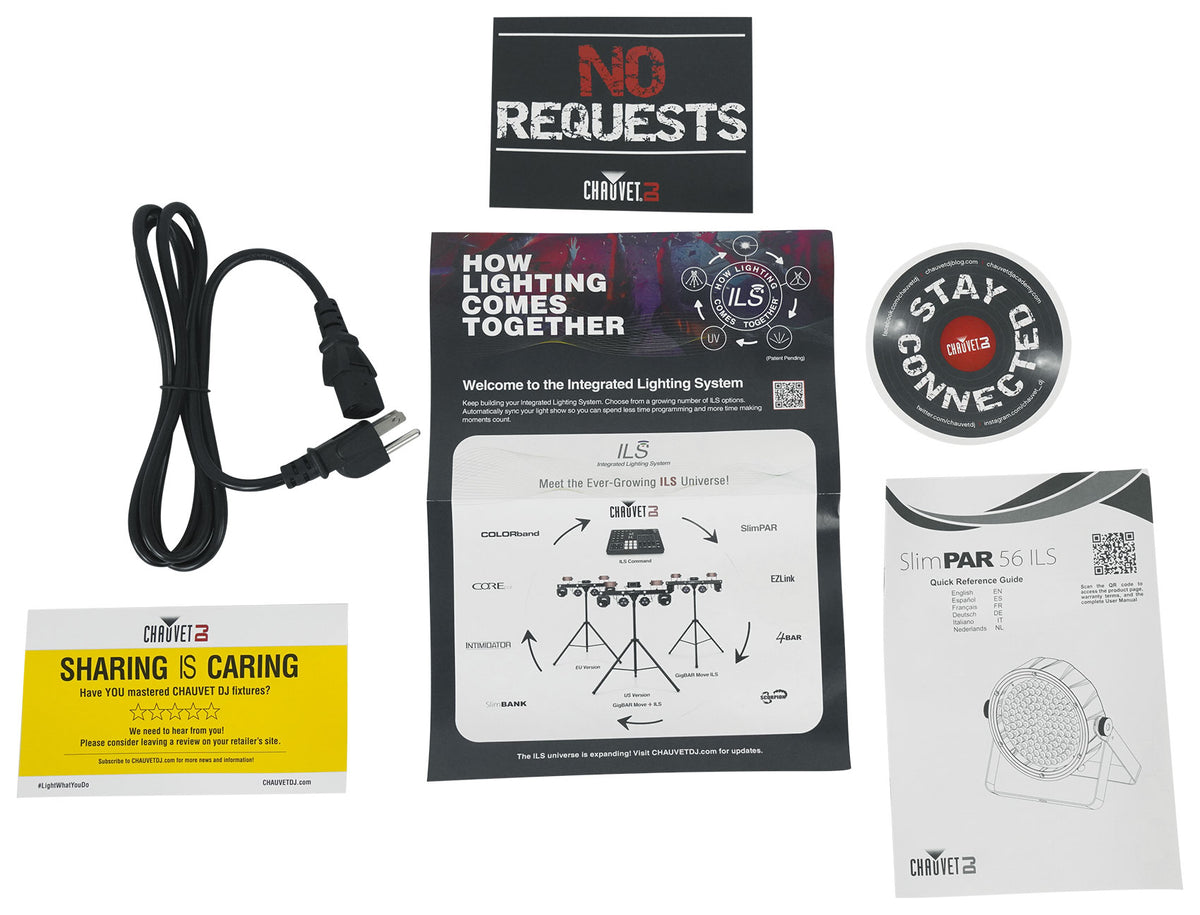

What's Included in the box
- SlimPAR 56 ILS
- Power cord
SKU: SKU: SLIMPAR56ILS U
View full details











Product Description
Power draw is the standout number. At 11 W, you can chain 50 units on a single 120 V circuit or 83 at 230 V. No other approach lets you ring a large venue with color from one or two outlets. For a mobile operator working rooms with limited power, that changes what is possible on a job.
Output is 1,337 lux at 2 m through a 14° beam and 23° field angle, tight enough for clean uplight columns. ILS compatibility coordinates it with other ILS fixture types, and the on-fixture menu gives access to RGB color mixing and static colors without any DMX connected. Automated programs trigger through follower mode or DMX, running on 3 or 7 channels over 3-pin XLR.
At 2.2 lb and 2.5 in deep, it hides behind plants, cocktail tables and set pieces, and it packs into the optional CHS-SP4 VIP Gear Bag in quantity.
A sensible pick for wedding and event uplighting at scale, house of worship stages, school productions, bars and DJ rigs that need color coverage over raw output.
Features
-
Color Coverage at Scale
An 11 W draw lets 50 fixtures run from one 120 V circuit, so you can ring an entire venue in color from a single available outlet.
-
Even Wash Field

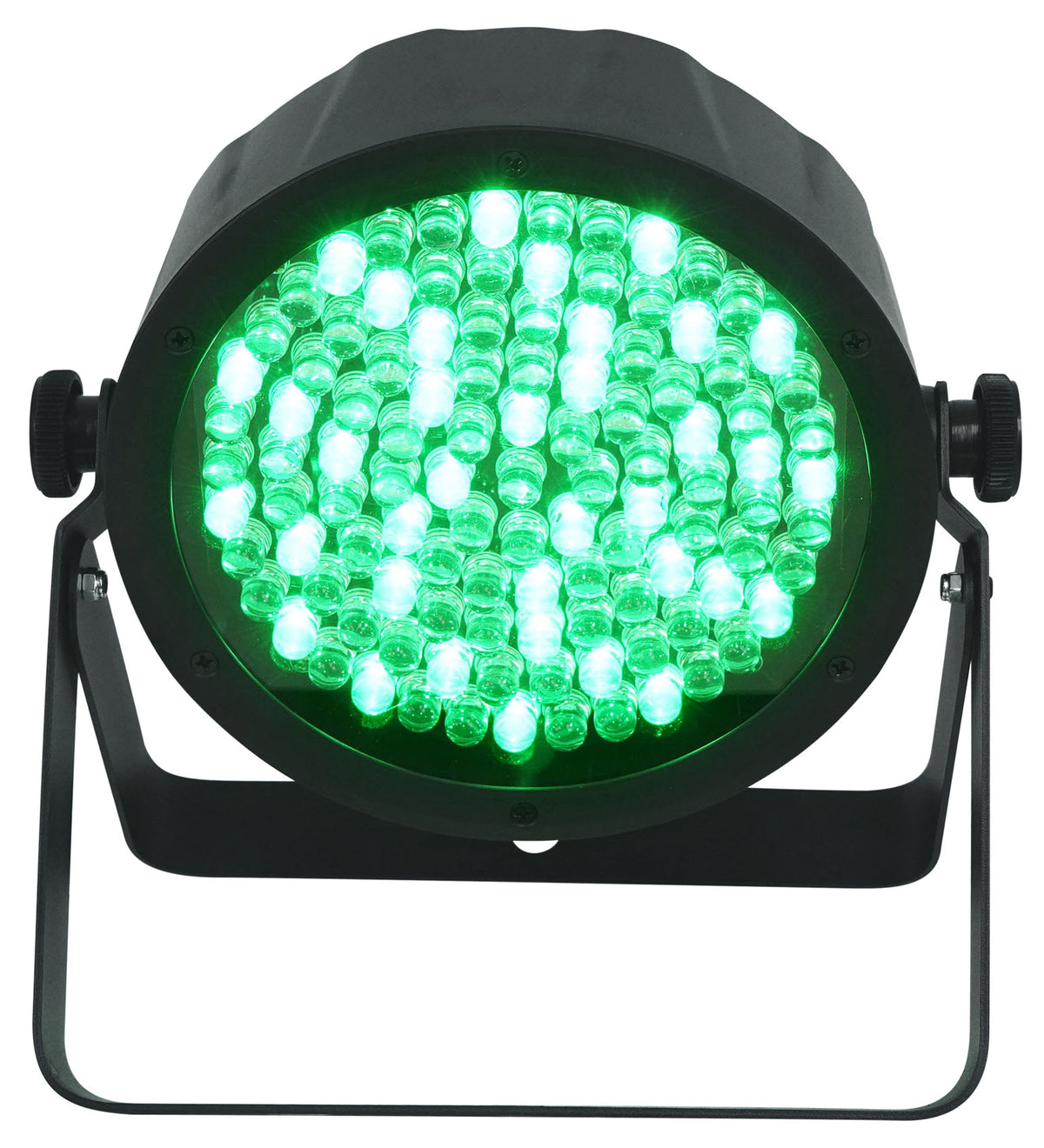

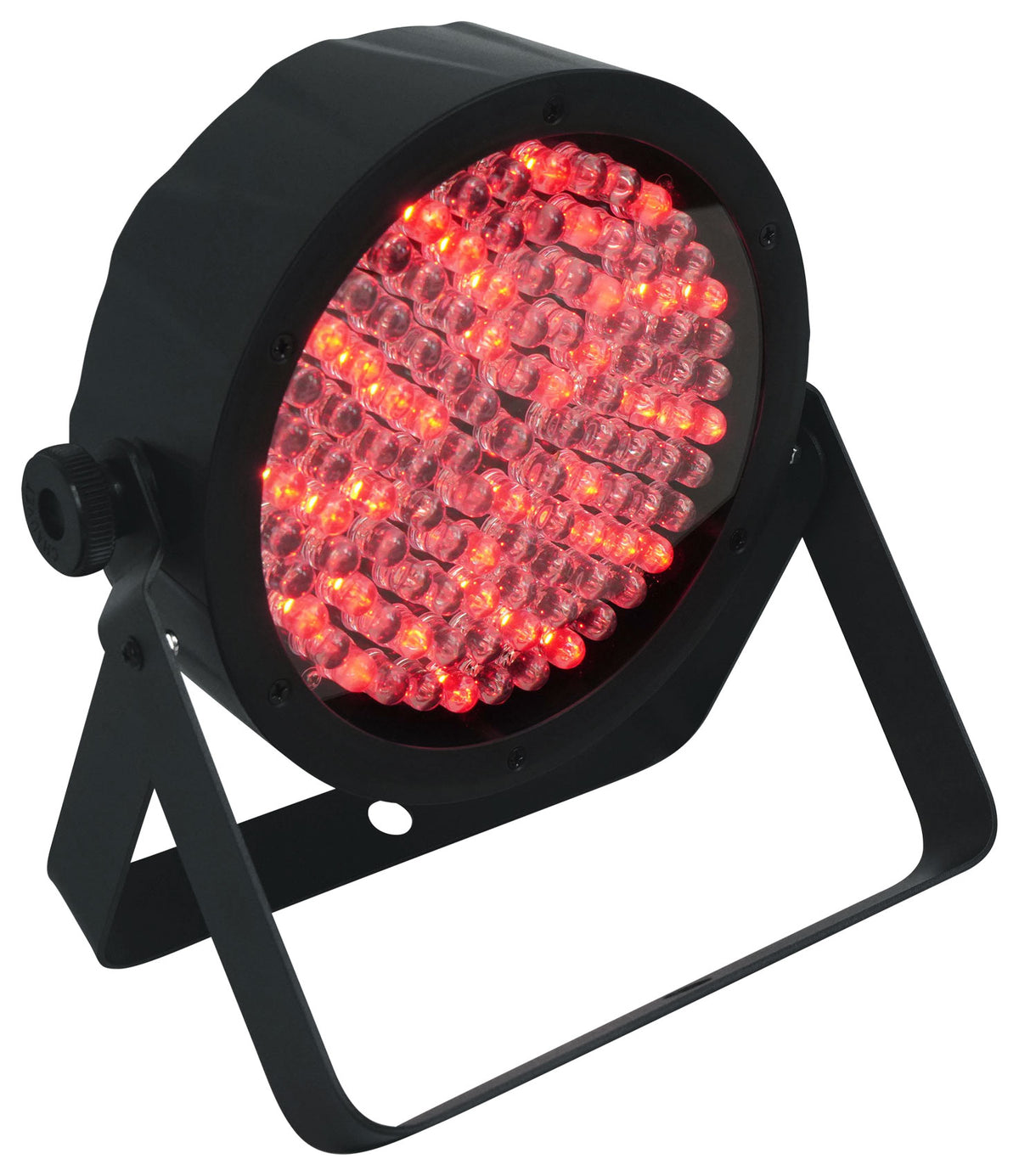

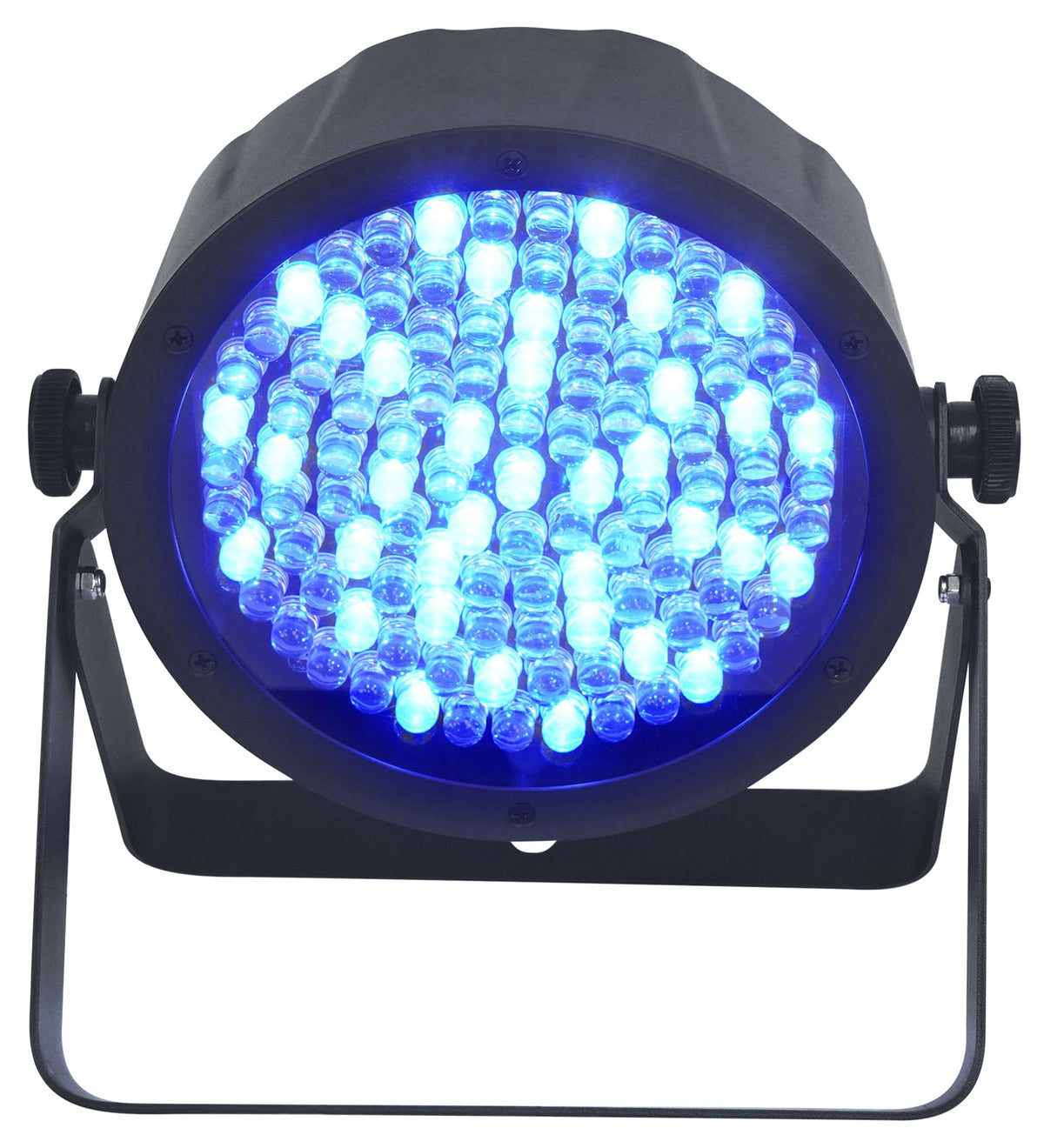

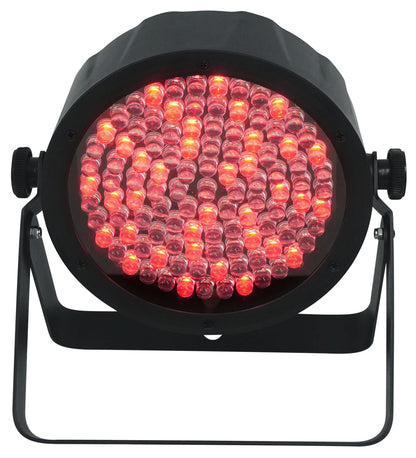

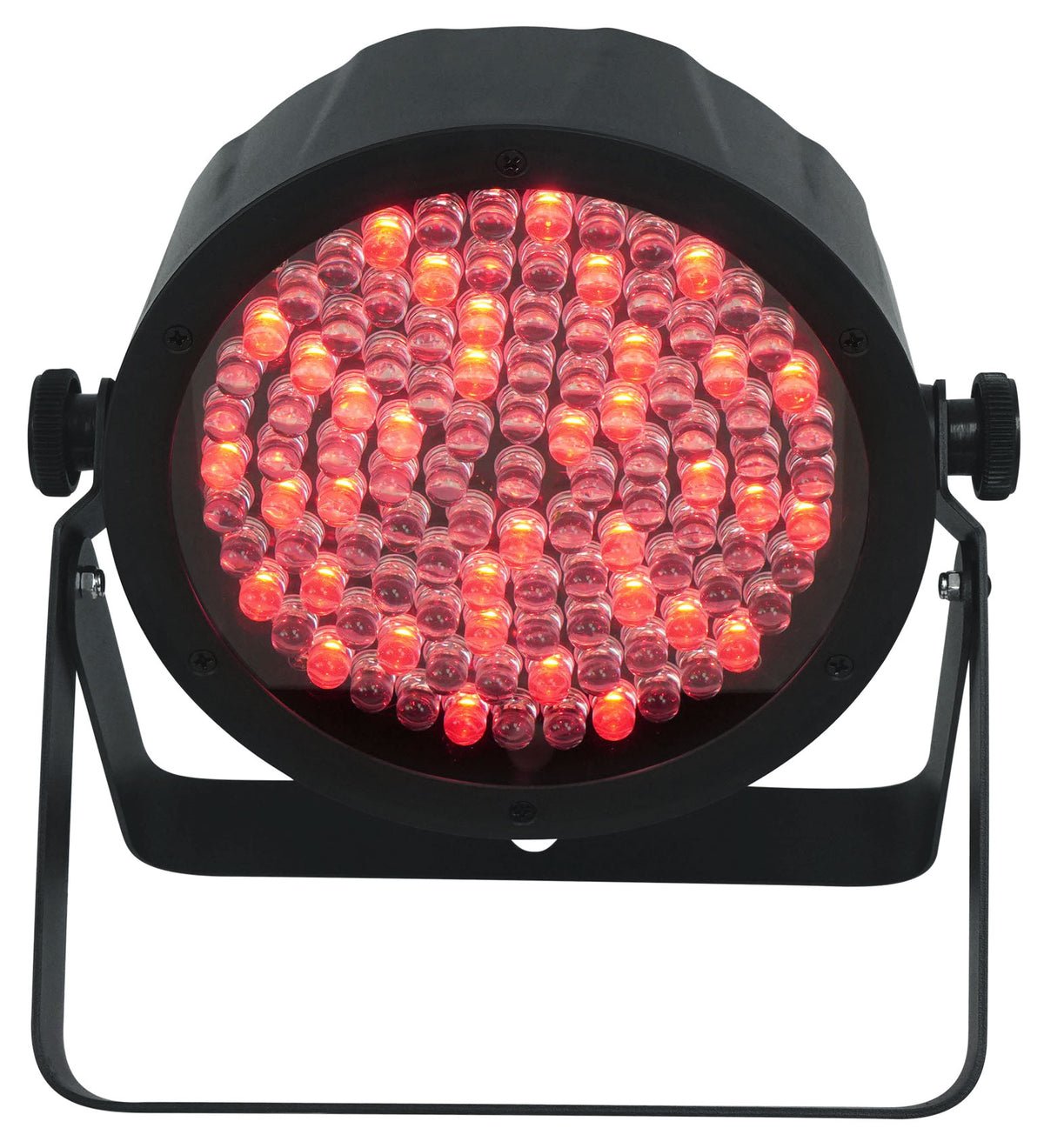

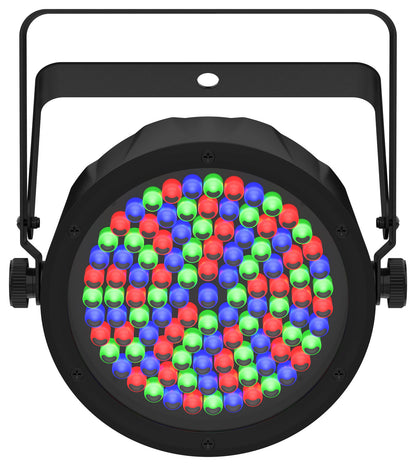

108 individual red, green and blue LEDs spread output across the front lens, giving an even color field even when the par sits close to a wall.
-
No Console Required
The on-fixture menu reaches RGB color mixing and static colors directly, so a small event is set up and running in minutes without DMX.
-
Hides in Plain Sight

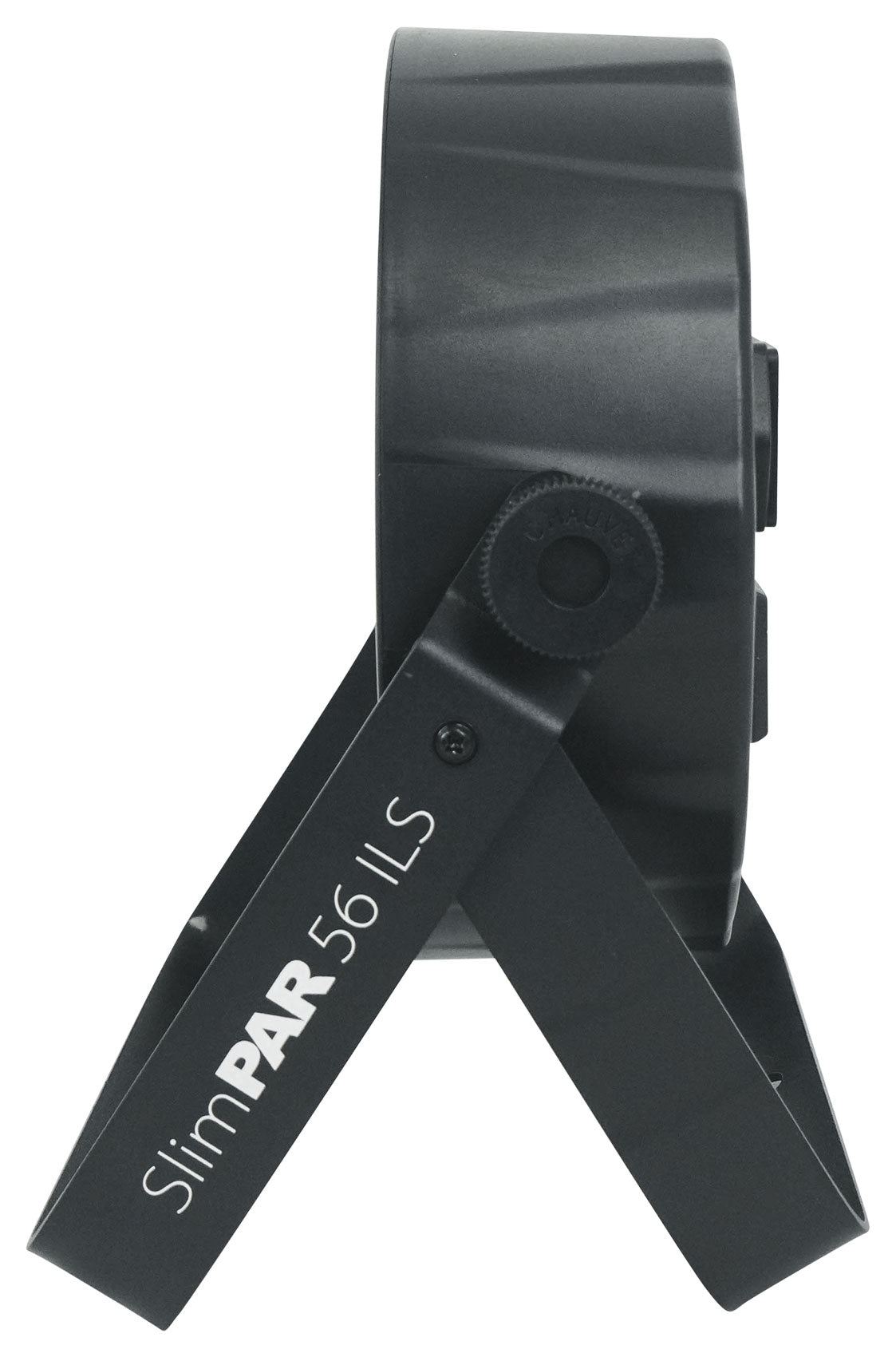

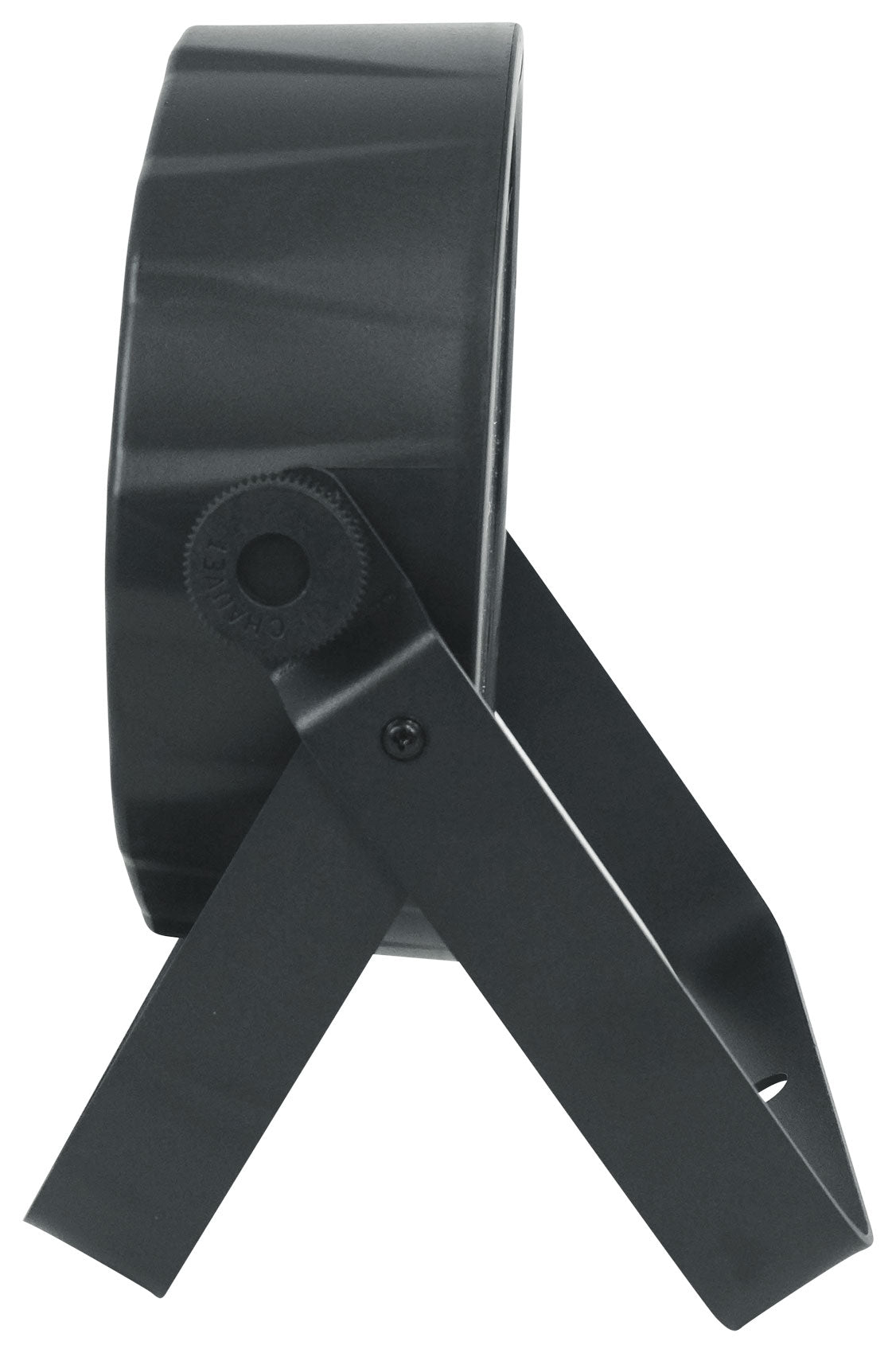

A 2.2 lb body just 2.5 in deep tucks behind cocktail tables, plants and set pieces, keeping the fixture out of photos and sightlines.
-
Coordinated Looks
ILS compatibility links the par with other ILS fixture types, so a mixed rig moves through one show together without cue-by-cue programming.
Technical Specifications
- Product Type LED Wash Par Light
- Light Source 108 LEDs (36 red, 36 green, 36 blue), 0.25 W, 50,000-hour life expectancy
- Illuminance 1,337 lux @ 2 m
- Beam Angle 14°
- Field Angle 23°
- Strobe Rate 0 to 20 Hz
- DMX Channels 3 or 7

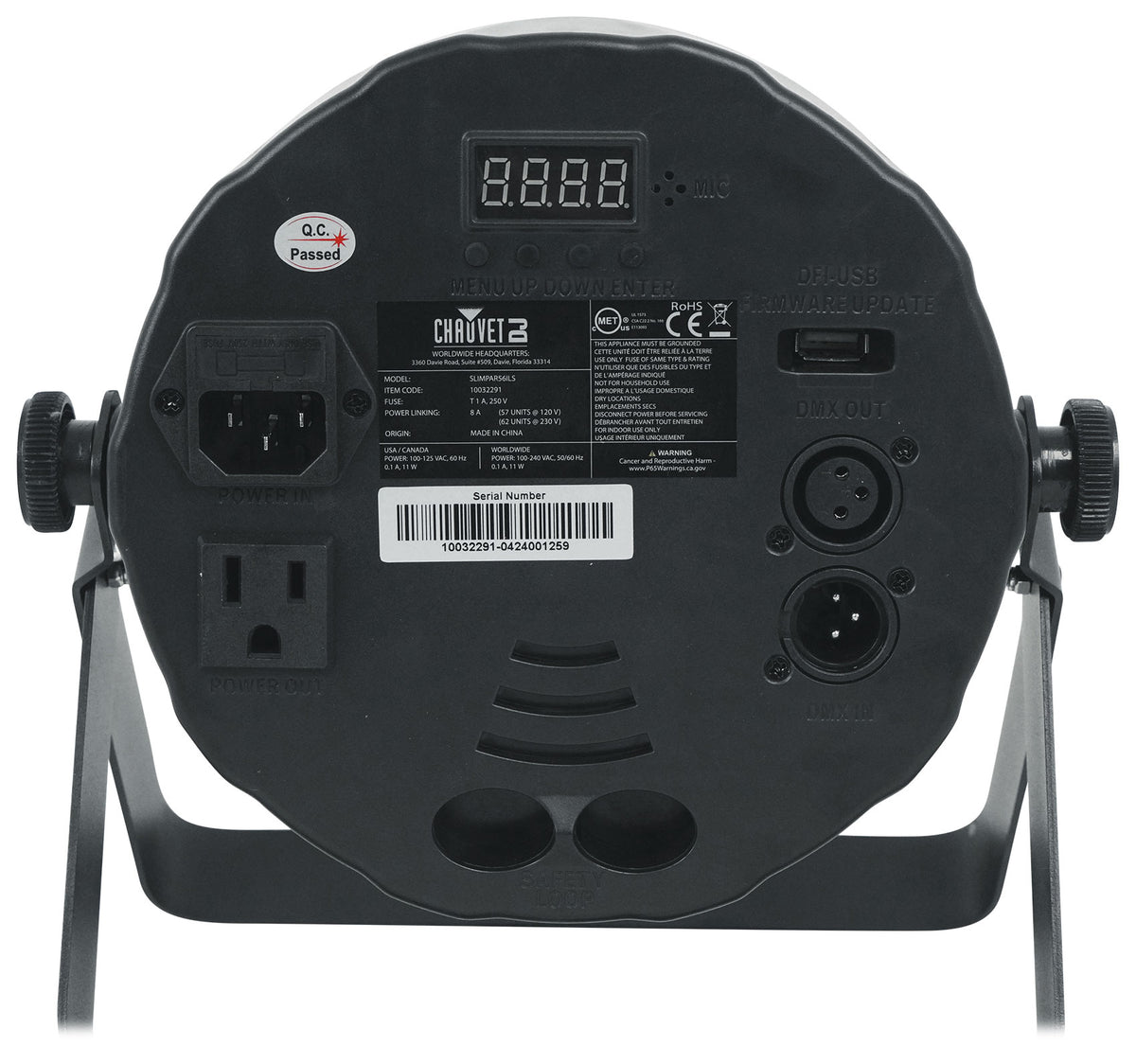

- DMX Connectors 3-pin XLR
- Power Linking 50 units @ 120 V; 83 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current (120 V) 11 W, 0.1 A @ 120 V, 60 Hz
- Power and Current (230 V) 11 W, 0.1 A @ 230 V, 50 Hz
- Rackmount 13 mm
- Approvals CE, RoHS, MET
- Weight 2.2 lb (1 kg)
- Dimensions 9.7 x 11.1 x 2.5 in (246 x 282 x 64 mm)
